LEXUS LS500H 2021 Owner's Guide

30
LS500h_QG_U
■Driving mode
P.45
■Snow mode
Snow mode can be selected to suit the condit ions when driving on slippery road surfaces,
such as on snow.
Turn the snow mode switch backward.
The snow mode indicator illuminates.
Turn the snow mode switch backward again
to return to normal mode.
When the “-” paddle shift switch is operated, the shift range switches to a range that enables
engine braking force that is suit able to driving conditions. When the “+” paddle shift switch is
operated, the shift range switches to a range that is one range higher than the current range.
1Upshifting
2Downshifting
The selected shift range, from D1 to D10,
will be displaye d on the meter.
A lower shift range will provide greater engine braking forces than a higher shift range.
Selecting the driving mode
Selecting shift ranges in the D position
Meter displayFunction
D2 - D10
A gear in the range between D1 and the selected shift range is
automatically chosen depending on vehicle speed and driving conditions
D1Setting the shift range at D1

31
LS500h_QG_U
To enter M mode, shift the shift position to M. Gears can be selected by operating the pad-
dle shift switches, allowing you to drive in the gear of your choosing.
1Upshifting
2Downshifting
The gear changes once every time the pad-
dle shift switch is operated.
The selected gear, from M1 to M10, will be
fixed and displayed on the meter.
Selecting gears in the M position
When in the M position, the g ear will not change unless the paddle shift switches are oper-
ated.
However, even when in the M position, the gears will be automatically changed in the fol-
lowing situations:
● When vehicle speed drops (downshift only).
● When vehicle speed increases (upshift only).
● When the accelerator peda l is firmly depressed.
● When it is necessary to protect the transm ission when the transmission fluid tempera-
ture is high or low, or other reasons.
Also, the gear will not shift when the vehicle speed is low, ev en if an upshift operation is per-
formed.

32
LS500h_QG_U
1Right turn
2Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
3Lane change to the left (move the lever
partway and release it)
The left hand signals will flash 3 times.
4Left turn
Turn Signal Lever

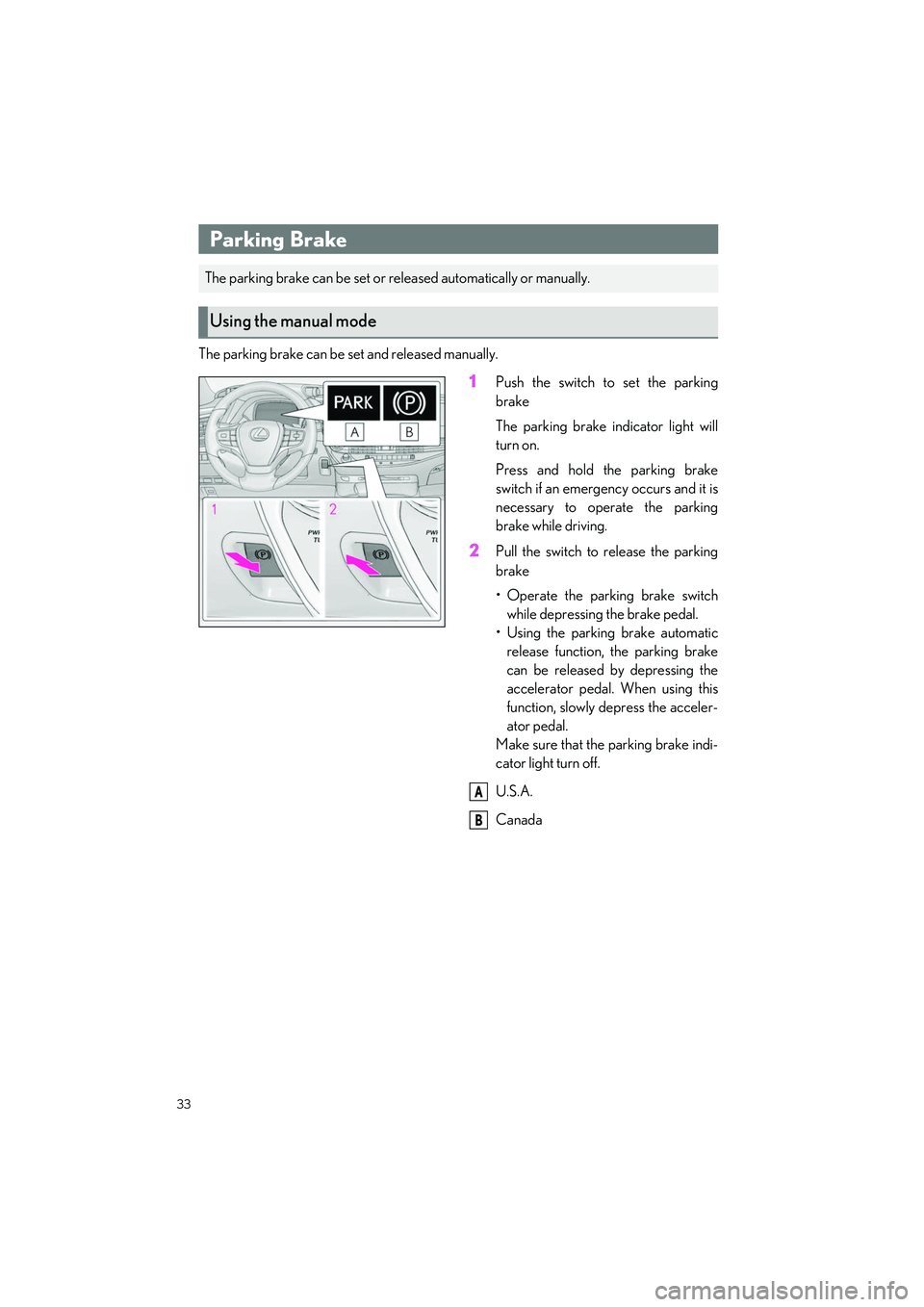

33
LS500h_QG_U
The parking brake can be set and released manually.
1Push the switch to set the parking
brake
The parking brake indicator light will
turn on.
Press and hold the parking brake
switch if an emergency occurs and it is
necessary to operate the parking
brake while driving.
2Pull the switch to release the parking
brake
• Operate the parking brake switchwhile depressing the brake pedal.
• Using the parking brake automatic release function, the parking brake
can be released by depressing the
accelerator pedal. When using this
function, slowly depress the acceler-
ator pedal.
Make sure that the parking brake indi-
cator light turn off.
U.S.A.
Canada
Parking Brake
The parking brake can be set or released automatically or manually.
Using the manual mode
A
B

34
LS500h_QG_U
In automatic mode, the parking brake can be set or released automatically according to the
shift lever operation. Al so, even in automatic mode, the pa rking brake can be set or released
manually.
While the vehicle is stopped, press and hold
the parking brake switch until a message is
shown on the multi-information display.
When the automatic mode is turned on, the
parking brake operates as follows.
● When the shift position is shifted from P,
the parking brake will be released, and
the parking brake indi cator light will turn
off.
● When the shift position is shifted to P, the
parking brake will be set, and the park-
ing brake indicator light will turn on.
Operate the shift lever and P position switch with the vehicle stopped and the brake pedal
depressed.
While the vehicle is stopped, pull and hold
the parking brake switch until a message is
shown on the multi-information display.
Turns automatic mode on
Turns automatic mode off

35
LS500h_QG_U
Turns the brake hold system on
The brake hold standby indicator (green) comes on. While the system is holding
the brakes, the brake hold operated indica-
tor (yellow) comes on.
Brake Hold
The brake hold system keeps the brake applied when the shift position is in D, M or N with
the system on and the brake pedal has been depressed to stop the vehicle. The system
releases the brake when the accelerator pedal is depressed with the shift position in D or
M to allow smooth start off.
A
B

36
LS500h_QG_U
■Display
By selecting menu icons on the multi-infor-
mation display, a variety of driving-related
information can be di splayed. The multi-
information display ca n also be used to
change display settings and other vehicle
settings.
Warning or suggestion/advice pop-up dis-
plays are also displayed in certain situations.
■Menu icons
Multi-information Display
Display and menu icons
Driving information display
Navigation system-linked display (if equipped)
Audio system-linked display
Driving support system information display
Warning message display
Settings display
If a problem is detected in any of the vehicl e’s systems, a warning message is shown on the
multi-information display.

37
LS500h_QG_U
/ : Select menu icons
/ : Change displayed content,
scroll up/down the screen and move
the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Call sending/receiving and history dis-
play
Changing the meter display
A
B
C
D

38
LS500h_QG_U
Navigation system-linked display area (if equipped)
Driving support system display area
Speed limit/RSA (Road Sign Assist) display area (if equipped)
Outside temperature display area
Driving information display area
Hybrid System Indicator/tachometer display area
HUD (Head-up display) switch
Head-up Display (if equipped)
The head-up display projects a variety of driving-related information and the operating
state of the driving support systems on the windshield.
System components
A
B
C
D
E
F
G

39
LS500h_QG_U
Pressing the switch turns the head-up dis-
play on/off.
Using the head-up display
The head-up display may seem dark or hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
