60
LS500h_QG_U
Select “Answer” or press the switch on the steering wheel to talk on the phone.
“Decline”: Select to refuse to receive the call.Volume control switch
• Press the “+” side to increase the vol-ume.
• Press the “-” side to decrease the vol- ume.
Talk switch
• Press the talk switch to start the voice command system.
• To cancel voice recognition, press and hold the talk switch.
TEL switch
• Placing a call
• Ending a call
• Receiving a call
• Depending on the system, if the switch is pressed when an Apple
CarPlay connection is established,
the Apple CarPlay phone application
will be displayed on the system
screen.
*
*
: This function is not available in some
countries or areas.
Receiving a call
 Main display Side display
Steering switches
A
B
C

61
LS500h_QG_U
Follow the procedure below to display the audio control screen.
 Using the audio control switch
Press the “RADIO” or “MEDIA” button.
 Using the Remote Touch
Press the “MENU” button on the Re mote Touch, then select “Audio”.
Please refer to P.47 for the Remote Touch operation.
 Using the audio control switch
1Press the “RADIO” or “MEDIA” but-
ton.
“RADIO” button: Press to change
radio modes.
“MEDIA” button: Press to change
media modes.
●Each time the “RADIO” or
“MEDIA” button is pressed, the
audio source changes.
 From the audio source selection screen
1Display the audio control screen.
2Select “Source” on the sub menu.
3Select the desired source.
Audio System
Audio control screen
Selecting an audio source

62
LS500h_QG_U

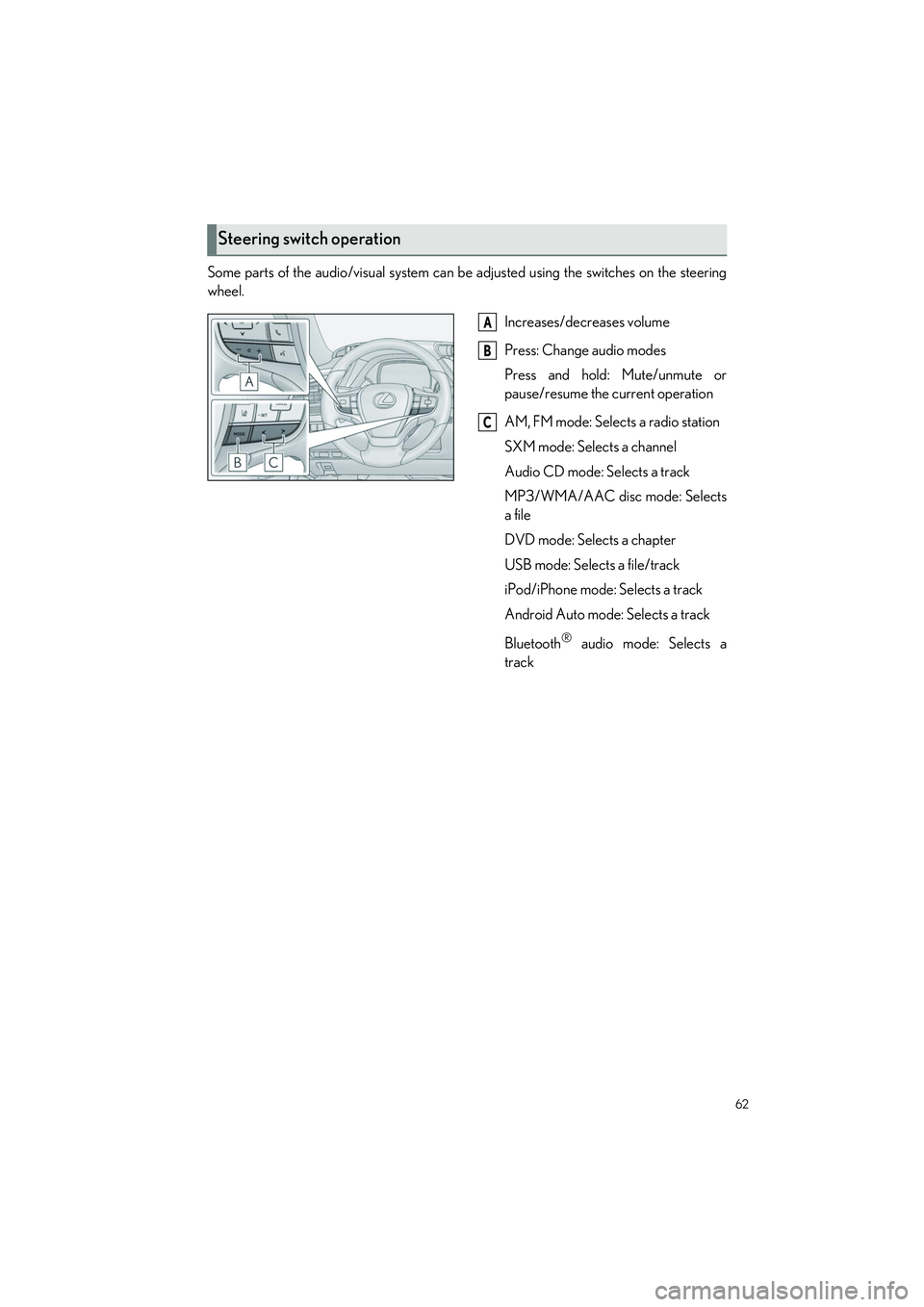

Some parts of the audio/visual system can be adjusted using the switches on the steering
wheel.
Increases/decreases volume
Press: Change audio modes
Press and hold: Mute/unmute or
pause/resume the current operation
AM, FM mode: Selects a radio station
SXM mode: Selects a channel
Audio CD mode: Selects a track
MP3/WMA/AAC disc mode: Selects
a file
DVD mode: Selects a chapter
USB mode: Selects a file/track
iPod/iPhone mode: Selects a track
Android Auto mode: Selects a track
Bluetooth
® audio mode: Selects a
track
Steering switch operation
A
B
C

63
LS500h_QG_U
■Audio control switch
Turn to step up/down frequencies/
channels.
Press to seek up/down.
Press and hold for continuous seek.
■Control screen
Displays cover art
Select to display HD) multicast chan-
nels available
Displays the artist info and song title or
album and genre
Select to tune to preset stations/chan-
nels
Display items on the channels regis-
tered to smart favorites
■Presetting a station
1
Tune in the desired station.
2Select and hold “(Hold Edit)”.
Radio
A
B
A
B
C
D
E

64
LS500h_QG_U
■Audio control switch
Turn to select a track/file.
Press to select a track/file.
Press and hold to fast forward/rewind.
■Control screen
Audio CD
Displays cover art
Select to set repeat playback
Select to change the track.
Select and hold to fast rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast forward.
Select to set random playback
 MP3/WMA/AAC disc
Displays cover art
Select to change the folder
Select to set repeat playback
Select to change the file.
Select and hold to fast rewind.
Select to play/pause.
Select to change the file.
Select and hold to fast forward.
Select to set random playback
CD
A
B
A
B
C
D
E
F
A
B
C
D
E
F
G

65
LS500h_QG_U
■Audio control switch
Turn to select a chapter.
Press to select a chapter.
Press and hold to fast forward/rewind.
■Control screen
Select to display the menu control key
Select to display the menu screen
Select to change the chapter.
Select and hold to fast rewind.
Select to stop the video screen.
Select to play/pause.
Select to change the chapter.
• During playback: Select and hold to
fast forward.
• During a pause: Select and hold to slow forward.
Select to display expanded screen
video
DVD
A
B
A
B
C
D
E
F
G

66
LS500h_QG_U
Apple CarPlay is not available in some countries or areas.
■Audio control switch
Turn to select a track.
Press to select a track.
Press and hold to fast forward/rewind.
■Control screen
Displays cover art
Select to change the artist.
*
Select to change the album.*
Select to change the playlist.*
Select to set repeat playback.
Select to change the track.
Select and hold to fast rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast forward.
Select to set random playback.
*: When an Apple CarPlay connection is
established, this switch will not be dis-
played.
iPod/iPhone (Apple CarPlay)
A
B
A
B
C
D
E
F
G
H
I

67
LS500h_QG_U

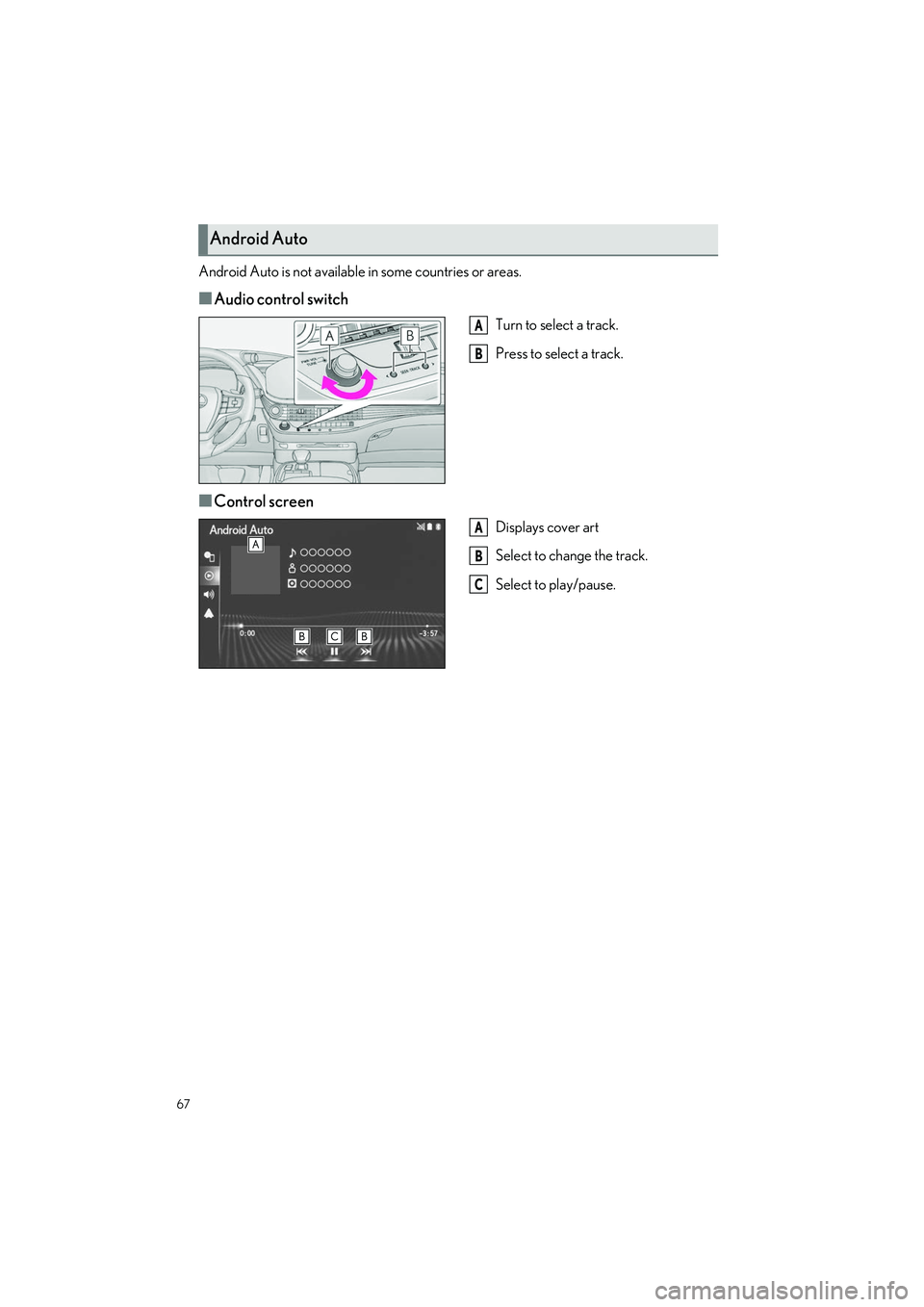

Android Auto is not available in some countries or areas.
■Audio control switch
Turn to select a track.
Press to select a track.
■Control screen
Displays cover art
Select to change the track.
Select to play/pause.
Android Auto
A
B
A
B
C

68
LS500h_QG_U
Press the “MENU” button on the Remote Touch to display the main menu and move the cur-
sor to to display the climate control shortcut buttons. Then, select to display the
Lexus Climate Concierge control screen.
Select
The indicator on the Lexus Climate Con-
cierge control screen illuminates, and the
automatic air conditioning system, seat
heaters and ventilators, and heated steering
wheel operate in automatic mode.
If any of the system is operated manually,
the indicator turns off. However, all other
functions continue to operate in automatic
mode.
Lexus Climate Concierge
The seat heaters, seat ventilators and heated steering wheel (if equipped) are each auto-
matically controlled according to the set temperature of the air conditioning system, the
outside and cabin temperature, etc. Lexus Climate Concierge allows a comfortable con-
dition to be maintained wi thout adjusting each system.
Displaying the Lexus Climate Concierge
Turning on Lexus Climate Concierge

69
LS500h_QG_U
Left-hand side temperature control switch
Operate the temperature control switch upwards to increase the temperature and
downwards to decrease the temperature.
Automatic mode switch
Off switch
Fan speed decreases switch
Fan speed increases switch
Windshield defogger switch
Rear window defogger and outside rear view mirror defoggers switch
Outside/recirculated air mode switch
Right-hand side temperature control switch
Operate the temperature control switch upwards to increase the temperature and
downwards to decrease the temperature.

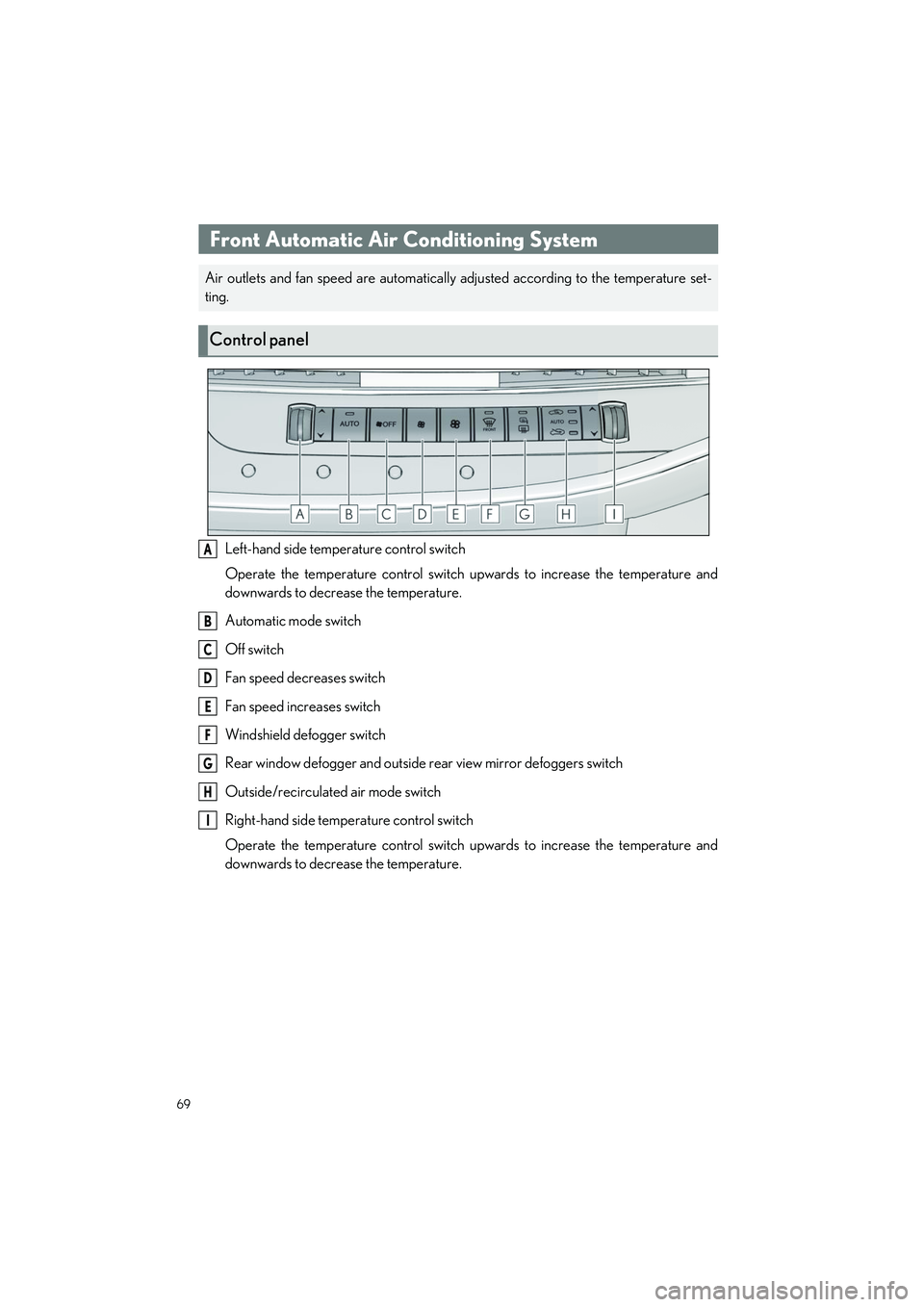

Front Automatic Air Conditioning System
Air outlets and fan speed are automatically adjusted according to the temperature set-
ting.
Control panel
A
B
C
D
E
F
G
H
I
