LEXUS LS600H 2015 Owners Manual

992. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)
When driving mode is in other than sport mode (P. 283)
When driving mode is in sport mode ( P. 283)
The units used on the speedometer and the tachometer may differ depending on
the target region.

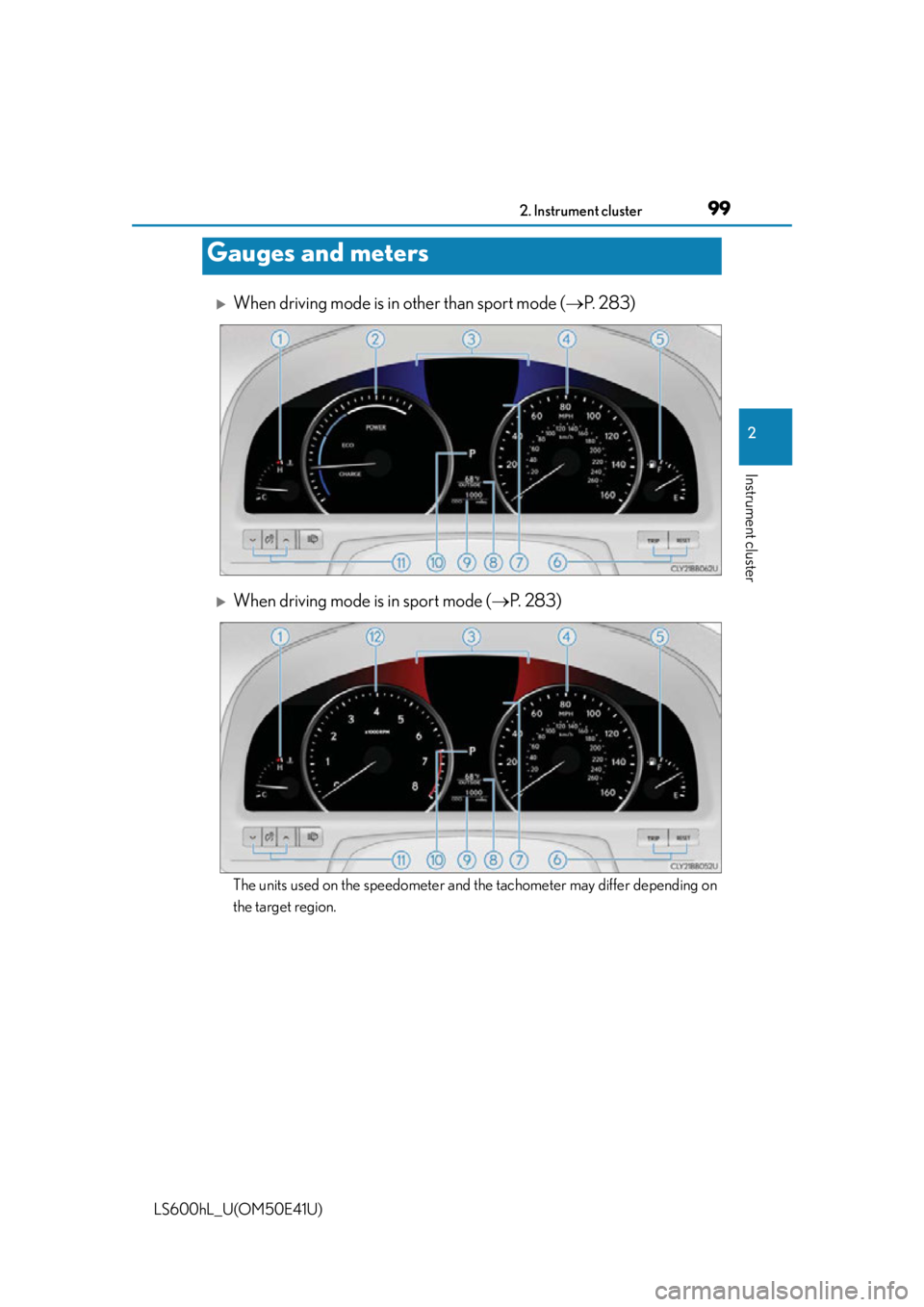

Gauges and meters

1002. Instrument cluster
LS600hL_U(OM50E41U)
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level ( P. 1 0 3 )
ECO lamp and SPORT lamp
Changes colors or brightness according to driving mode or way of driving
( P. 1 0 3 )
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Odometer/trip meter and trip meter reset switches
Multi-information display
Presents the driver with a variety of driving-related data ( P. 105)
Outside Temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Shift position and shift range
Displays the selected shift position or selected shift range ( P. 2 2 3 )
Instrument panel light control switches
Tachometer
Displays the engine speed in revolutions per minute
1
2
3
4
5
6
7
8
9
10
11
12

1012. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)
Switches the display
Resets the trip meter currently
displayed to “0”
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
Changing the odometer and trip meter display
Ty p e A
Ty p e B1
2
Instrument panel light control
1
2

1022. Instrument cluster
LS600hL_U(OM50E41U)
■The meters and display illuminate when
The power switch is in ON mode.
■Instrument panel brightness adjustment
●Meters:
The brightness level of the meters when the surroundings are bright (day mode)
and dark (night mode) can be adjusted in dividually. However, when in day mode,
adjusting the brightness level will also ch ange the brightness level of night mode.
●Clock, air conditioning temperature display and switch lights:
The brightness level of the clock, air conditioning temperature display and switch
lights are linked with the brightness level of meter night mode.
■Light dimmer control (Changing to night mode)
The brightness level of the meter, clock and air conditioning temperature display
lights will change to night mode only wh en the surroundings are dark and the tail
lights are on.
■Automatic adjustment of the brightness level of the meters
The brightness level of the meters will be adjusted automatically according to the
brightness of the surroundings detected by the light sensor. However, the brightness
level of the meters will not be adjusted automatically in the following conditions.
●Day mode: When the brightness of the meter is adjusted to the brightest manually
●Night mode: When the brightness of the meter is adjusted to the brightest or dark-
est manually

1032. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)
■Hybrid System Indicator
●Hybrid System Indicator is displayed when the driving mode is other than the sport
mode.
●By keeping the indicator needle within Ec o area, more Eco-friendly driving can be
achieved.
●Charge area indicates regeneration* status. Regenerated energy will be used to
charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into electrical energy.
■ECO lamp and SPORT lamp
●When all of the following conditions are satisfied and Eco-friendly driving is being
performed, ECO lamp (blue) will illuminate. (ECO lamp will become brighter the
more Eco-friendly your driving is. Also, while the vehicle is stopped or the acceler-
ation exceeds Zone of Eco driving, ECO lamp turns off. ( P. 103) However, when
Eco drive mode is selected, while the vehicle is stopped or the acceleration
exceeds Zone of Eco driving, ECO lamp does not turn off.):
• Driving with the shift lever in D.
• Normal mode, comfort mode or Eco dr ive mode is selected, and EV drive
mode and snow mode is not in use.
• The vehicle speed is approximately 80 mph (130 km/h) or below.
●When sport mode is selected, SPORT lamp (red) will illuminate. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
Po w e r a r e a
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
1
2
3
4

1042. Instrument cluster
LS600hL_U(OM50E41U)
■Tachometer
Hybrid System Indicator switches to the tachometer when driving mode is in sport
mode.
■Engine speed
On hybrid vehicles, engine speed is precis ely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehi-
cle operation and driving conditions are the same.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Customization
Settings (e.g. on/off operatio n of ECO lamp) can be changed.
(Customizable features P. 565)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( P. 5 3 0 )

1052. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)

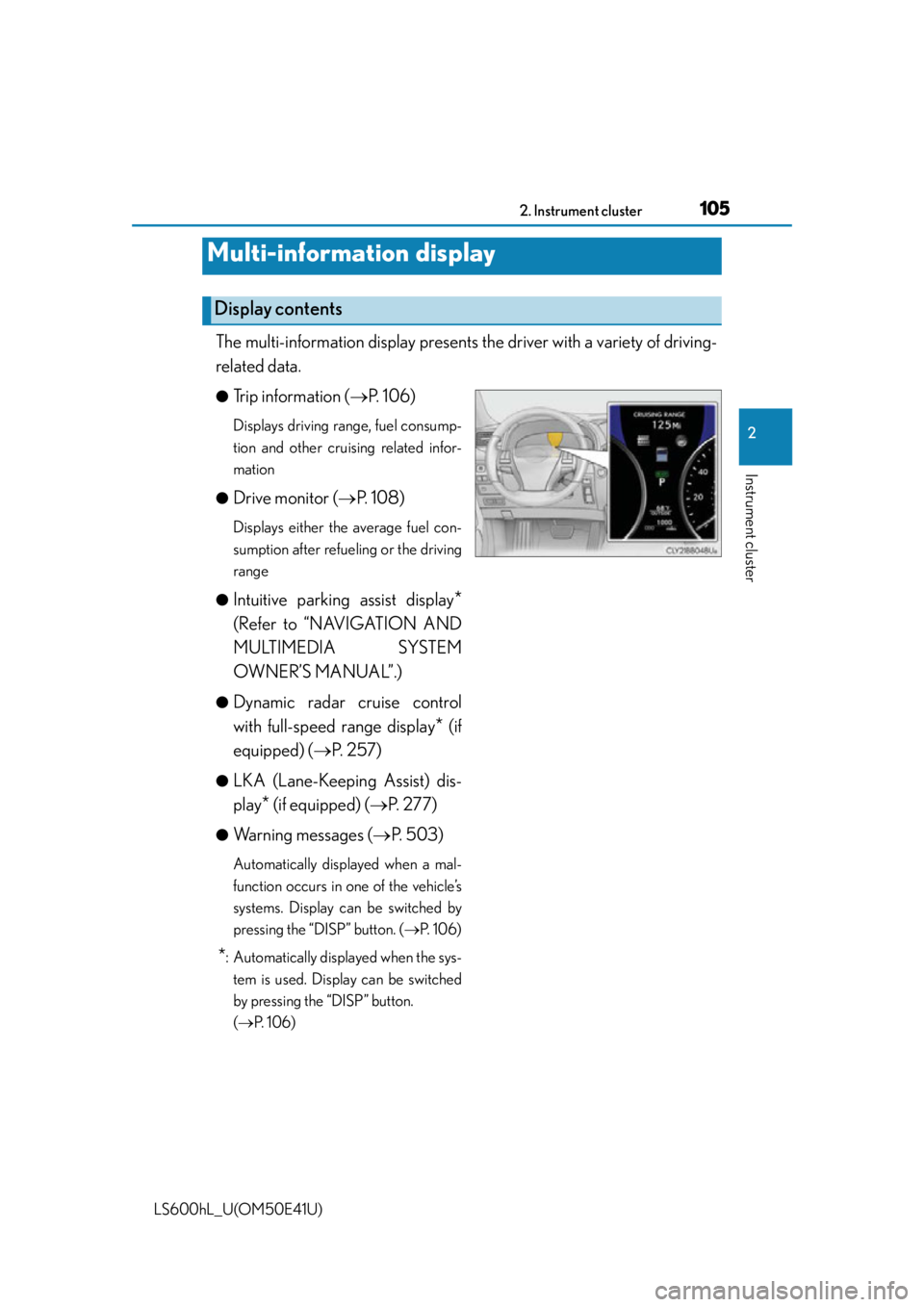

The multi-information display presents the driver with a variety of driving-
related data.
●Trip information ( P. 1 0 6 )
Displays driving range, fuel consump-
tion and other cruising related infor-
mation
●
Drive monitor ( P. 1 0 8 )
Displays either the average fuel con-
sumption after refueling or the driving
range
●
Intuitive parking assist display*
(Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.)
●Dynamic radar cruise control
with full-speed range display
* (if
equipped) ( P. 257)
●LKA (Lane-Keeping Assist) dis-
play
* (if equipped) ( P. 277)
●Warning messages ( P. 503)
Automatically displayed when a mal-
function occurs in one of the vehicle’s
systems. Display can be switched by
pressing the “DISP” button. ( P. 1 0 6 )
*: Automatically displayed when the sys-
tem is used. Display can be switched
by pressing the “DISP” button.
( P. 1 0 6 )
Multi-information display
Display contents

1062. Instrument cluster
LS600hL_U(OM50E41U)

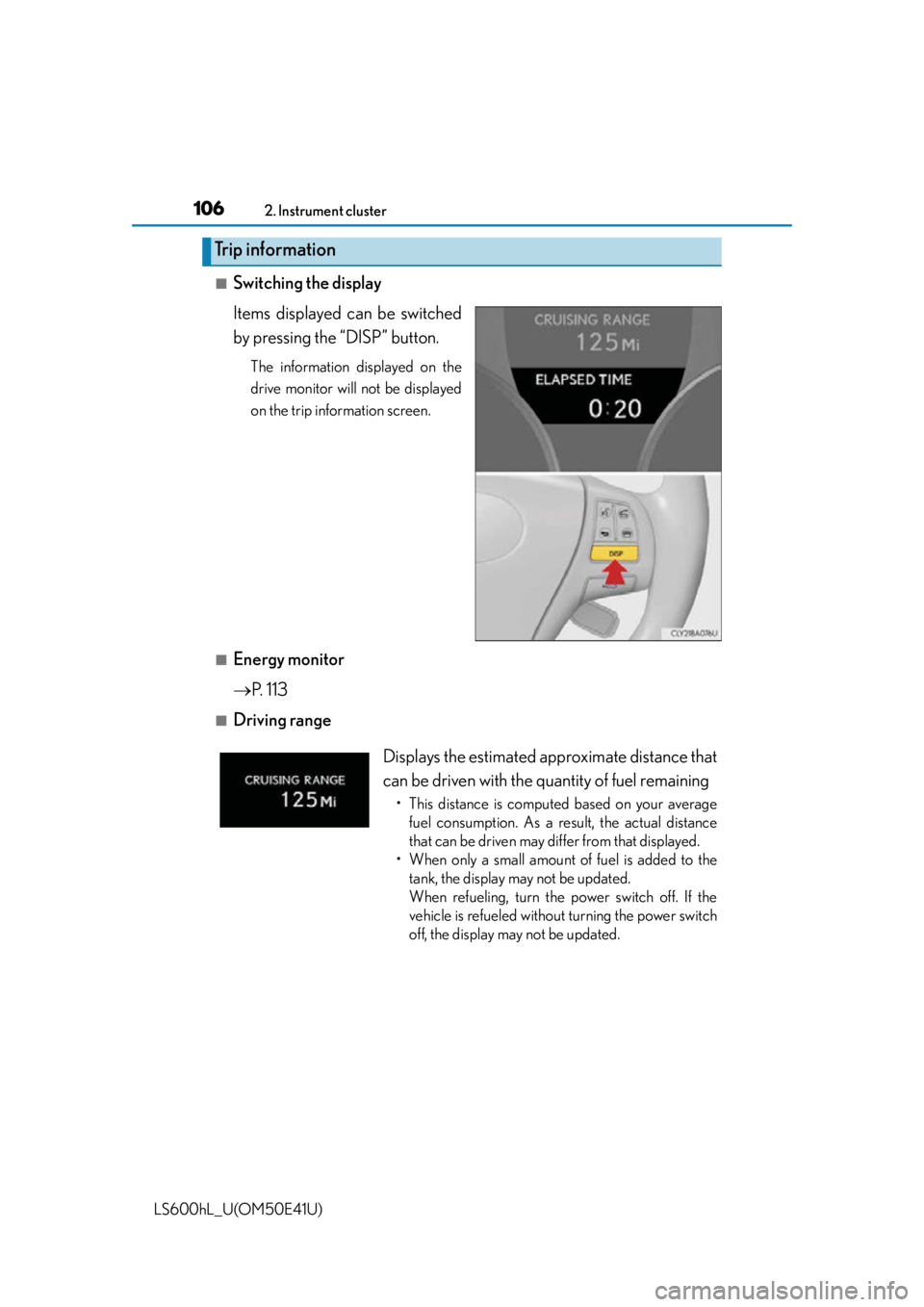

■Switching the display
Items displayed can be switched
by pressing the “DISP” button.
The information displayed on the
drive monitor will not be displayed
on the trip information screen.
■Energy monitor
P. 113
■Driving range
Trip information
Displays the estimated approximate distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may diff er from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the
vehicle is refueled withou t turning the power switch
off, the display may not be updated.

1072. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)

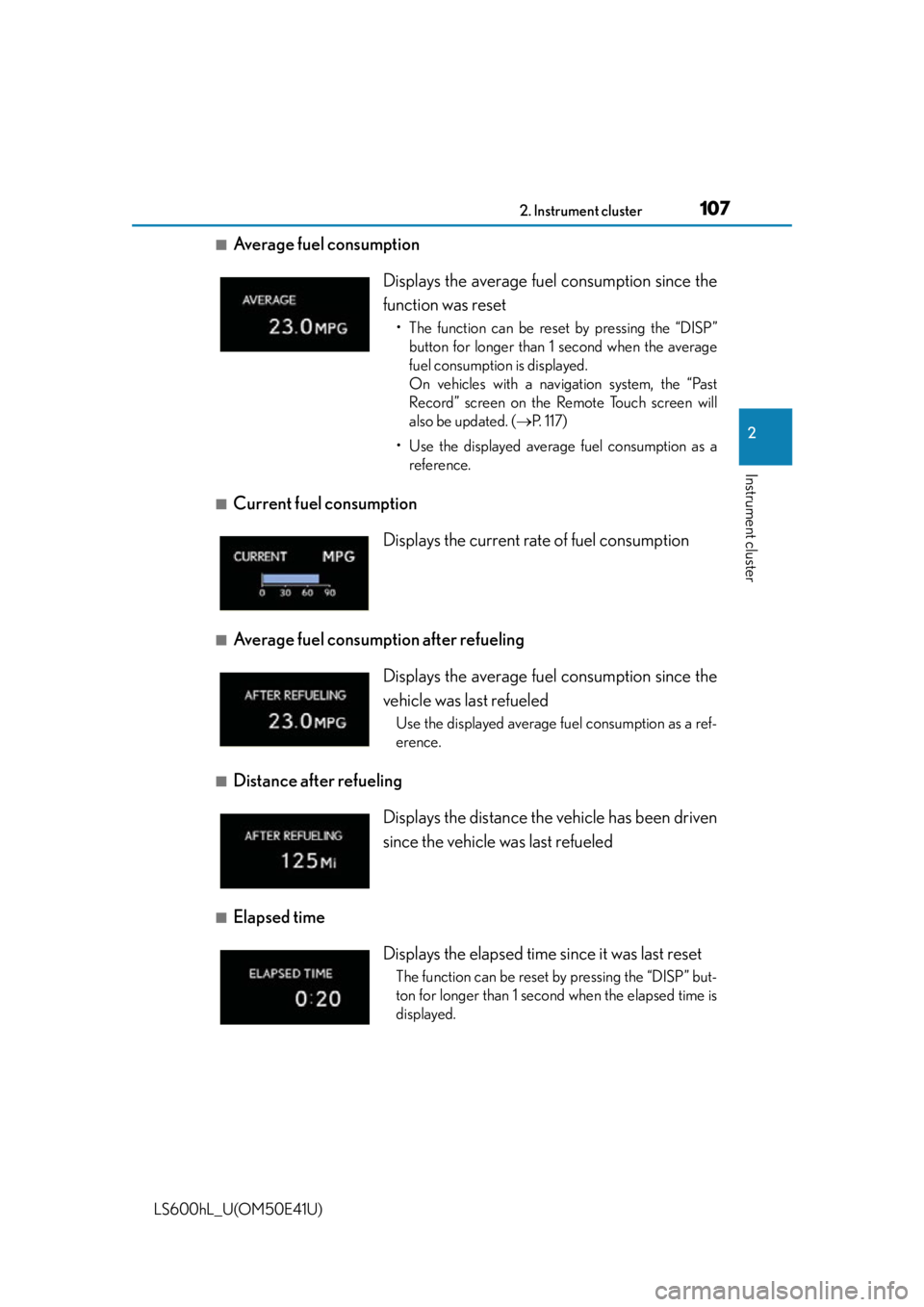

■Average fuel consumption
■Current fuel consumption
■Average fuel consumption after refueling
■Distance after refueling
■Elapsed timeDisplays the average fuel
consumption since the
function was reset
• The function can be rese t by pressing the “DISP”
button for longer than 1 second when the average
fuel consumption is displayed.
On vehicles with a navigation system, the “Past
Record” screen on the Remote Touch screen will
also be updated. ( P. 117)
• Use the displayed average fuel consumption as a reference.
Displays the current rate of fuel consumption
Displays the average fuel consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a ref-
erence.
Displays the distance th e vehicle has been driven
since the vehicle was last refueled
Displays the elapsed time since it was last reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the elapsed time is
displayed.

1082. Instrument cluster
LS600hL_U(OM50E41U)

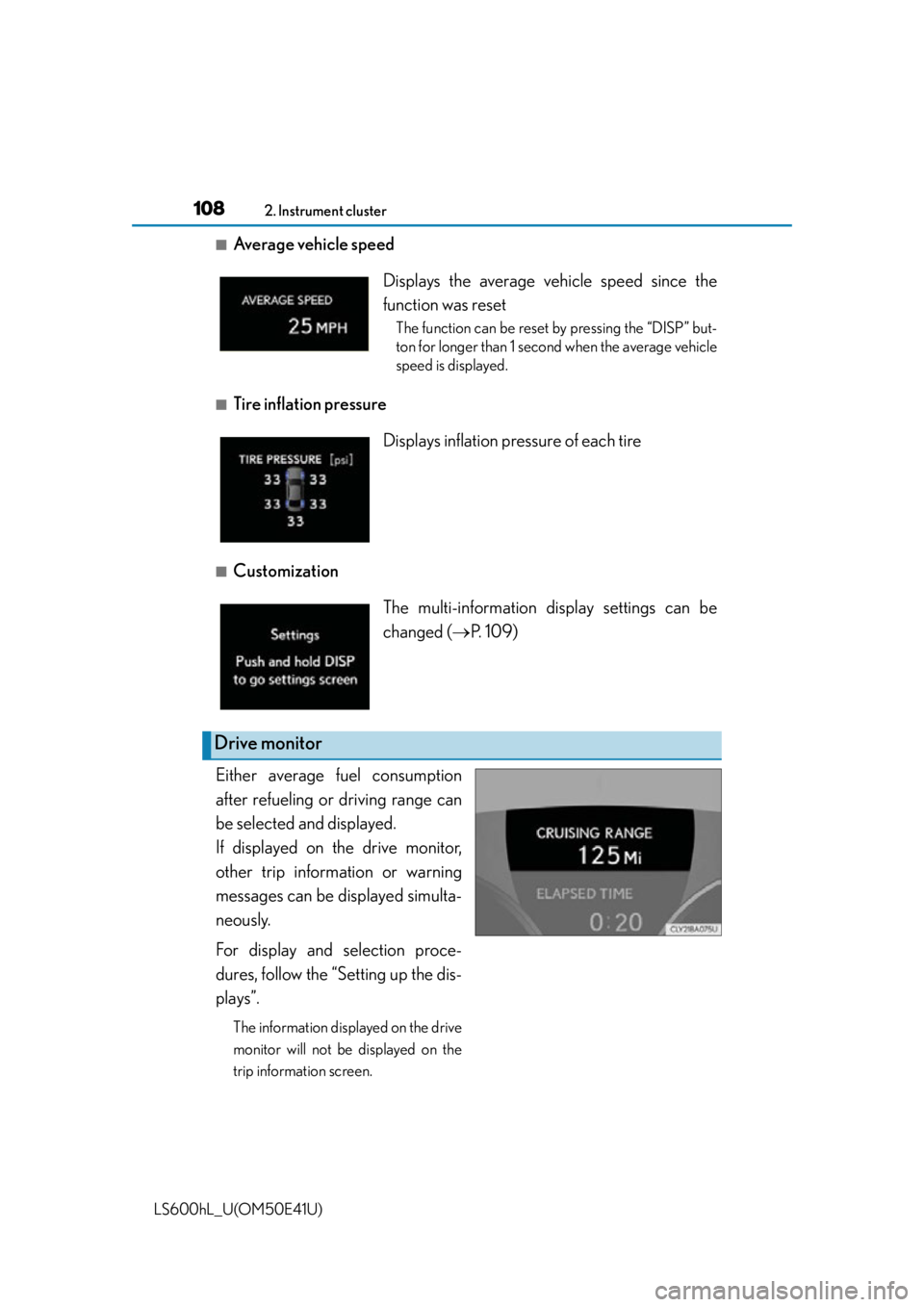

■Average vehicle speed
■Tire inflation pressure
■Customization
Either average fuel consumption
after refueling or driving range can
be selected and displayed.
If displayed on the drive monitor,
other trip information or warning
messages can be di splayed simulta-
neously.
For display and selection proce-
dures, follow the “Setting up the dis-
plays”.
The information displayed on the drive
monitor will not be displayed on the
trip information screen.
Displays the average vehicle speed since the
function was reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the average vehicle
speed is displayed.
Displays inflation pres sure of each tire
The multi-information display settings can be
changed (P. 1 0 9 )
Drive monitor
