Instrument cluster
LS600hL_U(OM50E41U)
While the vehicle is stopped,
press the “DISP” button until the
“Settings” screen appears.
Press and hold the “DISP” button
until the screen changes.
Press and hold the “DISP” button
after selecting the desired set-
ting item by pressing the “DISP”
button.
Press and hold the “DISP” button
after selecting the desired set-
ting by pressing the “DISP” but-
ton.
The display goes back to step .
Setting up the displays
1
2
3
4
3

1102. Instrument cluster
LS600hL_U(OM50E41U)
Press and hold the “DISP” button
after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
■System check display
After turning the power switch to ON mode, “SYSTEM CHECK” is displayed while
system operation is checked.
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the power switch
is turned to ON mode. It may also take a few minutes to display the tire inflation
pressure after inflation pr essure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■When disconnecting and reconnecting 12-volt battery terminals
The following information data will be reset:
●Driving range
●Average fuel consumption
●Average fuel consumption after refueling
●Distance after refueling
●Elapsed time
●Average vehicle speed
■Liquid crystal display
Small spots or light spots may appear on th e display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Custo mizable features P. 565)
5
1

1112. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensu re that the hybrid system is operating
while setting up the display features.

1122. Instrument cluster
LS600hL_U(OM50E41U)

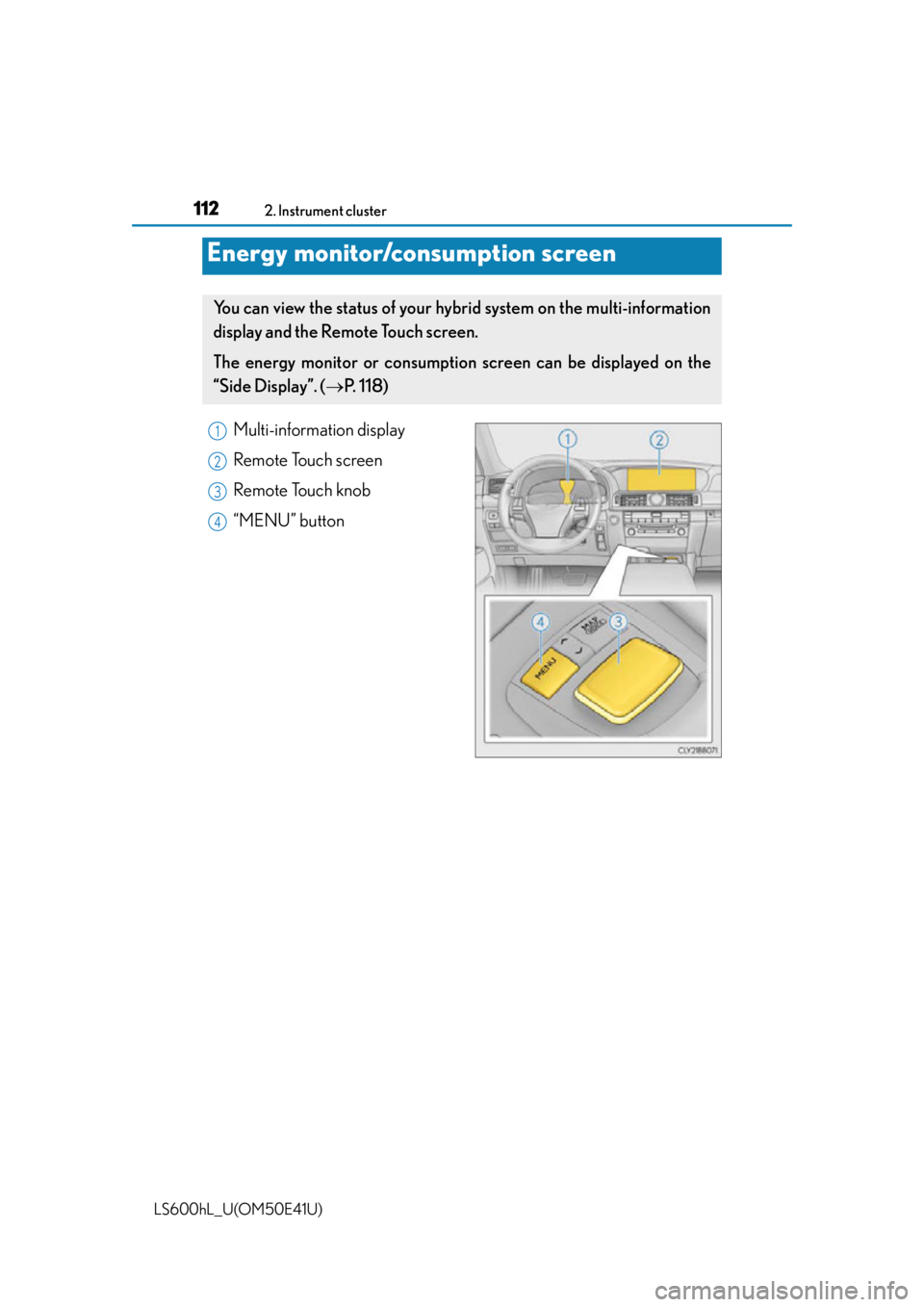

Multi-information display
Remote Touch screen
Remote Touch knob
“MENU” button
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-information
display and the Remote Touch screen.
The energy monitor or consumption screen can be displayed on the
“Side Display”. ( P. 118)
1
2
3
4

1132. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)
■Remote Touch screen (P. 3 3 0 )
Press the “MENU” button on the Remote Touch, then select on
the “Menu” screen, and then select “Fuel Consumption”.
If the “Trip Information” or “Past Record” screen is displayed, select “Energy”.

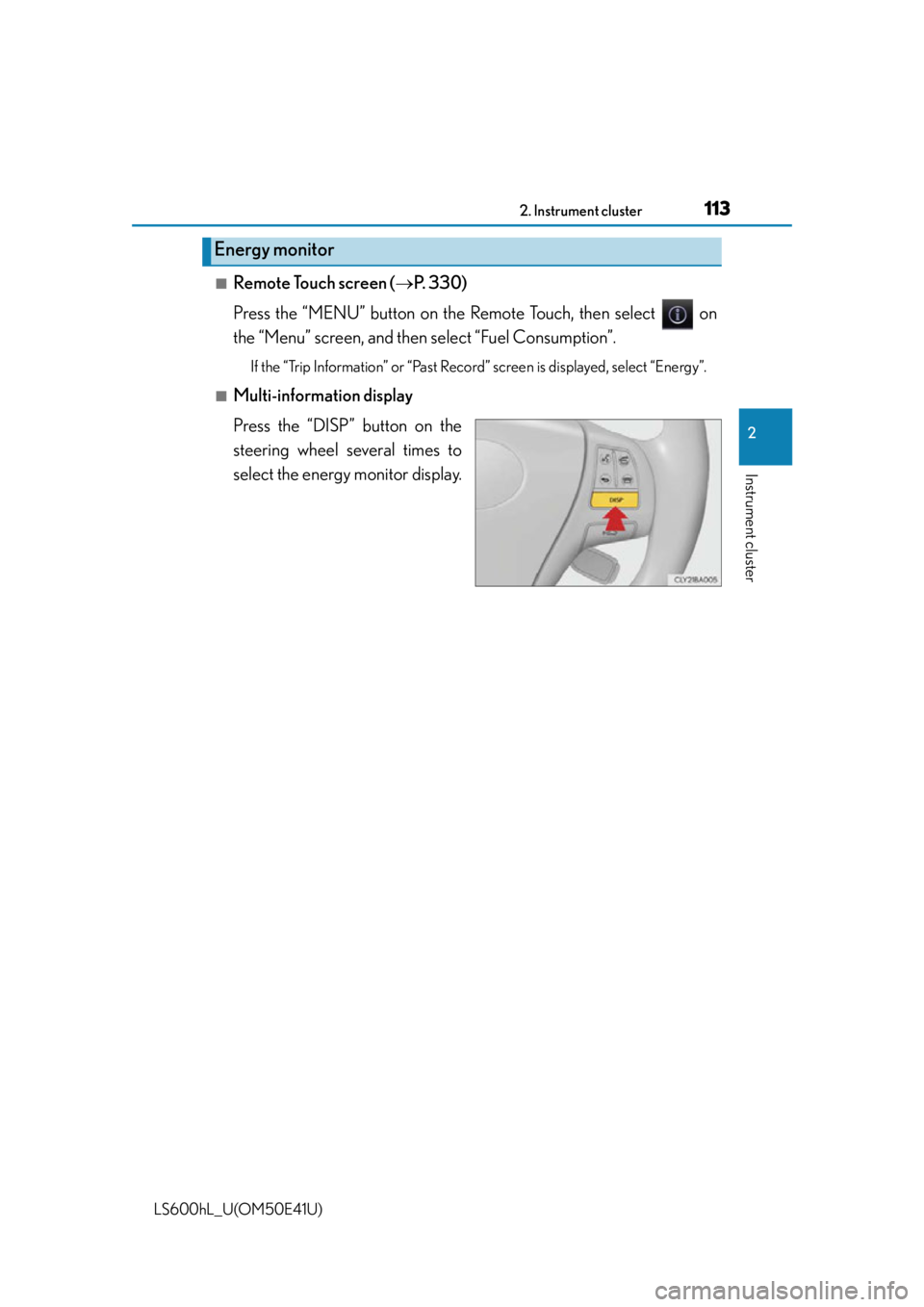

■Multi-information display
Press the “DISP” button on the
steering wheel several times to
select the energy monitor display.
Energy monitor

1142. Instrument cluster
LS600hL_U(OM50E41U)These images are examples only, and may vary slightly from actual conditions.

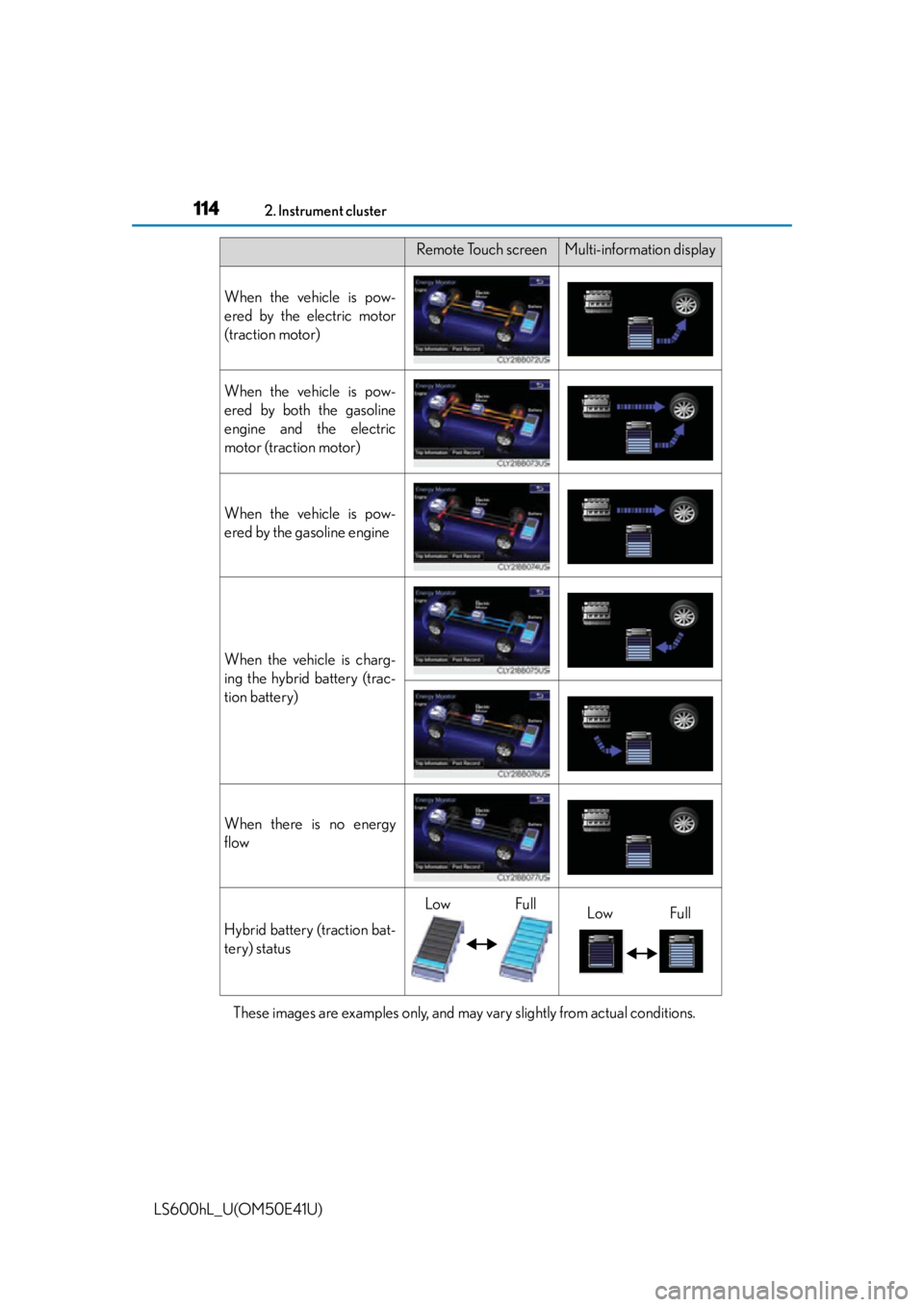

Remote Touch screenMulti-information display
When the vehicle is pow-
ered by the electric motor
(traction motor)
When the vehicle is pow-
ered by both the gasoline
engine and the electric
motor (traction motor)
When the vehicle is pow-
ered by the gasoline engine
When the vehicle is charg-
ing the hybrid battery (trac-
tion battery)
When there is no energy
flow
Hybrid battery (traction bat-
tery) status
LowFullLowFull

1152. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)
Press the “MENU” button on the Remote Touch, then select on the
“Menu” screen, and then select “Fuel Consumption”.
Consumption

1162. Instrument cluster
LS600hL_U(OM50E41U)

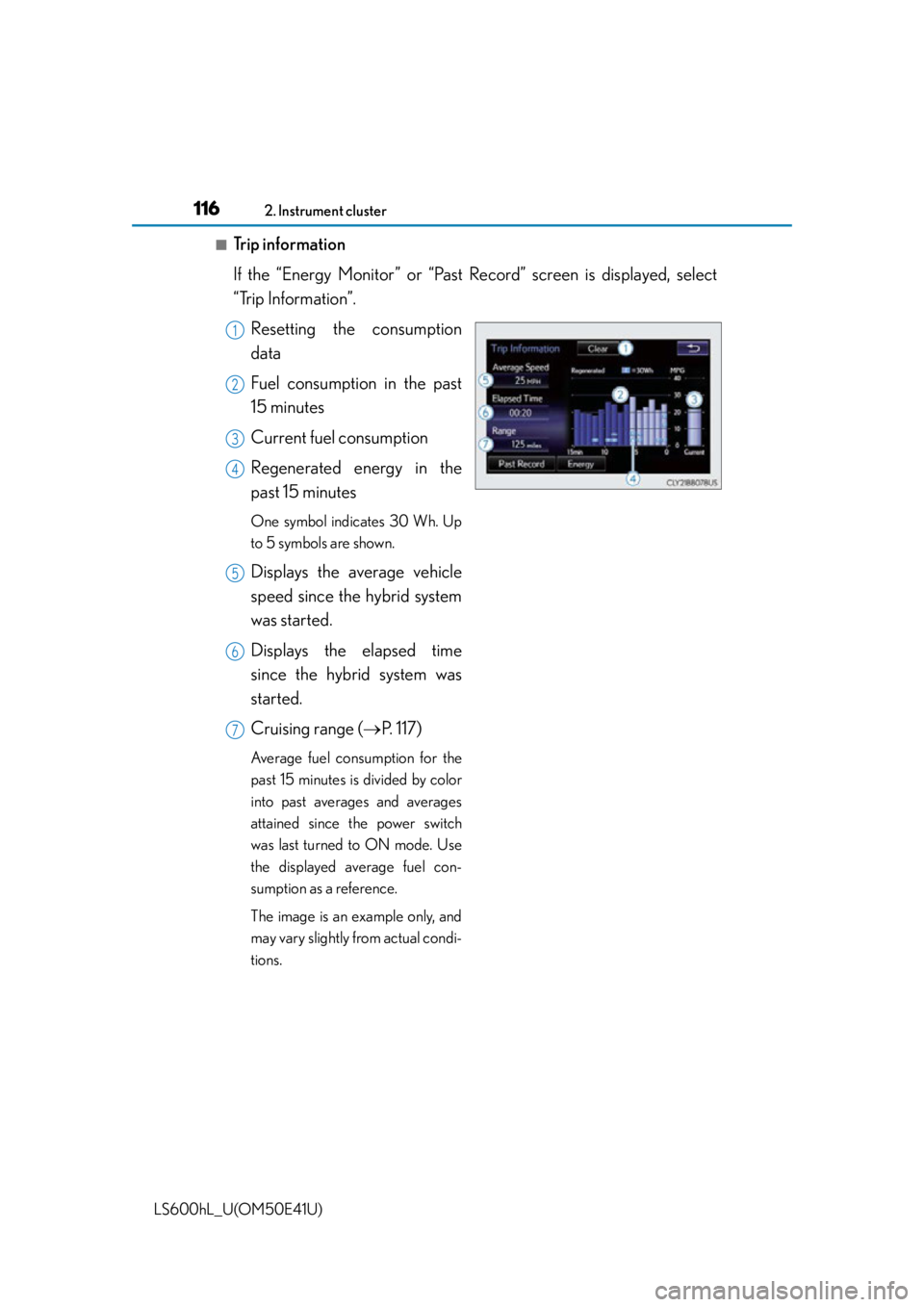

■Trip information
If the “Energy Monitor” or “Past Record” screen is displayed, select
“Trip Information”.
Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh. Up
to 5 symbols are shown.
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time
since the hybrid system was
started.
Cruising range ( P. 117)
Average fuel consumption for the
past 15 minutes is divided by color
into past averages and averages
attained since the power switch
was last turned to ON mode. Use
the displayed average fuel con-
sumption as a reference.
The image is an example only, and
may vary slightly from actual condi-
tions.
1
2
3
4
5
6
7

1172. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)

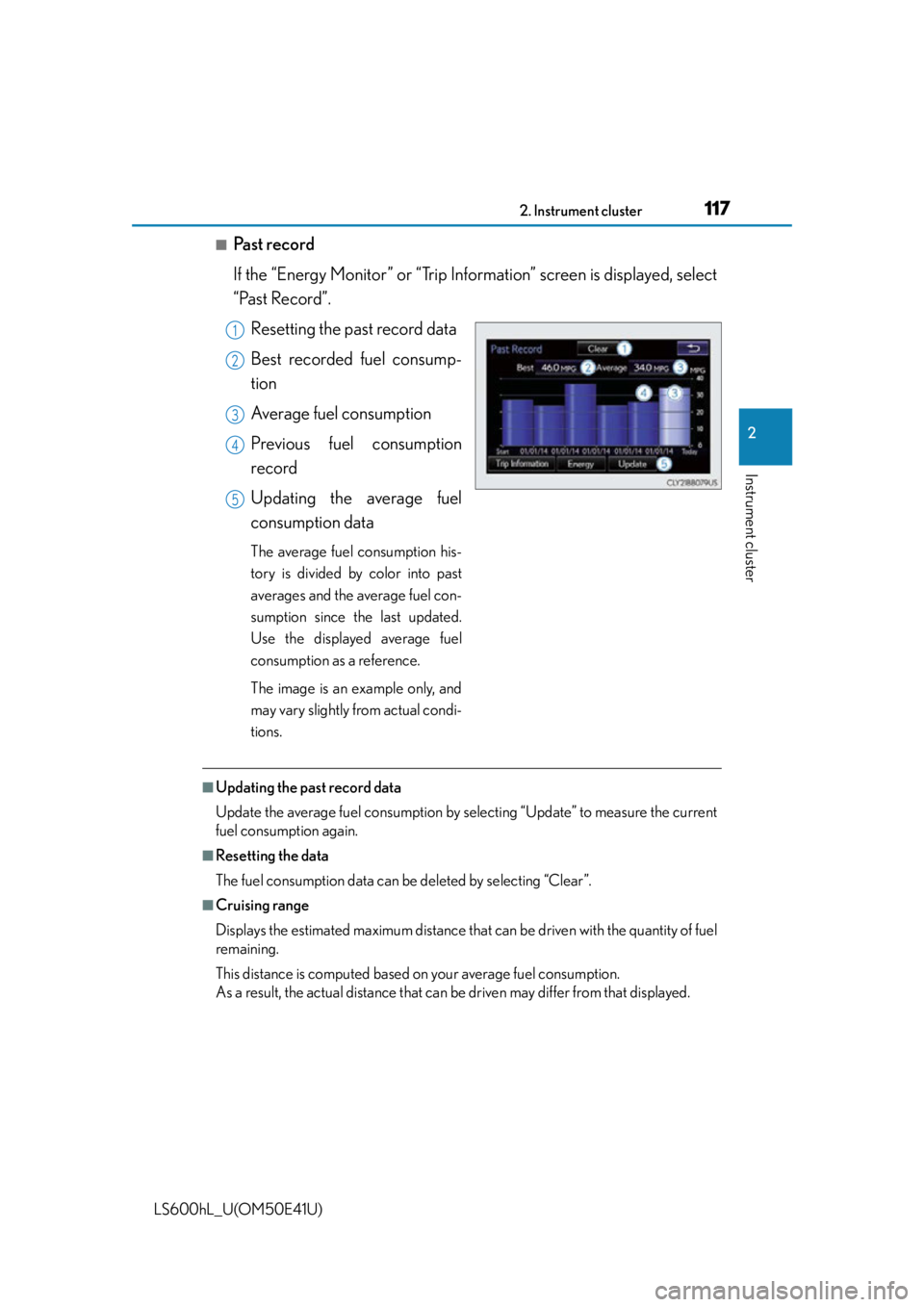

■Past record
If the “Energy Monitor” or “Trip Information” screen is displayed, select
“Past Record”.
Resetting the past record data
Best recorded fuel consump-
tion
Average fuel consumption
Previous fuel consumption
record
Updating the average fuel
consumption data
The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last updated.
Use the displayed average fuel
consumption as a reference.
The image is an example only, and
may vary slightly from actual condi-
tions.
■Updating the past record data
Update the average fuel cons umption by selecting “Update” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5

1182. Instrument cluster
LS600hL_U(OM50E41U)

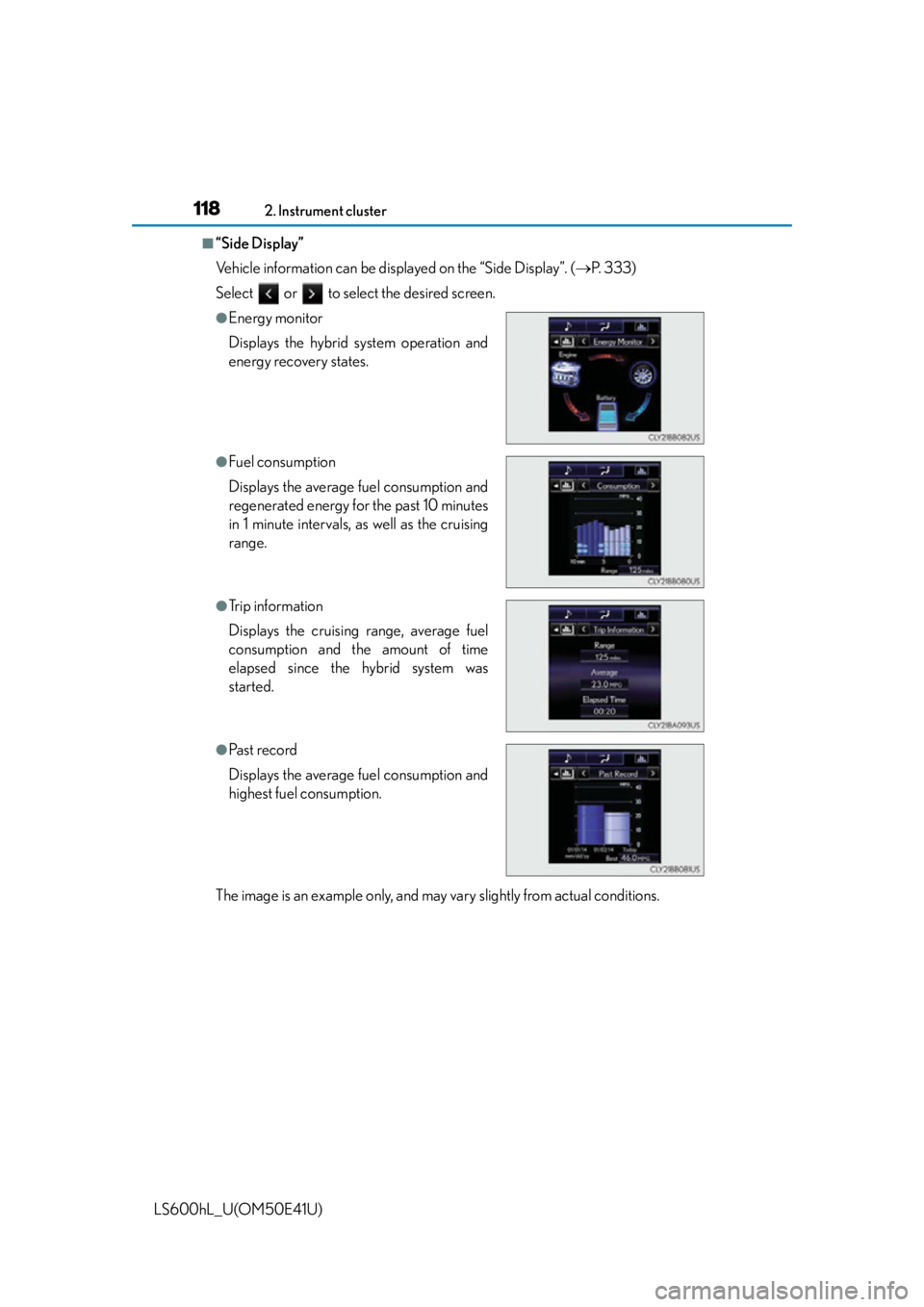

■“Side Display”
Vehicle information can be displayed on the “Side Display”. (P. 3 3 3 )
Select or to select the desired screen.
The image is an example only, and may vary slightly from actual conditions.
●Energy monitor
Displays the hybrid system operation and
energy recovery states.
●Fuel consumption
Displays the average fuel consumption and
regenerated energy for the past 10 minutes
in 1 minute intervals, as well as the cruising
range.
●Trip information
Displays the cruising range, average fuel
consumption and the amount of time
elapsed since the hybrid system was
started.
●Past record
Displays the average fuel consumption and
highest fuel consumption.
