LEXUS LS600H 2017 Owners Manual

1413-1. Key information
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)

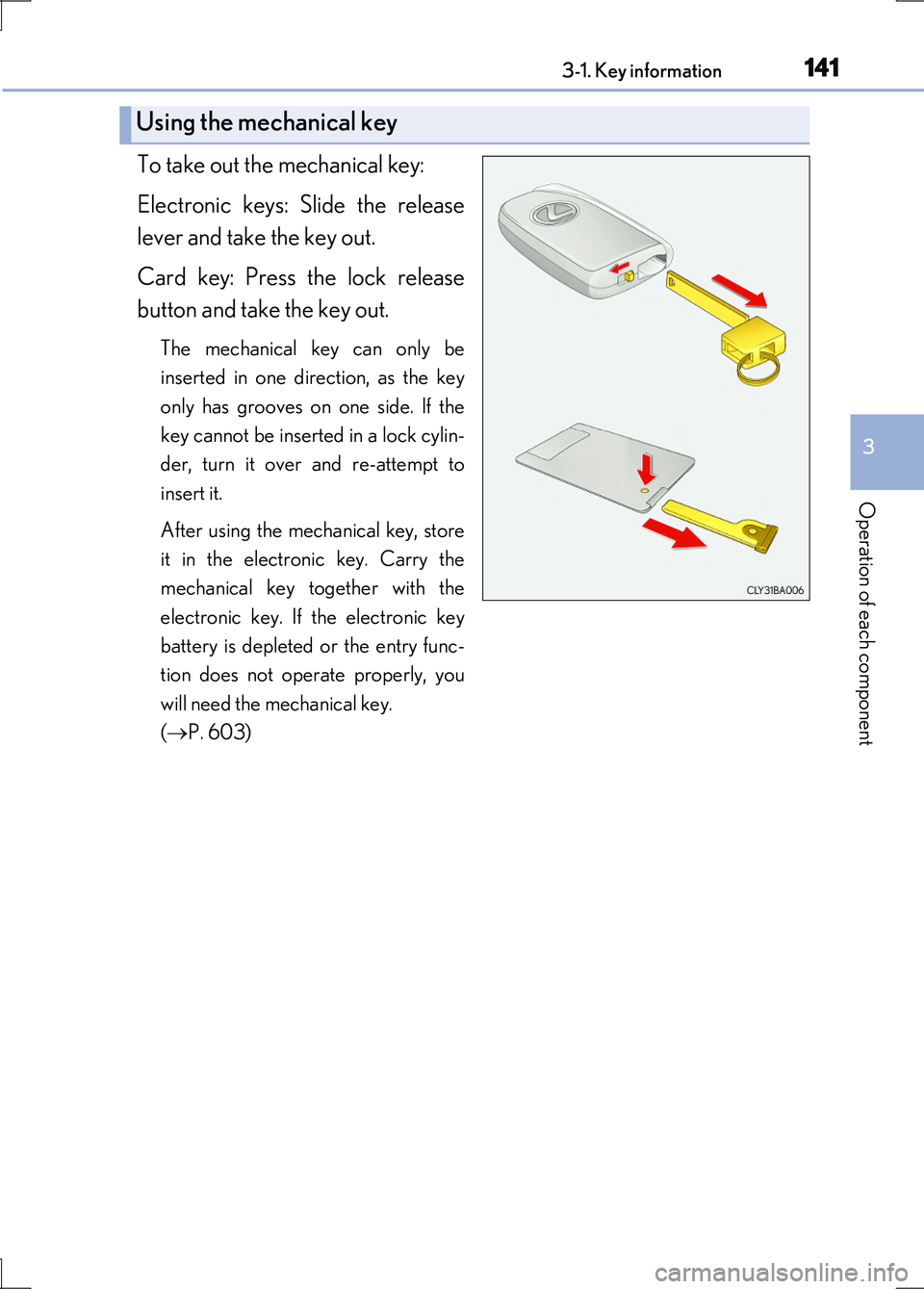

To take out the mechanical key:
Electronic keys: Slide the release
lever and take the key out.
Card key: Press the lock release
button and take the key out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cylin-
der, turn it over and re-attempt to
insert it.
After using the mechanical key, store
it in the electronic key. Carry the
mechanical key together with the
electronic key. If the electronic key
battery is depleted or the entry func-
tion does not operate properly, you
will need the mechanical key.
( P. 603)
Using the mechanical key

1423-1. Key information
LS600h/LS600hL_EE(OM50G20E)

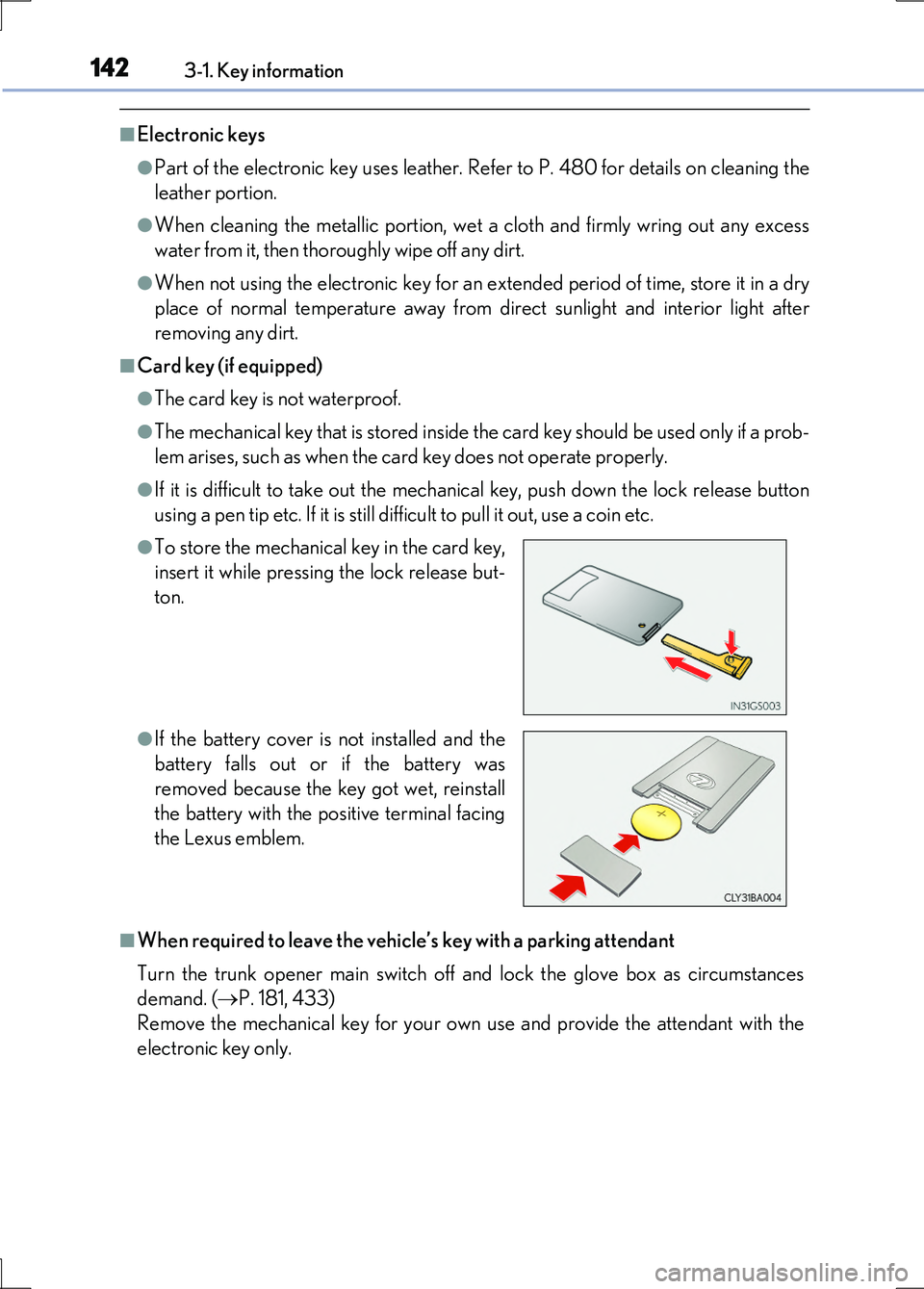

■Electronic keys
●Part of the electronic key uses leather. Refer to P. 480 for details on cleaning the
leather portion.
●When cleaning the metallic portion, wet a cloth and firmly wring out any excess
water from it, then thoroughly wipe off any dirt.
●When not using the electronic key for an extended period of time, store it in a dry
place of normal temperature away from direct sunlight and interior light after
removing any dirt.
■Card key (if equipped)
●The card key is not waterproof.
●The mechanical key that is stored inside the card key should be used only if a prob-
lem arises, such as when the card key does not operate properly.
●If it is difficult to take out the mechanical key, push down the lock release button
using a pen tip etc. If it is still difficult to pull it out, use a coin etc.
■When required to leave the vehicle’s key with a parking attendant
Turn the trunk opener main switch off and lock the glove box as circumstances
demand. ( P. 181, 433)
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
●To store the mechanical key in the card key,
insert it while pressing the lock release but-
ton.
●If the battery cover is not installed and the
battery falls out or if the battery was
removed because the key got wet, reinstall
the battery with the positive terminal facing
the Lexus emblem.

1433-1. Key information
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)

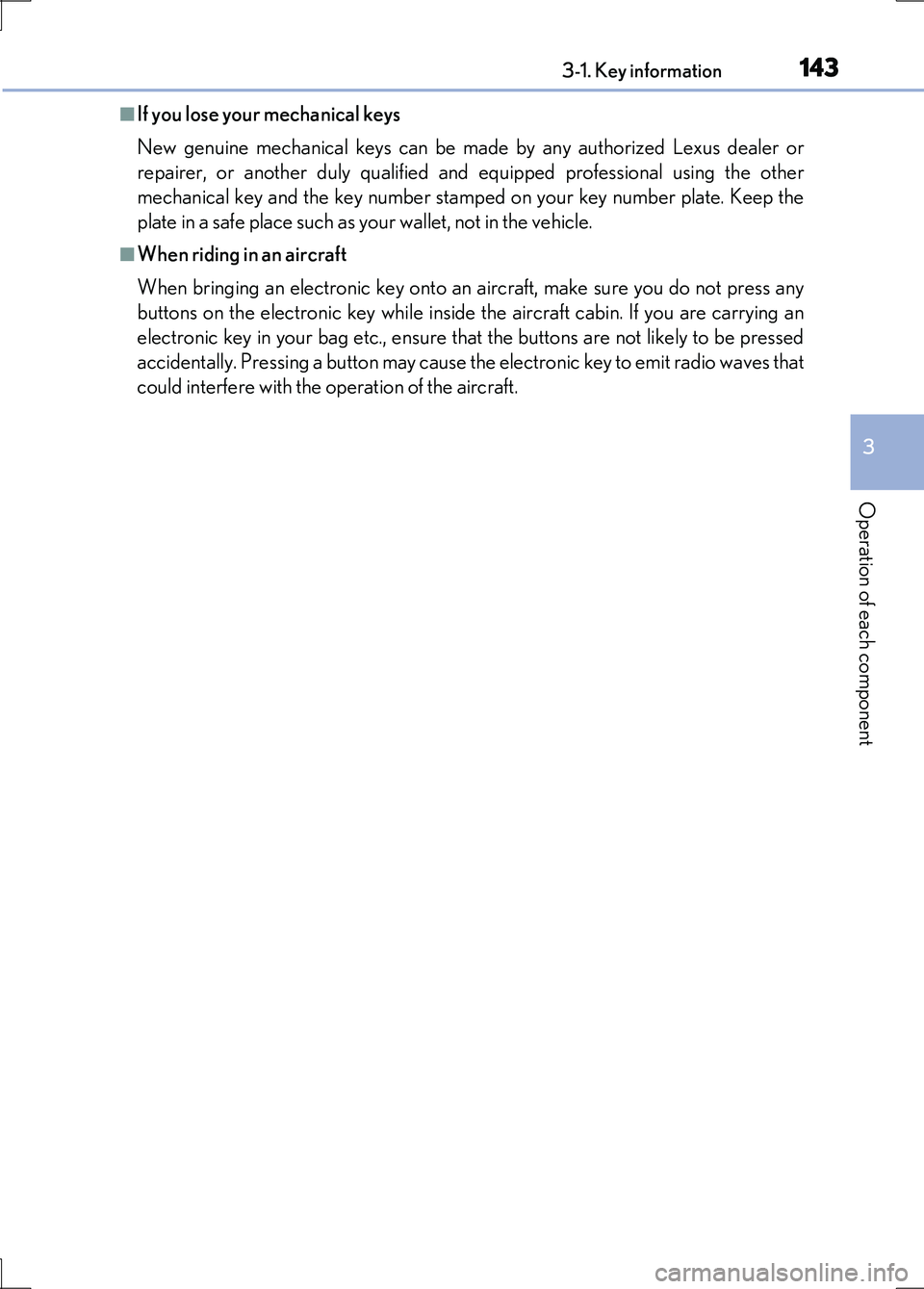

■If you lose your mechanical keys
New genuine mechanical keys can be made by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional using the other
mechanical key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves that
could interfere with the operation of the aircraft.

1443-1. Key information
LS600h/LS600hL_EE(OM50G20E)

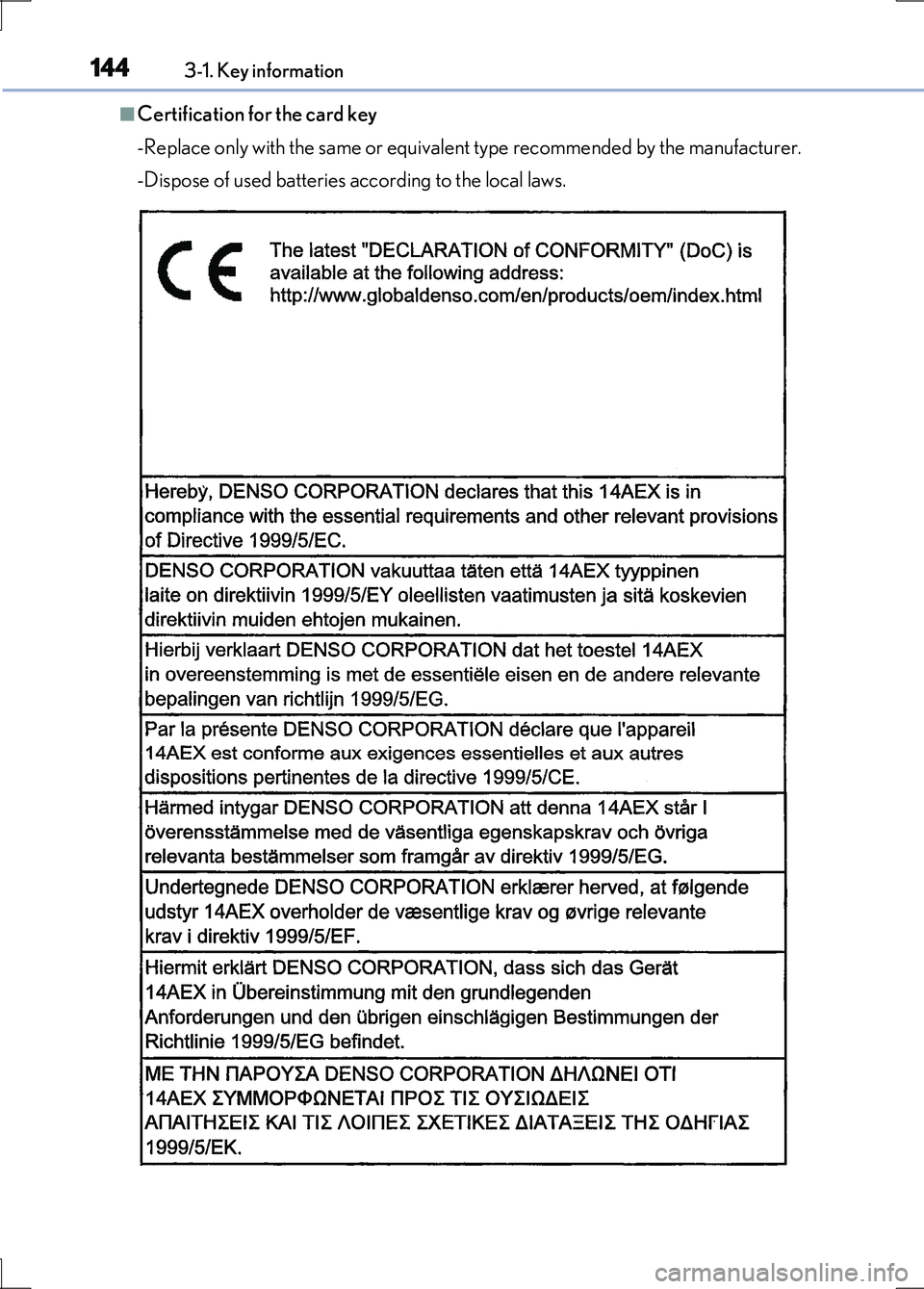

■Certification for the card key
-Replace only with the same or equivalent type recommended by the manufacturer.
-Dispose of used batteries according to the local laws.

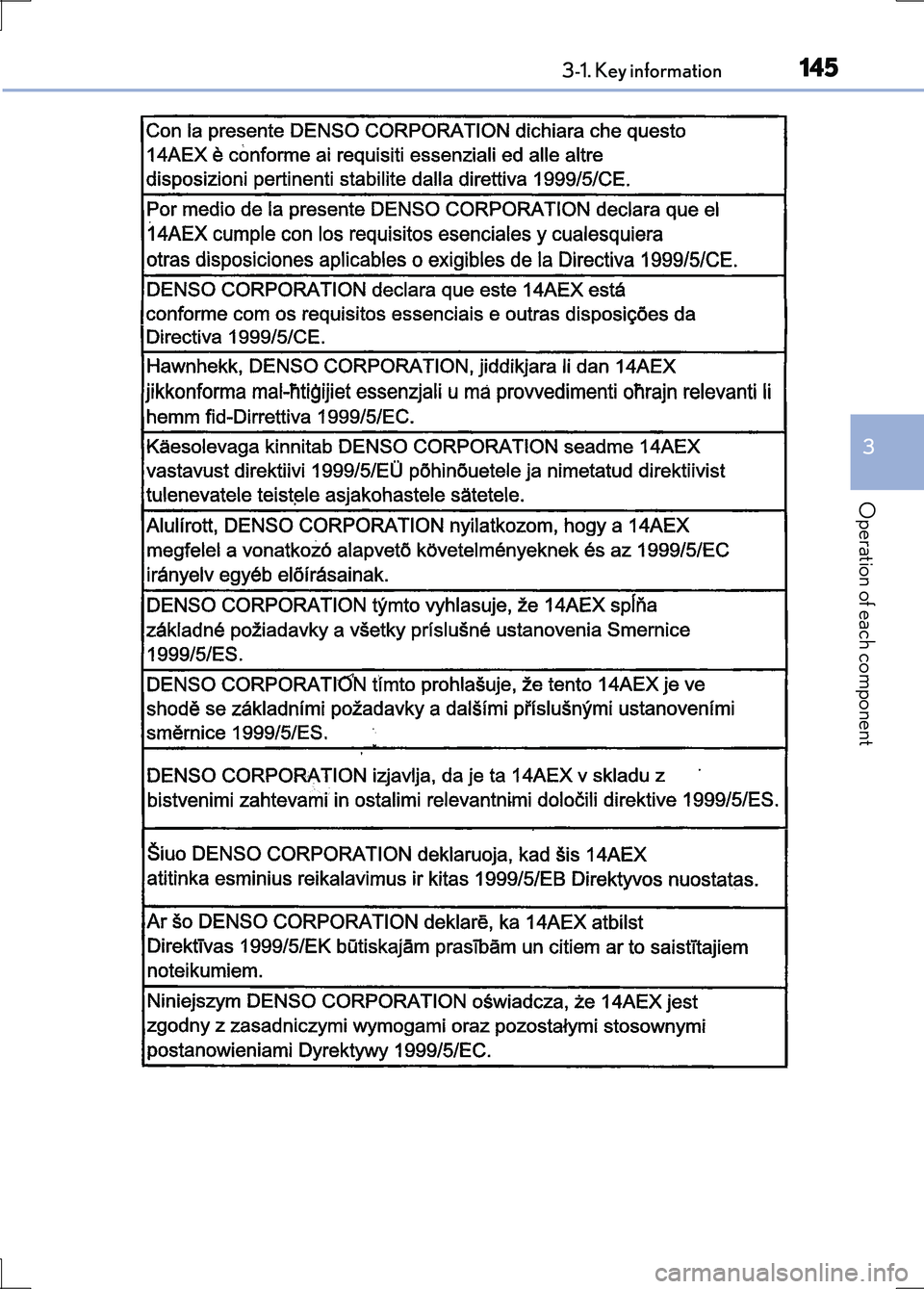

1453-1. Key information
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)

1463-1. Key information
LS600h/LS600hL_EE(OM50G20E)

1473-1. Key information
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)

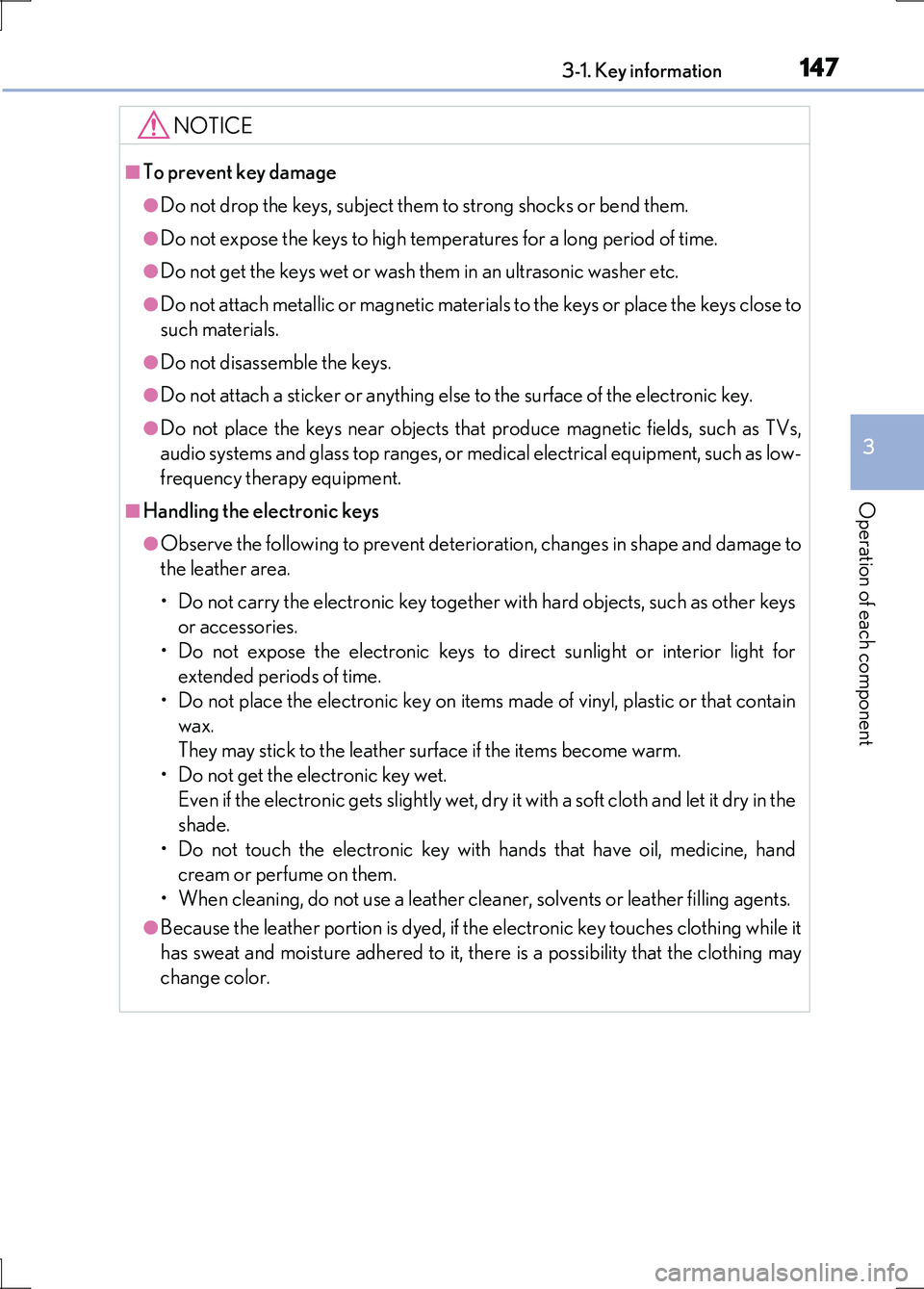

NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key.
●Do not place the keys near objects that produce magnetic fields, such as TVs,
audio systems and glass top ranges, or medical electrical equipment, such as low-
frequency therapy equipment.
■Handling the electronic keys
●Observe the following to prevent deterioration, changes in shape and damage to
the leather area.
• Do not carry the electronic key together with hard objects, such as other keys
or accessories.
• Do not expose the electronic keys to direct sunlight or interior light for
extended periods of time.
• Do not place the electronic key on items made of vinyl, plastic or that contain
wax.
They may stick to the leather surface if the items become warm.
• Do not get the electronic key wet.
Even if the electronic gets slightly wet, dry it with a soft cloth and let it dry in the
shade.
• Do not touch the electronic key with hands that have oil, medicine, hand
cream or perfume on them.
• When cleaning, do not use a leather cleaner, solvents or leather filling agents.
●Because the leather portion is dyed, if the electronic key touches clothing while it
has sweat and moisture adhered to it, there is a possibility that the clothing may
change color.

1483-1. Key information
LS600h/LS600hL_EE(OM50G20E)

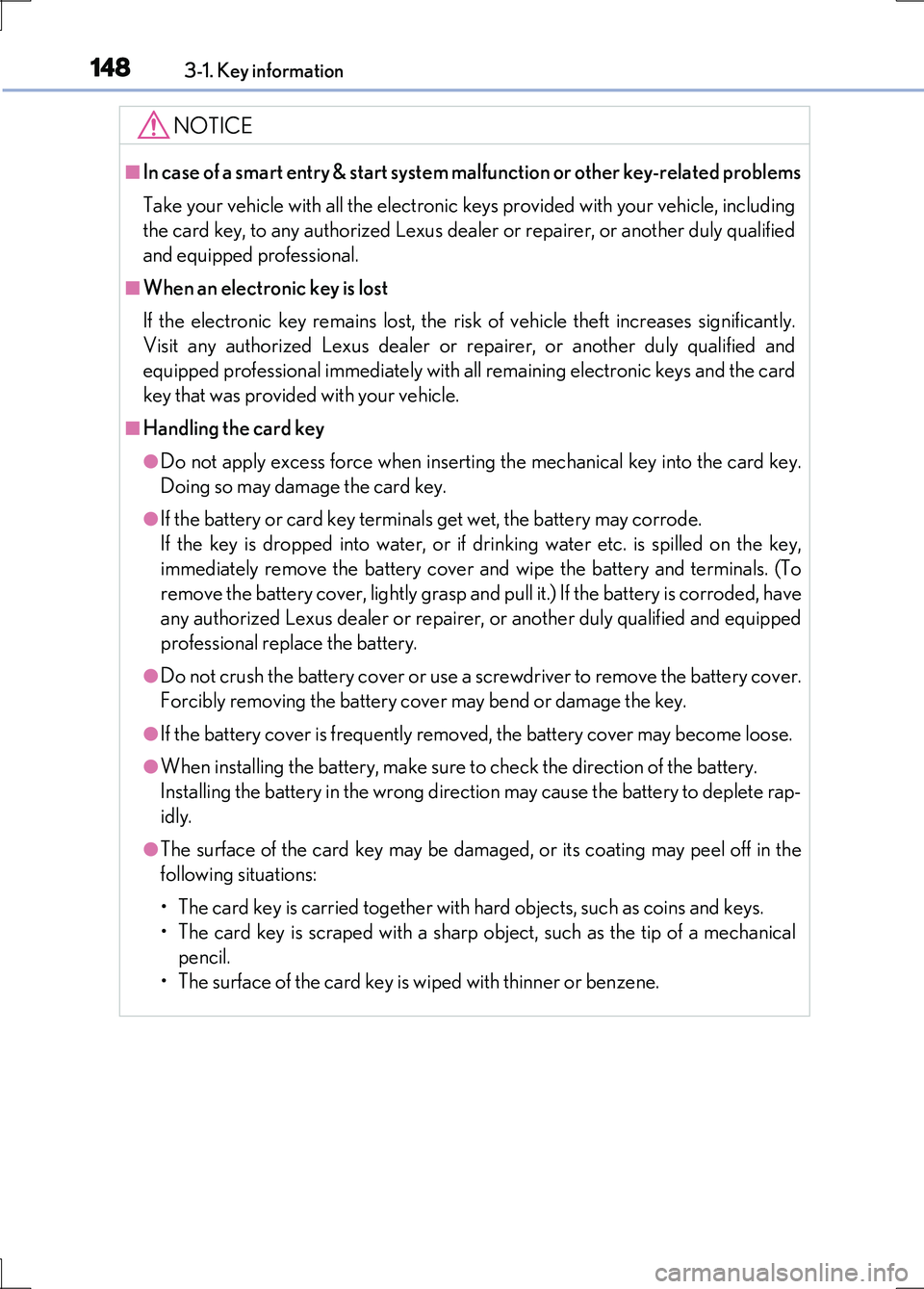

NOTICE
■In case of a smart entry & start system malfunction or other key-related problems
Take your vehicle with all the electronic keys provided with your vehicle, including
the card key, to any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
■When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases significantly.
Visit any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional immediately with all remaining electronic keys and the card
key that was provided with your vehicle.
■Handling the card key
●Do not apply excess force when inserting the mechanical key into the card key.
Doing so may damage the card key.
●If the battery or card key terminals get wet, the battery may corrode.
If the key is dropped into water, or if drinking water etc. is spilled on the key,
immediately remove the battery cover and wipe the battery and terminals. (To
remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have
any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional replace the battery.
●Do not crush the battery cover or use a screwdriver to remove the battery cover.
Forcibly removing the battery cover may bend or damage the key.
●If the battery cover is frequently removed, the battery cover may become loose.
●When installing the battery, make sure to check the direction of the battery.
Installing the battery in the wrong direction may cause the battery to deplete rap-
idly.
●The surface of the card key may be damaged, or its coating may peel off in the
following situations:
• The card key is carried together with hard objects, such as coins and keys.
• The card key is scraped with a sharp object, such as the tip of a mechanical
pencil.
• The surface of the card key is wiped with thinner or benzene.

149
3
Operation of each component
LS600h/LS600hL_EE(OM50G20E)

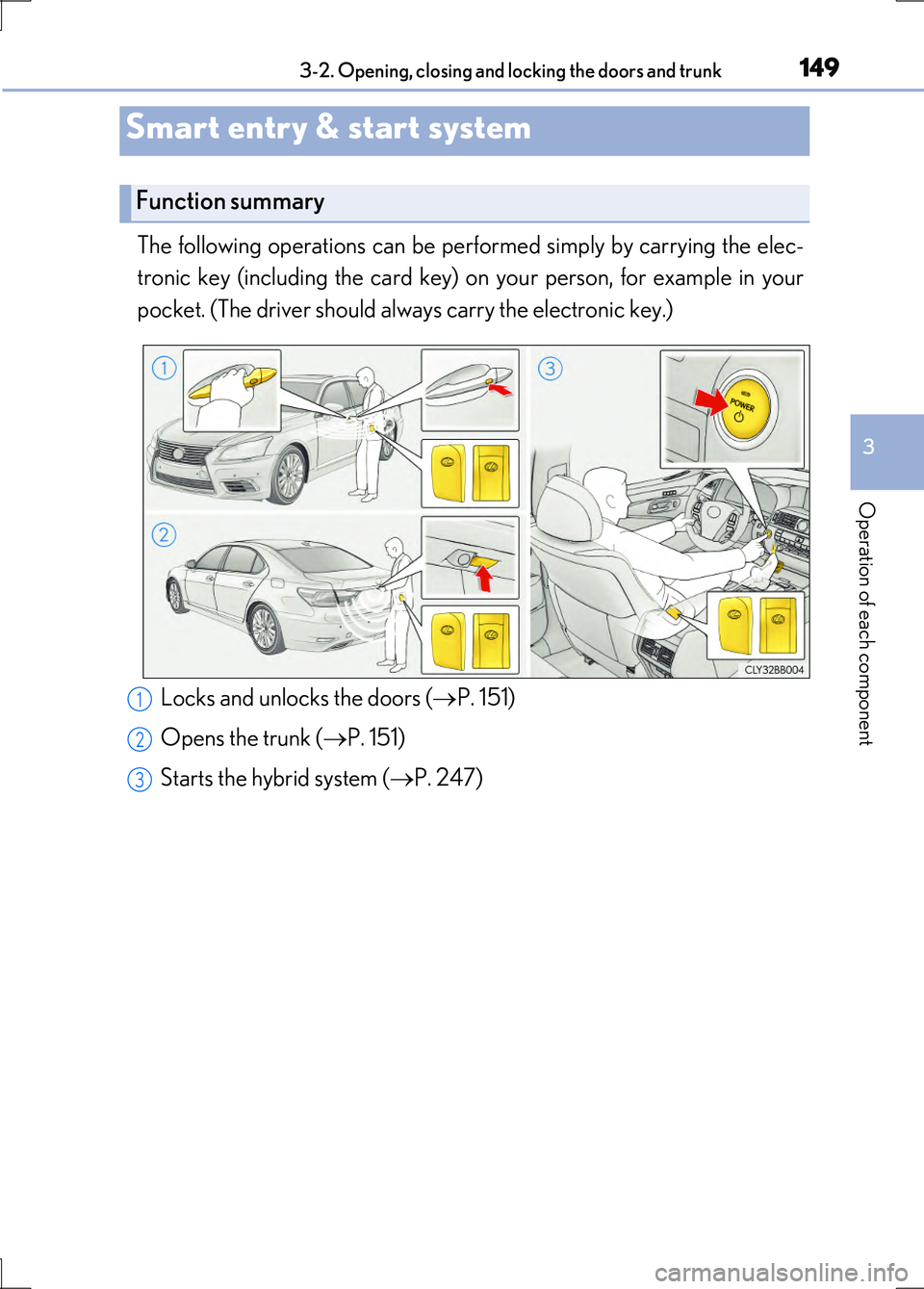

3-2. Opening, closing and locking the doors and trunk
The following operations can be performed simply by carrying the elec-
tronic key (including the card key) on your person, for example in your
pocket. (The driver should always carry the electronic key.)
Smart entry & start system
Function summary
Locks and unlocks the doors ( P. 151)
Opens the trunk ( P. 151)
Starts the hybrid system ( P. 247)
1
2
3

1503-2. Opening, closing and locking the doors and trunk
LS600h/LS600hL_EE(OM50G20E)

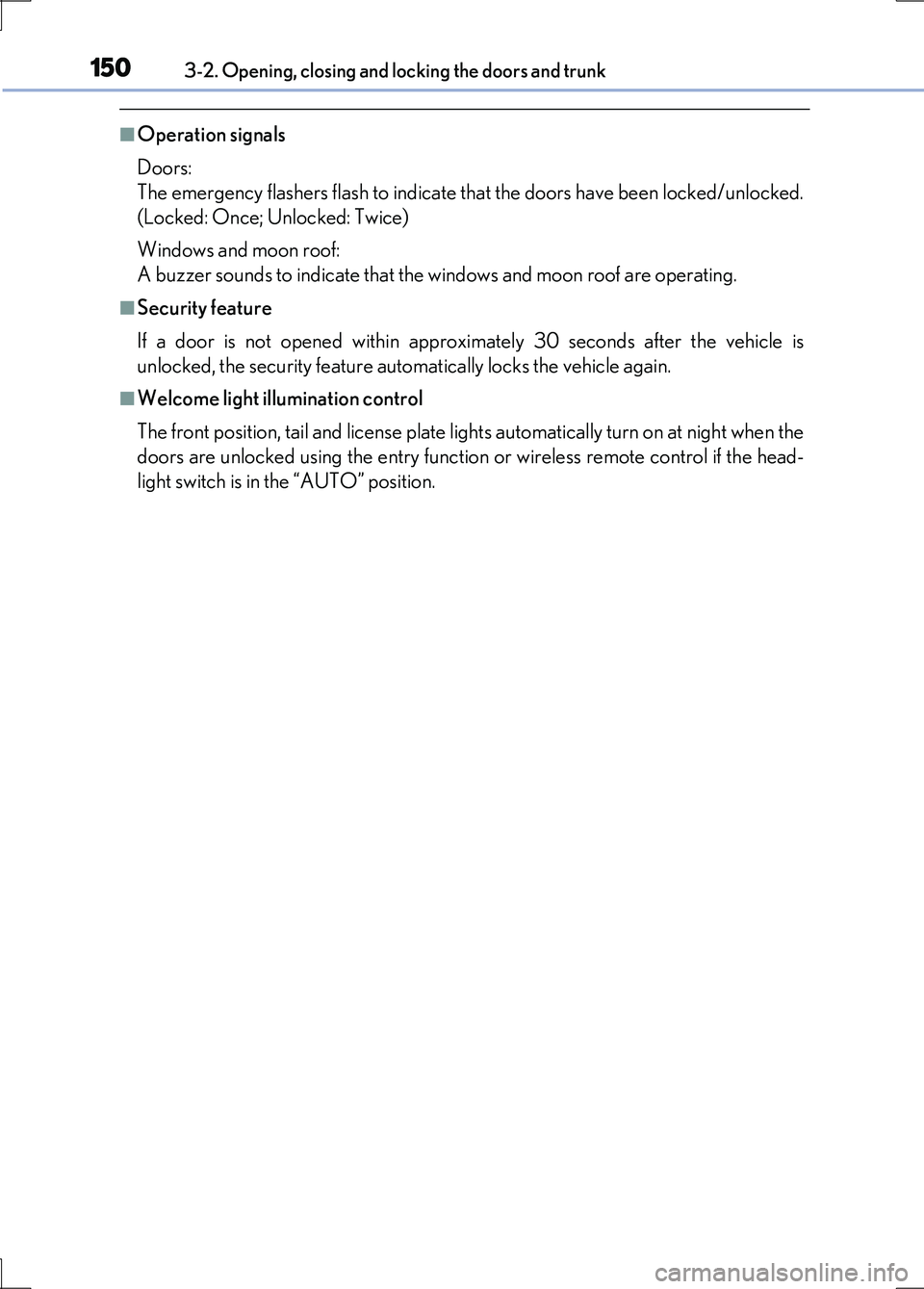

■Operation signals
Doors:
The emergency flashers flash to indicate that the doors have been locked/unlocked.
(Locked: Once; Unlocked: Twice)
Windows and moon roof:
A buzzer sounds to indicate that th e windows and moon roof are operating.
■Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Welcome light illumination control
The front position, tail and license plate lights automatically turn on at night when the
doors are unlocked using the entry function or wireless remote control if the head-
light switch is in the “AUTO” position.
