LEXUS LX470 2007 Workshop Manual

33
1-3. Adjustable components
1
Before driving
■Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (neither “L” nor
“R” selected).
■One-touch adjustment of the mirror angle
A desired mirror face angle can be entere d to memory and adjusted with the touch
of a button. ( P. 2 1 )
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors.
●Do not drive with the mirrors folded back.
●Before driving, be sure to extend mirrors and make an adjustment properly.
■When the mirror defoggers are operating
Do not touch the mirror surface as the mirror surface becomes hot.
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mi rror face. Use a spray de-icer to free the
mirror.

34
1-3. Adjustable components

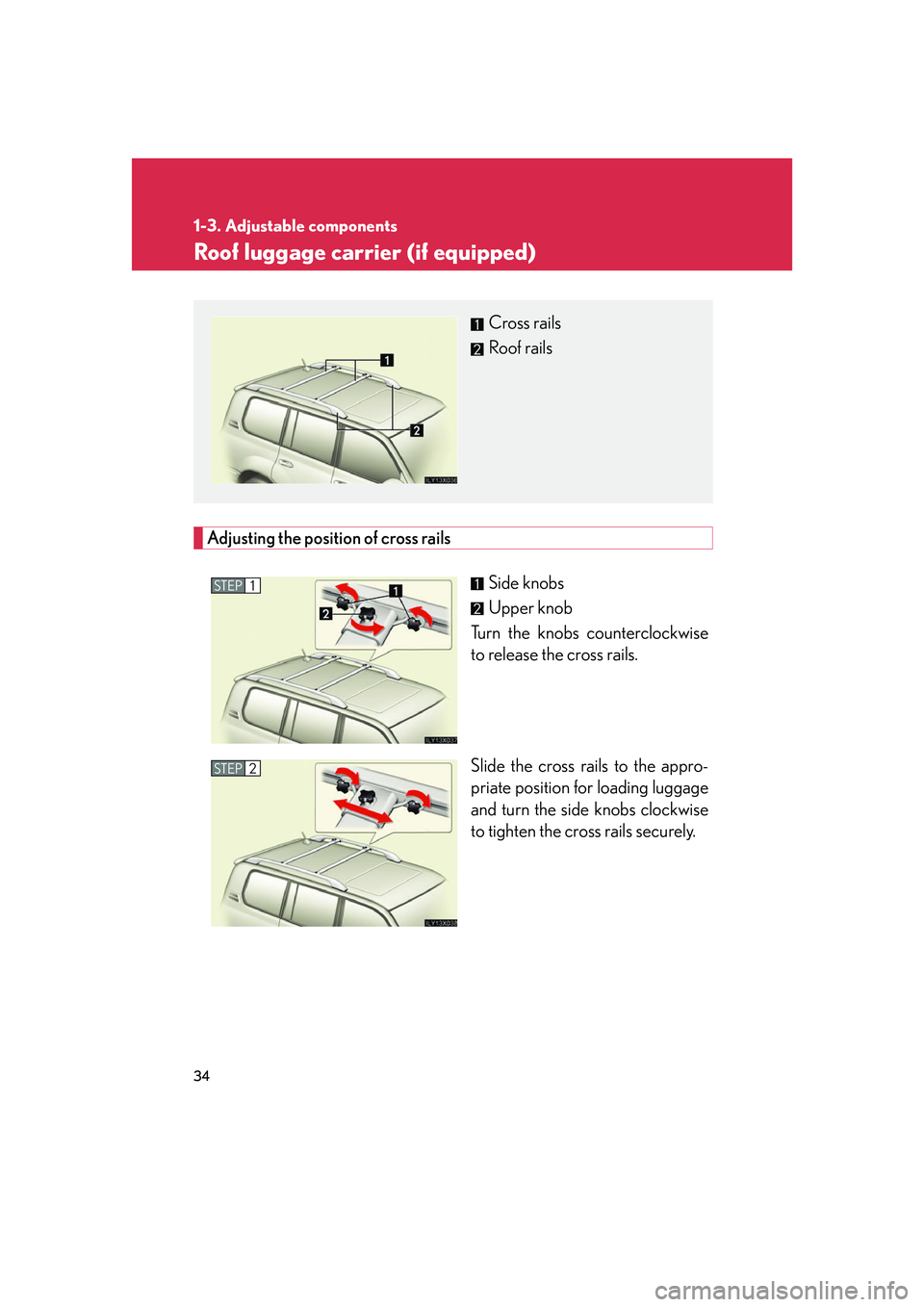

Roof luggage carrier (if equipped)
Adjusting the position of cross railsSide knobs
Upper knob
Turn the knobs counterclockwise
to release the cross rails.
Slide the cross rails to the appro-
priate position for loading luggage
and turn the side knobs clockwise
to tighten the cross rails securely.
Cross rails
Roof rails
STEP1
STEP2

35
1-3. Adjustable components
1
Before driving
Turn the upper knobs clockwise to
fix the cross rails to the appropri-
ate length.STEP3
CAUTION
■Cross rail adjustment
Make sure the cross rails are locked securely by pushing forward and rearward
them.
Failure to do so may cause an unexpected accident or severe injury in the event of
emergency braking or a collision.
■When loading cargo
Observe the following precautions.
●Place the cargo so that its weight is distributed evenly between the front and rear
axles.
●If loading long or wide cargo, never exceed the vehicle overall length or
width.(
P. 3 6 8 )
●Before driving, make sure the cargo is securely fastened on the roof luggage car-
rier.
●Loading cargo on the roof luggage carrier will make the center of the vehicle
gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking or
abrupt maneuvers, otherwise it may result in loss of control or vehicle rollover
due to failure to operate this vehicle correctly.
●If driving for a long distance, on rough ro ads, or at high speeds, stop the vehicle
now and then during the trip to make sure the cargo remains in its place.
●Do not exceed 143 lb. (70 kg) cargo weight on the roof luggage carrier.

36
1-3. Adjustable components
NOTICE
■Cross rail adjustment
Do not remove the cross rail stoppers, or the moon roof may be damage when it is
tilted.
■When loading the luggage
Be careful not to scratch the surface of the moon roof.

37
1
Before driving
1-4. Opening and closing the windows and moon roof
Power windows
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pushing the switch in the
opposite direction will stop
window travel partway.

38
1-4. Opening and closing the windows and moon roof

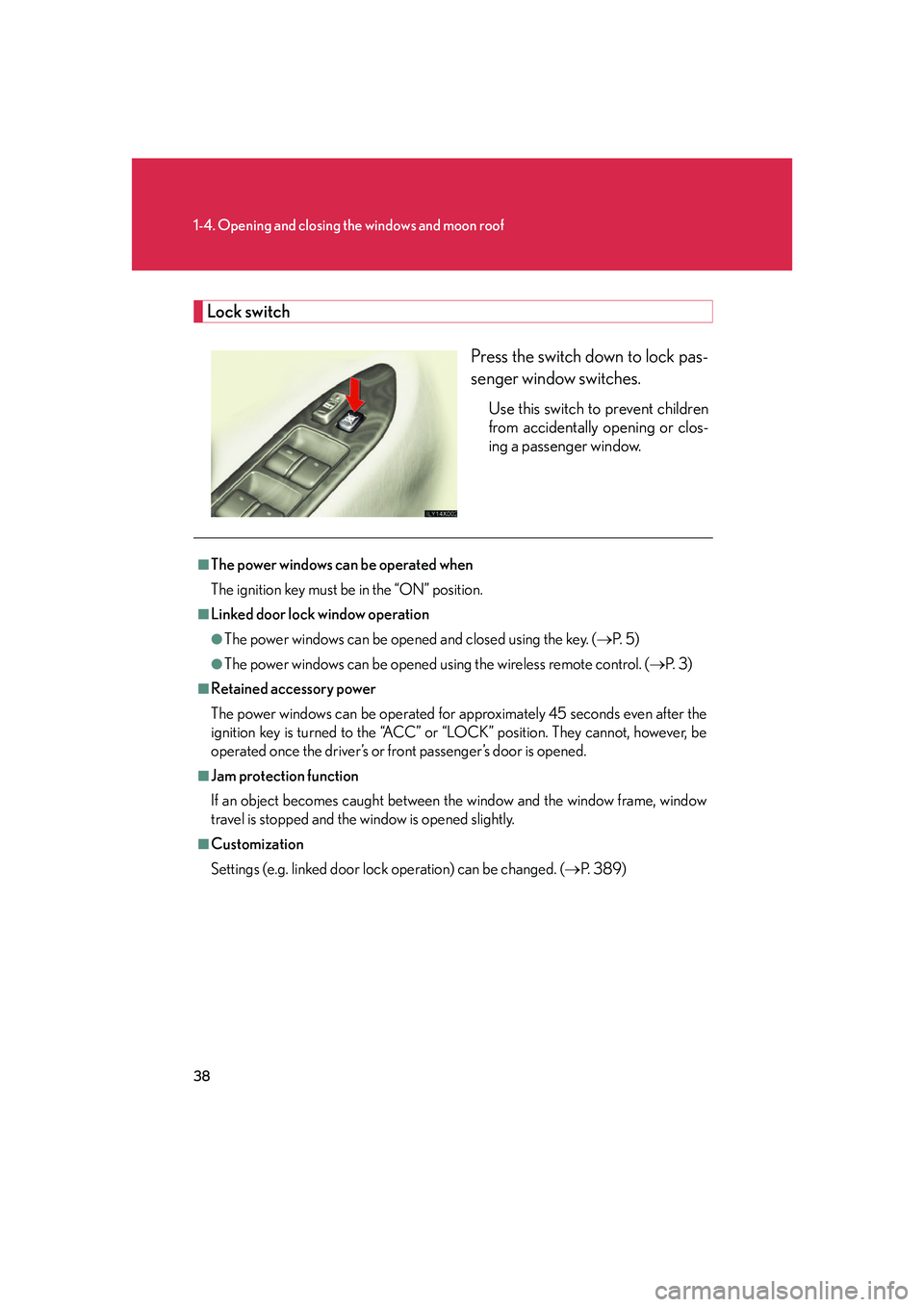

Lock switchPress the switch down to lock pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
■The power windows can be operated when
The ignition key must be in the “ON” position.
■Linked door lock window operation
●The power windows can be opened and closed using the key. ( P. 5 )
●The power windows can be opened using the wireless remote control. ( P. 3 )
■Retained accessory power
The power windows can be operated for ap proximately 45 seconds even after the
ignition key is turned to the “ACC” or “LOCK” position. They cannot, however, be
operated once the driver’s or fr ont passenger’s door is opened.
■Jam protection function
If an object becomes caught between th e window and the window frame, window
travel is stopped and the window is opened slightly.
■Customization
Settings (e.g. linked door lock operation) can be changed. ( P. 3 8 9 )

39
1-4. Opening and closing the windows and moon roof
1
Before driving
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window fully closes.

40
1-4. Opening and closing the windows and moon roof
Power quarter windows
■The power quarter windows can be operated when
The ignition key must be in the “ON” position.
CAUTION
■Closing the quarter windows
Observe the following precautions.
Failing to do so may result in serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power quarter windows.
Closing a power quarter window on someone can cause serious injury.
The power quarter windows can be opened and closed using the following
switches.
For the left quarter window
For the right quarter windowClose Open

41
1
1-4. Opening and closing the windows and moon roof
Before driving
Moon roof
Use the overhead switches to open, close, and tilt the moon roof up and
down.
■ Opening and closing
Open
Stops just before it is opened
fully. Press the switch again to
fully open.
Close
To stop partway, press the switch
lightly.
■Tilt up and down
Ti l t u p
Tilt down
To stop partway, press the switch
lightly.

42
1-4. Opening and closing the windows and moon roof
■The moon roof can be operated when
The ignition key must be in the “ON” position.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the key. (P. 5 )
●The moon roof can be opened using the wireless remote control. ( P. 3 )
■Retained accessory power
The moon roof can be operated for approx imately 45 seconds even after the igni-
tion key is turned to the “ACC” or “LOCK” position. It cannot, however, be operated
once the driver’s or front passenger’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■When the battery is disconnected
The moon roof must be initialized in order to ensure proper operation.
Push and hold the “SLIDE” switch or “TILT” switch until the moon roof is
closed fully.
To ensure the initialization is complete, make sure automatic opening and
closing functions work properly.
■Customization
Settings (e.g. linked door lock operation) can be changed. ( P. 3 8 9 )
STEP1
STEP2
