LEXUS LX570 2014 Owners Manual

2612-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) Using the rear view monitor system
■ Screen display
The rear view monitor system screen will be displayed if the shift lever
is shifted to the “R” position whil e the “ENGINE START STOP” switch
is in IGNITION ON mode. The rear view monitor system displays the last-used parking mode first.
Intuitive parking assist display If an obstacle is detected while the
Intuitive parking assist is on, a dis-
play is shown in the top right cor-
ner of the screen.

2622-4. Using other driving systems
LX570_OM_OM60L21U_(U) Rear view monitor system precautions
■ Area displayed on screen
The rear view monitor system dis-
plays an image of the view from the
bumper of the rear area of the
vehicle.
To adjust the im age on the rear
view monitor system screen.
(  P. 403)
• The area displayed on the
screen may vary according to
vehicle orientation condi-
tions.
• Objects which are close to
either corner of the bumper
or under the bumper cannot
be seen on the screen.
• The camera uses a special
lens. The distance of the
image that appears on the
screen differs from the actual
distance.
• Items which are located
higher than the camera may
not be displayed by the moni-
tor.Corners of bumper

2632-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■ Rear view monitor system camera
The camera for the rear view mon-
itor system is located above the
license plate.
● Using the camera
If the camera lens becomes dirty, it cannot transmit a clear image. If
water droplets, snow or mud adhere to the lens, rinse with water and
wipe with a soft cloth. If the lens is extremely dirty, wash it with a mild
cleanser and rinse.

2642-4. Using other driving systems
LX570_OM_OM60L21U_(U) Things you should know
■ If you notice any symptoms
If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Lexus dealer. Symptom Likely cause Solution
The image is difficult to
see • The vehicle is in a dark
area
•The temperature
around the lens is either
high or low
• The outside tempera-
ture is low
• There are water drop-
lets on the camera
• It is raining or humid
• Foreign matter (mud
etc.) is adhering to the
camera
• There are scratches on
the camera
• Sunlight or headlights
are shining directly into
the camera
• The vehicle is under flu-
orescent lights, sodium
lights, mercury lights
etc. If this happens due to
these causes, it does not
indicate a malfunction.
Back up while visually
checking the vehicle’s
surroundings. (Use the
monitor again once con-
ditions have been
improved.)
To adjust the image on
the rear view monitor sys-
tem screen. (  P. 4 0 3 )

2652-4. Using other driving systems
2
When driving

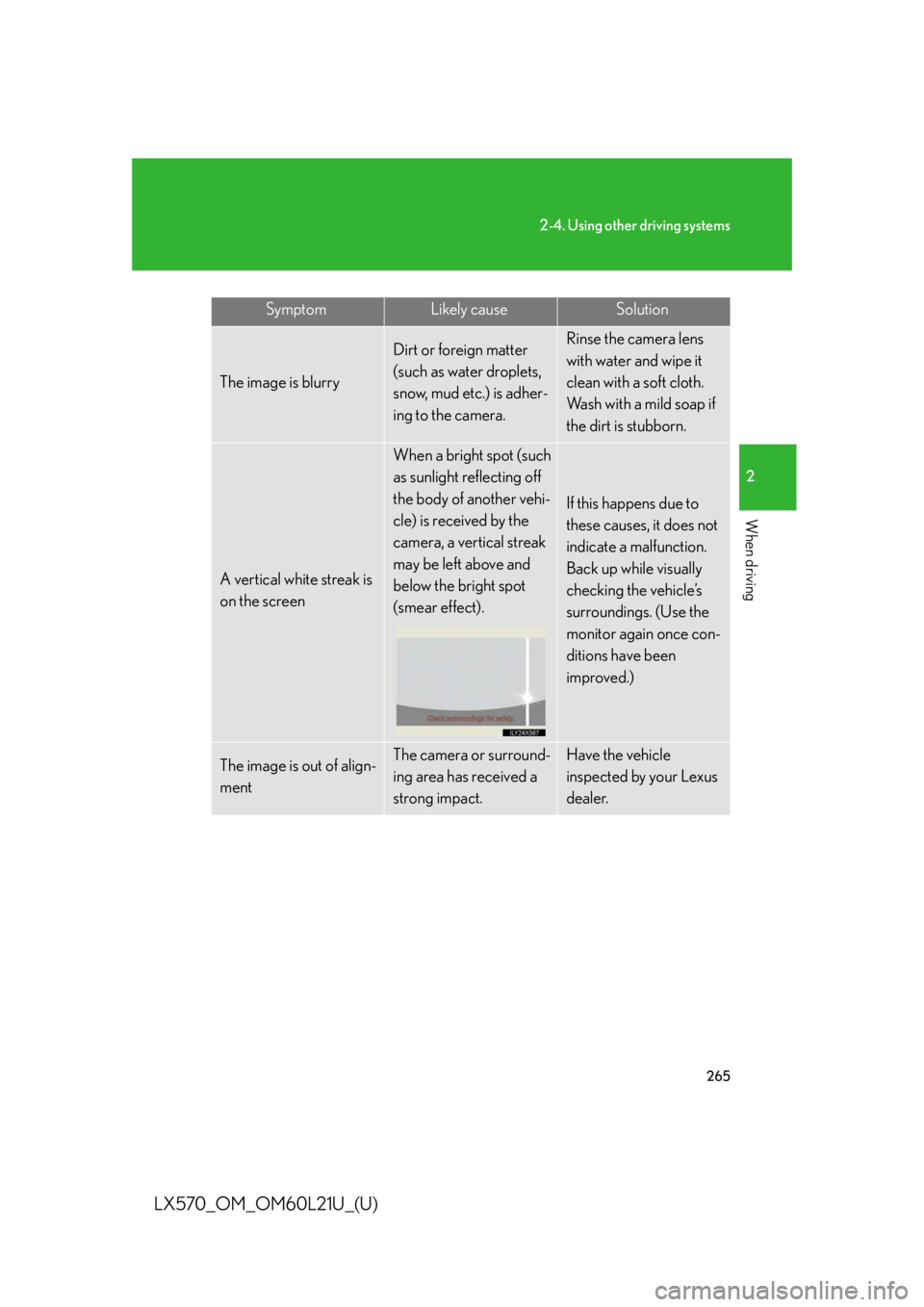

LX570_OM_OM60L21U_(U) The image is blurry Dirt or foreign matter
(such as water droplets,
snow, mud etc.) is adher-
ing to the camera. Rinse the camera lens
with water and wipe it
clean with a soft cloth.
Wash with a mild soap if
the dirt is stubborn.
A vertical white streak is
on the screen When a bright spot (such
as sunlight reflecting off
the body of another vehi-
cle) is received by the
camera, a vertical streak
may be left above and
below the bright spot
(smear effect). If this happens due to
these causes, it does not
indicate a malfunction.
Back up while visually
checking the vehicle’s
surroundings. (Use the
monitor again once con-
ditions have been
improved.)
The image is out of align-
ment The camera or surround-
ing area has received a
strong impact. Have the vehicle
inspected by your Lexus
dealer.Symptom Likely cause Solution

2662-4. Using other driving systems
LX570_OM_OM60L21U_(U) CAUTION■
When using the rear view monitor system
The rear view monitor system is a supplemental device intended to assist the driver
when backing up. When backing up, be sure to check visually behind and all around
the vehicle before proceeding.
Observe the following precautions to avoid an accident that could result in death or
serious injuries. ●
Never depend on the rear view monitor system entirely when backing up. The
image and the position of the guide lines displayed on the screen may differ from
the actual state.
Use caution, just as you would when backing up any vehicle. ●
When parking, be sure to check that the parking space will accommodate your
vehicle before maneuvering into it. ●
Be sure to back up slowly, depressing the brake pedal to control vehicle speed.●
In low temperatures, the screen may darken or the image may become faint. The
image could distort when the vehicle is moving, or you may become unable to
see the image on the screen. Be sure to check direct visually and with the mirrors
all around the vehicle before proceeding. ●
The camera uses a special lens. The di stances between obje cts and pedestrians
that appear in the image displayed on the screen will differ from the actual dis-
tances. (  P. 2 9 0 )

2672-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) NOTICE■
How to use the camera ●
The rear view monitor system may not operate properly in the following cases.
• If the back of the vehicle is hit, the position and mounting angle of the camera
may change.
• As the camera has a water proof construction, do not detach, disassemble or
modify it. This may cause incorrect operation.
• Do not strongly rub the camera lens. If the camera lens is scratched, it cannot
transmit a clear image.
• Do not allow organic solvent, car wax, window cleaner or glass coat to adhere
to the camera. If this happens, wi pe it off as soon as possible.
• If the temperature changes rapidly, such as when hot water is poured on the
vehicle in cold weather, the system may not operate normally.
• When washing the vehicle, do not apply intensive bursts of water to the cam-
era or camera area. Doing so may re sult in the camera malfunctioning.●
Do not expose the camera to strong impact as this could cause a malfunction. If
this happens, have the vehicle inspected by your Lexus dealer as soon as possi-
ble.

2682-4. Using other driving systems

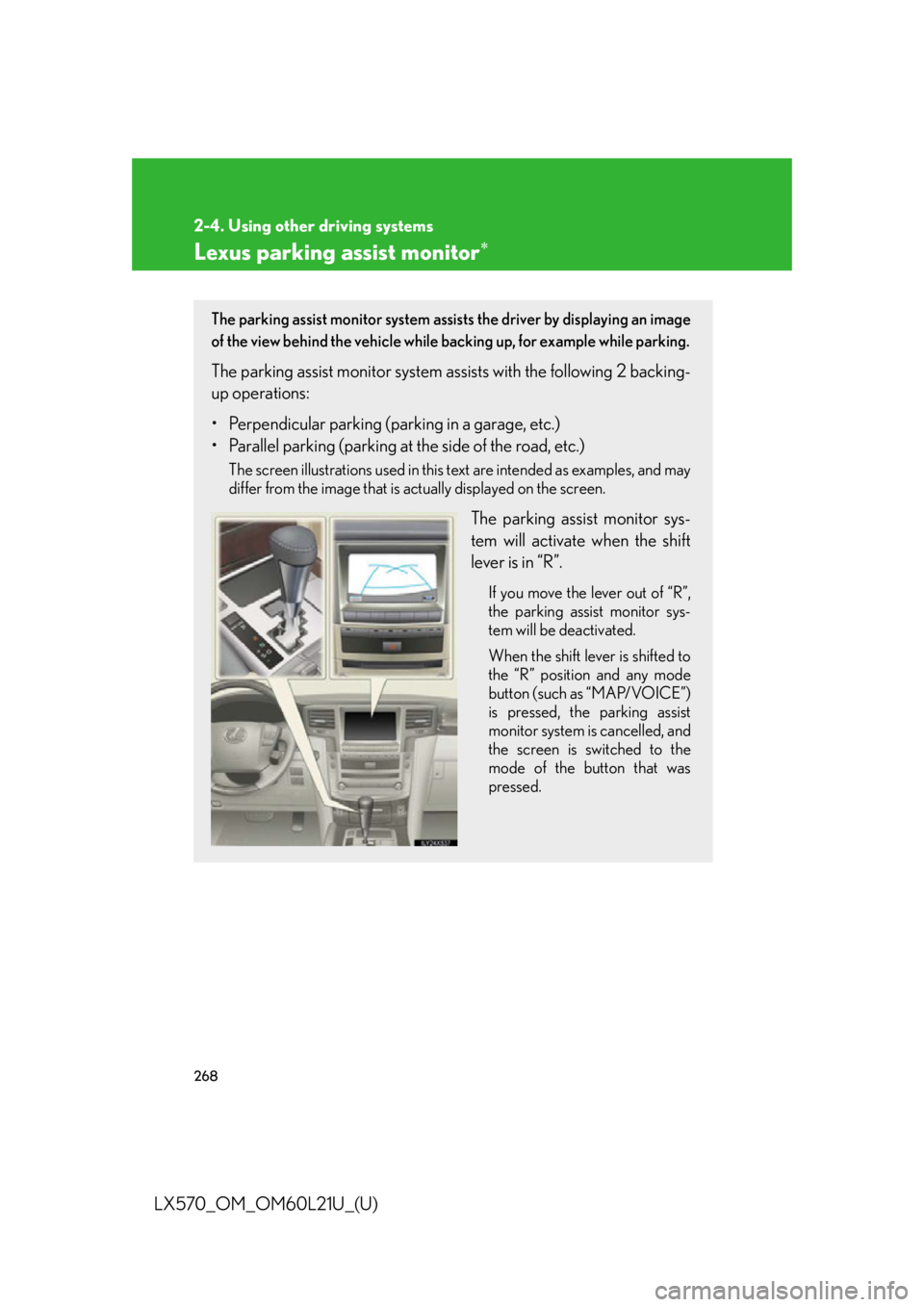

LX570_OM_OM60L21U_(U) Lexus parking assist monitor 
The parking assist monitor system assists the driver by displaying an image
of the view behind the vehicle while backing up, for example while parking.
The parking assist monito r system assists with the following 2 backing-
up operations:
• Perpendicular parking (parking in a garage, etc.)
• Parallel parking (parking at the side of the road, etc.) The screen illustrations used in this text are intended as examples, and may
differ from the image that is actually displayed on the screen.
The parking assist monitor sys-
tem will activate when the shift
lever is in “R”. If you move the lever out of “R”,
the parking assist monitor sys-
tem will be deactivated.
When the shift lever is shifted to
the “R” position and any mode
button (such as “MAP/VOICE”)
is pressed, the parking assist
monitor system is cancelled, and
the screen is switched to the
mode of the button that was
pressed.

2692-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) Using the Lexus parking assist monitor
■ Screen display
The parking assist monitor screen will be disp layed if the shift lever is
shifted to the “R” position while the “ENGINE START STOP” switch is
in IGNITION ON mode. The parking assist monitor displays the last-used parking mode first.
Perpendicular parking
Display mode switch screen
button (  P. 270)Switches the display mode.
Intuitive parking assist display If an obstacle is detected while the
intuitive parking assist is on, a dis-
play is shown in the top right cor-
ner of the screen.
Parking mode switch screen
button Switches the parking mode
(between perpendicular parking
and parallel parking assist screens)
Narrow mode screen on-off
button Switch the narrow mode on and off.
(
 P. 2 8 6 )Parallel parking

2702-4. Using other driving systems

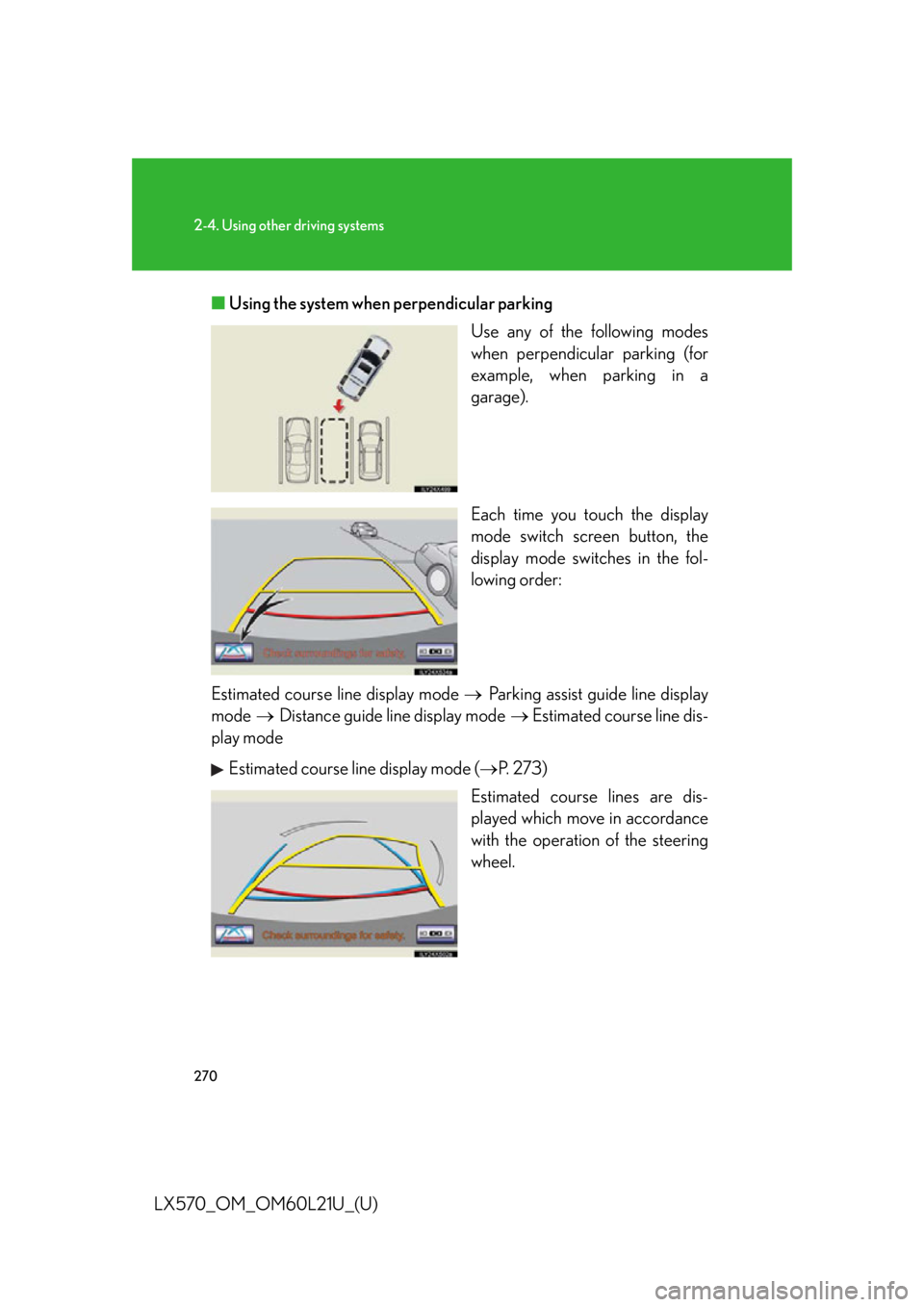

LX570_OM_OM60L21U_(U) ■ Using the system when perpendicular parking
Use any of the following modes
when perpendicular parking (for
example, when parking in a
garage).
Each time you to uch the display
mode switch screen button, the
display mode switches in the fol-
lowing order:
Estimated course line display mode  Parking assist guide line display
mode  Distance guide line display mode  Estimated course line dis-
play mode
Estimated course line display mode (  P. 273)
Estimated course lines are dis-
played which move in accordance
with the operation of the steering
wheel.
