LEXUS LX570 2014 Owners Manual

2512-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) Sensor detection display, obstacle distance
■ Corner sensors Approximate
distance to obstacle Multi-
information
display Touch screen
Insert display
Front:
1.6 ft. (50 cm) to
1.2 ft. (37.5 cm)
Rear:
2.0 ft. (60 cm) to
1.5 ft. (45 cm) (continuous) (continuous) (blinking)
Front:
1.2 ft. (37.5 cm) to
0.8 f t. (25 cm)
Rear:
1.5 ft. (45 cm) to
1.0 ft. (30 cm) (continuous) (continuous) (blinking rapidly)
Front:
Less than
0.8 f t. (25 cm)
Rear:
Less than
1.0 ft. (30 cm) (blinking) (continuous) (continuous)

2522-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■ Rear center sensors Approximate distance
to obstacle Multi-information
display To u c h s c r e e n
(insert display)
4.9 ft. (150 cm) to
2.6 ft. (80 cm)
(continuous) (blinking slowly)
2.6 ft. (80 cm) to
2.1 ft. (65 cm)
(continuous) (blinking)
2.1 ft. (65 cm) to
1.6 ft. (50 cm)
(continuous) (blinking rapidly)
Less than
1.6 ft. (50 cm)
(blinking) (continuous)

2532-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■ Buzzer operation and distance to an obstacle
A beep sounds when the corner se nsors and rear center sensors are
operating.
● The buzzer beeps faster as the ve hicle approaches an obstacle.
When the vehicle comes within the following distance of the obsta-
cle, the buzzer sounds continuously:
• Front corner sensors: Approximately 0.8 ft. (25 cm)
• Rear corner sensors: Approximately 1.0 ft. (30 cm)
• Rear center sensors: Approximately 1.6 ft. (50 cm)
● When 2 or more obstacles are detected simultaneously, the buzzer
system responds to the nearest obst acle. If one or both come within
the above distances, the beep will repeat a long tone, followed by
fast beeps.
● You can change the volume of the warning beeps. (  P. 255)

2542-4. Using other driving systems
LX570_OM_OM60L21U_(U) Detection range of the sensors
Approximately 2.0 ft. (60 cm)
Approximately 4.9 ft. (150 cm)
Approximately 1.6 ft. (50 cm) The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.

2552-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) Setting up intuitive parking assist
You can change the warning beep volume and touch screen operating
conditions.
Press the “SETUP” button.
Touch “Vehicle” on the “Setup” screen.
Touch “Lexus Park Assist” on the “Vehicle Settings” screen.
Alert volume setting
Display on/off
Alert distance setting
Make sure to save after changing
settings.
■ Alert volume setting
The alert volume can be adjusted.
Touch “1” to “5” on the “L EXUS Park Assist settings”.
Touch “Save”. STEP 1
STEP 2
STEP 3
STEP 1
STEP 2

2562-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■ Display on/off setting
On or off can be selected for intuitive parking assist display.
Touch “Display Off”. When the “Display Off” indicator is turned on, the disp lay of intuitive
parking assist will be off. Touch “Display Off” again to turn the display of
intuitive parking assist on.
Touch “Save”.
■ Alert distance setting
Front or rear center sensors display and tone indication can be set.
Touch “Rear”. Long distance or short di stance can be selected.
Touch “Save”.■
The intuitive parking assist can be operated when ●
Front corner sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in a position other than “P”.
• The vehicle speed is less than approximately 6 mph (10 km/h). ●
Rear corner and rear center sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in “R”.■
Intuitive parking assist display
When an obstacle is detected while the rear view monitor system, Lexus parking
assist monitor or wide view front & side monitor is in use, the warning indicator will
appear in the top right of the screen even if the display setting has been set to off.STEP 1
STEP 2
STEP 1
STEP 2

2572-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■
Sensor detection information ●
The sensor’s detection areas are limited to the areas around the vehicle’s front
corner and rear bumpers. ●
Certain vehicle conditions and the su rrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where this
may occur are listed below.
• There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this
problem.)
• The sensor is frozen. (Thawing the area will resolve this problem.)
In especially cold weather, if a sensor is frozen the screen may show an abnor-
mal display, or obstacles may not be detected.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines,
air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensor s in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelets are installed.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather
•The area directly under th e bumpers is not detected.
• If obstacles draw too close to the sensor.
• A non-genuine Lexus suspension (low ered suspension etc.) is installed.
• People may not be detected if they are wearing certain types of clothing.
In addition to the examples above, there are instances in which, because of their
shape, signs and other object s may be judged by the sensor to be closer than they
are.

2582-4. Using other driving systems
LX570_OM_OM60L21U_(U) ●
The shape of the obstacle may prevent th e sensor from detecting it. Pay particu-
lar attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materi als that absorb sound waves
• Sharply-angled objects
•Low obstacles
• Tall obstacles with upper sections projec ting outwards in the direction of your
vehicle●
The following situations may occur during use.
• Depending on the shape of the obstacle and other factors, the detection dis-
tance may shorten, or dete ction may be impossible.
• Obstacles may not be detected if they are too close to the sensor
• There will be a short delay between obstacle detection and display. Even at
slow speeds, there is a possibility that the obstacle will come within the sen-
sor’s detection areas before the display is shown and the warning beep
sounds.
• Thin posts or objects lower than the sensor may not be detected for collision
when approached, even if they have been detected once.
• It might be difficult to hear beeps due to the volume of audio system or air
flow noise of air conditioning system.■
If a message is displayed on the multi-information display
 P. 8 3 2■
Certification (Canada only)
This ISM device complies with Canadian ICES-001.

2592-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) CAUTION■
When using the intuitive parking assist
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely and possi-
bly cause an accident. ●
Do not use the sensor at speeds in excess of 6 mph (10 km/h). ●
The sensors’ detection areas and reaction times are limited. When moving for-
ward or reversing, check the areas surrounding the vehicle (especially the sides
of the vehicle) for safety, and drive slowly, using the brake to control the vehicle’s
speed. ●
Do not install accessories within the sensors’ detection areas.
NOTICE■
When using intuitive parking assist
In the following situations, the system may not function correctly due to a sensor
malfunction etc. Have the vehicle checked by your Lexus dealer. ●
A beep does not sound when you turn the main switch on. ●
The intuitive parking assist operation disp lay flashes, and a beep sounds when no
obstacles are detected. ●
If the area around a sensor collides wi th something, or is subjected to strong
impact. ●
If the bumper collides with something. ●
If the display shows continuously without a beep. ●
If a display error occurs, first check the sensor.
If the error occurs even if there is no ice, snow or mud on the sensor, it is likely that
the sensor is malfunctioning.■
Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

2602-4. Using other driving systems

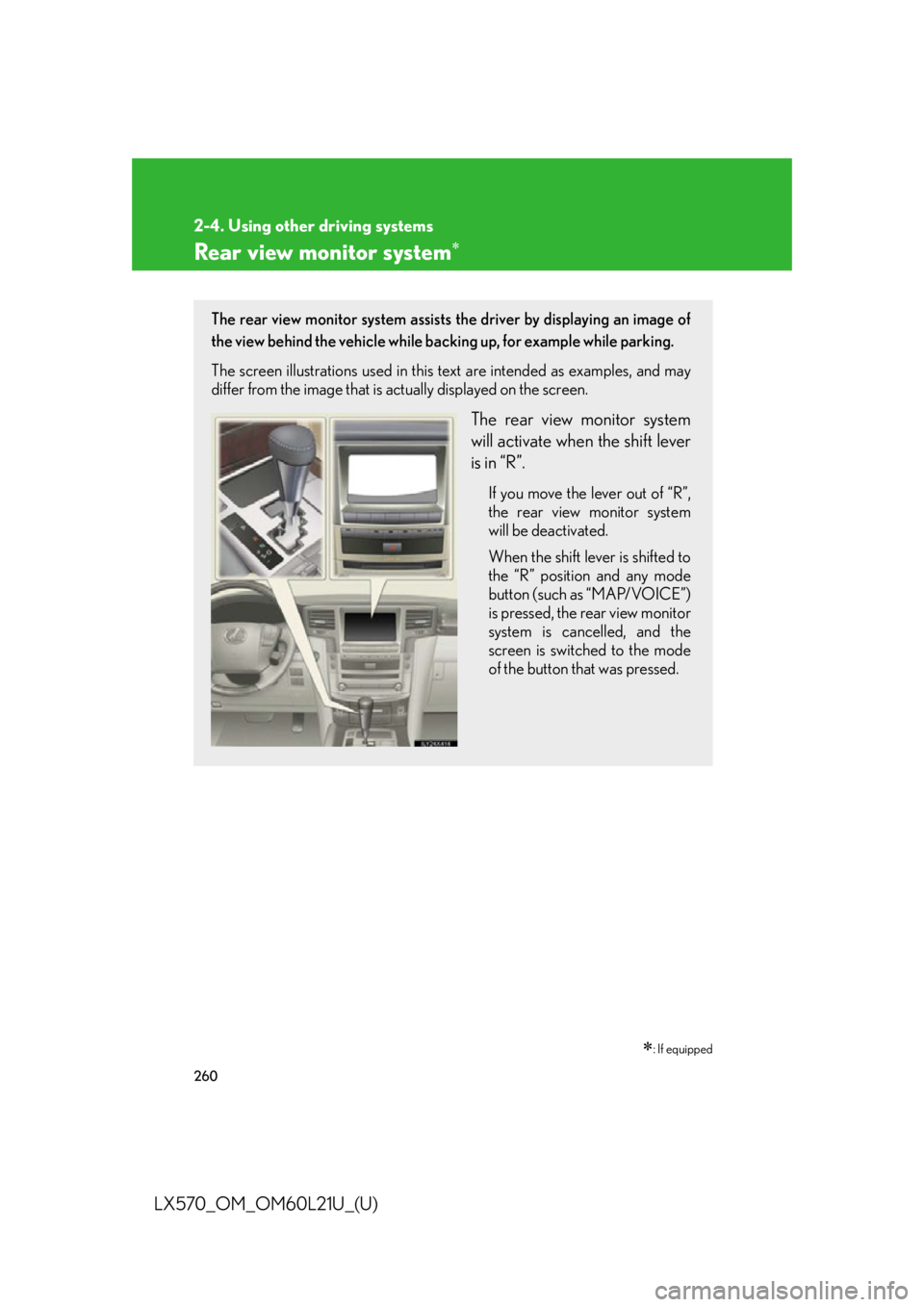

LX570_OM_OM60L21U_(U) Rear view monitor system 
 : If equippedThe rear view monitor system assists the driver by displaying an image of
the view behind the vehicle while ba cking up, for example while parking.
The screen illustrations used in this te xt are intended as examples, and may
differ from the image that is actually displayed on the screen.
The rear view monitor system
will activate when the shift lever
is in “R”. If you move the lever out of “R”,
the rear view monitor system
will be deactivated.
When the shift lever is shifted to
the “R” position and any mode
button (such as “MAP/VOICE”)
is pressed, the rear view monitor
system is cancelled, and the
screen is switched to the mode
of the button that was pressed.
