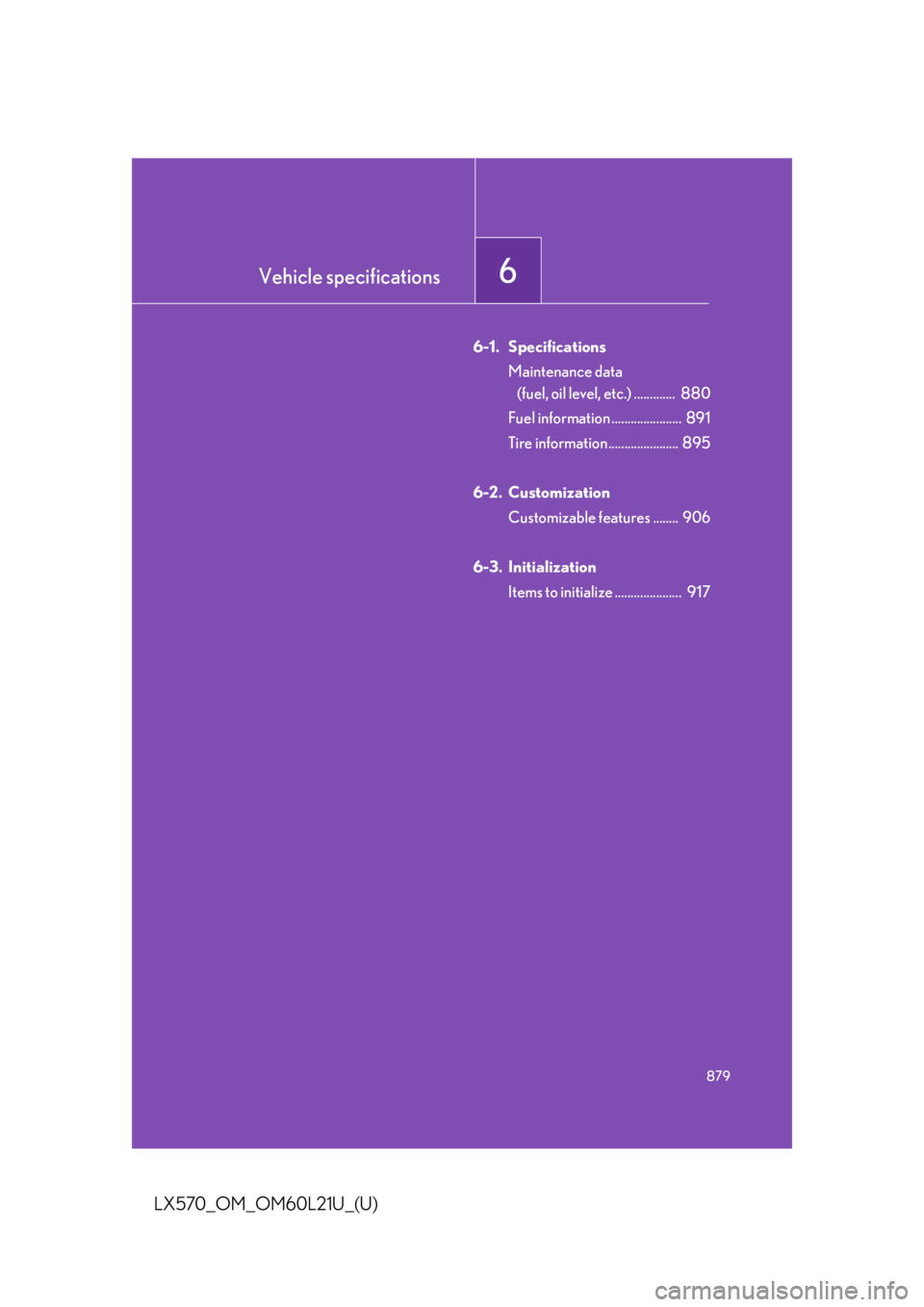

Vehicle specifications
6
879
LX570_OM_OM60L21U_(U) 6-1. Specifications
Maintenance data
(fuel, oil level, etc.) ............. 880
Fuel information ...................... 891
Tire information...................... 895
6-2. Customization
Customizable features ........ 906
6-3. Initialization
Items to initialize ..................... 917

880
LX570_OM_OM60L21U_(U) 6-1. Specifications
Maintenance data (fue l, oil level, etc.)Dimensions and weights
* 1
: Unladen vehicles
* 2
: Vehicles with roof luggage carrier
* 3
: Vehicles without roof luggage carrierOverall length 198.0 in. (5030 mm)
Overall width 77.6 in. (1970 mm)
Overall height
* 1
75.6 in. (1920 mm)
* 2
73.4 in. (1865 mm)
* 3
Wheelbase 112.2 in. (2850 mm)
Tr e a d Front 64.6 in. (1640 mm)
Rear 64.4 in. (1635 mm)
Vehicle capacity weight
(Occupants + luggage) 1285 lb. (580 kg)
TWR
(trailer weight +
cargo weight) With brake 7000 lb. (3175 kg)
Without brake 1000 lb. (454 kg)

8816-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L21U_(U) Vehicle identification
■ Vehicle identification number
The vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identi fication number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifi-
cation Label.
■ Engine number
The engine number is stamped on
the engine block as shown.

8826-1. Specifications
LX570_OM_OM60L21U_(U) Engine
Fuel Model 5.7L V8 (3UR-FE)
Ty p e 8-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  4.02 in. (94.0  102.0 mm)
Displacement
345.6 cu.in. (5663 cm 3
)
Valve clearance
Automatic adjustment
Drive belt tension
Fuel type Unleaded gasoline only
Octane rating 91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference) 24.5 gal. (93 L, 20.4 Imp.gal.)

8836-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L21U_(U) Lubrication system
* : The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to sa tisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.Oil capacity
(Drain and refill  reference
* )
With filter
Without filter 7.9 qt. (7.5 L, 6.6 Imp.qt.)
7. 5 q t . ( 7.1 L , 6 . 2 I m p . q t . )
Outside temperature

8846-1. Specifications
LX570_OM_OM60L21U_(U) Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the char acteristic of the oil which allows
cold startability. Oils with a lower value befo re the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the visc osity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is adde d to some oil containers to help you select the
oil you should use.

8856-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L21U_(U) Cooling system
Ignition system Capacity (Reference) 17.6 qt. (16.7 L, 14.7 Imp.qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make
Gap DENSO SK20HR11
0.043 in. (1.1 mm)
NOTICE■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

8866-1. Specifications
LX570_OM_OM60L21U_(U) Electrical system
Differential
Your Lexus vehicle is filled with “Toyota Ge nuine Differential Gear Oil” at the fac-
tory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details. Battery
Open voltage at 68  F (20  C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(Voltage is checked 20 minutes after the
engine and all lights are turned off.)
Charging rates 5 A max.
Oil capacity
Front
Rear 2.01 qt. (1.90 L, 1.67 Imp.qt.)
4.44 qt. (4.20 L, 3.70 Imp.qt.)
Oil type and viscosity Toyota Genuine Differential Gear Oil LT
75W-85 or equivalent
