8876-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L21U_(U) Automatic transmission
The fluid capacity is the quantity of refere nce. If replacement is necessary, contact
your Lexus dealer.
Tr a n s f e r
* : Your Lexus vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the fac-
tory. Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equiva-
lent of matching quality to satisfy the above specification. Please contact your
Lexus dealer for further details.Fluid capacity With air-cooled
type ATF
cooler 12.6 qt. (11.9 L, 10.5 Imp.qt.)
Without
air-cooled type
AT F c o o l e r 12.3 qt. (11.6 L, 10.2 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE■
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of your transmission accompanied by vibration, and
ultimately damage the transmission of your vehicle.
Oil capacity 1.53 qt. (1.45 L, 1.28 Imp.qt.)
Oil type
* Toyota Genuine Transfer Gear oil LF or
equivalent
Recommended oil viscosity SAE 75W

8886-1. Specifications
LX570_OM_OM60L21U_(U) Brakes
* 1
: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running
* 2
: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,
20.4 kgf)
Chassis lubrication
Steering Pe d a l c l e a r a n c e
* 1
3.6 in. (92 mm) Min.
Pedal free play 0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel
* 2
5  7 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3
Propeller shafts Spider Lithium base chassis grease, NLGI No.2
Slide yoke Molybdenum-disulfide lithium base chassis
grease, NLGI No.2 or Lithium base chassis
grease, NLGI No.2
Free play Less than 1.18 in. (30 mm)
Power steering fluid type Automatic transmission fluid DEXRON ®
II or III

8896-1. Specifications
6
Vehicle specifications

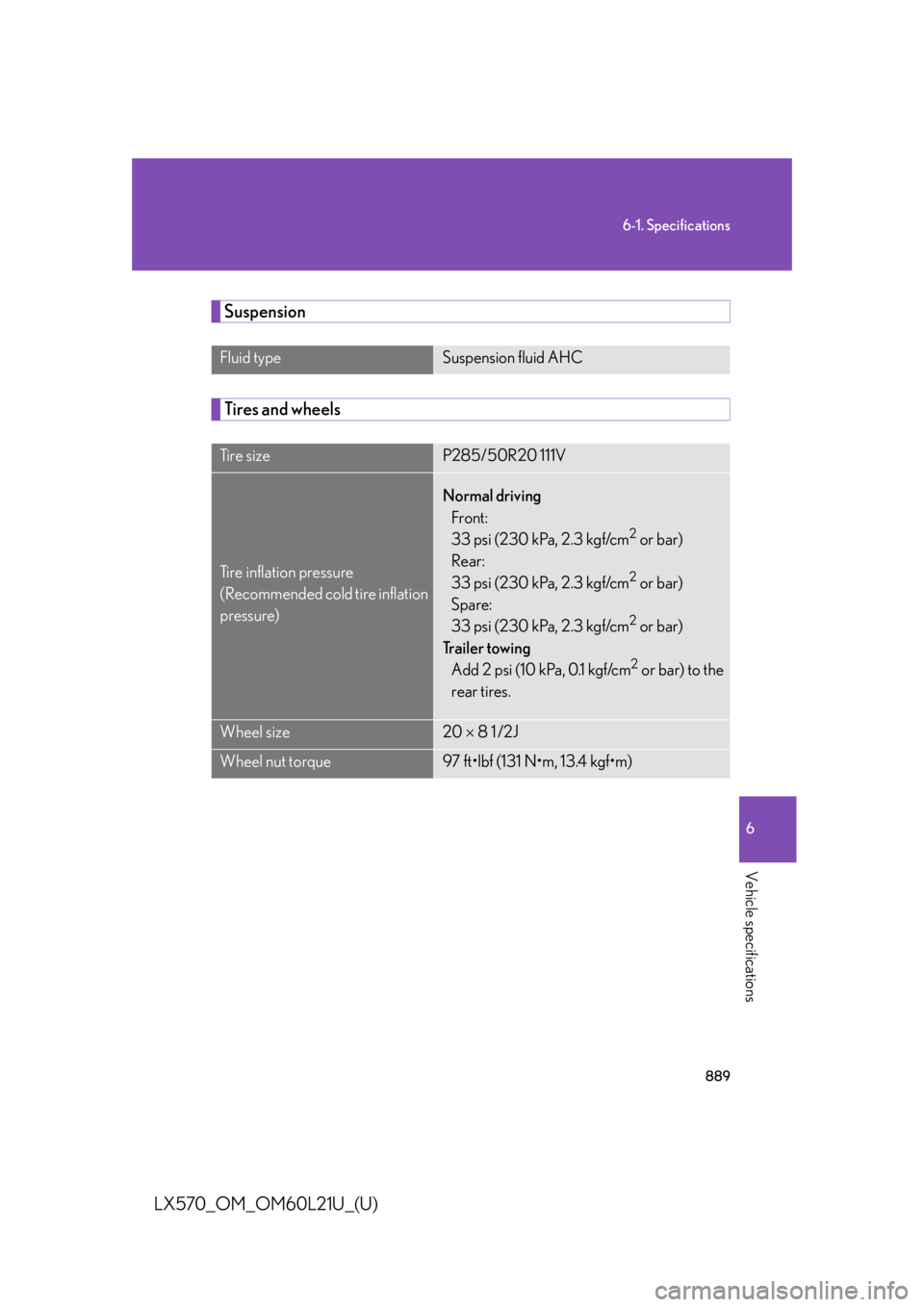

LX570_OM_OM60L21U_(U) Suspension
Tires and wheels Fluid type Suspension fluid AHC
Ti r e s i z e P285/50R20 111V
Tire inflation pressure
(Recommended cold tire inflation
pressure) Normal driving
Front:
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Rear:
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Spare:
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Tr a i l e r t o w i n g
Add 2 psi (10 kPa, 0.1 kgf/cm 2
or bar) to the
rear tires.
Wheel size 20  8 1 /2J
Wheel nut torque 97 ft•lbf (131 N•m, 13.4 kgf•m)

8906-1. Specifications
LX570_OM_OM60L21U_(U) Light bulbs
A: D4S high-intensity discharge
B: HB3 halogen bulbs
C: Wedge base bulbs
D: Single end bulbs
E: Double end bulbs Light bulbs Bulb No. W Ty p e
Exterior Headlights
Low beam
High beam 
9005 35
60 A
B
Front turn signal lights 74 4 4 N A 28 C
Rear turn signal lights  21 C
Back-up lights  16 C
Running board lights  3.8 C
Outer foot lights  5 C
Interior Front interior light  8 C
Rear interior lights
With rear personal lights
Without rear personal lights  8
8 C
E
Vanity lights  2 D
Door courtesy lights  5 C
Glove box light  1.2 C
Luggage compartment light  5 E

8916-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L21U_(U) Fuel information ■
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps. ■
If your engine knocks ●
Consult your Lexus dealer. ●
You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.■
Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.Your vehicle must use on ly unleaded gasoline.
Premium unleaded gasoline with an oc tane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may us e unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking. Per-
sistent knocking can lead to engine damage and should be corrected by
refueling with higher octane unleaded gasoline.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

8926-1. Specifications
LX570_OM_OM60L21U_(U) ■
Gasoline quality standards ●
Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.●
The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted. ●
The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction th rough better performance.■
Lexus recommends the use of gasoline containing detergent additives ●
Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits. ●
All gasoline sold in the US contains minimum detergent additives to clean and/
or keep clean intake systems, per EP A’s lowest additives concentration pro-
gram. ●
Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more
information on Top Tier Detergent Gasoline and a list of marketers, please go to
the official website www.toptiergas.com.■
Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reform ulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.

8936-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L21U_(U) ■
Lexus does not recommend blended gasoline
●
If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87. ●
Lexus DOES NOT recommend the use of gasoline containing methanol.■
Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancin g additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service. ●
Use only gasoline containing a maximum
of 10% ethanol.
DO NOT use any flex-fuel or gasoline that
could contain more than 10% ethanol,
including from any pump labeled E15, E30,
E50, E85 (which are only some examples
of fuel containing mo re than 10% ethanol).DO NOT use gasoline con-
taining more th an 10% etha-
nol.
(15% ethanol)
(50% ethanol)
(85% ethanol)

8946-1. Specifications
LX570_OM_OM60L21U_(U) NOTICE■
Notice on fuel quality ●
Do not use improper fuels. If improper fuels are used the engine will be damaged. ●
Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction. ●
Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems. ●
Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking.
At worst, this will lead to engine damage.■
Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knoc king, etc.), discontinue the use of that type of fuel.■
When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

8956-1. Specifications
6
Vehicle specifications

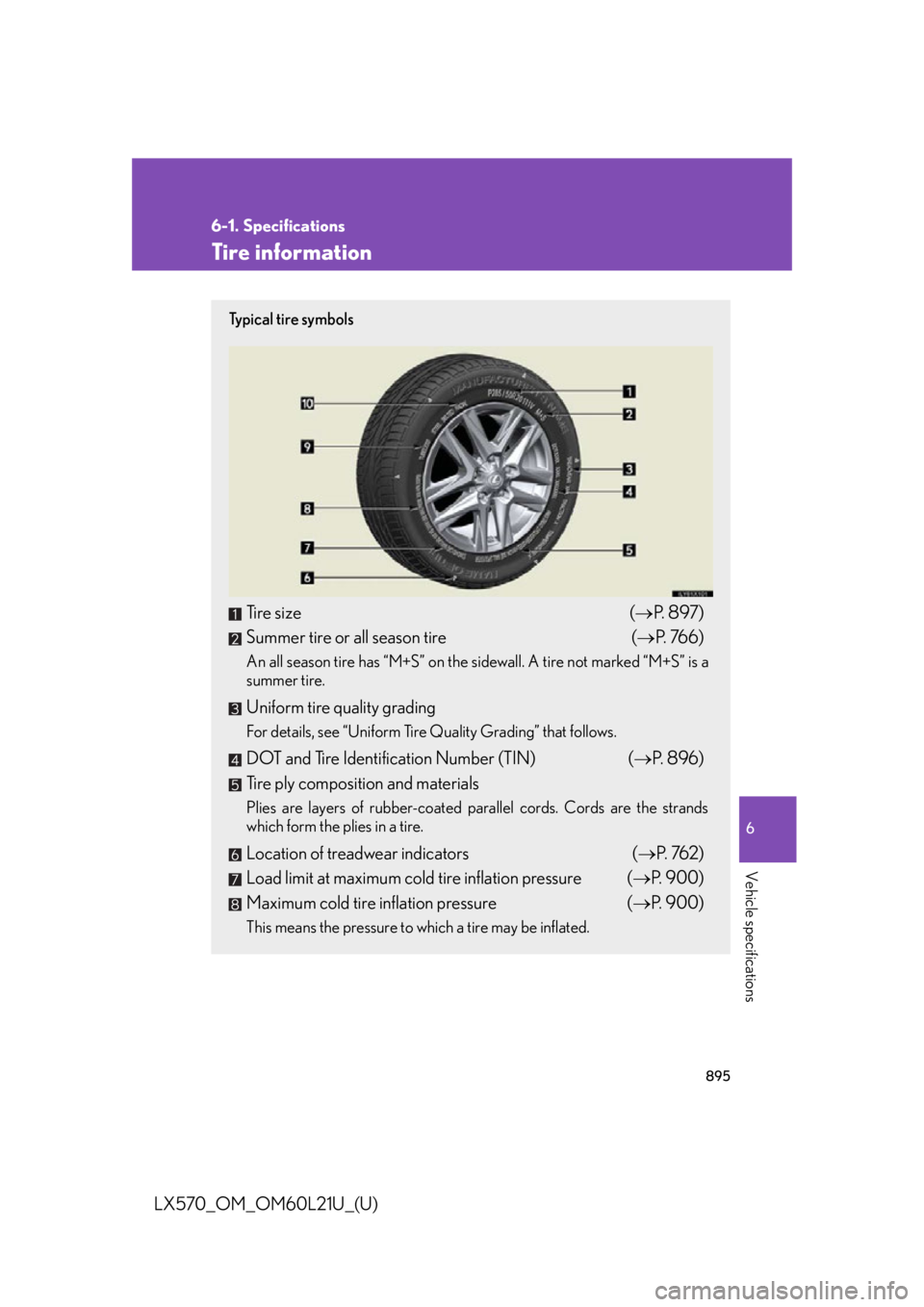

LX570_OM_OM60L21U_(U) Tire information Ty p i c a l t i r e s y m b o l s
Tire size (  P. 8 9 7 )
Summer tire or all season tire (  P. 76 6 )An all season tire has “M+S” on the si dewall. A tire not marked “M+S” is a
summer tire.
Uniform tire quality grading For details, see “Uniform Tire Quality Grading” that follows.
DOT and Tire Identification Number (TIN) (  P. 8 9 6 )
Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Location of treadwear indicators (  P. 76 2 )
Load limit at maximum cold tire inflation pressure (  P. 900)
Maximum cold tire inflation pressure (  P. 900)This means the pressure to which a tire may be inflated.

8966-1. Specifications

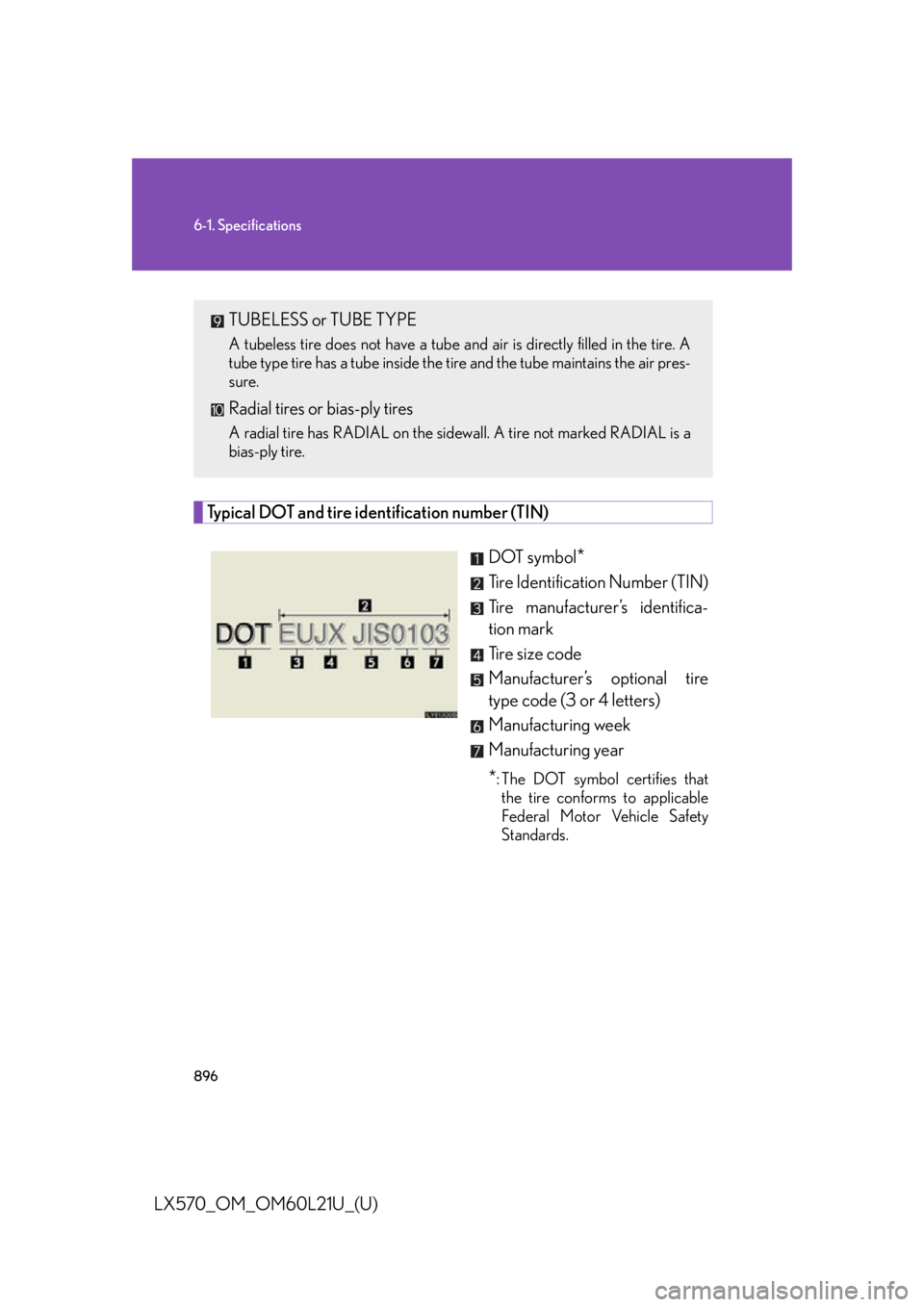

LX570_OM_OM60L21U_(U) Typical DOT and tire identification number (TIN)
DOT symbol
*Tire Identification Number (TIN)
Tire manufacturer’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
* : The DOT symbol certifies that
the tire conforms to applicable
Federal Motor Vehicle Safety
Standards.TUBELESS or TUBE TYPE A tubeless tire does not have a tube an d air is directly filled in the tire. A
tube type tire has a tube inside the ti re and the tube maintains the air pres-
sure.
Radial tires or bias-ply tires A radial tire has RADIAL on the sidewall. A tire not marked RADIAL is a
bias-ply tire.
