11111-4. Opening and closing the windows and moon roof
Before driving

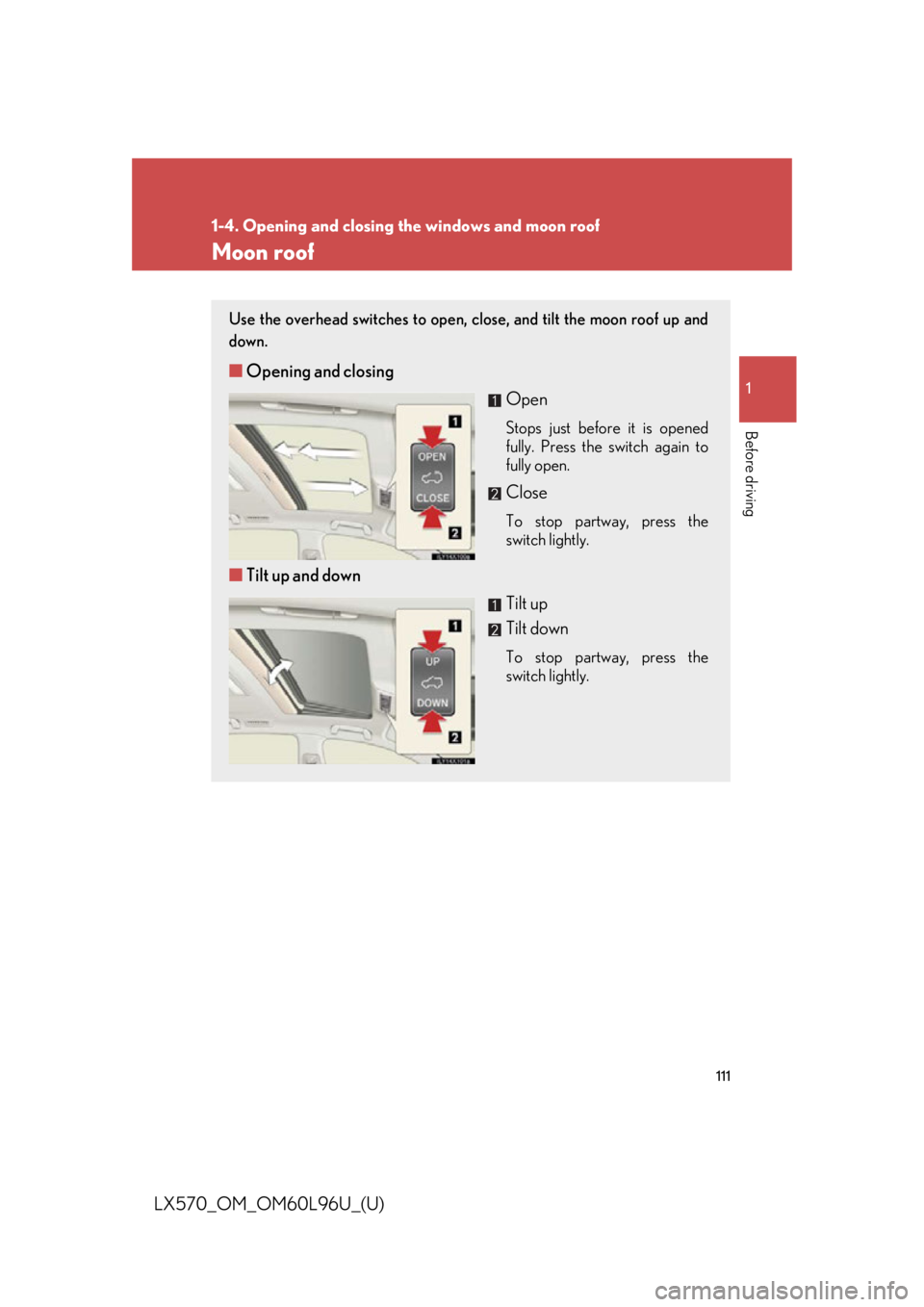

LX570_OM_OM60L96U_(U) Moon roof Use the overhead switches to open, close, and tilt the moon roof up and
down.
■ Opening and closing
Open Stops just before it is opened
fully. Press the switch again to
fully open.
Close To stop partway, press the
switch lightly.
■ Tilt up and down
Tilt up
Tilt down To stop partway, press the
switch lightly.

1121-4. Opening and closing the windows and moon roof
LX570_OM_OM60L96U_(U) ■
The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode. ■
Door lock linked moon roof operation
The following functions can be used if customized at your Lexus dealer. ●
The moon roof can be opened and cl osed using the mechanical key. (  P. 872)●
The moon roof can be opened usin g the wireless remo te control. (  P. 49)●
The moon roof can be closed using the entry function. (  P. 36)■
Operating the moon roof after turning the “ENGINE START STOP” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned OFF.
It cannot, however, be operated on ce either front door is opened.■
Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly. ■
If the moon roof cannot be closed automatically
Keep the switch depressed. ■
To reduce moon roof wind noise
When the moon roof is opened automaticall y, it will stop slightly before the fully
open position. Driving with the moon roof in this position can help reduce wind
noise. ■
Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when th e moon roof is opened.

1131-4. Opening and closing the windows and moon roof
1
Before driving
LX570_OM_OM60L96U_(U) ■
When the moon roof does not close normally
Perform the following procedure: ●
If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.* 1
The moon roof will close, reopen and pause for approximately 10 sec-
onds.* 2
Then it will close again, tilt up and pause for approximately 1 sec-
ond. Finally, it will ti lt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.●
If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch* 1
until the moon roof moves into the tilt up
position and stops.
Release the “UP” switch once and th en press and hold the “UP” switch
again.* 1
The moon roof will pause for approximat ely 10 seconds in the tilt up posi-
tion.* 2
Then it will adjust slightly and pause for approximately 1 second.
Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
* 1
: If the switch is released at the incorrect time, the procedure will have
to be performed agai n from the beginning.
* 2
: If the switch is released after the above mentioned 10 second pause,
automatic operation will be disabled. In that case, press and hold the
“CLOSE” or “UP” switch, and the moon roof will tilt up and pause for
approximately 1 second. Then it will tilt down, open and close. Check
to make sure that the moon roof is completely closed and then release
the switch.
If the moon roof does not fully close ev en after performing the above procedure
correctly, have the vehicle inspected by your Lexus dealer. STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3
STEP 4

1141-4. Opening and closing the windows and moon roof
LX570_OM_OM60L96U_(U) ■
Moon roof open warning buzzer
The buzzer sounds and message is shown on the multi-information display in the
instrument panel when the “ENGINE STAR T STOP” switch is turned OFF and the
driver’s door is opened with the moon roof open. ■
Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features  P. 912)
CAUTION■
Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.●
Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving. ●
Do not sit on top of the moon roof.

1151-4. Opening and closing the windows and moon roof
1
Before driving
LX570_OM_OM60L96U_(U) CAUTION■
Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury. ●
The driver is responsible for moon roof opening and closing op erations. In order
to prevent accidental operation, especially by a child, do not let a child operate
the moon roof. It is possible for children and other passengers to have body parts
caught in the moon roof. ●
Check to make sure that all passengers do not have any part of their bodies in a
position where they could be caught when the moon roof is being operated. ●
When using the smart access system, wireless remote co ntrol or mechanical key
and operating the moon roof , operate the moon roof after checking to make sure
that there is no possibility of any passenger having any of their body parts caught
in the moon roof. Also, do not let a child operate moon roof by the smart access
system, wireless remote contro l or mechanical key. It is possible for children and
other passengers to get caught in the moon roof. ●
When exiting the vehicle, turn the “ENG INE START STOP” switch off, carry the
key and exit the vehicle along with the child. There may be accidental operation,
due to mischief, etc., that may possibly lead to an accident.■
Jam protection function ●
Never try jamming any part of your body to activate the jam protection function
intentionally. ●
The jam protection function may not work if something gets caught just before
the moon roof fully closes.

116
LX570_OM_OM60L96U_(U) 1-5. Refueling
Opening the fuel tank cap Perform the following steps to open the fuel tank cap.
■ Before refueling the vehicle
● Turn the “ENGINE START STOP” switch OFF and ensure that
all the doors and windows are closed.
● Confirm the type of fuel. (  P. 117)
■ Opening the fuel tank cap
Pull the lever.
Turn the fuel ta nk cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.STEP 1
STEP 2
STEP 3

1171-5. Refueling
1
Before driving
LX570_OM_OM60L96U_(U) Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.■
Fuel types
Use unleaded gasoline (Octane Rating 91 [Research Octane Number 96] or
higher)

1181-5. Refueling
LX570_OM_OM60L96U_(U) CAUTION■
Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so, may result in death or serious injury.●
Touch the vehicle or some other metal surf ace to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite. ●
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be he ard when the fuel tank cap is loosened. Wait until
the sound cannot be heard befo re fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause injury. ●
Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank. ●
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled. ●
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire. ●
Do not return to the vehicle or touch an y person or object that is statically
charged.
This may cause static electricity to build up , resulting in a possible ignition hazard.■
When replacing the fuel tank cap
Do not use anything but a genuine Lexus fu el tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or seri-
ous injury.
NOTICE■
Refueling
Do not spill fuel during refueling.
Failure to do so may damage the vehicle, such as ca using the exhaust systems to
operate abnormally or damaging fuel syst em components or the vehicle’s painted
surface.

1191
Before driving
LX570_OM_OM60L96U_(U) 1-6. Theft deterrent system
Engine immobilizer system
■
System maintenance
The vehicle has a maintenance-free type engine immobilizer system. ■
Conditions that may cause the system to malfunction ●
If the key is in contact with a metallic object ●
If the key is in close proximity to or to uching a key to the security system (key
with a built-in transponde r chip) of another vehicleThe vehicle’s keys have built-in tran sponder chips that prevent the engine
from starting if a key has not been prev iously registered in the vehicle’s on-
board computer.
Never leave the keys inside the ve hicle when you leave the vehicle.
This system is designed to help prev ent vehicle theft but does not guar-
antee absolute security aga inst all vehicle thefts.
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned off to
indicate that th e system is oper-
ating.
The indicator light stops flashing
after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNI-
TION ON mode to indicate
that the system has been can-

1201-6. Theft deterrent system
LX570_OM_OM60L96U_(U) ■
Engine immobilizer certification
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-1
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must a ccept any interference, including interfer-
ence that may cause undesire d operation of the device.
CAUTION■
Certifications for the en gine immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE■
To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation
of the system cannot be guaranteed.
