LEXUS LX570 2015 Owners Manual

12111-6. Theft deterrent system
Before driving
LX570_OM_OM60L96U_(U) Alarm The system sounds the al arm and flashes lights when forcible entry is
detected.
■ Triggering of the alarm
The alarm is triggered in the following situations wh en the alarm is
set:
● A locked door is unlock ed or opened in any way other than using
the entry function, wireless remo te control or using mechanical
key. (The doors will lock again automatically.)
● The hood is opened.
■ Setting the alarm system
Close the doors and hood, and
lock all doors.
The system will be set automati-
cally after 30 seconds. The indicator light changes from
being on to flashing when the
system is set.
■ Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
● Unlock the doors.
● Turn the “ENGINE START STOP” switch to ACCESSORY or
IGNITION ON mode, or start the engine. (The alarm will be
deactivated or stopped after a few seconds.)

1221-6. Theft deterrent system
LX570_OM_OM60L96U_(U) ■
System maintenance
The vehicle has a maintenance-free type alarm system. ■
Items to check before locking the vehicle
To prevent unexpected triggering of the al arm and vehicle theft, make sure of the
following. ●
Nobody is in the vehicle. ●
The windows and moon roof are closed before the alarm is set. ●
No valuables or other personal items are left in the vehicle.■
Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.) ●
A person inside the vehicle opens a door
or hood.
●
The battery is recharged or replaced when
the vehicle is locked.

1231-6. Theft deterrent system
1
Before driving
LX570_OM_OM60L96U_(U) ■
When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is disconnected before canceling the alarm, the system may be trig-
gered when the battery is reconnected. ■
Alarm-operated door lock ●
When the alarm is operating, the door s are locked automatically to prevent
intruders. ●
Do not leave the key inside the vehicle when the alarm is operating, and make
sure the key is not inside the vehicle wh en recharging or replacing the battery.■
Panic mode
NOTICE■
To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation
of the system cannot be guaranteed. When is pressed for longer than about
one second, the head lights/tail lights/emer-
gency flashers will flash, the front and rear
interior lights will come on, and an alarm will
sound for about 60 seconds to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, press any button on the
wireless remote control.

124
LX570_OM_OM60L96U_(U) 1-7. Safety information

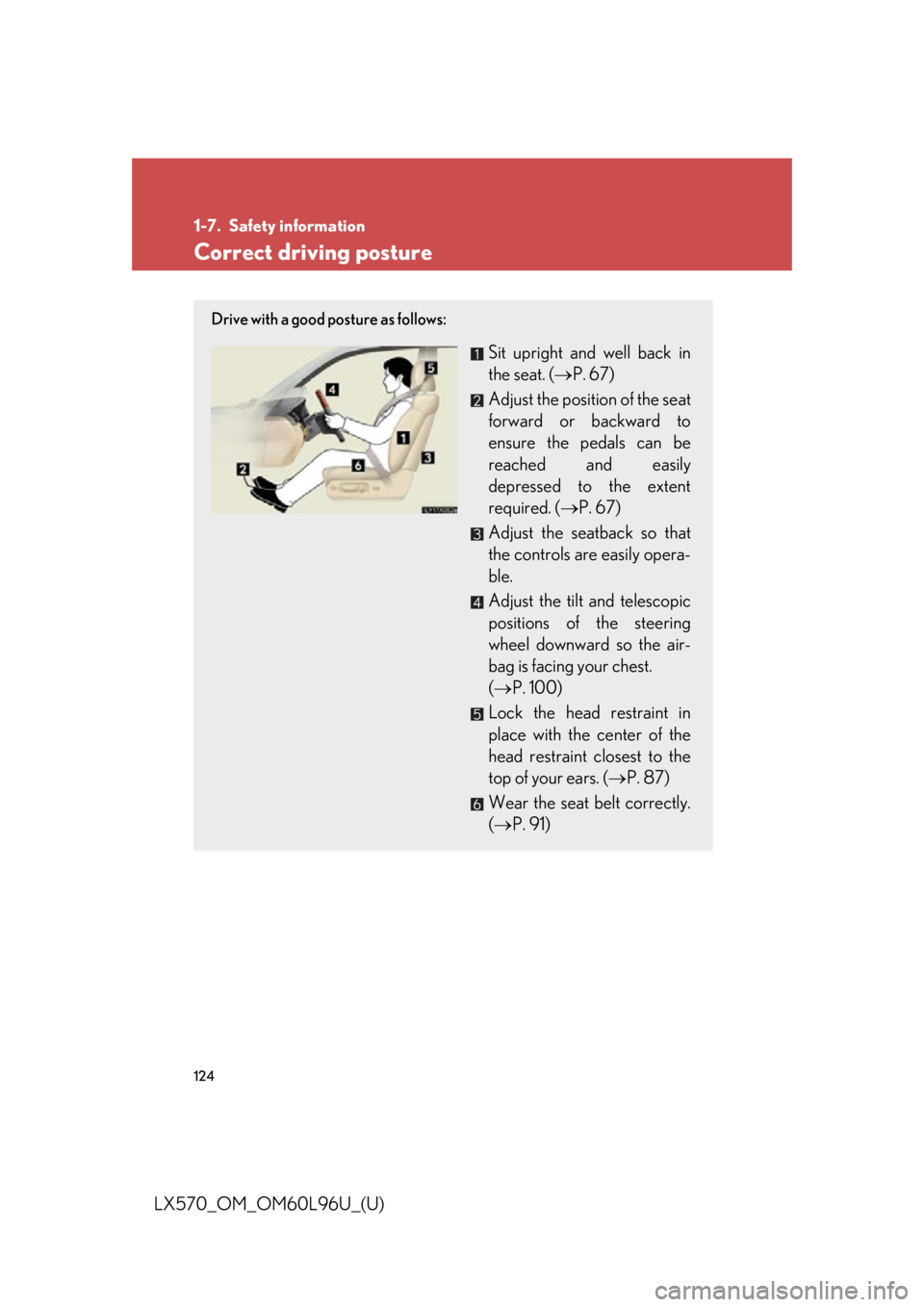

Correct driving posture Drive with a good posture as follows:
Sit upright and well back in
the seat. (  P. 67)
Adjust the position of the seat
forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. (  P. 67)
Adjust the seatback so that
the controls are easily opera-
ble.
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
(  P. 100)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (  P. 87)
Wear the seat belt correctly.
(  P. 91)

1251-7. Safety information
1
Before driving
LX570_OM_OM60L96U_(U) CAUTION■
While driving ●
Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle. ●
Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head re straint, increasing the risk of death or
serious injury to the driver or passenger. ●
Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident. The adjustment
mechanism may also be damaged.■
Adjusting the seat position ●
Do not recline the seat more than necessary when the vehicle is in motion, to
reduce the risk of sliding under the lap belt.
If the seat is too reclined during an accident, the lap belt may slide past the hips
and apply restraint forces di rectly to the abdomen or your neck may contact the
shoulder belt, increasing the ri sk of death or serious injury.●
Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat. ●
Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become ja mmed in the seat mechanism.

1261-7. Safety information

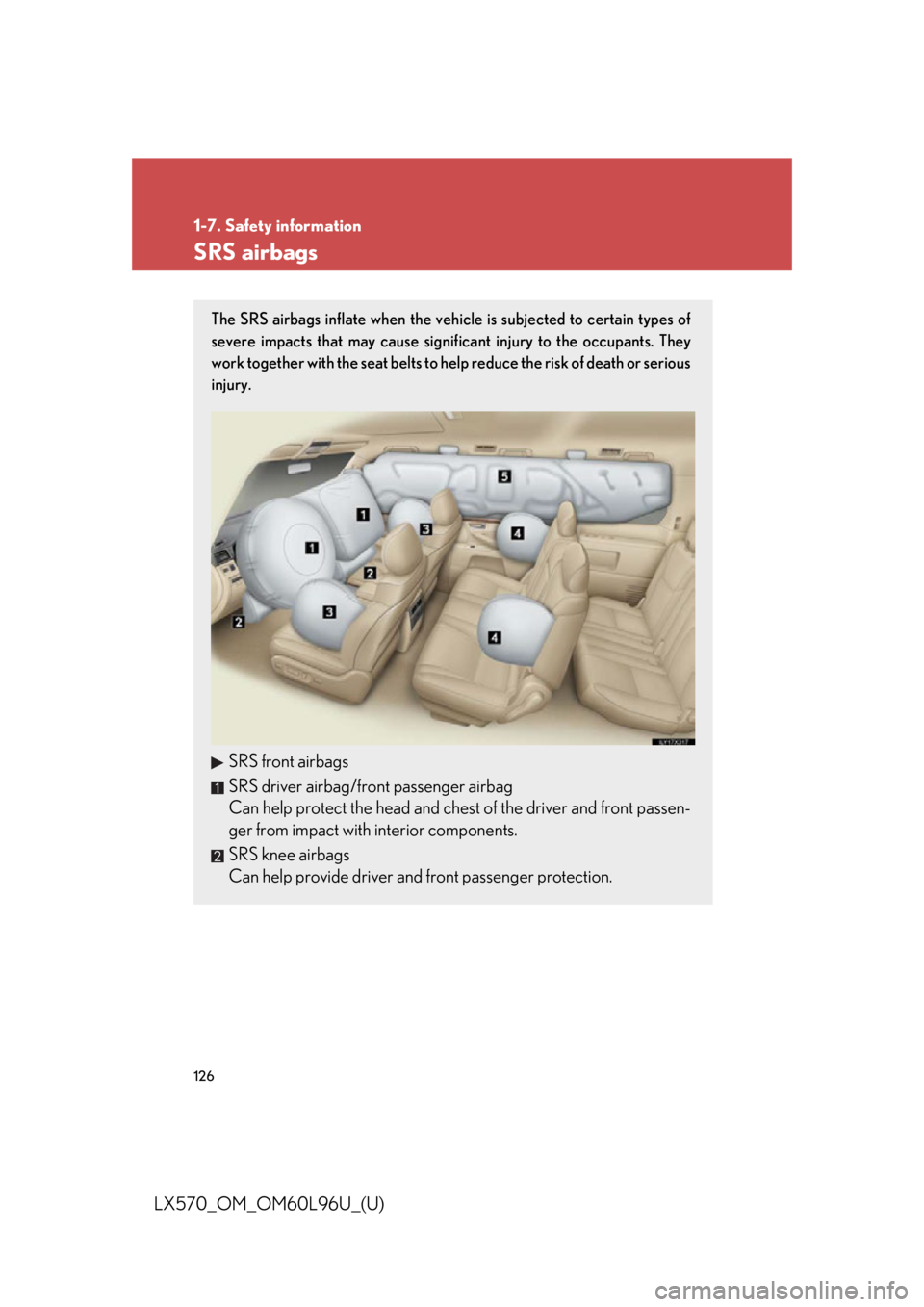

LX570_OM_OM60L96U_(U) SRS airbags The SRS airbags inflate when the vehi cle is subjected to certain types of
severe impacts that may cause significant injury to the occupants. They
work together with the seat belts to help reduce the risk of death or serious
injury.
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the he ad and chest of the driver and front passen-
ger from impact with interior components.
SRS knee airbags
Can help provide driver and front passenger protection.

1271-7. Safety information
1
Before driving
LX570_OM_OM60L96U_(U) SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants.
SRS rear side airbags
Can help protect the torso of the second outboard seat occupants.
SRS curtain shield airbags
● Can help protect primarily the head of front seat occupants.
● Can help protect primarily the head of second outboard seat
occupants.
● Can help protect primarily the head of third seat occupants.

1281-7. Safety information
LX570_OM_OM60L96U_(U) Airbag system components
Front passenger occupant
classification system
(ECU & sensors)
Knee airbags
Curtain shield airbags
Front passenger airbag
AIR BAG ON and AIR BAG
OFF indicator lights
Side impact sensors (front
door)
Side airbags (front seats)
SRS warning light and
“RSCA OFF” indicator light
Side impact sensors (rear) Side airbags
(second outboard seats)
Driver airbag
Driver’s seat position sensor
Driver’s seat belt buckle
switch
Safing sensor (rear)
Roll sensing of curtain shield
airbags off switch
Airbag sensor assembly
Front impact sensors
Front passenger’s seat belt
buckle switch
Seat belt pretensioners and
force limiters

1291-7. Safety information
1
Before driving
LX570_OM_OM60L96U_(U) Your vehicle is equipped with AD VANCED AIRBAGS designed based
on the US motor vehicle safety stan dards (FMVSS208). The airbag sen-
sor assembly (ECU) co ntrols airbag deploy ment based on information
obtained from the sensors etc. shown in the system components diagram
above. This information includes crash severity and occupant informa-
tion. As the airbags deploy, a chemica l reaction in the inflators quickly fills
the airbags with nontoxic gas to help restrain th e motion of the occu-
pants. ■
If the SRS airbag s deploy (inflate)●
Bruising and slight abrasions may result from contact with a deploying (inflat-
ing) SRS airbag. ●
A loud noise and white powder will be emitted. ●
Parts of the airbag module (steering wh eel hub, airbag cover and inflator) as
well as the front seats, second seats, an d parts of the front, center and rear pil-
lars, and roof side rail, may be hot for se veral minutes. The airbag itself may also
be hot. ●
The windshield may crack. ●
For Safety Connect subscribers, if the SRS airbags deploy or in the event of a
severe rear-end collision, the system is designed to send an emergency call to
the response center, notifying them of th e vehicle’s location (without needing to
push the “SOS” button) and an agent will attempt to speak with the occupants
to ascertain the level of emergency and assistance required. If the occupants
are unable to communicate, the agent auto matically treats the call as an emer-
gency and helps to dispatch the necessary emergency services. (  P. 726)

1301-7. Safety information
LX570_OM_OM60L96U_(U) ■
SRS airbag deployment conditions (SRS front airbags) ●
The SRS front airbag will deploy in the event of an impact that exceeds the set
threshold level (the level of force corresponding to an approximately 12 - 18 mph
[20 - 30 km/h] frontal collision with a fix ed wall that does not move or deform).
However, this threshold velocity will be considerably higher in the following situa-
tions:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which
can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which
the front of the vehicle “underrides”, or goes under, the bed of a truck●
Depending on the type of collision, it is possible that only the seat belt preten-
sioners will activate. ●
The SRS front airbags for the front passeng er will not activate if there is not a
passenger sitting in the front passenger seat. However, the front airbags for the
front passenger may deploy if luggage is pu t in the seat, even if the seat is unoc-
cupied.■
SRS airbag deployment conditions (SRS side airbags and SRS curtain shield air-
bags) ●
The SRS side airbags and SRS curtain shield airbags will deploy in the event of
an impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an ap proximately 3300 lb. [1500 kg] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approx imate speed of 12 - 18 mph [20 - 30 km/h]).●
The SRS curtain shield airbags will depl oy in the event of vehicle rollover.
