LEXUS LX570 2015 Owners Manual

1311-7. Safety information
1
Before driving
LX570_OM_OM60L96U_(U) ■
Conditions under which the SRS airbags may deploy (inflate), other than a colli-
sion
The SRS front may also deploy if a serious impact occurs to the underside of your
vehicle. Some examples are shown in the illustration.
The SRS curtain shield airbags may also deploy under the situations shown in the
illustration.
■
Types of collisions that may not de ploy the SRS airbag (front airbags)
The SRS front airbags do not generally inflate if the vehicle is involved in a side or
rear collision, if it rolls over, or if it is involved in a low-speed frontal collision. But,
whenever a collision of any type causes sufficient forward deceleration of the vehi-
cle, deployment of the SRS front airbags may occur. ●
Hitting a curb, edge of pavement or hard
surface ●
Falling into or jumping over a deep hole ●
Landing hard or falling
●
The angle of vehicle tip-up is marginal. ●
The vehicle skids and hits curb stone.
●
Collision from the side ●
Collision from the rear ●
Vehicle rollover

1321-7. Safety information
LX570_OM_OM60L96U_(U) ■
Types of collisions that may not deploy the SRS airbag
(side airbags and curtain shield airbags)
The SRS side airbag and curtain shield airb ag may not activate if the vehicle is sub-
jected to a collision from the side at certain angles, or a collision to the side of the
vehicle body other than the passenger compartment.
The SRS side airbags do not generally inflate if the vehicle is involved in a frontal or
rear collision, if it rolls over, or if it is involved in a low-speed side collision.
The SRS curtain shield airbags do not generall y inflate if the vehicle is involved in a
frontal or rear collision, if it pitches end over end, or if it is involved in a low-speed
side collision. ●
Collision from the side to the vehicle body
other than the passenger compartment ●
Collision from the side at an angle
●
Collision from the front ●
Collision from the rear ●
Vehicle rollover
●
Collision from the front ●
Collision from the rear ●
Pitching end over end

1331-7. Safety information
1
Before driving
LX570_OM_OM60L96U_(U) ■
When to contact your Lexus dealer
In the following cases, the vehicle will require inspection and/or repair.
Contact your Lexus dealer as soon as possible. ●
Any of the SRS airbags have been inflated. ●
The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS front airbags to inflate.
●
A portion of a door is damaged or
deformed, or the vehicle was involved in an
accident that was not severe enough to
cause the SRS side and curtain shield air-
bags to inflate.
●
The pad section of the steering wheel,
dashboard near the front passenger airbag
or lower portion of the instrument panel is
scratched, cracked, or otherwise dam-
aged.
●
The surface of the seats with the side airbag
is scratched, cracked or otherwise dam-
aged.

1341-7. Safety information
LX570_OM_OM60L96U_(U) CAUTION■
SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may caus e death or serious injury.●
The driver and all passengers in the vehicl e must wear their seat belts properly.
The SRS airbags are supplemental device s to be used with the seat belts.●
The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag. The National
Highway Traffic Safety Administration (“NHTSA”) advises:
Since the risk zone for the dr iver’s airbag is the first 2 - 3 in. (50 - 75 mm) of infla-
tion, placing yourself 10 in. (250 mm) from your driver airbag provides you with a
clear margin of safety. This distance is measured from the center of the steering
wheel to your breastbone. If you sit less than 10 in. (250 mm) away now, you can
change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many dr ivers can achieve the 10 in. (250 mm)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a fi rm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, ti lt it downward. This points the airbag
toward your chest instead of your head and neck.
The seat should be adjusted as recomme nded by NHTSA above, while still main-
taining control of the foot pedals, steeri ng wheel, and your view of the instrument
panel controls. ●
The portion of the front, side and rear pil-
lars or roof side rail garnishes (padding)
containing the curtain shield airbags is
inside scratched, cr acked, or otherwise
damaged.

1351-7. Safety information
1
Before driving
LX570_OM_OM60L96U_(U) CAUTION■
SRS airbag precautions
●
The SRS front passenger airbag also deploys with considerable force, and can
cause death or serious injury especially if the front passenger is very close to the
airbag. The front passenger se at should be as far from the airbag as possible with
the seatback adjusted, so the front passenger sits upright.●
Improperly seated and/or restrained in fants and children can be killed or seri-
ously injured by a deploying airbag. An in fant or child who is too small to use a
seat belt should be properly secured using a child restraint system. Lexus
strongly recommends that all infants and children be placed in the rear seats of
the vehicle and properly restrained. The re ar seats are safer for infants and chil-
dren than the front passenger seat. (  P. 146) ●
If the seat belt extender has been con-
nected to the front seat belt buckles but the
seat belt extender has not also been fas-
tened to the latch plate of the seat belt, the
SRS front airbags will judge that the driver
and front passenger are wearing the seat
belt even though the seat belt has not been
connected. In this case, the SRS front air-
bags may not activate correctly in a colli-
sion, resulting in deat h or serious injury in
the event of collision. Be sure to wear the
seat belt with the seat belt extender.

1361-7. Safety information
LX570_OM_OM60L96U_(U) CAUTION■
SRS airbag precautions ●
Do not sit on the edge of the seat or lean
against the dashboard.
●
Do not allow a child to stand in front of the
SRS front passenger airbag unit or sit on
the knees of a front passenger. ●
Do not allow the front seat occupants to
hold items on their knees. ●
Do not lean against the door, the roof side
rail or the front, center and rear pillars.
●
Do not allow anyone to kneel on the pas-
senger seat toward the door or put their
head or hands outside the vehicle.

1371-7. Safety information
1
Before driving
LX570_OM_OM60L96U_(U) CAUTION■
SRS airbag precautions
●
If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure
to remove it. ●
Do not use seat accessories which cover the parts where the SRS side airbags
inflate as they may interfere with inflation of the airbags. ●
Do not strike or apply significant levels of force to the area of the SRS airbag
components.
Doing so can cause the SRS airbags to malfunction. ●
Do not touch any of the component part s immediately after the SRS airbags have
deployed (inflated) as they may be hot. ●
If breathing becomes difficult after the SR S airbag have deployed, open a door or
window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any
residue as soon as possible to prevent skin irritation. ●
If the areas where the SRS airbags are stor ed, such as the steering wheel pad and
front and rear pillar garnishes, are dama ged or cracked, have them replaced by
your Lexus dealer. ●
Do not attach anything to or lean anything
against areas such as the dashboard, steer-
ing wheel pad or lower portion of the
instrument panel.
These items can become projectiles when
SRS driver, front passenger and knee air-
bags deploy. ●
Do not attach anything to areas such as a
door, windshield gla ss, side door glass,
front, center and rear pillars, roof side rail
or assist grip. ●
Do not hang coat hangers or other hard
objects on the coat hooks. All of these
items could become projectiles and may
cause death or serious injury, should the
SRS curtain shield airbag deploy.

1381-7. Safety information
LX570_OM_OM60L96U_(U) CAUTION■
Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perfor m any of the following modifications with-
out consulting yo ur Lexus dealer.
The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or
serious injury. ●
Installation, removal, disassembly and repair of the SRS airbags●
Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rail ●
Repairs or modifications of the front fend er, front bumper, or side of the occu-
pant compartment ●
Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches●
Modifications to the vehi cle’s suspension system●
Installation of electronic devices such as mobile two-way radios and CD players ●
Modifications to your vehicle for a person with a physical disability

1391-7. Safety information
1
Before driving
LX570_OM_OM60L96U_(U) Deactivating the curtain shield airbags in a vehicle rollover
ON/OFF (hold for a few seconds) The RSCA OFF indicator turns on
(only when the “ENGINE START
STOP” switch is in IGNITION ON
mode.)
The roll sensing function for the
curtain shield airbags and seat belt
pretensioners will turn back on
automatically each time the
“ENGINE START STOP” switch is
turned to IGNITION ON mode.■
This switch only should be used
In a situation where the inflation is not desired (such as during extreme off road
driving). ■
Operating conditions when the RSCA OFF indicator is on ●
The curtain shield airbag and seat belt pr etensioner will not activate in a vehicle
rollover. ●
The curtain shield airbag will activate in a severe side impact. ●
The pretensioner will activate in a severe frontal collision.
CAUTION■
While normal driving
Make sure the RSCA OFF indicator is not turned on. If it is left on, the curtain shield
airbag will not activate in th e event of an accident, which may result in death or seri-
ous injury.

1401-7. Safety information

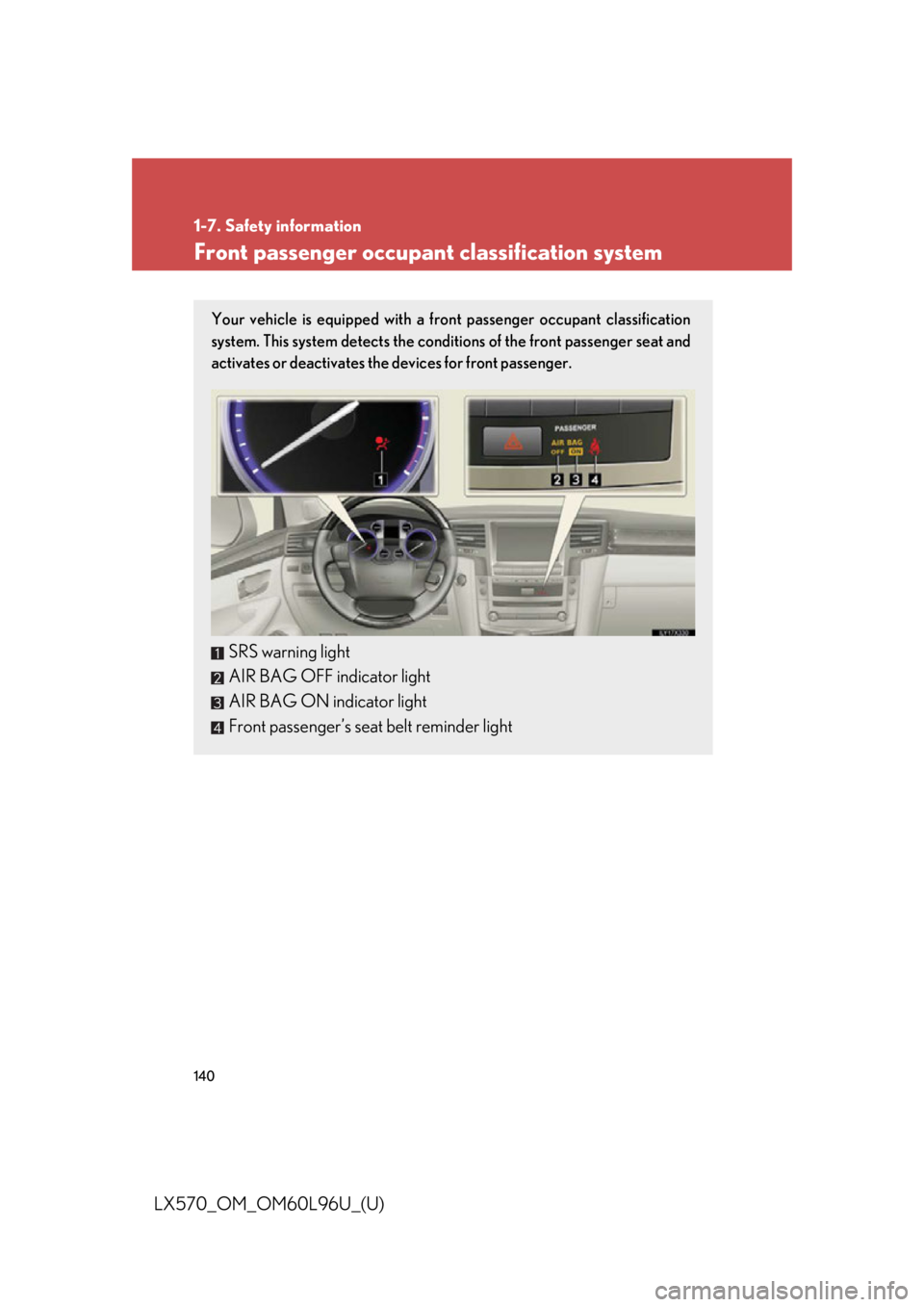

LX570_OM_OM60L96U_(U) Front passenger occupant classification system Your vehicle is equipped with a fron t passenger occupant classification
system. This system detects the conditions of the front passenger seat and
activates or deactivates the devices for front passenger.
SRS warning light
AIR BAG OFF indicator light
AIR BAG ON indicator light
Front passenger’s seat belt reminder light
