LEXUS LX570 2015 Owners Manual

3112-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■ Using the vehicle width line & course line
Vehicle width line
Use the vehicle width line to check
the vehicle’s distance from objects
such as curbstones etc. As shown
in the illustration, be sure that the
vehicle width line does not overlap
the object. If you also move the
vehicle so that the vehicle width
line and the object are parallel, you
can park parallel to the object

3122-4. Using other driving systems
LX570_OM_OM60L96U_(U) Minimum projected turning circle & projected course line
Use the minimum projected turn-
ing circle & projected course line
(when displayed) to check the
vehicle’s path with relation to
obstacles. If the minimum pro-
jected turning circle line (blue) is
over the obstacle as shown in the
illustration, or the obstacle falls
within the minimum projected
turning circle, if you turn with the
minimum possible turning circle,
the vehicle may co llide with the
object. When the projected
course line (yellow) is displayed,
be sure to operate the steering
wheel so that the obstacle stays
outside the projected course line
until the vehicle has passed the
object.

3132-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) If the battery is disconnected
If the battery is disconnected and
connected again, the message
“System initializing” will be dis-
played on the screen. The help
screen appears when “?” is
touched. Make a correction using
the following method in accor-
dance with the display.
Carry out one of the following.
• When the vehicle is stopped,
turn the steering wheel all the
way to the left, then all the way
to the right.
• Drive for at least 5 minutes on a
road with as few turns and
curves and as li ttle heavy traffic
as possible.
When the screen returns to the
original display, correction is com-
plete.
If the above screen remains, have
the vehicle inspected at your
Lexus dealer.

3142-4. Using other driving systems
LX570_OM_OM60L96U_(U) ■
The wide view front & side monitor can be operated when ●
The “ENGINE START STOP” switch is in IGNITION ON mode.●
The vehicle speed is less than approximately 6 mph (10 km/h).■
Automatic system cancelation
In the following situations, the system is canceled automatically. ●
When the vehicle speed exceeds approximately 7 mph (12 km/h). ●
When the shift lever is in “R”.■
When the outside rear view mirrors have been folded
The side monitor screen can be displayed even if the outside rear view mirrors have
been folded. In this case, there will be a slight difference between the image dis-
played when the outside rear view mirrors are extended and when the outside rear
view mirrors have been folded.
If the side monitor is displayed while the outside rear view mirrors are folded, you
cannot check the area near the front edge of the vehicle as the base of the outside
rear view mirrors wi ll be in the way.■
When switched to from the Lexus parking assist monitor
If the wide view front & side monitor is
switched to from the Lexus parking assist
monitor, the icon display area will flash to
inform the driver that the currently displayed
area is the front or side. The icon display area
will continue to flash until the screen is turned
off.

3152-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■

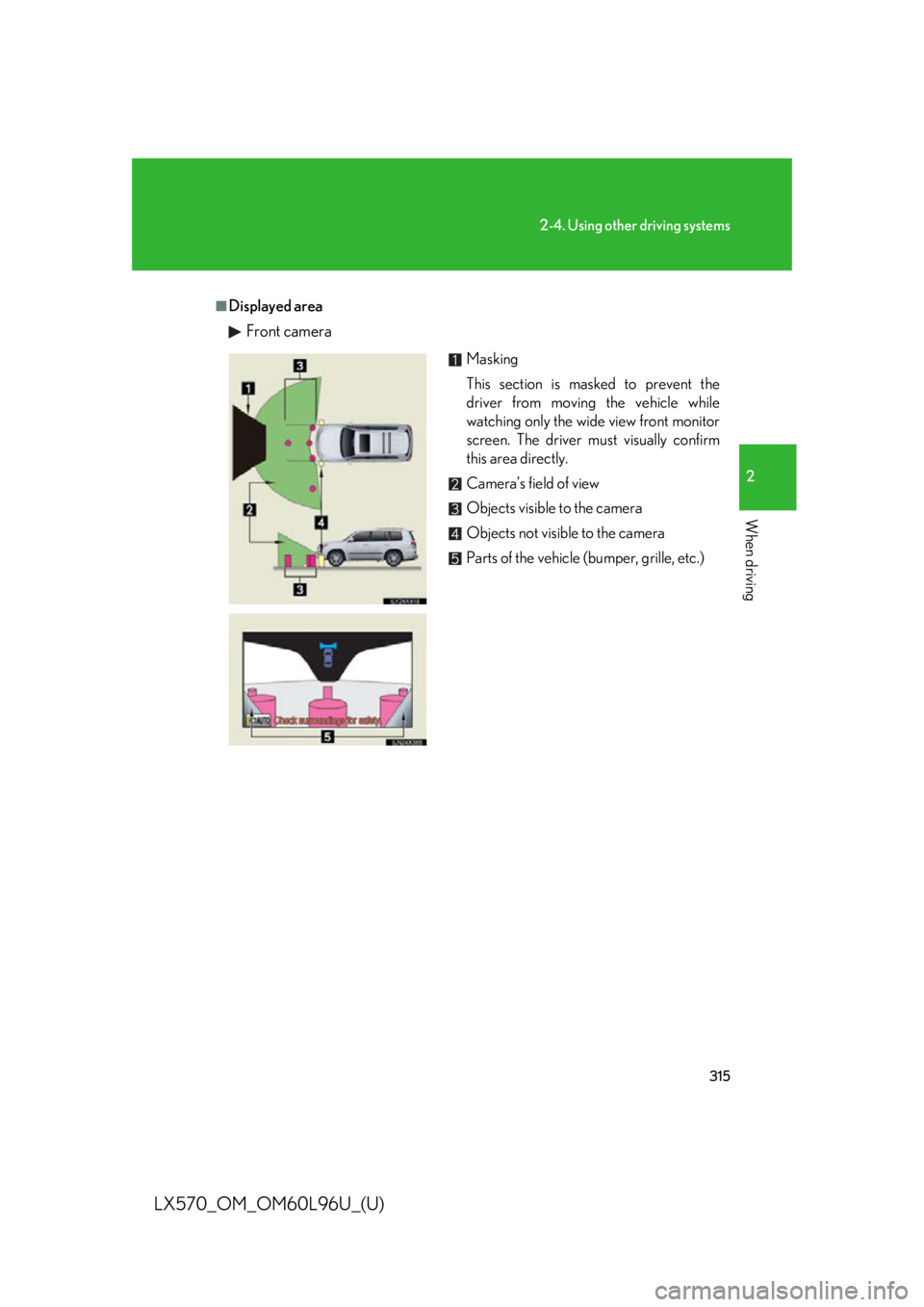

Displayed area
Front camera Masking
This section is masked to prevent the
driver from moving the vehicle while
watching only the wide view front monitor
screen. The driver must visually confirm
this area directly.
Camera’s field of view
Objects visible to the camera
Objects not visible to the camera
Parts of the vehicle (bumper, grille, etc.)

3162-4. Using other driving systems

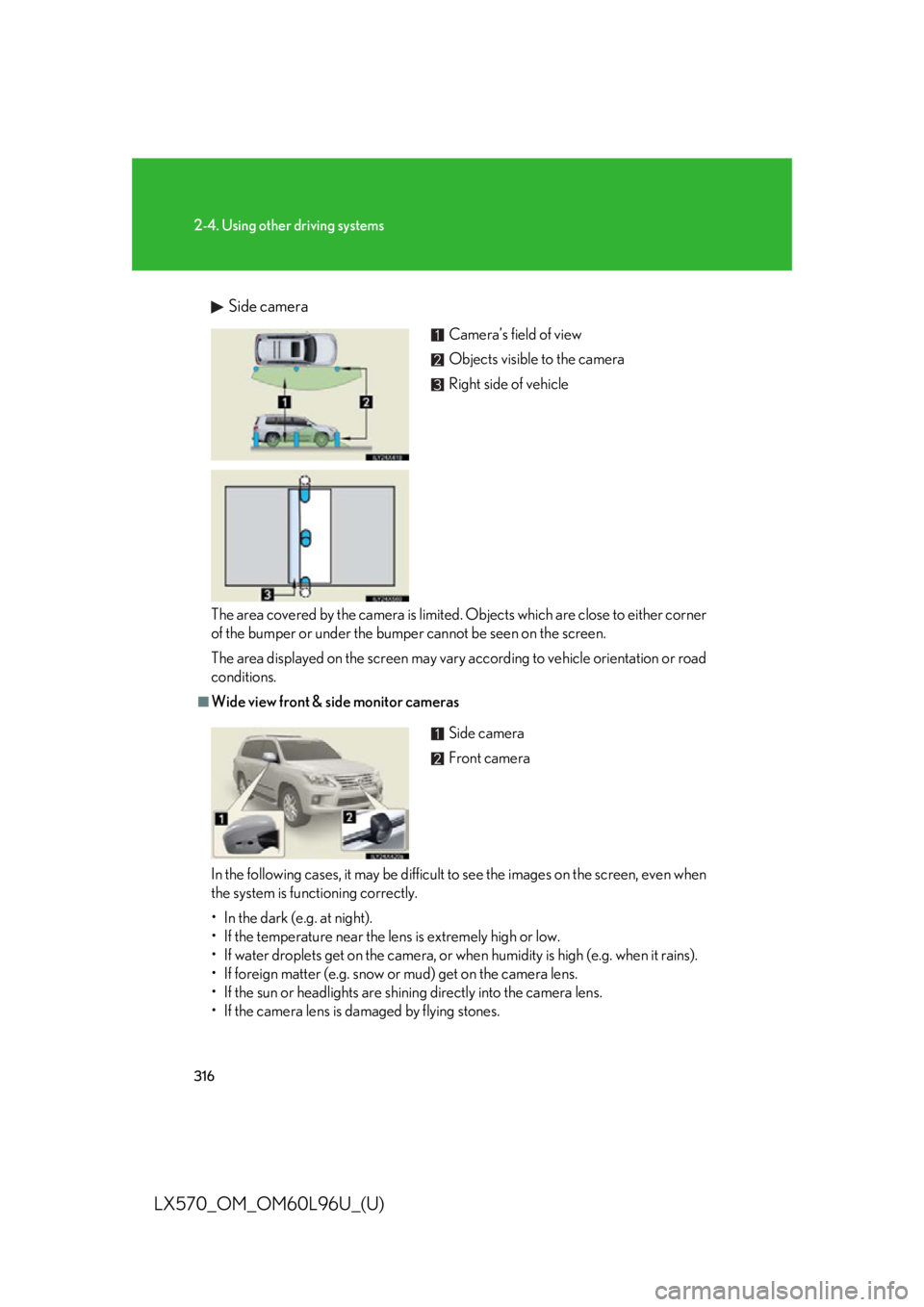

LX570_OM_OM60L96U_(U) Side camera
The area covered by the camera is limited . Objects which are close to either corner
of the bumper or under the bumper cannot be seen on the screen.
The area displayed on the screen may vary according to vehicle orientation or road
conditions. ■
Wide view front & side monitor cameras
In the following cases, it may be difficult to see the images on the screen, even when
the system is functioning correctly.
• In the dark (e.g. at night).
• If the temperature near the lens is extremely high or low.
• If water droplets get on the camera, or when humidity is high (e.g. when it rains).
• If foreign matter (e.g. snow or mud) get on the camera lens.
• If the sun or headlights are shining directly into the camera lens.
• If the camera lens is damaged by flying stones. Camera’s field of view
Objects visible to the camera
Right side of vehicle
Side camera
Front camera

3172-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■

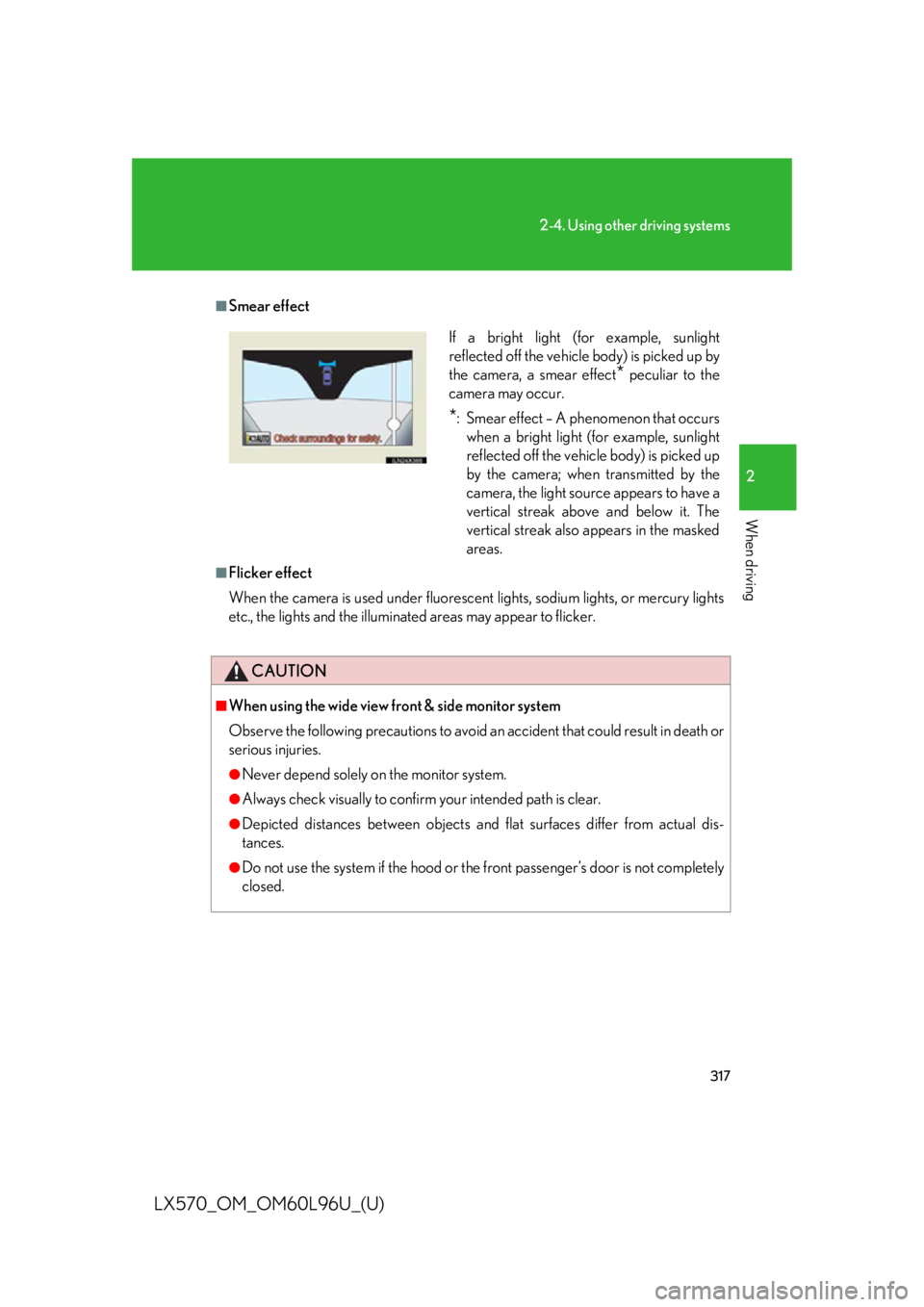

Smear effect
■
Flicker effect
When the camera is used under fluorescen t lights, sodium lights, or mercury lights
etc., the lights and the illuminated areas may appear to flicker.
CAUTION■
When using the wide view front & side monitor system
Observe the following precautions to avoid an accident that could result in death or
serious injuries. ●
Never depend solely on the monitor system. ●
Always check visually to confir m your intended path is clear.●
Depicted distances between objects and flat surfaces differ from actual dis-
tances. ●
Do not use the system if the hood or th e front passenger’s door is not completely
closed. If a bright light (for example, sunlight
reflected off the vehicle body) is picked up by
the camera, a smear effect
* peculiar to the
camera may occur.
* : Smear effect – A phenomenon that occurs
when a bright light (for example, sunlight
reflected off the vehicle body) is picked up
by the camera; when transmitted by the
camera, the light source appears to have a
vertical streak above and below it. The
vertical streak also appears in the masked
areas.

3182-4. Using other driving systems
LX570_OM_OM60L96U_(U) CAUTION■
Conditions which may affect the wide view front & side monitor system ●
If the front of the vehicle or the passenger side outside rear view mirror is hit, the
camera’s position and mounting angle may change. Contact your Lexus dealer. ●
Rapid temperature changes, such as when hot water is poured on the vehicle in
cold weather, may cause the system to function abnormally. ●
If the camera lens is dirty, it cannot tr ansmit a clear image. Rinse with water and
wipe with a soft cloth. If extremely dirty, wash with a mild cleanser and rinse. ●
The displayed image may be darker and mo ving images may be slightly distorted
when the system is cold. ●
Situations unsuitable for wide view front & side monitor
• On icy or slick road surfaces, or in snow.
• When using tire chains or emergency tires.
• On roads that are not flat or stra ight, such as curves or slopes.●
If the tires are changed, th e position of the guide li nes displayed on the screen
may be incorrect. When changing the tires, consult your Lexus dealer. ●
Depending on the circumstances of the vehicle (number of passengers, amount
of luggage, etc.), the position of the guide lines displayed on the screen may
change. Be sure to check visually behind and all around the vehicle before pro-
ceeding. ●
When washing the vehicle, do not apply intensive bursts of water to the camera
or camera area. Doing so may resu lt in the camera malfunctioning.

3192-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) NOTICE■

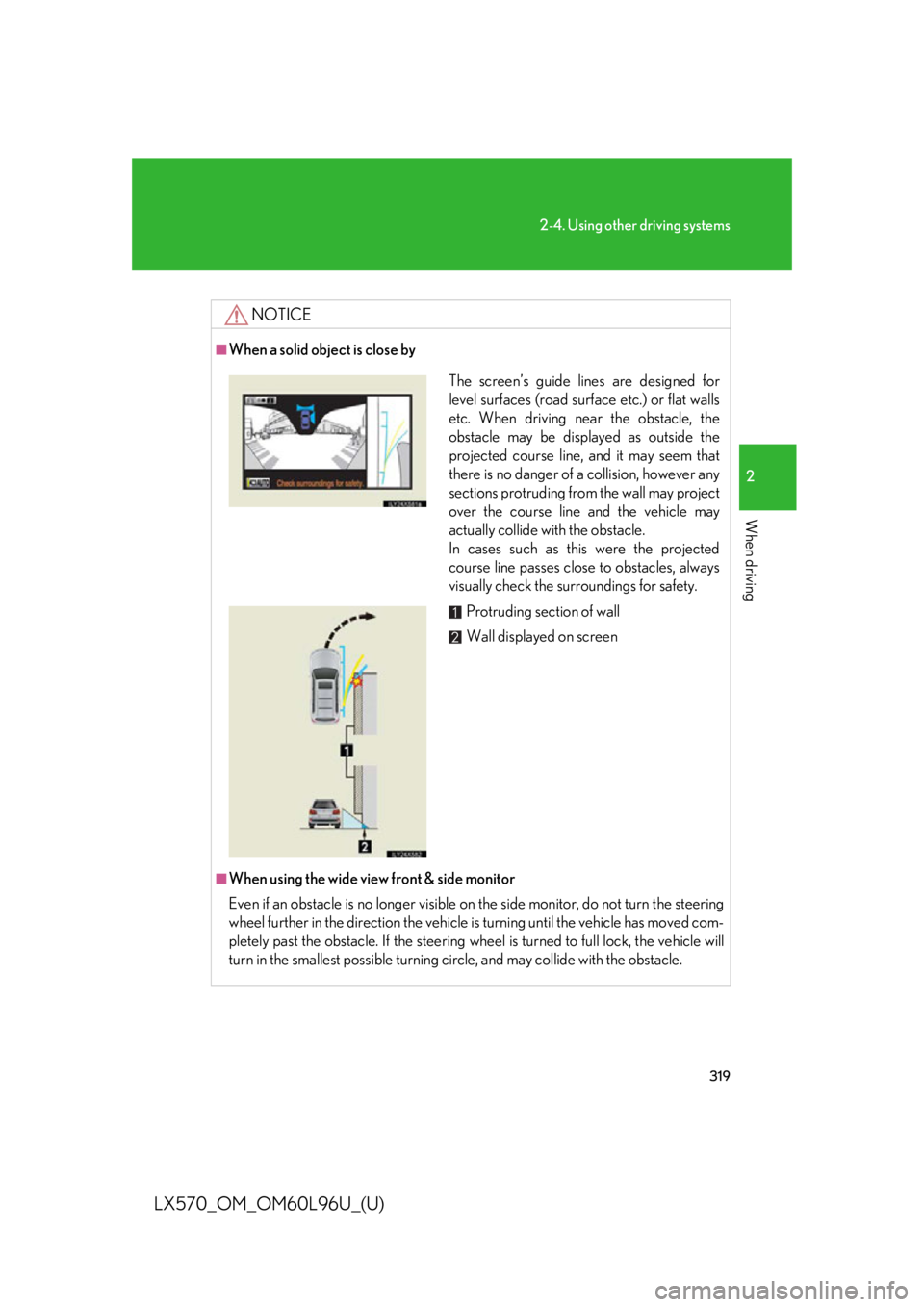

When a solid object is close by
■
When using the wide view front & side monitor
Even if an obstacle is no longer visible on the side monitor, do not turn the steering
wheel further in the direction the vehicle is turning until the vehicle has moved com-
pletely past the obstacle. If the steering wh eel is turned to full lock, the vehicle will
turn in the smallest possi ble turning circle, and may collide with the obstacle. The screen’s guide lines are designed for
level surfaces (road surface etc.) or flat walls
etc. When driving ne ar the obstacle, the
obstacle may be displayed as outside the
projected course line, and it may seem that
there is no danger of a collision, however any
sections protruding from the wall may project
over the course line and the vehicle may
actually collide with the obstacle.
In cases such as this were the projected
course line passes close to obstacles, always
visually check the su rroundings for safety.
Protruding section of wall
Wall displayed on screen

3202-4. Using other driving systems
LX570_OM_OM60L96U_(U) 4-Wheel AHC (Active Height Control Suspension) The 4-Wheel AHC adjusts the vehicle height in accordance with driving
conditions. There are 3 selectable mo des, “HI” (high), “N” (normal), and
“LO” (low).
Easy access mode switch
Height control OFF switch
Height select switch
