3212-4. Using other driving systems
2
When driving

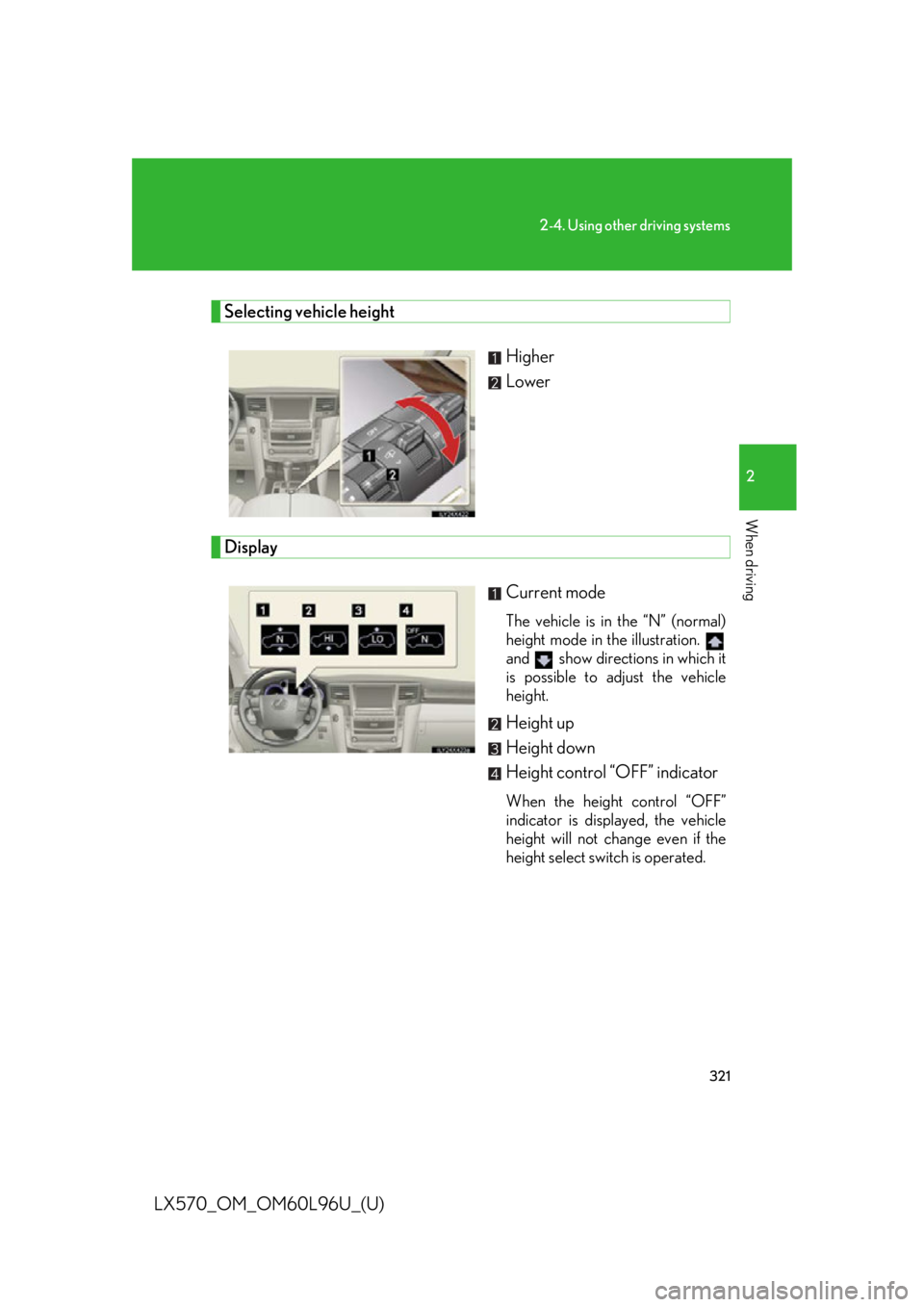

LX570_OM_OM60L96U_(U) Selecting vehicle height
Higher
Lower
Display
Current mode The vehicle is in the “N” (normal)
height mode in the illustration.
and show directions in which it
is possible to adjust the vehicle
height.
Height up
Height down
Height control “OFF” indicator When the height control “OFF”
indicator is displayed, the vehicle
height will not chan ge even if the
height select switch is operated.

3222-4. Using other driving systems
LX570_OM_OM60L96U_(U) Vehicle height modes
Push the height select switch to “  ” to step up one he ight mode, and pull
to “  ” to step down one height mode. (Ex. When in the low height mode,
push to “  ” once to switch to the normal height mode, and twice to switch
to the high height mode.)
■ “HI” (high) height mode
Vehicle height is about 2.0 in. (50 m m) higher at the fr ont, and about
2.4 in. (60 mm) higher at the rear than the normal mode height.
This mode is suitable when driving on bumpy roads or through water.
High height mode is only available when the vehicle speed is under 18
mph (30 km/h).
■ “N” (normal) height mode
The standard vehicle height. This mode is suitable for ordinary driving.
When driving at high sp eeds, the vehicle height is automatically low-
ered by 0.8 in. (20 mm) in the front and 0.6 in. (15 mm) in the rear, to
ensure excellent aerodynamic characteristics and stability.
If the vehicle speed drops, normal height mode is automatically
resumed.
■ “LO” (low) height mode
Vehicle height is about 2.4 in. (6 0 mm) lower at the front, and about
1.6 in. (40 mm) lower at the rear than the normal mode height.
This mode allows easy access to the vehicle.
Low height mode is only available when the vehicle is travelling at
7 mph (12 km/h) or less. When th e vehicle speed exceeds 7 mph (12
km/h), normal height mode is automatically selected.

3232-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) Conditions for changing the vehicle height mode
Some modes may not be selectable depending on the vehicle speed
when the four-wheel drive control sw itch is in the “H4” position. Refer to
the following table.
Easy access mode
You can select this mode for easy
access and easy loading of the
vehicle.
If the “ENGINE START STOP” switch is turned to OFF within 30 seconds after
the vehicle stops while this mode is on, the vehicle height is lowered automati-
cally.
When the vehicle begins to lower a beep will sound twice, and while the vehicle
is lowering the indicator light will flash to alert the driver and surrounding peo-
ple that the vehicle is lowering. Low mode Normal mode High mode
Under 7 mph (12 km/h) Yes Yes Yes
7 mph (12 km/h) to
18 mph (30 km/h) No Yes Yes
18 mph (30 km/h) or over No Yes No

3242-4. Using other driving systems
LX570_OM_OM60L96U_(U) The indicator light stops blinking, and come s on continuously to indicate that the
shift is completed.
Easy access mode is available if the following conditions have been met:
● The vehicle height mode is in normal mode.
● The vehicle is stopped on a flat surface.
● The shift lever is in “P”.
● The side door and the back door are not opened from the vehicle stopped to
the “ENGINE START STOP” switch is turned to off.
The following method will cancel the ve hicle lowering operation and raise the
vehicle again:
● Press the height co ntrol OFF switch.
● Push the height select switch to “  ”.
Disabling the height control
When the height control OFF
switch is pressed with the vehicle
stopped. The height control “OFF” indicator
will appear on the multi-informa-
tion display, and the vehicle height
will be fixed in the current mode.
Push the switch again to turn the
system back on.

3252-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■
Operating conditions ●
The engine must be running. ●
Vehicle height control must be turned off. ●
All side doors and the back door must be closed.■
Switching vehicle height mode while the engine is stopped●
If the engine is stopped while the vehicle height is being lowered, lowering will
continue. ●
If any luggage is removed from the vehicl e or if any occupants leave the vehicle
within approximately 30 seconds of the “ENGINE START STOP” switch being
turned OFF, the vehicle height may be lo wered by the auto leveling function.●
Operating the height select switch will have no effect while the engine is
stopped.■
Automatic change in vehicle height when the four-wheel drive control switch is
in the “L4” position
If the vehicle speed exceeds 2 mph (3 km/h) while driving on an uneven road with
the four-wheel drive control switch in the “L4” position, high mode is automatically
selected. (On even roads, the height mode will not change.) ■
Automatic change in vehicle height when in the high mode ●
If the vehicle speed exceeds 18 mph (30 km/h) with the four-wheel drive con-
trol switch in the “H4” position, normal mode is automatically selected. ●
If the vehicle speed exceeds 25 mph (40 km/h) with the four-wheel drive con-
trol switch in the “L4” position, the ve hicle height is lowered to 1.0 in. (25 mm)
higher than the normal mode height. If the vehicle speed drops to 12 mph (20
km/h) or less, high mode is automatically resumed.

3262-4. Using other driving systems
LX570_OM_OM60L96U_(U) ■
Extra high mode
If the vehicle becomes stuck or the Craw l Control system requests the vehicle
height be raised, extra high mode may be automatically selected when the vehicle
height is in high mode with the four-wheel drive control switch in the “L4” position.
The vehicle height is raised to 0.8 in. (20 mm) higher than the high mode height, or
slightly higher. ●
Extra high mode will change back to high mode when:
• The vehicle speed exceeds 6 mph (10 km/h)
• The four-wheel drive control switch is shifted to “H4”. ●
If you pull the height select switch to “  ” when in extra high mode, normal mode
is selected. ●
Extra high mode cannot be manually selected.■
Turning off the height control ●
The system will rema in off until the height contro l OFF switch is pushed again,
even if the “ENGINE START STOP” switch is turned off. ●
Even if the system is turned off, the sy stem automatically modulated if the vehi-
cle speed exceeds following.
• 18 mph (30 km/h) with high or low mode
• 50 mph (80 km/h) with normal mode

3272-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■
Automatic leveling function
The vehicle is adjusted to a fixed height for each mode, regardless of the number of
occupants and the luggage load. ●
However the vehicle cannot be raised if the vehicle load exceeds the following
limits:
• Up to 4 occupants
* plus approximately 661 lb. (300 kg) in the normal mode
• Up to 4 occupants
* plus approximately 441 lb. (200 kg) in the high mode
* : average weight 150 lb. (68 kg) per person●
If the vehicle height cannot be raised when in the normal mode, and “LO”
appears on the display, the vehicle is loaded too heavily. Take extra care when
driving in this condition.
If the vehicle height cannot be raised ev en after unloading the vehicle, pull the
height select switch to “  ” then push to “  ”. If the vehicle height still cannot be
raised, turn the ignition off then on again, then try once more.■
When the vehicle is st opped during driving
The activation of the automatic leveling function may cause the vehicle height to
change. This is not a malfunction. ■
If the vehicle height does not change
If the vehicle is loaded too heavily, or the undercarriage has come into contact with
the road surface, the vehicle height cannot be raised/lowered. ■
In the following cases the 4-Wheel AHC will not operate ●
The brake pedal has been depressed for a few seconds or longer while the vehi-
cle is stopped. ●
Vehicle height control has not been frequently used. ●
The suspension fluid temperature is lower than -22°F (-30°C). ●
There is ice on the suspension. ●
Driving on bumpy roads which may caus e the suspension to fully elongate.●
If the steering wheel is abruptly turned more than 3/4 of a revolution with the
center differential lock system activated.

3282-4. Using other driving systems
LX570_OM_OM60L96U_(U) ■
Cold weather operation
It may take longer for the vehicle height to change if the suspension fluid tempera-
ture drops below 5°F (-15°C).
The 4-Wheel AHC does not operate when the suspension fluid temperature drops
below -22°F (-30°C). ●
In this case, even if the height select switch is pressed, the vehicle height will not
change. Once the vehicle has been driven for a short time and the suspension
fluid has been warmed to within normal operating limits, the 4-Wheel AHC will
begin operating and the vehicle height wi ll automatically change to the selected
mode. ●
When the suspension fluid is around -22°F (-30°C), the vehicle height may not
be able to be raised, even if the 4-Wheel AHC is operating. In this case, pull the
height select switch to “  ” then push to “  ” after driving for a short time longer
to select the desired vehicle height.■
Parking and stopping tips ●
If you immediately stop the engine after off-road driving, the vehicle height may
gradually lower. When parking, make su re there is nothing under the vehicle
that may come in contact with the underbody. The vehicle will return to the set
height when the engine is started. ●
The vehicle height may change as the temperature changes when the engine is
stopped. The vehicle will return to the set height when the engine is started.■
Propeller shaft noise
If the vehicle height is adjusted on a slope, or with the shift lever in a position other
than “P” or “N” while the vehicle is stop ped, you may hear a sound caused by the
expansion and contraction of the propeller shaft. This does not indicate a malfunc-
tion. ■
4-Wheel AHC failure warning
If a malfunction occurs in the 4-Wheel AHC, normal mode is automatically
selected. However, the system may not sw itch to normal mode depending on the
location of the malfunction.
The warning message is displayed on the multi-information display, and the 4-
Wheel AHC cannot be activated until the malfunction is corrected.
Stop the engine and start it again. If th e warning message turns off, the system is
operating correctly. If the warning message continues to be displayed, have the
vehicle checked at your Lexus dealer as soon as possible.

3292-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) CAUTION■
When switching the vehicle height mode
Before lowering the vehicle height, check that there are no people under or around
the vehicle, and check for obstacles.
If you do not do this, body parts may be caught in the vehicle, possibly leading to an
accident. ■
Using the high mode
The high mode should only be used wh en driving on rough roads, for example
when driving off-road. Beca use the vehicle’s center of gravity will become higher
when in the mode, the vehicle may become unstable when turning abruptly, result-
ing in an accident. ■
When jacking up the vehicle or installing tire chains
Turn off the height control and stop the engine, otherwise the vehicle height may
change due to the automatic leveling func tion and you may catch part of your body
in the vehicle, resulting in an accident. ■
When crossing rivers
Select the high mode and turn off the height control. Drive at 18 mph (30 km/h) or
lower. Otherwise the vehicle height may change due to the automatic leveling
function, resulting in an accident. ■
If your vehicle must be towed
Put the vehicle height in the normal mode and turn off the height control, otherwise
the vehicle height may change due to th e automatic leveling function and you may
catch part of your body in the ve hicle, resulting in an accident.■
If your vehicle becomes stuck in a ditch
Turn off the height control, otherwise the vehicle height may change due to the
automatic leveling function, resulting in an accident.■
When loading cargo on the roof luggage carrier
Do not switch to high mode. Sudden steeri ng could cause the vehicle to lose stabil-
ity due to the vehicle’s higher center of gravity, possibly leading to an accident.

3302-4. Using other driving systems
LX570_OM_OM60L96U_(U) NOTICE■
When parking in areas with limited overhead height
After leaving the vehicle or unloading the luggage, the vehicle height may be
slightly higher than normal. Take care when overhead height is limited. ■
To avoid damage to the vehicle ●
Normal mode will be switched to automatically even if the vehicle is started off in
low mode. Take care when overhead height is limited. ●
Do not select the low mode when driving on bumpy roads, as the underbody of
the vehicle may contact the road surface. ●
When traveling on bumpy roads or throug h water, or when towing, turn off easy
access mode.■
Avoid rapid changes to the vehicle height
As the pump may overheat. Leave at a few seconds between selections when
changing the vehicle height mode.
