LEXUS LX570 2015 Owners Manual

3612-4. Using other driving systems
2
When driving
LX570_OM_OM60L96U_(U) ■
Certification
For vehicles sold in the U.S.A.
For vehicles sold in Canada

3622-4. Using other driving systems
LX570_OM_OM60L96U_(U) CAUTION■
Handling the radar sensor
Observe the following to ensure the pre-co llision system can function effectively.●
Keep the sensor and front grille clean at all times.
Clean the sensor and front grille with a soft cloth so you do not mark or damage
them. ●
Do not subject the sensor or surro unding area to a strong impact.
If the sensor moves even slightly off po sition, the system ma y become inaccurate
or malfunction. If the sensor or surrounding area is subject to a strong impact,
always have the area inspected an d adjusted by your Lexus dealer.●
Do not disassemble the sensor. ●
Do not attach accessories or stickers to the sensor, grille cover or surrounding
area. ●
Do not modify or paint the sensor and grille.■
Limitations of the pre-collision system
Do not rely on the pre-collision system. Always drive safely, taking care to observe
your surroundings and checking for an y obstacles or other road hazards.
Failure to do so may cause an accident resulting in death or serious injury.

3632
When driving
LX570_OM_OM60L96U_(U) 2-5. Driving information
Off-road precautions Off-road vehicle feature
● Specific design characteristics give it a higher center of gravity than
ordinary passenger cars. This vehicle design feature causes this type of
vehicle to be more likely to rollover. And, utility vehi cles have a signifi-
cantly higher rollov er rate than other types of vehicles.
● An advantage of the higher ground clearance is a better view of the
road allowing you to anticipate problems.
● It is not designed for cornering at th e same speeds as ordinary passen-
ger cars any more than low-slung sports cars a re designed to perform
satisfactorily under off-road cond itions. Therefore, sharp turns at
excessive speeds may cause rollover. This vehicle belongs to the utility ve hicle class, which has higher ground
clearance and narrower tread in relation to the height of its center of grav-
ity to make it capable of performing in a wide variety of off-road applica-
tions.

3642-5. Driving information
LX570_OM_OM60L96U_(U) CAUTION■
Off-road vehicle precautions
Always observe the following precautions to minimize the risk of serious personal
injury or damage to your vehicle: ●
In a rollover crash, an unbelted person is significantly more likely to die than a
person wearing a seat belt. Therefore, the driver and all passengers should fasten
their seat belts whenever the vehicle is moving. ●
Avoid sharp turns or abrupt ma neuvers, if at all possible.
Failure to operate this vehicle correctly may result in loss of control or vehicle
rollover causing death or serious injury. ●
Loading cargo on the roof luggage carrier will make the center of the vehicle
gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking or
abrupt maneuvers, otherwise it may result in loss of control or vehicle rollover
due to failure to operate this vehicle correctly. ●
Always slow down in gusty crosswinds. Be cause of its profile and higher center of
gravity, your vehicle is more sensitive to side winds than an ordinary passenger
car. Slowing down will allow you to have better control. ●
Do not drive horizontally across steep sl opes. Driving straight up or straight
down is preferred. Your vehicle (or an y similar off-road ve hicle) can tip over
sideways much more easily than forward or backward.

3652-5. Driving information
2
When driving
LX570_OM_OM60L96U_(U) Off-road driving
When driving your vehicle off-road, please observe the following pre-
cautions to ensure your driving enjoyment and to help prevent the clo-
sure of areas to off-road vehicles.
● Drive your vehicle only in areas where off-road vehicles are permitted
to travel.
● Respect private property. Get owne r’s permission before entering pri-
vate property.
● Do not enter areas that are closed . Honor gates, ba rriers and signs
that restrict travel.
● Stay on established roads. Whe n conditions are wet, driving tech-
niques should be changed or travel delayed to prevent damage to
roads. ■
Additional information for off-road driving
For owners in U.S. mainland , Hawaii and Puerto Rico:
To obtain additional information pertaining to driving your vehicle off-road, consult
the following organizations. ●
State and Local Parks and Recreation Departments ●
State Motor Vehicle Bureau ●
Recreational Vehicle Clubs ●
U.S. Forest Service and Bureau of Land Management

3662-5. Driving information
LX570_OM_OM60L96U_(U) CAUTION■
Off-road driving precautions
Always observe the following precautions to minimize the risk of serious personal
injury or damage to your vehicle: ●
Drive carefully when off the road. Do no t take unnecessary risks by driving in
dangerous places. ●
Do not grip the steering wheel spokes when driving off-road. A bad bump could
jerk the wheel and injure your hands. Keep both hands and especially your
thumbs on the outside of the rim. ●
Always check your brakes for effectiveness immediately after driving in sand,
mud, water or snow. ●
After driving through tall grass, mud, rock, sand, rivers, etc., ch eck that there is no
grass, bush, paper, rags, stone, sand, et c. adhering or trapped on the underbody.
Clear off any such matter fr om the underbody. If the vehicle is used with these
materials trapped or adhering to the underbody, a breakdown or fire could
occur. ●
When driving off-road or in rugged te rrain, do not drive at excessive speeds,
jump, make sharp turns, strike objects, etc. This may cause loss of control or vehi-
cle rollover causing death or serious in jury. You are also risking expensive dam-
age to your vehicle’s suspension and chassis.

3672-5. Driving information
2
When driving
LX570_OM_OM60L96U_(U) NOTICE■
To prevent the water damage
Take all necessary safety measures to ensure that water damage to the engine or
other components does not occur. ●
Water entering the engine air intake will cause severe engine damage. ●
Water entering the automatic transmission will cause deterioration in shift qual-
ity, locking up of your transmission accompanied by vibration, and ultimately
damage. ●
Water can wash the grease from wheel bearings, causing rusting and premature
failure, and may also enter the differen tials, transmission and transfer case,
reducing the gear oil’s lubricating qualities.■
When you drive through water
If driving through water, such as when crossing shallow streams, first check the
depth of the water and the bottom of the river bed for firmness. Drive slowly and
avoid deep water. ■
Inspection after off-road driving ●
Sand and mud that has accumulated in brake drums and around brake discs may
affect braking efficiency and may damage brake system components.●
Always perform a maintenance inspection after each day of off-road driving that
has taken you through rough terrain, sand, mud, or wa ter. For scheduled mainte-
nance information, refer to the “Warra nty and Services Guide/Owner’s Manual
Supplement/Schedul ed Maintenance”.

3682-5. Driving information

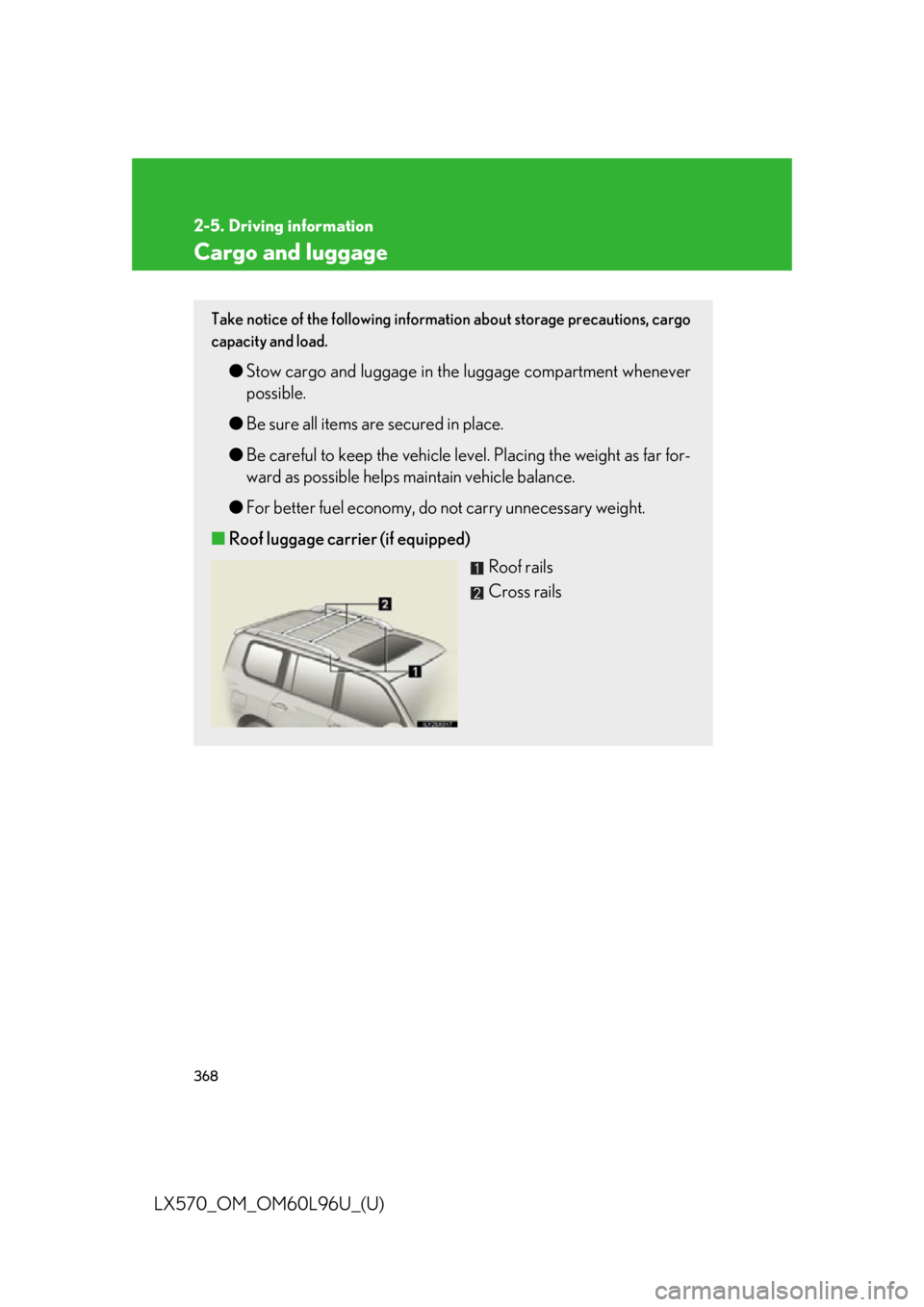

LX570_OM_OM60L96U_(U) Cargo and luggage Take notice of the following informat ion about storage precautions, cargo
capacity and load.
● Stow cargo and luggage in th e luggage compartment whenever
possible.
● Be sure all items are secured in place.
● Be careful to keep the vehicle le vel. Placing the weight as far for-
ward as possible helps maintain vehicle balance.
● For better fuel economy, do not carry unnecessary weight.
■ Roof luggage carrier (if equipped)
Roof rails
Cross rails

3692-5. Driving information
2
When driving
LX570_OM_OM60L96U_(U) Adjusting the position of cross rails (if equipped)
Turn the knobs counterclockwise
to release the cross rails.
Slide the cross rails to the appro-
priate position for loading luggage
and turn the knobs clockwise to
tighten the cross rails securely.STEP 1
STEP 2

3702-5. Driving information
LX570_OM_OM60L96U_(U) Capacity and distribution
Cargo capacity depends on the total weight of the occupants.
(Cargo capacity) = (Total load capa city) — (Total weight of occupants)
Steps for Determining Correct Load Limit—
(1) Locate the statement “The comb ined weight of occupants and
cargo should nev er exceed XXX kg or XXX lbs.” on your vehicle’s
placard.
(2) Determine the combined weight of the driver and passengers that
will be riding in your vehicle.
(3) Subtract the combin ed weight of the driv er and passengers from
XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and lug-
gage load capacity.
For example, if the “XXX” amou nt equals 1400 lbs. and there will
be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 - 750 (5  150)
= 650 lbs.)
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That weight may not safely exceed the avail-
able cargo and luggage load ca pacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consu lt this manual to determine how
this reduces the availabl e cargo and luggage lo ad capacity of your
vehicle. (  P. 375)
