LEXUS LX570 2015 Owners Manual

3712-5. Driving information
2
When driving
LX570_OM_OM60L96U_(U) Calculation formula for your vehicle
Cargo capacity
Total load capacity
(vehicle capacity weight)
(  P. 886)
When 2 people with the combined weight of A lb. (kg) are riding in your
vehicle, which has a total load capaci ty (vehicle capacity weight) of B lb.
(kg), the available amount of cargo and luggage load capacity will be C
lb. (kg) as follows:
B
* 2
lb. (kg) — A
* 1
lb. (kg) = C
* 3
lb. (kg)
* 1
: A = Weight of people
* 2
: B = Total load capacity
* 3
: C = Available cargo and luggage load
In this condition, if 3 mo re passengers with the comb ined weight of D lb. (kg)
get on, the available cargo and luggage load will be reduced E lb. (kg) as
follows:
C lb. (kg) — D
* 4
lb. (kg) = E
* 5
lb. (kg)
* 4
: D = Additional weight of people
* 5
: E = Available cargo and luggage load
As shown in the exampl e above, if the number of occupants increases,
the cargo and luggage load will be reduced by an amount that equals the
increased weight due to the additional occupants. In other words, if an
increase in the number of occupants causes an ex cess of the total load
capacity (combined weight of occupants plus cargo and luggage load),
you must reduce the cargo and luggage on your vehicle.

3722-5. Driving information
LX570_OM_OM60L96U_(U) CAUTION■
Things that must not be carri ed in the luggage compartment
The following things may cause a fire if loaded in the luggage compartment. ●
Receptacles containing gasoline ●
Aerosol cans■
Storage precautions
Observe the following precautions.
Failing to do so may result in death or serious injury. ●
Stow cargo and luggage in the lugg age compartment whenever possible.●
Do not stack anything in the luggage compartment higher than the seatbacks.
Such items may be thrown about and possi bly injure people in the vehicle during
sudden braking, sudden swerving or in an accident. ●
Do not place cargo or luggage in or on the following locations as the items may
get under the brake or accelerator peda l and prevent the pedals from being
depressed properly, block the driver’s vi sion, or hit the driver or passengers,
causing an accident.
• Driver’s feet
• Front passenger or rear seats (when stacking items)
•Instrument panel
•Dashboard
• Auxiliary box or tray that has no lid●
Secure all items in the occupant compartm ent, as they may shift and injure some-
one during sudden braking, sudden swerving or an accident. ●
When you fold down the rear seats, long items should not be placed directly
behind the front seats. ●
Never allow anyone to ride in the luggage compartment. It is not designed for
passengers. They should ride in their seats with their se at belts properly fastened.
Otherwise, they are much more likely to suffer death or serious injury, in the
event of sudden braking, sudden swerving or an accident.

3732-5. Driving information
2
When driving
LX570_OM_OM60L96U_(U) CAUTION■
Weight of the load ●
Do not exceed the maximum axle weight ra ting or the total vehicle weight rating.●
Even if the total load of occupant’s weight and the cargo load is less than the total
load capacity, do not apply the load unevenly. Improper loading may cause dete-
rioration of steering or br aking control which may cause death or serious injury.■
Roof luggage carrier pr ecautions (if equipped)
To use the roof rails as a roof luggage carr ier, you must fit the roof rails with two or
more genuine Lexus cross ra ils or their equivalent.
When you load cargo on the roof lu ggage carrier, observe the following:●
Place the cargo so that its weight is di stributed evenly between the front and rear
axles. ●
If loading long or wide cargo, never exc eed the vehicle overall length or width.
(  P. 886)●
Before driving, make sure the cargo is securely fastened on the roof luggage car-
rier. ●
Loading cargo on the roof luggage carrier will make the center of the vehicle
gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking or
abrupt maneuvers, otherwise it may result in loss of control or vehicle rollover
due to failure to operate this vehicle correct ly and result in death or serious injury.●
If driving for a long distance, on rough ro ads, or at high speed s, stop the vehicle
now and then during the trip to make sure the cargo re mains in its place.●
Do not exceed 154 lb. (70 kg) cargo weight on the roof luggage carrier.

3742-5. Driving information
LX570_OM_OM60L96U_(U) CAUTION■
Cross rail adjustment (if equipped)
Make sure the cross rails are locked se curely by pushing forward and rearward
them.
Failure to do so may cause an accident or serious injury in the event of emergency
braking or a collision.
NOTICE■
Cross rail adjustment (if equipped)
Do not remove the cross rail stoppers, or the moon roof may be damage when it is
tilted. ■
When loading the luggage
Be careful not to scratch th e surface of the moon roof.

3752-5. Driving information
2
When driving
LX570_OM_OM60L96U_(U) Vehicle load limits
■
Total load capacity and seating capacity
These details are also desc ribed on the tire and loading information label.
(  P. 775)
CAUTION■
Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the tire s, but also degrade steering and braking
ability, resulting in an accident.Vehicle load limits include total load capacity, seating capacity, TWR
(Trailer Weight Rating) and cargo capacity.
■ Total load capacity (veh icle capacity weight):  P. 886
Total load capacity means the combined weight of occupants,
cargo and luggage.
■ Seating capacity: 8 occupants (Front 2, Rear 6)
Seating capacity means the maxi mum number of occupants whose
estimated average weight is 150 lb. (68 kg) per person.
■ TWR (Trailer Weight Rating):  P. 386, 886
TWR means the maximum gross trailer weight (trailer weight plus
its cargo weight) that your vehicle is able to tow.
■ Cargo capacity
Cargo capacity may increase or decrease depending on the weight
and the number of occupants.

3762-5. Driving information
LX570_OM_OM60L96U_(U) Winter driving tips Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the ve hicle in a manner appropriate to the
prevailing weather conditions.
■ Pre-winter preparations
● Use fluids that are ap propriate to the prev ailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspec t the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires. Ensure that all tires are the same size and brand, and that chains match
the size of the tires.

3772-5. Driving information
2
When driving

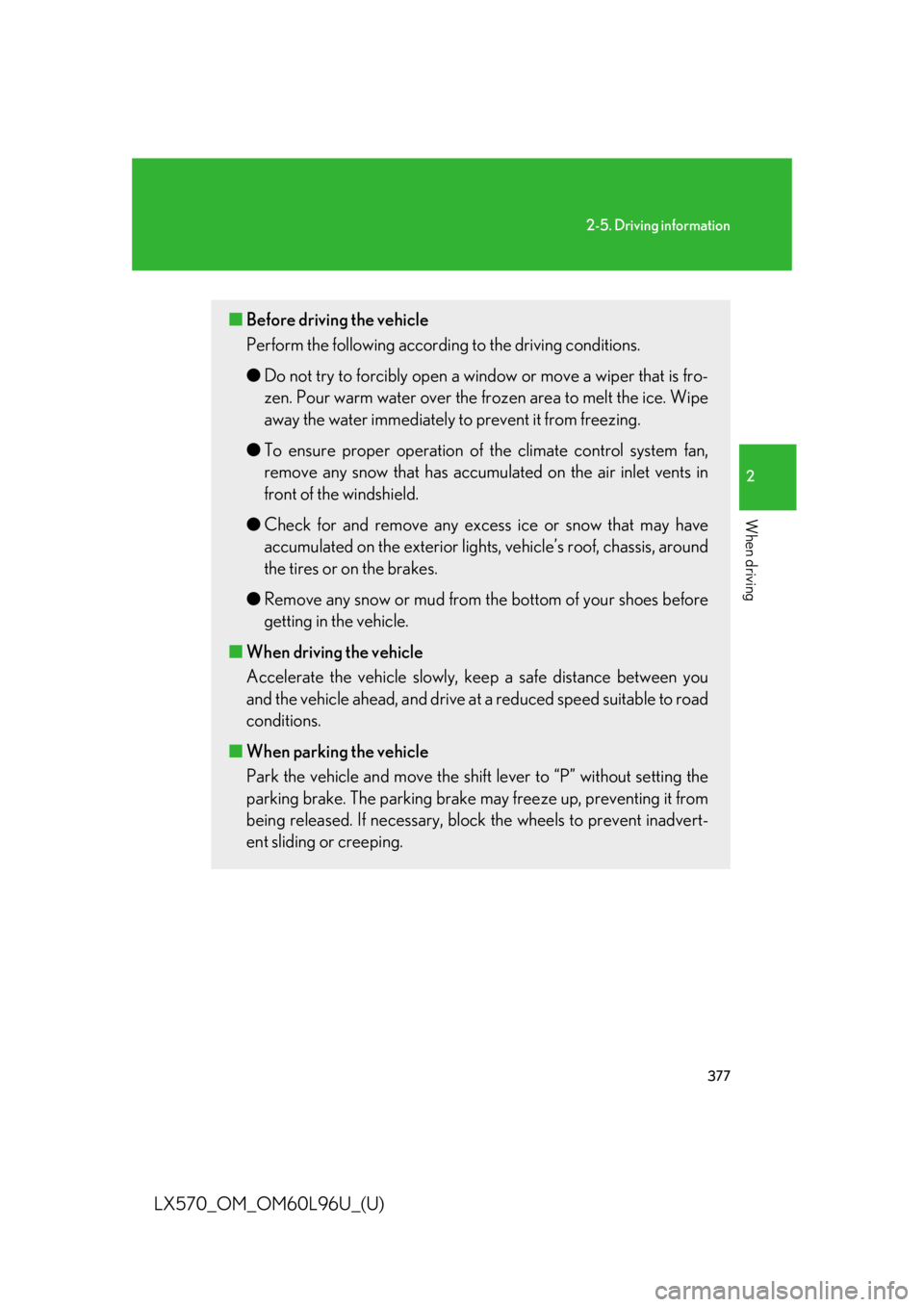

LX570_OM_OM60L96U_(U) ■ Before driving the vehicle
Perform the following according to the driving conditions.
● Do not try to forcibly open a window or mo ve a wiper that is fro-
zen. Pour warm water over the froz en area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumula ted on the air inlet vents in
front of the windshield.
● Check for and remove any exce ss ice or snow that may have
accumulated on the exterior lights, vehicle’s roof, chassis, around
the tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
■ When driving the vehicle
Accelerate the vehicle slowly, k eep a safe distance between you
and the vehicle ahead, and drive at a reduced speed suitable to road
conditions.
■ When parking the vehicle
Park the vehicle and move the shift lever to “P” without setting the
parking brake. The parking brake may freeze up, preventing it from
being released. If necessary, bl ock the wheels to prevent inadvert-
ent sliding or creeping.

3782-5. Driving information
LX570_OM_OM60L96U_(U) Selecting tire chains
Use the correct tire chain size wh en mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
(0.20 in. [5 mm] in diameter)
Cross chain
(0.25 in. [6.3 mm] in diameter)
Regulations on the use of tire chains
● Regulations regarding the use of tire chains vary acco rding to location
and type of road. Always check local regulations before installing
chains.
● Retighten the chains after driving 1/4 - 1/2 mile (0.5 - 1.0 km). ■
Tire chains
Observe the following precautions when installing and removing chains. ●
Install and remove tire chains in a safe location. ●
Install tire chains on the rear tires only. Do not install the chai ns on the front tires.●
Install tire chains following the instruct ions provided in the accompanying man-
ual.

3792-5. Driving information
2
When driving
LX570_OM_OM60L96U_(U) CAUTION■
Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or serious
injury. ●
Use tires of the size sp ecified for your vehicle.●
Maintain the recommended level of tire inflation pressure. ●
Do not drive in excess of 75 mph (120 km/h ), regardless of the type of snow tires
being used. ●
Snow tires should be in stalled on all wheels.■
Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury. ●
Do not drive in excess of the speed limit specified for the tire chains being used or
30 mph (50 km/h), whichever is lower. ●
Avoid driving on bumpy road surfaces or over potholes. ●
Avoid sudden acceleration, abrupt steering, sudden braking and shifting opera-
tions that cause sudden engine braking. ●
Slow down sufficiently before entering a curve to ensure that vehicle control is
maintained.■
When installing tire chains
Turn off the vehicle height control.
The vehicle height may change due to the automatic leveling function and you may
catch part of your body in the vehi cle, resulting in an accident. (  P. 320)

3802-5. Driving information
LX570_OM_OM60L96U_(U) NOTICE■
Repairing or replacing snow tires
Request repairs or replacement of snow tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attachment of snow tires affects the operation of
the tire pressure warning valves and transmitters.■
Fitting tire chains
The tire pressure warning valves and tran smitters may not func tion correctly when
tire chains are fitted.
