LEXUS LX570 2015 Owners Manual

9176-2. Customization
6
Vehicle specifications

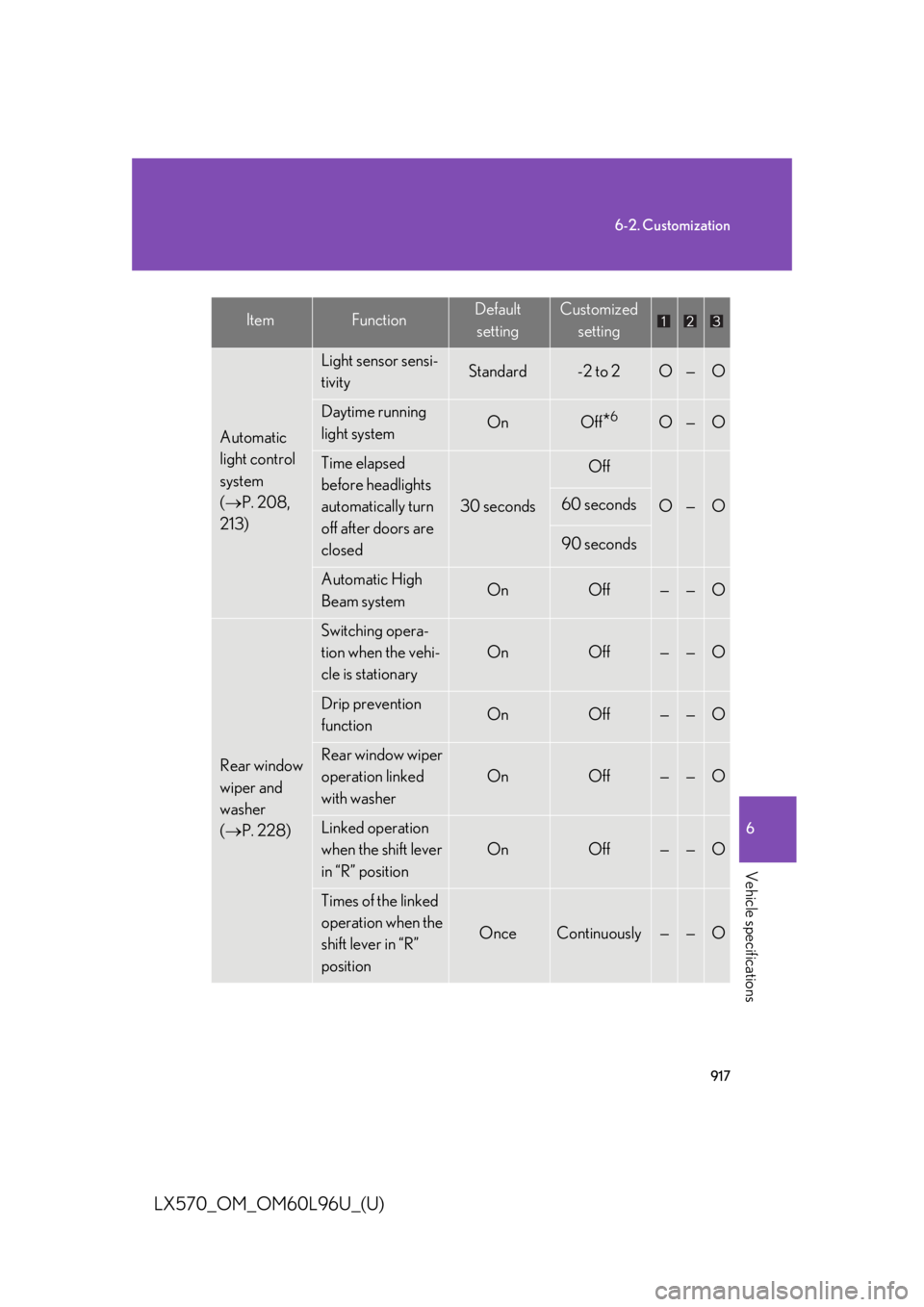

LX570_OM_OM60L96U_(U) Automatic
light control
system
(  P. 208,
213) Light sensor sensi-
tivity Standard -2 to 2 O — O
Daytime running
light system On Off
* 6
O — O
Time elapsed
before headlights
automatically turn
off after doors are
closed 30 seconds Off
O — O60 seconds
90 seconds
Automatic High
Beam system On Off — — O
Rear window
wiper and
washer
(  P. 228) Switching opera-
tion when the vehi-
cle is stationary On Off — — O
Drip prevention
function On Off — — O
Rear window wiper
operation linked
with washer On Off — — O
Linked operation
when the shift lever
in “R” position On Off — — O
Times of the linked
operation when the
shift lever in “R”
position Once Continuously — — OItem Function Default
setting Customized
setting

9186-2. Customization
LX570_OM_OM60L96U_(U) Illumination
(  P. 686) Time period before
the interior lights
turn off 15 seconds Off
O — O7.5 seconds
30 seconds
Time period before
the exterior lights
turn off 15 seconds Off
O — O7.5 seconds
30 seconds
Operation after the
“ENGINE START
STOP” switch is
turned off On Off — — O
Operation when
the doors are
unlocked On Off — — O
Operation when
you approach the
vehicle with the
electronic key on
your person (when
the interior light
switch is door posi-
tion) On Off — — O
Shift lever light On Off — — O
Footwell lights On Off — — OItem Function Default
setting Customized
setting

9196-2. Customization
6
Vehicle specifications
LX570_OM_OM60L96U_(U) Illumination
(  P. 686) Outer foot lights On Off — — O
Sensitivity of the
ambient light sen-
sor used for dim-
ming the meter
lights etc. Standard -2 to 2 — — O
Sensitivity of the
ambient light sen-
sor used for bright-
ening the meter
lights etc. Standard -2 to 2 — — O
Intuitive
parking assist
(  P. 251) Detection distance
of the rear center
sensor Far Near O — O
Alert Volume
(alert volume can
be adjusted) 3 1 to 5 O — O
Display setting
(when intuitive
parking assist is
operating) All sensors
displayed Display off O — O
Automatic air
conditioning
system
(  P. 444) Exhaust gas sensor
sensitivity Standard -3 to 3 O — O
A/C Auto switch
operation Auto Manual O — O
Front seats
(  P. 67) Power easy access
system Partial Off
O — O
FullItem Function Default
setting Customized
setting

9206-2. Customization
LX570_OM_OM60L96U_(U) * 1
: In this case, the power back door operat ion will be made only by push and hold.
* 2
: The back door can be opened using th e wireless remote control after unlock-
ing the back door.
* 3
: The settings can be changed when the mechanical key linked operation of the
power window is set to ON.
* 4
: The settings can be changed when th e wireless remote control linked opera-
tion of the power window is set to ON.
* 5
: The settings can be changed when the entry function linked operation of the
power window is set to ON.
* 6
: Vehicles sold outside CanadaTurn signal
lever
(  P. 189) Time of flashing of
the lane change
signal flashers 3 Off
O — O5
7
9
11
Eco Driving
Indicator
Light
(  P. 168) Eco Driving
Indicator Light On Off — O OItem Function Default
setting Customized
setting

9216-2. Customization
6
Vehicle specifications
LX570_OM_OM60L96U_(U) ■
Vehicle customization ●
If the smart access system with push-bu tton start is turned “OFF”, unlock door
cannot be selected. ●
If the doors are not opened after unlo cking and are then automatically re-
locked, a signal will be given if “Ope ration signal (Emergency flashers)” or
“Operation signal (Bu zzer)” are set to ON.■
When setting using the vehicle switches
When using the vehicle switches to set an item that can also be set using the touch
screen, the item displayed on the touc h screen will not change immediately.
If the “ENGINE START STOP” switch is first turned to OFF, the screen display will
change once the “ENGINE START STOP” switch is turned to IGNITION ON
mode again. ■
When customizing using the touch screen
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to
“P”. Also, to prevent battery discharge, leave the engine running while customizing
the features.

9226-2. Customization
LX570_OM_OM60L96U_(U) Multi-information display (  P. 200)CAUTION■
During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon monoxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE■
During customization
To prevent battery discharge, ensure that the engine is running while customizing
features.
Available languages English (U.S.A.), French

9236
Vehicle specifications
LX570_OM_OM60L96U_(U) 6-3. Initialization
Items to initialize Item
When to initialize Reference
Power back door • After reconnecting or changing the
battery with power back door
opened
• After changing a fuse with power
back door opened P. 60
Message indicating
maintenance is required • After the maintenance is performed P. 741
Tire pressure warning
system • When the set tire pressure has been
changed before towing.
• When rotating the tires in above situ-
ation. P. 767The following items must be initialized for normal system operation in
cases such as after the battery is reconnected, or maintenance is per-
formed on the vehicle.

9246-3. Initialization
LX570_OM_OM60L96U_(U)

For owners
7
925
LX570_OM_OM60L96U_(U) Reporting safety defects
for U.S. owners .................... 926
Seat belt instructions for
Canadian owners
(in French) ............................. 927
SRS airbag instructions
for Canadian owners
(in French) ............................. 929

926

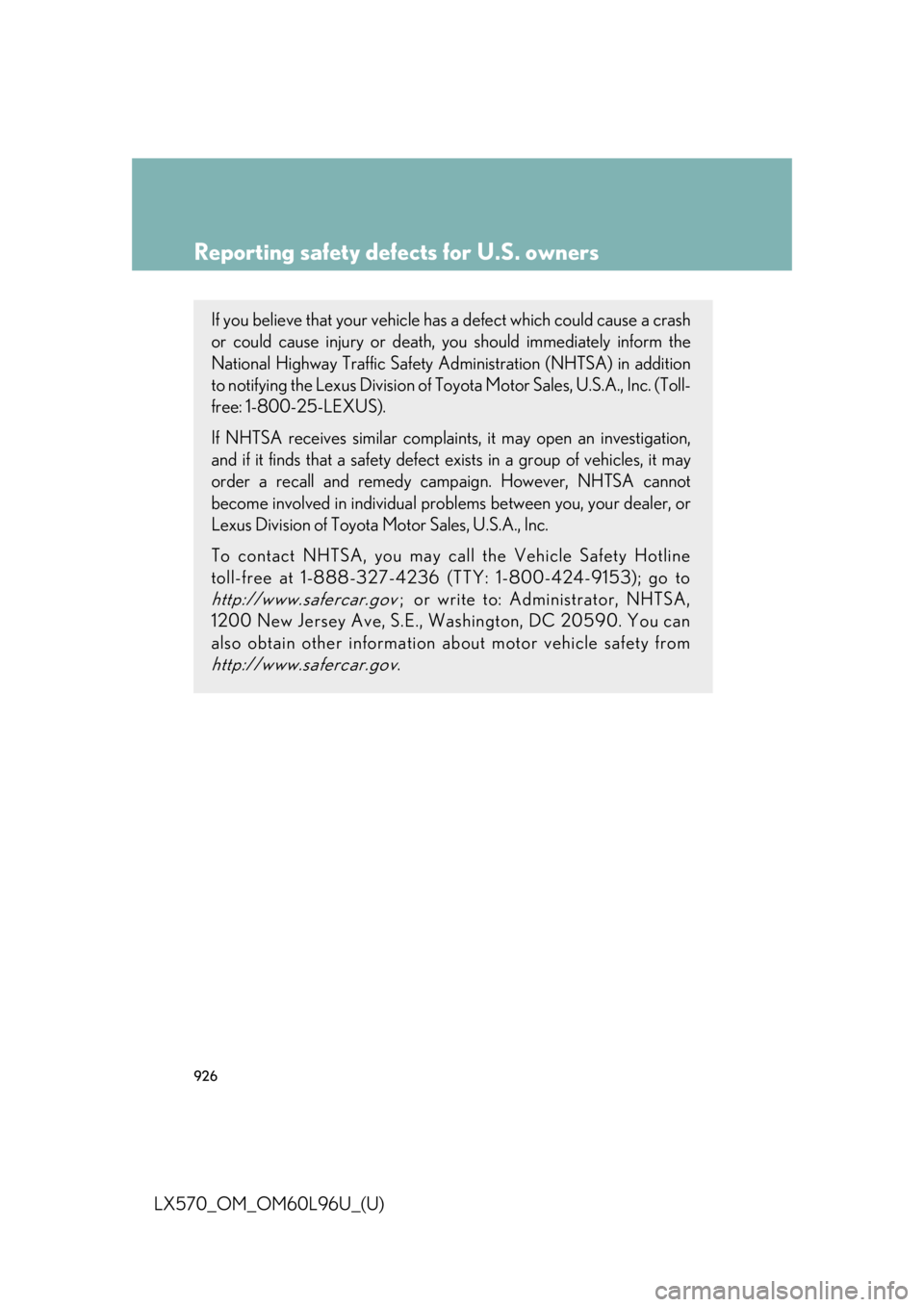

LX570_OM_OM60L96U_(U) Reporting safety defects for U.S. owners If you believe that your vehicle has a defect which could cause a crash
or could cause injury or death, you should immediately inform the
National Highway Traffic Safety Ad ministration (NHTSA) in addition
to notifying the Lexus D ivision of Toyota Motor Sa les, U.S.A., Inc. (Toll-
free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy camp aign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
Lexus Division of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may ca ll the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Wa shington, DC 20590. You can
also obtain other information ab out motor vehicle safety from
http://www.safercar.gov .
