LEXUS LX570 2015 Owners Manual

8976-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L96U_(U) Fuel information ■
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps. ■
If your engine knocks ●
Consult your Lexus dealer. ●
You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.■
Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking. Per-
sistent knocking can lead to engine damage and should be corrected by
refueling with higher oc tane unleaded gasoline.
At minimum, the gasoline you use shou ld meet the specifications of ASTM
D4814 in the U.S.A. .

8986-1. Specifications
LX570_OM_OM60L96U_(U) ■
Gasoline quality standards ●
Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide. ●
The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted. ●
The WWFC improves air quality by loweri ng emissions in vehicle fleets, and
customer satisfaction th rough better performance.■
Lexus recommends the use of gasoline containing detergent additives●
Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits. ●
All gasoline sold in the US contains minimum detergent additives to clean and/
or keep clean intake systems, per EP A’s lowest additive s concentration pro-
gram. ●
Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more
information on Top Tier Detergent Gasoli ne and a list of marketers, please go
to the official website www.toptiergas.com.■
Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reform ulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Te rtiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.

8996-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L96U_(U) ■
Lexus does not recommend blended gasoline
●
If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87. ●
Lexus does not recommend the use of gasoline containing methanol.■
Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel contain-
ing MMT is used, your emission contro l system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service. ●
Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol,
including from any pump labeled E30,
E50, E85 (which are only some examples
of fuel containing more than 15% ethanol).DO NOT use gasoline con-
taining more than 15% etha-
nol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

9006-1. Specifications
LX570_OM_OM60L96U_(U) NOTICE■
Notice on fuel quality ●
Do not use improper fuels. If improper fuels are used the engine will be damaged.●
Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic con-
verters causing the emission co ntrol system to malfunction.●
Do not use gasohol other than that stated here.
Other gasohol may cause fuel system da mage or vehicle performance problems.●
Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persis tent heavy knocking.
At worst, this will lead to engine damage.■
Fuel-related poor driveability
If after using a different type of fuel, poor driveability is enco untered (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.■
When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

9016-1. Specifications
6
Vehicle specifications

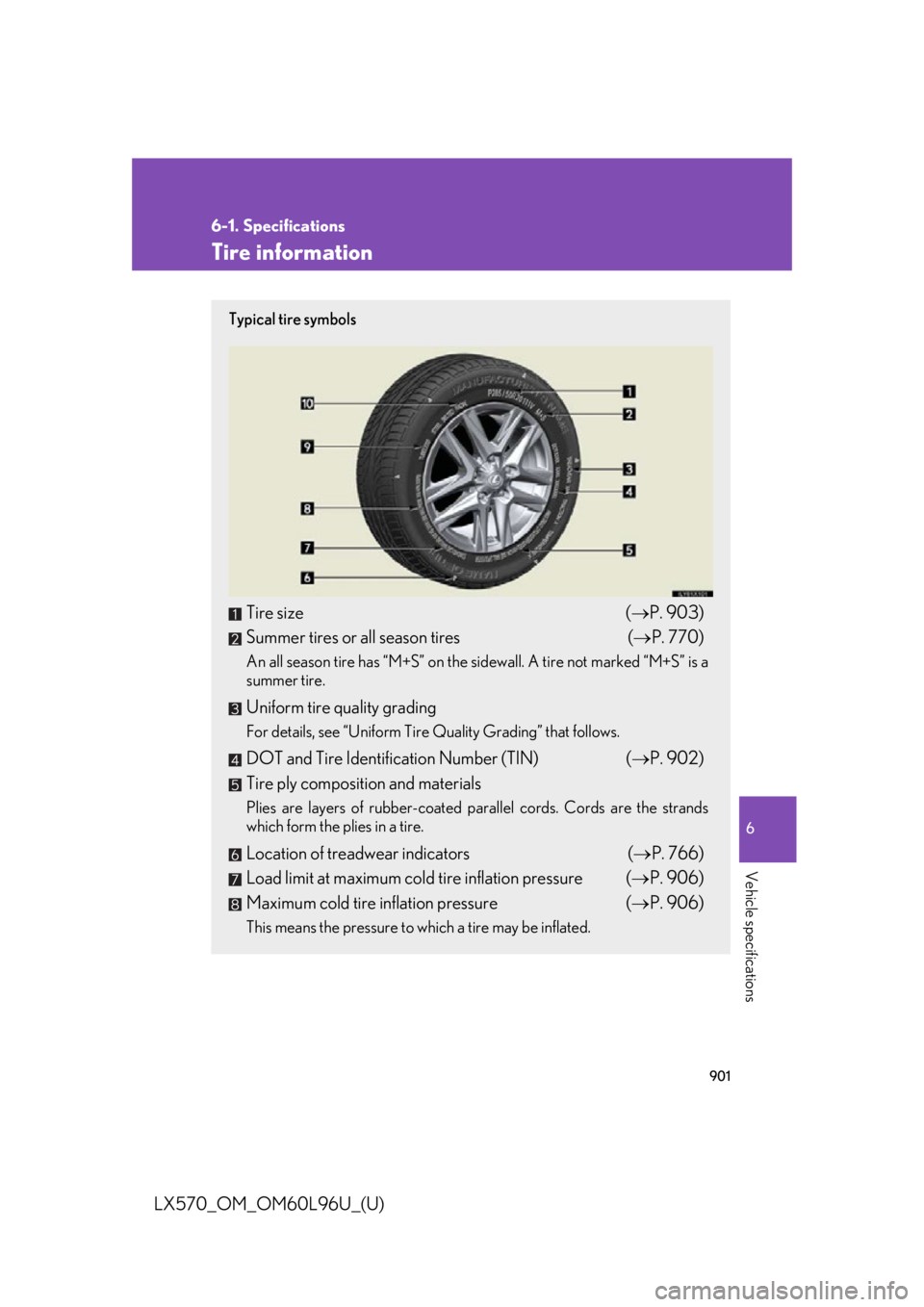

LX570_OM_OM60L96U_(U) Tire information Typical tire symbols
Tire size (  P. 903)
Summer tires or all season tires (  P. 770)An all season tire has “M+S” on the si dewall. A tire not marked “M+S” is a
summer tire.
Uniform tire quality grading For details, see “Uniform Tire Quality Grading” that follows.
DOT and Tire Identification Number (TIN) (  P. 902)
Tire ply composition and materials Plies are layers of rubber-coated pa rallel cords. Cords are the strands
which form the plies in a tire.
Location of treadwear indicators (  P. 766)
Load limit at maximum co ld tire inflation pressure (  P. 906)
Maximum cold tire inflation pressure (  P. 906)This means the pressure to wh ich a tire may be inflated.

9026-1. Specifications
LX570_OM_OM60L96U_(U) Typical DOT and Tire Iden tification Number (TIN)
DOT symbol
*Tire Identification Number
(TIN)
Tire manufacturer’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
* : The DOT symbol certifies that
the tire conforms to applicable
Federal Motor Vehicle Safety
Standards.TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the ti re and the tube maintains the air pres-
sure.
Radial tires or bias-ply tires A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is
a bias-ply tire.

9036-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L96U_(U) Tire size
■ Typical tire size information
The illustration indicates typical
tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
■ Tire dimensions
Section width
Tire height
Wheel diameter

9046-1. Specifications
LX570_OM_OM60L96U_(U) Tire section names
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
Uniform Tire Quality Grading
This information has been prepa red in accordance with regulations
issued by the National Highway Traffic Safety Administration of the U.S.
Department of Transportation.
It provides the purchasers and/or pr ospective purchasers of Lexus vehi-
cles with information on uniform tire quality grading.Your Lexus dealer will help answer any questions you may have as you read
this information.
■ DOT quality grades
All passenger vehicle tires must co nform to Federal Safety Require-
ments in addition to these grades . Quality grades can be found where
applicable on the tire sidewall between tread shoulder and maximum
section width. For example: Treadwear 200 Traction AA Temperature A

9056-1. Specifications
6
Vehicle specifications
LX570_OM_OM60L96U_(U) ■ Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified gov-
ernment test course. For example, a tire graded 150 would we ar one and a half (1 - 1/2) times as
well on the government cour se as a tire graded 100.
The relative performance of tires depends upon the actual conditions of
their use. Performance may differ significantly from the norm due to varia-
tions in driving habits, service practices and differences in road characteris-
tics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire’s ability to stop on wet pavement as measured
under controlled conditions on sp ecified government test surfaces of
asphalt and concrete. A tire marked C may have poor traction performance.
Warning: The traction grad e assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning) trac-
tion.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel. Sustained high temperature can cause th e material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
Grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher leve ls of performance on the laboratory
test wheel than the minimum required by law.

9066-1. Specifications
LX570_OM_OM60L96U_(U) Warning: The temperature grades of a tire assume that it is properly inflated
and not overloaded.
Excessive speed, underinflation, or exce ssive loading, either separately or
in combination, can cause heat bu ildup and possible tire failure.
Glossary of tire terminology Tire related term Meaning
Cold tire inflation
pressure Tire pressure when the vehicle has been parked for
three hours or more, or ha s not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sure The maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressure Cold tire inflation pressure recommended by a manu-
facturer
Accessory weight The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as f actory-installed equipment
(whether installed or not)
Curb weight The weight of a motor vehi cle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and addi-
tional weight optional engine
Maximum loaded
vehicle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight 150 lb. (68 kg) times the nu mber of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distribution Distribution of occupants in a vehicle as specified in
the third column of Table 1
* below
