160 3-4. Adjusting the steering wheel and mirrors

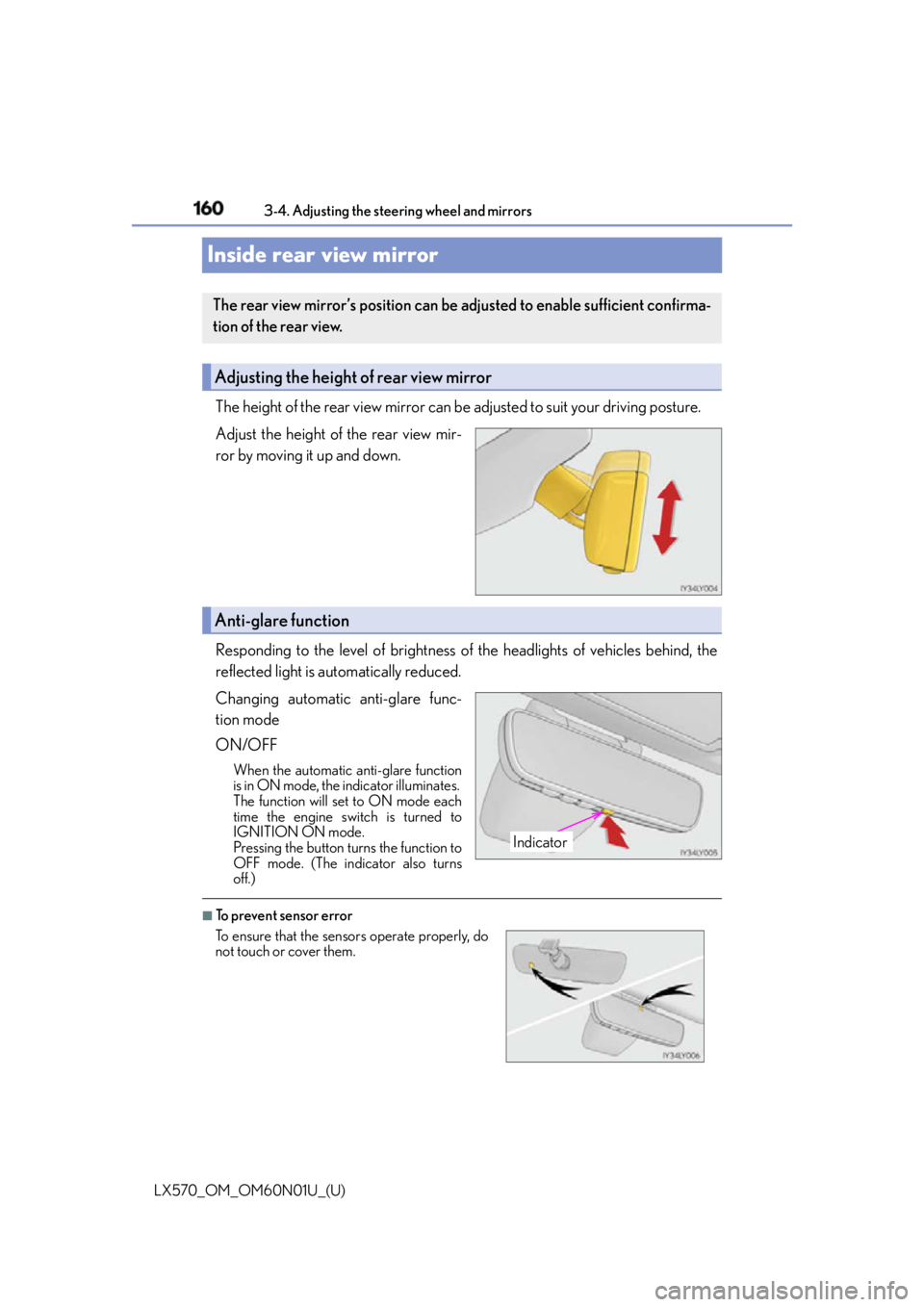

LX570_OM_OM60N01U_(U)Inside rear view mirror The height of the rear view mirror can be adjusted to suit your driving posture.
Adjust the height of the rear view mir-
ror by moving it up and down.
Responding to the level of brightness of the headlights of vehicles behind, the
reflected light is automatically reduced.
Changing automatic anti-glare func-
tion mode
ON/OFF When the automatic anti-glare function
is in ON mode, the indicator illuminates.
The function will set to ON mode each
time the engine switch is turned to
IGNITION ON mode.
Pressing the button turns the function to
OFF mode. (The indicator also turns
off.) ■
To prevent sensor errorThe rear view mirror’s position can be adjusted to enable sufficient confirma-
tion of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
Indicator
To ensure that the sens ors operate properly, do
not touch or cover them.

222
LX570_OM_OM60N01U_(U) 4-3. Operating the lights and wipers■
Daytime running light system ●
To make your vehicle more visible to other drivers during daytime driving, the daytime
running lights turn on automatically whenever the engine is started and the parking
brake is released. (Illuminate brighter than the parking lights.) Daytime running lights
are not designed for use at night.
For the U.S.A.: Daytime running lights can be turned off by operating the switch.●
Compared to turning on the headlights, the daytime running light system offers greater
durability and consumes less electricity, so it can help improve fuel economy. ■
Headlight control sensor
■
Automatic light off system ●
When the headlights are on: The headlights an d tail lights turn off 30 seconds after a
door is opened and closed if the engine switch has been switched to ACCESSORY or
OFF mode. ●
When only the tail lights are on : The tail lights turn off auto matically if the engine switch
is switched to ACCESSORY or OFF mo de and driver’s door is opened.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or turn the
light switch off once and then back to or position.The sensor may not function properly if an
object is placed on the sensor, or anything that
blocks the sensor is affixed to the windshield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

LX570_OM_OM60N01U_(U) 2234-3. Operating the lights and wipers
4
Driving ■
Automatic headlight leveling system
The level of the headlights is automatically ad justed according to the number of passen-
gers and the loading condition of the vehicle to ensure that the headlights do not inter-
fere with other road users. ■
We l c o m e l i g h t i n g
If the headlight switch is turned to and the surrounding area is dark, unlocking the
doors using the smart access system with pu sh-button start or wireless remote control
will turn the parking lights and tail lights on automatically. ■
If the automatic headlight leveling system warning light flashes
It may indicate a malfunction in the system. Contact your Lexus dealer. ■
Light reminder buzzer
A buzzer sounds when the engine switch is turned off or turned to ACCESSORY mode
and the driver’ door is opened while the tail lights remain on.■
Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features:  P. 585)
NOTICE ■
To prevent battery discharge
Do not leave the lights on longer than ne cessary when the engine is not running.

224
LX570_OM_OM60N01U_(U) 4-3. Operating the lights and wipers

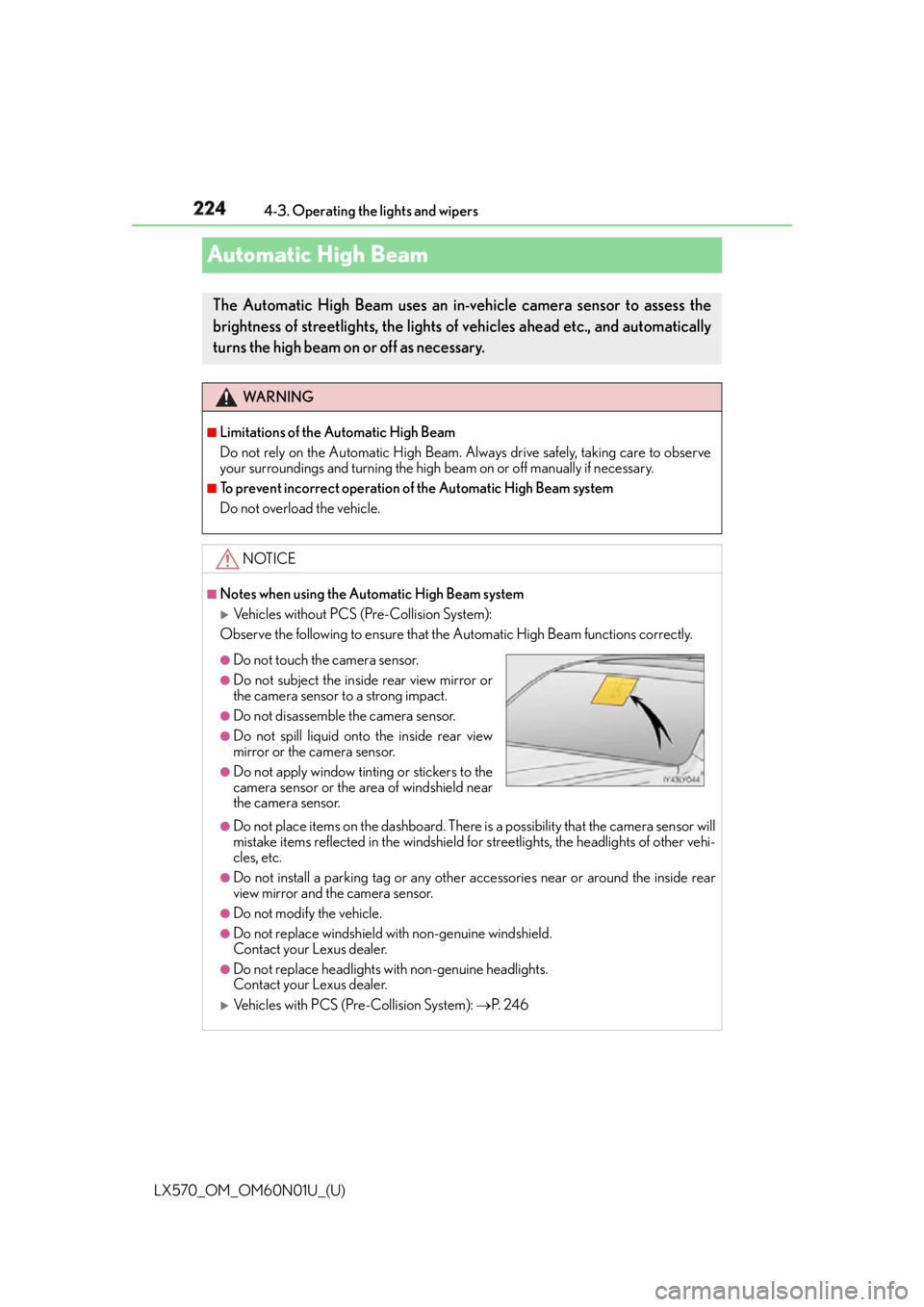

Automatic High Beam The Automatic High Beam uses an in-v ehicle camera sensor to assess the
brightness of streetlights, the lights of vehicles ahead etc. , and automatically
turns the high beam on or off as necessary. WA R N I N G ■
Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to observe
your surroundings and turning the high beam on or off manually if necessary.■
To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.
NOTICE ■
Notes when using the Automatic High Beam system 
Vehicles without PCS (Pre-Collision System):
Observe the following to ensure that the Automatic High Beam functions correctly.
●
Do not place items on the dashboard. There is a possibility that the camera sensor will
mistake items reflected in the windshield for streetlights, the headlights of other vehi-
cles, etc. ●
Do not install a parking tag or any other acc essories near or around the inside rear
view mirror and the camera sensor. ●
Do not modify the vehicle. ●
Do not replace windshield wi th non-genuine windshield.
Contact your Lexus dealer. ●
Do not replace headlights wi th non-genuine headlights.
Contact your Lexus dealer. 
Vehicles with PCS (Pre-Collision System):  P. 2 4 6●
Do not touch the camera sensor. ●
Do not subject the inside rear view mirror or
the camera sensor to a strong impact. ●
Do not disassemble the camera sensor. ●
Do not spill liquid onto the inside rear view
mirror or the camera sensor. ●
Do not apply window tinting or stickers to the
camera sensor or the area of windshield near
the camera sensor.

LX570_OM_OM60N01U_(U) 2274-3. Operating the lights and wipers
4
Driving ■
Camera sensor dete ction information●
The high beam may not be automatically turned off in the following situations:
• When oncoming vehicles sudd enly appear from a curve
• When the vehicle is cut in front of by another vehicle
• When vehicles ahead are hidden from sight due to repeated curves, road dividers or
roadside trees
• When vehicles ahead appear from the faraway lane on wide road
• When vehicles ahead have no lights ●
The high beam may be turned off if a vehicl e ahead that is using fog lights without using
the headlights is detected. ●
House lights, street lights, traffic signals, and illuminated billboards or signs may cause
the high beam to switch to the low be ams, or the low beams to remain on.●
The following factors may affect the amount of time taken to turn the high beam on or
off:
• The brightness of headlig hts, fog lights, and tail lights of vehicles ahead
• The movement and direction of vehicles ahead
• When a vehicle ahead only has operational lights on one side
• When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface etc.)
• The number of passengers and amount of luggage ●
The high beam may be turned on or off when the driver does not expect it. ●
Bicycles or similar objects may not be detected. ●
In the situations shown below, the system may not be able to accurately detect sur-
rounding brightness levels. This may caus e the low beams to remain on or the high
beams to cause problems for pedestrians, vehicles ahead or other parties. In these
cases, manually switch between the high and low beams.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The camera sensor is deformed or dirty.
• The camera sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, ta il lights or fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are changing color,
or have are not aimed properly.
• When driving through an area of intermit tently changing brightness and darkness.
• When frequently and repeatedly driving ascending/descending roads, or roads with
rough, bumpy or uneven surfaces (such as stone-paved roads, gravel tracks etc.).
• When frequently and repeat edly taking curves or driving on a winding road.
• There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The high beam and low beam are repeated ly being switched between in an abnor-
mal manner.
• The driver believes that the high beam may be causing problems or distress to other
drivers or pedestrians nearby.

228
LX570_OM_OM60N01U_(U) 4-3. Operating the lights and wipers■
Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
Vehicles without PCS (Pre-Collision System):
To lower the sensitivity, push and hold on th e inside rear view mirror for 15 to 20 sec-
onds, and release. The indicator light on the in side rear view mirror will flash to indicate
that the sensitivity has been lowered.
When the engine switch is turned off, the sens itivity will be returned to its normal level.
Vehicles with PCS (Pre-Collision System):
Turn the engine switch off while the following conditions are met.
• The headlight switch is in .
• The headlight switch lever is in low beam position.
Turn the engine switch to IGNITION ON mode.
Within 30 seconds af ter , repeat pushing the headlig ht switch lever to the high
beam position then pulling it to the low be am position quickly 10 times, then leave
the lever in high beam position.
Automatic High Beam (headlights) may turn on even the vehicle is stopped.1
2
3 2

231
LX570_OM_OM60N01U_(U) 4-3. Operating the lights and wipers
4
Driving

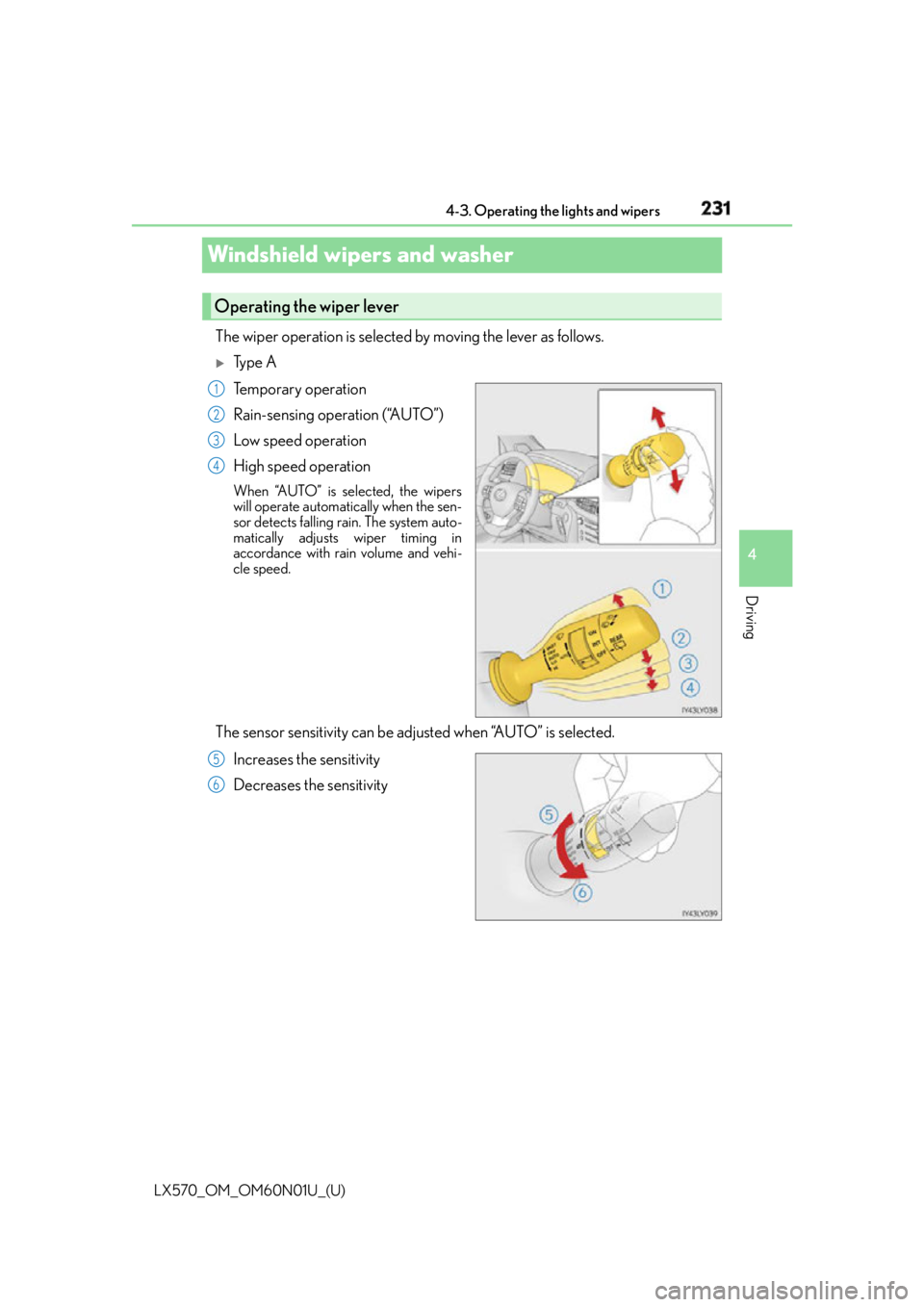

Windshield wipers and washer The wiper operation is selected by moving the lever as follows. 
Ty p e A
Temporary operation
Rain-sensing operation (“AUTO”)
Low speed operation
High speed operation When “AUTO” is selected, the wipers
will operate automatically when the sen-
sor detects falling rain. The system auto-
matically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
The sensor sensitivity can be adjusted when “AUTO” is selected.
Increases the sensitivity
Decreases the sensitivityOperating the wiper lever 1
2
3
4
5
6

LX570_OM_OM60N01U_(U) 2334-3. Operating the lights and wipers
4
Driving The sensor sensitivity can be adjusted when “AUTO” is selected.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation The wipers operate automatically. (After
operating several times, the wipers
operate one more time after a short
delay to prevent dripping.) ■
The windshield wipers and washer can be operated when
The engine switch is in IGNITION ON mode. ■
Raindrop sensor
●
If the wiper switch is turned to the “AUT O” position while the engine switch is in
IGNITION ON mode, the wipers will operate on ce to show that “AUTO” mode is acti-
vated. ●
When the sensor sensitivity ri ng is turned toward high wh ile in “AUTO” mode, the wip-
ers will operate once to indicate that the sensor sensitivity is enhanced. ●
If the temperature of the rain drop sensor is 185  F (85  C) or higher, or -22  F (-30  C)
or lower, the automatic operation may not occu r. In this case, operate the wipers in any
mode other than “AUTO”. 5
6
7
●
The raindrop sensor judges the amount of
raindrops.
An optical sensor is ad opted. It may not oper-
ate properly when sunlight from the rising or
setting of the sun intermittently strikes the
windshield, or if bugs etc. are present on the
windshield.

234
LX570_OM_OM60N01U_(U) 4-3. Operating the lights and wipers■
Effects of vehicle speed on wiper operation
With the settings other than “AUTO” also, the time until drip prevention wiper sweep
occurs is changed depending on vehicle speed. 
Ty p e A
With selected, wiper operation will be switched from low sp eed to intermittent
wiper operation only when the vehicle is stat ionary. (However, when the sensor sensitiv-
ity is adjusted to the highest le vel, the mode cannot be switched.)
Ty p e B
With selected, wiper operation will be switched from low speed to intermittent
wiper operation only when the vehicle is stat ionary. (However, when the sensor sensitiv-
ity is adjusted to the highest le vel, the mode cannot be switched.)■
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the windshield
washer fluid reservoir.
WA R N I N G ■
Caution regarding the use of wind shield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the wind-
shield is subject to vibration in “AUTO” mode . Take care that your fingers etc. anything
else does not become caught in the windshield wipers. ■
Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm. The
fluid may freeze on the windshield and cause lo w visibility. This may lead to an accident,
resulting in death or serious injury.
NOTICE ■
When the windshield is dry
Do not use the wipers, as they may damage the windshield. ■
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat. ■
When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you and
held continually. ■
When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

LX570_OM_OM60N01U_(U) 2434-5. Using the driving support systems
4
Driving The pre-collision system is equipped wi th a sophisticated computer that will
record certain data, such as:
• How far (if at all) the driver was depressing the accelerator and/or brake
pedal
• Vehicle speed
• Operation status of the pre-collision system functions
• Information (such as the distance and relative speed between your vehicle
and the vehicle ahead or other objects)
Additionally, if the pre-collision braking fu nction is operating, image information
from the camera sensor will also be re corded. The pre-collisio n system does not
record conversations, sounds or pictures. ●
Data usage
Lexus may use the data recorded in this computer to diagnose malfunctions,
conduct research and development, and improve quality.
Lexus will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if
the vehicle is leased
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Lexus in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner●
Recorded image information can be erased using a specialized device.
The image information recording function can be disabled. However, if the
function is disabled, data from when the pre-collision system operates will not
be available.Vehicle data recording
