LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems
WA R N I N G ■

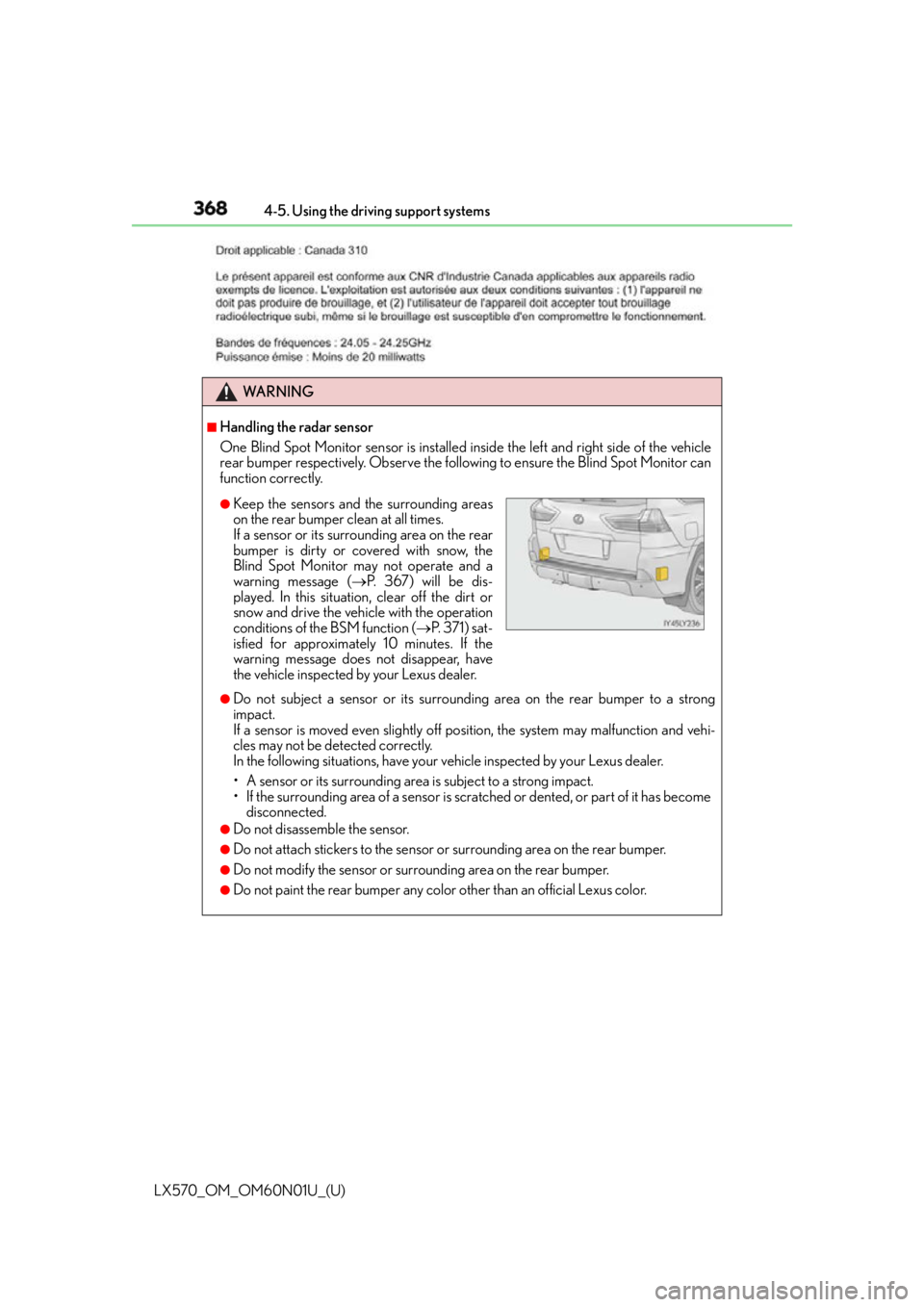

Handling the radar sensor
One Blind Spot Monitor sensor is installed in side the left and right side of the vehicle
rear bumper respectively. Observe the following to ensure the Blind Spot Monitor can
function correctly.
●
Do not subject a sensor or its surrounding area on the rear bumper to a strong
impact.
If a sensor is moved even slightly off po sition, the system may malfunction and vehi-
cles may not be detected correctly.
In the following situations, have your vehicle inspected by your Lexus dealer.
• A sensor or its surrounding area is subject to a strong impact.
• If the surrounding area of a sensor is scra tched or dented, or part of it has become
disconnected. ●
Do not disassemble the sensor. ●
Do not attach stickers to the sensor or surrounding area on the rear bumper.●
Do not modify the sensor or surr ounding area on the rear bumper.●
Do not paint the rear bumper any color other than an official Lexus color. ●
Keep the sensors and the surrounding areas
on the rear bumper clean at all times.
If a sensor or its surrounding area on the rear
bumper is dirty or covered with snow, the
Blind Spot Monitor ma y not operate and a
warning message (  P. 367) will be dis-
played. In this situation, clear off the dirt or
snow and drive the vehicle with the operation
conditions of the BSM function (  P. 3 7 1 ) s a t -
isfied for approximately 10 minutes. If the
warning message does not disappear, have
the vehicle inspected by your Lexus dealer.

LX570_OM_OM60N01U_(U) 3694-5. Using the driving support systems
4

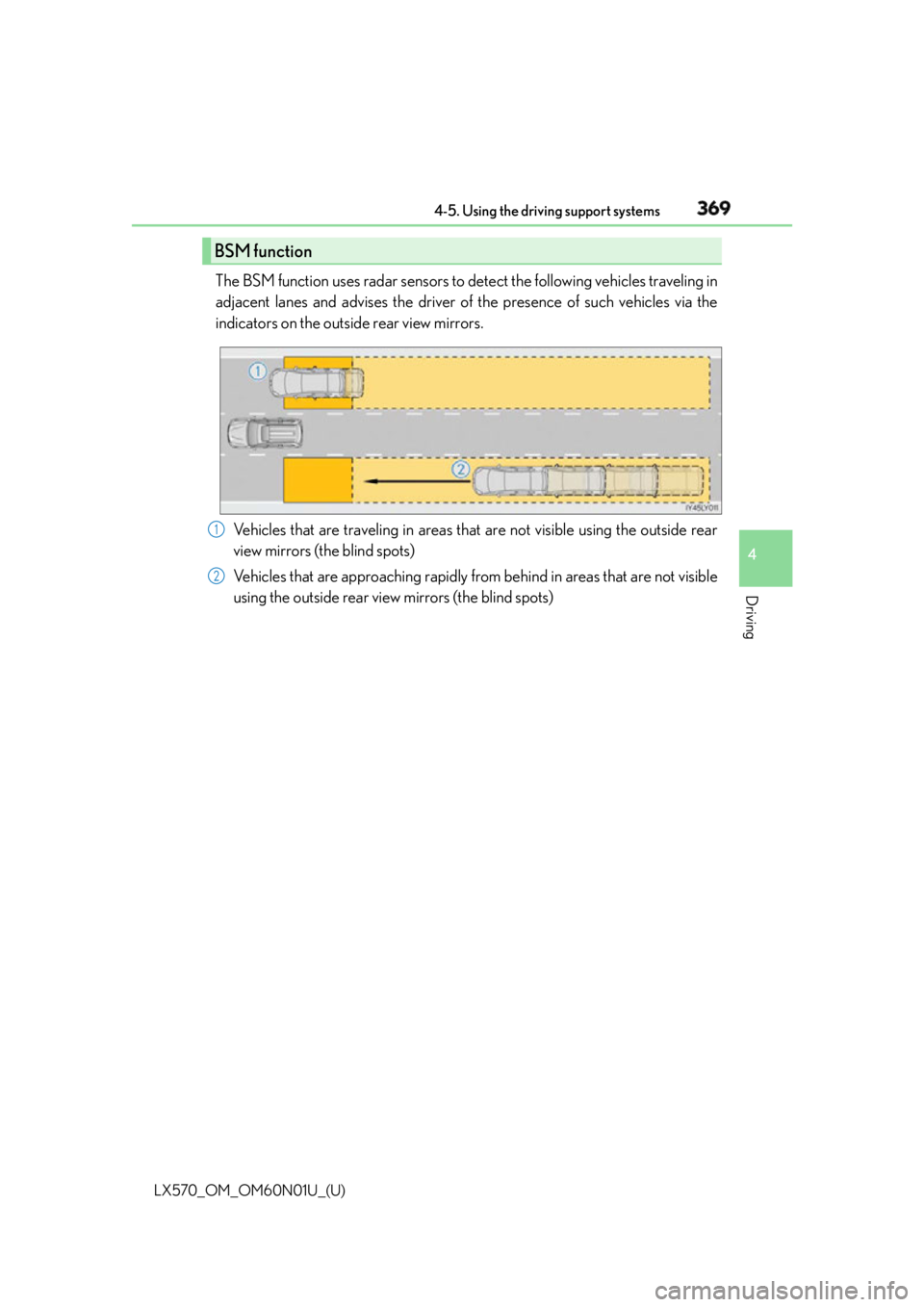

Driving The BSM function uses radar sensors to detect the following vehicles traveling in
adjacent lanes and advises the driver of the presence of such vehicles via the
indicators on the outside rear view mirrors.
Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)BSM function
1
2

372
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems■
Conditions under which the BSM func tion may not function correctly●
The BSM function may not detect vehicles correctly in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its surround-
ing area
• When mud, snow, ice, a sticker, etc. is covering the sensor or surrounding area on
the rear bumper
• When driving on a road surface that is wet with standing water during bad weather,
such as heavy rain, snow, or fog
• When multiple vehicles are approaching wi th only a small gap between each vehicle
• When the distance between your vehicle and a following vehicle is short
• When there is a significant difference in speed between your vehicle and the vehicle
that enters the detection area
• When the difference in speed between your vehicle and another vehicle is changing
• When a vehicle enters a detection area traveling at about the same speed as your
vehicle
• As your vehicle starts from a stop, a vehicle remains in the detection area
• When driving up and down consecutive steep in clines, such as hills, dips in the road,
etc.
• When driving on roads with sharp bends, consecutive curves, or uneven surfaces
• When vehicle lanes are wide, or when drivin g on the edge of a lane, and the vehicle
in an adjacent lane is far away from your vehicle
• When a bicycle carrier or other accessory is installed to the rear of the vehicle
• When there is a significant difference in height between your vehicle and the vehicle
that enters the detection area
• Immediately after the BSM function is turned on ●
Instances of the BSM function unnecessarily detecting a vehicle and/or object may
increase in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its surround-
ing area
• When the distance between your vehicle and a guardrail, wall, etc. that enters the
detection area is short
• When driving up and down consecutive steep in clines, such as hills, dips in the road,
etc.
• When vehicle lanes are narrow, or when driving on the edge of a lane, and a vehicle
traveling in a lane other than the ad jacent lanes enters the detection area
• When driving on roads with sharp bends, consecutive curves, or uneven surfaces
• When the tires are slipping or spinning
• When the distance between your vehicle and a following vehicle is short
• When a bicycle carrier or other accessory is installed to the rear of the vehicle

LX570_OM_OM60N01U_(U) 3734-5. Using the driving support systems
4

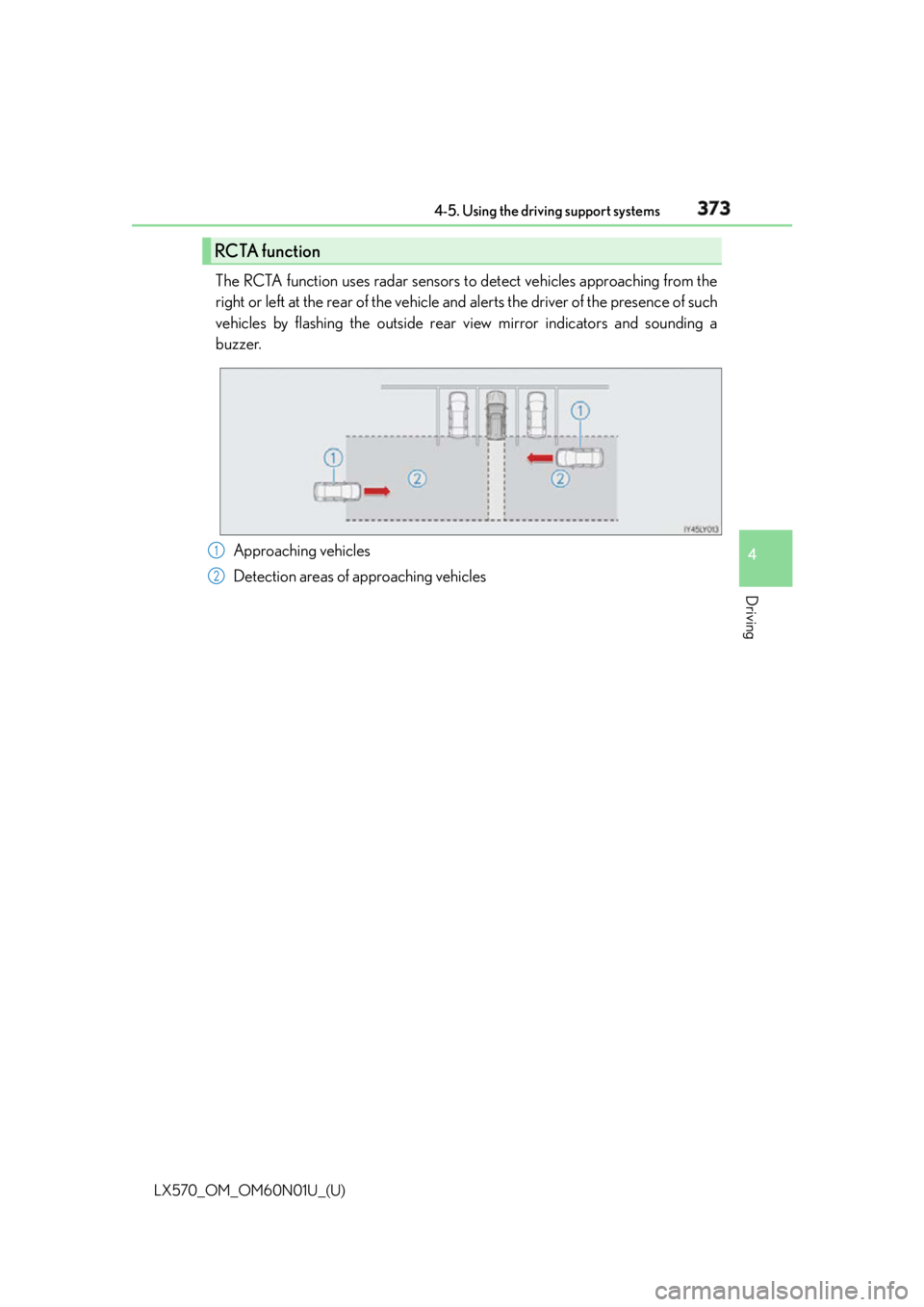

Driving The RCTA function uses radar sensors to detect vehicles approaching from the
right or left at the rear of the vehicle an d alerts the driver of the presence of such
vehicles by flashing the outside rear view mirror indicators and sounding a
buzzer.
Approaching vehicles
Detection areas of approaching vehiclesRCTA function
1
2

376
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems■
Conditions under which the Rear Cross Traffi c Alert function will not detect a vehicle
The Rear Cross Traffic Alert function is no t designed to detect the following types of
vehicles and/or objects: ●
Vehicles approaching from directly behind ●
Vehicles backing up in a parking space next to your vehicle
●
Guardrails, walls, signs, parked vehi cles and similar stationary objects
*●
Small motorcycles, bicycles, pedestrians, etc.
*●
Vehicles moving away from your vehicle ●

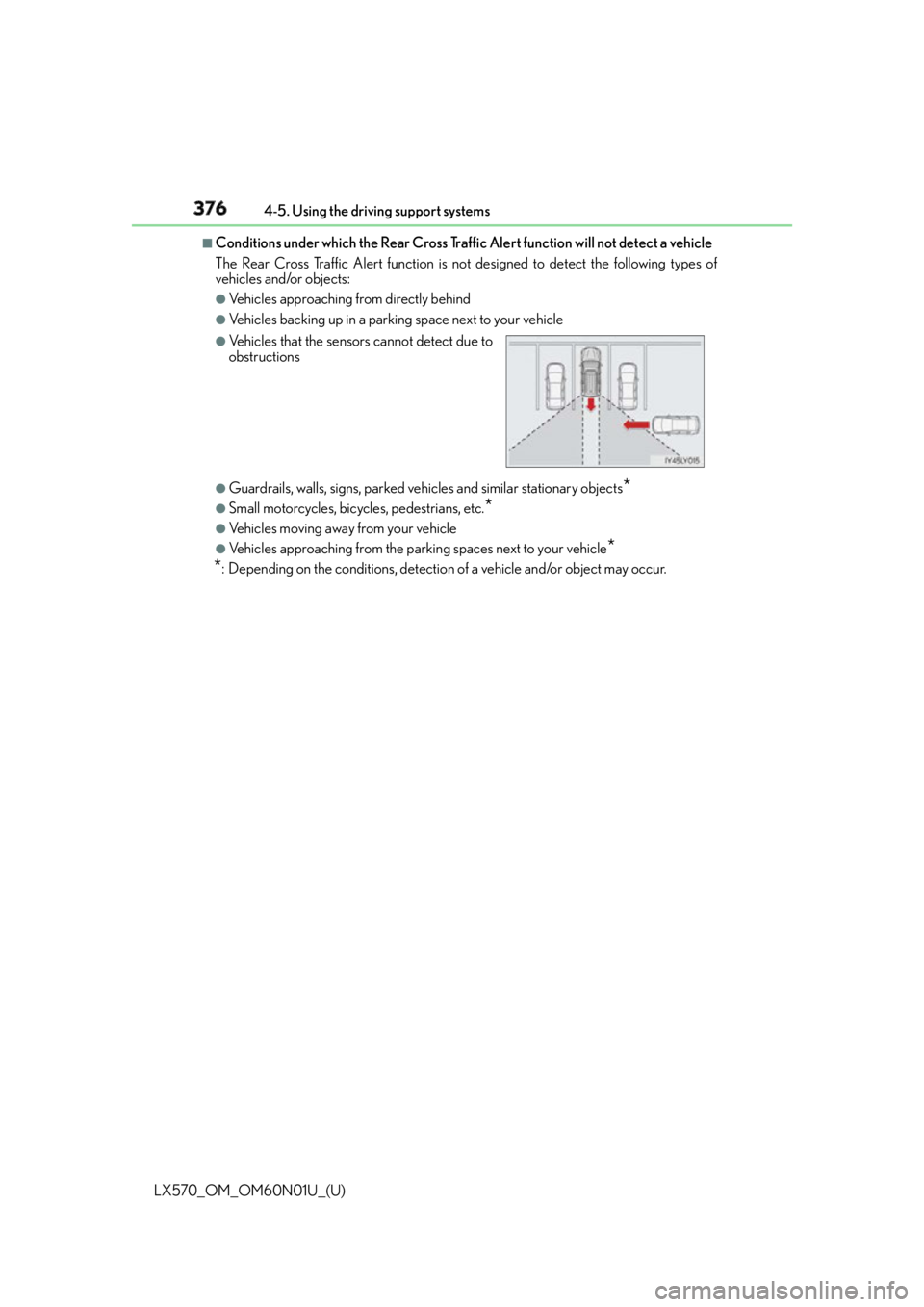

Vehicles approaching from the parking spaces next to your vehicle
*
* : Depending on the conditions, detection of a vehicle and/or object may occur. ●
Vehicles that the sensors cannot detect due to
obstructions

LX570_OM_OM60N01U_(U) 3774-5. Using the driving support systems
4
Driving ■
Conditions under which the Rear Cross Traf fic Alert function may not function cor-
rectly ●
The Rear Cross Traffic Alert function may not detect vehicles correctly in the following
situations:
• When the sensor is misaligned due to a strong impact to the sensor or its surround-
ing area
• When mud, snow, ice, a sticker, etc. is covering the sensor or surrounding area on
the rear bumper
• When driving on a road surface that is wet with standing water during bad weather,
such as heavy rain, snow, or fog
• When multiple vehicles are approaching wi th only a small gap between each vehicle
• When a vehicle is approaching at high speed
• Immediately after the BSM function is turned on

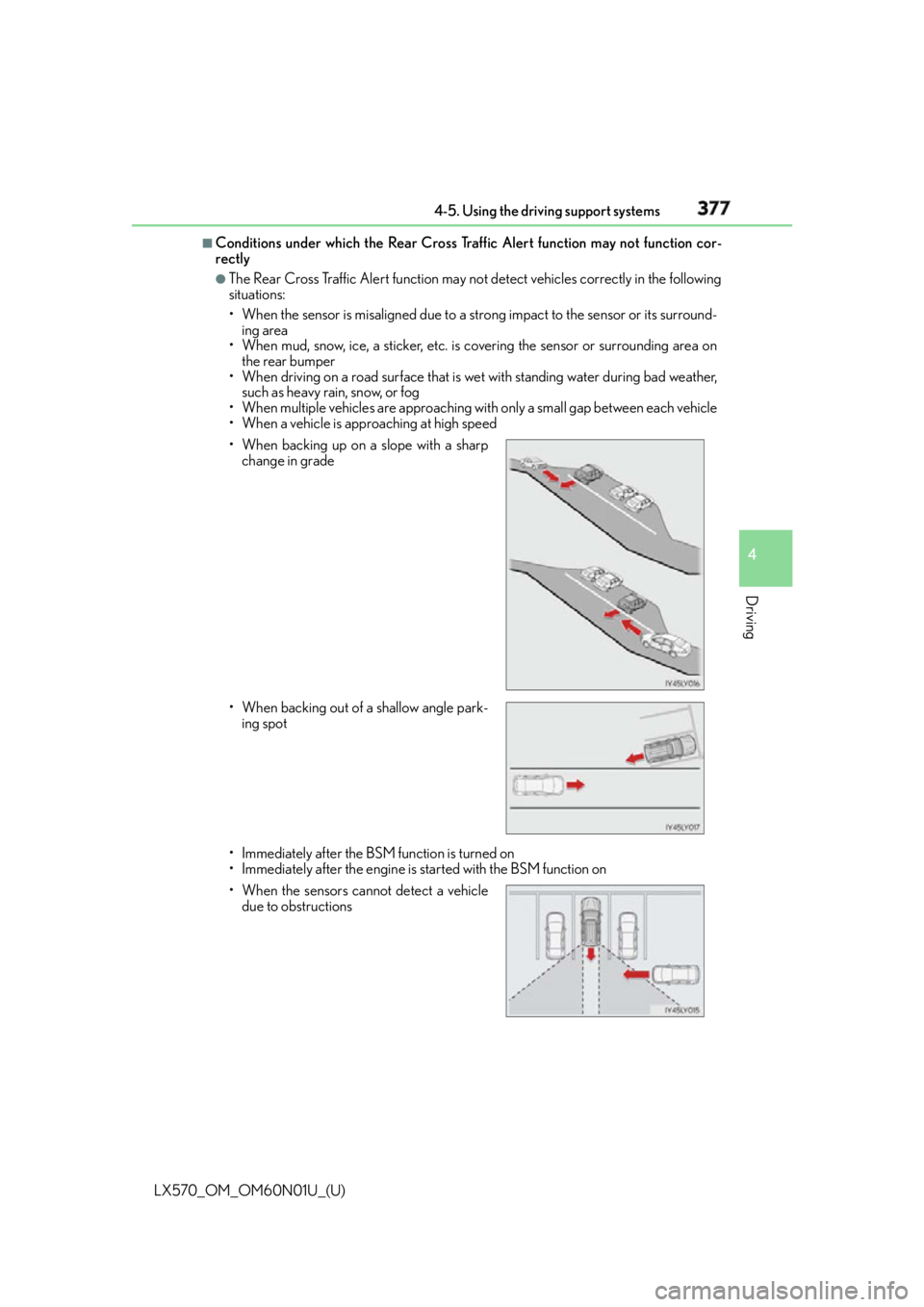

• Immediately after the engine is started with the BSM function on• When backing up on a slope with a sharp
change in grade
• When backing out of a shallow angle park-
ing spot
• When the sensors cannot detect a vehicle
due to obstructions

410 5-3. Using the air conditioning system and defogger
LX570_OM_OM60N01U_(U) ■
When the outside temperature is low
The dehumidification function may not operate even when is selected. ■
Micro dust and pollen filter ●
In order to prevent the windows from fogging up when the outside air is cold, the fol-
lowing may occur.
• Outside air mode does not switch to recirculated air mode.
• The air conditioning system operates automatically.
• The operation cancels after 1 minute. ●
In rainy weather, the windows may fog up. Press . ■
The rear window defogger, outside rear view mirror defogger and windshield wiper de-
icer can be operated when
The engine switch is in IGNITION ON mode. ■
When the windshield wiper de-icer is on
The windshield wiper de-icer will automatically turn off after approximately 15 minutes.■
Ventilation and air conditioning odors ●
To let fresh air in, set the air conditio ning system to the outside air mode.●
During use, various odors from inside and outside the vehicle may enter into and accu-
mulate in the air conditioning system. This may then cause odor to be emitted from the
vents. ●
To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode prior
to turning the vehicle off.
• The start timing of the blower may be dela yed for a short period of time immediately
after the air conditioning system is started in automatic mode.■
Air conditioning filter
 P. 5 0 1 ■
Customization
Settings (e.g. Exhaust gas sensor sensitivity) can be changed.
(Customizable features:  P. 585)
WA R N I N G ■
To prevent the windshield from fogging up ●
Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can cause
the outer surface of the windshield to fog up, blocking your vision.■
To prevent burns ●
Do not touch the rear view mirror surfaces when the outside rear view mirror defog-
gers are on. ●
Do not touch the glass at lower part of the wi ndshield or to the si de of the front pillars
when the windshield wiper de-icer is on.

LX570_OM_OM60N01U_(U) 4596-1. Maintenance and care
6
Maintenance and care ■
Notes for a smart access system with push-button start ●
If the door handle becomes wet while the el ectronic key is within the effective range,
the door may lock and unlock repeatedly. Place the key in a position 6 ft. (2 m) or more
separate from the vehicle while the vehicle is being washed. (Take care to ensure that
the key is not stolen.) ●
If the electronic key is insi de the vehicle and a door handle becomes wet during a car
wash, a message may be shown on the mult i-information display and a buzzer will
sound outside the vehicle. To turn off the alarm, lock all the doors.
WA R N I N G ■
When washing the vehicle
Do not apply water to the inside of the en gine compartment. Doing so may cause the
electrical components etc. to catch fire. ■
When cleaning the windshield
●
When the upper part of the windshield where the raindrop sensor is located is
touched by hand ●
When a wet rag or similar is held close to the raindrop sensor ●
If something bumps against the windshield ●
If you directly touch the raindrop sensor body or if something bumps into the raindrop
sensor ■
Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled suffi-
ciently, as touching a hot exhaust pipe can cause burns. ■
Precautions regarding the Blin d Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunction.

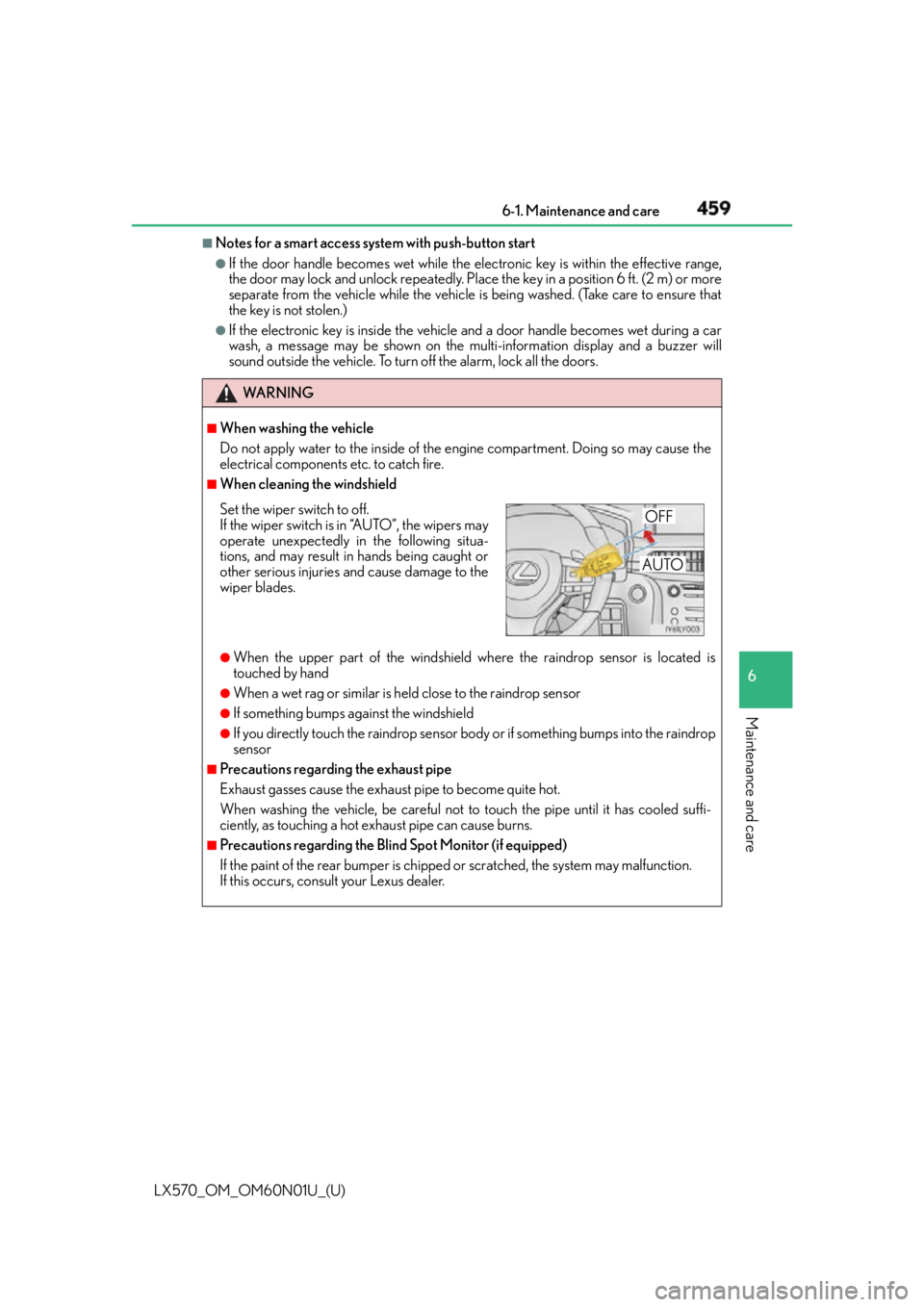

If this occurs, consult your Lexus dealer.Set the wiper switch to off.
If the wiper switch is in “A U T O ” , t h e w i p e r s m a y
operate unexpectedly in the following situa-
tions, and may result in hands being caught or
other serious injuries and cause damage to the
wiper blades. OFF
AUTO

5257-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U) 7

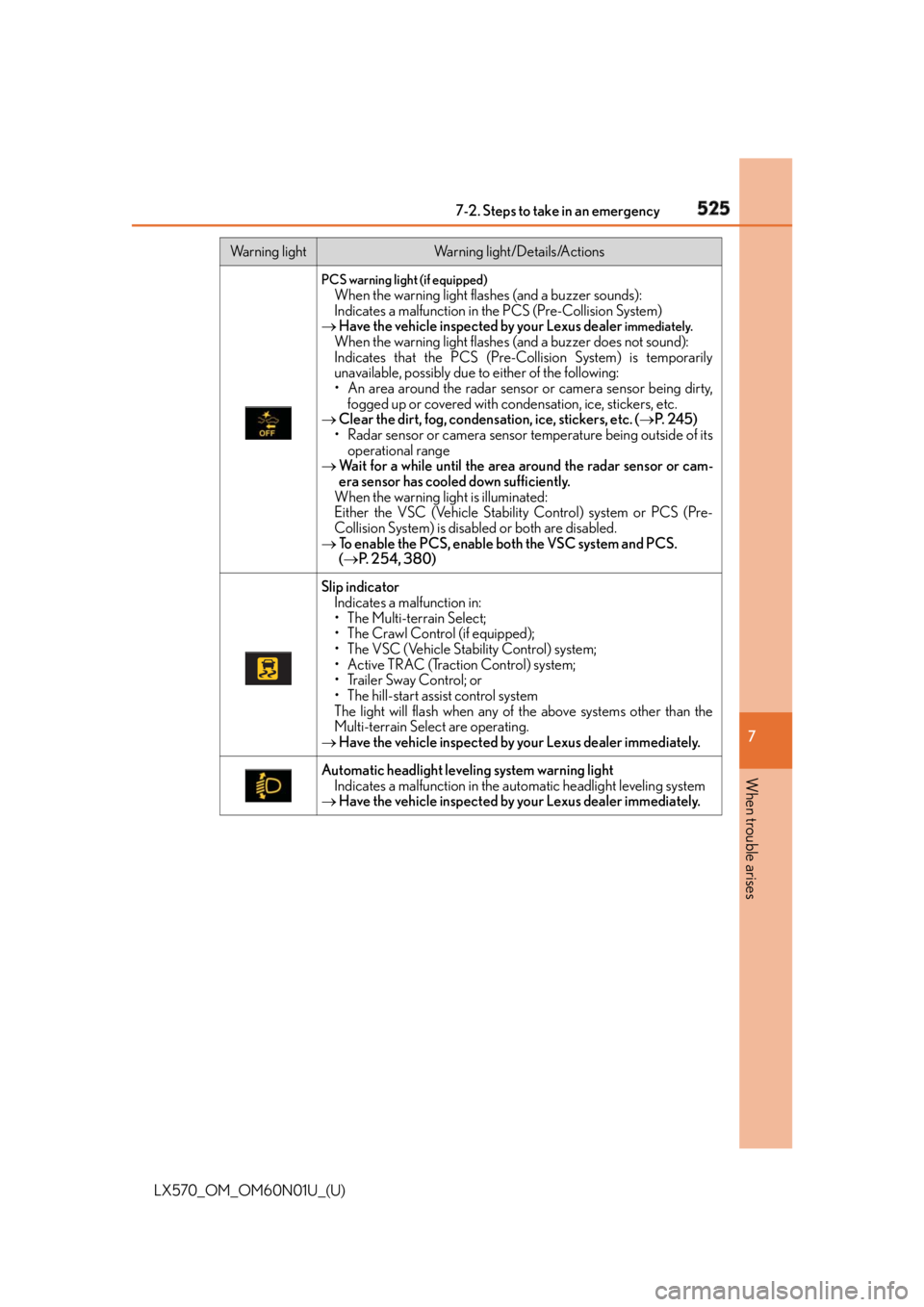

When trouble arises PCS warning light (if equipped)
When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Collision System)
 Have the vehicle inspected by your Lexus dealer immediately.
When the warning light flashes (and a buzzer does not sound):
Indicates that the PCS (Pre-Collision System) is temporarily
unavailable, possibly due to either of the following:
• An area around the radar sensor or camera sensor being dirty,
fogged up or covered with co ndensation, ice, stickers, etc.
 Clear the dirt, fog, condensation, ice, stickers, etc. (  P. 2 4 5 )
• Radar sensor or camera sensor temperature being outside of its
operational range
 Wait for a while until the area around the radar sensor or cam-
era sensor has cooled down sufficiently.
When the warning li ght is illuminated:
Either the VSC (Vehicle Stability Control) system or PCS (Pre-
Collision System) is disabled or both are disabled.
 To enable the PCS, enable both the VSC system and PCS.
(  P. 254, 380)
Slip indicator
Indicates a malfunction in:
• The Multi-terrain Select;
• The Crawl Control (if equipped);
• The VSC (Vehicle Stability Control) system;
• Active TRAC (Traction Control) system;
• Trailer Sway Control; or
• The hill-start assist control system
The light will flash when any of the above systems other than the
Multi-terrain Select are operating.
 Have the vehicle inspected by your Lexus dealer immediately.
Automatic headlight leveling system warning light
Indicates a malfunction in the au tomatic headlight leveling system
 Have the vehicle inspected by your Lexus dealer immediately.Warning light Warning light/Details/Actions

528 7-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U) ■
SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors, side
impact sensors (rear), side imp act sensors (front door), safing sensor (rear), driver’s seat
belt buckle switch, driver’s seat position sens or, front passenger’s seat belt buckle switch,
airbags, interconnecting wiring and power sources, front passenger occupant classifica-
tion system, “AIR BAG ON” and “AIR BAG OFF” indicator lights, seat belt pretensioners
and force limiters, “RSCA OFF” indicator light. (  P. 3 8 )■
Front passenger detection sensor, seat belt reminder and warning buzzer●
If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sittin g in the seat.●
If a cushion is placed on th e seat, the sensor may not detect a passenger, and the warn-
ing light may not operate properly. ■
If the malfunction indicator lamp comes on while driving
First check the following: ●
Is the fuel tank empty?
If it is, fill the fuel tank immediately. ●
Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after severa l trips, contact your Lexus dealer as soon as
possible. ■
If the low speed four-wheel drive indicator light or the center differential lock indicator
light blinks
Take the specified steps. (  P. 3 0 7 )
If the brake system warning light or the malf unction indicator light also comes on, or the
low speed four-wheel drive indicator light or the center differential lock indicator light
continues to blink after takin g the specified steps, there may be a malfunction in the
engine, the brake system or the four-wheel drive system. In this case, you may not be able
to transfer between “H4” and “L4” modes, and the center differential lock may not be
able to be locked or unlocked. Have the vehicle inspected by your Lexus dealer, immedi-
ately.
