LX570_OM_OM60N01U_(U) 2874-5. Using the driving support systems
4
Driving Comfort mode
By controlling the suspension, riding comfort is further enhanced. Suitable for
city driving. When not in comfort mode and the driving mode select switch is turned to the left, the
“COMFORT” indicator comes on in the multi-information display.
Eco drive mode
Helps the driver accelerate in an eco- friendly manner and improve fuel econ-
omy through moderate throttle characteristics and by controlling the opera-
tion of the air conditioning system (heating/cooling). When in comfort mode, if the driving mode select switch is turned to the left, the
“ECO” indicator will come on in the multi-information display.
Sport mode
•SPORT S mode
Controls the transmission and engine to provide quick, powerful accelera-
tion. This mode is suitable for when agile driving response is desired, such
as when driving on roads with many curves. When not in SPORT S mode, if the driving mode select switch is turned to the
right, the “SPORT S” indicator will come on in the multi-information display.
•SPORT S+ mode
Helps to ensure steering performanc e and driving stability by simulta-
neously controlling the steering and suspen sion in addition to the transmis-
sion and engine. Suitable for sportier driving. When in SPORT S mode, if the driving mode select switch is turned to the right,
the “SPORT S+” indicator will come on in the multi-information display. Function Setting

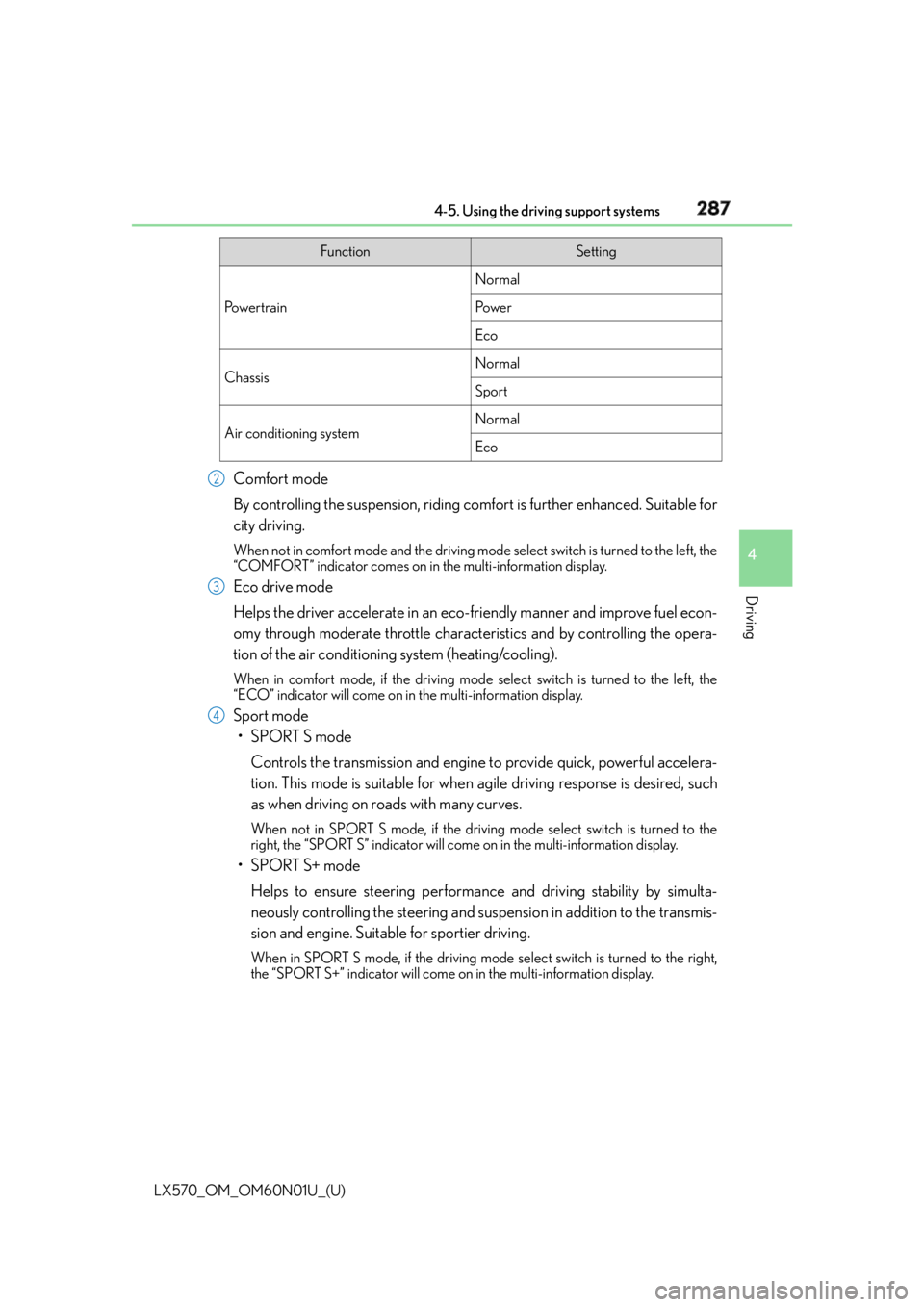

Po w e r t r a i n Normal
Po w e r
Eco
Chassis Normal
Sport
Air conditioning system Normal
Eco2
3
4

288
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems■
Operation of the air conditioning system in Eco drive mode
Eco drive mode controls the heating/cooling operations and fan speed of the air condi-
tioning system to enhance fuel efficiency. To improve air conditioning performance,
adjust the fan speed or turn off eco mo de of the air conditioning system. (  P. 4 0 1 )■
Automatic deactivation of sport mode and customized mode
If the engine switch is turned off after dr iving in sport mode or customized mode, the
drive mode will be changed to normal mode. ■
Driving mode pop-up display
When the driving mode is changed, the selected driving mode will be temporarily dis-
played on the side display. (  P. 3 9 4 )

LX570_OM_OM60N01U_(U) 4035-3. Using the air conditio ning system and defogger
5
Interior features ■

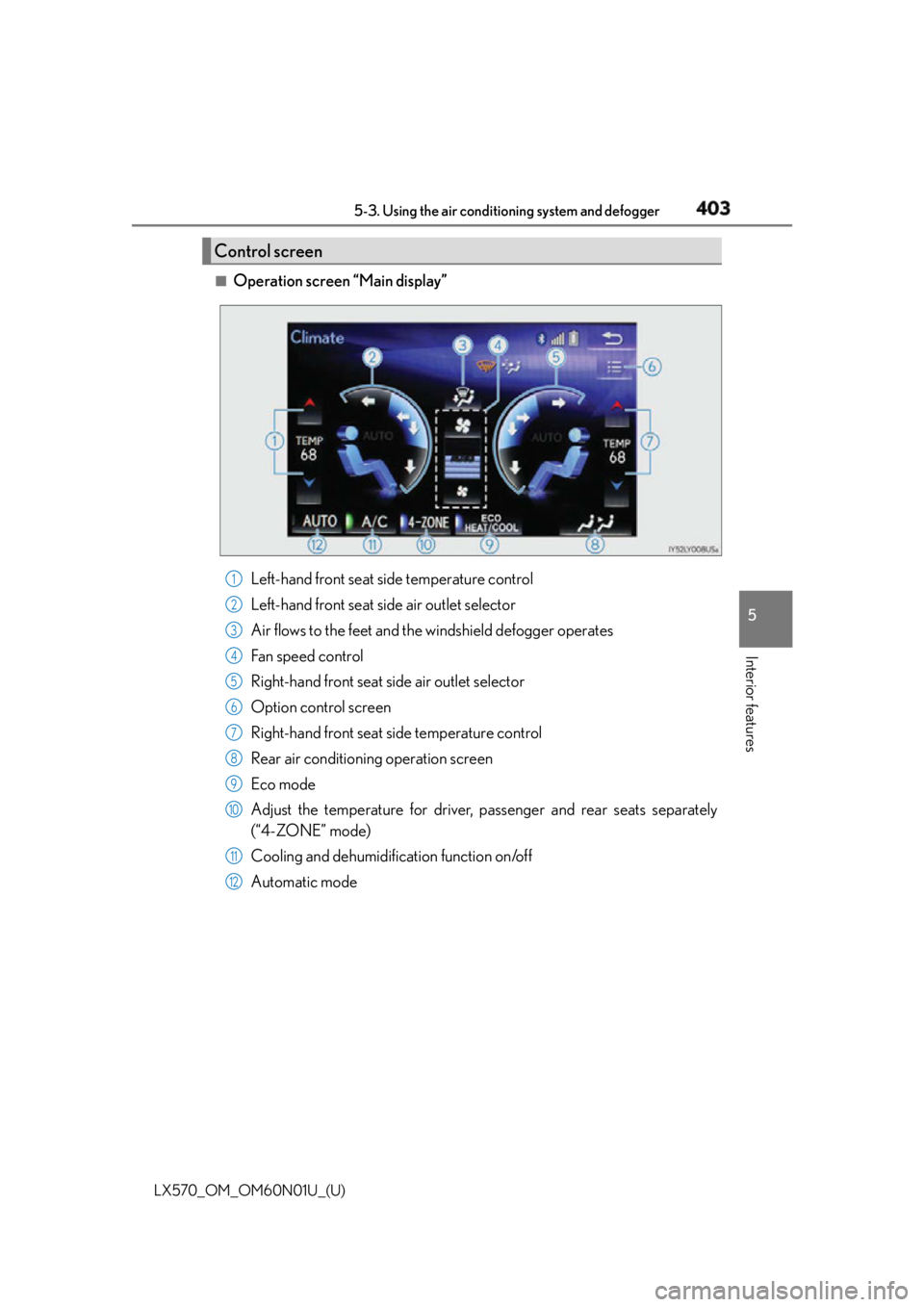

Operation screen “Main display”
Left-hand front seat side temperature control
Left-hand front seat side air outlet selector
Air flows to the feet and the windshield defogger operates
Fan speed control
Right-hand front seat side air outlet selector
Option control screen
Right-hand front seat side temperature control
Rear air conditioning operation screen
Eco mode
Adjust the temperature for driver, passenger and rear seats separately
(“4-ZONE” mode)
Cooling and dehumidification function on/off
Automatic modeControl screen
1
2
3
4
5
6
7
8
9
10
11
12

404 5-3. Using the air conditioning system and defogger
LX570_OM_OM60N01U_(U) ■

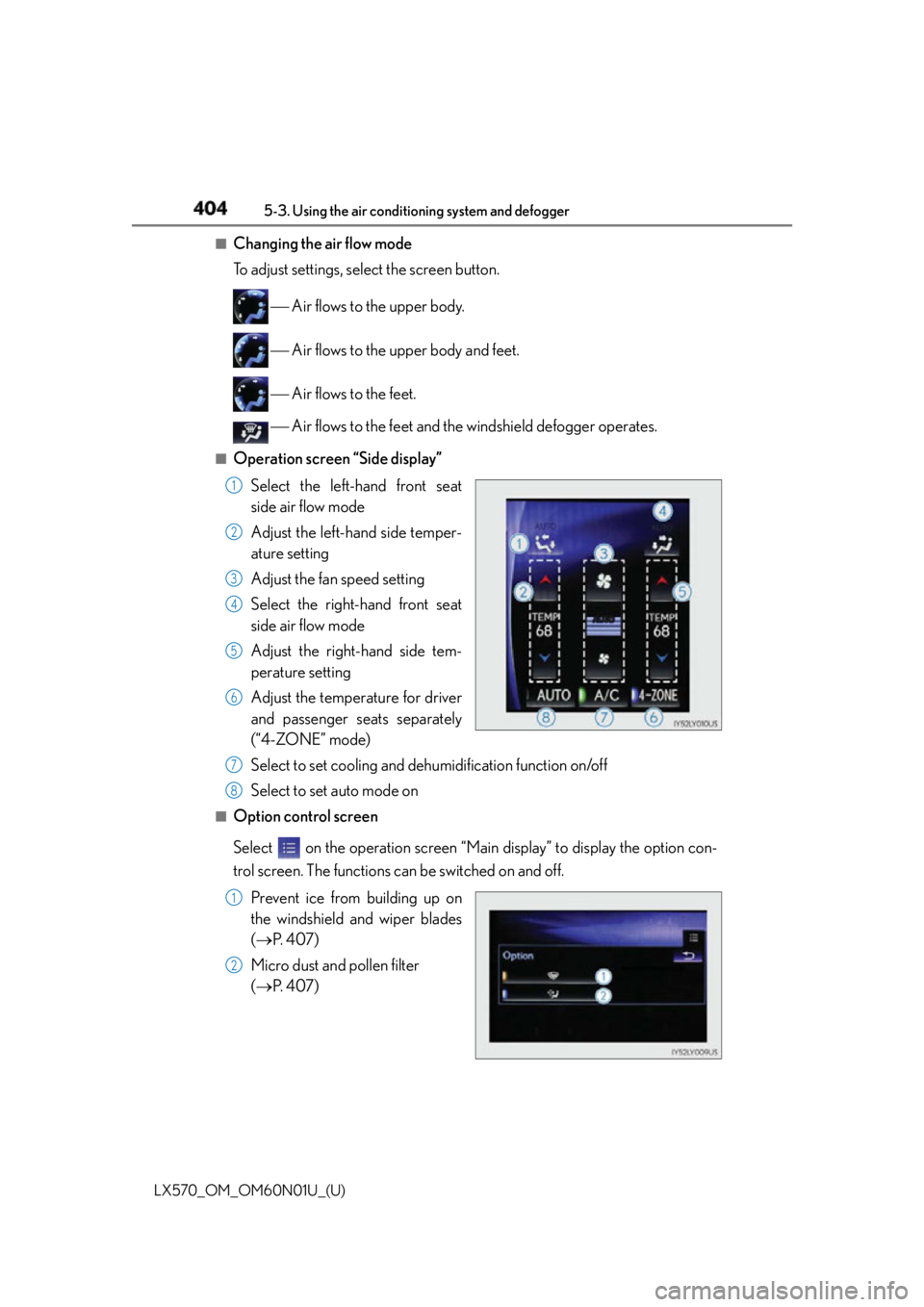

Changing the air flow mode
To adjust settings, select the screen button.
 Air flows to the upper body.
 Air flows to the upper body and feet.
 Air flows to the feet.
 Air flows to the feet and the windshield defogger operates.■
Operation screen “Side display”
Select the left-hand front seat
side air flow mode
Adjust the left-hand side temper-
ature setting
Adjust the fan speed setting
Select the right-hand front seat
side air flow mode
Adjust the right-hand side tem-
perature setting
Adjust the temperature for driver
and passenger seats separately
(“4-ZONE” mode)
Select to set cooling and dehu midification function on/off
Select to set auto mode on■
Option control screen
Select on the operation screen “Mai n display” to display the option con-
trol screen. The functions can be switched on and off.
Prevent ice from building up on
the windshield and wiper blades
(  P. 4 0 7 )
Micro dust and pollen filter
(  P. 4 0 7 ) 1
2
3
4
5
6
7
8
1
2

LX570_OM_OM60N01U_(U) 4095-3. Using the air conditio ning system and defogger
5
Interior features ■
Using automatic mode
Fan speed is adjusted automatically accordin g to the temperature setting and the ambi-
ent conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow immediately
after the is pressed or on the control screen is selected.■
Operation of the air conditioning system in Eco drive mode ●
In the Eco drive mode, the air conditioning sy stem is controlled as follows to prioritize
fuel efficiency
• Engine speed and compressor operation controlled to restrict heating/cooling
capacity
• Fan speed restricted when automatic mode is selected ●
To improve air conditioning performa nce, perform the following operations
• Adjust the fan speed
• Turn off Eco mode ■
Using the voice command system
Air conditioning system can be operated usin g voice commands. For details, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”. ■
Fogging up of the windows ●
The windows will easily fog up when the humidity in the vehicle is high. Selecting
will dehumidify the air from the outlet s and defog the windshield effectively. ●
If you turn off, the windows may fog up more easily. ●
The windows may fog up if the recirculated air mode is used. ■
Outside/recirculated air mode ●
When driving on dusty roads such as tunnels or in heavy traffic, set the outside/recircu-
lated air mode button to the recirculated ai r mode. This is effective in preventing out-
side air from entering the vehicle interi or. During cooling operation, setting the
recirculated air mode will also cool the vehicle interior effectively. ●
Outside/recirculated air mode may automa tically switch depending on the tempera-
ture setting or the inside temperature. ■
When the outside temperature exceeds 75  F (24  C) and the air conditioning system
is on ●
In order to reduce the air conditioning po wer consumption, the ai r conditioning system
may switch to recirculated air mode automatically.
This may also reduce fuel consumption. ●
Recirculated air mode is selected as a defaul t mode when the engine switch is turned to
IGNITION ON mode. ●
It is possible to switch to outside air mode at any time by pressing .■
Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and automati-
cally switches between outside air and recirculated air modes.
When the dehumidification function is off, and the fan is operating, turning automatic
mode on will activate the dehumidification function.

LX570_OM_OM60N01U_(U) 4716-3. Do-it-yourself maintenance
6
Maintenance and care WA R N I N G
The engine compartment contains many mechanisms and fluids that may move suddenly,
become hot, or become electrically energized. To avoid death or serious injury, observe
the following precautions: ■
When working on the engine compartment ●
Keep hands, clothing and tools away from the moving fan and engine drive belt.●
Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driving
as they may be hot. Oil and other fluids may also be hot. ●
Do not leave anything that may burn easily, such as paper or rags, in the engine com-
partment. ●
Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel and
battery fumes are flammable. ●
Be extremely cautious when working on the battery. It contains poisonous and corro-
sive sulfuric acid. ■
When working near the electric cooling fans or radiator grille
Be sure the engine switch is off. With the engine switch in IGNITION ON mode, the
electric cooling fans may automatically start to run if the air conditioning is on and/or
the coolant temperature is high. (  P. 4 7 9 ) ■
When working on or under the vehicle
Do not get under the vehicle with just the jack supporting it.
Always use automotive jack stands or other solid supports. ■
Safety glasses
Wear safety glasses to prevent flying or fallin g material, fluid spray, etc. from getting in
your eyes.
NOTICE ■
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.

473
LX570_OM_OM60N01U_(U) 6-3. Do-it-yourself maintenance
6
Maintenance and care

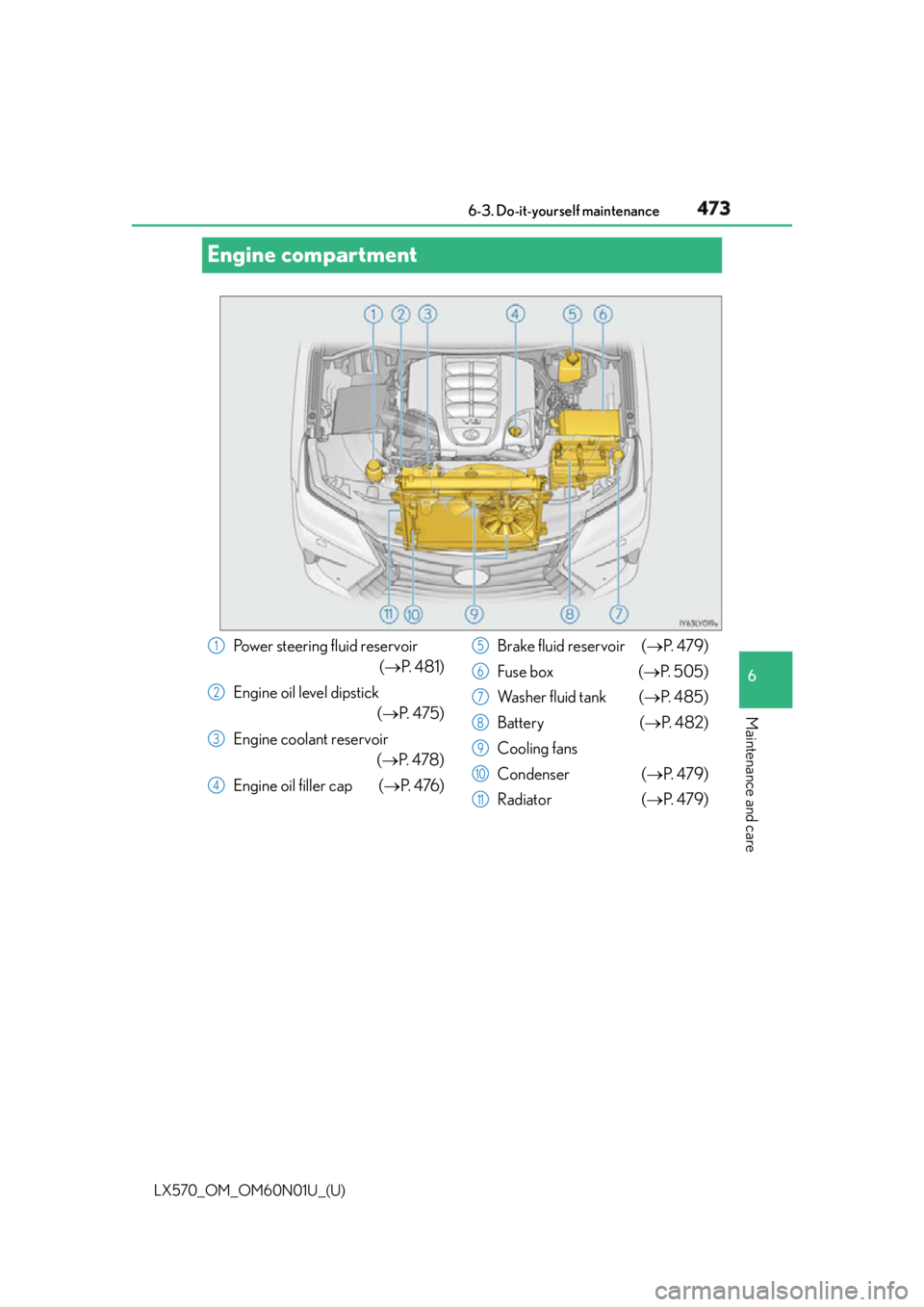

Engine compartment
Power steering fluid reservoir
(  P. 4 8 1 )
Engine oil level dipstick
(  P. 4 7 5 )
Engine coolant reservoir
(  P. 4 7 8 )
Engine oil filler cap (  P. 4 76 ) Brake fluid reservoir (  P. 4 7 9 )
Fuse box (  P. 505)
Wa s h e r f l u i d t a n k (  P. 4 8 5 )
Battery (  P. 4 8 2 )
Cooling fans
Condenser (  P. 4 7 9 )
Radiator (  P. 4 7 9 )1
2
3
4 5
6
7
8
9
10
11

478
LX570_OM_OM60N01U_(U) 6-3. Do-it-yourself maintenance

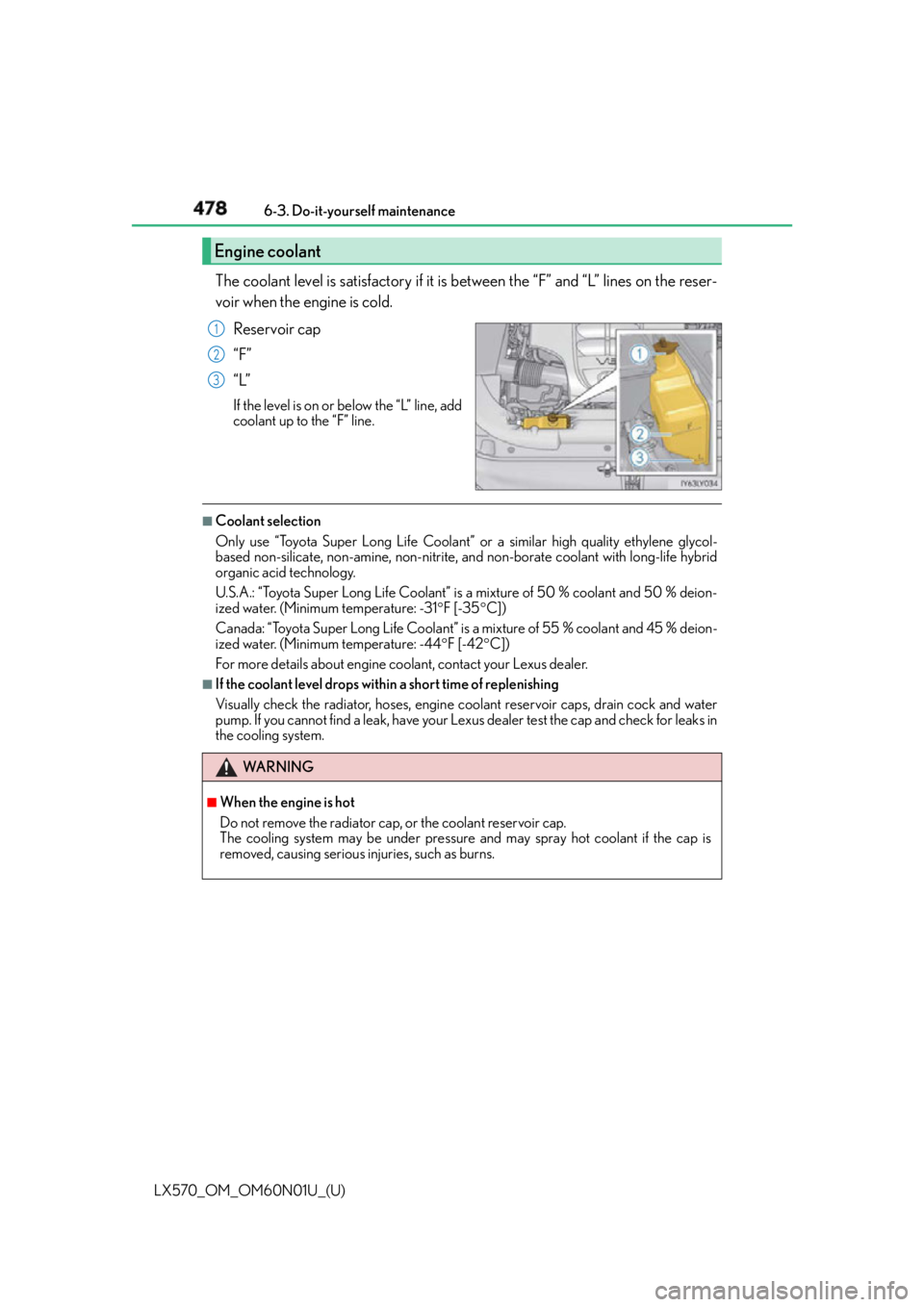

The coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the engine is cold.
Reservoir cap
“F”
“L” If the level is on or below the “L” line, add
coolant up to the “F” line. ■
Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol-
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50 % coolant and 50 % deion-
ized water. (Minimum temperature: -31  F [-35  C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55 % coolant and 45 % deion-
ized water. (Minimum temperature: -44  F [-42  C])
For more details about engine coolant, contact your Lexus dealer. ■
If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock and water
pump. If you cannot find a leak, have your Le xus dealer test the cap and check for leaks in
the cooling system.Engine coolant 1
2
3
WA R N I N G ■
When the engine is hot
Do not remove the radiator cap, or the coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.

5557-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U) 7
When trouble arises WA R N I N G ■
Avoiding battery fires or explosions
Observe the following precautions to preven t accidentally igniting the flammable gas
that may be emitted from the battery. ●
Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any pa rt other than the intended terminal.●
Do not allow the jumper cables to come into contact with the “+” and “-” terminals. ●
Do not allow open flame or use matches, cigarette lighters or smoke near the battery. ■
Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead comp ounds. Observe the following precautions when handling
the battery. ●
When working with the battery, always wear safety glasses and take care not to allow
any battery fluids (acid) to come into contact with skin, clothing or the vehicle body. ●
Do not lean over the battery. ●
In the event that battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received. ●
Always wash your hands after handling the battery support, terminals, and other bat-
tery-related parts. ●
Do not allow children near the battery.
NOTICE ■
When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan or any of
the belts when connecting or disconnecting them.

556
LX570_OM_OM60N01U_(U) 7-2. Steps to take in an emergency

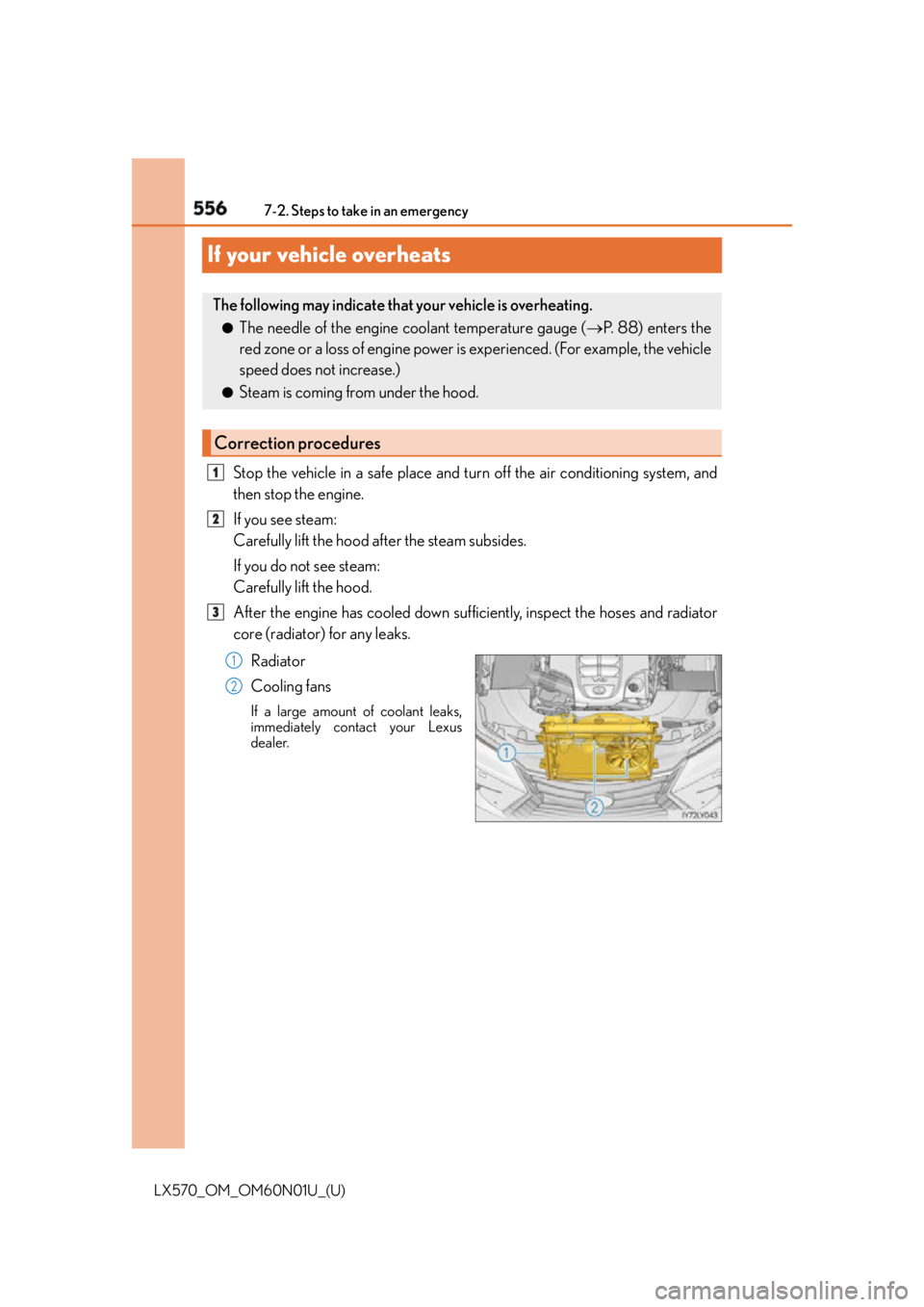

If your vehicle overheats Stop the vehicle in a safe place and tu rn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and radiator
core (radiator) for any leaks.
Radiator
Cooling fans If a large amount of coolant leaks,
immediately contact your Lexus
dealer.The following may indicate that your vehicle is overheating. ●
The needle of the engine coolant temperature gauge (  P. 8 8 ) e n t e r s t h e
red zone or a loss of engine power is experienced. (For example, the vehicle
speed does not increase.) ●
Steam is coming from under the hood.
Correction procedures 1
2
3
1
2
