LEXUS LX570 2016 Owners Manual

LX570_OM_OM60N01U_(U)
5918-2. Customization
8
Vehicle specifications
■Intuitive parking assist (P. 2 8 9 )
■Automatic air conditioning system ( P. 4 0 1 )
Operation of the running
board lights when a door is
opened
OnOff——O
Sensitivity of the ambient
light sensor used for dim-
ming the meter lights etc.Standard-2 to 2——O
Sensitivity of the ambient
light sensor used for bright-
ening the meter lights etc.
Standard-2 to 2——O
FunctionDefault settingCustomized
setting123
FunctionDefault settingCustomized
setting
Detection distance of the
front center sensorFarNearO—O
Detection distance of the
rear center sensorFarNearO—O
Alert Volume (alert volume
can be adjusted)31 to 5O—O
Display setting (when intui-
tive parking assist is operat-
ing)All sensors dis- playedDisplay offO—O
123
FunctionDefault settingCustomized setting
Exhaust gas sensor sensitiv-
ityStandard-3 to 3O—O
A/C Auto switch operationAutoManualO—O
123

592
LX570_OM_OM60N01U_(U)8-2. Customization
■Rear window wiper and washer (
P. 2 3 5 )
■Driving position memory ( P. 151)
■Outside rear view mirrors ( P. 1 6 2 )
FunctionDefault settingCustomized
setting
Drip prevention functionOnOff——O
Rear window wiper opera-
tion linked with washerOnOff——O
Linked operation when the
shift lever in R positionOnOff——O
Times of the linked opera-
tion when the shift lever in R
position
OnceContinuously——O
123
FunctionDefault settingCustomized setting
Driver’s seat movement
when exiting the vehicleStandardOffO—OPa r t i a l
Selection the door linking
driving position memory
with door unlock operation
Driver’s doorAll doors——O
123
FunctionDefault settingCustomized setting
Automatic folding/extend-
ing operationLinked to locking/unlocking of the doorsOff
——OLinked to engine switch operation
Linked mirror function
when reversingOnOff——O
123

LX570_OM_OM60N01U_(U)
5938-2. Customization
8
Vehicle specifications

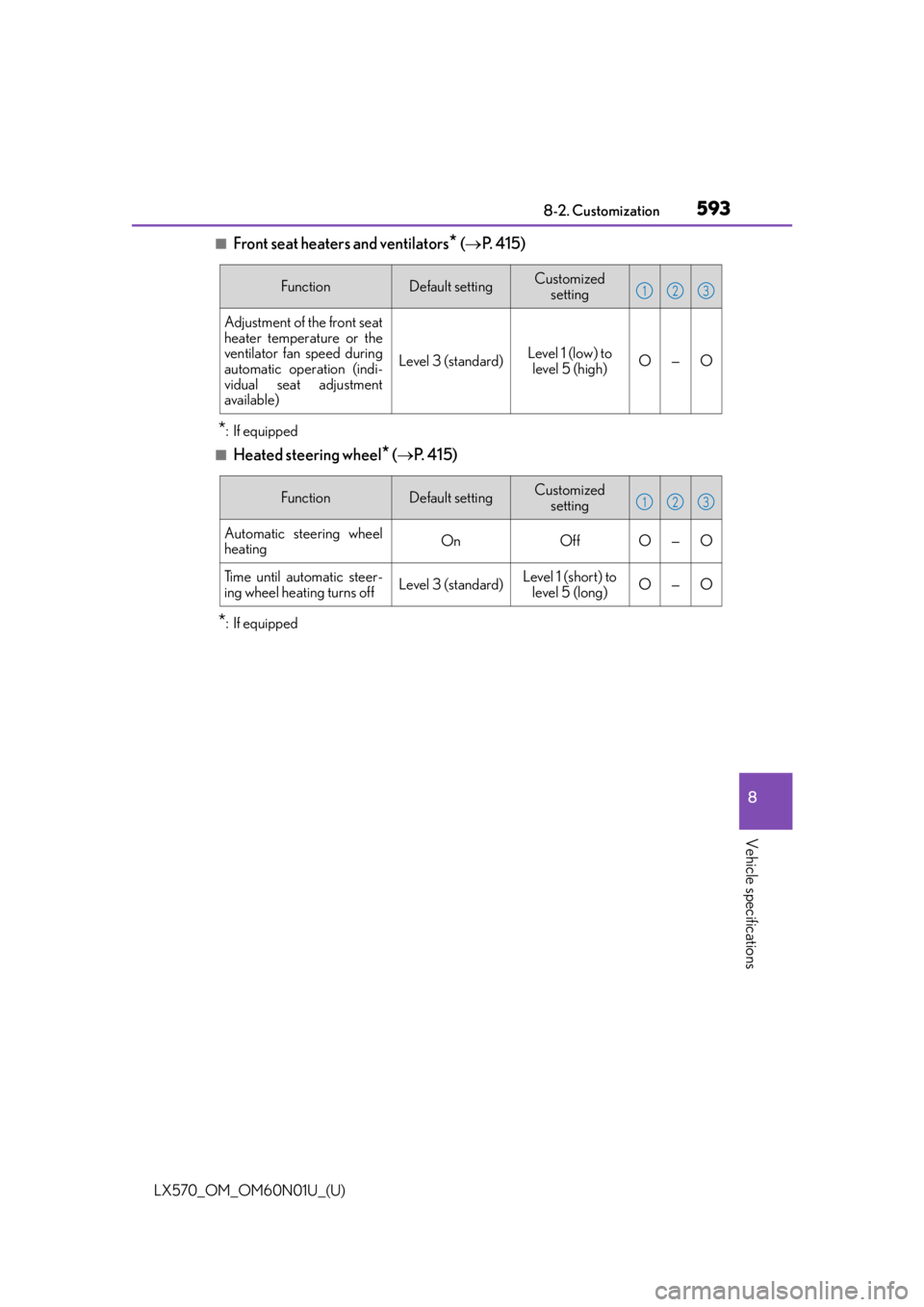

■Front seat heaters and ventilators* ( P. 4 1 5 )
*:If equipped
■Heated steering wheel* ( P. 4 1 5 )
*:If equipped
FunctionDefault settingCustomized
setting
Adjustment of the front seat
heater temperature or the
ventilator fan speed during
automatic operation (indi-
vidual seat adjustment
available)
Level 3 (standard)Level 1 (low) to level 5 (high)O—O
123
FunctionDefault settingCustomized setting
Automatic steering wheel
heatingOnOffO—O
Time until automatic steer-
ing wheel heating turns offLevel 3 (standard)Level 1 (short) to level 5 (long)O—O
123

594
LX570_OM_OM60N01U_(U)8-2. Customization
■Drive mode customization (
P. 2 8 6 )
■Tu r n s i g n a l l e v e r ( P. 2 1 6 )
FunctionDefault settingCustomized
setting
Po w e r t r a i nNormalEcoO——Po w e r
ChassisNormalSportO——Comfort
Automatic air conditioning
systemNormalEcoO——
123
FunctionDefault settingCustomized setting
The number of times the
turn signal lights flash auto-
matically when the turn sig-
nal lever is moved to the
first position during a lane
change
3
4
——O
5
6
7
Off
123

LX570_OM_OM60N01U_(U)
5958-2. Customization
8
Vehicle specifications
■Multi-information display (P. 9 1 )
*1: The default setting varies according to countries.
*2: Some status screens cannot be registered (indicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
FunctionDefault settingCustomized setting
LanguageEnglishFrenchOO–Spanish
Units*1miles (MPG US)
miles
(MPG Imperial)
OO–km (L/100 km)
km (km/L)
Eco Driving Indicator Light On Off – O –
switch settingsDrive
information 1Desired status screen
*2–O–
Drive information screen dis-
played on the first screen of

(Drive information 1)Current fuel
consumption
*3–O–Average fuel economy
(after reset)
Drive information screen dis-
played on the second screen
of
(Drive information 2)Distance (range)
*3–O–Average speed
(after reset)
Po p - u p d i s p l a yOnOff–O–
Accent colorColor 1Color 2OO–
123

596
LX570_OM_OM60N01U_(U)8-2. Customization

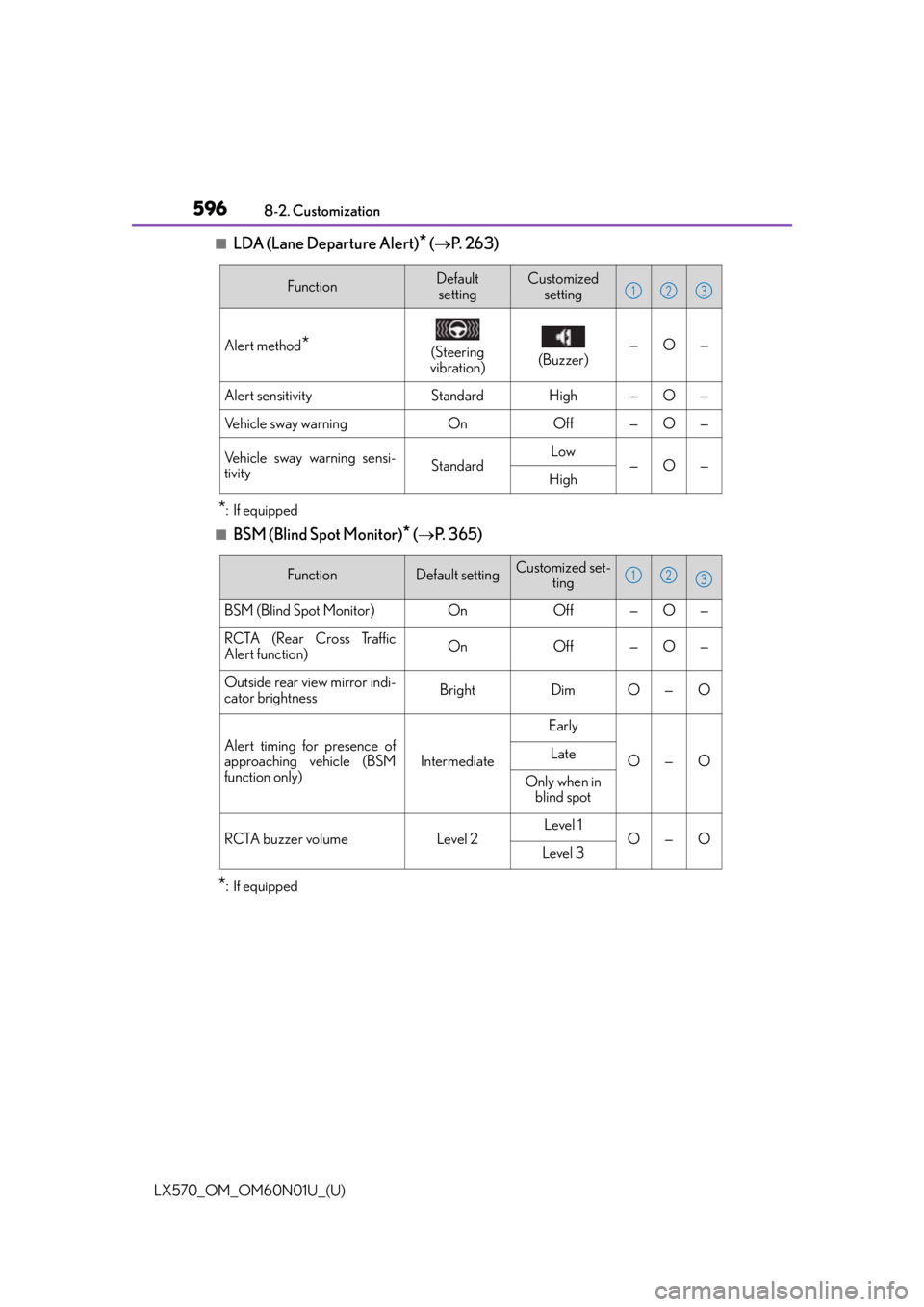

■LDA (Lane Departure Alert)* (
 P. 2 6 3 )
*:If equipped
■BSM (Blind Spot Monitor)* ( P. 3 6 5 )
*:If equipped
FunctionDefault
settingCustomized setting
Alert method*(Steering
vibration)(Buzzer)—O—
Alert sensitivityStandardHigh—O—
Ve h i c l e s w a y w a r n i n gOnOff—O—
Vehicle sway warning sensi-
tivityStandardLow—O—High
123
FunctionDefault settingCustomized set- ting
BSM (Blind Spot Monitor)OnOff—O—
RCTA (Rear Cross Traffic
Alert function)OnOff—O—
Outside rear view mirror indi-
cator brightnessBrightDimO—O
Alert timing for presence of
approaching vehicle (BSM
function only)
Intermediate
Early
O—OLate
Only when in blind spot
RCTA buzzer volumeLevel 2Level 1O—OLevel 3
123

LX570_OM_OM60N01U_(U)
5978-2. Customization
8
Vehicle specifications
■HUD (Head-up Display)* ( P. 100)
*:If equipped
■Vehicle customization
●When smart access system with push-button start is turned off, unlock door cannot be
selected.
●When doors are not opened after unlocking and are then automatically re-locked, a
signal will be given if “Operation signal (Emergency flashers)” or “Operation signal
(Buzzer)” are set to on.
■When setting using the multi-information display
When using the vehicle switches to set an item that can also be set using the touch
screen, the item displayed on the Remo te Touch will not change immediately.
If the engine switch is first turned to off, the screen display will change once the engine
switch is turned to IGNITION ON mode again.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engi ne running while customizing the features.
FunctionDefault
settingCustomized setting
Driving support display
(Navigation system
*)OnOff—O—
Driving support display
(Driving assist
*)OnOff—O—
Driving support display
(compass
*)OnOff—O—
Driving support display
(audio
*)OnOff—O—
WA R N I N G
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.
123

598
LX570_OM_OM60N01U_(U)8-3. Initialization
Items to initialize
The following item must be initialized
for normal system operation such cases
as the battery being reconnected, or maintenance being performed on the
vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required (U.S.A. only)After the maintenance is per-
formedP. 4 6 5
Power back door
• After reconnecting or changing the battery with power back door
opened
• After changing a fuse with power
back door opened
P. 1 2 2
Tire pressure warning system
• When the set tire pressure hasbeen changed before towing.
• When rotating the tires in above situation.
P. 4 8 6
Multi-terrain MonitorAfter reconnecting or changing the
batteryP. 3 6 3

599
LX570_OM_OM60N01U_(U)
9For owners
Reporting safety defects for U.S. owners .................................... 600
Seat belt instructions for Canadian owners
(in French) ............................................... 601
SRS airbag instructions for Canadian owners
(in French) .............................................. 603

600
LX570_OM_OM60N01U_(U)

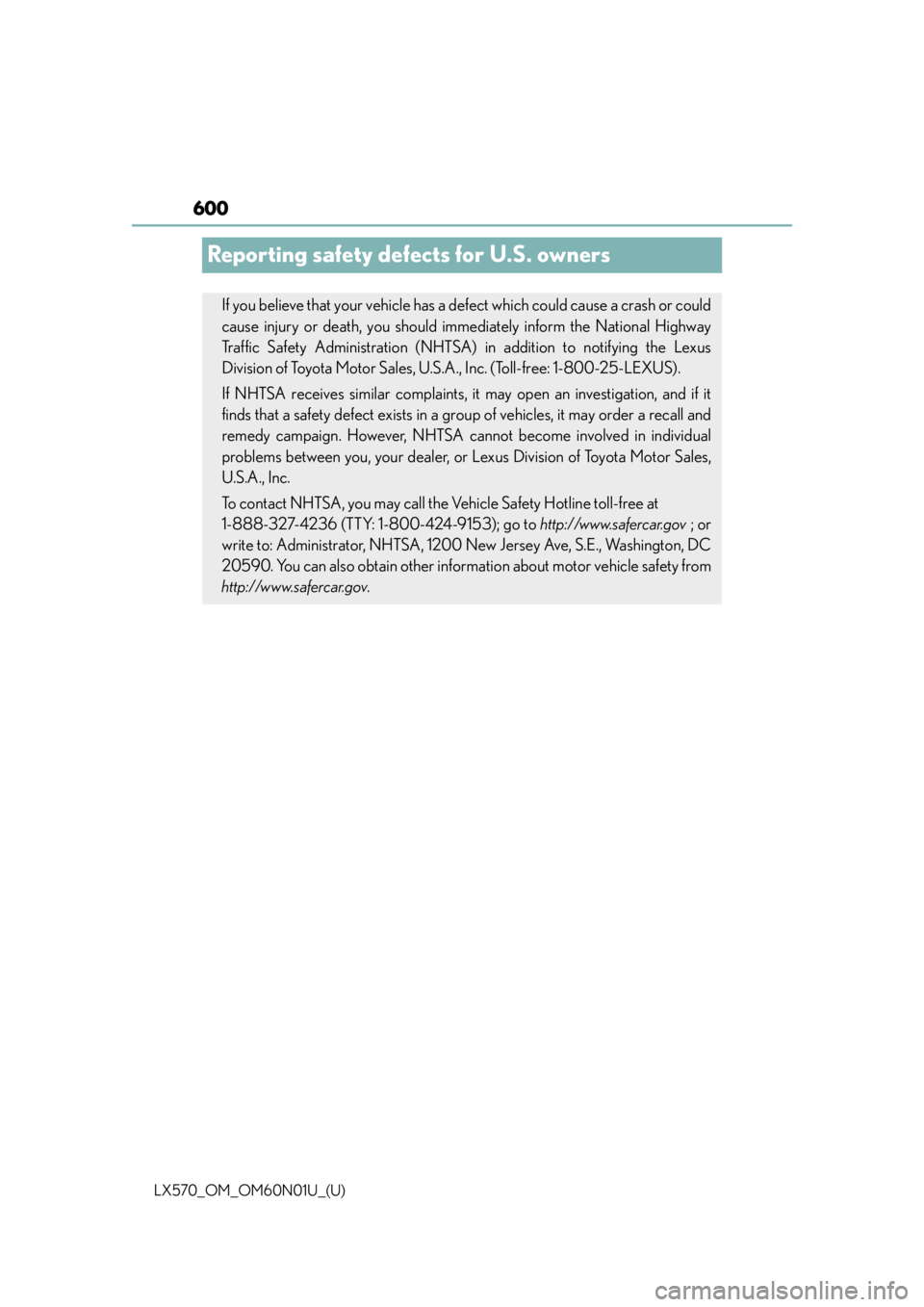

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying the Lexus
Division of Toyota Motor Sales, U.S. A., Inc. (Toll-free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a gr oup of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Lexus Division of Toyota Motor Sales,
U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov ; or
write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Washington, DC
20590. You can also obtain other information about motor vehicle safety from
http://www.safercar.gov .
