5818-1. Specifications
8
Vehicle specifications
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a rim by
style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68 kg)
times the vehicle’s designated seating capacity
Vehicle maximum load on
the tireThe load on an individual tire that is determined by dis-
tributing to each axle its share of the maximum loaded
vehicle weight, and dividing by two
Vehicle normal load on the
tire
The load on an individual tire that is determined by dis-
tributing to each axle its sh are of curb weight, accessory
weight, and normal occupant weight (distributed in
accordance with Table 1
* below), and dividing by two
We a t h e r s i d eThe surface area of the rim not covered by the inflated
tire
BeadThe part of the tire that is made of steel wires, wrapped
or reinforced by ply cords and that is shaped to fit the
rim
Bead separationA breakdown of the bond be tween components in the
bead
Bias ply tireA pneumatic tire in which the ply cords that extend to
the beads are laid at altern ate angles substantially less
than 90 degrees to the centerline of the tread
CarcassThe tire structure, except tread and sidewall rubber
which, when inflated, bears the load
ChunkingThe breaking away of pieces of the tread or sidewall
CordThe strands forming th e plies in the tire
Cord separationThe parting of cords from adjacent rubber compounds
CrackingAny parting within the tread, sidewall, or innerliner of
the tire extending to cord material
Tire related termMeaning

582
LX570_OM_OM60N01U_(U)8-1. Specifications
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit on
the underside of the rim in a manner that encloses the
rim flanges inside the air cavity of the tire
Extra load tireA tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the inside
surface of a tubeless tire
that contains the inflating medium within the tire
Innerliner separationThe parting of the i nnerliner from cord material in the
carcass
Intended outboard sidewall
(a) The sidewall that contains a whitewall, bears white
lettering, or bears manufacturer, brand, and/or
model name molding that is higher or deeper than
the same molding on the ot her sidewall of the tire,
or
(b) The outward facing sidewall of an asymmetrical tire that has a particular side that must always face out-
ward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multipurpose
passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a given
inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible infla-
tion pressureThe maximum cold inflation pressure to which a tire may
be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or inner-
liner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Tire related termMeaning

LX570_OM_OM60N01U_(U)
5838-1. Specifications
8
Vehicle specifications
Overall widthThe linear distance between the exteriors of the side-
walls of an inflated tire, including elevations due to label-
ing, decorations, or pr otective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipurpose
passenger vehicles, and trucks, that have a gross vehicle
weight rating (GVWR) of 10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent plies
Pneumatic tire
A mechanical device made of rubber, chemicals, fabric
and steel or other materials, that, when mounted on an
automotive wheel, provides the traction and contains
the gas or fluid that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at substantially 90 degrees to the
centerline of the tread
Reinforced tire A tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
Section width
The linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard Ref-
erence Test Tire, when using the snow traction test as
described in ASTM F-1805-00, Standard Test Method
for Single Wheel Driving Tract ion in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is marked
with an Alpine Symbol ( ) on at least one sidewall
Tire related termMeaning

584
LX570_OM_OM60N01U_(U)8-1. Specifications

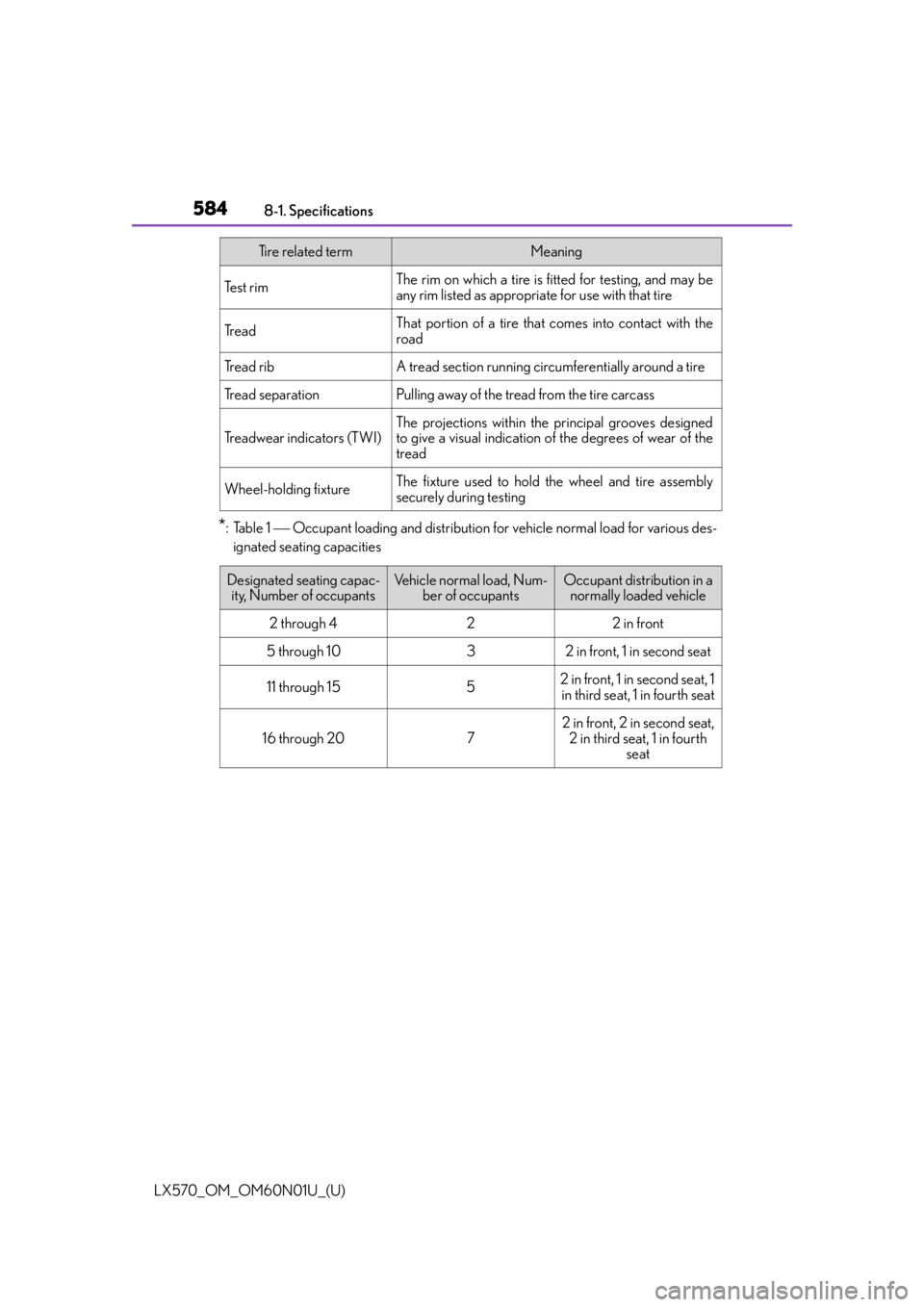

*:Table 1  Occupant loading and distribution fo
r vehicle normal load for various des-
ignated seating capacities
Te s t r i mThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
Tr e a dThat portion of a tire that comes into contact with the
road
Tr e a d r i bA tread section running circumferentially around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators (TWI)
The projections within the principal grooves designed
to give a visual indication of the degrees of wear of the
tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Tire related termMeaning
Designated seating capac- ity, Number of occupantsVehicle normal load, Num- ber of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 1552 in front, 1 in second seat, 1
in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second seat, 2 in third seat, 1 in fourth seat

585
LX570_OM_OM60N01U_(U)8-2. Customization
8
Vehicle specifications
Customizable features
■Changing by using the Remote Touch screen
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the multi-information display
Press or of the meter control switches, select .
Press or of the meter control switches, select the item or the
desired setting, and then press .
To go back to the previous screen, press .
Your vehicle includes a variety of electronic features that can be personalized
to suit your preferences. The settings of these features can be changed by
using the multi-information display, by using the Remote Touch screen or at
your Lexus dealer.
Customizing vehicle features
1
2
1
2

586
LX570_OM_OM60N01U_(U)8-2. Customization
Some function settings are changed simultaneously with other functions being
customized. Contact your Lexus dealer for further details.
Settings that can be changed using the Remote Touch screen
Settings that can be changed us ing the multi-information display
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, – =Not available
■Smart access system with push-button start ( P. 1 3 2 )
■Wireless remote control ( P. 1 1 0 )
Customizable features
1
2
3
FunctionDefault settingCustomized
setting
Smart access system with
push-button startOnOffO—O
Smart door unlockingDriver’s doorAll the doorsO—O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one
step, all doors
unlocked in two steps
All doors unlocked in one stepO—O
Power back door operationPush and hold
One short push——O
Push twice——O
Off——O
Alarm (panic mode)OnOff——O
123

LX570_OM_OM60N01U_(U)
5878-2. Customization
8
Vehicle specifications
■Smart access system with push-button start (P. 132) and wireless remote
control ( P. 110)
■Door lock ( P. 115)

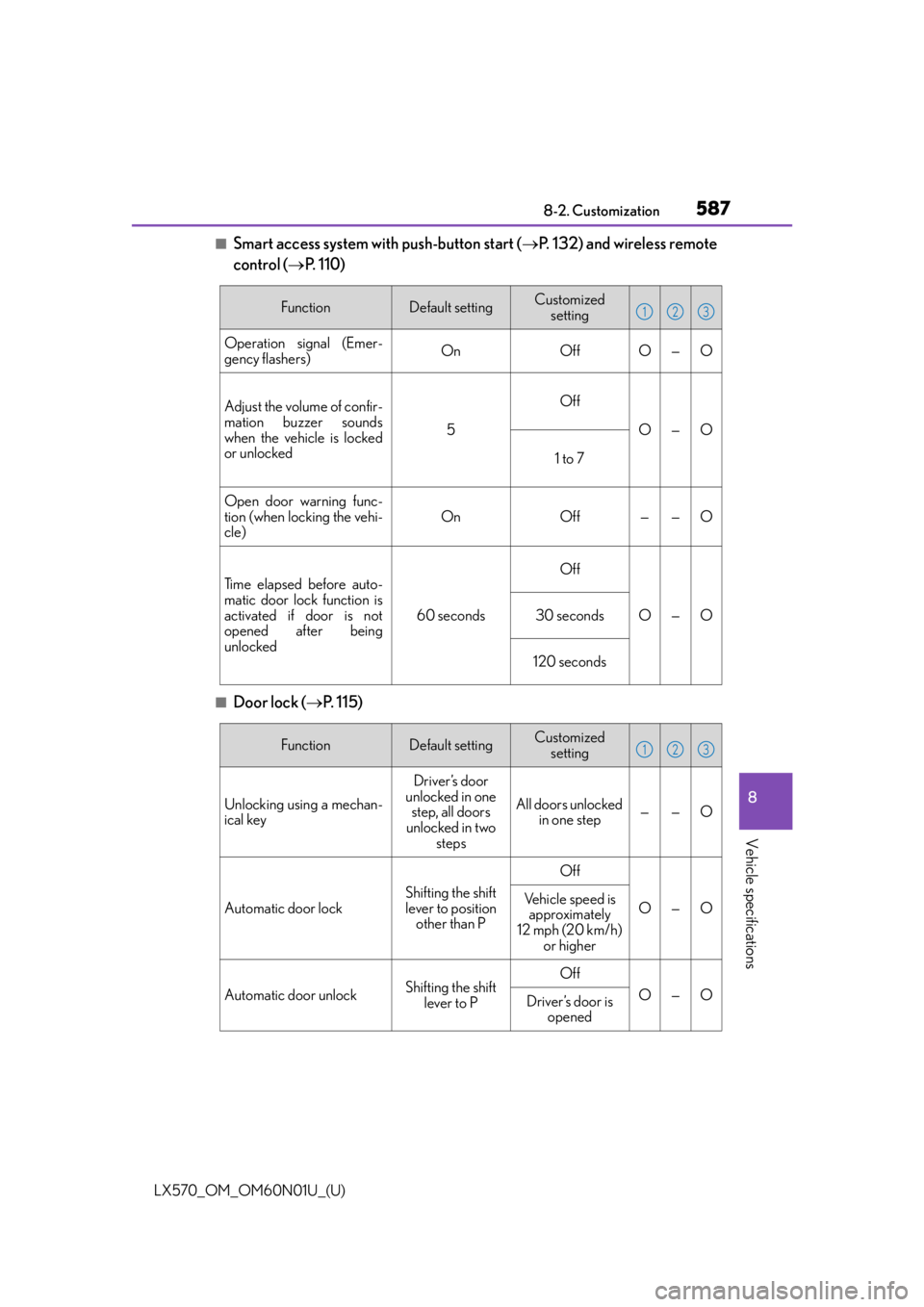

FunctionDefault settingCustomized
setting
Operation signal (Emer-
gency flashers)OnOffO—O
Adjust the volume of confir-
mation buzzer sounds
when the vehicle is locked
or unlocked
5
Off
O—O
1 to 7
Open door warning func-
tion (when locking the vehi-
cle)
OnOff——O
Ti m e e l a p s e d b e f o r e a u t o -
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
Off
O—O30 seconds
120 seconds
123
FunctionDefault settingCustomized setting
Unlocking using a mechan-
ical key
Driver’s door
unlocked in one step, all doors
unlocked in two steps
All doors unlocked in one step——O
Automatic door lock
Shifting the shift
lever to position other than P
Off
O—OVehicle speed is approximately
12 mph (20 km/h) or higher
Automatic door unlockShifting the shift lever to POff
O—ODriver’s door is opened
123

588
LX570_OM_OM60N01U_(U)8-2. Customization
■Power back door (
P. 1 2 2 )
*1: In this case, the power back door operat ion will be made only by push and hold.
*2: The back door can be opened using the wi reless remote control after unlocking the
back door.
■Powe r w i n d ow s ( P. 1 6 5 )

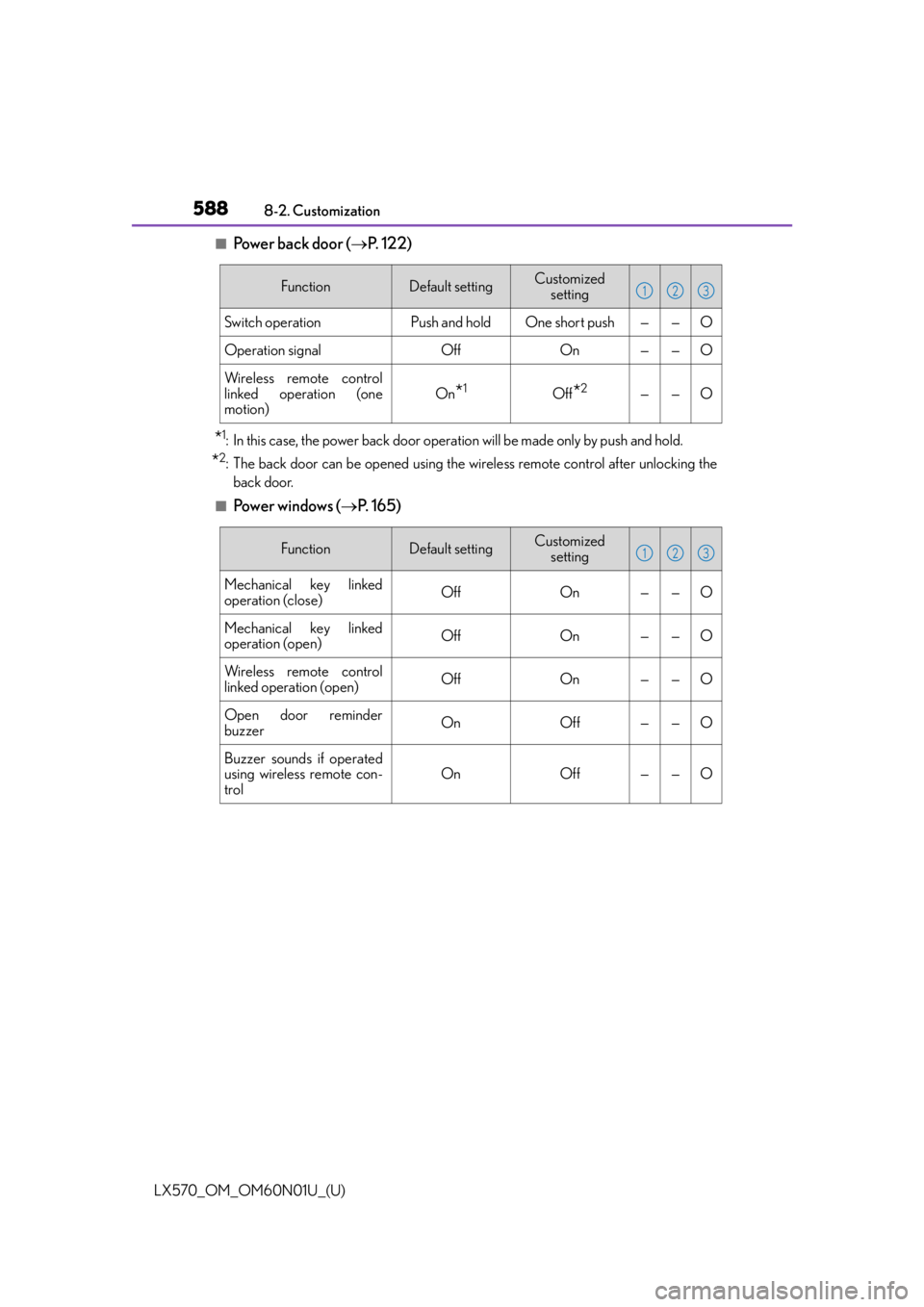

FunctionDefault settingCustomized
setting
Switch operationPush and holdOne short push——O
Operation signalOffOn——O
Wireless remote control
linked operation (one
motion)
On*1Off*2——O
123
FunctionDefault settingCustomized setting
Mechanical key linked
operation (close)OffOn——O
Mechanical key linked
operation (open)OffOn——O
Wireless remote control
linked operation (open)OffOn——O
Open door reminder
buzzerOnOff——O
Buzzer sounds if operated
using wireless remote con-
trol
OnOff——O
123

LX570_OM_OM60N01U_(U)
5898-2. Customization
8
Vehicle specifications
■Moon roof (P. 1 6 8 )
*1: The settings can be changed when the me chanical key linked operation of the power
window is set to on.
*2: The settings can be changed when the wire less remote control linked operation of the
power window is set to on.
■Automatic light control system ( P. 220)
*: Vehicles sold outside Canada

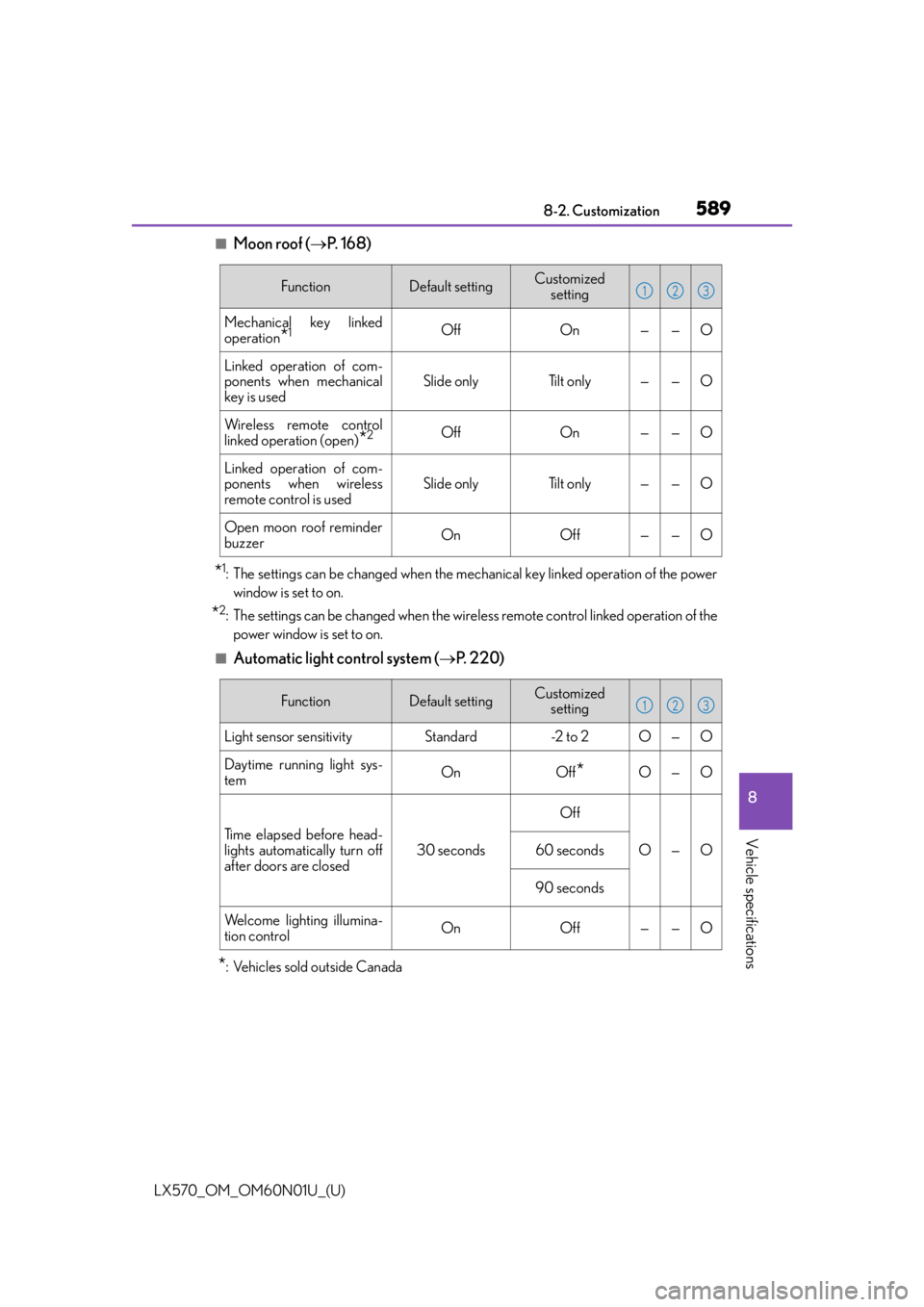

FunctionDefault settingCustomized
setting
Mechanical key linked
operation
*1OffOn——O
Linked operation of com-
ponents when mechanical
key is usedSlide onlyTilt only——O
Wireless remote control
linked operation (open)
*2OffOn——O
Linked operation of com-
ponents when wireless
remote control is usedSlide onlyTilt only——O
Open moon roof reminder
buzzerOnOff——O
123
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Daytime running light sys-
temOnOff*O—O
Ti m e e l a p s e d b e f o r e h e a d -
lights automatically turn off
after doors are closed
30 seconds
Off
O—O60 seconds
90 seconds
Welcome lighting illumina-
tion controlOnOff——O
123

590
LX570_OM_OM60N01U_(U)8-2. Customization
■Illumination (
P. 4 1 9 )
FunctionDefault settingCustomized
setting
Interior lights illumination
controlOnOff——O
Time period before the inte-
rior lights turn off15 seconds
Off
O—O7. 5 s e c o n d s
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person (when the interior
light switch is door position)
OnOff——O
Shift lever lightOnOff——O
Footwell lightsOnOff——O
Ambient lights and footwell
lights illumination controlOnOff——O
Ambient lightsOnOff——O
Operation of the outer foot
lights when you approach
the vehicle with the elec-
tronic key on your person
OnOff——O
Operation of the outer foot
lights when the doors are
unlocked with the power
door lock switch
OnOff——O
Operation of the running
board lights when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Operation of the running
board lights the doors are
unlocked with the power
door lock switch
OnOff——O
123
