LX570_OM_OM60Q78U_(U) Instrument cluster
2 2. Instrument cluster
Warning lights and
indicators ....................................... 82
Gauges and meters .....................88
Multi-information display ............91
Head-up display .......................... 100
Fuel consumption
information ................................. 105

82
LX570_OM_OM60Q78U_(U) 2. Instrument cluster
Warning lights and indicators
The units used on the speedometer an d some indicators may differ depending
on the target region.The warning lights and indicators on th e instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration display all warning
lights and indicators illuminated.

LX570_OM_OM60Q78U_(U) 832. Instrument cluster
2
Instrument cluster Warning lights inform the driver of malfun ctions in any of the vehicle’s systems.
Warning lights * 1
(U.S.A.)
Brake system warning light
( → P. 520)
* 1
Automatic headlight
leveling system warning
light ( → P. 521)
* 1
(Canada)
Brake system warning light
( → P. 520)
* 2
Low speed four-wheel
drive indicator light
( → P. 522)
* 1
Charging system warning
light ( → P. 520)
* 2
Center differential lock
indicator light ( → P. 522)
* 1
(U.S.A.)
Malfunction indicator lamp
( → P. 520) Open door warning light
( → P. 522)
* 1
(Canada)
Malfunction indicator lamp
( → P. 520) Low fuel level warning light
( → P. 522)
* 1
SRS warning light
( → P. 520) Driver’s seat belt reminder
light ( → P. 522)
* 1
(U.S.A.)
ABS warning light
( → P. 520) * 3
Front passenger’s seat belt
reminder light ( → P. 522)
* 1
(Canada)
ABS warning light
( → P. 520) * 1
Master warning light
( → P. 522)
* 1, 4
(if equipped) PCS warning light
( → P. 521) * 1
Tire pressure warning light
( → P. 522)
* 1
Slip indicator light
( → P. 521) * 2
(U.S.A.) Parking brake indicator
( → P. 522)

84
LX570_OM_OM60Q78U_(U) 2. Instrument cluster
* 1
: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehi cle inspected by your Lexus dealer.
* 2
: The light flashes to indicate a malfunction.
* 3
: This light illuminates on the center panel.
* 4
: The light flashes or illumina tes to indicate a malfunction.
* 5
: This light is displayed on the multi-information display. * 2
(Canada)
Parking brake indicator
( → P. 522)
* 1
Power steering system
warning light ( → P. 522)
* 1
Brake system warning light
( → P. 523)
* 5
Brake Override System
warning light ( → P. 175)

LX570_OM_OM60Q78U_(U) 852. Instrument cluster
2
Instrument cluster The indicators inform the driver of the op erating state of the vehicle’s various sys-
tems.
Indicators Turn signal indicator
( → P. 217) (if equipped)
LDA indicator ( → P. 261)(U.S.A.)
Headlight indicator
( → P. 221)
* 1, 2
Slip indicator ( → P. 378)
(Canada)
Tail light indicator
( → P. 221)
* 1
VSC OFF indicator
( → P. 378)
Headlight high beam
indicator ( → P. 222) Multi-terrain Select
indicator ( → P. 312)
Automatic High Beam
indicator ( → P. 224)
* 1
Crawl Control indicator
( → P. 307)
Fog light indicator
( → P. 229) Automatic transmission
second start indicator
( → P. 210)
* 1
Eco Driving Indicator
Light ( → P. 87) Low speed four-wheel
drive indicator light
( → P. 303)
Cruise control indicator
( → P. 281, 269) Center differential lock
indicator ( → P. 304)
Cruise control “SET”
indicator ( → P. 281, 269) * 1
Easy access mode
indicator ( → P. 295)
(if equipped) Dynamic radar cruise
control indicator
( → P. 269) Intuitive parking assist
indicator ( → P. 287)

86
LX570_OM_OM60Q78U_(U) 2. Instrument cluster
* 1
: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehi cle inspected by your Lexus dealer.
* 2
: The light flashes to indicate that the system is operating.
* 3
: The light turns on when the system is turned off.
* 4
: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set
to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, th e BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
* 5
: This light illuminates on the outside rear view mirrors.
* 6
: This light illuminates on the center panel.
* 7
: When the outside temperat ure is approximately 37 ° F (3 ° C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.* 1, 3
(if equipped)
PCS warning light
( → P. 249) Turn Assist indicator
( → P. 307)
BSM (Blind Spot Monitor)
indicator ( → P. 363) (U.S.A.)
Parking brake indicator
( → P. 218)
* 4, 5
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( → P. 363) (Canada)
Parking brake indicator
( → P. 218)
RCTA (Rear Cross Traffic
Alert) indicator ( → P. 371) TRAC OFF indicator
( → P. 378)
* 6
(U.S.A.)
“AIR BAG ON/
OFF” indicator
( → P. 50) * 7
Low outside temperature
indicator ( → P. 88)
* 6
(Canada)
“AIR BAG ON/
OFF” indicator
( → P. 50) * 8
Smart access system with
push-button start indicator
( → P. 205, 547)

LX570_OM_OM60Q78U_(U) 872. Instrument cluster
2
Instrument cluster * 8
: This light is displayed on the multi-information display. ■
Eco Driving Indicator Light
●
The vehicle is set to second start mode. ( → P. 210)●
The vehicle is set to sport mode or customized mode. ( → P. 284)●
The vehicle speed is approximately 81 mph (130 km/h) or higher. ●
The Crawl Control is operating. ( → P. 307)●
The paddle shift switch (i f equipped) is operating.During Eco-Friendly acceleration operation
(Eco driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds Zone
of Eco driving ( → P. 98), or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Light will not operate in
the following conditions: ●
The shift lever is in any position other than D.
WARNING ■
If a safety system warnin g light does not come on
Should a safety system light such as the Multi Terrain ABS and the SRS warning light
not come on when you start the engine, th is could mean that these systems are not
available to help protect you in an accide nt, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.

88
LX570_OM_OM60Q78U_(U) 2. Instrument cluster
Gauges and meters
The units used on the speedometer may di ffer depending on the target region.
Engine oil pressure gauge Displays the engine oil pressure
Tachometer Displays the engine speed in revolutions per minute
Speedometer Displays the vehicle speed
Voltmeter Displays the charge state
Fuel gauge Displays the quantity of fuel remaining in the tank
Engine coolant temperature gauge Displays the engine coolant temperature
Multi-information display Presents the driver with a variety of driving-related data (→ P. 91)1
2
3
4
5
6
7

LX570_OM_OM60Q78U_(U) 892. Instrument cluster
2

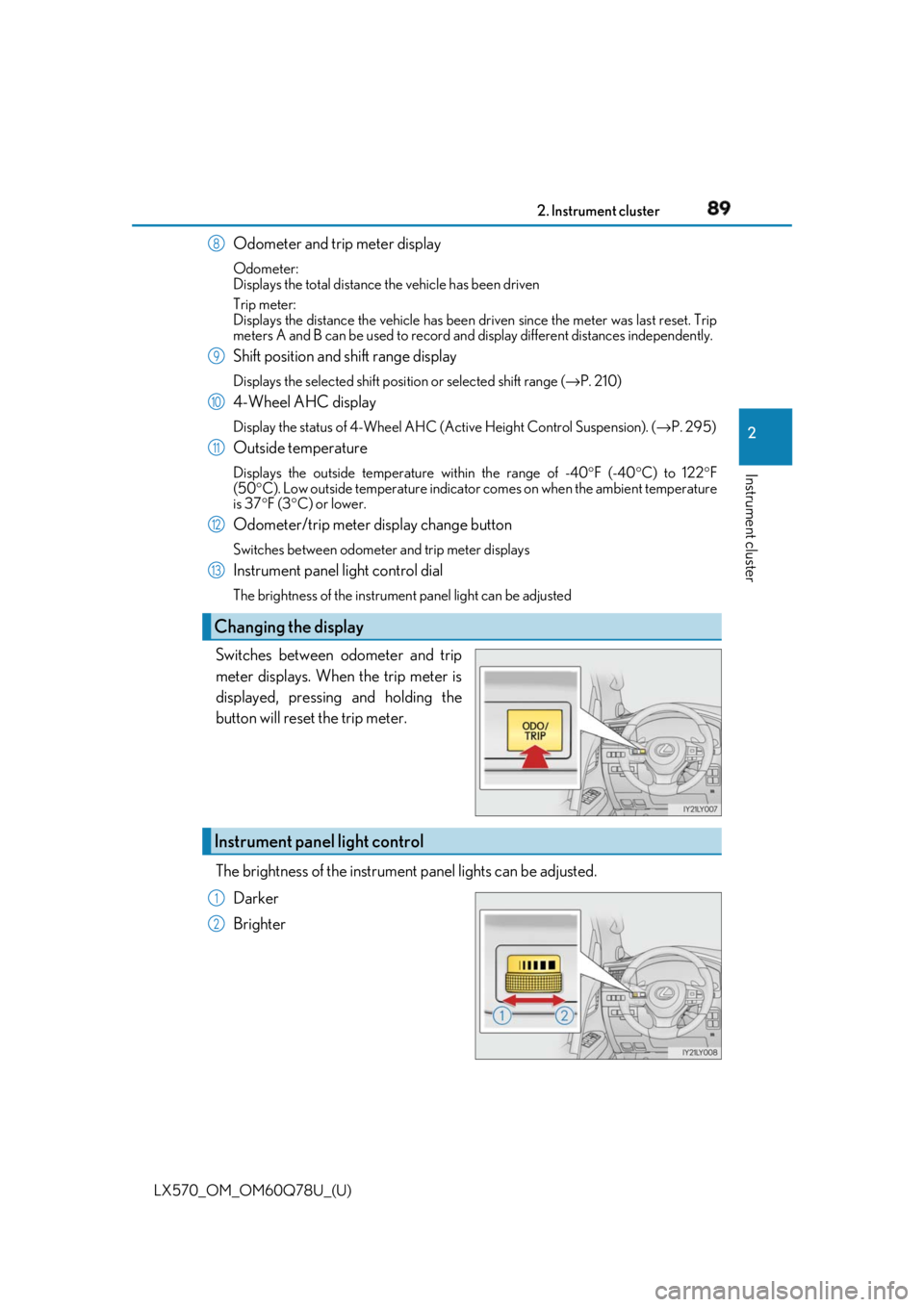

Instrument cluster Odometer and trip meter display Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters A and B can be used to record an d display different distances independently.
Shift position and shift range display Displays the selected shift posi tion or selected shift range ( → P. 210)
4-Wheel AHC display Display the status of 4-Wheel AHC (Active Height Control Suspension). ( → P. 295)
Outside temperature Displays the outside temperature within the range of -40 ° F (-40 ° C) to 122 ° F
(50 ° C). Low outside temperature indicator comes on when the ambient temperature
is 37 ° F (3 ° C) or lower.
Odometer/trip meter display change button Switches between odometer and trip meter displays
Instrument panel light control dial The brightness of the instrument panel light can be adjusted
Switches between odometer and trip
meter displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.
The brightness of the instrument panel lights can be adjusted.
Darker
BrighterChanging the display 8
9
10
11
12
13
Instrument panel light control 1
2

90
LX570_OM_OM60Q78U_(U) 2. Instrument cluster■
The meters and display illuminate when
The engine switch is in IGNITION ON mode. ■
The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be re duced slightly unless
the meter brightness leve l adjustment is set to the brightest setting.
If the tail lights are turned on when the surr oundings are dark, the meter’s brightness will
be reduced slightly. However, when the surro undings are bright, such as during the day-
time, the meter’s brightness w ill not be reduced even if th e tail lights are turned on.■
Customization
The meter display can be customized on the multi-information display. ( → P. 580)
WARNING ■
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.
NOTICE ■
To prevent damage to the engine and its components●
Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed. ●
The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( → P. 552)■
Voltmeter
When the voltmeter indicates 19 V or higher or 9 V or lower while the engine is run-
ning, there may be a battery or charging system malfunction. Have the vehicle
inspected at your Lexus dealer. ■
Engine oil pressure gauge
When the value of the engine oil pressure gauge drops while the engine is running,
stop the vehicle in a safe place immediat ely and check the amount of engine oil.
( → P. 475)
When the oil pressure drops even though th e engine oil amount has not decreased, or
if the oil pressure does not increase when engine oil is added, contact your Lexus
dealer, as there may be a problem with the lubrication system.
