5 1
8765432
LX570_OM_OM60R07U_(U) 95-5. Using the storage features
List of storage features ............ 426
• Glove box ................................427
• Console box ...........................427
• Overhead console .............. 428
• Cup holders ........................... 429
• Bottle holders ........................ 430
• Card holder ........................... 430
• Auxiliary boxes .......................431
Luggage compartment
features ....................................... 433
5-6. Using the other interior
features
Other interior features ............ 436
• Cool box.................................. 436
• Sun visors ................................ 437
• Vanity mirrors ....................... 437
• Clock ........................................ 438
• Power outlets ........................ 438
• Wireless charger ...................441
• Armrest.................................... 449
• Rear door sunshades ......... 450
• Coat hooks............................. 450
• Assist grips ...............................451
Garage door opener ............... 452 6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ................ 460
Cleaning and protecting
the vehicle interior.................. 463
6-2. Maintenance
Maintenance
requirements ............................ 466
General maintenance.............. 468
Emission inspection and
maintenance (I/M)
programs...................................... 471
6-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ................................472
Hood ................................................474
Engine compartment ............... 475
Tires .................................................488
Tire inflation pressure .............. 497
Wheels ............................................ 501
Air conditio ning filter ............... 503
Electronic key battery..............505
Checking and replacing
fuses.............................................. 507
Light bulbs ..................................... 5106
Maintenance and care

15Pictorial index
LX570_OM_OM60R07U_(U) Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 237 Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
To prevent freezing (windshield wiper de-icer) . . . . . . . . . . . . . . . . . . . . . . . . . . P. 411
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 245Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 564
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 488 Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 569
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
Checking/rotation/tire pressure warning system . . . . . . . . . . . . . . . . . . . . . . P. 488
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 535
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 474Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 474
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 564
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 555
Camera
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Parking lights/daytime running lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Fog lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 22 3
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 227Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 383
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Back-up lights Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 21 6
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227 4
5
6
7
8
Light bulbs of the exte rior lights for driving
* : If equipped9
10
11
12
13
14
15
16

731-1. For safe use
LX570_OM_OM60R07U_(U) 1
For safety and security
Exhaust gas precautions Harmful substance to the human body is included in exhaust gases if inhaled. WARNING
Exhaust gases include harmful carbon monoxi de (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard.■
Important points while driving ●
Keep the back door closed. ●
If you smell exhaust gases in the vehicle even when the back door is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.■
When parking ●
If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
engine. ●
Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior. ●
Do not leave the engine running in an area with snow build-up, or where it is snowing.
If snowbanks build up around the vehicle while the engine is running, exhaust gases
may collect and enter the vehicle. ■
Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by your Lexus dealer.

88
LX570_OM_OM60R07U_(U) 2. Instrument cluster
* 1
: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehi cle inspected by your Lexus dealer.
* 2
: The light flashes to indicate a malfunction.
* 3
: This light illuminates on the center panel.
* 4
: The light flashes or illumina tes to indicate a malfunction.
* 5
: This light is displayed on the multi-information display. * 2
(Canada)
Parking brake indicator
(  P. 525)
* 1
Power steering system
warning light (  P. 525)
* 1
Brake system warning light
(  P. 526)
* 5
Brake Override System
warning light (  P. 181)

90
LX570_OM_OM60R07U_(U) 2. Instrument cluster
* 1
: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehi cle inspected by your Lexus dealer.
* 2
: The light flashes to indicate that the system is operating.
* 3
: The light turns on when the system is turned off.
* 4
: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set
to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, th e BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
* 5
: This light illuminates on the outside rear view mirrors.
* 6
: This light illuminates on the center panel.
* 7
: When the outside temperat ure is approximately 37  F (3  C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.* 1, 3
(if equipped)
PCS warning light
(  P. 255) Turn Assist indicator
(  P. 313)
BSM (Blind Spot Monitor)
indicator (  P. 369) (U.S.A.)
Parking brake indicator
(  P. 224)
* 4, 5
BSM (Blind Spot Monitor)
outside rear view mirror
indicators (  P. 369) (Canada)
Parking brake indicator
(  P. 224)
RCTA (Rear Cross Traffic
Alert) indicator (  P. 377) TRAC OFF indicator
(  P. 384)
* 6
(U.S.A.)
“AIR BAG ON/
OFF” indicator
(  P. 49) * 7
Low outside temperature
indicator (  P. 92)
* 6
(Canada)
“AIR BAG ON/
OFF” indicator
(  P. 49) * 8
Smart access system with
push-button start indicator
(  P. 211, 550)

142
LX570_OM_OM60R07U_(U) 3-2. Opening, closing and locking the doors●
If the electronic key is inside the vehicle and a door handle becomes wet during a car
wash, a message may be shown on the mult i-information display and a buzzer will
sound outside the vehicle. To turn off the alarm, lock all the doors. ●
The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc.
Clean the lock sensor and attempt to operate it again, or use the lock sensor on the
lower part of the door handle. ●
If there is another electronic key in the de tection area, it may take slightly longer to
unlock the doors after the do or handle is gripped or ba ck door unlock switch is
pressed. ●
A sudden approach to the effective range or door handle may prevent the doors from
being unlocked. In this case, return the door handle to the original position and check
that the doors unlock before pulling the door handle again.■
When the vehicle is not driven for extended periods ●
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the
vehicle. ●
The smart access system wi th push-button start can be deactivated in advance.
(  P. 584)■
To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the elec-
tronic key too close to the vehicle when operating the system from the outside of the
vehicle.
Depending on the position and holding condition of the elec tronic key, the key may not
be detected correctly and the system may not operate properly. (The alarm may go off
accidentally, or the door lock prev ention function may not operate.)■
If the smart access system with push-button start does not operate properly ●
Locking and unlocking the doors: Use the mechanical key. (  P. 549)●
Starting the engine:  P. 550■
Customization
Settings (e. g. smart access system with push-button start) can be changed.
(Customizable features:  P. 584)■
If the smart access system with push-button start has been deactivated in a customized
setting ●
Locking and unlocking the doors:
Use the wireless remote cont rol or mechanical key. (  P. 121, 549)●
Starting the engine and changing engine switch modes:  P. 550●
Stopping the engine:  P. 212

LX570_OM_OM60R07U_(U) 1553-3. Adjusting the seats
3
Operation of each component ■

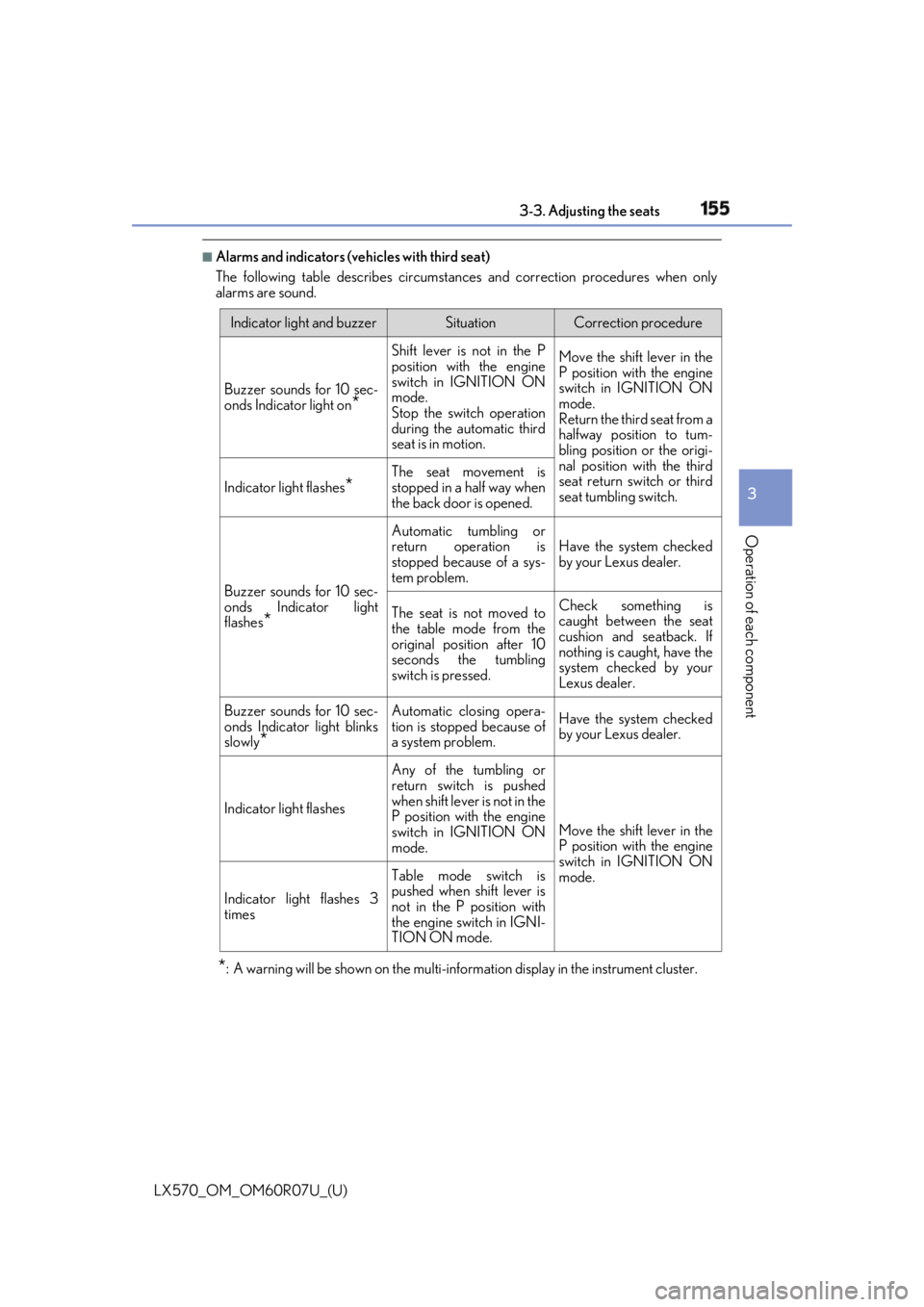

Alarms and indicators (vehicles with third seat)
The following table describes circumstan ces and correction procedures when only
alarms are sound.
* : A warning will be shown on the multi-information display in the instrument cluster. Indicator light and buzzer Situation Correction procedure
Buzzer sounds for 10 sec-
onds Indicator light on
* Shift lever is not in the P
position with the engine
switch in IGNITION ON
mode.
Stop the switch operation
during the automatic third
seat is in motion. Move the shift lever in the
P position with the engine
switch in IGNITION ON
mode.
Return the third seat from a
halfway position to tum-
bling position or the origi-
nal position with the third
seat return switch or third
seat tumbling switch. Indicator light flashes
* The seat movement is
stopped in a half way when
the back door is opened.
Buzzer sounds for 10 sec-
onds Indicator light
flashes
* Automatic tumbling or
return operation is
stopped because of a sys-
tem problem. Have the system checked
by your Lexus dealer.
The seat is not moved to
the table mode from the
original position after 10
seconds the tumbling
switch is pressed. Check something is
caught between the seat
cushion and seatback. If
nothing is caught, have the
system checked by your
Lexus dealer.
Buzzer sounds for 10 sec-
onds Indicator light blinks
slowly
* Automatic closing opera-
tion is stopped because of
a system problem. Have the system checked
by your Lexus dealer.
Indicator light flashes Any of the tumbling or
return switch is pushed
when shift lever is not in the
P position with the engine
switch in IGNITION ON
mode. Move the shift lever in the
P position with the engine
switch in IGNITION ON
mode.
Indicator light flashes 3
times Table mode switch is
pushed when shift lever is
not in the P position with
the engine switch in IGNI-
TION ON mode.

LX570_OM_OM60R07U_(U) 1753-5. Opening, closing the windows and moon roof
3
Operation of each component ■
The moon roof can be operated when
The engine switch is in IGNITION ON mode. ■
Operating the moon roof after turning the engine off
The moon roof can be operated for approximat ely 45 seconds after the engine switch is
turned to ACCESSORY mode or turned off. It cannot, however, be operated once either
front door is opened. ■
Jam protection function
If an object is detected between the moon r oof and the frame while the moon roof is clos-
ing or tilting down, travel is stopped and the moon roof opens slightly. ■
Sunshade
The sunshade can be opened and closed manually. Howe ver, the sunshade will open
automatically when the moon roof is opened. ■
Door lock linked moon roof operation ●
The moon roof can be opened and closed using the mechanical key
* . (  P. 549)●
The moon roof can be opened us ing the wireless remote control
* . (  P. 121)
* : These settings must be cust omized at your Lexus dealer.■
If the moon roof cannot be closed automatically
Keep the switch depressed. ■
When the moon roof does not close normally
Perform the following procedure: ●
If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.
* 1
The moon roof will close, re-open an d pause for approximately 10 seconds.
* 2
Then
it will close again, tilt up and pause for appr oximately 1 second. Finally, it will tilt down,
open and close.
Check to make sure that the moon roof is completely closed and then release the
switch. 1
2
3

176
LX570_OM_OM60R07U_(U) 3-5. Opening, closing the windows and moon roof●
If the moon roof tilts do wn but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch
* 1
until the moon roof moves into the tilt up position
and stops.
Release the “UP” switch once and then press and hold the “UP” switch again.
* 1
The moon roof will pause fo r approximately 10 seconds in the tilt up position.
* 2
Then it will adjust slightly and pause for approximately 1 second.
Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then release the
switch.
* 1
: If the switch is released at the incorrect time, the pr ocedure will have to be per-
formed again from the beginning.
* 2
: If the switch is released after the above mentioned 10 second pause, automatic
operation will be disabled. In that case, press and hold the “CLOSE” or “UP” switch,
and the moon roof will tilt up and pause for approximately 1 second. Then it will tilt
down, open and close. Check to make sure that the moon roof is completely closed
and then release the switch.
If the moon roof does not fully close even after performing the above procedure cor-
rectly, have the vehicle inspected by your Lexus dealer. ■
Moon roof open warning buzzer
The buzzer sounds and message is shown on the multi-inform ation display in the instru-
ment panel when the engine swit ch is turned off and the driver’s door is opened with the
moon roof open. ■
Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features:  P. 584) 1
2
3
4

LX570_OM_OM60R07U_(U) 1834-1. Before driving
4
Driving WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury. ■
When starting the vehicle
Always keep your foot on the brake pedal while stopped with the engine running. This
prevents the vehicle from creeping. ■
When driving the vehicle ●
Do not drive if you are unfamiliar with the location of the brake and accelerator ped-
als to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal will
result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a difficulty in oper-
ating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving po sture even when moving the vehicle only
slightly. This allows you to depress th e brake and accelerator pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake pedal using
your left foot may delay re sponse in an emergency, resulting in an accident.●
Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot parts may
cause a fire if there is any flammable material nearby. ●
During normal driving, do not turn off the engine. Turning the engi ne off while driving
will not cause loss of steering or braking control, but the power assist to these systems
will be lost. This will make it more difficult to steer and brake, so you should pull over
and stop the vehicle as soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible to stop the
vehicle in the normal way:  P. 513●
Use engine braking (downshift) to maintain a safe speed when driving down a steep
hill.
Using the brakes continuously may cause th e brakes to overheat and lose effective-
ness. (  P. 216)●
Do not adjust the positions of the steering wheel, the seat, or the inside or outside rear
view mirrors while driving.
Doing so may result in a loss of vehicle control. ●
Always check that all passengers’ arms, he ads or other parts of their body are not
outside the vehicle. ●
Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do not
drive over 85 mph (140 km/h) unless your vehicle has high-speed capability tires.
Driving over 85 mph (140 km/h ) may result in tire failure , loss of control and possible
injury. Be sure to consult a tire dealer to determine whether the tires on your vehicle
are high-speed capability tires or no t before driving at such speeds.●
When crossing rivers, turn of f height control after puttin g the vehicle height in high
mode, and drive at 18 mph (30 km/h) or less. Otherwise the vehicle height may
change due to the automatic leveling function, resulting in an accident. (  P. 301)
