354
LX570_OM_OM60R61U_(U)4-5. Using the driving support systems
Observe the following precautions. Failure
to do so may result in an unexpected
accident. Also, when driving, make sure to directly confirm the safety of your sur-
roundings and the area to the rear of the vehicle.
When using the Multi-terrain Monitor
WARNING
■Conditions under which the Multi-te rrain Monitor should not be used
Do not use the Multi-terrain Monitor in the following situations. The system may not
operate properly, resulting in an unexpected accident.
●When driving on an icy, snow-covered or otherwise slippery road surface
●When using tire chains or a spare tire
●When either front door or the back door is not completely closed
●When driving on an uneven road, such as a hill
●When tires or suspension parts other than those specified are equipped
When the tires are replaced, the position indicated by the guide lines displayed on the
screen may differ.
■Guide lines
The tire position indicator lines and vehicl e position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings.

LX570_OM_OM60R61U_(U)
3554-5. Using the driving support systems
4
Driving
NOTICE
■Panoramic view
●In the panoramic view, the system combines images taken from the front, back, left
and right side cameras into a single image. There are limits to the range and content
that can be displayed. Understand the char acteristics of this system before using.
●Image clarity may decline at the four corners of the panoramic view. However, this is
not a malfunction, as these are the regions along the border of each camera image
where the images are combined.
●Depending on lighting conditions near each of the cameras, bright and dark patches
may appear on the panoramic view.
●The panoramic view display does not extend higher than the installation position and
image capture range of each camera.
●There are blind spots around the vehicle and there are regions that are not displayed
in the panoramic view.
●Three-dimensional objects disp layed in wide front view or rear view may not be dis-
played in the panoramic view.
●People and other three-dime nsional obstacles may appear differently when dis-
played in the panoramic view. (These differences include, among others, cases in
which displayed objects appear to have fa llen over, disappear near image processing
areas, appear from image proc essing areas, or when the actual distance to an object
differs from the displayed position.)
●The panoramic view will not be properly displayed when either front door or the back
door is open.
●The vehicle icon displayed in the panoramic view is a computer generated image, and
properties such as the color, shape and size will differ from the actual vehicle. There-
fore, nearby three-dimensional objects may appear to be touching the vehicle, and
actual distances to three-dimensional ob jects may differ from those displayed.

356
LX570_OM_OM60R61U_(U)4-5. Using the driving support systems

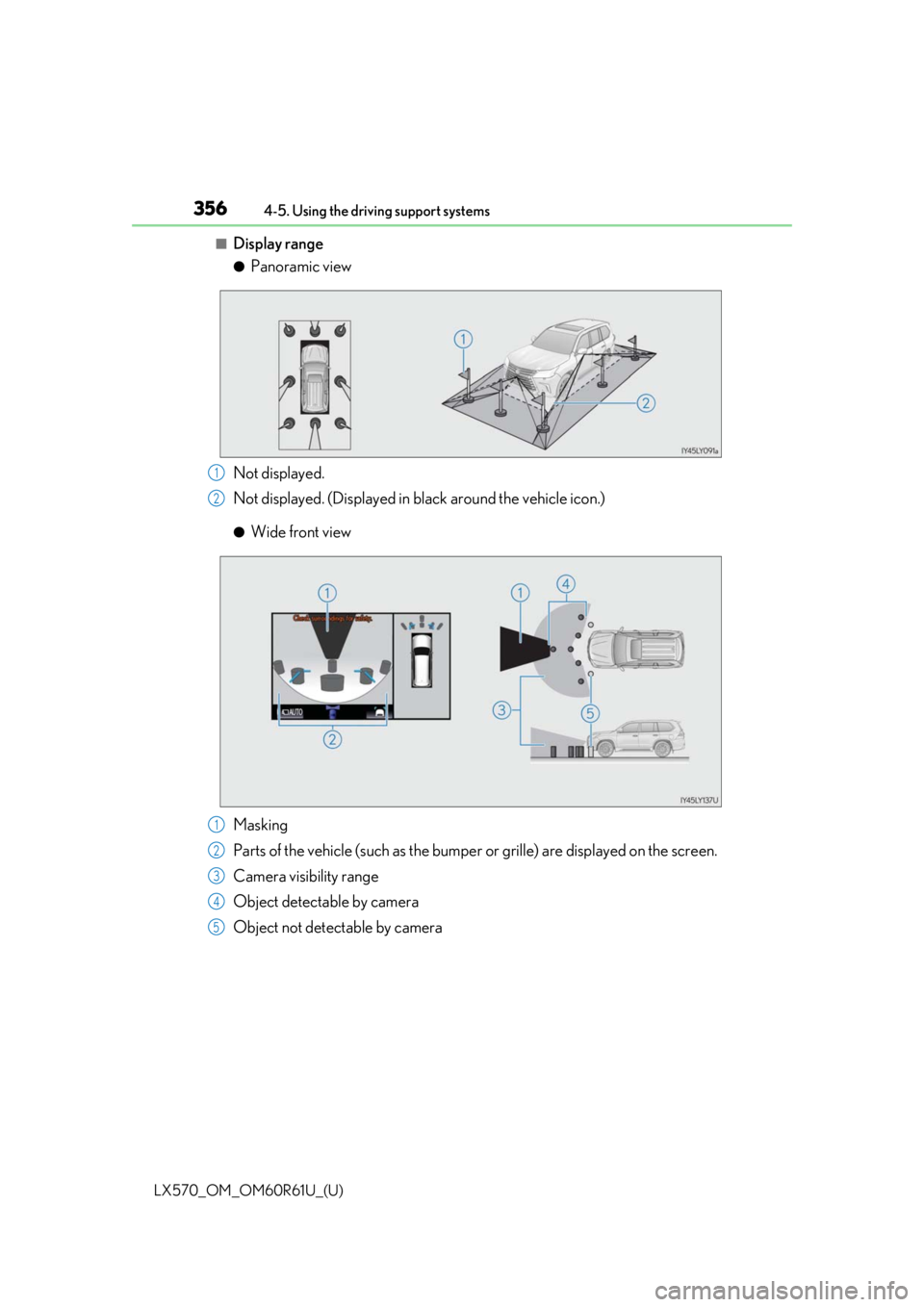

■Display range
●Panoramic view
Not displayed.
Not displayed. (Displayed in black around the vehicle icon.)
●Wide front view
Masking
Parts of the vehicle (such as the bumper or grille) are displayed on the screen.
Camera visibility range
Object detectable by camera
Object not detectable by camera
1
2
1
2
3
4
5

LX570_OM_OM60R61U_(U)
3574-5. Using the driving support systems
4
Driving
●Side views
The side of the vehicle is displayed on the screen.
Camera visibility range
Object detectable by camera
●Side view
The side of the vehicle is displayed on the screen.
Camera visibility range
Object detectable by camera
1
2
3
1
2
3

LX570_OM_OM60R61U_(U)
3594-5. Using the driving support systems
4
Driving
■Panoramic view display range
●In the panoramic view, the system processes and displays images acquired form the 4
cameras under the assumption that the vehicle is on a flat road surface. Therefore, the
display may appear as follows.
• Three-dimensional objects may appear to have fallen over, and be long and thin or bigger than they actually are
• Three-dimensional obje cts at a point higher than the surface of the road may appear
further away than they actually are, or may not appear
• Tall objects may appear to emerge from the image processing seams
●Inconsistencies in th e brightness of images from each camera may occur depending on
lighting conditions.
●The displayed image may not be aligned when the tilt or height of the vehicle changed
due to the number of passengers, cargo we ight or remaining quantity of gasoline.
●The displayed image may not be aligned when the vehicle is in other than “N” (normal)
height mode. (P. 302)
●Images and guide lines may not be properly displayed when the doors are not com-
pletely closed.
●The relative distances between the vehicle ic on and road surface or an obstacle dis-
played in the panoramic view may differ from the actual state.
●If an illuminated license plate is used, it may appear on the screen.
●The black area around the vehicle icon is an area that is not appear in the camera.
Check these areas directly.
■Wide front view display range
●Certain areas at the front of the vehicle ha ve a different sense of distance, and are
masked in black so that they do not appear on the screen.
●There are limits to the range displayed on the screen. Objects at either corner of the
bumper or directly below the bumper are not displayed.
●The perceived distance in images displayed on the screen differs from the actual dis-
tance.
■Images displayed on the screen
Cameras of the Multi-terrain Monitor system use special lenses. The distance of the
image that appears on the screen differs from the actual distance.
●The circled areas shown in the illustration may
be difficult to see, as these are points where
images are combined.

362
LX570_OM_OM60R61U_(U)4-5. Using the driving support systems
●When the ground behind the vehicle slopes down sharply
The distance guide lines are displayed further away than the actual dis-
tance. Therefore, obstacles on a down
ward slope appear closer than the
actually are. In the same way, the actua l course of the vehicle will differ from
the course indicated by the guide lines.
●When the vehicle is tilted
When the vehicle is tilted due to the number of passengers or weight of the
load, actual distances and vehicle course will differ.
Margin of error
1

LX570_OM_OM60R61U_(U)
3634-5. Using the driving support systems
4
Driving
■Differences between the panoramic view display and actual three-dimen-
sional objects
Be aware of the following points when three-dimensional objects higher than
the surface of the road (such as a vehicle bumper) are nearby.
●Panoramic view display
In the panoramic view, the system processes and displays images under the
assumption that the vehicle is on a fl at road surface. Therefore, the position
of three-dimensional objects higher th an the road surface (such as a vehi-
cle bumper) cannot be determined. Even if it seems that a collision will not
occur according to the screen, there may not actually be any extra space
between the vehicle and an obstacle higher than the road surface, resulting
in a collision. In these cases, confir m the safety of your surroundings
directly.
WARNING
■Intuitive parking assist pop-up display
When the intuitive parking assist pop-up disp lay is red, park the vehicle and make sure
to confirm the safety of your surroundings.
Failure to do so may lead to an unexpected accident.

364
LX570_OM_OM60R61U_(U)4-5. Using the driving support systems
●Projected course lines
Projected course lines are displayed un
der the assumption that the vehicle
is on a flat road surface. Therefore, the position of three-dimensional
objects higher than the road surface (such as a vehicle bumper) cannot be
determined. Even if it seems that an obstacle is outside of the projected
course lines and a collision will no t occur according to the screen, an
obstacle may actually be in the vehicle course, resulting in a collision.
Projected course lines Three-dimensional objects in high positions (such as walls with protrusions
or the loading areas of trucks) may not be displayed on the screen. Con-
firm the safety of your surroundings directly.
Protrusion of a wall
1
1

LX570_OM_OM60R61U_(U)
3654-5. Using the driving support systems
4
Driving
■Differences between the rear view or wide rear view and actual roads
The guide lines on the screen are intended for flat surfaces (such as the road).
Be aware of the following points when three-dimensional objects with protru-
sions (obstacles such as the cargo bed of a truck) are nearby.
●Projected course lines
Guide lines are displayed in reference to a level road surface and cannot
be used to determine the location of three-dimensional objects. Confirm
the safety of your surroundings directly . Even if it seems that the cargo bed
of a truck is outside the projected co urse lines and a collision will not occur
according to the screen, it may actually be in the vehicle course, resulting in
a collision.
Projected course lines
1

366
LX570_OM_OM60R61U_(U)4-5. Using the driving support systems
■Differences between the panoramic view,
rear view and wide rear view and
actual roads
●Distance guide lines
Guide lines are displayed in referenc e to the road surface and cannot be
used to determine the distance of three-dimensional objects from the vehi-
cle. Confirm the safety of your surr oundings directly. On the screen, it
appears that a truck is parking at po int according to the distance guide
lines. However, in reality if you back up to point , you will hit the truck.
On the screen, it appears that is closest and is farthest away. How-
ever, in reality, the distance to and is same, and is farther than
and .
●Under vehicle terrain view
The tire position indicator lines and ve hicle position indicator lines may dif-
fer from actual vehicle positions depending on the number of passengers,
weight of the load, road grade, road surface conditions, brightness of the
surrounding environment, etc. Always drive the vehicle while directly con-
firming the safety of your surroundings.
2
1
13
1321
3
