LEXUS NX200T 2016 Owners Manual

5618-2. Steps to take in an emergency
8
When trouble arises
NX200t_OM_USA_OM78081U
Location of the spare tire, jack and tools
Jack handle
Wheel nut wrench
Towing eyeletSpare tire
Jack
Screwdriver1
2
3
4
5
6

5628-2. Steps to take in an emergency
NX200t_OM_USA_OM78081U
WA R N I N G
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading
to death or serious injury.
●Do not use the tire jack for any purpose ot her than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires on
this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the jack.
●Do not start the engine or drive the vehicle while the vehicle is supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If there
are people nearby, warn them vocally before lowering.

5638-2. Steps to take in an emergency
8
When trouble arises
NX200t_OM_USA_OM78081U
If the luggage cover is used: Unhook
the cords.
If the luggage cover is used: Fold up
the luggage cover.
Pull the lever upwards and open the
deck board.
Lift the deck board and remove the
hook on the backside of the deck
board.
Taking out the jack
1
2
3
4

5648-2. Steps to take in an emergency
NX200t_OM_USA_OM78081U
Attach the hook to the upper edge
of the back door opening as shown.
Removing the Jack.Remove the rubber band.
Remove the cover and the jack.
When stowing the jack, close it by
turning the handle indicated by
until it does not move anymore, stow
the jack and the cover, and press on
the jack to fix with the rubber band.
5
6
1
2
A

5658-2. Steps to take in an emergency
8
When trouble arises
NX200t_OM_USA_OM78081U

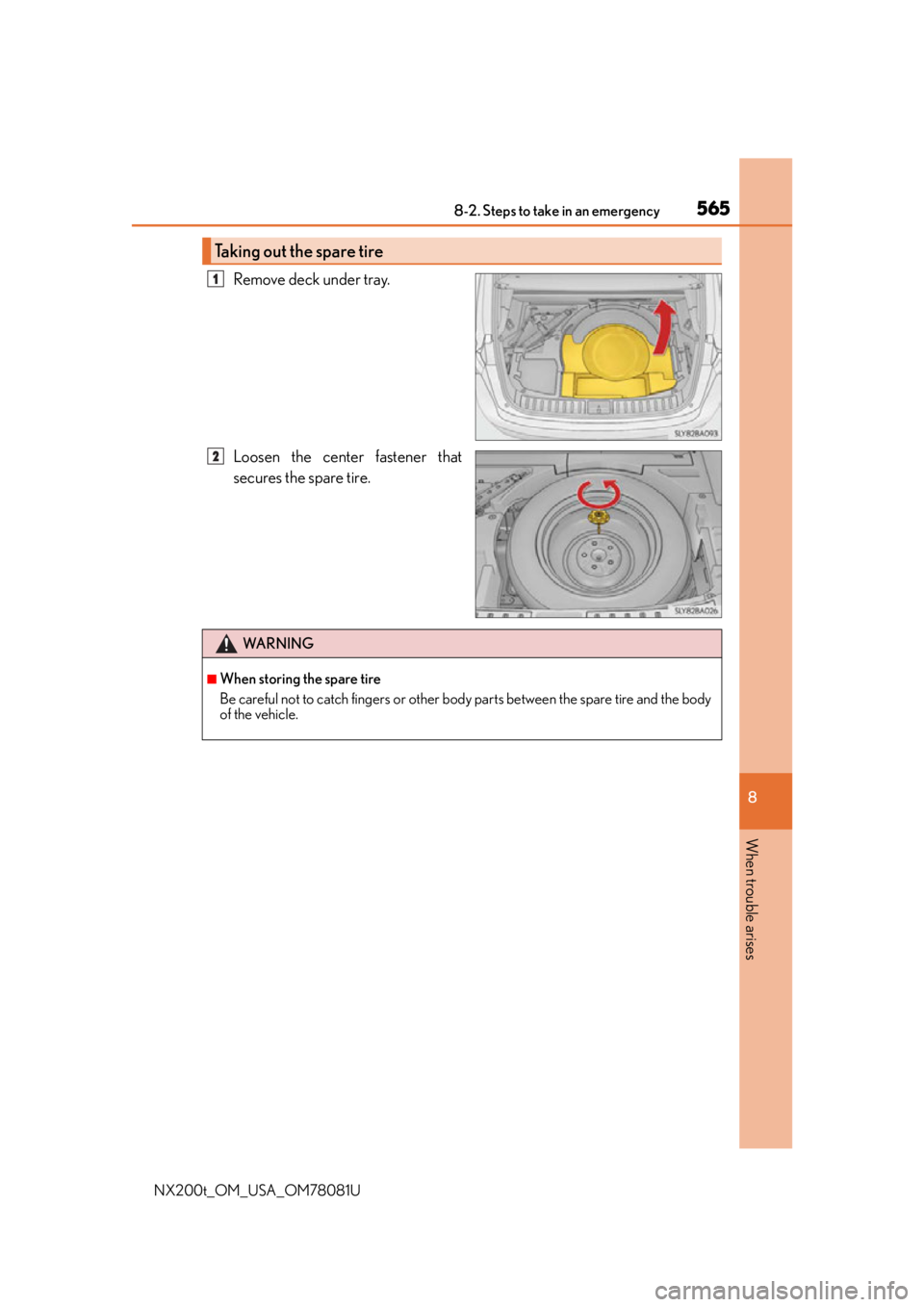

Remove deck under tray.
Loosen the center fastener that
secures the spare tire.
Taking out the spare tire
1
2
WA R N I N G
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body
of the vehicle.

5668-2. Steps to take in an emergency
NX200t_OM_USA_OM78081U
Chock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion by hand
until the notch of the jack is in con-
tact with the jack point.
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3A

5678-2. Steps to take in an emergency
8
When trouble arises
NX200t_OM_USA_OM78081U
Install the wheel nut wrench in jack
handle.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
4
5
6

5688-2. Steps to take in an emergency
NX200t_OM_USA_OM78081U
WA R N I N G
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in handling the
ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes
will be extremely hot. Touching these areas with hands, feet or other body parts
while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen and the tire
to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, causing a serious accident.
Remove any oil or grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for
that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes
of the wheel, have the vehicle inspected by your Lexus dealer.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while
the vehicle is moving.
■Replacing a flat tire for vehicles with power back door
In cases such as when replacing tires, make sure to turn off the power back door main
switch ( P. 123). Failure to do so may cause the back door to operate unintentionally if
the power back door switch is accidentally touched, resulting in hands and fingers
being caught and injured.

5698-2. Steps to take in an emergency
8
When trouble arises
NX200t_OM_USA_OM78081U
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, causing
the tire to come off.
Install the spare tire and loosely
tighten each wheel nut by hand by
approximately the same amount.
Tighten the wheel nuts until the tapered
portion comes into loose contact with
the disc wheel seat.
Install the wheel nut wrench in jack
handle.
Lower the vehicle.
Installing the spare tire
1
Disc wheel
seat
Tapered portion2
3
4

5708-2. Steps to take in an emergency
NX200t_OM_USA_OM78081U
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
76 ft·lbf (103 N·m, 10.5 kgf·m)
Stow the flat tire, tire jack and all tools.
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY” on the
tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire. ( P. 5 9 6 )
■After completing the tire change
The tire pressure warning system must be reset. ( P. 5 0 4 )
■When using the compact spare tire
As the compact spare tire is not equipped wi th a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare ti re will not be indicated by the tire pressure
warning system. Also, if you replace the compact spare tire after the tire pressure warn-
ing light comes on, th e light remains on.
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire compared to when
driving with standard tires.
■If you have a flat front tire on a road covered with snow or ice (except for 225/60R18
tires)
Install the compact spare tire on one of the rear wheels of the vehicle. Perform the follow-
ing steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
5
6
1
2
3
