LEXUS NX200T 2016 Owners Manual

5217-3. Do-it-yourself maintenance
7
Maintenance and care
NX200t_OM_USA_OM78081U
Remove the fuse.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
3
4
1
2
Ty p e ATy p e B
Ty p e CTy p e D

5227-3. Do-it-yourself maintenance
NX200t_OM_USA_OM78081U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. ( P. 5 2 3 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexu s products designed for this vehicle.
Because certain bulbs are connected to circui ts designed to prevent overload, nongenu-
ine parts or parts not designed for this vehicle may be unusable.
WA R N I N G
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rati ng than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determ ined and repaired by your Lexus dealer as
soon as possible.

5237-3. Do-it-yourself maintenance
7
Maintenance and care
NX200t_OM_USA_OM78081U
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 5 9 8 )
 P. 4 9 1
 P. 1 2 3
You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement
Removing the engine compartment cover
Canceling the power back door system

5247-3. Do-it-yourself maintenance
NX200t_OM_USA_OM78081U
■Front
Bulb locations
Front turn signal light (bulb type)
Headlight high beam
(halogen bulbs) Front side marker light (bulb type)1
2
3

5257-3. Do-it-yourself maintenance
7
Maintenance and care
NX200t_OM_USA_OM78081U
■Rear
Back-up light
Rear turn signal light1
2

5267-3. Do-it-yourself maintenance
NX200t_OM_USA_OM78081U
■Headlight high beams (halogen bulbs)
For the right side only: Remove the bolt, and move the
washer fluid supply opening.
When it is difficult to work,
remove the washer fluid supply
opening.
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
Replacing light bulbs
1
2
3

5277-3. Do-it-yourself maintenance
7
Maintenance and care
NX200t_OM_USA_OM78081U

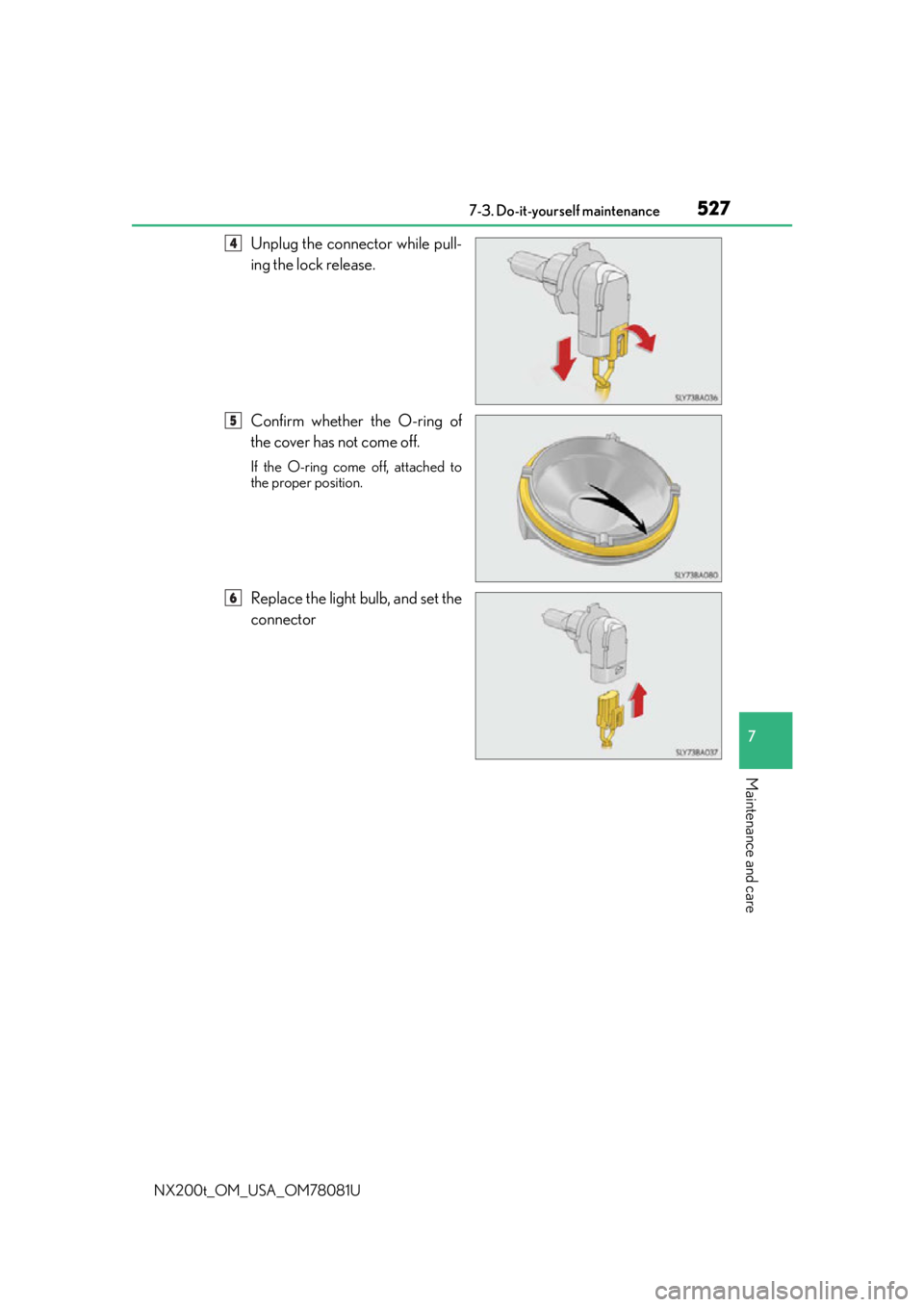

Unplug the connector while pull-
ing the lock release.
Confirm whether the O-ring of
the cover has not come off.
If the O-ring come off, attached to
the proper position.
Replace the light bulb, and set the
connector
4
5
6

5287-3. Do-it-yourself maintenance
NX200t_OM_USA_OM78081U
Install the bulb base.
Align the 3 tabs on the light bulb with
the mounting, and insert. Turn it
clockwise to set.
Confirm the installation of the
bulb base.
Shake the bulb base gently to check
that it is not loose, turn the headlight
high beams on once and visually
confirm that no light is leaking
through the mounting.
Install the cover and turn it clock-
wise.
Align the of the cover to the
positioning mark of the lamp body
and insert and turn it. There is the positioning mark on
the outer side of the light unit.
7
8
9

5297-3. Do-it-yourself maintenance
7
Maintenance and care
NX200t_OM_USA_OM78081U
When removing the washer fluid
supply opening:
Installing the washer fluid supply
opening.
Align the washer tank with the
washer fluid opening position.
Fix the washer fluid supply open-
ing.Align the tab position and
install washer fluid opening.
Fasten the bolt.
10
11
1
2

5307-3. Do-it-yourself maintenance
NX200t_OM_USA_OM78081U
■Front side marker light (bulb type) Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
■Front turn signal lights (bulb type)Open the hood and remove the cover for engine compartment cover.
( P. 488, 491)
Remove the cover. Push the center of the clip.
Remove the clip and cover.
Turn the bulb base counterclock-
wise.
1
2
3
1
2
1
2
3
