LEXUS NX300h 2015 Owners Manual

1012. Instrument cluster
2
Instrument cluster
NX300h_U_OM78007U ■
Outside temperature display ●
In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has change d suddenly (at the entrance/exit of a
garage, tunnel, etc.) ●
When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer. ■
Pop-up display
In some situations, a pop-up display will be temporarily displayed on the multi-informa-
tion display or the odometer/trip meter/ maintenance required information screen.
The pop-up display function can be set on/off. (  P. 6 3 8 )■
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.■
Customization
The meter display can be customized on the multi-information display.
(Customizable features:  P. 6 3 3 )
WA R N I N G ■
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new gear number
appearing on the display. This lag could cau se the driver to downshift again, causing
rapid and excessive engine braking and po ssibly an accident resulting in personal
death or injury.
NOTICE ■
To prevent damage to the engine and its components ●
When the tachometer is displayed, do not let the indicator needle of the tachometer
enter the red zone, which indicates the maximum engine speed. ●
The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H); or “Engine Coolant Temp High” or “Hybrid System Overheated” is shown
on the multi-information display. In this case, immediately stop the vehicle in a safe
place, and check the engine or hybrid system after it has cooled completely.
(  P. 600)

102 2. Instrument cluster
NX300h_U_OM78007UMulti-information display The multi-information display presents the driver with a variety of vehicle data.●
Menu icons
Displays the following information
when an icon is selected. (  P. 1 0 3 )
Some of the information may be dis-
played automatically depending on
the situation.
Drive information Select to display various drive data. (  P. 1 0 3 )
Navigation system-linked display Select to display the following na vigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped) Select to enable selection of an audio source or track on the display using the
meter control switches.
Select to display the dynamic radar crui se control/dynamic radar cruise control
with full-speed range/cruise control information, when the system is used.
(  P. 240, 253, 267)
The displayed icon changes depending on the system used.
If activated, the operational status of LDA (Lane Departure Alert with steering
control) will also be displayed. (  P. 2 7 0 )Display contents
Dynamic radar cruise control (i f equipped)/Dynamic radar cruise
control with full-speed range (if equipped)/Cruise control (if
equipped)
LDA (Lane Departure Alert with steering control) [Vehicles without
dynamic radar cruise control, dynamic radar cruise control with full-
speed range, nor cruise control; Vehicles with LDA (Lane Depar-
ture Alert with steering control)]

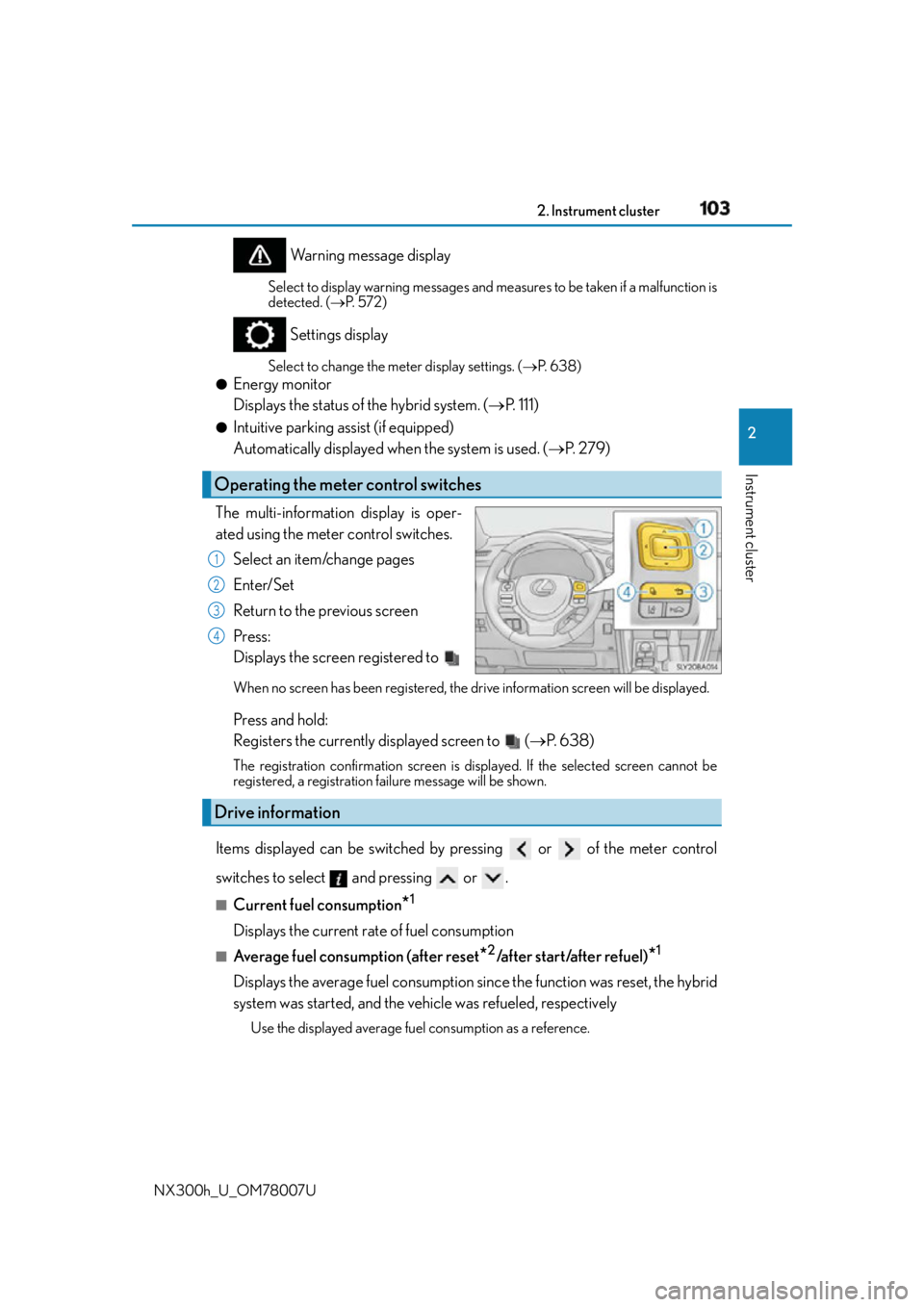

1032. Instrument cluster
2
Instrument cluster
NX300h_U_OM78007U Warning message display Select to display warning messages and me asures to be taken if a malfunction is
detected. (  P. 5 7 2 )
Settings display Select to change the meter display settings. (  P. 6 3 8 )●
Energy monitor
Displays the status of the hybrid system. (  P. 111)●
Intuitive parking assist (if equipped)
Automatically displayed when the system is used. (  P. 2 7 9 )
The multi-information display is oper-
ated using the meter control switches.
Select an item/change pages
Enter/Set
Return to the previous screen
Press:
Displays the screen registered to When no screen has been registered, the drive information screen will be displayed.
Press and hold:
Registers the currently displayed screen to (  P. 6 3 8 )The registration confirmation screen is di splayed. If the selected screen cannot be
registered, a registration failure message will be shown.
Items displayed can be switched by pressing or of the meter control
switches to select and pressing or . ■
Current fuel consumption
* 1
Displays the current rate of fuel consumption ■
Average fuel consumption (after reset
* 2
/after start/after refuel)
* 1
Displays the average fuel consumption si nce the function was reset, the hybrid
system was started, and the vehicle was refueled, respectively Use the displayed average fuel consumption as a reference.Operating the meter control switches 1
2
3
4
Drive information

104 2. Instrument cluster
NX300h_U_OM78007U ■
Average vehicle speed (after reset
* 2
/a f t e r s t a r t )
* 1
Displays the average vehicle speed since the function was reset and the
hybrid system was started, respectively ■
Elapsed time (after reset
* 2
/after start)
* 1
Displays the elapsed time since the function was reset and the hybrid system
was started, respectively ■
Distance (driving range/after start)
* 1
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining and the distance driv en after the hybrid system was started
respectively. • This distance is computed based on your average fuel consumption. As a result,
the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning
the power switch off, the display may not be updated.■
Energy monitor
 P. 1 1 1■
Tire inflation pressure
Displays inflation pressure of each tire. The inflation pressure of the spare tire will not be displayed.■
Display off
A blank screen is displayed
* 1
: Displayed when the item is set in “D rive Info 1” or “Drive Info 2”. (  P. 6 3 8 )
* 2
: The function can be reset by pressing th e of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.

1052. Instrument cluster
2
Instrument cluster
NX300h_U_OM78007U ■
Suspension of the settings display
In the following situations, th e settings display using the meter control switches will be
suspended. ●
When a warning message appears on the multi-information display●
When the vehicle begins to move ■
Tire inflation pressure ●
It may take a few minutes to display the tire inflation pressure after the power switch is
turned to ON mode. It may also take a few minutes to display the tire inflation pressure
after inflation pressure has been adjusted. ●
“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions. ●
Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.■
When disconnecting and reconnec ting 12-volt battery terminals
The drive information will be reset. ■
Liquid crystal display
 P. 1 0 1
WA R N I N G ■
Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases includin g harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to death or a serious health hazard.
NOTICE ■
The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed. ■
During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid syst em is operating while
setting up the display features.

106 2. Instrument cluster
NX300h_U_OM78007UHead-up display The head-up display can be used to proj ect vehicle speed and other information
onto the windshield.
Head-up display Display brightness will change automat-
ically according to the brightness of the
surrounding area.
Display position adjustment switch
Display brightness adjustment
switch Display brightness can be adjusted to
the desired level.
“HUD” button
“DISP” button
●
Vehicle speed ●
Hybrid System Indicator (  P. 1 0 8 )●
Tachometer ●
Shift position and shift range Displays the selected shift posi tion or selected shift range (  P. 2 0 8 )●
Audio display Displays audio information for approximat ely 3 seconds when the audio system is
operated
●
Route guidance display (vehicles with navigation system) (  P. 1 0 9 )When approaching an intersec tion while the navigation system is giving route guid-
ance, an arrow will automatically be displayed to indicate the direction of travel.
●
Lane departure warning display (LDA [Lane Departure Alert with steering
control]) (if equipped) (  P. 2 7 0 )
 : If equippedSummary of functions 1
2
3
4
5
Head-up display contents

1072. Instrument cluster
2
Instrument cluster
NX300h_U_OM78007U ●
Approach warning display (dynamic radar cruise control)
(if equipped) (  P. 2 4 0 , 2 5 3 )●
Pre-collision warning message (pre-collision system)
(if equipped) (  P. 3 1 0 )●
Speed limit display (vehicles with navigation system) (  P. 1 0 9 )■
“HUD” button
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed display units as fol-
lows: 
U.S.A.
OFF  ON (MPH) 
ON (km/h)  OFF 
Canada
OFF  ON (km/h)  ON (MPH)  OFF■
“DISP” button
Pressing the button changes the dis-
play items (except vehicle speed).
Off
Hybrid System Indicator
TachometerSwitching the head-up display
1
2
3

108 2. Instrument cluster
NX300h_U_OM78007U ■
Adjusting the display position
Higher
Lower
■
Setting the brightness
The brightness of the display is automa tically adjusted in accordance with the
brightness of the surrounding environm ent. However, the brightness can also
be manually adjusted in 9 stages.
Brighter
Darker
Charge area Shows regenerative charging.
Hybrid Eco area Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area Shows that the vehicle is being dr iven in an Eco-friendly manner.
Po w e r a r e a Shows that an Eco-friendly driving range is being exceeded (during full power driving,
etc.)Making the display easier to see 1
2
1
2
Hybrid System Indicator 1
2
3
4

1092. Instrument cluster
2
Instrument cluster
NX300h_U_OM78007U When the vehicle approaches an inter-
section, the direction the vehicle should
go is guided by the arrow. When the
vehicle approaches an intersection, the
route guidance will start and the dis-
tance
* to the intersection will also be
displayed.
* : The distance indication will disappear
when the vehicle passes through the
intersection.
Displays the speed limit for the current
road.
The audio display and speed limit display can be shown or hidden. When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set.
Until the screen changes, continue
pressing the “DISP” button, and it
will repeat until the item desired to
be changed is displayed. Customization can be performed when
the head-up display is on.
Press the “DISP” button to switch
between on and off. On and off will be switched between each time the button is pressed.
If the button is left alone without being operated for a short time, setting will be fin-
ished automatically.Route guidance display (v ehicles with navigation system)
Speed limit display (vehicles with navigation system)
Display customization 1
2

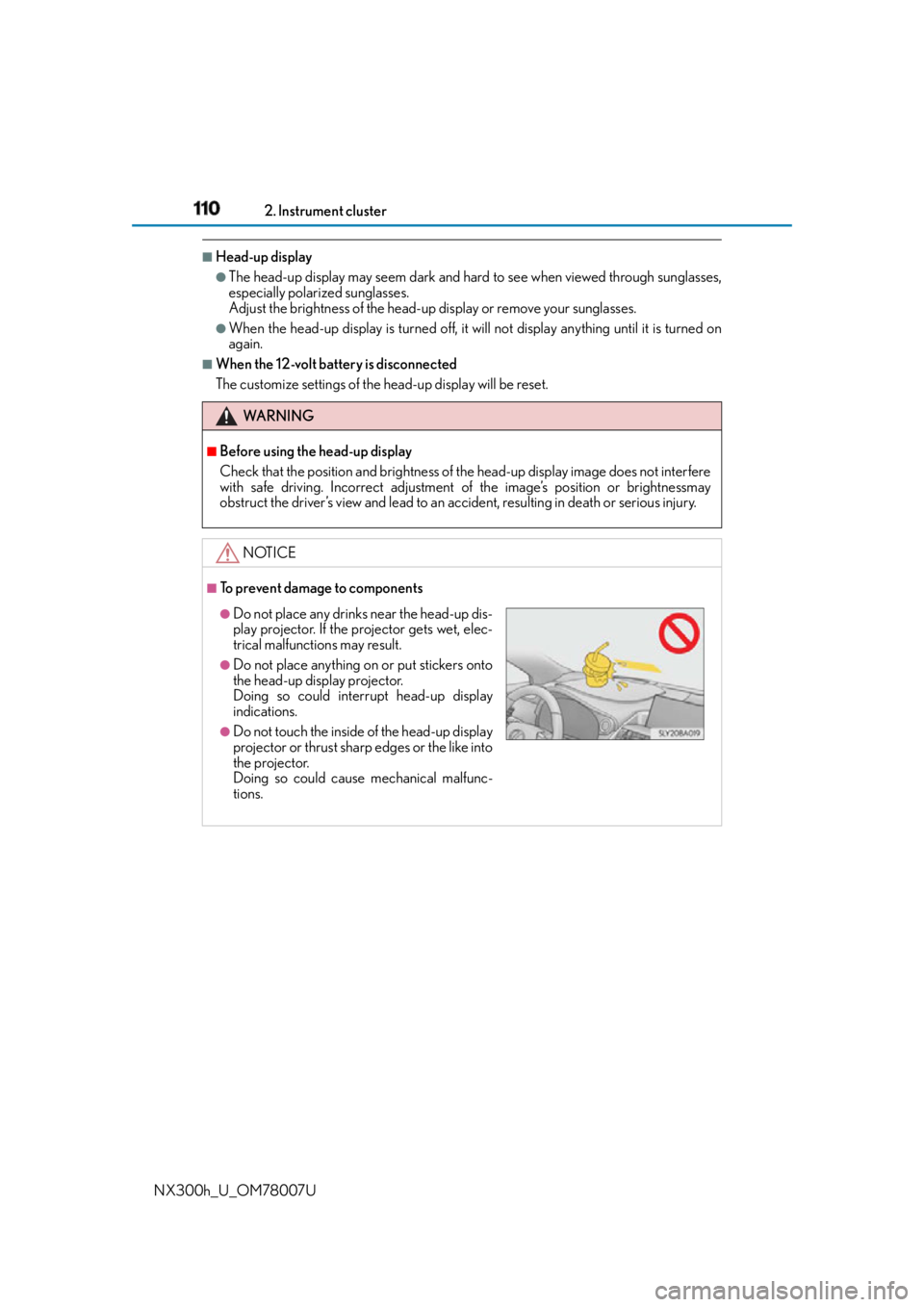

110 2. Instrument cluster
NX300h_U_OM78007U ■
Head-up display ●
The head-up display may seem dark and hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.●
When the head-up display is turned off, it will not display an ything until it is turned on
again. ■
When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
WA R N I N G ■
Before using the head-up display
Check that the position and brightness of the head-up display image does not interfere
with safe driving. Incorrect adjustment of the image’s position or brightnessmay
obstruct the driver’s view and lead to an a ccident, resulting in death or serious injury.
NOTICE ■
To prevent damage to components ●
Do not place any drinks near the head-up dis-
play projector. If the projector gets wet, elec-
trical malfunctions may result. ●
Do not place anything on or put stickers onto
the head-up display projector.
Doing so could interrupt head-up display
indications. ●
Do not touch the inside of the head-up display
projector or thrust sharp edges or the like into
the projector.
Doing so could cause mechanical malfunc-
tions.
