LEXUS NX300h 2015 Owner's Manual

21Pictorial index
NX300h_U_OM78007U Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 163
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 26
Driving position memory switches
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 155
HUD (Head-up display) switches
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 106
ASC (Active Sound Control) dial
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
* : If equipped1
2
3
4
5
6
7

22 Pictorial index

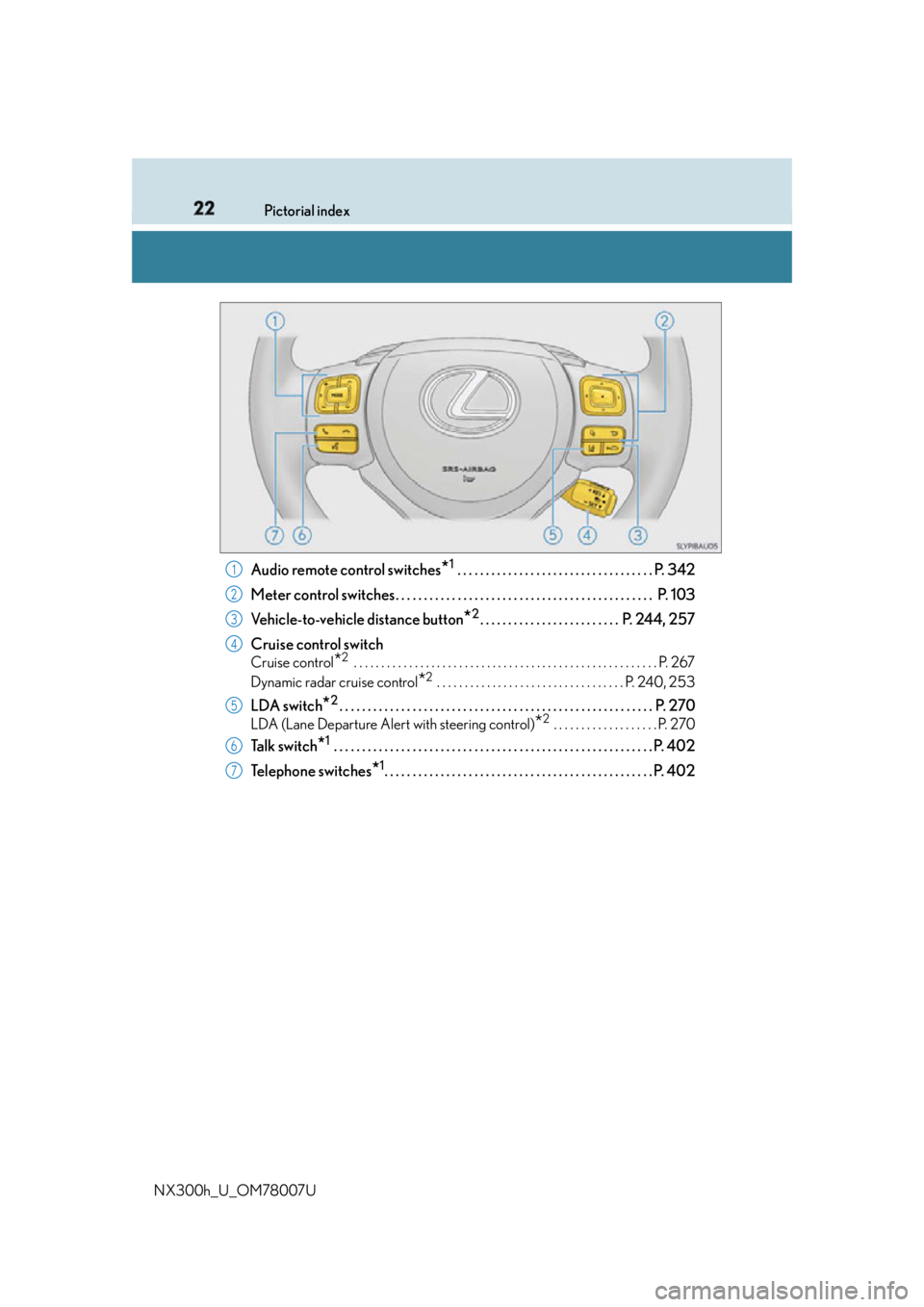

NX300h_U_OM78007U Audio remote control switches
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 342
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103
Vehicle-to-vehicle distance button
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . P. 244, 257
Cruise control switch Cruise control
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
Dynamic radar cruise control
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240, 253
LDA switch
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 270LDA (Lane Departure Alert with steering control)
* 2
. . . . . . . . . . . . . . . . . . . P. 270
Ta l k s w i t c h
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 402
Telephone switches
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4021
2
3
4
5
6
7

23Pictorial index
NX300h_U_OM78007U EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
Parking brake switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213, 214 Applying/releasing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213, 214
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 566, 572
Brake hold switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 21 6
Lexus Display Audio controller
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Remote Touch
* 1, 2
* 1
: For vehicles with a navigation system, refer to
“NAVIGATION SYSTEM OWNER’S MANUAL”.
* 2
: If equipped1
2
3
4
5
6
7

24 Pictorial index

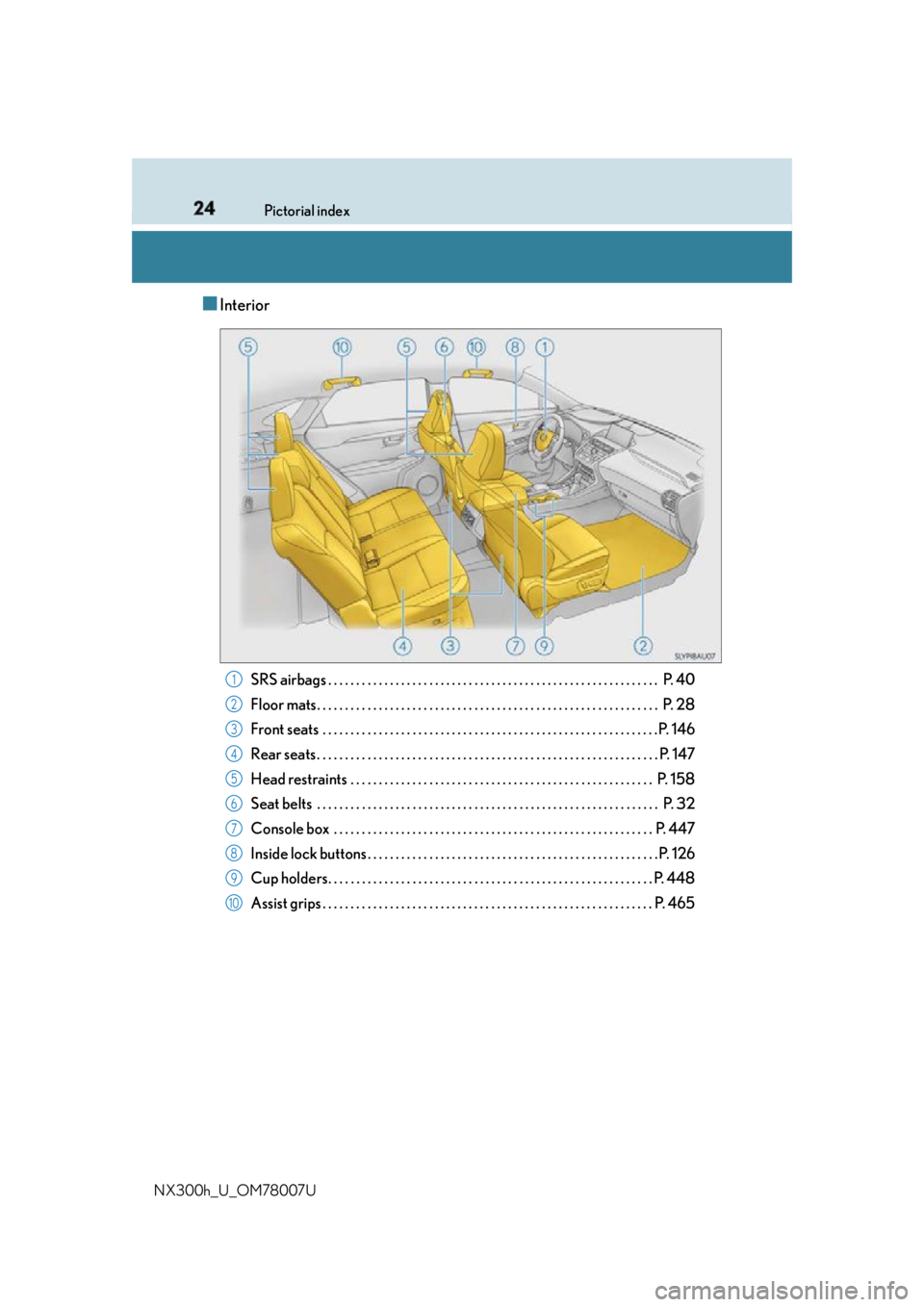

NX300h_U_OM78007U ■ Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 40
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 146
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 147
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 447
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 12 6
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 448
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4651
2
3
4
5
6
7
8
9
10

25Pictorial index
NX300h_U_OM78007U Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 455
Interior light
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444, 445
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
Moon roof switches
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
“SOS” button
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 477
Garage door opener switches
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 467
* 1
: If equipped
* 2
: The illustration shows the front, but they are also equipped in the rear.1
2
3
4
5
6
7

26 Pictorial index
NX300h_U_OM78007U

27
For safety and security
1
NX300h_U_OM78007U 1-1. For safe use
Before driving................................. 28
For safety drive............................... 30
Seat belts .......................................... 32
SRS airbags ..................................... 40
Front passenger occupant
classification system.................. 53
Safety information for
children .......................................... 59
Child restraint systems ............... 60
Exhaust gas precautions ............. 76
1-2. Hybrid system
Hybrid system features................77
Hybrid system precautions ........ 81
1-3. Theft deterrent system
Immobilizer system ...................... 86
Alarm .................................................88
Theft prevention labels
(for U.S.A.) .................................... 90

28 1-1. For safe use

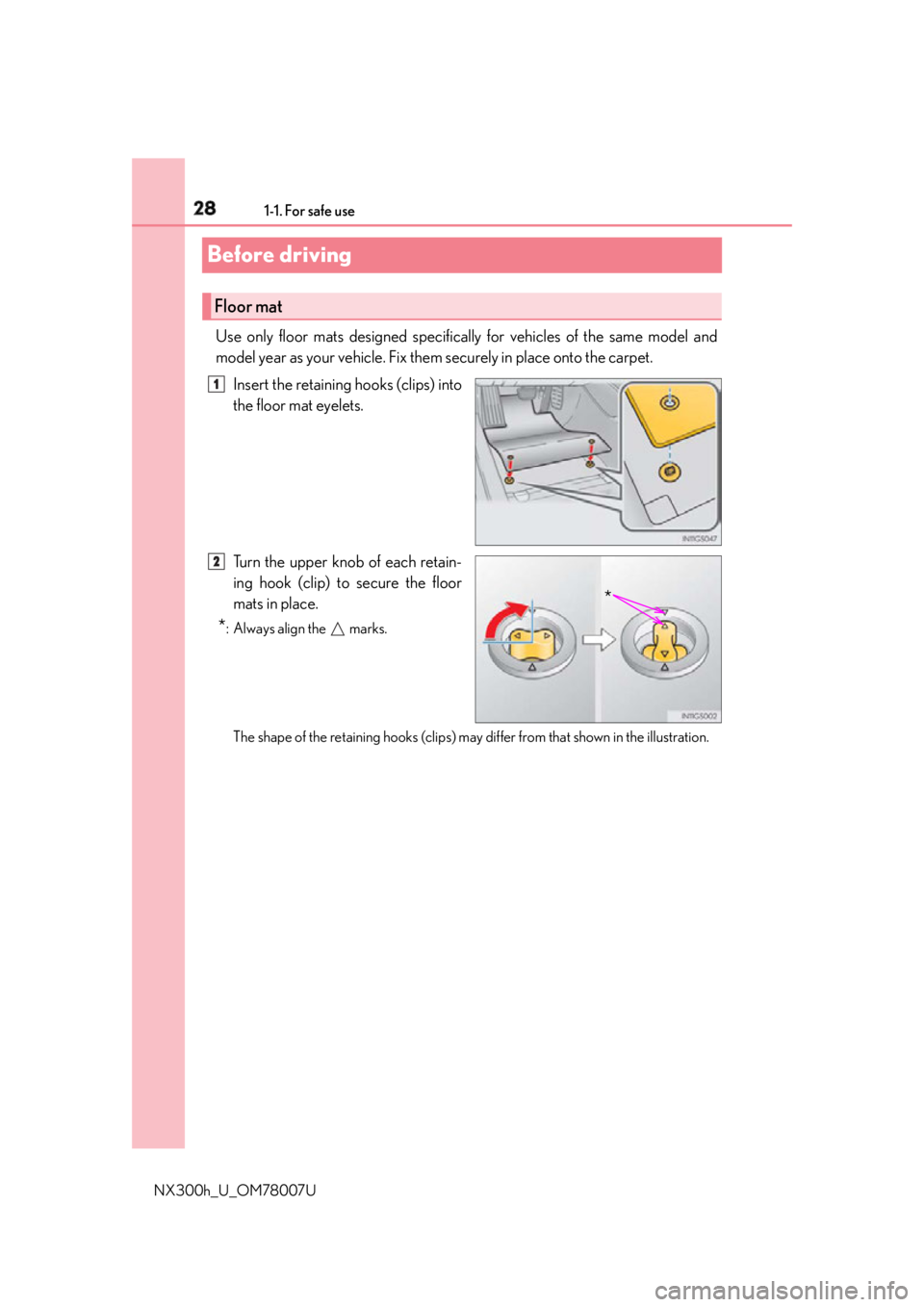

NX300h_U_OM78007UBefore driving Use only floor mats designed specifical ly for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.
Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
* : Always align the marks.
The shape of the retaining hook s (clips) may differ from that shown in the illustration.Floor mat 1
*2

291-1. For safe use
1
For safety and security

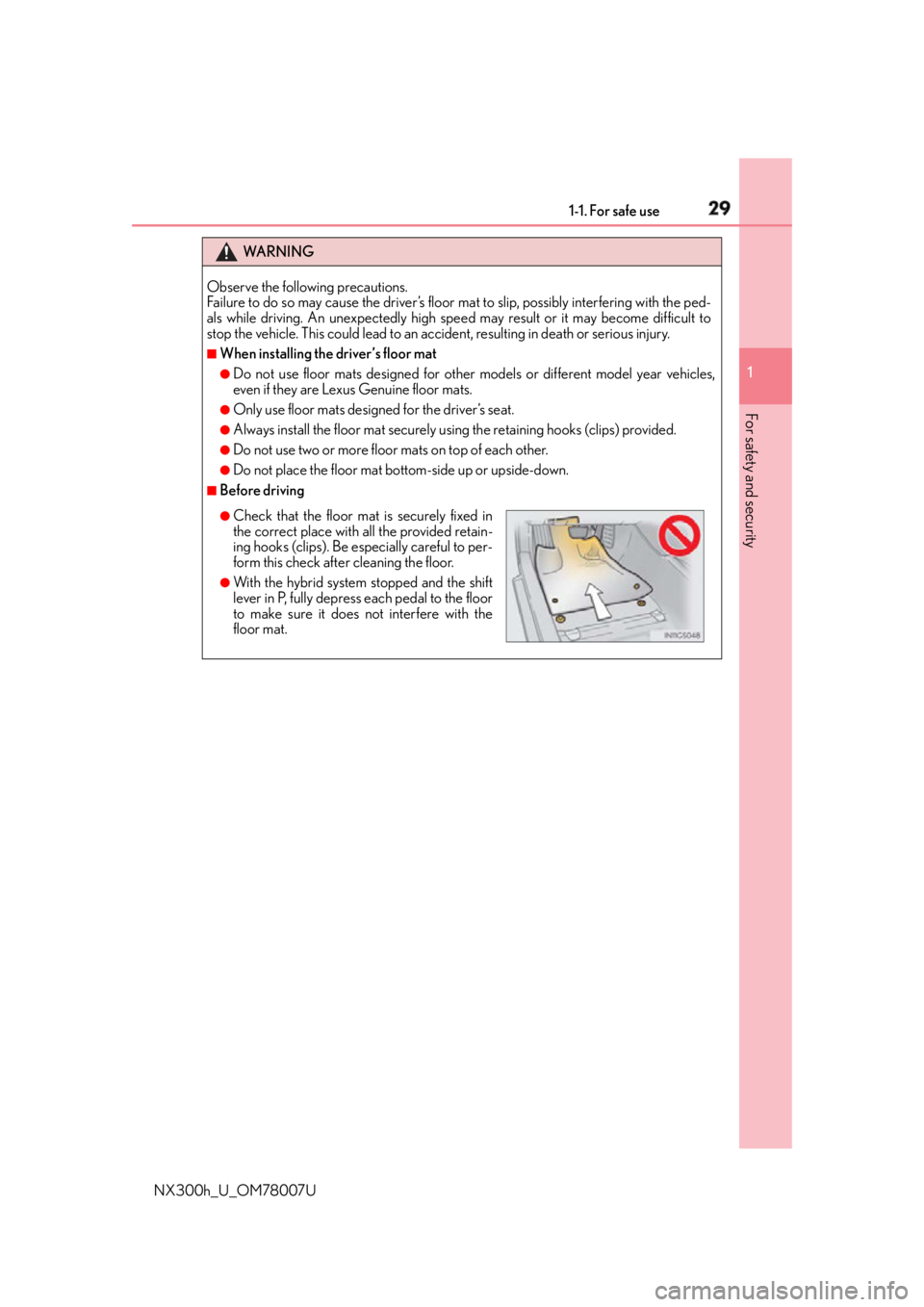

NX300h_U_OM78007U WA R N I N G
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the ped-
als while driving. An unexpectedly high spee d may result or it may become difficult to
stop the vehicle. This could lead to an ac cident, resulting in death or serious injury.■
When installing the driver’s floor mat ●
Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats. ●
Only use floor mats designed for the driver’s seat. ●
Always install the floor mat securely using the retaining hooks (clips) provided. ●
Do not use two or more floor mats on top of each other. ●
Do not place the floor mat bottom-side up or upside-down. ■
Before driving ●
Check that the floor mat is securely fixed in
the correct place with all the provided retain-
ing hooks (clips). Be especially careful to per-
form this check after cleaning the floor. ●
With the hybrid system stopped and the shift
lever in P, fully depress each pedal to the floor
to make sure it does not interfere with the
floor mat.

30 1-1. For safe use

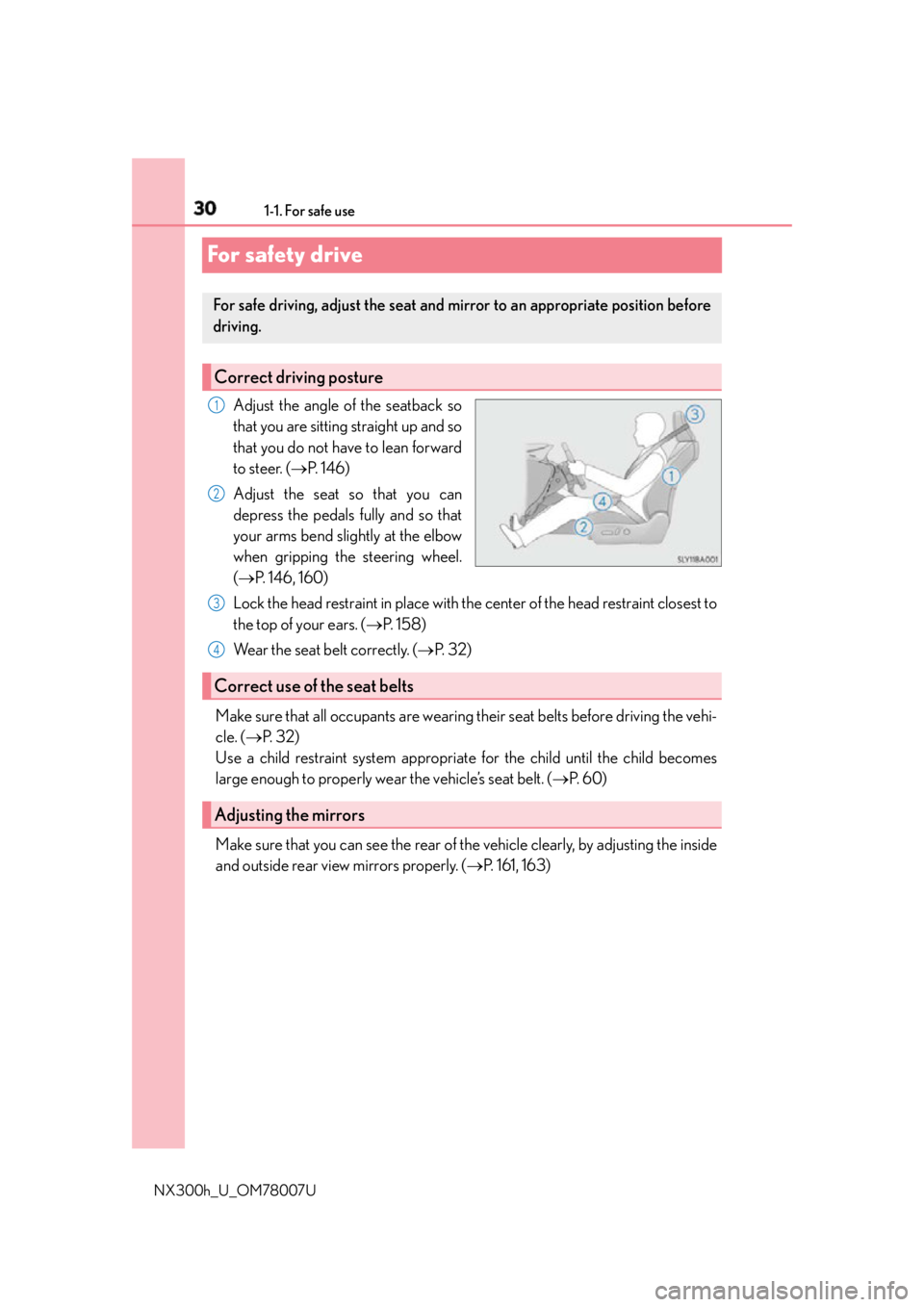

NX300h_U_OM78007UFor safety drive Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (  P. 1 4 6 )
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
(  P. 1 4 6 , 1 6 0 )
Lock the head restraint in place with th e center of the head restraint closest to
the top of your ears. (  P. 1 5 8 )
Wear the seat belt correctly. (  P. 3 2 )
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. (  P. 3 2 )
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. (  P. 6 0 )
Make sure that you can see the rear of the vehicle clearly, by adjusting the inside
and outside rear view mirrors properly. (  P. 161, 163)For safe driving, adjust the seat and mi rror to an appropriate position before
driving.
Correct driving posture 1
2
Correct use of the seat belts
Adjusting the mirrors 3
4
