LEXUS NX300H 2016 Owners Manual

1112. Instrument cluster
2
Instrument cluster
NX300h_OM_USA_OM78082U
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-information display
and the navigation system (if equippe d)/Lexus Display Audio system (if
equipped).
Multi-information display
Navigation system screen/Lexus
Display Audio screen (if equipped)
“DISP” switch/Meter control
switches
Vehicles with a navigation system
“MENU” button
To u c h p a d
*
Vehicles with a Lexus Display Audio
system
“MENU” button
Lexus Display Audio controller
( P. 3 3 8 )
*: For use of the Remote Touch, refer to
“NAVIGATION SYSTEM OWNER’S
MANUAL”.
1
2
3
4
5
6
7

1122. Instrument cluster
NX300h_OM_USA_OM78082U
Navigation system screen
Press the “MENU” button on the
Remote Touch, then select “Info” on the
“Menu” screen, and then select “Fuel
Consumption”.
If the “Trip Information” or “Past Record”
screen is displayed, select “Energy”.
Lexus Display Audio screen
Press the “MENU” button on the Lexus
Display Audio controller, then select
“Info” on the “Menu” screen, and then
select “Fuel Consumption”.
If the “Energy Monitor” screen does not
appear, move the controller to the right
and select “Energy”.
Multi-information display
Press or of the meter control switches and select , and then or
to select the energy monitor display.
Energy monitor
Navigation system screen or Lexus Display Audio screenMulti-information display
When the vehicle is
powered by the elec-
tric motor (traction
motor)
When the vehicle is
powered by both the
gasoline engine and
the electric motor
(traction motor)

1132. Instrument cluster
2
Instrument cluster
NX300h_OM_USA_OM78082U
These images are examples only, and may vary slightly from actual conditions.
When the vehicle is
powered by the gaso-
line engine
When the vehicle is
charging the hybrid
battery (traction bat-
tery)
When there is no
energy flow
Hybrid battery (trac-
tion battery) status
LowFullLowFull
Navigation system screen or Lexus Display Audio screenMulti-information display

1142. Instrument cluster
NX300h_OM_USA_OM78082U
■Trip information
Navigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.
If the “Energy Monitor” or “Past Record” screen is displayed, select “Trip Informa-
tion”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( P. 1 1 6 )
Fuel consumption (vehicles with a navigation system or Lexus Display
Audio system)
1
2
3
4
5
6
7

1152. Instrument cluster
2
Instrument cluster
NX300h_OM_USA_OM78082U
Lexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, then select
“Info” on the “Menu” screen, and then select “Fuel Consumption”.
If the “Trip Information” screen does not appear, move the controller to the right
and select “Trip Information”.
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the
hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range (P. 1 1 6 )
Average fuel consumption fo r the past 15 minutes is divided by color into past
averages and averages attained since th e power switch was last turned to ON
mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
■Past record
Navigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on the
“Menu” screen, and then select “Fuel Consumption”.
If the “Energy Monitor” or “Trip Information” screen is displayed, select “Past
Record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data
1
2
3
4
5
6
1
2
3
4
5

1162. Instrument cluster
NX300h_OM_USA_OM78082U
Lexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, then select
“Info” on the “Menu” screen, and then select “Fuel Consumption”.
If the “Past Record” screen does not appe ar, move the controller to the right and
select “Past Record”.
Previous fuel consumption record
Current fuel consumption
Best recorded fuel consumption
The average fuel consumption history is divided by color into past averages
and the average fuel consumption since the last updated. Use the displayed
average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
■Updating the past record data
Vehicles with a navigation system
Update the average fuel consumption by selecting “Update” to measure the current fuel
consumption again.
Vehicles with a Lexus Display Audio system
Update the average fuel consumption by moving the controller to the left and select
“Update” to measure the current fuel consumption again.
■Resetting the data
Vehicles with a navigation system
The fuel consumption data can be deleted by selecting “Clear”.
Vehicles with a Lexus Display Audio system
The fuel consumption data can be deleted by moving the controller to the left and select
“Clear ”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
1
2
3

117
3
Operation of
each component
NX300h_OM_USA_OM78082U
3-1. Key information
Keys ....................................................118
3-2. Opening, closing and locking the doors
Side doors ....................................... 124
Back door........................................129
Smart access system with push-button start...................... 140
3-3. Adjusting the seats Front seats ...................................... 146
Rear seats ........................................ 147
Driving position memory ......... 154
Head restraints ............................ 158
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 160
Inside rear view mirror................ 161
Outside rear view mirrors ....... 163
3-5. Opening, closing the windows and moon roof
Power windows ............................ 166
Moon roof .......................................169

1183-1. Key information
NX300h_OM_USA_OM78082U

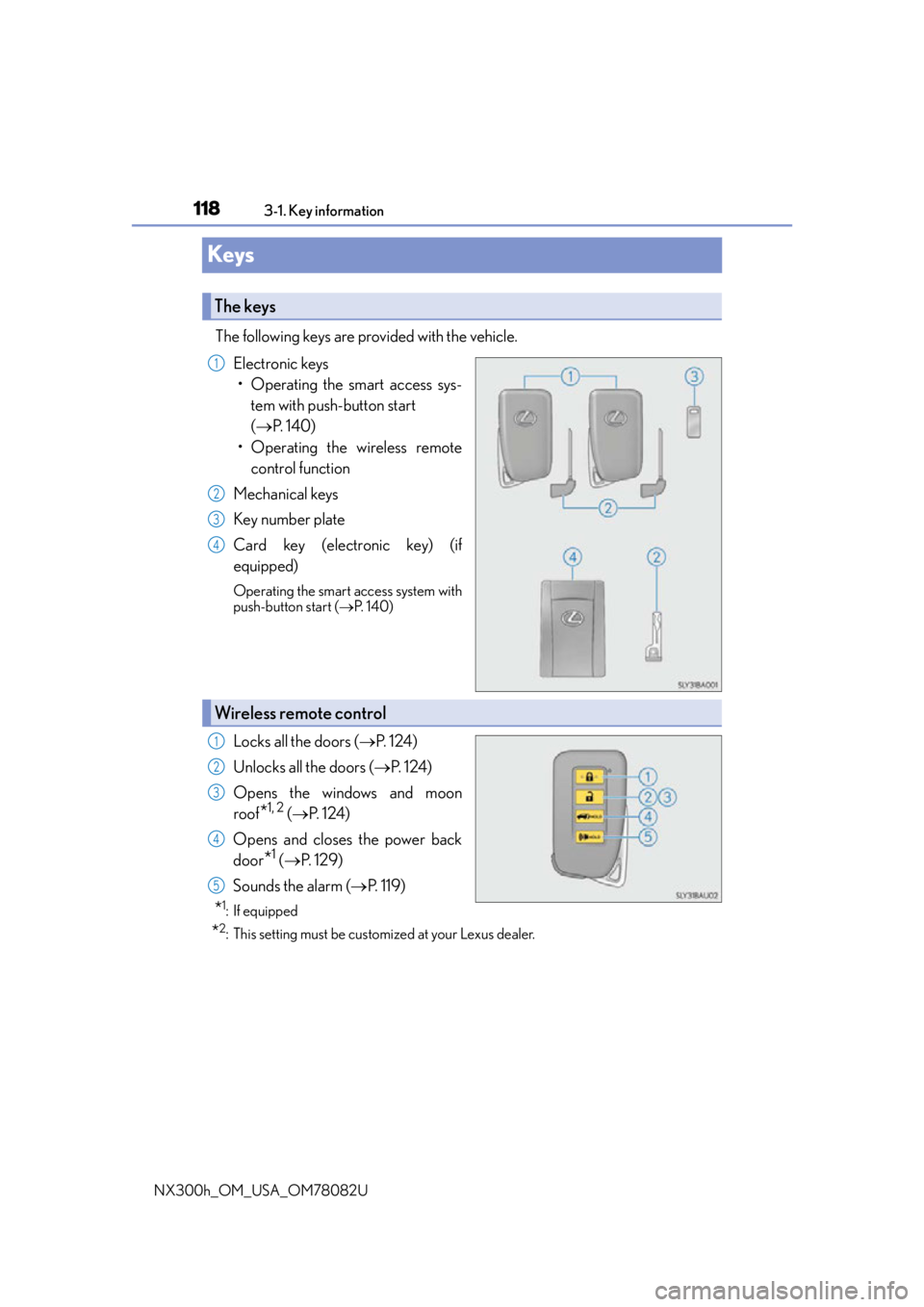

Keys
The following keys are provided with the vehicle. Electronic keys• Operating the smart access sys- tem with push-button start
( P. 1 4 0 )
• Operating the wireless remote control function
Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)
Operating the smart access system with
push-button start ( P. 1 4 0 )
Locks all the doors ( P. 1 2 4 )
Unlocks all the doors ( P. 1 2 4 )
Opens the windows and moon
roof
*1, 2 (  P. 1 2 4 )
Opens and closes the power back
door
*1 (  P. 1 2 9 )
Sounds the alarm ( P. 1 1 9 )
*1:If equipped
*2: This setting must be customized at your Lexus dealer.
The keys
1
2
3
4
Wireless remote control
1
2
3
4
5

1193-1. Key information
3
Operation of each component
NX300h_OM_USA_OM78082U
To take out the mechanical key, push
the release button and take the key out.
The mechanical key can only be
inserted in one direction, as the key only
has grooves on one side. If the key can-
not be inserted in a lock cylinder, turn it
over and re-attempt to insert it.
After using the mechanical key, store it
in the electronic key. Carry the mechan-
ical key together with the electronic key.
If the electronic key battery is depleted
or the entry function does not operate
properly, you will need the mechanical
key. (P. 5 9 1 )
■Panic mode
Using the mechanical key
When is pressed for longer than about
1 second, an alarm will sound intermittently and
the vehicle lights will flash to deter any person
from trying to break into or damage your vehi-
cle.
To stop the alarm, press any button on the elec-
tronic key.

1203-1. Key information
NX300h_OM_USA_OM78082U
■Card key (if equipped)
●The mechanical key that is st ored inside the card key should be used only if a problem
arises, such as when the card key does not operate properly.
●If it is difficult to take out the mechanical key, push down the release button using a pen
tip, etc. If it is still difficult to pull it out, use a coin, etc.
●The card key is not waterproof.
■When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. ( P. 4 4 7 )
Remove the mechanical key for your own use and provide the attendant with the elec-
tronic key only.
■If you lose your mechanical keys
New genuine mechanical keys can be made by your Lexus dealer using another
mechanical key and the key number stamped on your key number plate. Keep the plate
in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any but-
tons on the electronic key while inside the airc raft cabin. If you are carrying an electronic
key in your bag, etc., ensure that the butt ons are not likely to be pressed accidentally.
Pressing a button may cause the electronic key to emit radio waves that could interfere
with the operation of the aircraft.
●To store the mechanical key in the card key,
insert it while pressing the release button.
●If the battery cover is not installed and the bat-
tery falls out or if the battery was removed
because the key got wet, reinstall the battery
with the positive terminal facing the Lexus
emblem.
