6018-2. Steps to take in an emergency
8
When trouble arises
NX300h_OM_USA_OM78082U

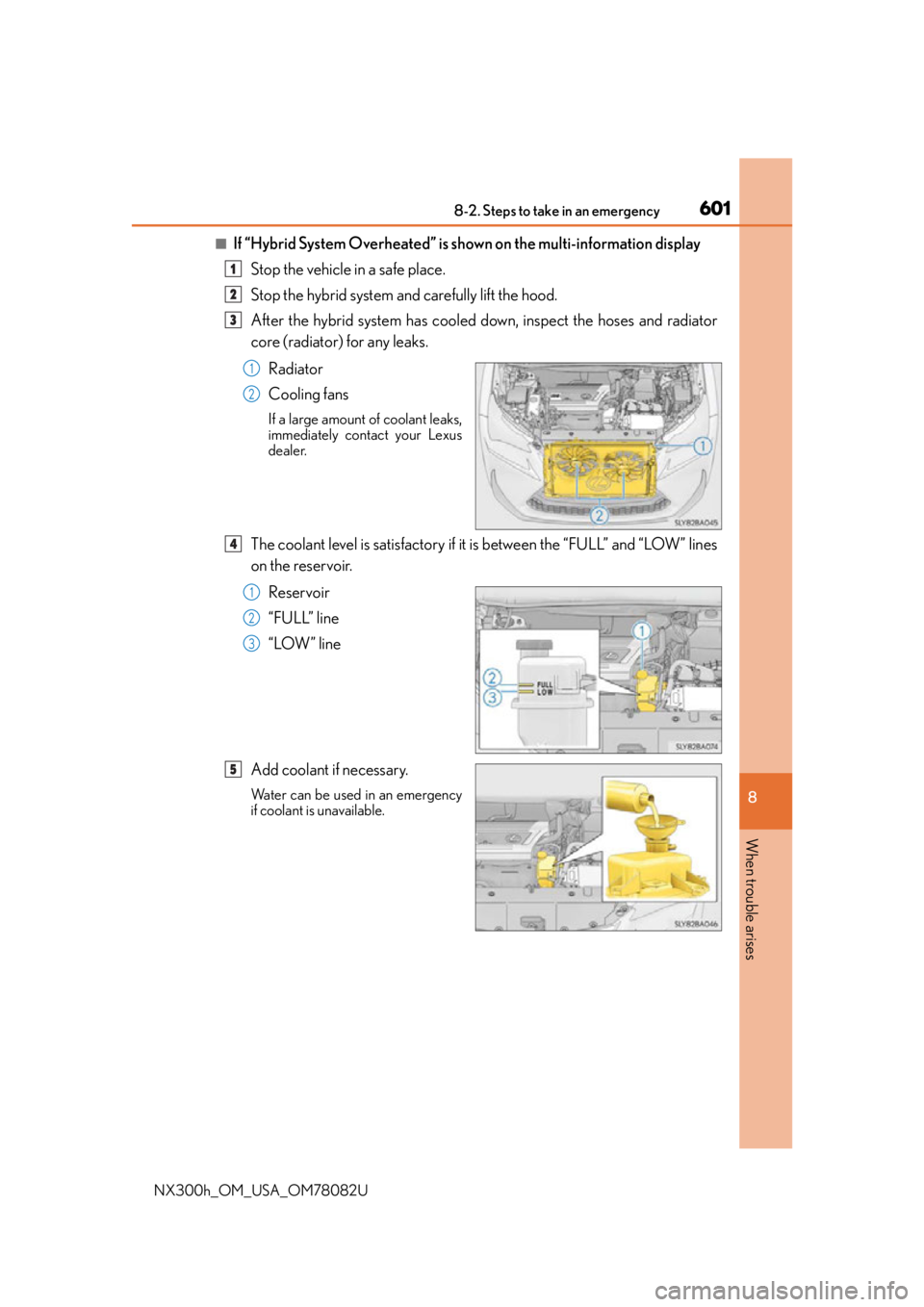

■If “Hybrid System Overheated” is shown on the multi-information displayStop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and radiator
core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir.Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emergency
if coolant is unavailable.
1
2
3
1
2
4
1
2
3
5

6028-2. Steps to take in an emergency
NX300h_OM_USA_OM78082U
Start the hybrid system and check if “Hybrid System Overheated” is shown
on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
WA R N I N G
■To prevent an accident or injury when in specting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the “READY” indicator is off.
When the hybrid system is operating, the gasoline engine may automatically start, or
the cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the fa n, which may lead to fingers or clothing
(especially a tie, a scarf or a muffler) ge tting caught, resulting in serious injury.
●Do not loosen the coolant reservoir cap while the hybrid system and radiator are hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool
coolant to a hot hybrid system too quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
6

6319-2. Customization
9
Vehicle specifications
NX300h_OM_USA_OM78082U
Customizable features
Some function settings are changed simultaneously with other functions being
customized. Contact your Lexus dealer.
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set.
■Changing using the Remote TouchPress the “MENU” button on the Remote Touch.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the Lexus Display Audio controller Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the multi-information display
Press or of the meter control switches, select , and then
press .
Press or of the meter control switches, select the item, and then
press .
Press or of the meter control switches, select the desired setting,
and then press .
To go back to the previous screen or exit the customize mode, press .

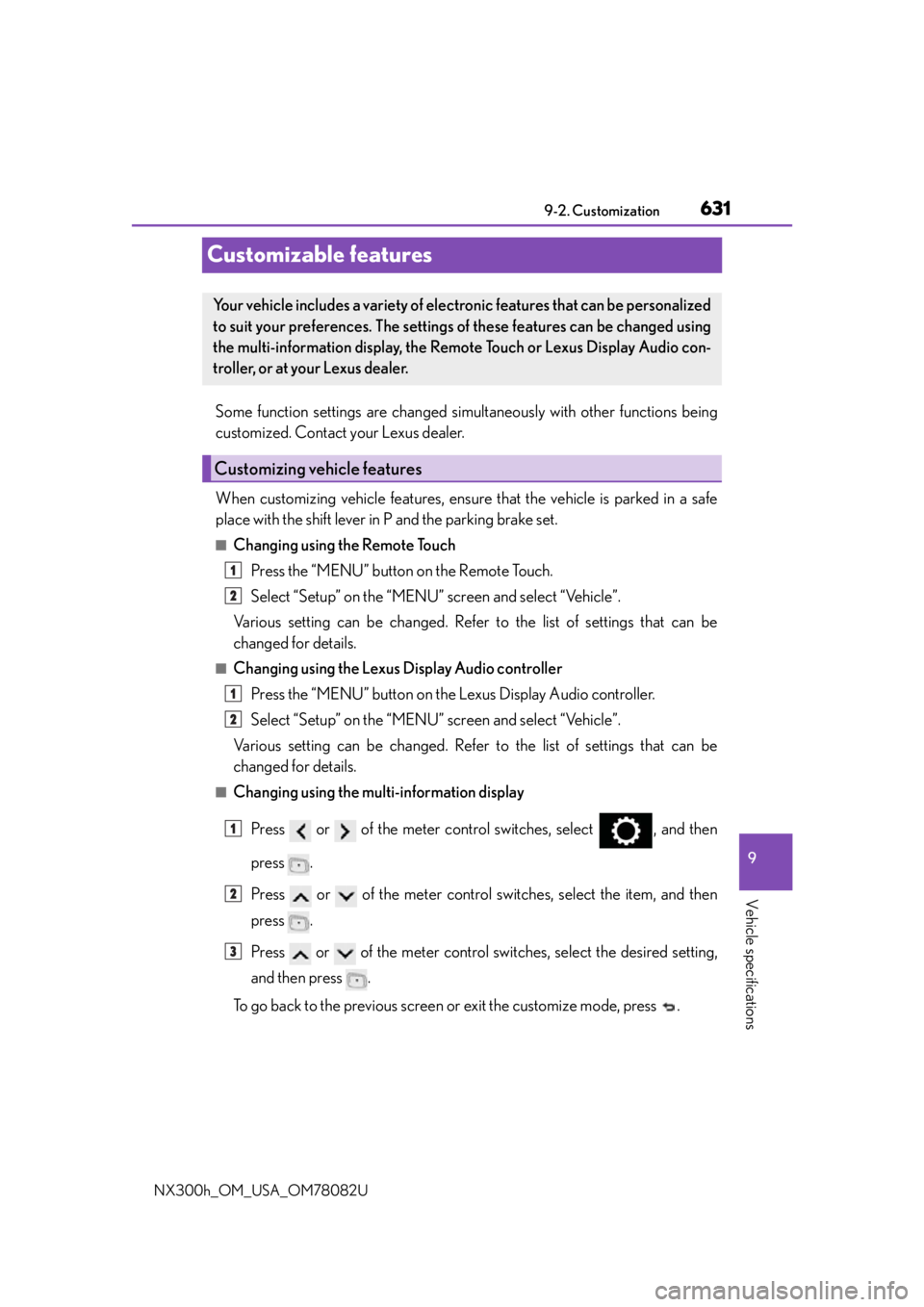

Your vehicle includes a variety of electronic features that can be personalized
to suit your preferences. The settings of these features can be changed using
the multi-information display, the Remo te Touch or Lexus Display Audio con-
troller, or at your Lexus dealer.
Customizing vehicle features
1
2
1
2
1
2
3

6329-2. Customization
NX300h_OM_USA_OM78082U
Settings that can be changed using the Remote Touch or Lexus Display Audio
controller
Settings that can be changed us ing the multi-information display
Settings that can be changed by your Lexus dealer
Settings that can be changed using the vehicle switch
Definition of symbols: O = Available, – =Not available

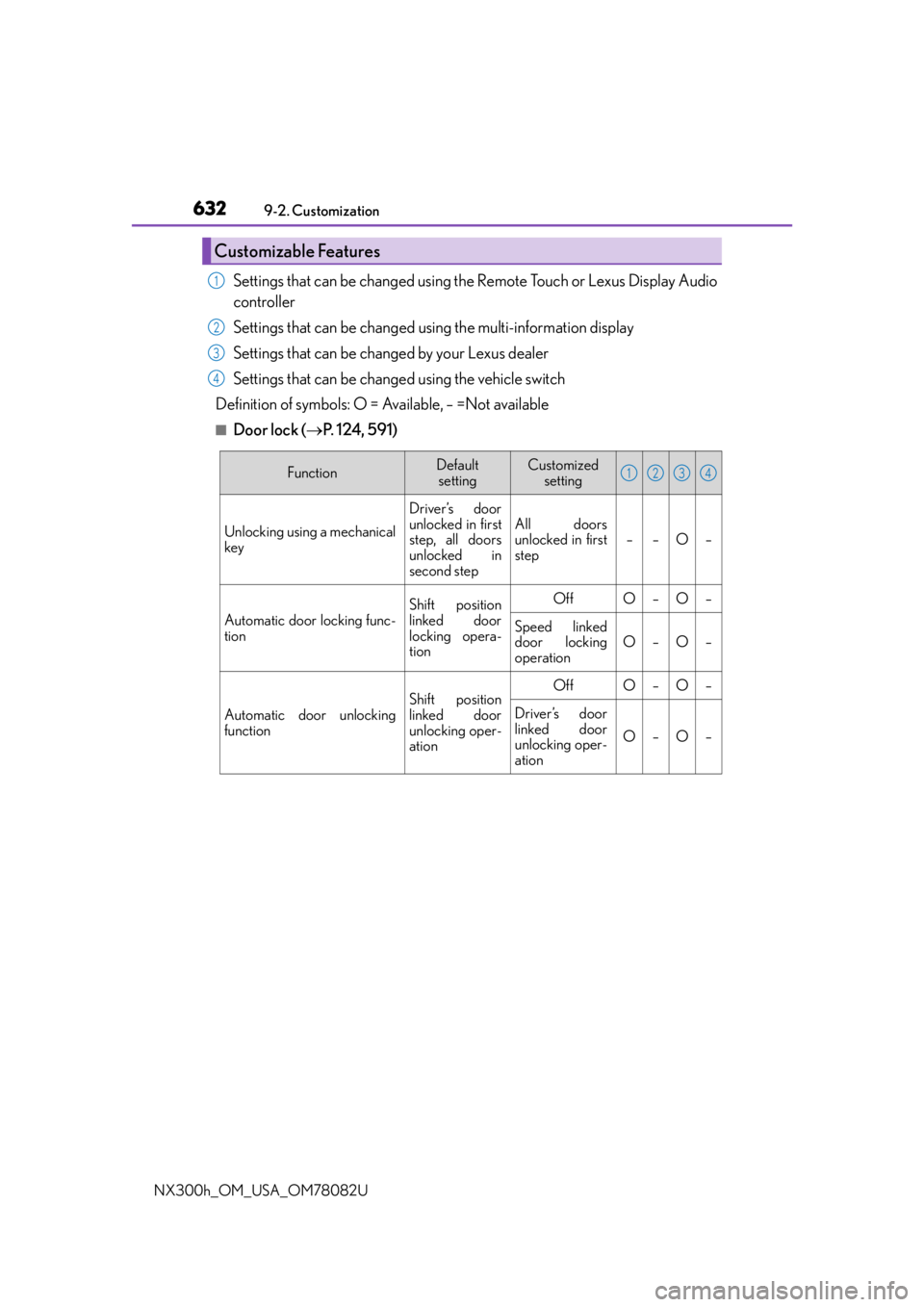

■Door lock ( P. 1 2 4 , 5 9 1 )
Customizable Features
1
2
3
4
FunctionDefault
settingCustomized setting
Unlocking using a mechanical
key
Driver’s door
unlocked in first
step, all doors
unlocked in
second step
All doors
unlocked in first
step––O–
Automatic door locking func-
tion
Shift position
linked door
locking opera-
tionOffO–O–
Speed linked
door locking
operationO–O–
Automatic door unlocking
function
Shift position
linked door
unlocking oper-
ationOffO–O–
Driver’s door
linked door
unlocking oper-
ation
O–O–
1234

6369-2. Customization
NX300h_OM_USA_OM78082U

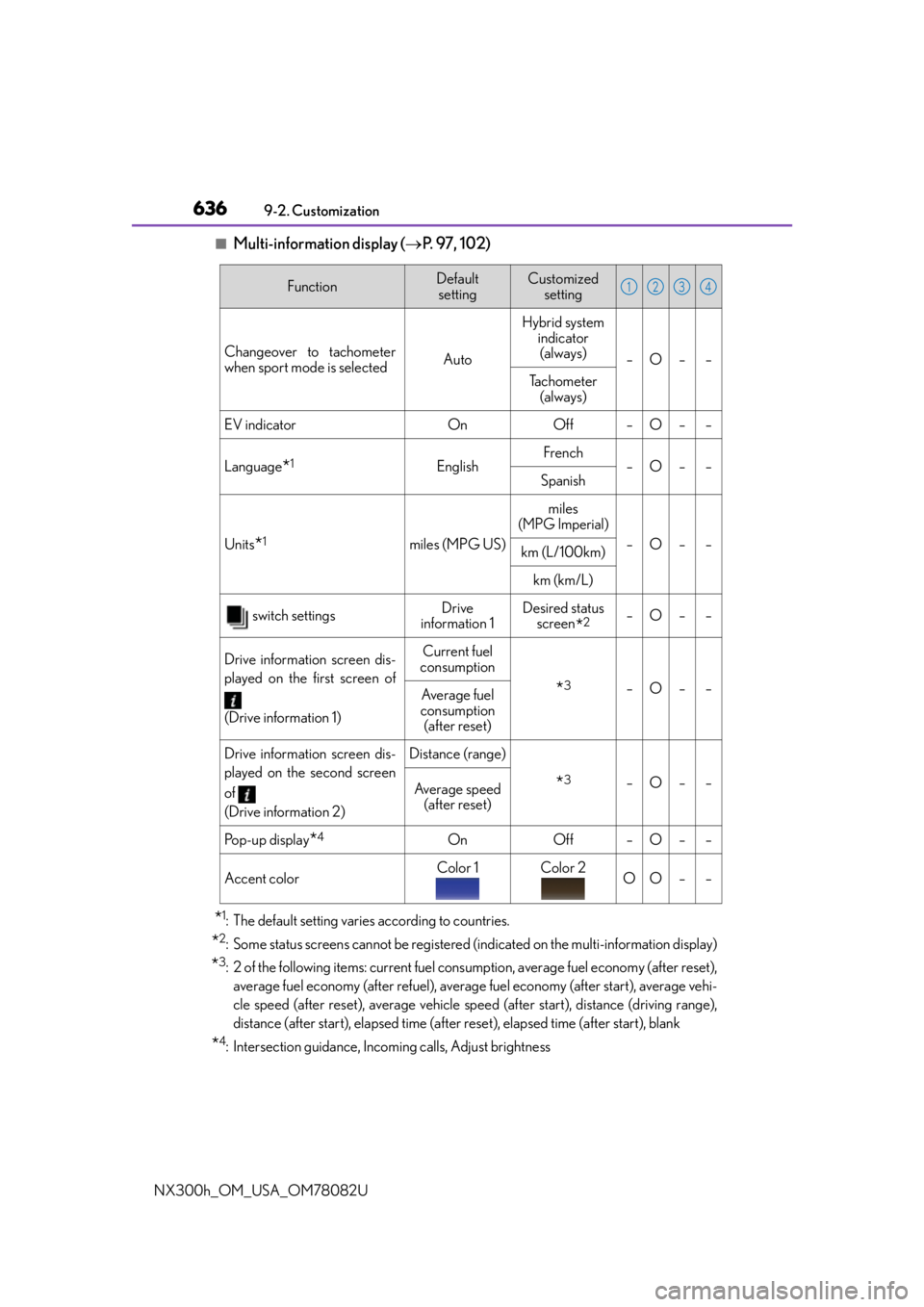

■Multi-information display ( P. 9 7 , 1 0 2 )
*1: The default setting varies according to countries.
*2: Some status screens cannot be registered (indicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
*4: Intersection guidance, Incoming calls, Adjust brightness
FunctionDefault settingCustomized setting
Changeover to tachometer
when sport mode is selected AutoHybrid system
indicator (always) –O– –
Tachometer (always)
EV indicatorOnOff–O––
Language*1EnglishFrench–O––Spanish
Units*1miles (MPG US)
miles
(MPG Imperial)
–O––km (L/100km)
km (km/L)
switch settingsDrive
information 1Desired status screen
*2–O––
Drive information screen dis-
played on the first screen of

(Drive information 1)Current fuel
consumption
*3–O––Average fuel
consumption (after reset)
Drive information screen dis-
played on the second screen
of
(Drive information 2)Distance (range)
*3–O––Average speed
(after reset)
Po p - u p d i s p l a y*4OnOff–O––
Accent colorColor 1Color 2OO––
1234

6389-2. Customization
NX300h_OM_USA_OM78082U
■Intuitive parking assist* (  P. 2 7 9 )
*:If equipped
■Driving position memory* ( P. 1 5 4 )
*:If equipped
■Outside rear view mirrors ( P. 1 6 3 )
■LDA (Lane Departure Alert with steering control)* ( P. 2 7 0 )
*:If equipped
FunctionDefault
settingCustomized setting
Detection distance of the
front center sensorLongShortO–O–
Detection distance of the rear
center sensorLongShortO–O–
Display setting (When intui-
tive parking assist is operat-
ing)
OnOffO–O–
Buzzer volume31 to 5O–O–
1234
FunctionDefault settingCustomized setting
Driver’s seat movement when
exiting the vehicleStandardOffO–O–Pa r t i a l
Selection the door linking
driving position memory with
door unlock operation
Driver’s doorAll doors––O–
1234
FunctionDefault settingCustomized setting
Linked mirror function when
reversingOnOff––O–
1234
FunctionDefault settingCustomized setting
Steerage assistOnOff–O––
Sensitivity adjustment for the
lane deviation alert buzzerStandardHigh–O––
1234

6399-2. Customization
9
Vehicle specifications
NX300h_OM_USA_OM78082U
■Power back door*1 ( P. 1 2 9 )
*1:If equipped
*2: Configured by operating the switch of the lower back door. ( P. 1 3 2 
*3: While carrying the electronic key on your person, press the back door opener switch.
■Vehicle customization
●When the speed linked door locking functi on and shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all th e doors will be locked.
• If the vehicle is started with all the door s locked, the speed linked door locking func-
tion would not operate.
• If the vehicle is started with any door un locked, the speed linked door locking func-
tion will operate.
●When the smart access system with push-but ton start is off, smart door unlocking can-
not be customized.
●When the doors remain closed after unloc king the doors and the automatic door lock
function is activated, the signals will be generated in accordance with the Operation
signal (buzzer) and the Operation si gnal (emergency flashers) settings.
■In the following situations, customize mo de in which the settings can be changed
through the multi-in formation display will automatically be turned off.
●A warning message appears after the cu stomize mode screen is displayed.
●The power switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.
FunctionDefault
settingCustomized setting
Set at the desired Position
(height)
*2
Back Door Automatic
Open and Stop Position
Initial settings Po s i t i o nStop at the
desired position
(height)–––O
5 step configuration
Back Door Automatic
Open and Stop Position
51 to 5O–O–
Back door opener switch
operationsWhen the back
door is locked
*3When the back
door is unlocked––O–
Power back door operationsOnOff–O––
1234

658What to do if... (Troubleshooting)
NX300h_OM_USA_OM78082U
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 5 6 7 )
●The parking brake indicator is on
Is the parking brake released? ( P. 2 1 3 )
Depending on the situation, other type s of warning buzzer may also sound.
( P. 5 6 5 , 5 7 2 )
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 8 8 )
To stop the alarm, turn the power switch to ON mode or start the hybrid system.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. ( P. 5 7 2 )
●When a warning light turns on or a warning message is displayed, refer to
P. 5 6 5 , 5 7 2 . A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

663Alphabetical index
NX300h_OM_USA_OM78082U
Coat hooks.............................................. 466
Compass .................................................. 473
Condenser .............................................. 509
Console box ........................................... 447
Consumption screen ...............................111
CoolantCapacity .................................................... 611
Checking...............................................508
Preparing and checking before winter ....................................326
Warning light ...................................... 565
Cooling system .....................................508 Hybrid system overheating ......... 599
Cruise control Cruise control...................................... 267
Dynamic radar cruise control ..................................................240
Dynamic radar cruise control with full-speed range ....................253
Cup holders ............................................ 448
Curtain shield airbags ........................... 40
Customizable features .........................631 Daytime running light system............ 221
Deck board..............................................452
Deck under tray ...................................... 451
Defogger
Outside rear view mirrors ............ 435
Rear window ........................................ 435
Windshield............................................ 435
Differential ................................................ 612
Dimension ............................................... 606
Dinghy towing ....................................... 200
Display Drive information ................................ 103
Dynamic radar cruise control.................................................. 240
Dynamic radar cruise control with full-speed range ................... 253
Energy monitor........................................ 111
LDA (Lane Departure Alert with steering control) ................... 270
Multi-information display.................102
Warning messages .......................... 572
Do-it-yourself maintenance............. 498
Doors Automatic door locking and unlocking system.............................. 127
Back door................................................ 129
Door glasses ..........................................166
Door lock................................................. 124
Outside rear view mirrors ..............163
Rear door child-p rotectors ............ 126
Side doors ............................................... 124D

664Alphabetical index
NX300h_OM_USA_OM78082U
Drive information .................................. 103
Drive-start control .......................175, 210
Driver’s seat belt reminder light.......................................................... 567
Driver’s seat position memory ..........154
Driving Break-in tips ...........................................176
Correct posture.....................................30
Driving mode select switch ......... 303
Hybrid vehicle driving tips............. 324
Procedures .............................................174
Winter drive tips .................................326
Driving position memory.....................154 Memory recall function.................... 156
Dynamic radar cruise control Function ..................................................240
Warning message ............................. 572
Dynamic radar cruise control with full-speed rangeFunction ..................................................253
Warning message ............................. 572 ECB (Electronically Controlled
Brake System) .................................... 305
Eco drive mode..................................... 303
EDR (Event data recorder).....................11
E-Four ....................................................... 306
Electric motor Location ..................................................... 77
Specification ........................................ 608
Electric Power Steering (EPS) Function ..................................................305
Warning light .......................................566
Electronic key Battery-saving function ......................141
If the electronic key does not operate properly ..............................591
Replacing the battery ...................... 532
Electronically Controlled Brake System (ECB) ....................... 305
Emergency flashers ............................ 556
Emergency, in case of If a warning buzzer sounds ..........565
If a warning light turns on ..............565
If a warning message is displayed ............................................ 572
If the 12-volt battery is discharged......................................... 594
If the electronic key does not operate properly ..............................591
If the hybrid system will not start .............................................. 588E
