When trouble arises ■
Brake Override System/Drive-S tart Control warning light *
*
: This light illuminates on the multi-information display.
■
SRS warning light
This warning light system monitors the air-
bag sensor assembly, fr ont impact sensors,
side impact sensors (front door), side
impact sensors (rear), driver’s seat position
sensor, driver’s seat be lt buckle switch, front
passenger occupant cl assification system
(ECU and sensors), “AIR BAG ON” indi-
cator light, “AIR BAG OFF” indicator light,
front passenger’s seat belt buckle switch,
driver’s seat belt pretensioner, front passen-
ger’s seat belt pretensioner and force lim-
iter, airbags, interconnecting wiring and
power sources. ( → P.32)
■
Front passenger detection sensor, seat
belt reminder and warning buzzer
●
If luggage is placed on the front passen-
ger seat, the front passenger detection
sensor may cause th e warning light to
flash and the warning buzzer to sound even if a passenger is not sitting in the
seat. ●
If a cushion is placed on the seat, the sen-
sor may not detect a passenger, and the
warning light may no t operate properly.■
Electric power steering system warning
light (warning buzzer)
When the 12-volt battery charge becomes
insufficient of the voltage temporarily drops,
the electric power steering system warning
light may come on and the warning buzzer
may sound.
■
If the malfunction indicator lamp comes
on while driving
First check the following:
●
Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●
Is the fuel tank cap loose?
If it is, tighten it securely.Warning light Details/Actions
Brake Override System
Indicates that the accelerato r and brake pedals are being
depressed simultaneously, and the Brake Override System
is operating.
→ Release the accelerator pedal and depress the brake
pedal.
Indicates a malfunction in the Brake Override System (with
warning buzzer)
→ Have the vehicle inspected by your Lexus dealer
immediately.
Drive-Start Control
Indicates that the shift position was changed and Drive-
Start Control was operated wh ile depressing the accelera-
tor pedal. (with warning buzzer)
→ Momentarily release th e accelerator pedal.
Indicates a malfunction in th e Drive-Start Control system
(with warning buzzer)
→ Have the vehicle inspected by your Lexus dealer
immediately.

372 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U The light will go off after several driving
trips.
If the light does not go off even after several
trips, contact your Lexus dealer as soon as
possible. ■
When the tire pressure warning light
comes on
Inspect the appearance of the tire to check
that the tire is not punctured.
If the tire is punctured: → P.377
If the tire is not punctured:
Carry out the following procedure after the
tire temperature has lowered sufficiently. ●
Check the tire inflation pressure and
adjust to the appropriate level.●
If the warning light does not go out even
after several minutes, check that the tire
inflation pressure is at the specified level
and carry out initialization. ( → P.341)
The warning light may come on again if the
above operations are conducted without
first allowing the tire temperature to lower
sufficiently. ■
The tire pressure warning light may
come on due to natural causes
The tire pressure wa rning light may come
on due to natural causes such as natural air
leaks and tire inflation pressure changes
caused by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the
warning light (after a few minutes).■
When a tire is replaced with a spare tire
The compact spare tire is not equipped with
a tire pressure warning valve and transmit-
ter. If a tire goes flat, the tire pressure warn-
ing light will not turn off even though the flat
tire has been replaced with the spare tire.
Replace the spare tire with the repaired tire
and adjust the tire inflation pressure. The
tire pressure warning lig ht will go off after a
few minutes.
■
Conditions that the tire pressure warn-
ing system may not function properly
→ P.340
■
If the tire pressure warning light fre-
quently comes on after blinking for 1
minute
If the tire pressure wa rning light frequently comes on after blinking for 1 minute when
the power switch is turned to ON mode,
have it checked by your Lexus dealer. ■
Warning buzzer
In some cases, the buzzer may not be heard
due to being in a noisy location or audio
sound.
WARNING■
If both the ABS and the brake system
warning lights remain on
Stop your vehicle in a safe place immedi-
ately and contact your Lexus dealer. The
vehicle will become extremely unstable
during braking, and the ABS system may
fail, which could cause an accident
resulting in death or serious injury.■
When the electric power steering
system warning light comes on
When the light comes on yellow, the
assist to the power st eering is restricted.
When the light comes on red, the assist
to the power steering is lost and handling
operations of the steering wheel become
extremely heavy. When steering wheel
operations are heavier than usual, grip
the steering wheel firmly and operate it
using more force than usual. ■
If the tire pressure warning light
comes on
Be sure to observe the following precau-
tions. Failure to do so could cause a loss
of vehicle control and result in death or
serious injury. ●
Stop your vehicle in a safe place as
soon as possible. Adjust the tire infla-
tion pressure immediately.
●
If the tire pressure warning light comes
on even after tire inflation pressure
adjustment, it is prob able that you have
a flat tire. Check the tire s. If a tire is flat,
change it with the spare tire and have
the flat tire repaired by the nearest
Lexus dealer.

3737-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises WARNING●
Avoid abrupt maneuvering and brak-
ing. If the vehicle tires deteriorate, you
could lose control of the steering
wheel or the brakes.■
If a blowout or sudden air leakage
should occur
The tire pressure warning system may
not activate immediately. ■
Maintenance of the tires
Each tire, including the spare (if pro-
vided), should be checked monthly when
cold and inflated to the inflation pressure
recommended by the vehicle manufac-
turer on the vehicle placard or tire infla-
tion pressure label (tire and load
information label). (I f your vehicle has
tires of a different size than the size indi-
cated on the vehicle placard or tire infla-
tion pressure label [tire and load
information label], yo u should determine
the proper tire infl ation pressure for
those tires.)
As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS-tire pressure
warning system) that illuminates a low
tire pressure telltale (tire pressure warn-
ing light) when one or more of your tires
is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale
(tire pressure warnin g light) illuminates,
you should stop and check your tires as
soon as possible, and inflate them to the
proper pressure. Driving on a signifi-
cantly under-inflated tire causes the tire
to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect
the vehicle’s handling and stopping abil-
ity. Please note that the TPMS (tire pressure
warning system) is not a substitute for
proper tire maintenance, and it is the
driver’s responsibility to maintain correct
tire pressure, even if under-inflation has
not reached the level to trigger illumina-
tion of the TPMS low tire pressure telltale
(tire pressure warning light).
Your vehicle has also been equipped with
a TPMS (tire pressure warning system)
malfunction indicator to indicate when
the system is not operating properly. The
TPMS (tire pressure warning system)
malfunction indicator is combined with
the low tire pressure telltale (tire pres-
sure warning light) . When the system
detects a malfunction, the telltale will
flash for approximately one minute and
then remain continuously illuminated.
This sequence will continue upon subse-
quent vehicle start-ups as long as the
malfunction exists. When the malfunction
indicator is illuminated, the system may
not be able to detect or signal low tire
pressure as intended.
TPMS (tire pressure warning system)
malfunctions may occur for a variety of
reasons, including the installation of
replacement or alternate tires or wheels
on the vehicle that prevent the TPMS
(tire pressure warning system) from func-
tioning properly. Always check the
TPMS (tire pressure warning system)
malfunction telltale after replacing one
or more tires or wheels on your vehicle to
ensure that the replacement or alternate
tires and wheels allow the TPMS (tire
pressure warning system) to continue to
function properly.
NOTICE
■
To ensure the tire pressure warning
system operates properly
Do not install tires with different specifi-
cations or makers, as the tire pressure
warning system may not operate prop-
erly.

374 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U If a warning message is dis-
played The multi-information display
shows warnings of system malfunc-
tions, incorrectly performed opera-
tions, and messages that indicate a
need for maintenance. When a
message is shown, perform the cor-
rection procedure appropriate to
the message.
Master warning lightThe master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
multi-information display.
Multi-information displayFollow the instructions of the message
on the multi-information display.
If any of the warning messages are
shown again after the following actions
have been performed, contact your
Lexus dealer. A
B

3757-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises The warning lights and warning buzzers op erate as follows depending on the con-
tent of the message. If a message indicates the need for inspection by a dealer, have
the vehicle inspected by your Lexus dealer immediately.
*
: A buzzer sounds the first time a message is shown on the multi-information display.
■
System warning lights
The master warning light does not come on
or flash in the following cases. Instead, a
separate system warning light will come on
along with a message shown on the multi-
information display.
●
Malfunction of the ABS
The ABS warning light comes on.
( → P.367)
●
Malfunction of the charging system
The charging system warning light comes
on. ( → P.365)
■
If “Hybrid System Overheated Reduced
Output Power” is shown
This message may be displayed when driv-
ing under severe operating conditions. (For example, when driving up a long steep hill.)
Handling method: → P.394■
If “Maintenance required for Traction
battery cooling parts at your dealer” is
shown
The filter may be clogge d, or the air intake
vents or ducts may be blocked. Have the
vehicle inspected by your Lexus dealer.
■
If “Aux Battery Low” is shown
●
When the display goes off after several
seconds *
Maintain the hybrid system operation for
more than 15 minutes and charge the 12-
volt battery.
●
When the display does not go off
Start up the hybrid system using the pro-
cedures for “If the 12-volt battery is dis-Messages and warnings System
warning
light Warning buzzer *
Warning
Comes
on ⎯ Sounds Indicates an important situation, such as
when a system related to driving is malfunc-
tioning or that danger may result if the cor-
rection procedure is not performed
⎯ Comes
on
or flashes Sounds Indicates an important situation, such as
when the systems shown on the multi-infor-
mation display may be malfunctioning
Flashes ⎯ Sounds Indicates a situation, such as when damage
to the vehicle or danger may result
Comes
on ⎯ Does not sound Indicates a condition, such as malfunction of
electrical components, their condition, or
indicates the need for maintenance
Flashes ⎯ Does not sound Indicates a situation, such as when an opera-
tion has been performed incorrectly, or indi-
cates how to perform an operation correctly

376 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U charged” ( → P.390).*
: Displays for about 6 seconds ■
If “Traction Battery Needs to be Pro-
tected Refrain From the Use of N Posi-
tion” is shown
This message may be displayed when the
shift lever is in N.
As the hybrid battery (traction battery) can-
not be charged when the shift lever is in N,
when the vehicle is to be stopped for a long
period of time, shift the shift lever to P. ■
If “Traction battery needs to be pro-
tected. Shift into P to restart.” is shown
Message is displayed when the remaining
charge for the hybrid battery (traction bat-
tery) is low, because vehicle has been
shifted N for a long period of time.
When operating the vehicle, restart the
hybrid system. ■
If “Shift to P Before Exiting Vehicle” is
shown
Message is displayed when the driver’s
door is opened with out turning the power
switch to OFF with the shift lever in any
position other than P.
Shift the shift lever to P. ■
If “Shift Is in N Release Accelerator
Before Shifting” is shown
Message is displayed when the accelerator
pedal has been depressed and the shift
lever is in N. Releas e the accelerator pedal
and shift the shift lever to D, S or R. ■
If “Depress Brake When Vehicle Is
Stopped Hybrid Syst em May Overheat”
is shown
Message is displayed when the accelerator
pedal is depressed to maintain the vehicle
position when stopped on a upward slope,
etc.
If this continues, th e hybrid system may
overheat.
Release the accelerator pedal and depress
the brake pedal.
■
If “Front Camera Unavailable” or “Front
Camera Unavailable Remove Debris
On Windshield” is shown
The following systems may be suspended
until the problem shown in the message is resolved. ( → P.209, 367)●
PCS (Pre-Collision System) ●
LDA (Lane Departure Alert with steering
control) ●
Dynamic radar cruise control with full-
speed range ●
Adaptive High-beam System ●
Automatic High Beam ■
If “Oil Maintenance Required Soon” is
shown
Indicates that the engine oil is scheduled to
be changed. (The indicator will not work
properly unless the oi l maintenance data
has been reset.)
Check the engine oil, and change if neces-
sary. After changing th e engine oil, the oil
change system should be reset. ( → P.329)■
If “Oil Maintenance Required” is shown
Indicates that the engine oil should be
changed. (After the engine oil is changed
and the oil maintenance data has been
reset.)
Check and change the en gine oil, and oil fil-
ter by your Lexus dealer. After changing the
engine oil, the oil change system should be
reset. ( → P.329)■
If “See Owner’s Manual” is shown ●
If the following messages are shown, fol-
lowing the instruct ions, accordingly.
• “Engine Coolant Temp High” ( → P.394)
• “Aux Battery Low” ( → P.375)●
If the following messages are shown,
there may be a malfunction.
Immediately have the vehicle inspected
by your Lexus dealer.
• “Hybrid System Malfunction”
•“Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Braking Power Low”
• “Smart Access System Malfunction”
●
If the following messages are shown,
there may be a malfunction.
Immediately stop the vehicle in a safe
place and contact your Lexus dealer.
Continuing to drive the vehicle may be
dangerous.
• “Oil Pressure Low”

3777-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises • “Charging System Malfunction” ■
Warning buzzer
→ P.372
 Stop the vehicle in a safe place on a
hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P.
 Stop the hybrid system.
 Turn on the emergency flashers.
( → P.358)NOTICE■
“High Power Consumption Partial
Limit On AC/Heater Operation” is
frequently shown
There is a possible malfunction relating
to the charging system or the 12-volt bat-
tery may be deteriorating. Have the vehi-
cle inspected by your Lexus dealer. ■
“Aux Battery Low” is frequently
shown
The 12-volt battery may have deterio-
rated. As the battery may discharge in
this state when left unattended, have the
battery inspected by your Lexus dealer. If you have a flat tire Your vehicle is equipped with a
spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: → P.336WARNING■
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat
tire can damage the tire and the wheel
beyond repair, which could result in an
accident.
Before jacking up the vehicle

378 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U Jack handle
Wheel nut wrench
Towing eyelet
Spare tire
Jack

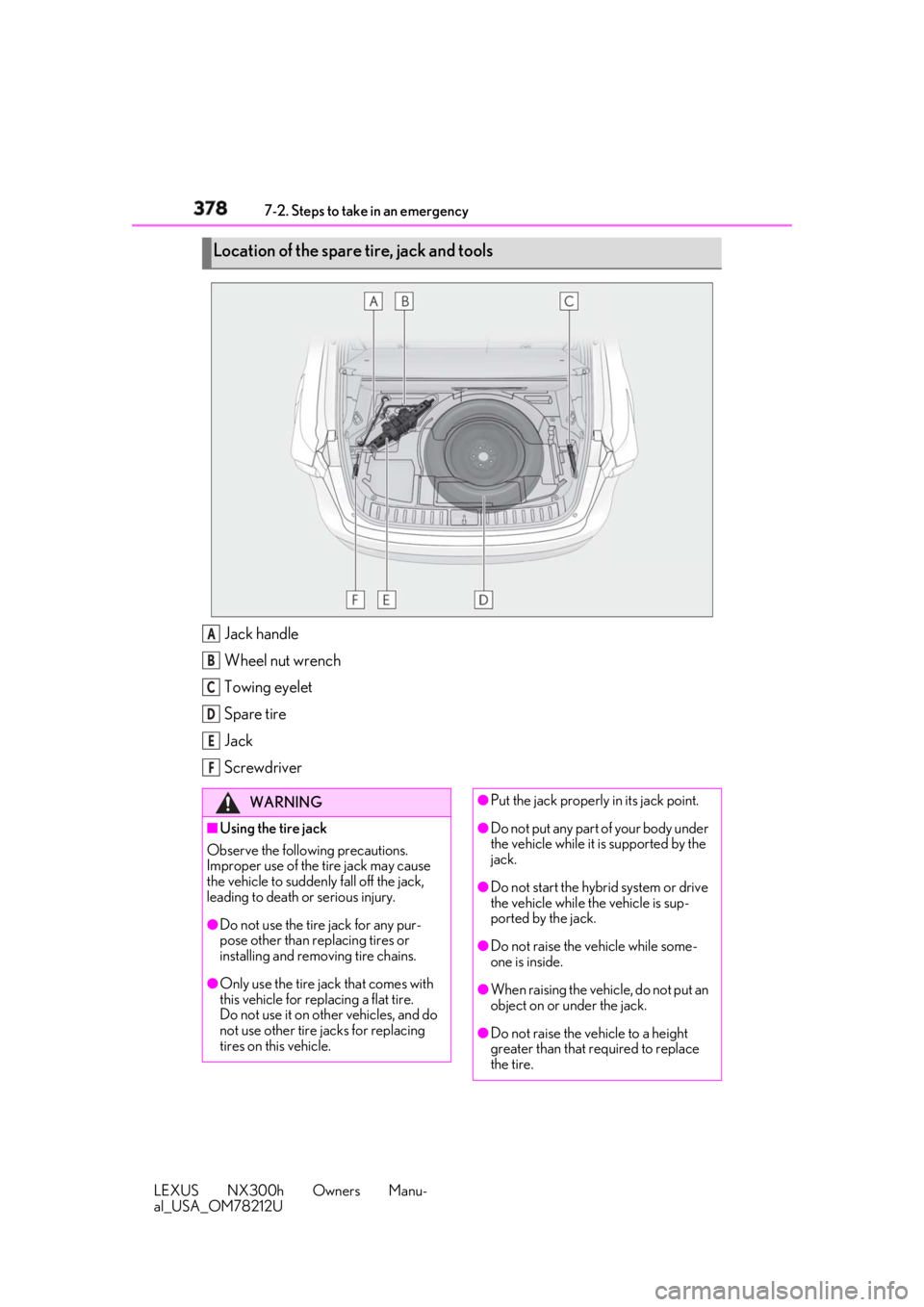

ScrewdriverLocation of the spare tire, jack and tools
A
B
C
D
E
F
WARNING
■
Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause
the vehicle to suddenly fall off the jack,
leading to death or serious injury.
●
Do not use the tire jack for any pur-
pose other than replacing tires or
installing and removing tire chains.
●
Only use the tire jack that comes with
this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do
not use other tire jacks for replacing
tires on this vehicle. ●
Put the jack properly in its jack point.
●
Do not put any part of your body under
the vehicle while it is supported by the
jack.
●
Do not start the hybrid system or drive
the vehicle while the vehicle is sup-
ported by the jack.
●
Do not raise the vehicle while some-
one is inside.
●
When raising the vehicle, do not put an
object on or under the jack.
●
Do not raise the vehicle to a height
greater than that required to replace
the tire.

3797-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7

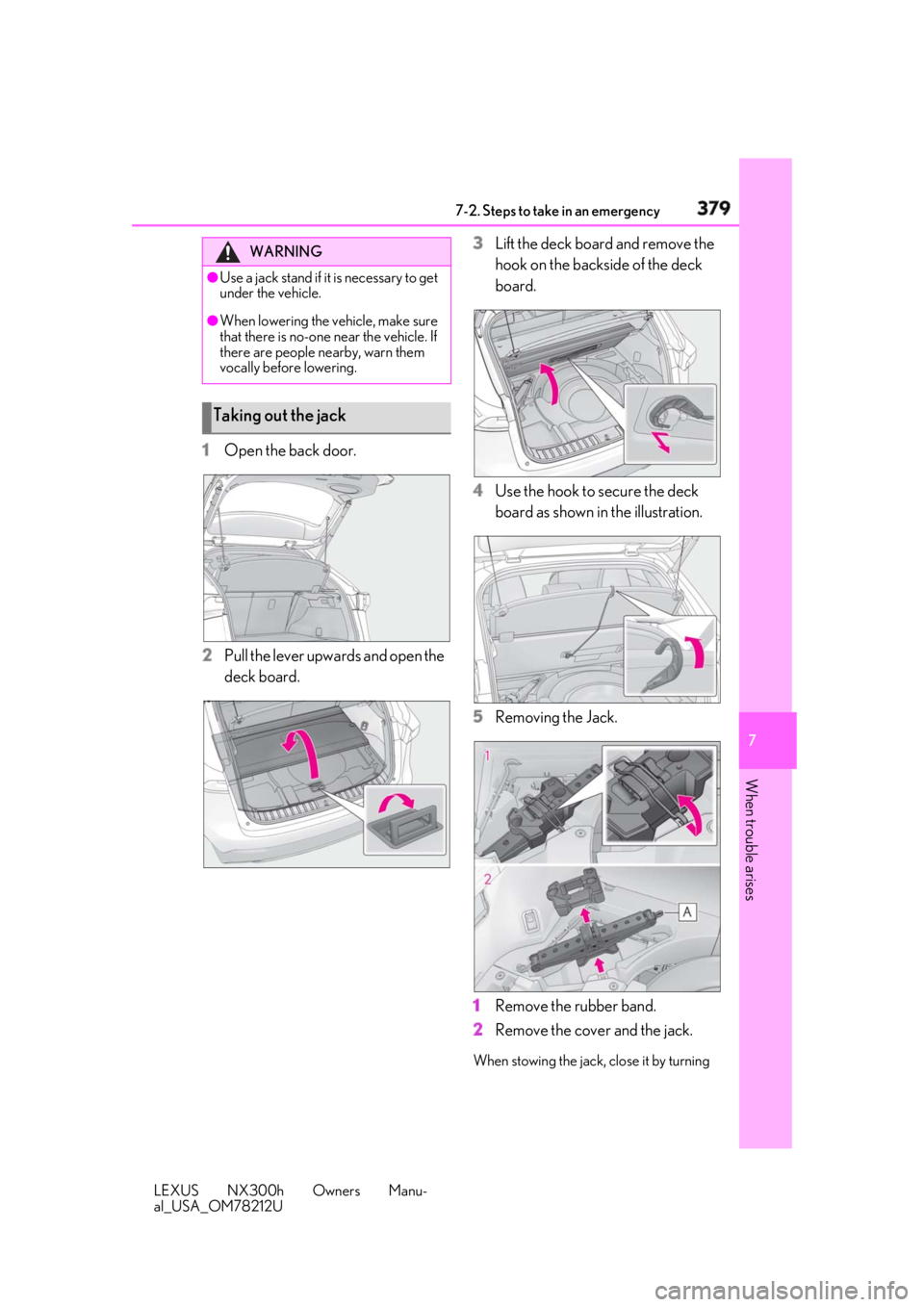

When trouble arises 1 Open the back door.
2 Pull the lever upwards and open the
deck board. 3 Lift the deck board and remove the
hook on the backside of the deck
board.
4 Use the hook to secure the deck
board as shown in the illustration.
5 Removing the Jack.
1 Remove the rubber band.
2 Remove the cover and the jack.
When stowing the jack, close it by turning WARNING●
Use a jack stand if it is necessary to get
under the vehicle.●
When lowering the vehicle, make sure
that there is no-one near the vehicle. If
there are people nearby, warn them
vocally before lowering.
Taking out the jack

380 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U the handle indicated by until it does not
move anymore, stow the jack and the
cover, and press on the jack to fix with the
rubber band.

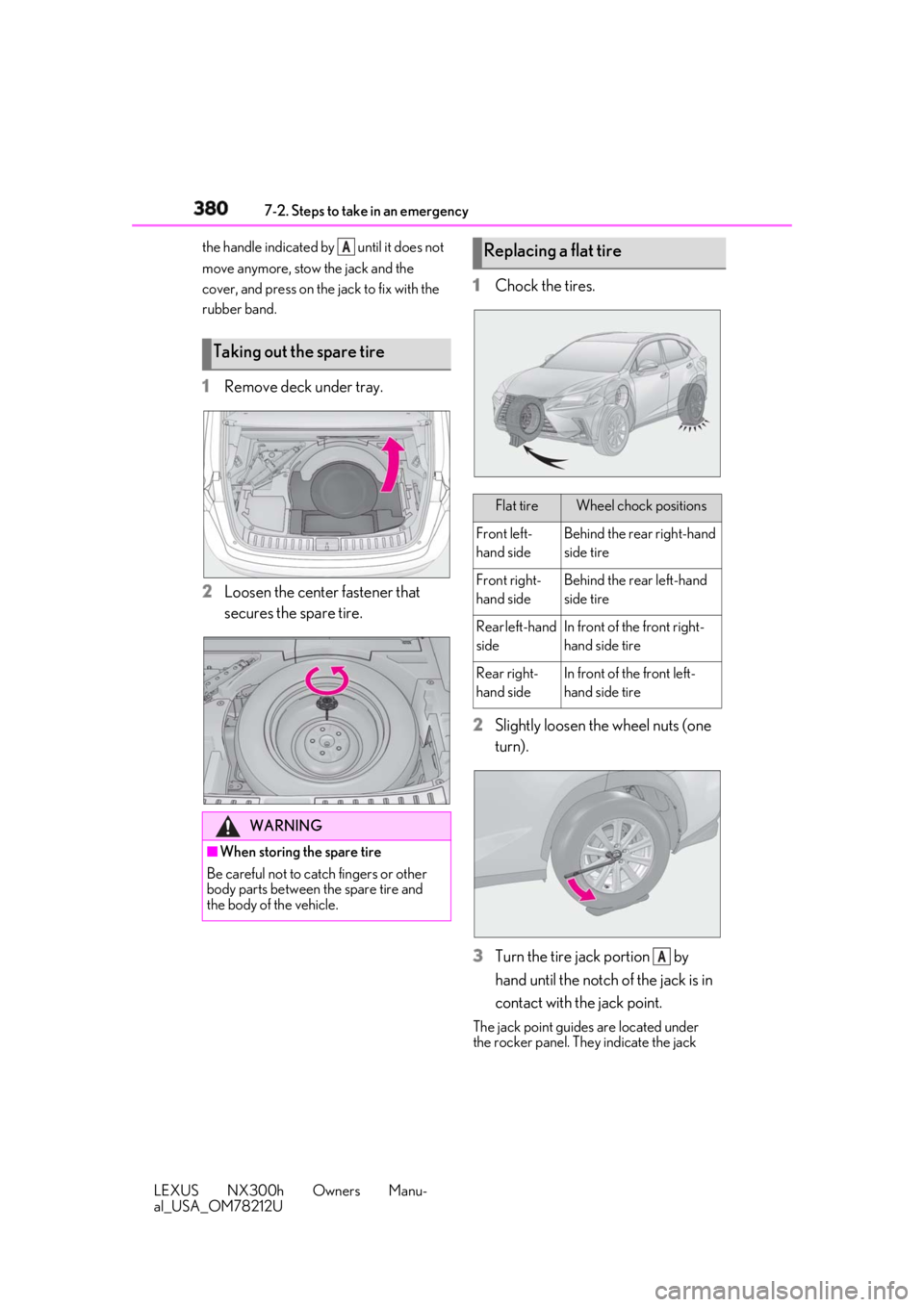

1 Remove deck under tray.
2 Loosen the center fastener that
secures the spare tire. 1 Chock the tires.
2 Slightly loosen the wheel nuts (one
turn).
3 Turn the tire jack portion by
hand until the notch of the jack is in
contact with the jack point. The jack point guides are located under
the rocker panel. They indicate the jack Taking out the spare tire
WARNING
■
When storing the spare tire
Be careful not to catch fingers or other
body parts between the spare tire and
the body of the vehicle. A
Replacing a flat tire
Flat tire Wheel chock positions
Front left-
hand side Behind the rear right-hand
side tire
Front right-
hand side Behind the rear left-hand
side tire
Rear left-hand
side In front of the front right-
hand side tire
Rear right-
hand side In front of the front left-
hand side tire
A
