LEXUS NX300h 2018 Owners Manual

3617-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises
The following may indicate a problem
with your hybrid tr ansmission. Contact
your Lexus dealer or commercial tow-
ing service before towing. ( → P.360)
 The hybrid warning message shows
on the multi-information display and
the vehicle does not move.
 The vehicle makes an abnormal
sound.
Do not tow with a sling-type truck to
prevent body damage. 
From the front
Use a towing dolly under the rear
wheels. 
From the rear
Use a towing dolly under the front
wheels.
If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.NOTICE■
Recreational towing (behind motor
home, etc.)
Never dinghy tow your vehicle to pre-
vent causing serious damage to the
Hybrid AWD system and transmission.
( → P.167)
Situations when it is necessary to
contact dealers before towing
Towing with a sling-type truck Towing with a wheel-lift type
truck
Using a flatbed truck

362 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U If you use chains or cables to tie down
your vehicle, the angles shaded in
black must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.
If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for short distance
at under 18 mph (30 km/h).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle’s
wheels, drivetrain, ax les, steering and
brakes must be in good condition.
To have your vehicle towed by another vehicle, the towing eyelet must be
installed to your vehicle. Install the tow-
ing eyelet by following the specified
procedure.
1 Take out the towing eyelet.
( → P.378)
2 Remove the eyelet cover using a
flathead screwdriver. To protect the bodywork, place a rag
between the screwdriver and the vehicle
body as shown in the illustration. 
Type A 
Type B
Emergency towing procedure
To have your vehicle towed

3637-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises 3 Insert the towing eyelet into the
hole and tighten partially by hand.
4 Tighten down the towing eyelet
securely using a wheel nut wrench.
5 Securely attach cables or chains to
the towing eyelet.Take care not to damage the vehicle body.
6 Enter the vehicle being towed and
start the hybrid system.If the hybrid system does not start, turn the
power switch to ON mode.
7 Shift the shift lever to N and release
the parking brake.When the shift lever cannot be shifted:
→ P.174
■
While towing
If the hybrid system is off, the power assist
for the brakes and steering will not function,
marking steering and braking more difficult.
■
Wheel nut wrench
Wheel nut wrench is installed in luggage
compartment. ( → P.378)  Fluid leaks under the vehicle
(Water dripping from the air condi-
tioning after use is normal.)
 Flat-looking tires or uneven tire
wear
 Engine coolant temperature gauge
needle continually points higher
than normal
 Changes in exhaust sound
 Excessive tire squeal when corner-
ing
 Strange noises related to the sus-
pension system
 Pinging or other noises related to
the hybrid system
 Engine misfire or misses, stumbling
or running roughly
 Appreciable loss of power
 Vehicle pulls heavily to one side
when brakingIf you think something is
wrong If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact your Lexus dealer as soon as
possible.
Visible symptoms
Audible symptoms
Operational symptoms

364 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U  Vehicle pulls heavily to one side
when driving on a level road
 Loss of brake effectiveness, spongy
feeling, pedal almost touches the
floor

3657-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises ■
Brake system warning light
■
Charging system warning light *
*
: This light illuminates on the multi-information display.
■
Low engine oil pressure warning light (warning buzzer) *
*
: This light illuminates on the multi-information display.If a warning light turns on or a warning buzzer soundsCalmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, bu t then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.
Actions to the warning lights or warning buzzers Warning light Details/Actions(U.S.A.)
(Red)
(Canada) Indicates that:
 The brake fluid level is low; or
 The brake system is malfunctioning
→ Immediately stop the vehicl e in a safe place and con-
tact your Lexus dealer. Continuing to drive the vehicle
may be dangerous.
Warning light Details/Actions
Indicates a malfunction in the vehicle’s charging system
→ Immediately stop the vehicl e in a safe place and con-
tact your Lexus dealer. Continuing to drive the vehicle
may be dangerous.
Warning light Details/Actions
Indicates that the engine oil pressure is too low
→ Immediately stop the vehicl e in a safe place and con-
tact your Lexus dealer. Continuing to drive the vehicle
may be dangerous.

366 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■

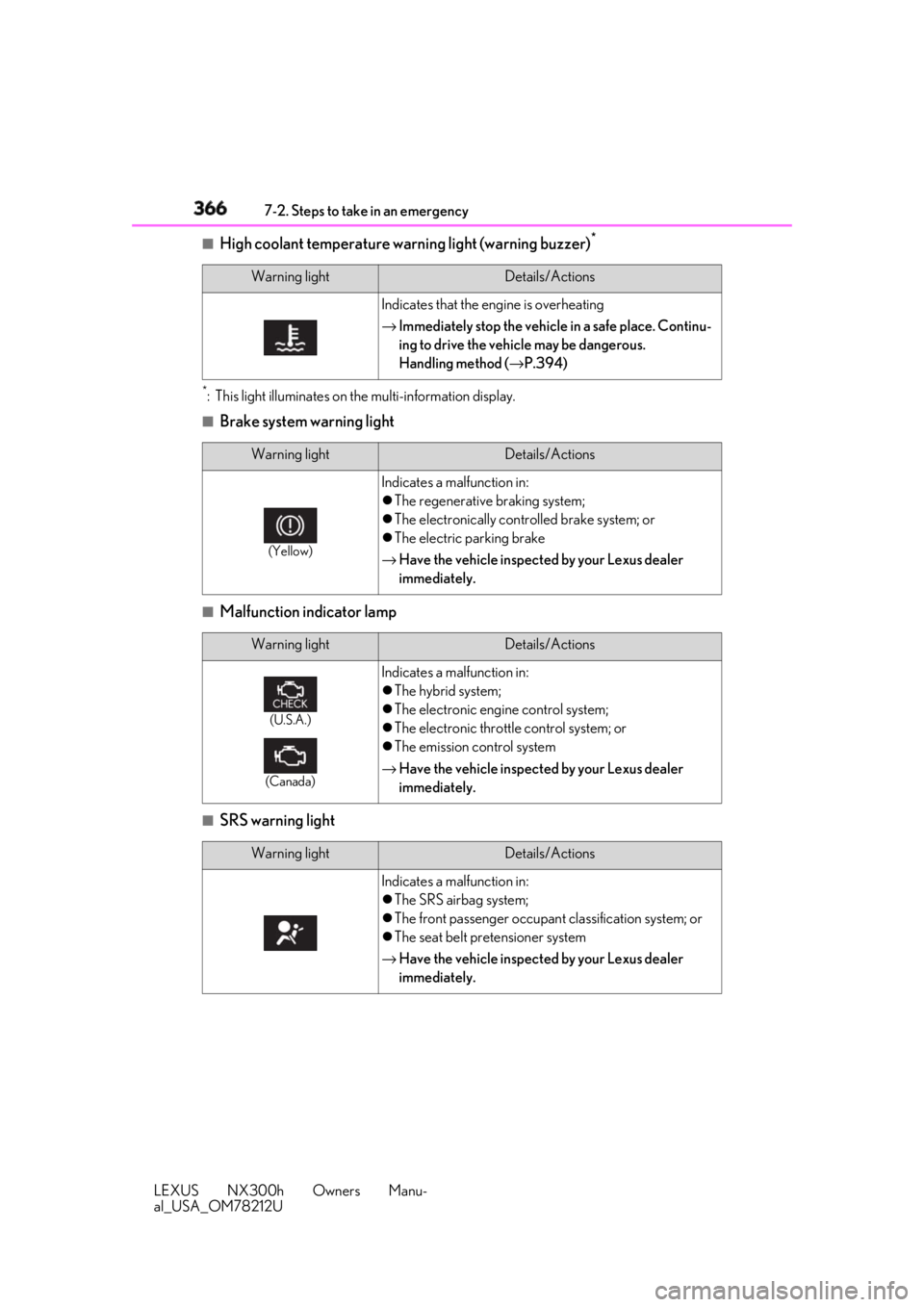

High coolant temperature warning light (warning buzzer) *
*
: This light illuminates on the multi-information display. ■
Brake system warning light
■
Malfunction indicator lamp
■
SRS warning light Warning light Details/Actions
Indicates that the engine is overheating
→ Immediately stop the vehicle in a safe place. Continu-
ing to drive the vehicle may be dangerous.
Handling method ( → P.394)
Warning light Details/Actions
(Yellow)
Indicates a malfunction in:
 The regenerative braking system;
 The electronically controlled brake system; or
 The electric parking brake
→ Have the vehicle inspected by your Lexus dealer
immediately.
Warning light Details/Actions
(U.S.A.)
(Canada) Indicates a malfunction in:
 The hybrid system;
 The electronic engine control system;
 The electronic throttle control system; or
 The emission control system
→ Have the vehicle inspected by your Lexus dealer
immediately.
Warning light Details/Actions
Indicates a malfunction in:
 The SRS airbag system;
 The front passenger occupant classification system; or
 The seat belt pretensioner system
→ Have the vehicle inspected by your Lexus dealer
immediately.

3677-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises ■

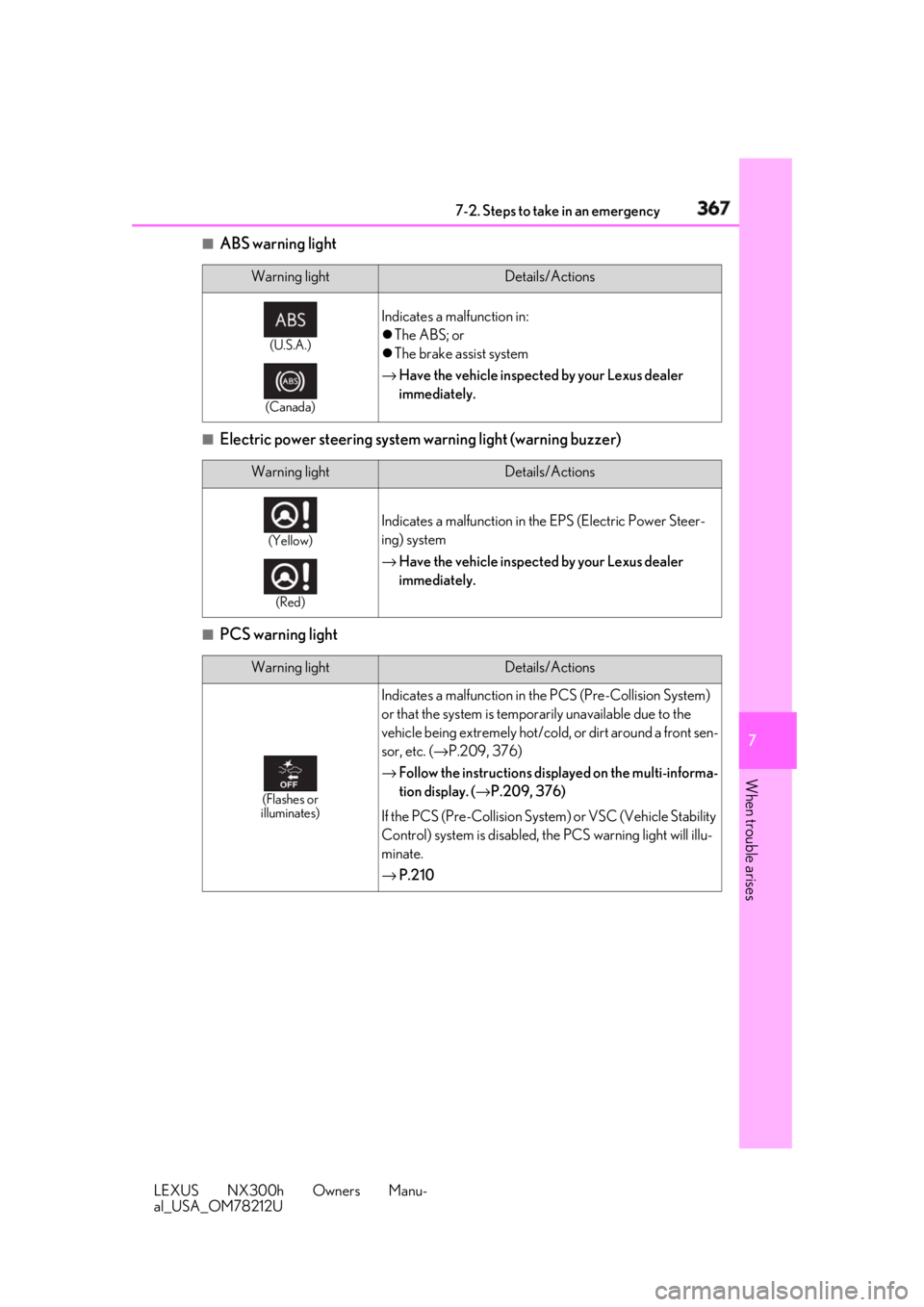

ABS warning light
■
Electric power steering system warning light (warning buzzer)
■
PCS warning light Warning light Details/Actions(U.S.A.)
(Canada)
Indicates a malfunction in:
 The ABS; or
 The brake assist system
→ Have the vehicle inspected by your Lexus dealer
immediately.
Warning light Details/Actions(Yellow)
(Red) Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
→ Have the vehicle inspected by your Lexus dealer
immediately.
Warning light Details/Actions
(Flashes or
illuminates) Indicates a malfunction in th e PCS (Pre-Collision System)
or that the system is temporarily unavailable due to the
vehicle being extremely hot/cold, or dirt around a front sen-
sor, etc. ( → P.209, 376)
→ Follow the instructions displayed on the multi-informa-
tion display. ( → P.209, 376)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
→ P.210

368 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
LDA indicator
■
PKSB OFF indicator
■
Slip indicator light
■
Brake hold operated indicator Warning light Details/Actions
(Orange)
Indicates a malfunction in the LDA (Lane Departure Alert
with steering control)
→ When “Lane Departure Alert Unavailable” is dis-
played on the multi-information display, turn the LDA
system off, drive the vehicle for a short time, and then
turn the LDA system back on. ( → P.210)
When a message other than above is displayed, follow
the instructions displayed in the message.
Warning light Details/Actions
(Flashes) When a buzzer sounds: Indicates a malfunction in the PKSB
(Parking Support Brake) system
→ Have the vehicle inspected by your Lexus dealer
immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable, pos-
sibly due to a sensor being di rty or covered with ice, etc.
→ Clear the dirt, etc.
Warning light Details/Actions
Indicates a malfunction in:
 The VSC system;
 The TRAC system; or
 The hill-start assist control system
The light will flash when the ABS, VSC or TRAC system is
operating.
→ Have the vehicle inspected by your Lexus dealer
immediately.
Warning light Details/Actions
(Flashes) Indicates a malfunction in the brake hold system
→ Have the vehicle inspected by your Lexus dealer
immediately.

3697-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises ■

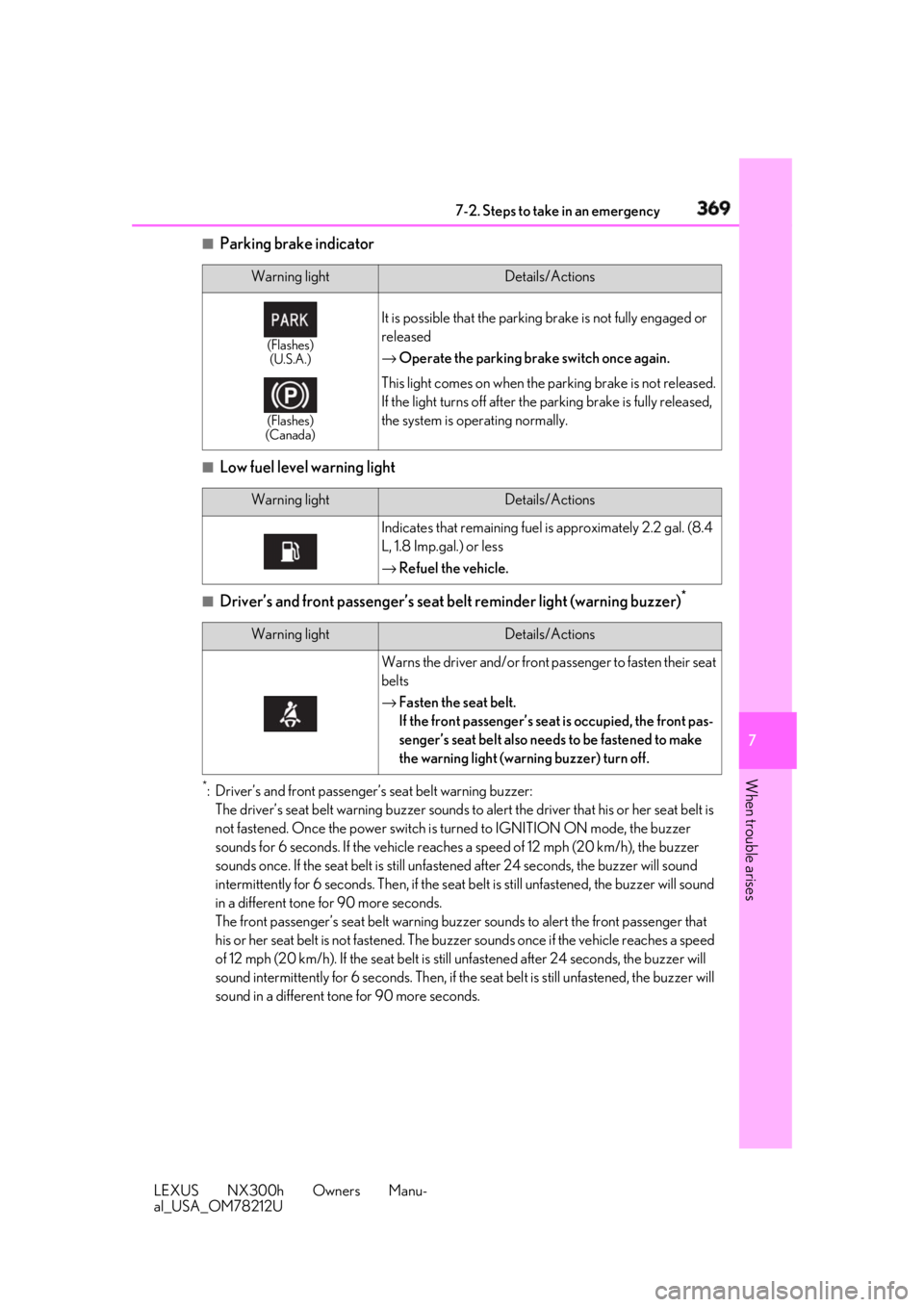

Parking brake indicator
■
Low fuel level warning light
■
Driver’s and front passenger’s seat belt reminder light (warning buzzer) *
*
: Driver’s and front passenger’s seat belt warning buzzer:
The driver’s seat belt warning buzzer sounds to alert the driver that hi s or her seat belt is
not fastened. Once the power switch is turned to IGNITION ON mode, the buzzer
sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer
sounds once. If the seat belt is still unfast ened after 24 seconds, the buzzer will sound
intermittently for 6 seconds. Th en, if the seat belt is still unfastened, the buzzer will sound
in a different tone for 90 more seconds.
The front passenger’s seat belt warning buzzer sounds to alert the front passenger that
his or her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed
of 12 mph (20 km/h). If the se at belt is still unfastened after 24 seco nds, the buzzer will
sound intermittently for 6 seconds. Then, if the seat belt is still unfa stened, the buzzer will
sound in a different tone for 90 more seconds. Warning light Details/Actions(Flashes)
(U.S.A.)
(Flashes)
(Canada) It is possible that the parking brake is not fully engaged or
released
→ Operate the parking brake switch once again.
This light comes on when the parking brake is not released.
If the light turns off after the parking brake is fully released,
the system is operating normally.
Warning light Details/Actions
Indicates that remain ing fuel is approximately 2.2 gal. (8.4
L, 1.8 Imp.gal.) or less
→ Refuel the vehicle.
Warning light Details/Actions
Warns the driver and/or front pa ssenger to fasten their seat
belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front pas-
senger’s seat belt also need s to be fastened to make
the warning light (warning buzzer) turn off.

370 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■

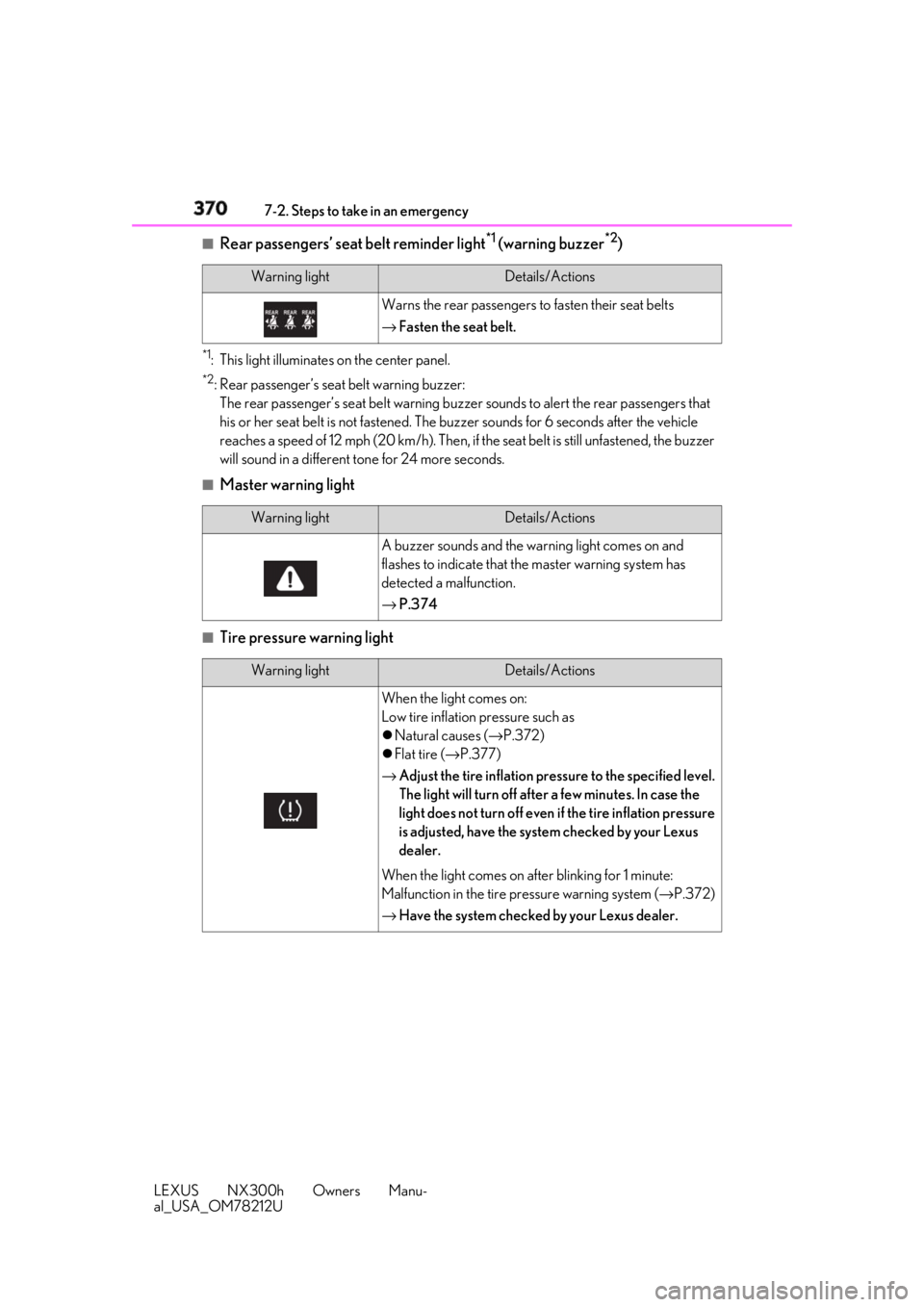

Rear passengers’ seat belt reminder light *1
(warning buzzer *2
)*1
: This light illuminates on the center panel. *2
: Rear passenger’s seat belt warning buzzer:
The rear passenger’s seat belt warning buzzer sounds to alert the rear passengers that
his or her seat belt is not fastened. The buzzer sounds for 6 seconds after the vehicle
reaches a speed of 12 mph (20 km/h). Then, if the seat belt is sti ll unfastened, the buzzer
will sound in a different tone for 24 more seconds.■
Master warning light
■
Tire pressure warning light Warning light Details/Actions
Warns the rear passengers to fasten their seat belts
→ Fasten the seat belt.
Warning light Details/Actions
A buzzer sounds and the warning light comes on and
flashes to indicate that th e master warning system has
detected a malfunction.
→ P.374
Warning light Details/Actions
When the light comes on:
Low tire inflation pressure such as
 Natural causes ( → P.372)
 Flat tire ( → P.377)
→ Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pressure
is adjusted, have the syst em checked by your Lexus
dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system ( → P.372)
→ Have the system checked by your Lexus dealer.
