812-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2
Vehicle status information and indicators outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Background color of drive modeBackground color changes according to the drive mode. ( → P.249)
•Sport mode: Red
•Eco mode: Blue
When in Normal mode, the background color is Black.
ClockTime displayed is linked to the analog clock on the instrument panel. ( → P.288)
Multi-information displayPresents the driver with a variety of vehicle data ( → P.85)
Displays warning messages in case of a malfunction ( → P.374)
SpeedometerDisplays the vehicle speed
Fuel gaugeDisplays the quantity of fuel remaining in the tank
Shift position and shift rangeDisplays the selected shift posi tion or selected shift range ( → P.173)
Odometer, trip meter and maintena nce required information displayOdometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:
Displays the remaining distance unt il the engine oil sh ould be changed.
• Displays the maintenance requ ired information when the power switch is ON mode.
• It can be reset on of the multi-information display. D
E
F
G
H
I
J

88 2-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U warning.
 Sway sensitivity Select to set the vehicle sway warning sen-
sitivity. ■
PCS (Pre-Collision System)
( → P.203)
Select to set up the following items.
 PCS on/off Select to enable/dis able the pre-collision
system.
 PCS sensitivity Select to change the warning timing.■
Intuitive parking assist sensor
(if equipped) ( → P.227)
Select to set up the following items.
 Intuitive parking assist sensor Select to enable/disab le the intuitive park-
ing assist sensor.
 Volume Select to set the volume of the buzzer
which sounds when the intuitive parking
assist sensor is operated.
■
PKSB (Parking Support
Brake System) (if equipped)
( → P.232)
 PKSB on/off Select to enable/dis able the parking sup-
port brake function (for static objects).
■
Clock ( → P.288)
Select to switch between 12-hour dis-
play and 24-hour display. ■
Vehicle Settings
 PBD (Power Back Door)
( → P.110) *1 Select to set up the following items.
•System settings
Select to enable/disable the power back
door system.
•Volume
Select to set the volume of the buzzer
which sounds when the power back door
system.
• Kick Sensor *2
Select to enable/dis able the kick sensor. *1
: Vehicles with power back door *2
: Vehicles with power back door and kick
sensor
 TPMS (Tire Pressure Warning Sys-
tem) ( → P.338)Select to initialize the tire pressure warning
system.
 Scheduled Maintenance ( → P.319)Select to initialize the scheduled mainte-
nance.
 Oil maintenance ( → P.329)Select to reset the engine oil maintenance
information (message indicating mainte-
nance is required and distance until the
next oil change) after engine oil mainte-
nance is performed.
■
Meter settings
 Language Select to change the language on the dis-
play.
 Units Select to change the unit of measure for
fuel consumption.
 EV Indicator ( → P.62)Select to set the EV indicator on/off.
 Switch settings ( → P.85)

3296-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6
Maintenance and care 5 Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
Measuring side
6 Wipe the dipstick and reinsert it
fully. ■
Checking the oil type and prepar-
ing the items needed
Make sure to check the oil type and
prepare the items needed before add-
ing oil.
 Engine oil selection → P.402
 Oil quantity (Low Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
 Items Clean funnel
■
Adding engine oil
If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine. 1 Remove the oil filler cap by turning
it counterclockwise.
2 Add engine oil slowly, checking the
dipstick.
3 Install the oil filler cap by turning it
clockwise. ■
Engine oil consumption
A certain amount of engine oil will be con-
sumed while driving. In the following situa-
tions, oil consumption may increase, and
engine oil may need to be refilled in
between oil maintenance intervals. ●
When the engine is new, for example
directly after purchasing the vehicle or
after replacing the engine ●
If low quality oil or oil of an inappropriate
viscosity is used ●
When driving at high engine speeds or
with a heavy load, when towing, or when
driving while accelera ting or decelerat-
ing frequently ●
When leaving the engine idling for a long
time, or when driving frequently through
heavy traffic
■
After changing the engine oil
The engine oil maintenance data should be
reset. Perform the fo llowing procedures:
1 Press or of the meter control
switches and select .A
B
C
D

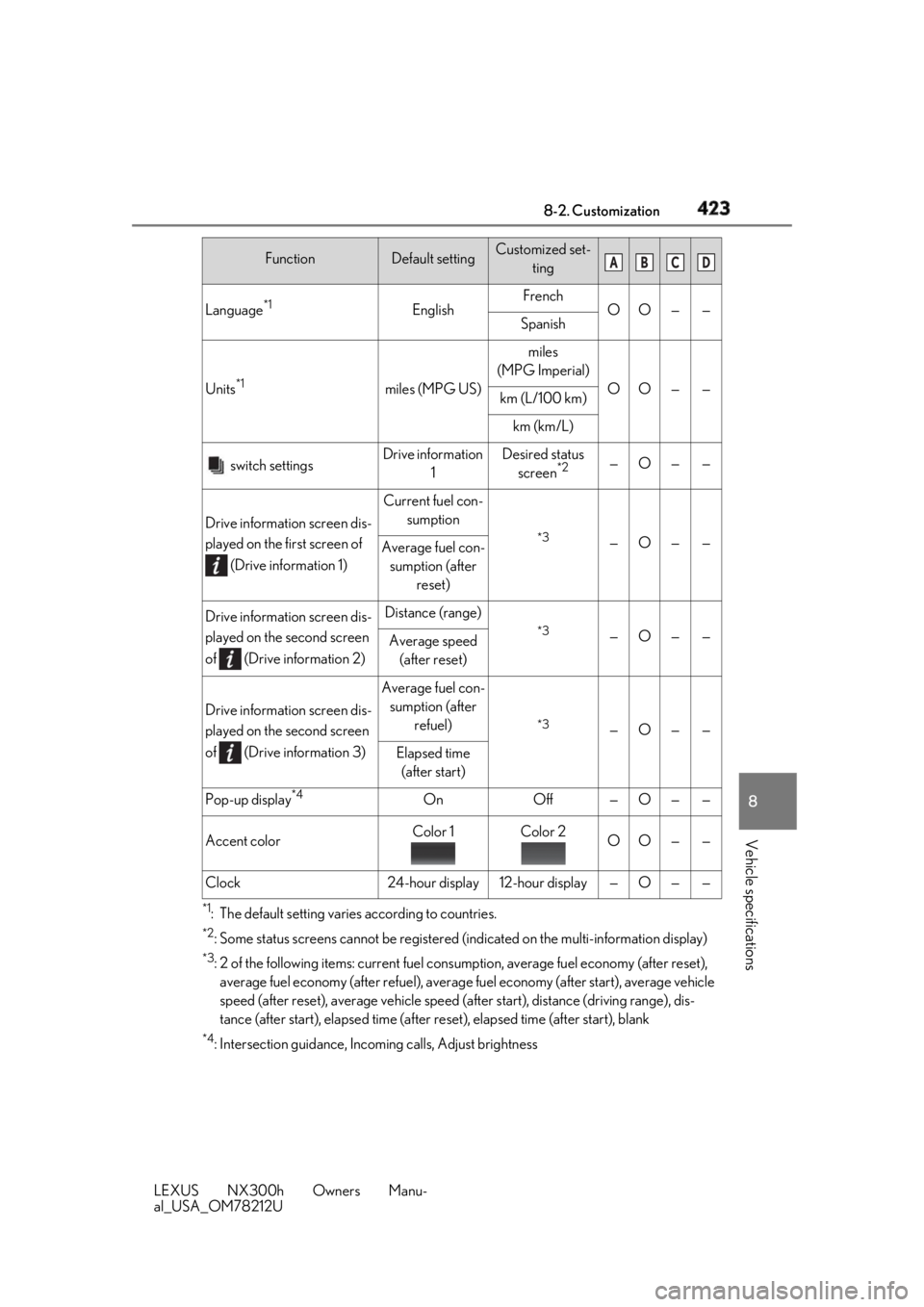

4238-2. Customization
LEXUS NX300h Owners Manu-
al_USA_OM78212U 8
Vehicle specifications
*1
: The default setting varies according to countries. *2
: Some status screens cannot be registered (i ndicated on the multi-information display)*3
: 2 of the following items: current fuel cons umption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehicle
speed (after reset), average vehicle speed (a fter start), distance (driving range), dis-
tance (after start), elapsed time (after reset), elapsed time (after start), blank*4
: Intersection guidance, Incomi ng calls, Adjust brightnessLanguage *1
English French
O O — —
Spanish
Units *1
miles (MPG US) miles
(MPG Imperial)
O O — —
km (L/100 km)
km (km/L)
switch settings Drive information
1 Desired status
screen *2
— O — —
Drive information screen dis-
played on the first screen of
(Drive information 1) Current fuel con-
sumption *3
— O — —
Average fuel con-
sumption (after
reset)
Drive information screen dis-
played on the second screen
of (Drive information 2) Distance (range) *3
— O — —
Average speed
(after reset)
Drive information screen dis-
played on the second screen
of (Drive information 3) Average fuel con-
sumption (after
refuel) *3
— O — —
Elapsed time
(after start)
Pop-up display *4
On Off — O — —
Accent color Color 1 Color 2
O O — —
Clock 24-hour display 12-hour display — O — —Function Default setting Customized set-
ting A B C D
