711-3. Theft deterrent system
LEXUS NX300h Owners Manu-
al_USA_M78287_en
1
For safety and security
■Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows and moon roof (if
equipped) are closed before the
alarm is set.
 No valuables or other personal
items are left in the vehicle.
■Setting
Close the doors and hood, and lock all
the doors. The system will be set auto-
matically after 30 seconds.
The indicator light changes from being on
to flashing when the system is set.
■Canceling or stopping
Do one of the following to deactivate
or stop the alarms:
 Unlock the doors.
 Turn the power switch to ACCES-
SORY or ON mode, or start the
hybrid system. (The alarm will be
deactivated or stopped after a few
seconds.)
■System maintenance
The vehicle has a maintenance-free type
alarm system.
■Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
●A person inside the vehicle opens a door
or hood, or unlocks the vehicle using an
inside lock button.
●The 12-volt battery is recharged or
replaced when the vehicle is locked.
(  P.394)
Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 A locked door is unlocked or
opened in any way other than
using the entry function, wireless
remote control or mechanical
key. (The doors will lock again
automatically.)
 The hood is opened.
Setting/canceling/stopping the
alarm system

721-3. Theft deterrent system
LEXUS NX300h Owners Manu-
al_USA_M78287_en

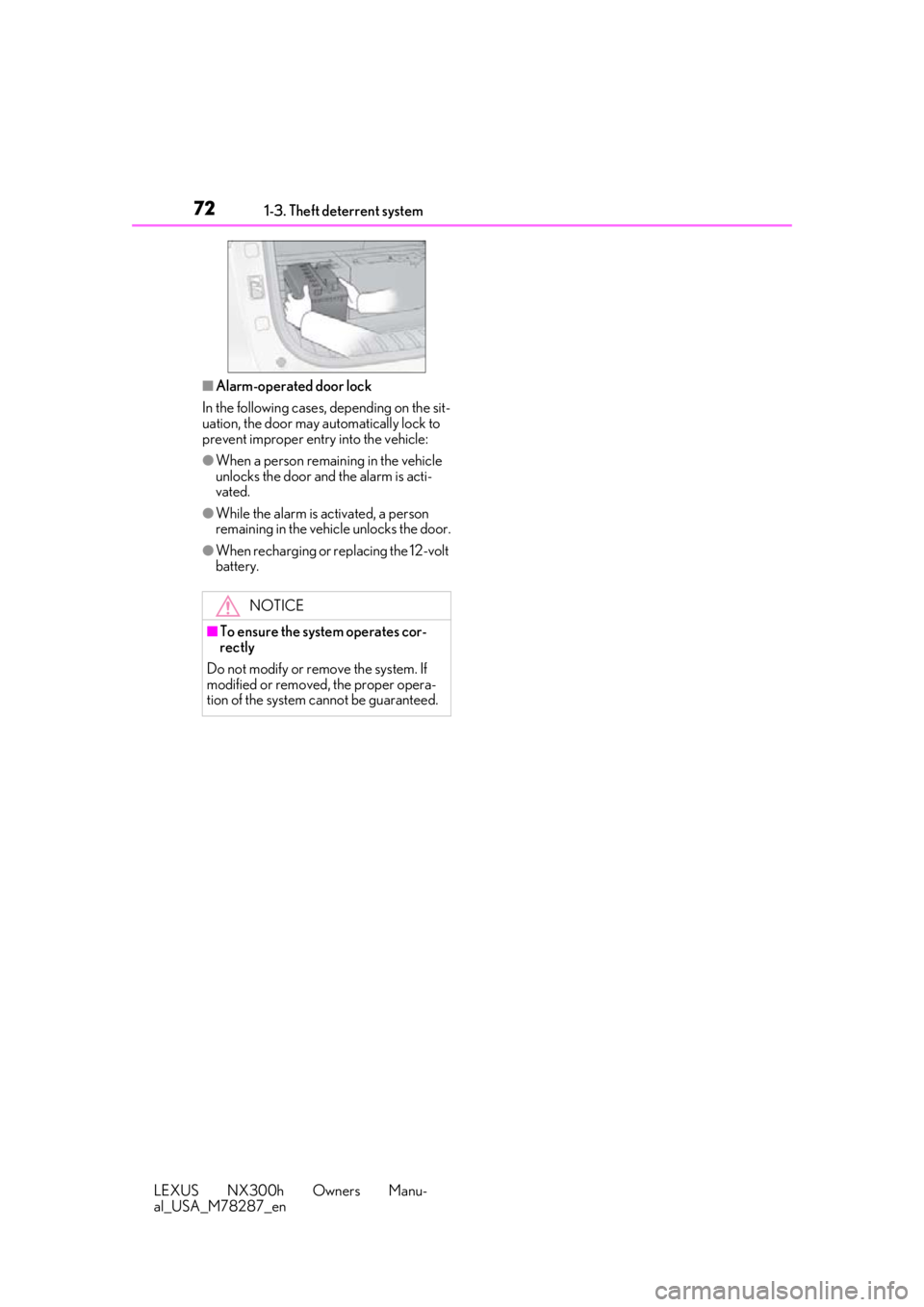

■Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.
●While the alarm is activated, a person
remaining in the vehicle unlocks the door.
●When recharging or replacing the 12-volt
battery.
NOTICE
■To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

73
LEXUS NX300h Owners Manu-
al_USA_M78287_en
2
2
Vehicle status information and indicators
Vehicle status informationand indicators
2-1. Instrument cluster
Warning lights and indicators . 74
Gauges and meters .................... 79
Multi-information display.......... 84
Head-up display ........................... 89
Energy monitor/fuel consumption screen ............................................ 93

742-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_M78287_en
2-1.Instrument cluster
For the purpose of explanation, the following illustration displays all warning lights
and indicators illuminated.
The units used on the meter and some in dicators may differ depending on the tar-
get region.
Warning lights and indicators
The warning lights and indicators inform th e driver of the status of the vehicle’s
various systems.
Instrument cluster

752-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_M78287_en
2
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in any of the vehicle’s sys-
tems.
*1: These lights turn on when the power switch is turned to ON mode to indi-

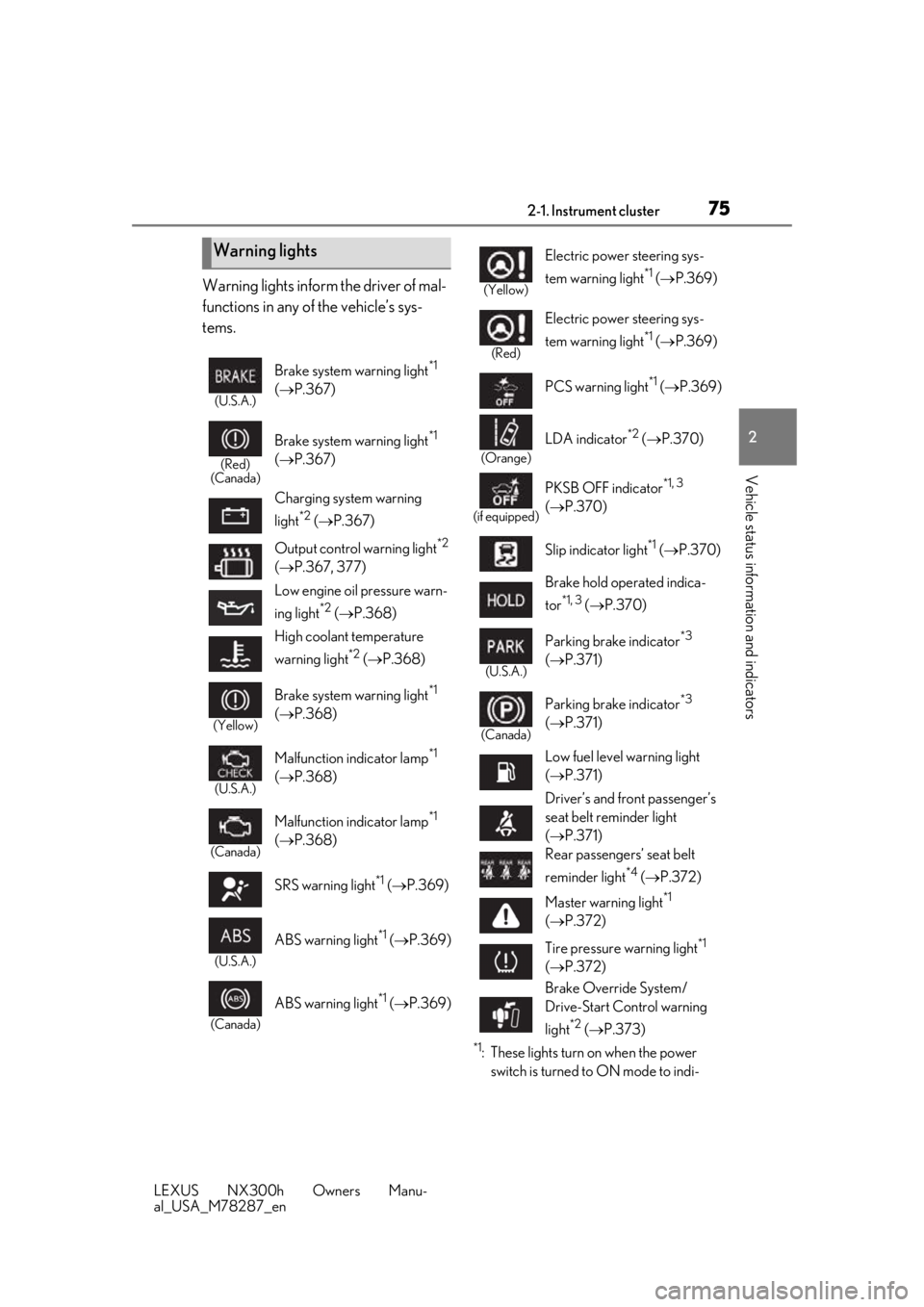

Warning lights
(U.S.A.)
Brake system warning light*1
(  P.367)
(Red)
(Canada)
Brake system warning light*1
(  P.367)
Charging system warning
light
*2 (  P.367)
Output control warning light
*2
(  P.367, 377)
Low engine oil pressure warn-
ing light
*2 (  P.368)
High coolant temperature
warning light
*2 (  P.368)
(Yellow)
Brake system warning light*1
(  P.368)
(U.S.A.)
Malfunction indicator lamp*1
(  P.368)
(Canada)
Malfunction indicator lamp*1
(  P.368)
SRS warning light
*1 (  P.369)
(U.S.A.)
ABS warning light*1 ( P.369)
(Canada)
ABS warning light*1 ( P.369)
(Yellow)
Electric power steering sys-
tem warning light
*1 ( P.369)
(Red)
Electric power steering sys-
tem warning light
*1 ( P.369)
PCS warning light
*1 (  P.369)
(Orange)
LDA indicator*2 ( P.370)
(if equipped)
PKSB OFF indicator*1, 3
(  P.370)
Slip indicator light
*1 (  P.370)
Brake hold operated indica-
tor
*1, 3 (  P.370)
(U.S.A.)
Parking brake indicator*3
(  P.371)
(Canada)
Parking brake indicator*3
(  P.371)
Low fuel level warning light
(  P.371)
Driver’s and front passenger’s
seat belt reminder light
(  P.371)
Rear passengers’ seat belt
reminder light
*4 (  P.372)
Master warning light
*1
(  P.372)
Tire pressure warning light
*1
(  P.372)
Brake Override System/
Drive-Start Control warning
light
*2 (  P.373)

762-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_M78287_encate that a system check is being per-
formed. They will turn off after the
hybrid system is on, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light illuminates on the multi-infor-
mation display.
*3: The light flashes to indicate a malfunc-tion.
*4: This light illuminates on the center panel.

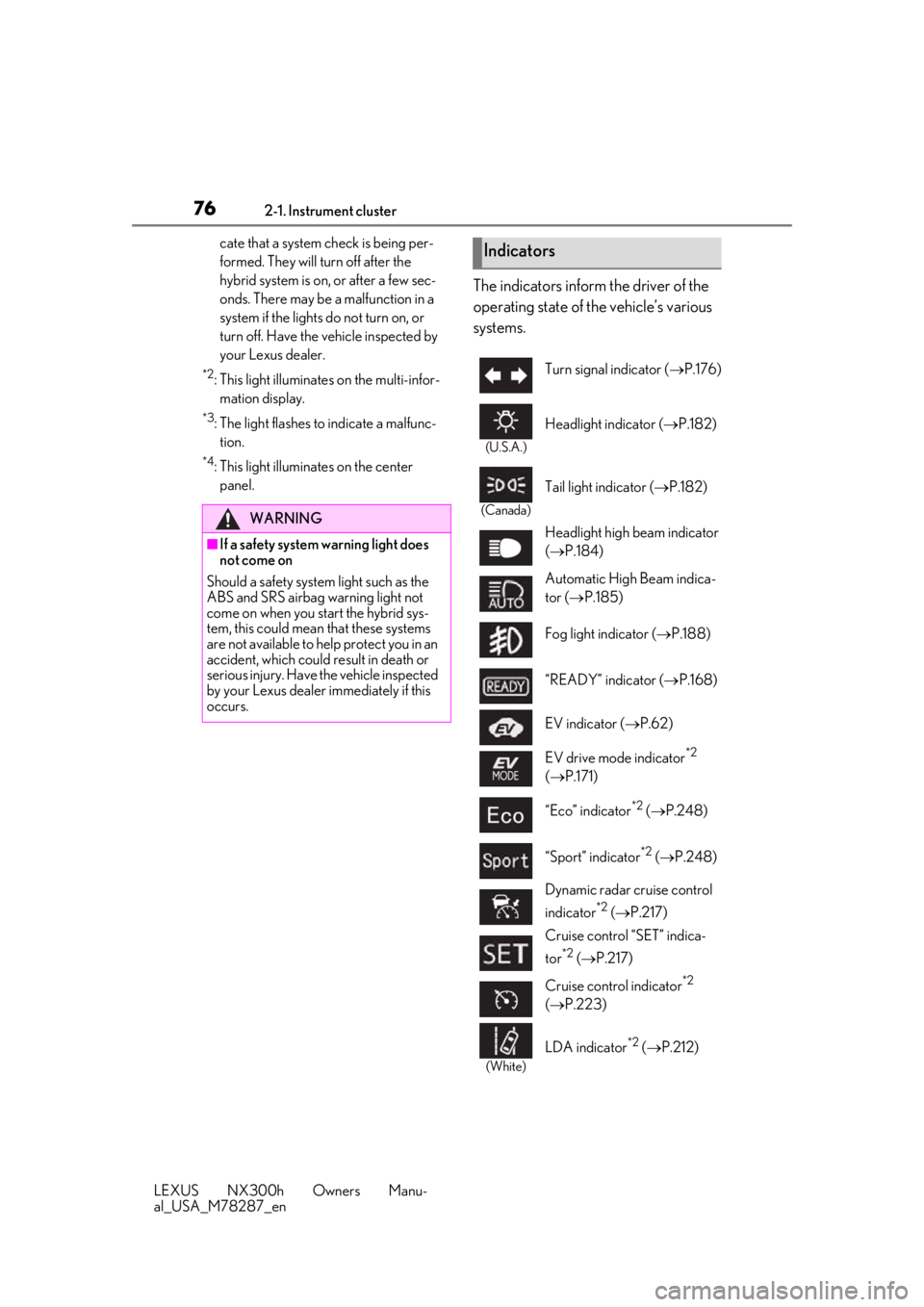

The indicators inform the driver of the
operating state of the vehicle’s various
systems.
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS airbag warning light not
come on when you start the hybrid sys-
tem, this could mean that these systems
are not available to he lp protect you in an
accident, which could result in death or
serious injury. Have the vehicle inspected
by your Lexus dealer immediately if this
occurs.
Indicators
Turn signal indicator ( P.176)
(U.S.A.)
Headlight indicator ( P.182)
(Canada)
Tail light indicator ( P.182)
Headlight high beam indicator
(  P.184)
Automatic High Beam indica-
tor ( P.185)
Fog light indicator ( P.188)
“READY” indicator ( P.168)
EV indicator ( P.62)
EV drive mode indicator
*2
(  P.171)
“Eco” indicator
*2 (  P.248)
“Sport” indicator
*2 (  P.248)
Dynamic radar cruise control
indicator
*2 (  P.217)
Cruise control “SET” indica-
tor
*2 (  P.217)
Cruise control indicator
*2
(  P.223)
(White)
LDA indicator*2 ( P.212)

772-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_M78287_en
2
Vehicle status information and indicators
*1: These lights turn on when the power switch is turned to the ON mode to
indicate that a system check is being
performed. They will turn off after the
hybrid system is on, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light illuminates on the multi-infor-mation display.
*3: The light flashes to indicate that the sys-tem is operating.
*4: The light comes on when the system is turned off.
*5: When the outside temperature is approximately 37°F (3°C) or lower, the
indicator will flash for approximately 10
seconds, then stay on.
*6: In order to confirm operation, the BSM outside rear view mirror indicators illu-
minate in the following situations:
When the power switch is turned to
ON mode while the BSM main switch is
set to ON.
When the BSM main switch is set to
ON while the power switch is in ON
mode.
If the system is func tioning correctly, the
BSM outside rear view mirror indica-
tors will turn off after a few seconds.
If the BSM outside rear view mirror indi-
cators do not illuminate or do not turn
off, there may be a malfunction in the
system.
If this occurs, have the vehicle inspected

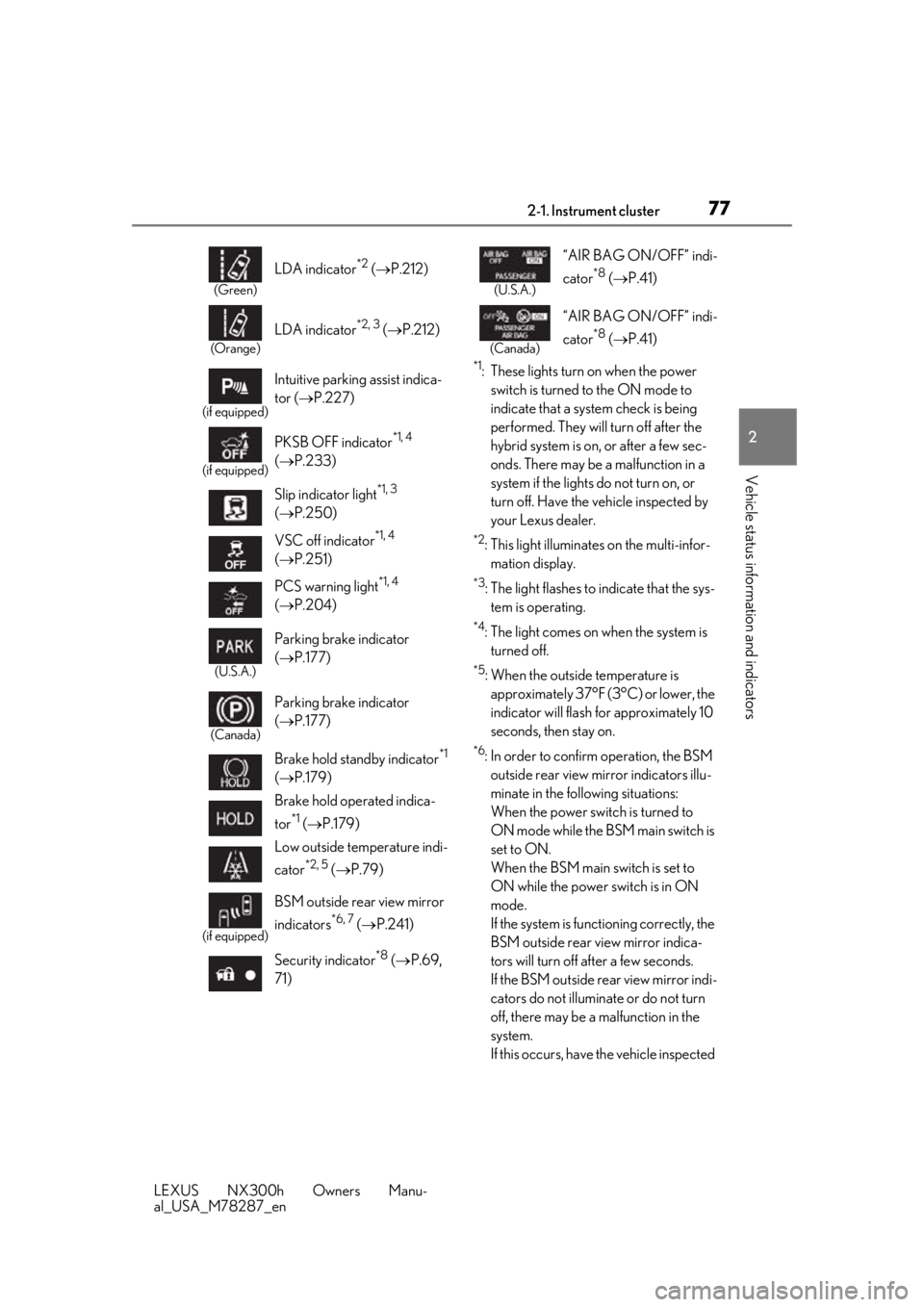

(Green)
LDA indicator*2 (  P.212)
(Orange)
LDA indicator*2, 3 ( P.212)
(if equipped)
Intuitive parking assist indica-
tor ( P.227)
(if equipped)
PKSB OFF indicator*1, 4
(  P.233)
Slip indicator light
*1, 3
(  P.250)
VSC off indicator
*1, 4
(  P.251)
PCS warning light
*1, 4
(  P.204)
(U.S.A.)
Parking brake indicator
( P.177)
(Canada)
Parking brake indicator
( P.177)
Brake hold standby indicator
*1
(  P.179)
Brake hold operated indica-
tor
*1 (  P.179)
Low outside temperature indi-
cator
*2, 5 (  P.79)
(if equipped)
BSM outside rear view mirror
indicators
*6, 7 ( P.241)
Security indicator
*8 (  P.69,
71)
(U.S.A.)
“AIR BAG ON/OFF” indi-
cator
*8 (  P.41)
(Canada)
“AIR BAG ON/OFF” indi-
cator
*8 ( P.41)

782-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_M78287_enby your Lexus dealer.
*7: This light illuminates on the outside rear
view mirrors.
*8: This light illuminates on the center panel.

792-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_M78287_en
2
Vehicle status information and indicators
When driving mode is in other than Sport mode ( P.248)
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system outp ut or regeneration level (P.82)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Background color of driving mode
Background color changes acco rding to the driving mode. (P.248)
•Sport mode: Red
•Eco mode: Blue
When in Normal mode, the background color is black.
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.286)
Multi-information display
Presents the driver with a variety of vehicle data ( P.84)

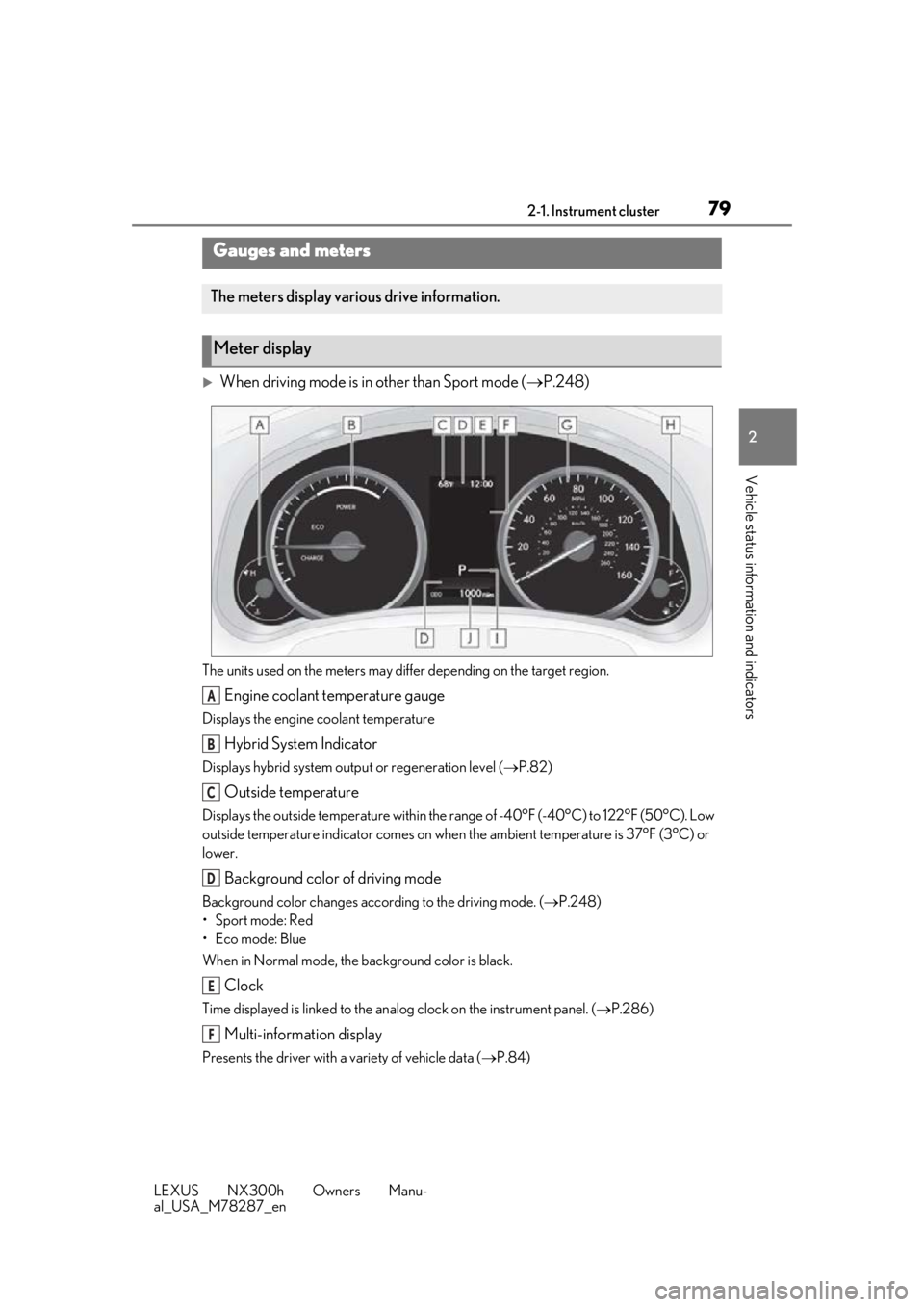

Gauges and meters
The meters display various drive information.
Meter display
A
B
C
D
E
F

802-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_M78287_enDisplays warning messages in
case of a malfunction (P.376)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift posi tion or selected shift range (P.173)
Odometer, trip meter and maintena nce required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed.
• Displays the maintenance requ ired information when the power switch is ON mode.
• It can be reset on of the multi-information display. ( 
P.86)

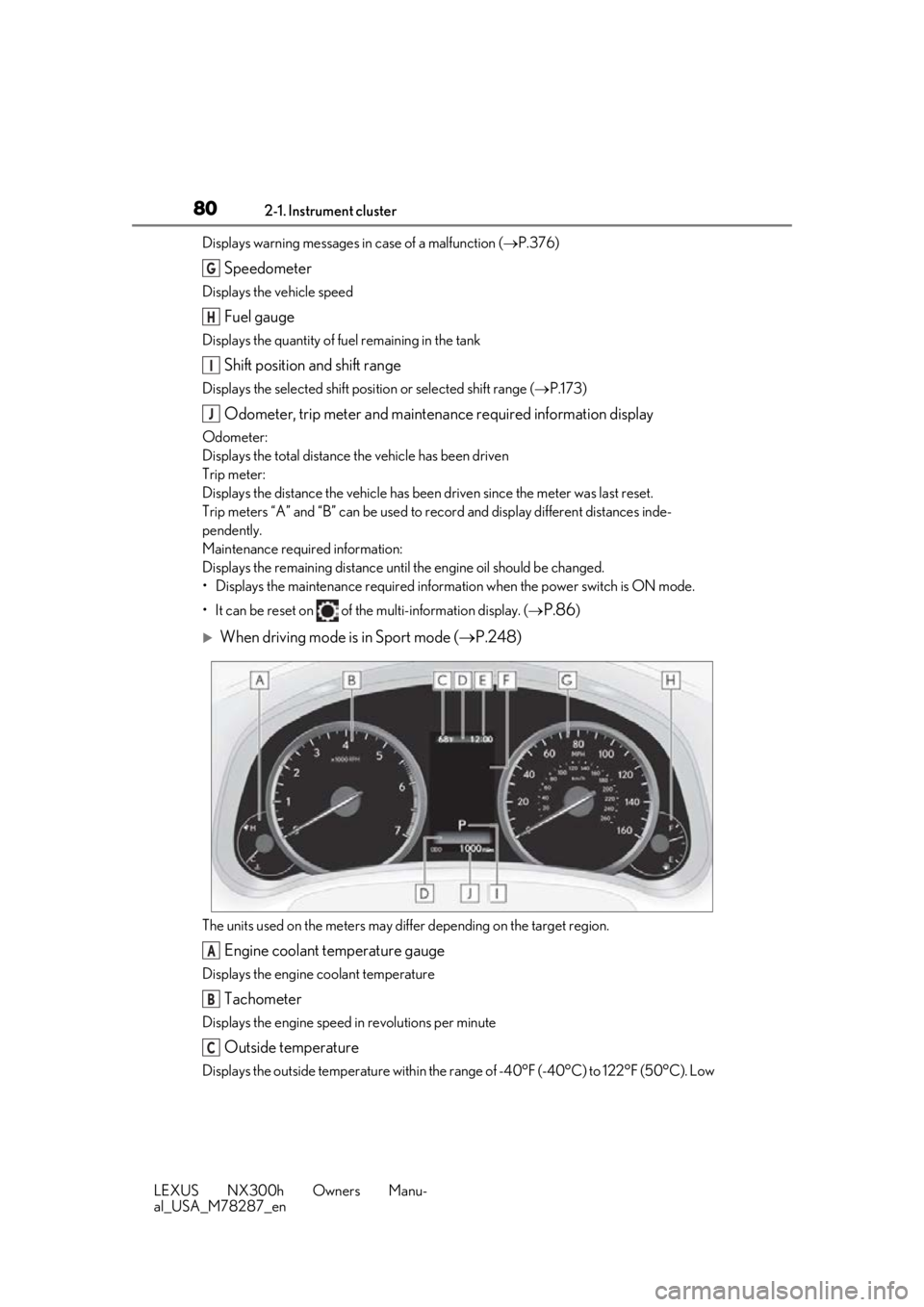

When driving mode is in Sport mode (P.248)
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
G
H
I
J
A
B
C
