3316-1. Maintenance and care
LEXUS NX300h Owners Manual_USA_M78530_en
6
Maintenance and care
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repellent
coating (vehicles with water-repellent
coating)
●The following precautions can extend the
effectiveness of the water-repellent coat-
ing.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate
on the windows for a long period.
Clean the windows with a soft, damp
cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the win-
dows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance
has become insufficie nt, the coating can
be repaired. Contact your Lexus dealer.
WARNING
■When washing the vehicle
Do not apply water to the inside of the
engine compartment. Doing so may
cause the electrical components etc. to
catch fire.
■When cleaning the windshield (vehi-
cles with rain-sensing windshield wip-
ers)
Set the wiper switch to off.
If the switch is in “AUTO”, the wipers may
operate unexpectedly in the following sit-
uations, and may result in hands being
caught or other serious injuries and
cause damage to the wiper blades.
Off
AUTO
●When the upper part of the windshield
where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close
to the raindrop sensor
●If something bumps against the wind-
shield
●If you directly touch the raindrop sen-
sor body or if something bumps into
the raindrop sensor
■Precautions regarding the exhaust
pipe
Exhaust gasses cause the exhaust pipe to
become quite hot.
When washing the vehicle, be careful not
to touch the pipe until it has cooled suffi-
ciently, as touching a hot exhaust pipe
can cause burns.
■Precautions regarding the rear
bumper with Blind Spot Monitor (if
equipped)
If the paint of the re ar bumper is chipped
or scratched, the system may malfunc-
tion. If this occurs, consult your Lexus
dealer.
A
B

3907-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78530_en
■PKSB OFF indicator (warning buzzer)
■Slip indicator light
■Brake hold operated indicator
■Parking brake indicator
Warning lightDetails/Actions
(Flashes)
When a buzzer sounds: Indicates a malfunction in the PKSB
(Parking Support Brake) system
Have the vehicle inspected by your Lexus dealer
immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.
 Clear the dirt, etc.
Warning lightDetails/Actions
Indicates a malfunction in:
The VSC system;
 The TRAC system; or
 The hill-start assist control system
The light will flash when the ABS, VSC or TRAC system is
operating.
 Have the vehicle inspected by your Lexus dealer
immediately.
Warning lightDetails/Actions
(Flashes)
Indicates a malfunction in the brake hold system
Have the vehicle inspected by your Lexus dealer
immediately.
Warning lightDetails/Actions
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
It is possible that the parking brake is not fully engaged or
released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not released.
If the light turns off after the parking brake is fully released,
the system is operating normally.

3937-2. Steps to take in an emergency
LEXUS NX300h Owners Manual_USA_M78530_en
7
When trouble arises
■Brake Override System/Drive-S tart Control warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
■SRS warning light
This warning light system monitors the air-
bag sensor assembly, fr ont impact sensors,
side impact sensors (front door), side
impact sensors (rear), driver’s seat position
sensor, driver’s seat be lt buckle switch, front
passenger occupant cl assification system
(ECU and sensors), “AIR BAG ON” indi-
cator light, “AIR BAG OFF” indicator light,
front passenger’s seat belt buckle switch,
driver’s seat belt pretensioner, front passen-
ger’s seat belt pretensioner and force lim-
iter, airbags, interconnecting wiring and
power sources. ( P.32)
■Front passenger detection sensor, seat
belt reminder and warning buzzer
●If luggage is placed on the front passen-
ger seat, the front passenger detection
sensor may cause th e warning light to
flash and the warning buzzer to sound even if a passenger is not sitting in the
seat.
●If a cushion is placed on the seat, the sen-
sor may not detect a passenger, and the
warning light may not operate properly.
■Electric power steering system warning
light (warning buzzer)
When the 12-volt battery charge becomes
insufficient of the voltage temporarily drops,
the electric power steering system warning
light may come on and the warning buzzer
may sound.
■If the malfunction indicator lamp comes
on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
Warning lightDetails/Actions
Brake Override System
Indicates that the accelerato r and brake pedals are being
depressed simultaneously, and the Brake Override System
is operating.
 Release the accelerator pedal and depress the brake
pedal.
Indicates a malfunction in the Brake Override System (with
warning buzzer)
 Have the vehicle inspected by your Lexus dealer
immediately.
Drive-Start Control
Indicates that the shift position was changed and Drive-
Start Control was operated wh ile depressing the accelera-
tor pedal. (with warning buzzer)
 Momentarily release th e accelerator pedal.
Indicates a malfunction in th e Drive-Start Control system
(with warning buzzer)
 Have the vehicle inspected by your Lexus dealer
immediately.

4438-2. Customization
LEXUS NX300h Owners Manual_USA_M78530_en
8
Vehicle specifications
■Smart access system with push-button start ( P.126)
■Wireless remote control ( P.107)
■Automatic light control system ( P.189)
FunctionDefault settingCustomized set-
ting
The doors that are unlocked
using the smart access sys-
tem with push-button start
can be selected
Driver’s doorAll the doorsO—OO
Smart access system with
push-button startOnOff——O—
Number of consecutive door
lock operations2 timesAs many as desired——O—
FunctionDefault settingCustomized set- ting
Wireless remote controlOnOff——O—
Unlocking operation
Driver’s door
unlocked in first step, all doors
unlocked in sec- ond step
All doors
unlocked in first
step
O—O—
Panic functionOnOff——O—
The function that validates the
switch of the wireless
remote control when locking
the door ( P.117)
When locking the
doorWhen unlocking
the door——O—
FunctionDefault settingCustomized set-ting
Light sensor sensitivityStandard-2 to 2O—O—
Adjust the time elapsed
before the headlights auto-
matically turn off
30 seconds
Off
O—O—60 seconds
90 seconds
ABCD
ABCD
ABCD

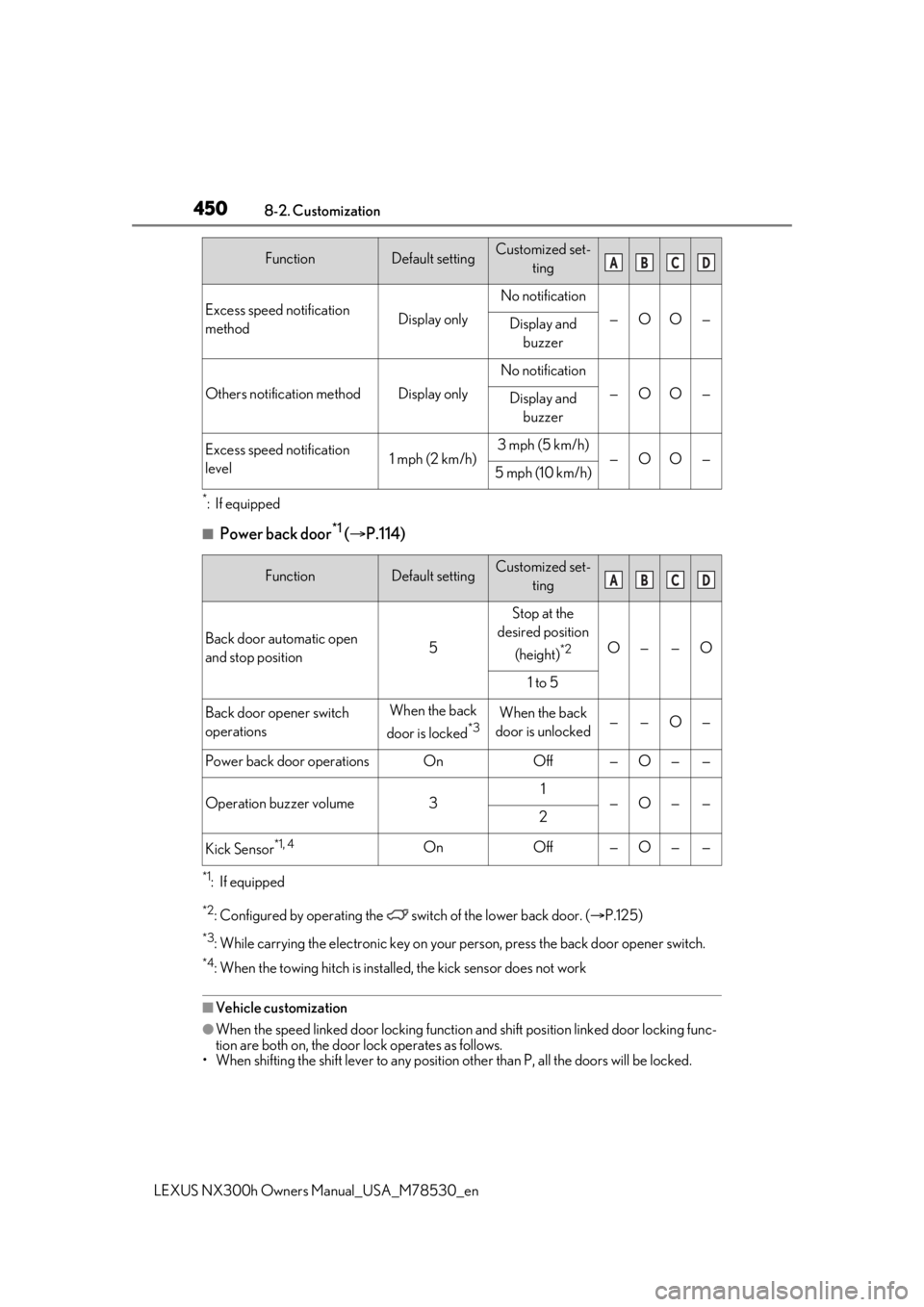

4508-2. Customization
LEXUS NX300h Owners Manual_USA_M78530_en
*:If equipped
■Power back door*1 ( P.114)
*1: If equipped
*2: Configured by operating the sw itch of the lower back door. (P.125)
*3: While carrying the electronic key on your person, press the back door opener switch.
*4: When the towing hitch is installed, the kick sensor does not work
■Vehicle customization
●When the speed linked door locking function and shift po sition linked door locking func-
tion are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be locked.
Excess speed notification
methodDisplay only
No notification
—OO—Display and
buzzer
Others notification methodDisplay only
No notification
—OO—Display and buzzer
Excess speed notification
level1 mph (2 km/h)3 mph (5 km/h)—OO—5 mph (10 km/h)
FunctionDefault settingCustomized set- ting
Back door automatic open
and stop position5
Stop at the
desired position
(height)
*2O——O
1 to 5
Back door opener switch
operationsWhen the back
door is locked
*3When the back
door is unlocked——O—
Power back door operationsOnOff—O——
Operation buzzer volume31—O——2
Kick Sensor*1, 4OnOff—O——
FunctionDefault settingCustomized set- tingABCD
ABCD

LEXUS NX300h Owners Manual_USA_M78530_en
467What to do if... (Troubleshooting)
Is the power switch in ON mode?
If you cannot release the shift lever
by depressing the brake pedal with
the power switch in ON mode
( P.180)
 It is locked automatically to prevent
theft of the vehicle. ( P.175)
 Is the window lock switch pressed?
The power window except for the
one at the driver’s seat cannot be
operated if the window lock switch
is pressed. ( P.149)
 The auto power off function will be
operated if the vehicle is left in
ACCESSORY or ON mode (the
hybrid system is not operating) for a
period of time. ( P.176)
 The seat belt reminder light is flash-
ing
Are the driver and the passengers wearing the seat belts? (
P.391)
 The parking brake indicator is on
Is the parking brake released?
( P.183)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.386, 396)
 Did anyone inside the vehicle open
a door during setting the alarm?
The sensor detects it and the alarm
sounds. ( P.77)
To stop the alarm, turn the power
switch to ON mode or start the hybrid
system.
 Is the message displayed on the
multi-information display?
Check the message on the multi-
information display. ( P.396)
 When a warning light turns on or a
warning message is displayed, refer
to P.386, 396.
The shift lever cannot be shifted
from P even if you depress the
brake pedal
The steering wheel cannot be
turned after the hybrid system is
stopped
The windows do not open or
close by operating the power
window switches
The power switch is turned off
automatically
A warning buzzer sounds during
driving
An alarm is activated and the
horn sounds
A warning buzzer sounds when
leaving the vehicle
A warning light turns on or a
warning message is displayed

LEXUS NX300h Owners Manual_USA_M78530_en
Alphabetical Index479
S
S-FLOW mode ............................................ 294
Safety Connect................................................ 60
Seat belts............................................................ 26Adjusting the seat belt shoulder anchor height................................................................. 31
Automatic Locking Retractor ................ 28
Child restraint system installation ..........47
Cleaning and maintaining the seat belt ......................................................................... 333
Emergency Locking Retractor .............. 28
How to wear your seat belt ......................27
How your child should wear the seat belt ............................................................................ 28
Pregnant women, proper seat belt use .............................................................................27
Reminder light and buzzer .....................391
Seat belt extender ........................................ 28
Seat belt instructions for Canadian own- ers................................................................... 454
Seat belt pretensioners ................................ 31
SRS warning light ..................................... 388
Seat heaters ................................................... 297
Seat position memory................................. 138
Seat ventilators ............................................. 298
Seating capacity.............................................164
Seats Adjustment............................................132, 133
Adjustment precautions .................132, 134
Child seats/child restraint system installa-tion .....................................................................47
Cleaning......................................................... 333
Driving position memory........................ 138 Folding down the rear seatbacks ........134
Front seat heaters ...................................... 297
Head restraint ................................................. 141
Power easy access system .................... 138
Properly sitting in the seat ........................ 25
Rear seat heaters ....................................... 297
Seat position memory .............................. 138
Seat ventilators ........................................... 298
Sécurité de l’enfant Précautions avec les coussins gonflables......................................................................... 458
Sensor Automatic High Beam system ..............192
BSM (Blind Spot Monitor)....................263
Inside rear view mirror ............................. 145
Intuitive parking assist .............................. 247
Kick sensor ....................................................... 118
LDA (Lane Departure Alert with steering control) ........................................................204
LTA (Lane Tracing Assist) ....................204
Radar sensor ................................................204
Rain-sensing windshield wipers .......... 199
Service plug ...................................................... 70
Service reminder message ..................... 337
Shift lever .......................................................... 179
Shift lock system............................................ 180
Side airbags ...................................................... 32
Side doors.......................................................... 110
Side marker lights Light switch .................................................... 189
Replacing light bulbs .................... 374, 375
Wattage .......................................................... 429
