2694-3. Operating the lights and wipers
4
Driving
RC200t_RC F_EE(OM24728E)
■The Automatic High Beam can be operated when
The engine switch is in IGNITION ON mode.
■Camera sensor detection information
●High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve • When the vehicle is cut in front of by another vehicle• When oncoming or preceding vehicles are hidden from sight due to repeated
curves, road dividers or roadside trees
●High beam may be turned off if an oncoming vehicle that is using fog lights without
using the headlights is detected.
●House lights, street lights, red traffic sign als, and illuminated billboards or signs may cause the high beam to turn off.
●The following factors may affect the amount of time taken to turn high beam on or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and preceding vehicles
• The movement and direction of oncoming and preceding vehicles • When an oncoming or preceding vehicle only has operational lights on one side • When an oncoming or preceding vehicle is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface etc.) • The number of passengers and amount of luggage
●High beam may be turned on or off when unexpected by the driver.
●Small vehicles, such as bicycles, may not be detected.
●In the situations below, the system may not be able to correctly detect the surrounding
brightness levels, and may flash or expose nearby pedestrians to the high beam. There- fore, you should consider turning the high be ams on or off manually rather than relying on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.) • The windshield is obscured by fog, mist, ice, dirt etc.• The windshield is cracked or damaged.
• The camera sensor is deformed or dirty. • Surrounding brightness levels are equal to those of headlights, tail lights or fog lights. • Vehicles ahead have headlights or tail lights that are either switched off, dirty, chang-
ing color, or have improperly adjusted aim. • When driving through an area of interm ittently changing brightness and darkness. • When frequently and repeatedly driving ascending/descending roads, or roads with
rough, bumpy or uneven surfaces (such as stone-paved roads, gravel tracks etc.). • When frequently and repeatedly taking curves or driving on a winding road.• There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.
• The vehicle’s headlights are damaged or dirty. • The vehicle is listing or titling, due to a flat tire, a trailer being towed etc.
• The driver believes that the high beam may be causing problems or distress to other drivers or pedestrians nearby.• The vehicle is used in a territory in which vehicles travel on the opposite side of the
road of the country for which the vehicle is approved, for example using a vehicle designed for right-hand traffic in a left-hand traffic territory, or vice versa.

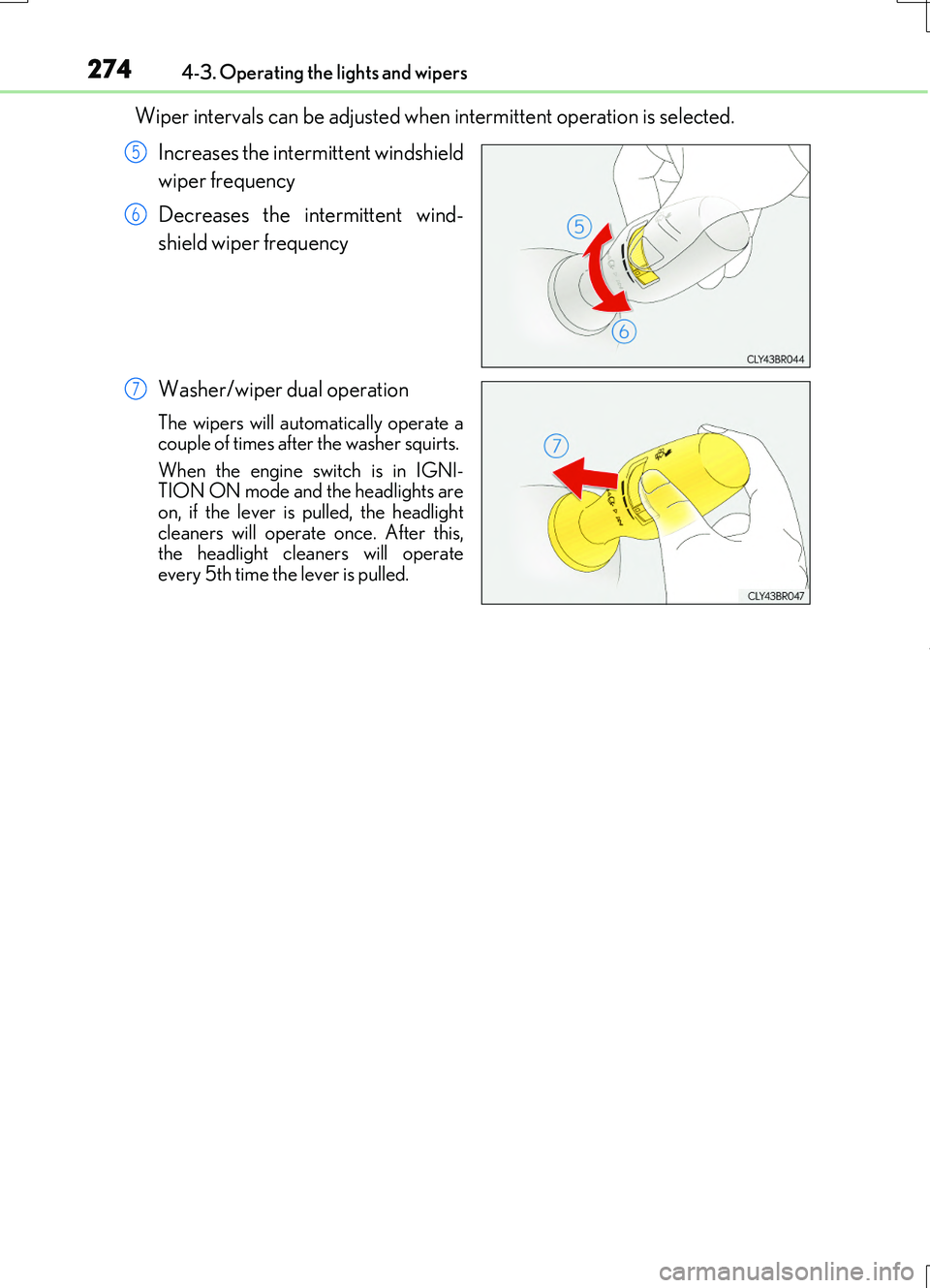

2744-3. Operating the lights and wipers
RC200t_RC F_EE(OM24728E)
Wiper intervals can be adjusted when intermittent operation is selected.
Increases the intermittent windshield
wiper frequency
Decreases the intermittent wind-
shield wiper frequency
Washer/wiper dual operation
The wipers will automatically operate a couple of times after the washer squirts.
When the engine switch is in IGNI- TION ON mode and the headlights areon, if the lever is pulled, the headlight
cleaners will operate once. After this, the headlight cleaners will operateevery 5th time the lever is pulled.
5
6
7

2764-3. Operating the lights and wipers
RC200t_RC F_EE(OM24728E)
When AUTO mode is selected, the sensor sensitivity can be adjusted by turning
the switch ring.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer squirts.
When the engine switch is in IGNI- TION ON mode and the headlights are
on, if the lever is pulled, the headlight cleaners will operate once. After this,the headlight cleaners will operate
every 5th time the lever is pulled.
The wipers can be used as intermittent windshield wipers, which operate regard-
less of vehicle speed or amount of raindr ops. The intermittent windshield wiper
operation can be switched when the vehicle is stopped and the wiper is off. The
wiper operation cannot be switched during AUTO mode or while the intermit-
tent windshield wipers are operating.
Press and hold until the AUTO
mode indicator stops flashing.
If is pressed and held until the
AUTO mode indicator stops flashing again, it will return to its previous state.
The wiper can be switched when the
vehicle is stopped and the wipers are off.
6
7
8
Switching between the intermittent windshield wipers and rain-sensing
windshield wipers (vehicles with rain-sensing windshield wipers)

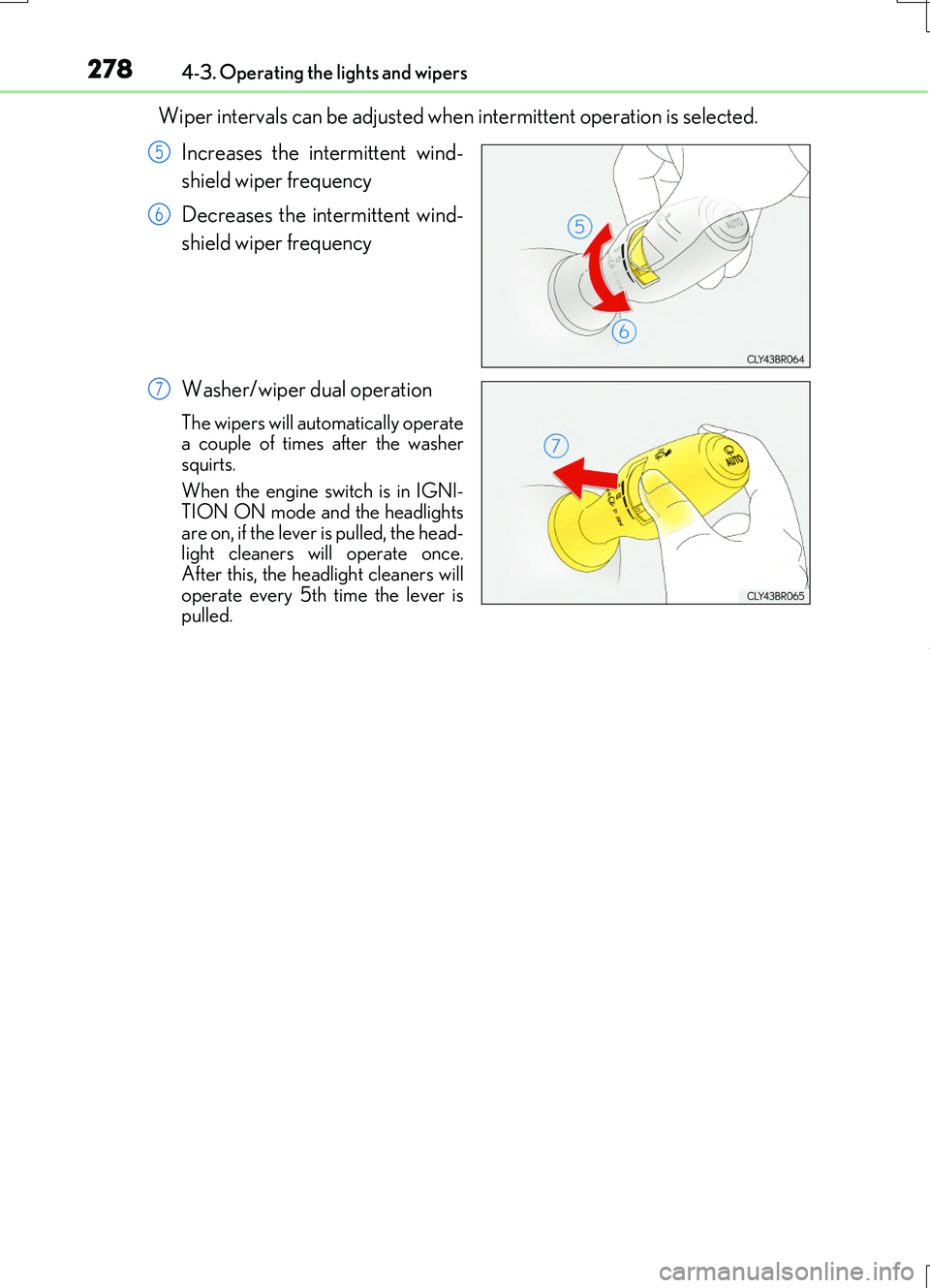

2784-3. Operating the lights and wipers
RC200t_RC F_EE(OM24728E)
Wiper intervals can be adjusted when intermittent operation is selected.
Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent wind-
shield wiper frequency
Washer/wiper dual operation
The wipers will automatically operate a couple of times after the washer
squirts.
When the engine switch is in IGNI- TION ON mode and the headlights
are on, if the lever is pulled, the head- light cleaners will operate once.After this, the headlight cleaners will
operate every 5th time the lever is pulled.
5
6
7

2794-3. Operating the lights and wipers
4
Driving
RC200t_RC F_EE(OM24728E)
■The windshield wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■Dripping prevention wiper sweep
After performing a washing and wiping operat ion several times, the wipers operate one
more time after a short delay to prevent dripping.
However, this final wiper operation will not be performed while driving.
■Effects of vehicle speed on wiper operation (vehicles with rain-sensing windshield wip-
ers)
Vehicle speed affects the following even when the wipers are not in AUTO mode.
●Intermittent wiper interval
●Wiper operation when the washer is being used (delay until drip prevention wiper sweep occurs)
With low speed windshield wi per operation selected, wiper operation will be switched
from low speed to intermittent wiper operat ion only when the vehicle is stationary.
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper is turned to AUTO mode while the engine switch is in IGNITION ON
mode, the wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -30°C (-22°F) or lower, automatic operation may not occur. In this case, operate the wipers in any
mode other than AUTO mode.
■When the windshield wipers are in temporary operation (vehicles with rain-sensing windshield wipers)
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the windshield washer fluid reservoir.
●The raindrop sensor judges the amount ofraindrops.
An optical sensor is adopted. It may not oper-
ate properly when sunlight from the rising or setting of the sun intermittently strikes thewindshield, or if bugs etc. are present on the
windshield.

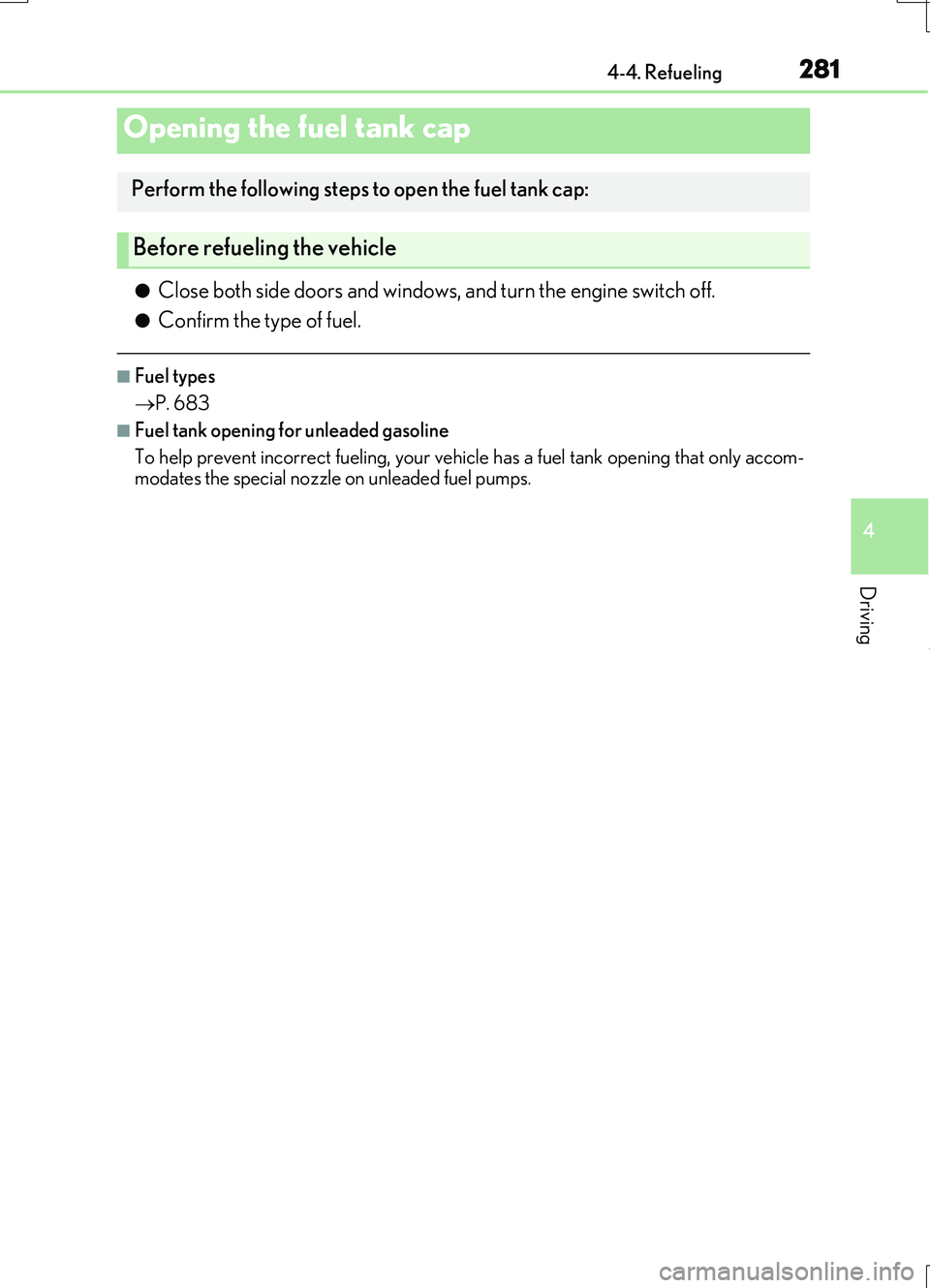

281
4
Driving
RC200t_RC F_EE(OM24728E)
4-4. Refueling
●Close both side doors and windows, and turn the engine switch off.
●Confirm the type of fuel.
■Fuel types
 P. 683
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only accom-
modates the special nozzle on unleaded fuel pumps.
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle

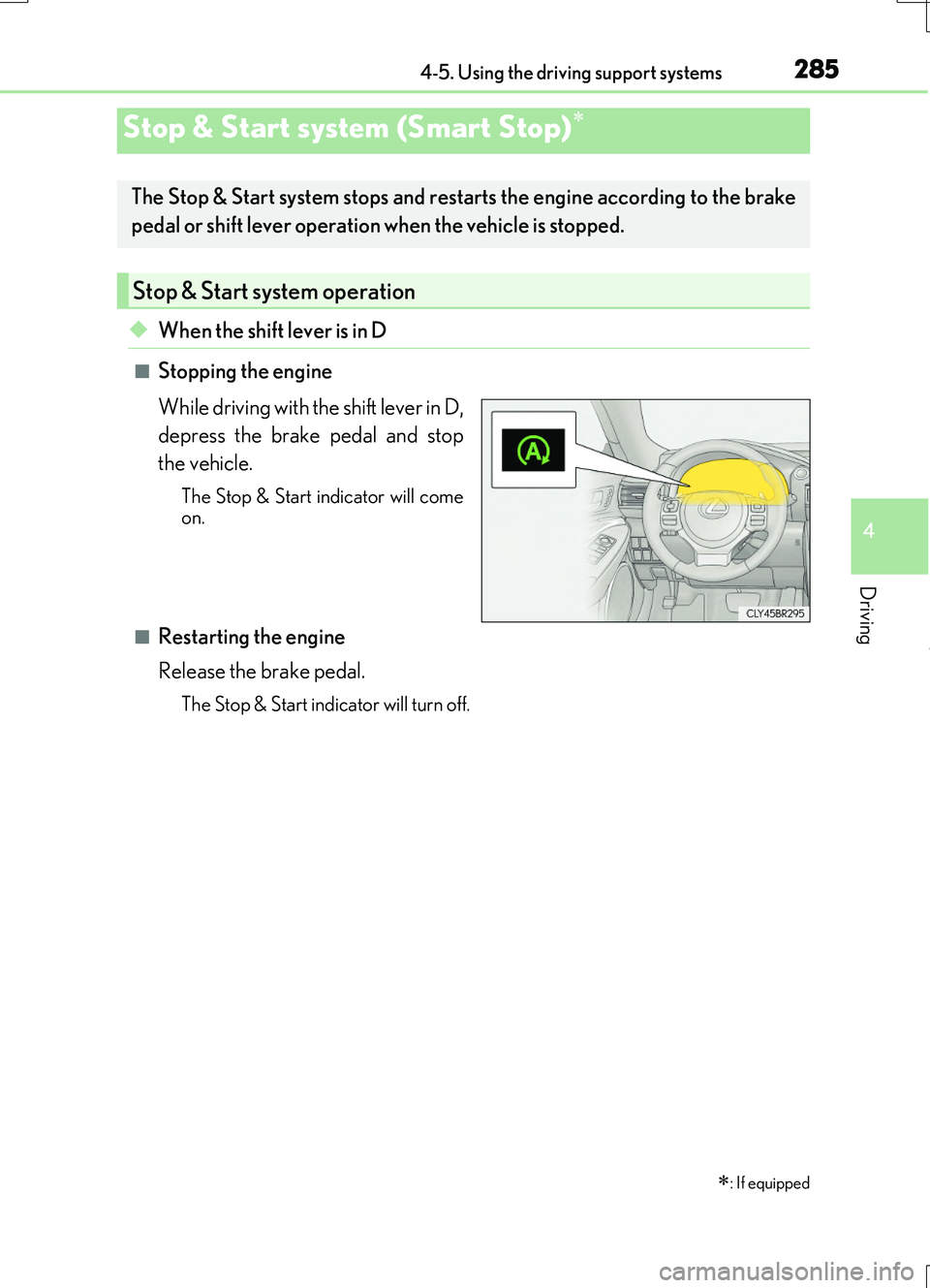

285
4
Driving
RC200t_RC F_EE(OM24728E)
4-5. Using the driving support systems
◆When the shift lever is in D
■Stopping the engine
While driving with the shift lever in D,
depress the brake pedal and stop
the vehicle.
The Stop & Start indicator will come on.
■Restarting the engine
Release the brake pedal.
The Stop & Start indicator will turn off.
Stop & Start system (Smart Stop)
: If equipped
The Stop & Start system stops and restarts the engine according to the brake
pedal or shift lever operation when the vehicle is stopped.
Stop & Start system operation

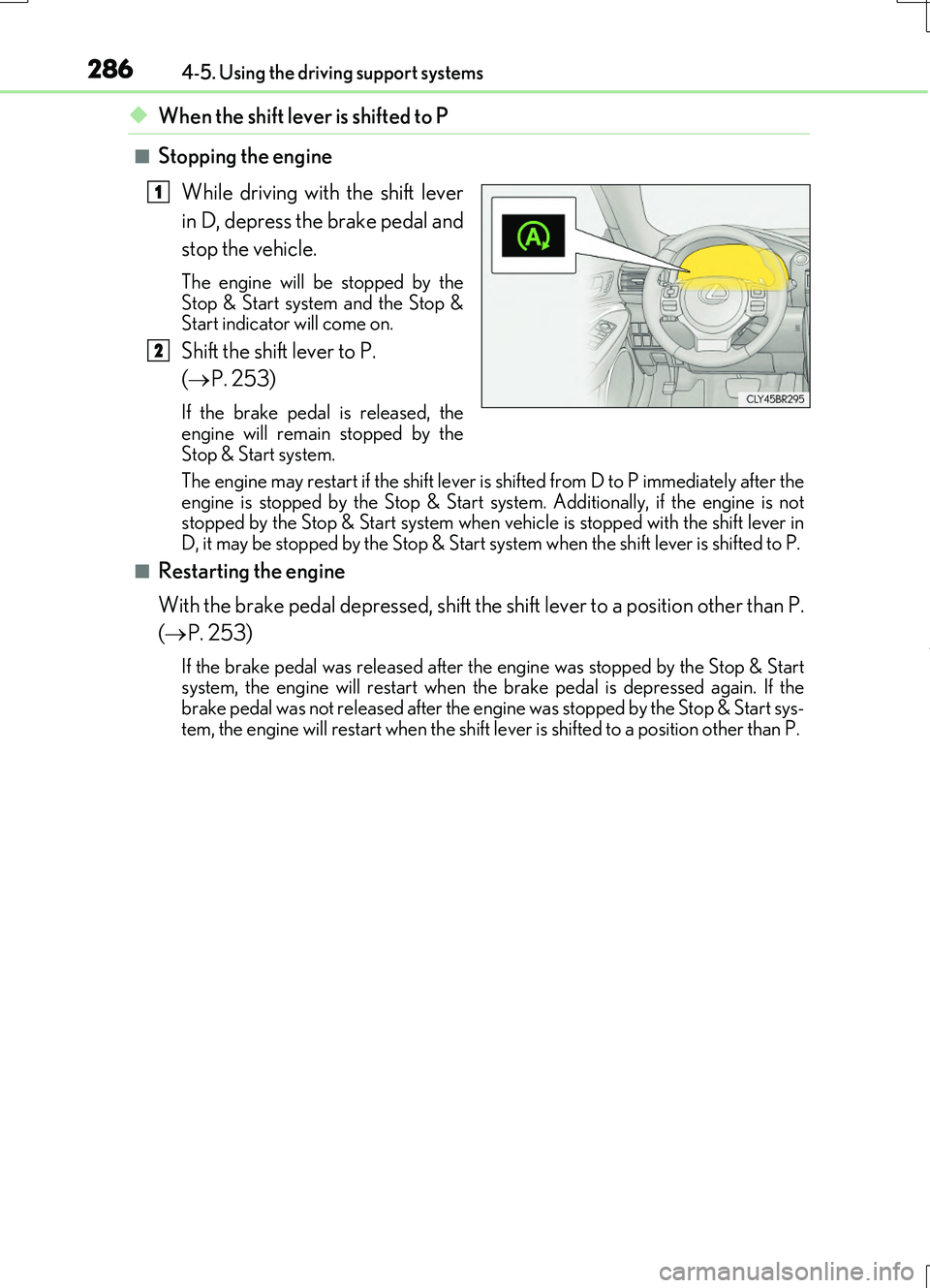

2864-5. Using the driving support systems
RC200t_RC F_EE(OM24728E)
◆When the shift lever is shifted to P
■Stopping the engine While driving with the shift lever
in D, depress the brake pedal and
stop the vehicle.
The engine will be stopped by the
Stop & Start system and the Stop &
Start indicator will come on.
Shift the shift lever to P.
(  P. 253)
If the brake pedal is released, the
engine will remain stopped by the
Stop & Start system.
The engine may restart if the shift lever is shifted from D to P immediately after the
engine is stopped by the Stop & Start sy stem. Additionally, if the engine is not
stopped by the Stop & Start system when vehicle is stopped with the shift lever in
D, it may be stopped by the Stop & Start system when the shift lever is shifted to P.
■Restarting the engine
With the brake pedal depressed, shift the shift lever to a position other than P.
(  P. 253)
If the brake pedal was released after the engine was stopped by the Stop & Start
system, the engine will restart when the brake pedal is depressed again. If the
brake pedal was not released after the engine was stopped by the Stop & Start sys-
tem, the engine will restart when the shift le ver is shifted to a position other than P.
1
2

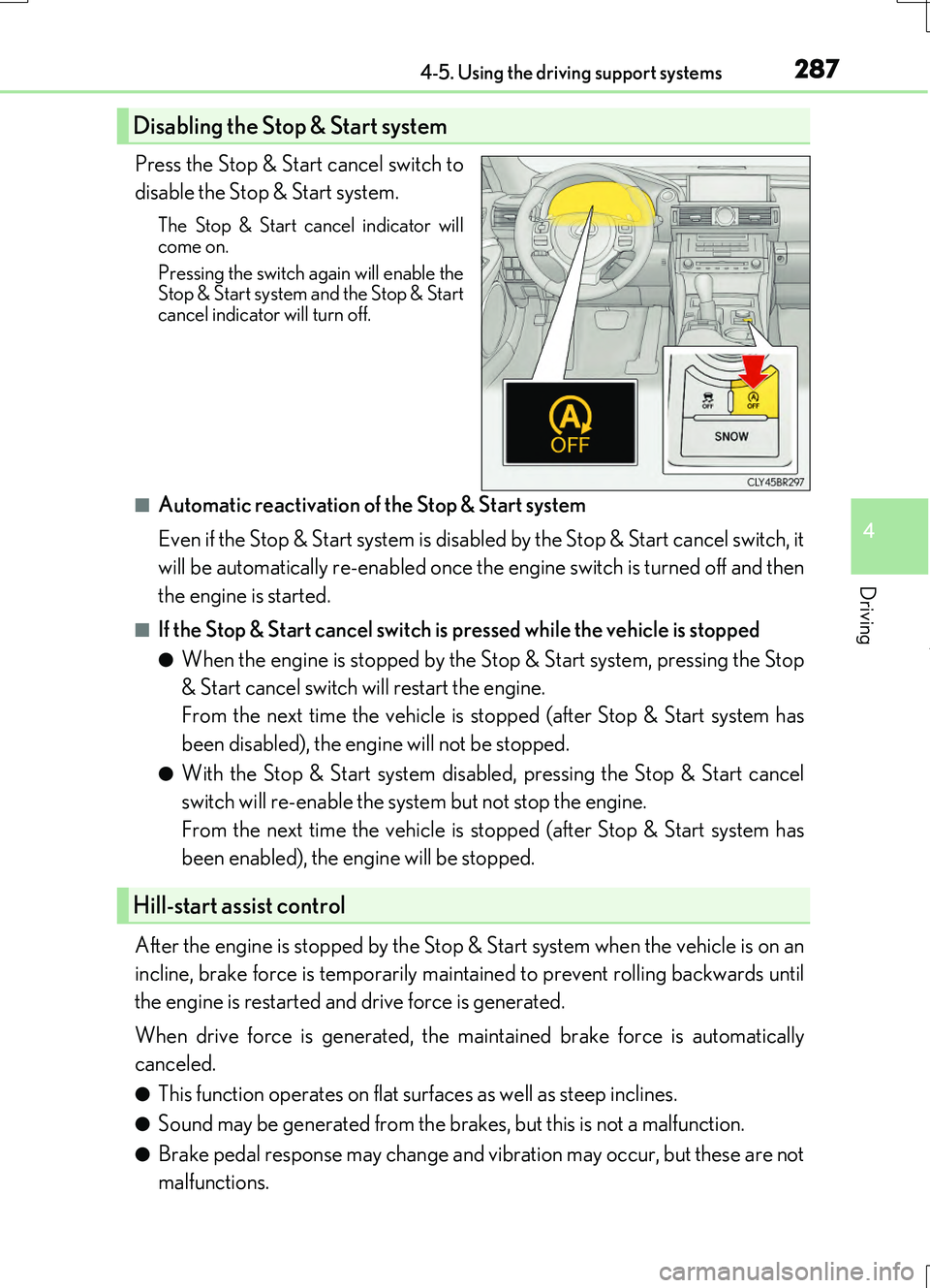

2874-5. Using the driving support systems
4
Driving
RC200t_RC F_EE(OM24728E)
Press the Stop & Start cancel switch to
disable the Stop & Start system.
The Stop & Start cancel indicator will
come on.
Pressing the switch again will enable the Stop & Start system and the Stop & Start
cancel indicator will turn off.
■Automatic reactivation of the Stop & Start system
Even if the Stop & Start system is disabled by the Stop & Start cancel switch, it
will be automatically re-enabled once the engine switch is turned off and then
the engine is started.
■If the Stop & Start cancel switch is pressed while the vehicle is stopped
●When the engine is stopped by the Stop & Start system, pressing the Stop
& Start cancel switch will restart the engine.
From the next time the vehicle is st opped (after Stop & Start system has
been disabled), the engine will not be stopped.
●With the Stop & Start system disabl ed, pressing the Stop & Start cancel
switch will re-enable the system but not stop the engine.
From the next time the vehicle is st opped (after Stop & Start system has
been enabled), the engine will be stopped.
After the engine is stopped by the Stop & Start system when the vehicle is on an
incline, brake force is temporarily maintained to prevent rolling backwards until
the engine is restarted and drive force is generated.
When drive force is generated, the ma intained brake force is automatically
canceled.
●This function operates on flat surfaces as well as steep inclines.
●Sound may be generated from the brak es, but this is not a malfunction.
●Brake pedal response may change and vibration may occur, but these are not
malfunctions.
Disabling the Stop & Start system
Hill-start assist control

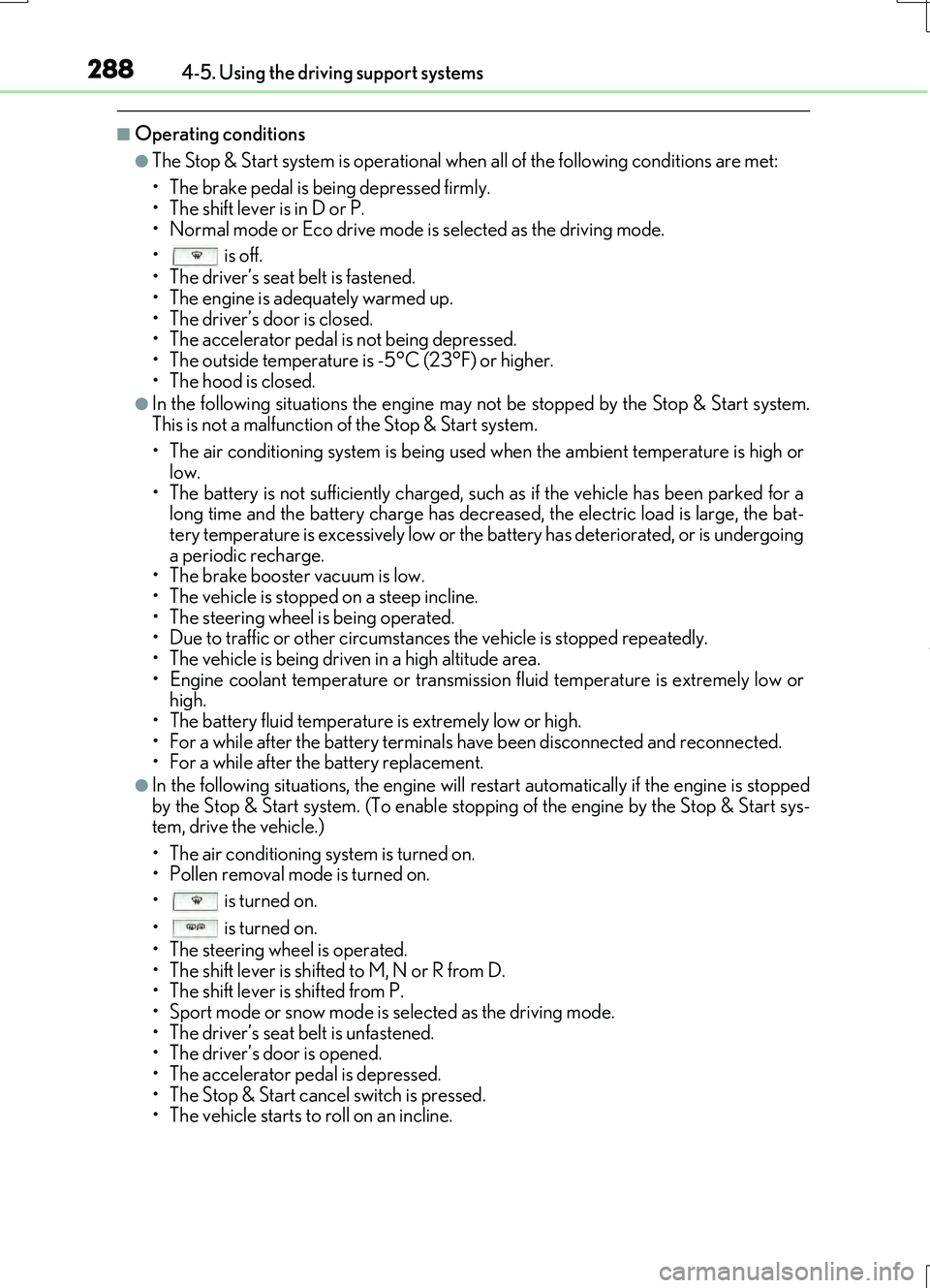

2884-5. Using the driving support systems
RC200t_RC F_EE(OM24728E)
■Operating conditions
●The Stop & Start system is operational when all of the following conditions are met:
• The brake pedal is being depressed firmly.
• The shift lever is in D or P.
• Normal mode or Eco drive mode is selected as the driving mode.
• is off.
• The driver’s seat belt is fastened.
• The engine is adequately warmed up.
• The driver’s door is closed.
• The accelerator pedal is not being depressed.
• The outside temperature is -5°C (23°F) or higher.
• The hood is closed.
●In the following situations the engine may not be stopped by the Stop & Start system.
This is not a malfunction of the Stop & Start system.
• The air conditioning system is being used when the ambient temperature is high or
low.
• The battery is not sufficiently charged, such as if the vehicle has been parked for a long time and the battery charge has decreased, the electric load is large, the bat-
tery temperature is excessively low or the battery has deteriorated, or is undergoing
a periodic recharge.
• The brake booster vacuum is low.
• The vehicle is stoppe d on a steep incline.
• The steering wheel is being operated.
• Due to traffic or other circumstances the vehicle is stopped repeatedly.
• The vehicle is being driven in a high altitude area.
• Engine coolant temperature or transmissi on fluid temperature is extremely low or
high.
• The battery fluid temperature is extremely low or high.
• For a while after the battery terminals have been disconnected and reconnected.
• For a while after the battery replacement.
●In the following situations, the engine will re start automatically if the engine is stopped
by the Stop & Start system. (To enable stoppi ng of the engine by the Stop & Start sys-
tem, drive the vehicle.)
• The air conditioning system is turned on.
• Pollen removal mode is turned on.
• is turned on.
• is turned on.
• The steering wheel is operated.
• The shift lever is shifted to M, N or R from D.
• The shift lever is shifted from P.
• Sport mode or snow mode is selected as the driving mode.
• The driver’s seat belt is unfastened.
• The driver’s door is opened.
• The accelerator pedal is depressed.
• The Stop & Start cancel switch is pressed.
• The vehicle starts to roll on an incline.
