engine LEXUS RC200T 2017 Owners Manual

4876-1. Using the air conditioning system
6
Interior features
RC200t_RC F_EE(OM24728E)
■Registering air conditioning settings to electronic keys
●Unlocking the vehicle using an electronic ke y and turning the engine switch to IGNI-
TION ON mode will recall that key's re gistered air conditioning settings.
●When the engine switch is turned off, the current air conditioning settings will automat-
ically be registered to the electronic key that was used to unlock the vehicle.
●The system may not operate correctly if more than one electronic key is in the vicinity or
if the smart entry & start system is used to unlock a passenger door.
●The doors that can recall the air conditioning setting* when unlocked using the smart
entry & start system can be changed. For details, contact any authorized Lexus dealer
or repairer, or another duly qu alified and equipped professional.
*: The doors that can recall the driving position memory are changed at the same time.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the ambi-
ent conditions.
Therefore, the fan may stop for a while until wa rm or cool air is ready to flow immediately
after is pressed or “AUTO” is selected.
■Fogging up of the windows
The windows will easily fog up when the hu midity in the vehicle is high. Turning
(“A/C”) on will dehumidify the air from the ou tlets and defog the windshield effectively.
●If you turn (“A/C”) off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the outside/recircu-
lated air mode button to the recirculated air mode. This is effective in preventing out-
side air from entering the vehicle interior . During cooling operation, setting the
recirculated air mode will also cool the vehicle interior effectively.
●Outside/recirculated air mode may automati cally switch depending on the tempera-
ture setting or the inside temperature.
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and automati-
cally switches between outside air and recirculated air modes.
When the dehumidification function is off, and the fan is operating, turning automatic
mode on will activate the dehumidification function.
■Operation of the air conditioning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to prioritize fuel
efficiency:
●Engine speed and compressor operation controlled to restrict heating/cooling capac-
ity
●Fan speed restricted when automatic mode is selected
To improve air conditioning performanc e, perform the following operations:
●Adjust the fan speed
●Turn off Eco drive mode

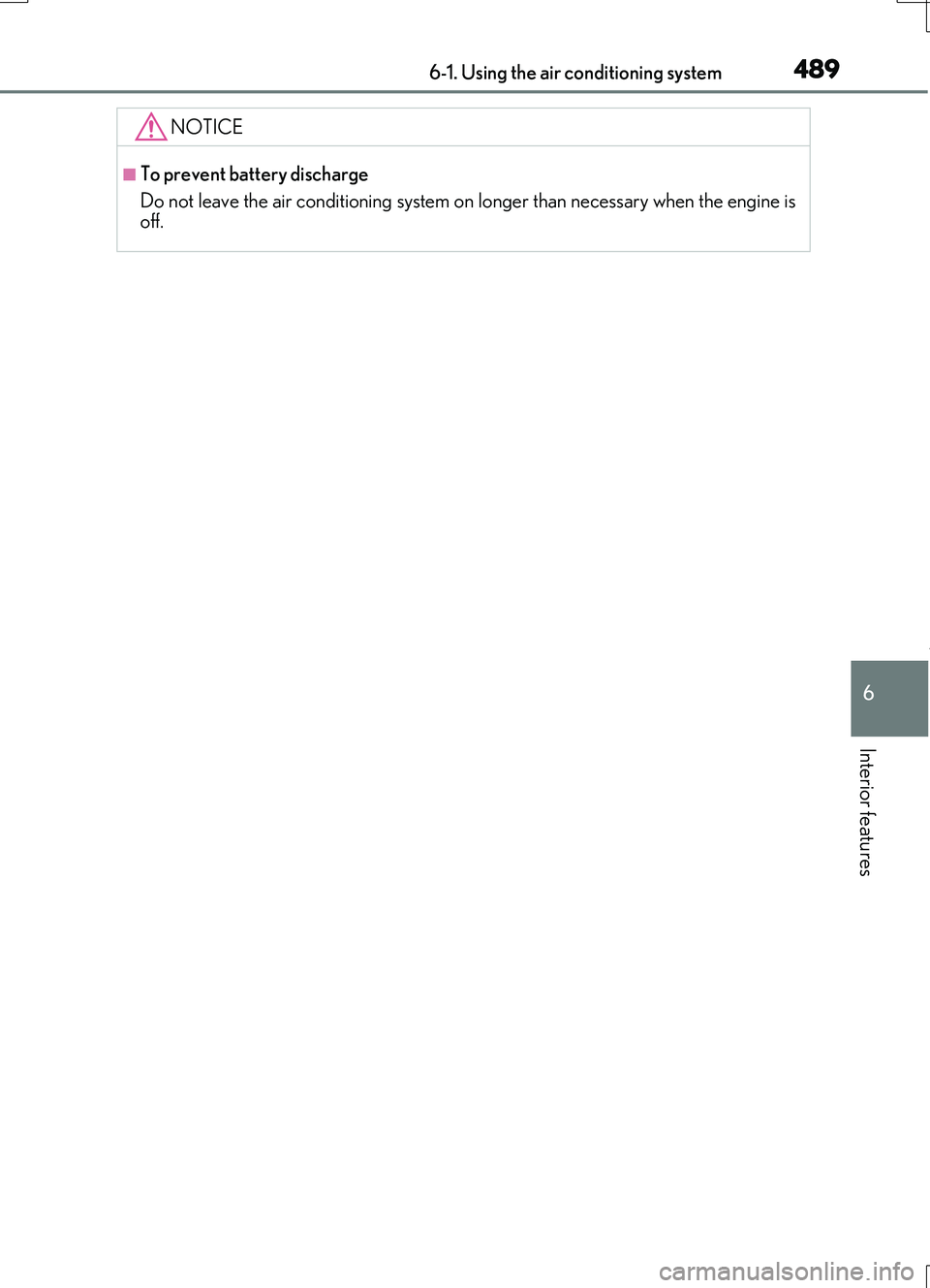

4896-1. Using the air conditioning system
6
Interior features
RC200t_RC F_EE(OM24728E)
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the engine is off.

4906-1. Using the air conditioning system
RC200t_RC F_EE(OM24728E)
Turn the heated steering wheel on/off
The indicator light comes on when the
heated steering wheel is operating.
Heated steering wheel/seat heaters/seat ventila-
tors
: If equipped
Heated steering wheel and seat heaters heat the side grips of the steering
wheel and seats, respectively. Seat ventilators maintain good airflow by blow-
ing air from the seats.
WARNING
●Care should be taken to prevent injury if anyone in the following categories comes in contact with the steering wheel and seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin • Persons who are fatigued• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
●Observe the following precautions to prevent minor burns or overheating,
• Do not cover the seat with a blanket or cushion when using the seat heater. • Do not use seat heater more than necessary.
NOTICE
●Do not put heavy objects that have an uneven surface on the seat and do not sticksharp objects (needles, na ils, etc.) into the seat.
●To prevent battery discharge, do not use the functions when the engine is off.
Heated steering wheel

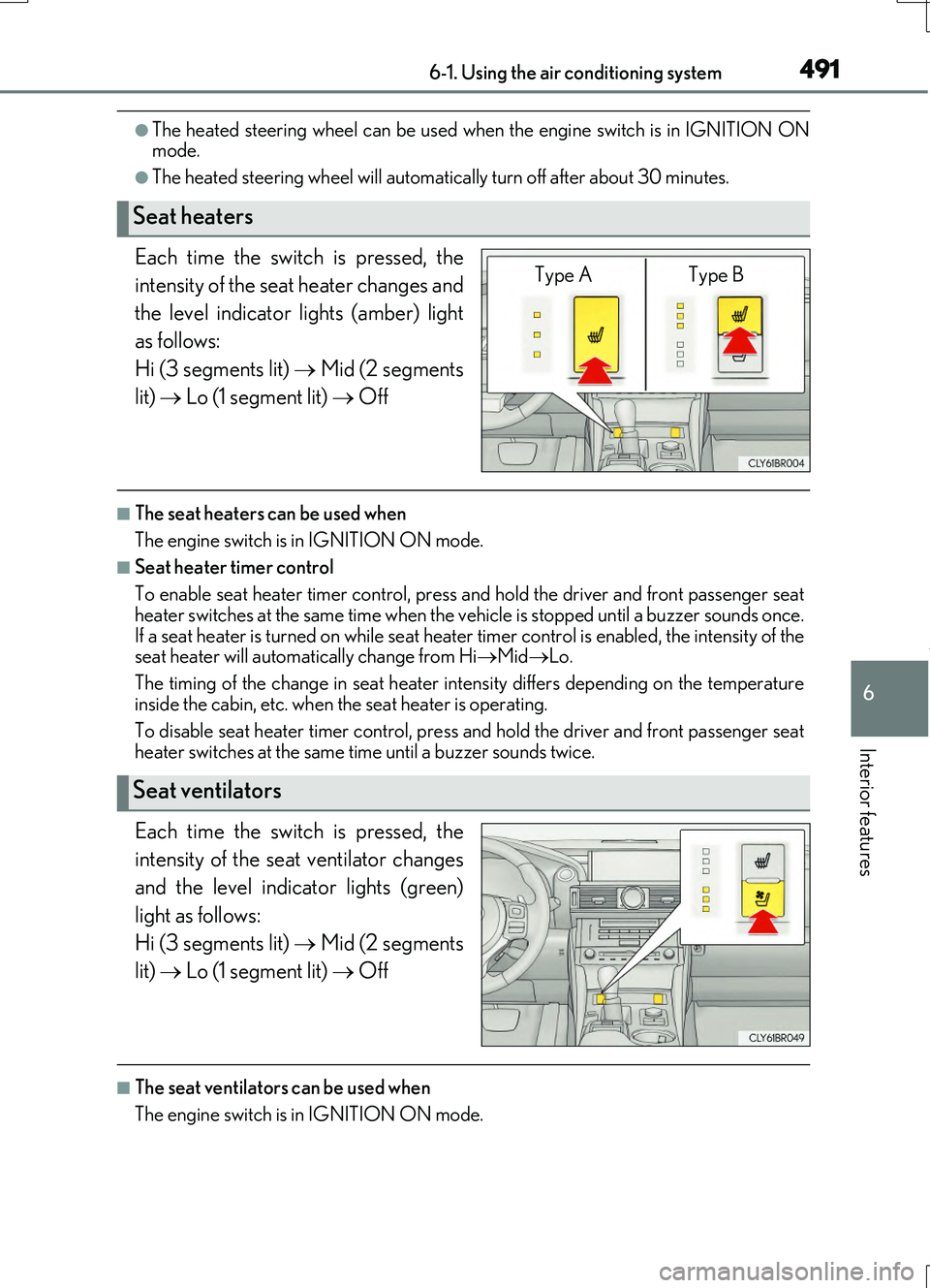

4916-1. Using the air conditioning system
6
Interior features
RC200t_RC F_EE(OM24728E)
●The heated steering wheel can be used when the engine switch is in IGNITION ON mode.
●The heated steering wheel will automatically turn off after about 30 minutes.
Each time the switch is pressed, the
intensity of the seat heater changes and
the level indicator lights (amber) light
as follows:
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
■The seat heaters can be used when
The engine switch is in IGNITION ON mode.
■Seat heater timer control
To enable seat heater timer control, press and hold the driver and front passenger seat heater switches at the same time when the vehicle is stopped until a buzzer sounds once.
If a seat heater is turned on while seat heater timer control is enabled, the intensity of the seat heater will automa tically change from HiMidLo.
The timing of the change in seat heater intensity differs depending on the temperature
inside the cabin, etc. when the seat heater is operating.
To disable seat heater timer control, press and hold the driver and front passenger seat heater switches at the same time until a buzzer sounds twice.
Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator lights (green)
light as follows:
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
■The seat ventilators can be used when
The engine switch is in IGNITION ON mode.
Seat heaters
Type A Type B
Seat ventilators

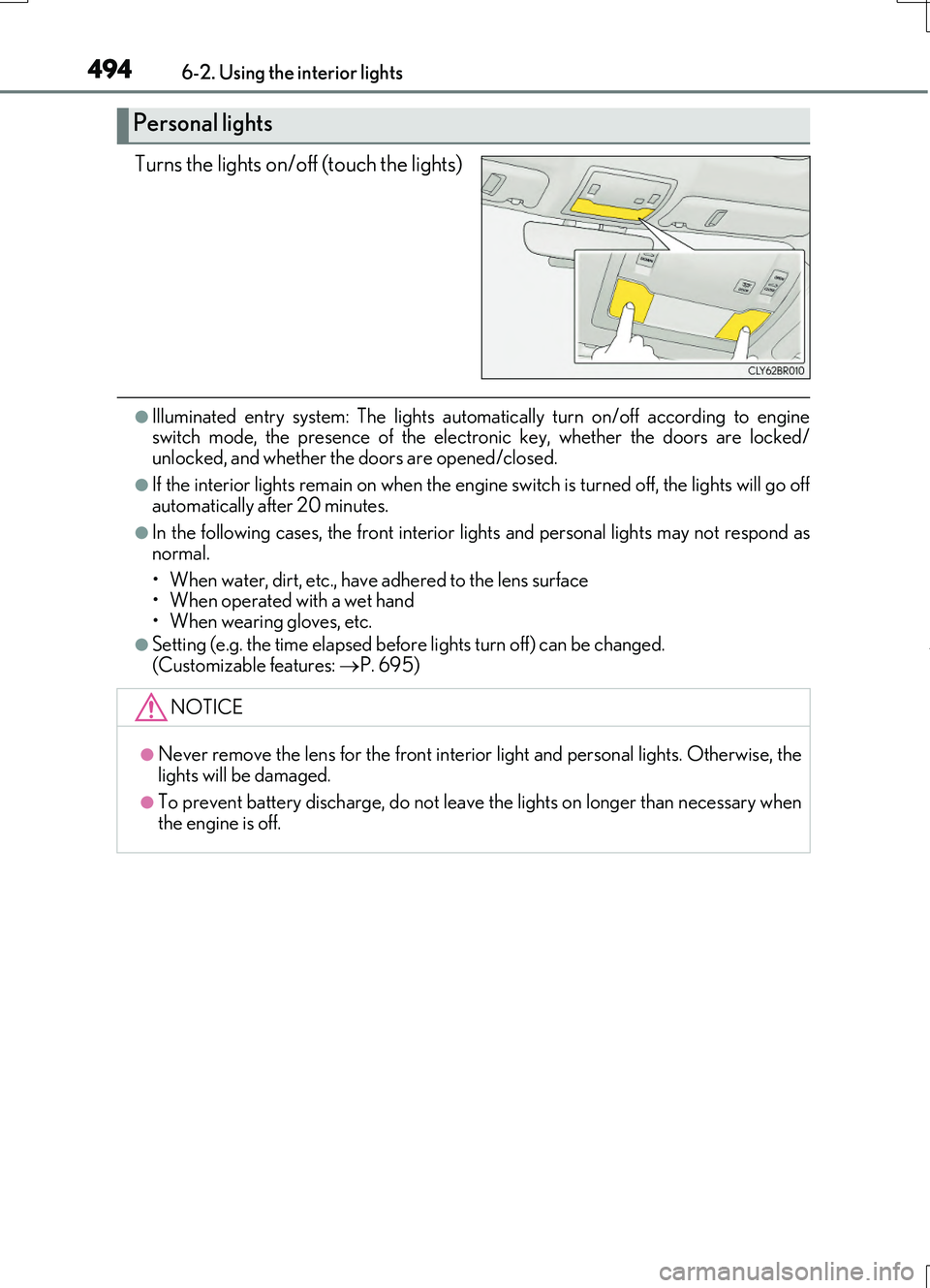

4946-2. Using the interior lights
RC200t_RC F_EE(OM24728E)
Turns the lights on/off (touch the lights)
●Illuminated entry system: The lights automatically turn on/off according to engine switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and whether the doors are opened/closed.
●If the interior lights remain on when the engine switch is turned off, the lights will go off automatically after 20 minutes.
●In the following cases, the front interior lights and personal lights may not respond as
normal.
• When water, dirt, etc., have adhered to the lens surface • When operated with a wet hand
• When wearing gloves, etc.
●Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 695)
Personal lights
NOTICE
●Never remove the lens for the front interior light and personal lights. Otherwise, the
lights will be damaged.
●To prevent battery discharge, do not leave the lights on longer than necessary when the engine is off.

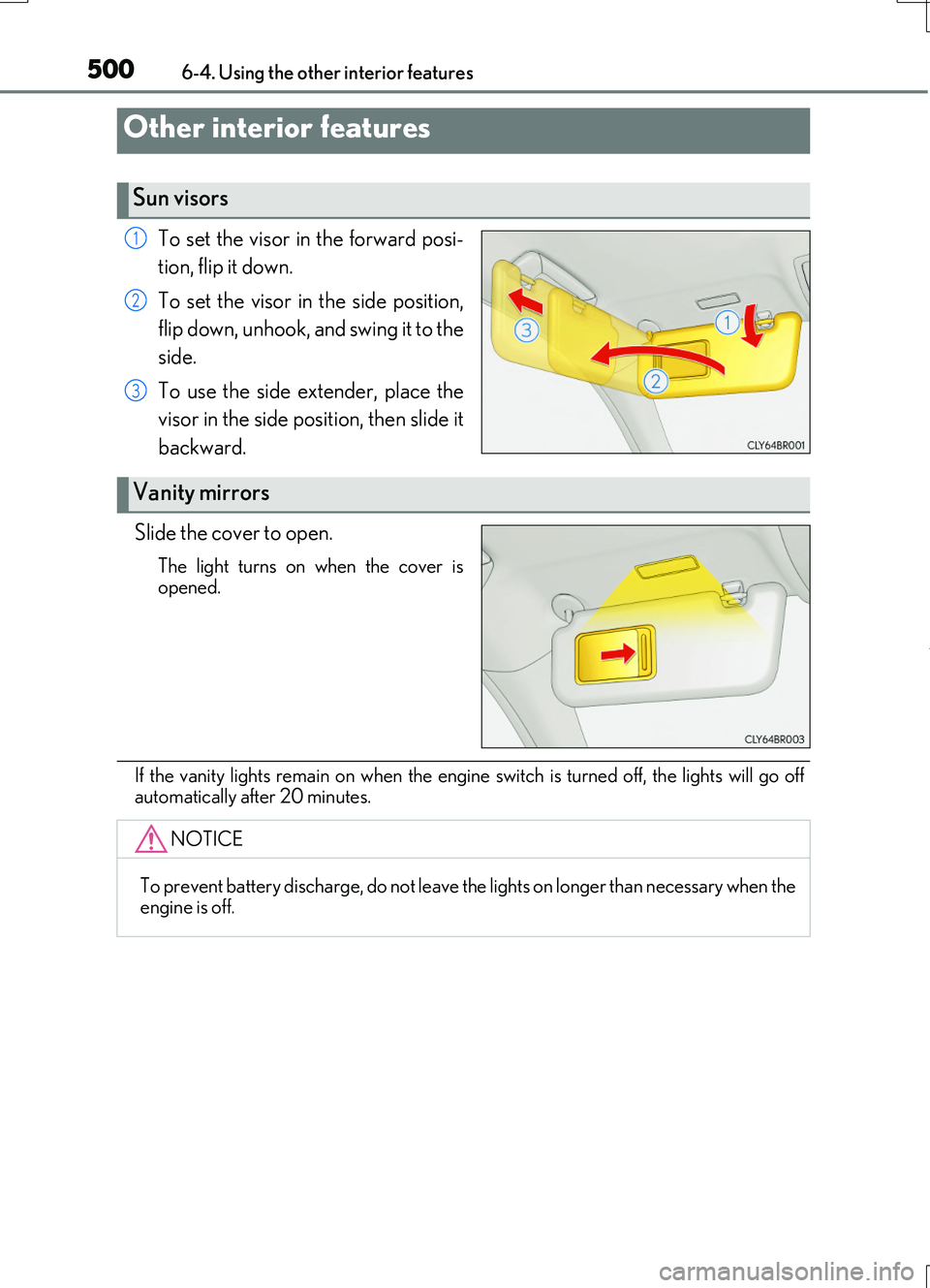

500
RC200t_RC F_EE(OM24728E)
6-4. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
If the vanity lights remain on when the engine switch is turned off, the lights will go off
automatically after 20 minutes.
Other interior features
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave th e lights on longer than necessary when the engine is off.

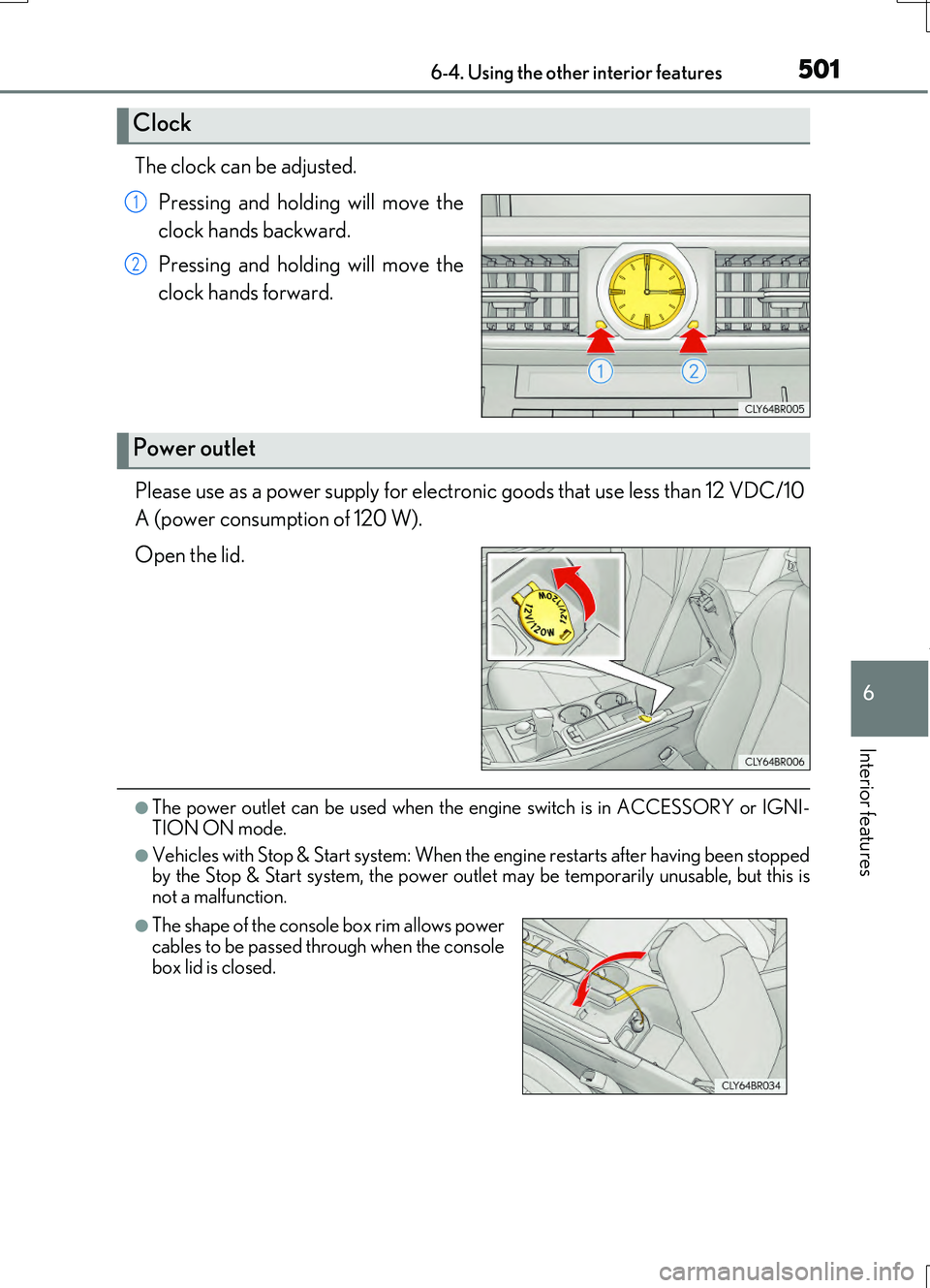

5016-4. Using the other interior features
6
Interior features
RC200t_RC F_EE(OM24728E)
The clock can be adjusted.
Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
Please use as a power supply for electronic goods that use less than 12 VDC/10
A (power consumption of 120 W).
Open the lid.
●The power outlet can be used when the engine switch is in ACCESSORY or IGNI-
TION ON mode.
●Vehicles with Stop & Start sy stem: When the engine restarts after having been stopped by the Stop & Start system, the power outlet may be temporarily unusable, but this is
not a malfunction.
Clock
1
2
Power outlet
●The shape of the console box rim allows power
cables to be passed through when the console box lid is closed.

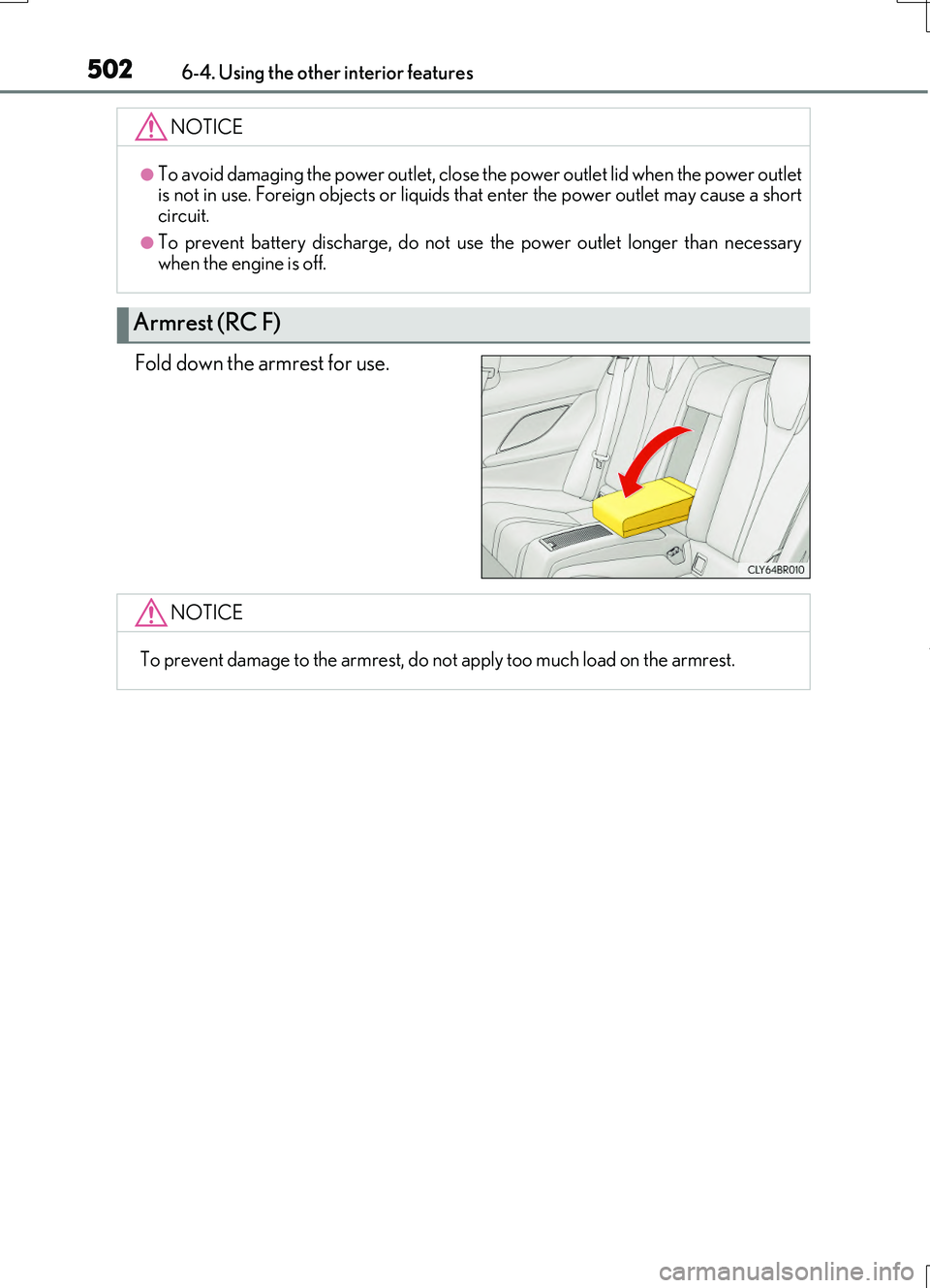

5026-4. Using the other interior features
RC200t_RC F_EE(OM24728E)
Fold down the armrest for use.
NOTICE
●To avoid damaging the power outlet, close the power outlet lid when the power outlet is not in use. Foreign objects or liquids th at enter the power outlet may cause a short circuit.
●To prevent battery discharge, do not use the power outlet longer than necessarywhen the engine is off.
Armrest (RC F)
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.

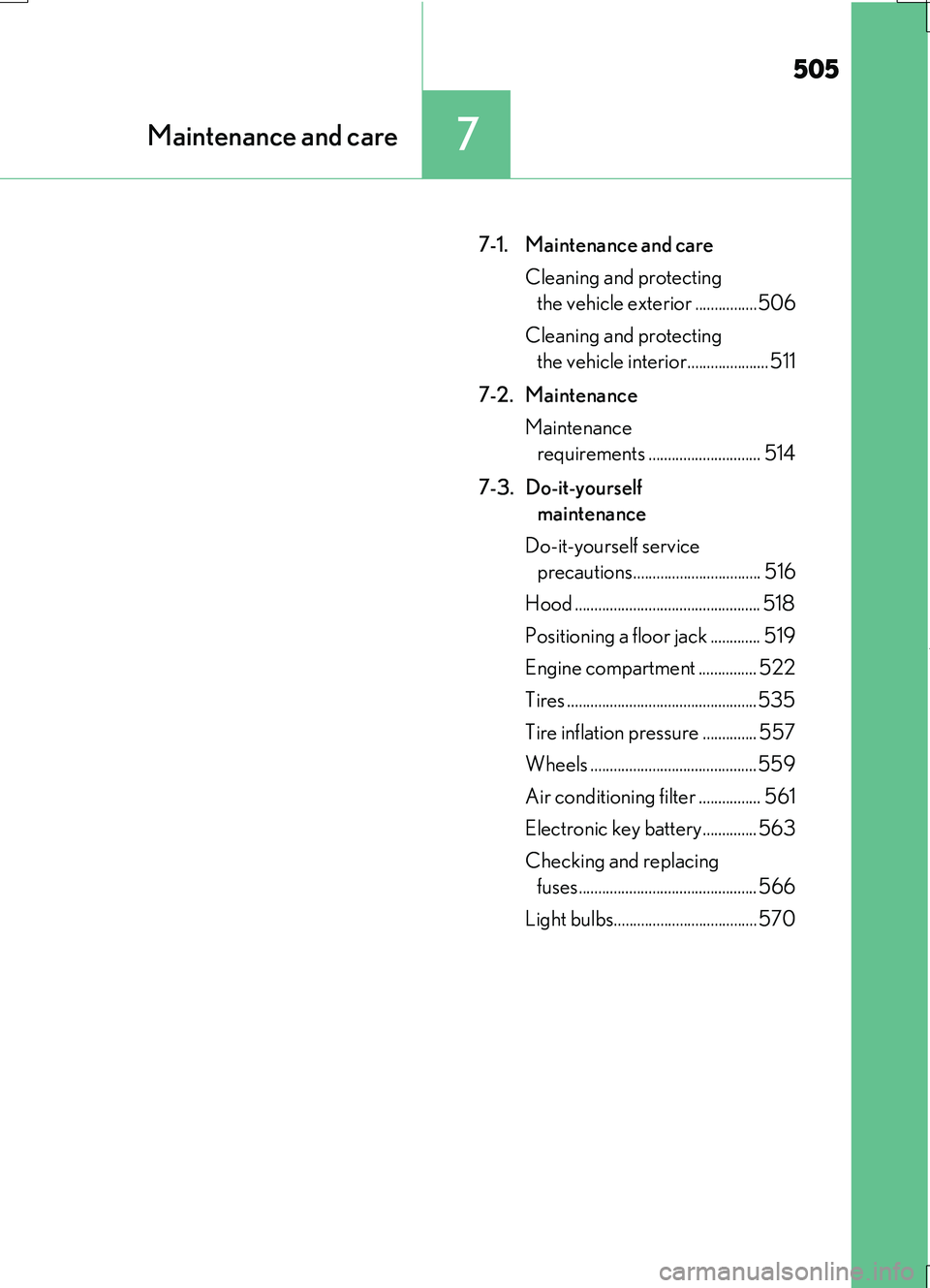

505
7Maintenance and care
RC200t_RC F_EE(OM24728E)
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ................506
Cleaning and protecting
the vehicle interior..................... 511
7-2. Maintenance
Maintenance
requirements ............................. 514
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions................................. 516
Hood ................................................ 518
Positioning a floor jack ............. 519
Engine compartment ............... 522
Tires .................................................535
Tire inflation pressure .............. 557
Wheels ...........................................559
Air conditioning filter ................ 561
Electronic key battery.............. 563
Checking and replacing
fuses.............................................. 566
Light bulbs..................................... 570

5087-1. Maintenance and care
RC200t_RC F_EE(OM24728E)
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the raindrop
sensor
■Precautions regarding the exhaust pipes
As exhaust gases cause the exhaust pipes to become quite hot, do not touch the
exhaust pipes while the engine is running or immediately after the engine is turned off.
When washing the vehicle, be careful not to touch the exhaust pipes until they have cooled sufficiently, as touching hot exhaust pipes can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunction. If this occurs, consult any authorized Lexus deal er or repairer, or another duly qualified
and equipped professional.
Set the wipers to the intermittent windshield
wipers. ( P. 276) If AUTO mode is selected, the wipers mayoperate unexpectedly in the following situa-
tions, and may result in hands being caught or other serious injuries and cause damage to thewiper blades.
