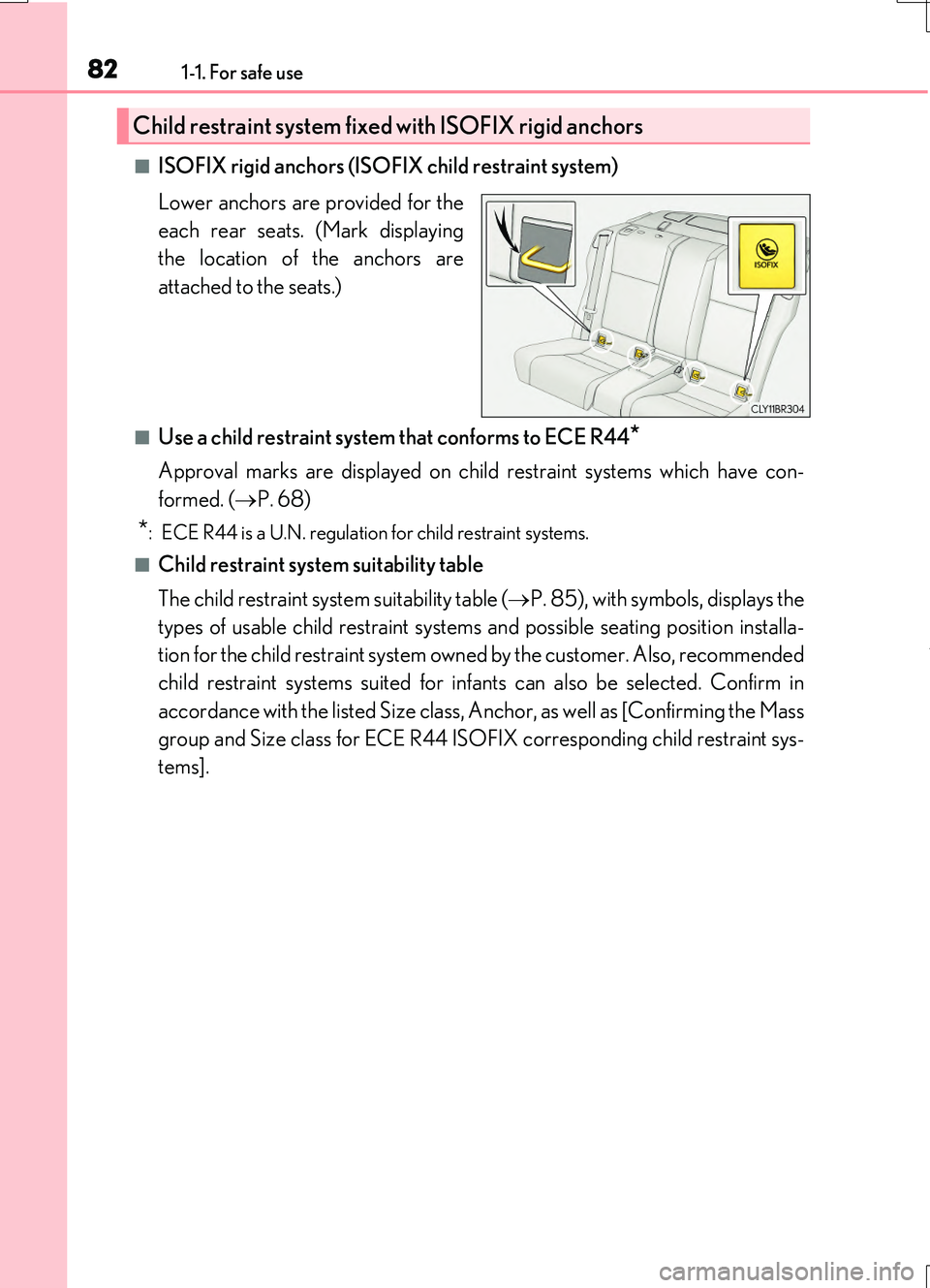

821-1. For safe use
RC200t_RC F_EE(OM24728E)
■ISOFIX rigid anchors (ISOFIX child restraint system)
Lower anchors are provided for the
each rear seats. (Mark displaying
the location of the anchors are
attached to the seats.)
■Use a child restraint system that conforms to ECE R44*
Approval marks are displayed on child restraint systems which have con-
formed. ( P. 68)
*: ECE R44 is a U.N. regulation for child restraint systems.
■Child restraint system suitability table
The child restraint system suitability table ( P. 85), with symbols, displays the
types of usable child restraint systems and possible seating position installa-
tion for the child restraint system ow ned by the customer. Also, recommended
child restraint systems suited for in fants can also be selected. Confirm in
accordance with the listed Size class, Anchor, as well as [Confirming the Mass
group and Size class for ECE R44 ISOF IX corresponding child restraint sys-
tems].
Child restraint system fixed with ISOFIX rigid anchors

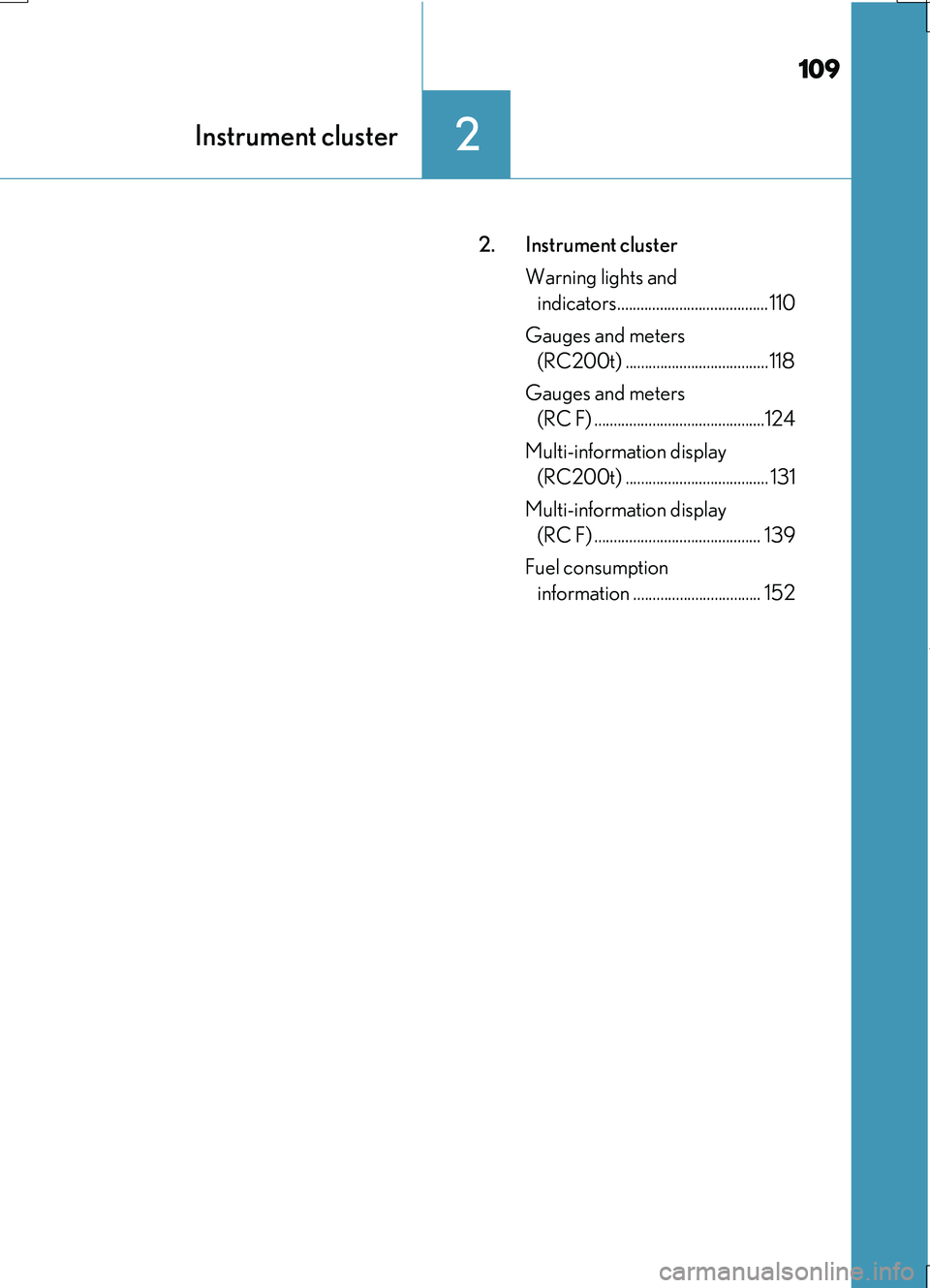

109
2Instrument cluster
RC200t_RC F_EE(OM24728E)
2. Instrument cluster
Warning lights and
indicators.......................................110
Gauges and meters
(RC200t) .....................................118
Gauges and meters
(RC F) ............................................124
Multi-information display
(RC200t) ..................................... 131
Multi-information display
(RC F) ........................................... 139
Fuel consumption
information ................................. 152

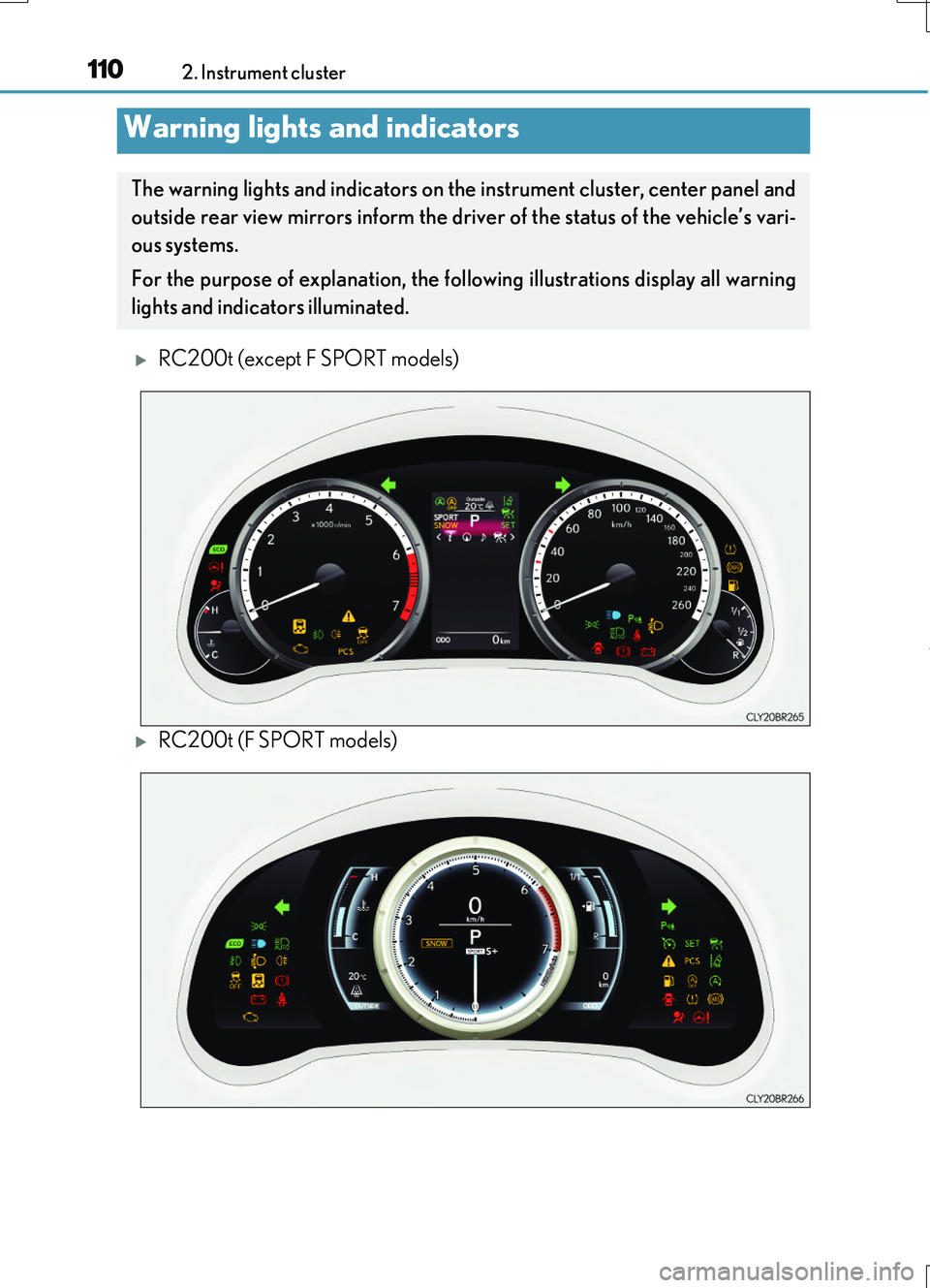

110
RC200t_RC F_EE(OM24728E)
2. Instrument cluster
RC200t (except F SPORT models)
RC200t (F SPORT models)
Warning lights and indicators
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the fo llowing illustrations display all warning
lights and indicators illuminated.

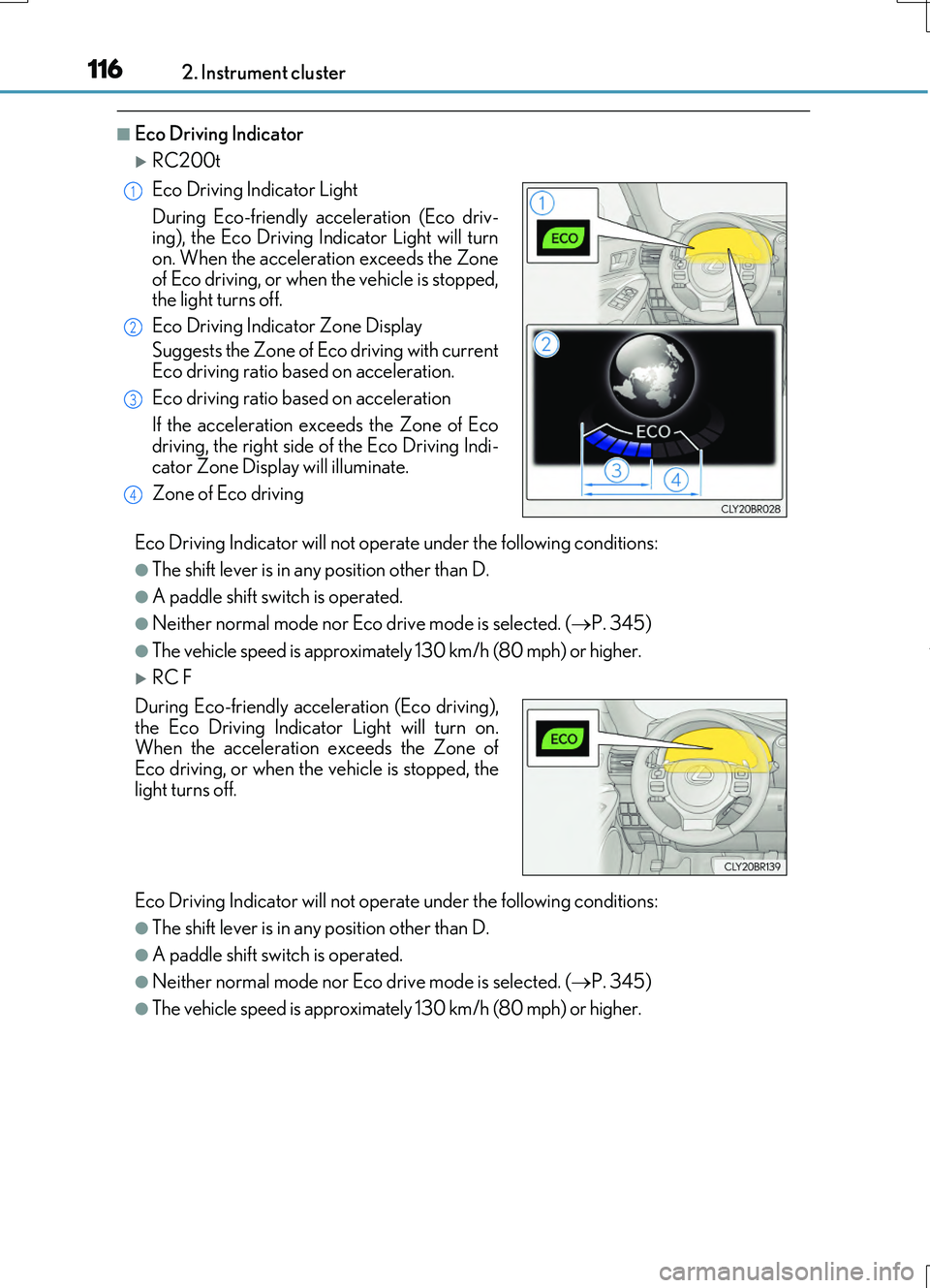

1162. Instrument cluster
RC200t_RC F_EE(OM24728E)
■Eco Driving Indicator
RC200t
Eco Driving Indicator will not operate under the following conditions:
●The shift lever is in any position other than D.
●A paddle shift switch is operated.
●Neither normal mode nor Eco drive mode is selected. ( P. 345)
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
RC F
Eco Driving Indicator will not operate under the following conditions:
●The shift lever is in any position other than D.
●A paddle shift switch is operated.
●Neither normal mode nor Eco drive mode is selected. ( P. 345)
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driv- ing), the Eco Driving In dicator Light will turn on. When the acceleration exceeds the Zone
of Eco driving, or when the vehicle is stopped, the light turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco
driving, the right side of the Eco Driving Indi- cator Zone Display will illuminate.
Zone of Eco driving
During Eco-friendly acceleration (Eco driving), the Eco Driving Indicator Light will turn on.When the acceleration exceeds the Zone of
Eco driving, or when the vehicle is stopped, the light turns off.
1
2
3
4

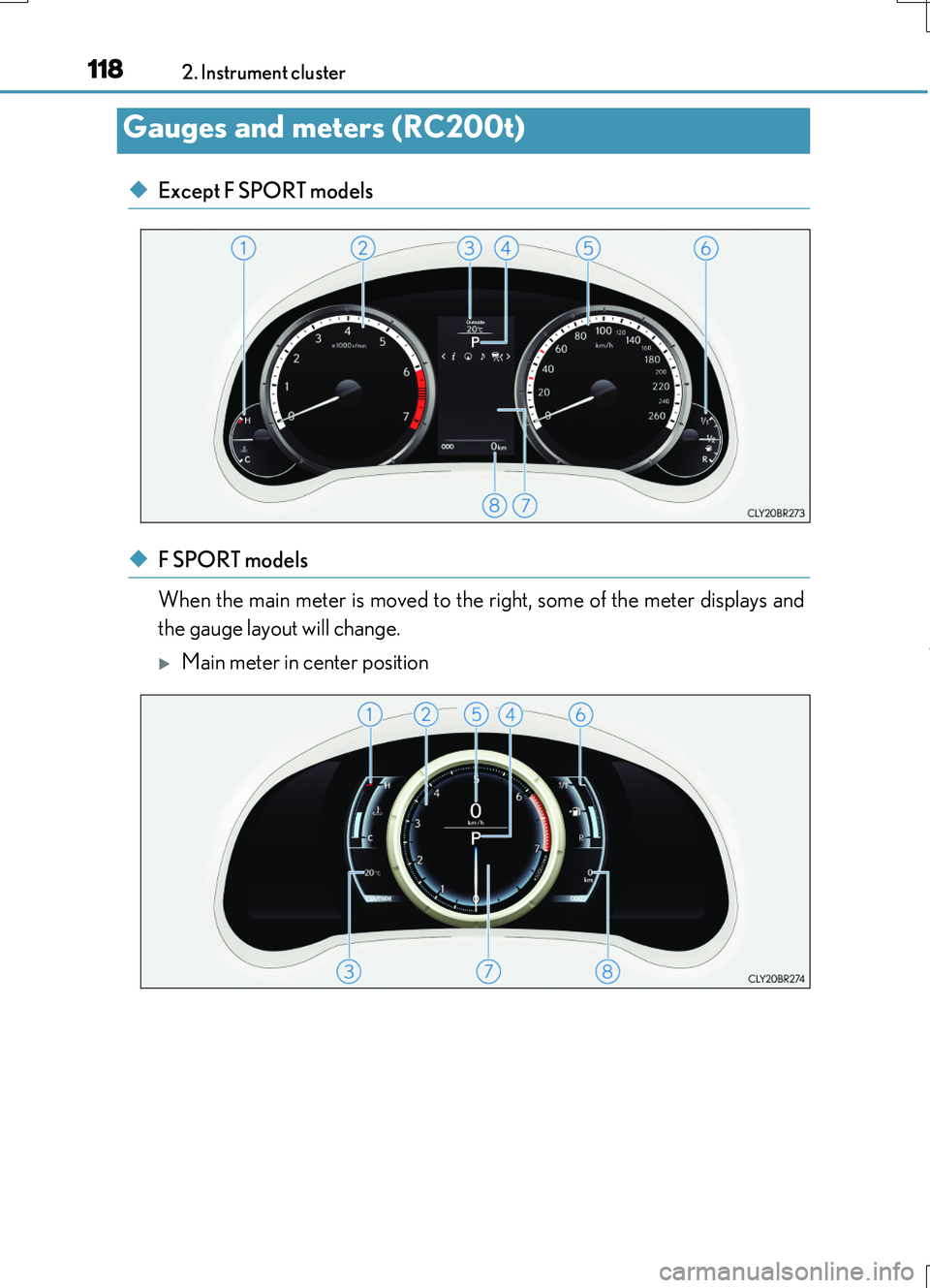

1182. Instrument cluster
RC200t_RC F_EE(OM24728E)
◆Except F SPORT models
◆F SPORT models
When the main meter is moved to the right, some of the meter displays and
the gauge layout will change.
Main meter in center position
Gauges and meters (RC200t)

1192. Instrument cluster
2
Instrument cluster
RC200t_RC F_EE(OM24728E)

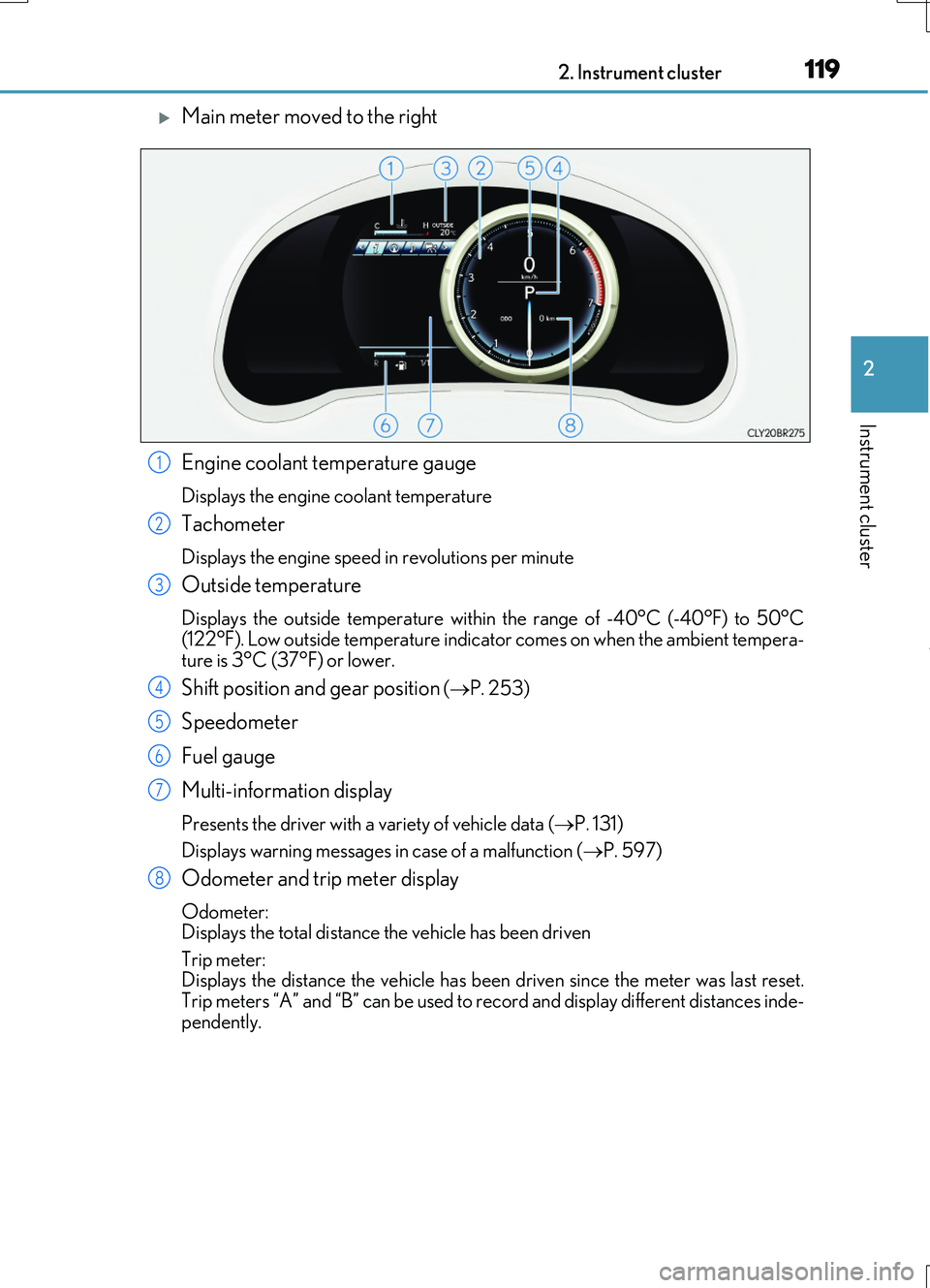

Main meter moved to the right
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F). Low outside temperature indicator comes on when the ambient tempera-
ture is 3°C (37°F) or lower.
Shift position and gear position ( P. 253)
Speedometer
Fuel gauge
Multi-information display
Presents the driver with a variety of vehicle data ( P. 131)
Displays warning messages in case of a malfunction ( P. 597)
Odometer and trip meter display
Odometer: Displays the total distance the vehicle has been driven
Trip meter: Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde- pendently.
1
2
3
4
5
6
7
8

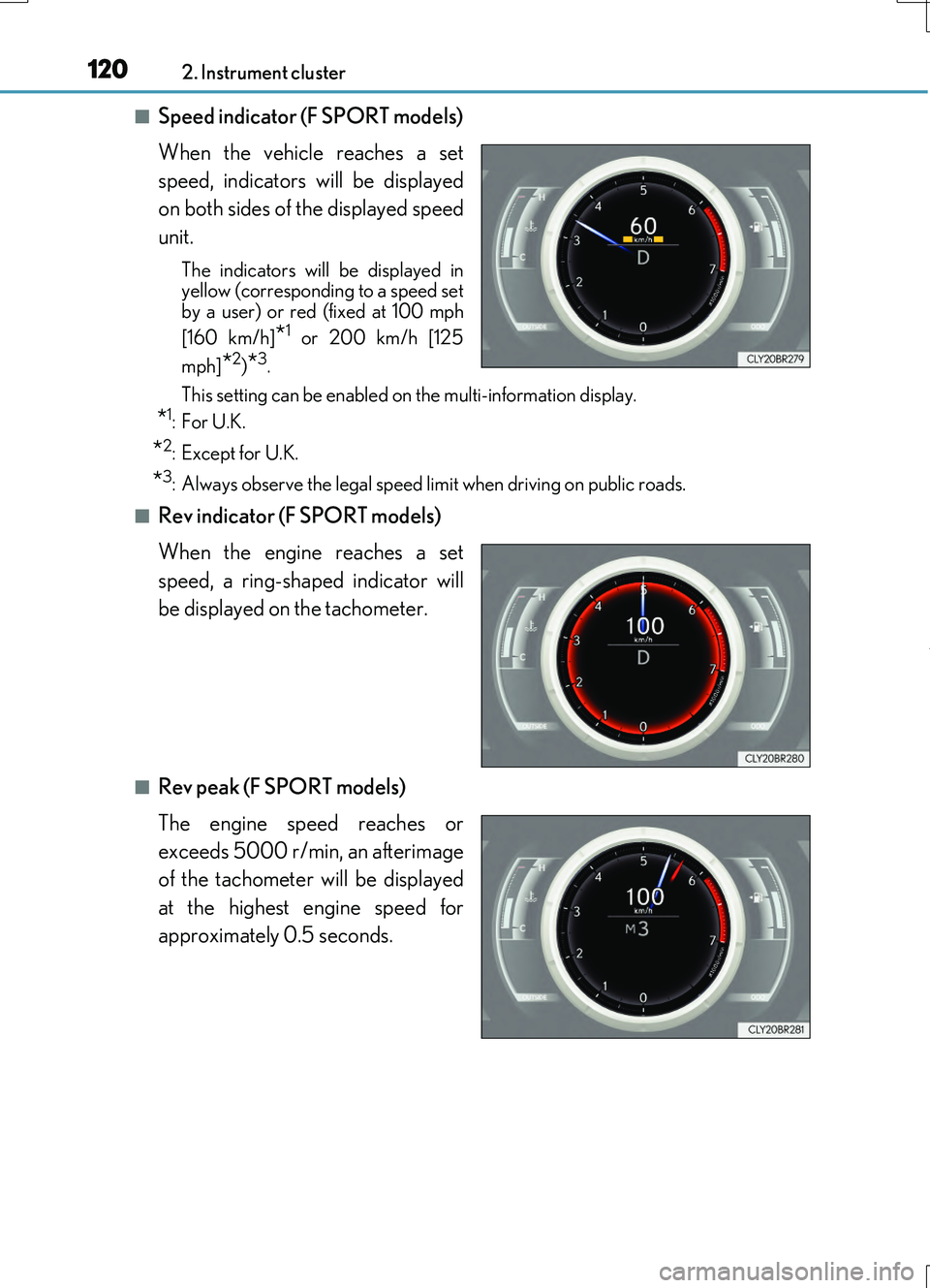

1202. Instrument cluster
RC200t_RC F_EE(OM24728E)
■Speed indicator (F SPORT models)
When the vehicle reaches a set
speed, indicators will be displayed
on both sides of the displayed speed
unit.
The indicators will be displayed in yellow (corresponding to a speed setby a user) or red (fixed at 100 mph
[160 km/h]*1 or 200 km/h [125
mph]*2)*3.
This setting can be enabled on the multi-information display.
*1:For U.K.
*2:Except for U.K.
*3: Always observe the legal speed limit when driving on public roads.
■Rev indicator (F SPORT models)
When the engine reaches a set
speed, a ring-shaped indicator will
be displayed on the tachometer.
■Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 r/min, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 0.5 seconds.

1212. Instrument cluster
2
Instrument cluster
RC200t_RC F_EE(OM24728E)

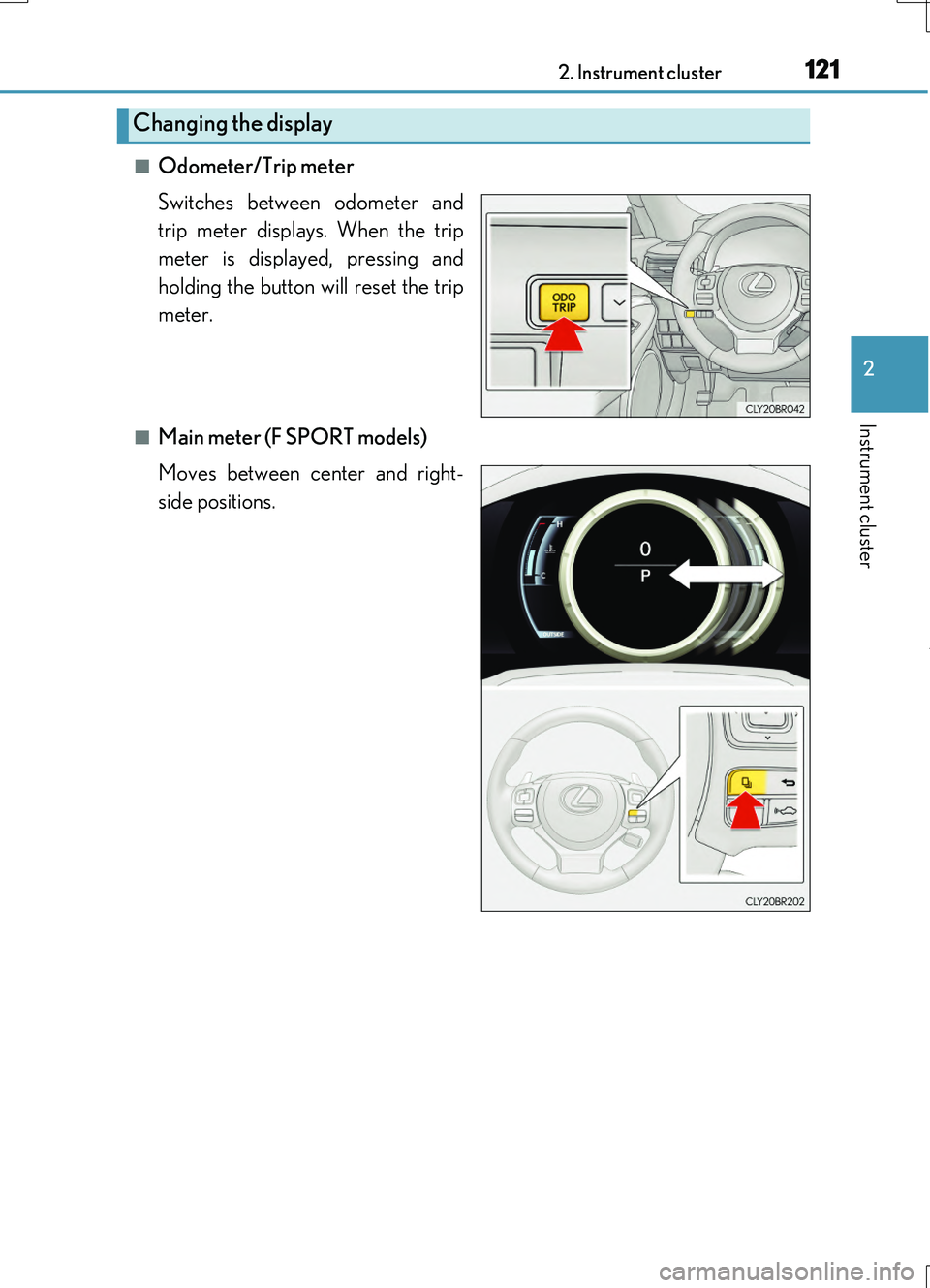

■Odometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
■Main meter (F SPORT models)
Moves between center and right-
side positions.
Changing the display

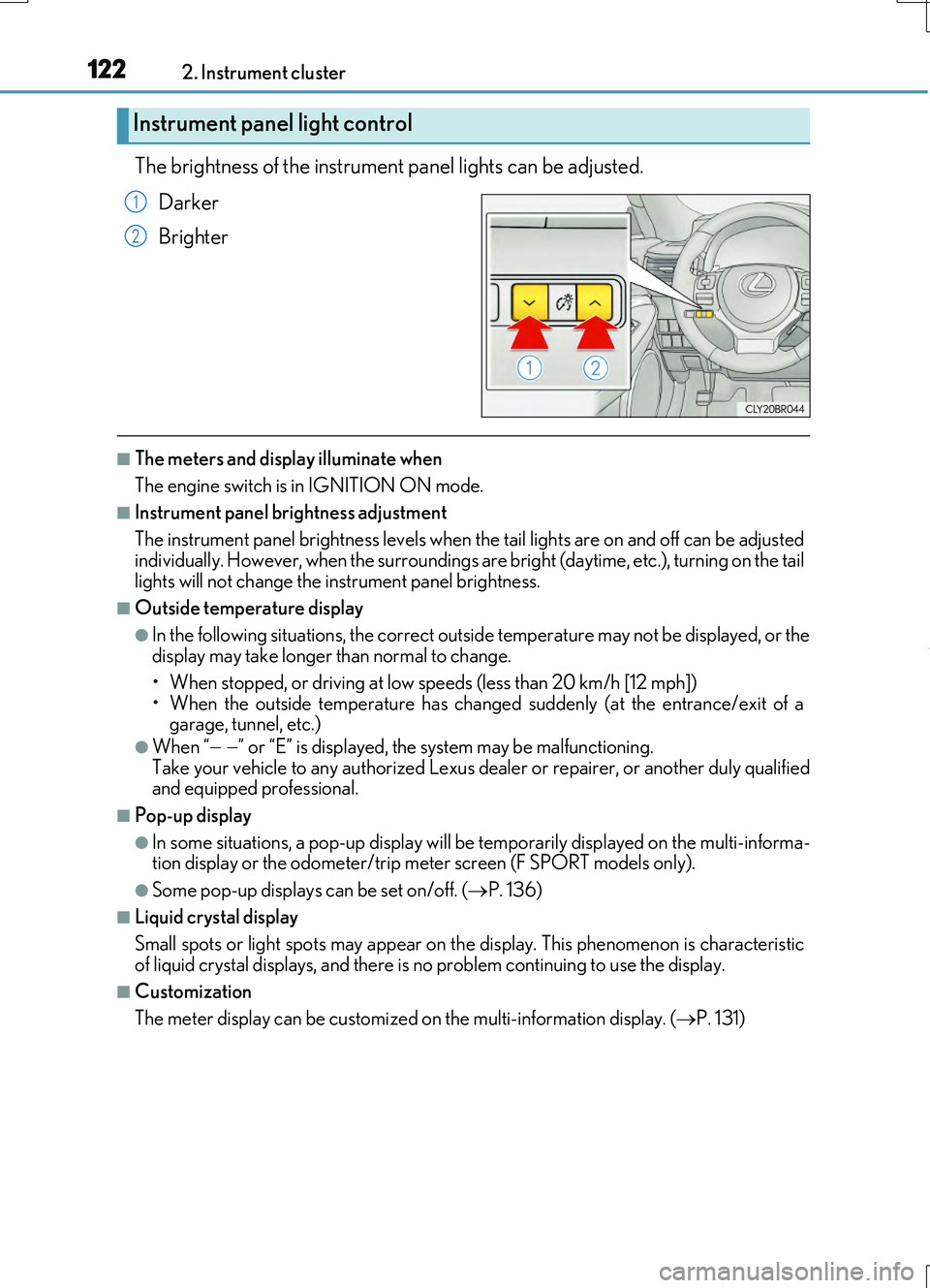

1222. Instrument cluster
RC200t_RC F_EE(OM24728E)
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when th e tail lights are on and off can be adjusted
individually. However, when the surroundings ar e bright (daytime, etc.), turning on the tail lights will not change the in strument panel brightness.
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
●When “ ” or “E” is displayed, the system may be malfunctioning. Take your vehicle to any authorized Lexus de aler or repairer, or another duly qualified and equipped professional.
■Pop-up display
●In some situations, a pop-up display will be temporarily displayed on the multi-informa- tion display or the odometer/trip meter screen (F SPORT models only).
●Some pop-up displays can be set on/off. (P. 136)
■Liquid crystal display
Small spots or light spots may appear on th e display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display. (P. 131)
Instrument panel light control
1
2

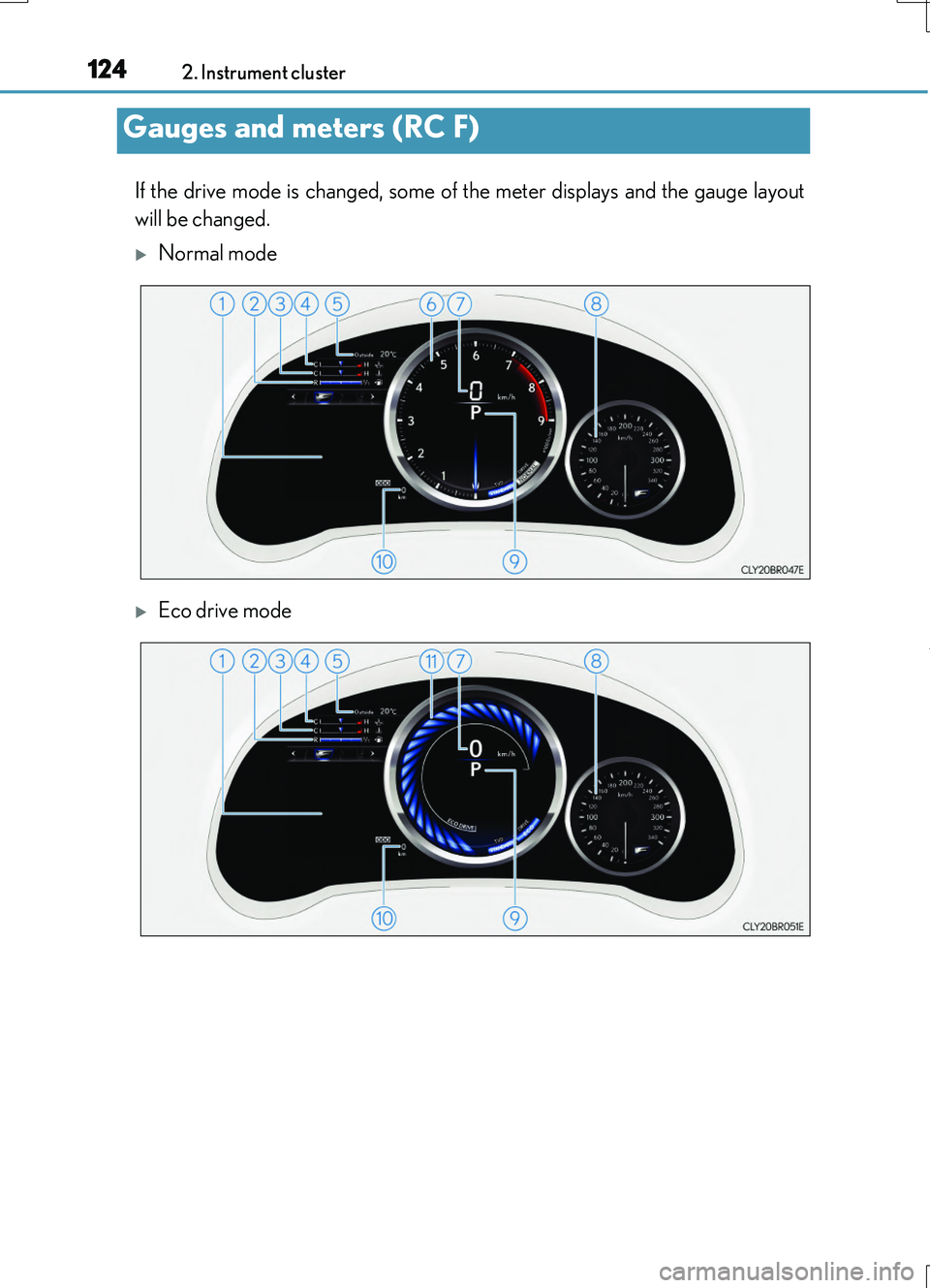

1242. Instrument cluster
RC200t_RC F_EE(OM24728E)
If the drive mode is changed, some of the meter displays and the gauge layout
will be changed.
Normal mode
Eco drive mode
Gauges and meters (RC F)
