6578-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
■When recharging or replacing the battery
●In some cases, it may not be possible to unlock the doors using the smart entry & start system when the battery is discharged. Us e the wireless remote control or the mechan-
ical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-nected, the system will return to the mode it was in before the battery was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be especially careful when reconnecting the battery.
●Vehicles with Stop & Start system:
For a while after the battery terminals have been disconnected and reconnected, for a while after the battery has been replaced, the Stop & Start system may not automati-cally stop the engine for approximately 5 to 60 minutes.
■When exchanging the battery (vehicles with Stop & Start system)
Use a battery specified for use with the Stop & Start system and equivalent to a genuine battery. If an unsupported battery is used, Stop & Start system functions may be
restricted to protect the battery.
Also, battery performance may decrease and the engine may not be able to restart. Contact any authorized Lexus retailers or Le xus authorized repairers, or any reliable
repairers.

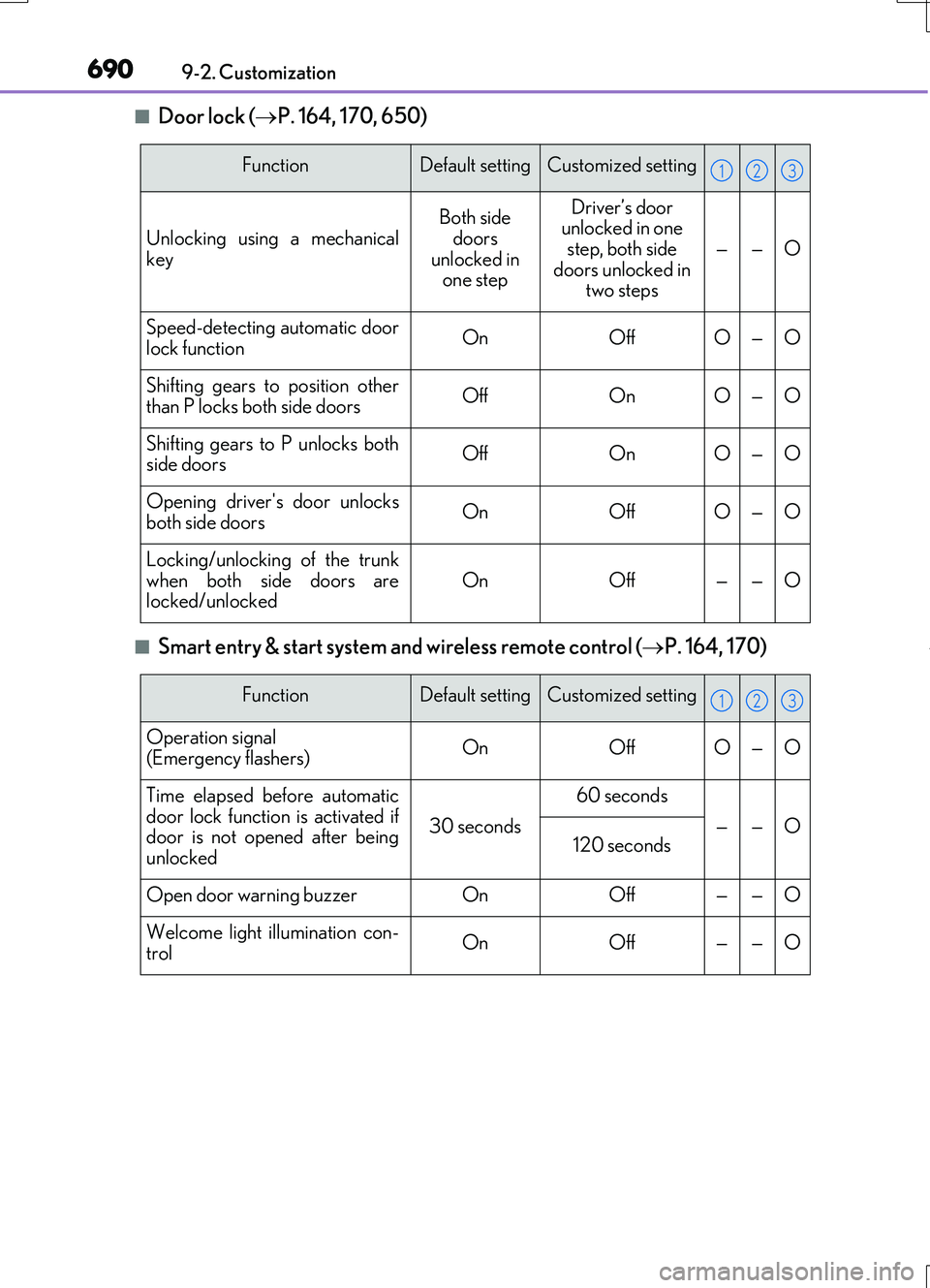

6909-2. Customization
RC200t_RC F_EE(OM24728E)
■Door lock ( P. 164, 170, 650)
■Smart entry & start system and wireless remote control (P. 164, 170)
FunctionDefault settingCustomized setting
Unlocking using a mechanical key
Both side
doors unlocked in one step
Driver’s door unlocked in one step, both side
doors unlocked in two steps
——O
Speed-detecting automatic doorlock functionOnOffO—O
Shifting gears to position other
than P locks both side doorsOffOnO—O
Shifting gears to P unlocks both side doorsOffOnO—O
Opening driver's door unlocksboth side doorsOnOffO—O
Locking/unlocking of the trunk
when both side doors are locked/unlockedOnOff——O
123
FunctionDefault settingCustomized setting
Operation signal (Emergency flashers)OnOffO—O
Time elapsed before automatic
door lock function is activated if door is not opened after beingunlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
Welcome light illumination con-
trolOnOff——O
123

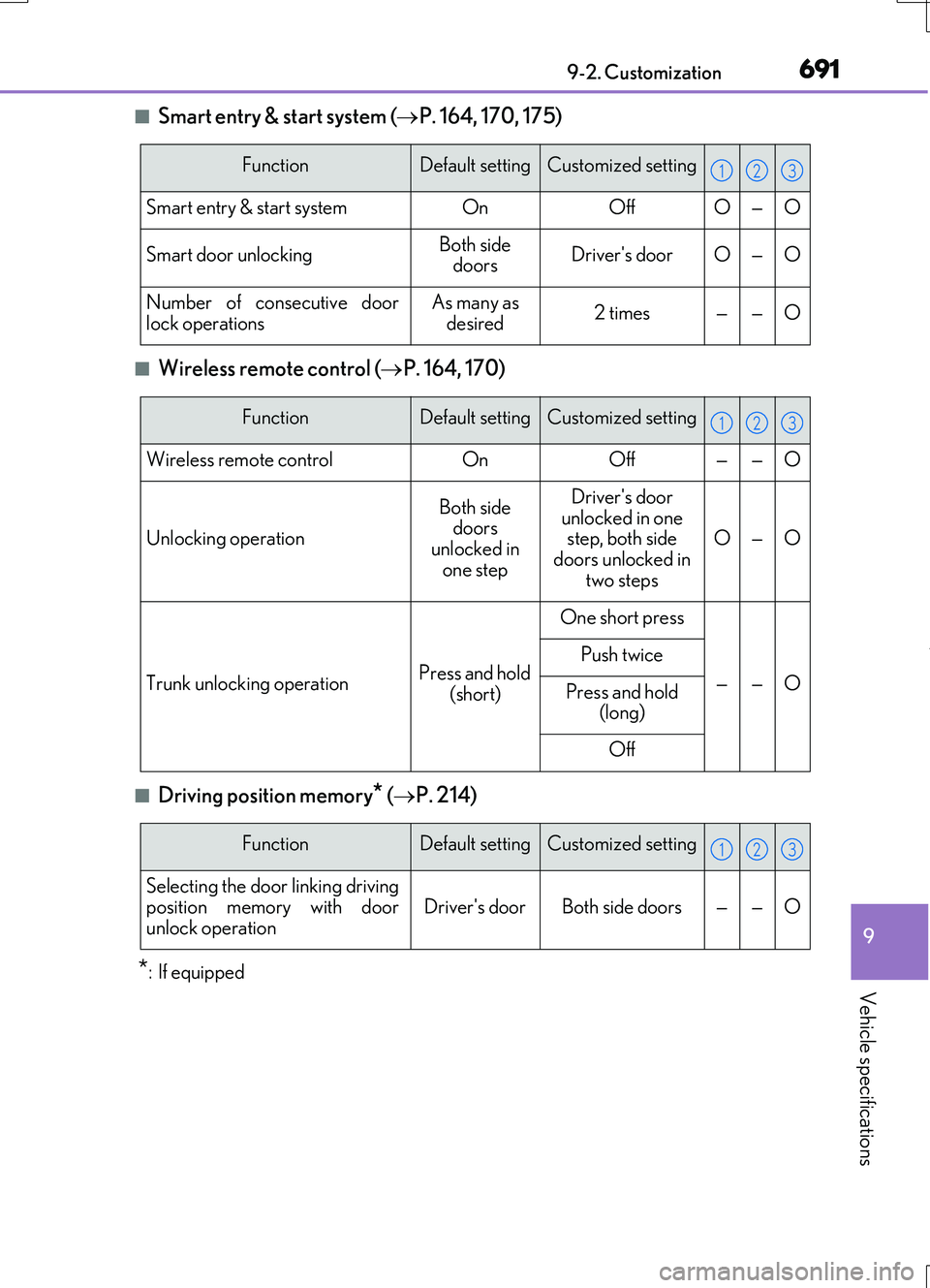

691
9
9-2. Customization
Vehicle specifications
RC200t_RC F_EE(OM24728E)
■Smart entry & start system ( P. 164, 170, 175)
■Wireless remote control (P. 164, 170)
■Driving position memory* (P. 214)
*: If equipped
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Smart door unlockingBoth side doorsDriver's doorO—O
Number of consecutive doorlock operationsAs many as desired2 times——O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Both side doors
unlocked in one step
Driver's door
unlocked in one step, both side doors unlocked in
two steps
O—O
Trunk unlocking operationPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
123
FunctionDefault settingCustomized setting
Selecting the door linking drivingposition memory with door
unlock operation
Driver's doorBoth side doors——O
123

6969-2. Customization
RC200t_RC F_EE(OM24728E)
■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic door lock are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, both side the doors will be
locked. • If the vehicle is started with both side doors locked, the speed-detecting automaticdoor lock will not operate.
• If the vehicle is started with any door unlocked, the speed-detecting automatic door lock will operate.
●When the smart entry & start system is off, the entry unlock function cannot be custom-ized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the operational signal (Emergency flashers) function setting.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch, the changed setting will not be reflected on the audio system screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also, to prevent battery discharge, leave the engine running while customizing the features.
WARNING
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. Thismay lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

702What to do if... (Troubleshooting)
RC200t_RC F_EE(OM24728E)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 227)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( P. 250)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 593)
●The parking brake indicator is on
Is the parking brake released? ( P. 261)
Depending on the situation, other types of warning buzzer may also sound.
( P. 591, 597)

●Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 103)
Do one of the following to deactivate or stop the alarm:
• Unlock the doors or open the trunk using the entry function or wireless
remote control.
• Start the engine.
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and th e horn sounds (if equipped)

707Alphabetical index
RC200t_RC F_EE(OM24728E)
Moon roof precautions .................. 234
Power window lock switch............227
Power window precautions .........230
Removed electronic key
battery precautions ...................... 565
Seat belt precautions .......................... 48
Seat heater precautions ................ 490
Trunk precautions .............................. 173
Cleaning .......................................... 506, 511
Aluminum wheels ..............................507
Exterior................................................... 506
Interior ........................................................ 511
Seat belts..................................................512
Clock .......................................................... 501
Coat hooks ..............................................504
Condenser ............................................. 529
Console box ........................................... 496
Cooling system ...................................... 527
Engine overheating ......................... 659
Cruise control
Cruise control ..................................... 294
Dynamic radar cruise control .....298
Cup holders ............................................ 497
Current fuel consumption.......... 134, 141
Curtain shield airbags ........................... 49
Customizable features .......................686
DAB (Digital Audio Broadcast) .......415
Daytime running light system ......... 265
Defogger
Outside rear view mirrors ............ 484
Rear window........................................ 484
Windshield ........................................... 484
Differential............................................... 678
Digital Audio Broadcast (DAB) .......415
Dimensions ............................................. 668
Display
Drive information........................ 134, 141
Dynamic radar cruise control ..... 298
LDA (Lane Departure Alert) ........ 315
Multi-information display........ 131, 139
Warning message ............................ 597
Distance ............................................ 134, 141
Do-it-yourself maintenance ...............516
Door courtesy lights
Location ................................................. 492
Door lock
Doors......................................................... 164
Smart entry & start system ............. 175
Wireless remote control .................158
D

712Alphabetical index
RC200t_RC F_EE(OM24728E)
Identification
Engine......................................................670
Vehicle ....................................................669
Ignition switch (engine switch) ........ 247
Illuminated entry system .................... 493
Indicators..................................................... 113
Initialization
Maintenance ........................................ 526
Meter............................................... 136, 148
Moon roof ............................................. 232
Multi-information display ...... 136, 148
Power windows.................................. 228
Tire pressure warning
system .................................................. 537
Initiators (tire pressure warning
system) ...................................................555
Inside rear view mirror ....................... 222
Instrument panel light
control ............................................122, 129
Intercooler ............................................... 529
Intercooler coolant .............................. 527
Capacity ................................................. 676
Checking ............................................... 527
Preparing and checking
before winter ....................................384
Interior lights ........................................... 493
Intrusion sensor and tilt sensor ........ 106
ISOFIX rigid anchors............................. 82
Jack
Positioning the jack ............................519
Vehicle-equipped jack.......620, 635
Jack handle ................................. 620, 635
Jam protection function
Front seats............................................... 210
Moon roof ..............................................232
Power window ................................... 228
Keyless entry
Smart entry & start
system......................................... 164, 170
Wireless remote control ...... 164, 170
Keys............................................................. 158
Battery-Saving Function ...................177
Electronic key........................................158
Engine switch ....................................... 247
If the electronic key does not
operate properly ............................650
Key number plate ................................158
Keyless entry............................... 164, 170
Mechanical key .................................... 159
Replacing the battery ...................... 563
Warning buzzer................................... 165
Wireless remote control .................158
Knee airbags ............................................. 49
IJ
K

719Alphabetical index
RC200t_RC F_EE(OM24728E)
Stop & start system ..............................285
Idling stop time....................................290
Replacing battery............................... 657
Stop lights
Emergency brake signal ............... 350
Replacing light bulbs........................ 577
Storage feature...................................... 495
Stuck
If the vehicle becomes stuck ........664
Sun shade ................................................. 232
Sun visors ................................................ 500
Switches
Active rear wing switch .................. 379
ASC (Active Sound Control)
switch.................................................... 262
Audio remote control
switches...............................................396
Automatic High Beam switch ..... 267
BSM (Blind spot monitor)
switch.................................................... 364
Cruise control switch ..........294, 298
Door lock switches ............................ 166
Driving mode select switch ..........345
Driving position memory
switches................................................. 214
Dynamic radar cruise control
switch....................................................298
Emergency flashers switch.......... 580
Engine switch ....................................... 247
Fog light switch..................................... 271
Heated steering wheel switch .... 490
Ignition switch ...................................... 247
LDA (Lane Departure
Alert) switch ...................................... 315
Lexus parking assist-sensor
switch ..................................................... 321
Light switch........................................... 264
Meter control switches..................... 140
Moon roof switches ........................... 231
Outside rear view mirror
switches ...............................................224
Paddle shift switches............ 255, 256
PCS OFF switch................................ 357
Power door lock switch................... 166
Power window switches................. 227
Rear window and outside rear
view mirror defoggers
switch ................................................... 484
Seat heater switches .......................... 491
Seat ventilator switches.................... 491
Snow mode switch ........................... 254
Stop & Start cancel switch............ 285
Talk switch............................................. 454
Telephone switches ......................... 454

721Alphabetical index
RC200t_RC F_EE(OM24728E)
Tire pressure warning system ......... 537
Initializing................................................ 537
Installing tire pressure warning
valves and transmitters................ 537
Registering ID codes ...................... 538
Tire pressure warning reset
switch................................................... 538
Warning light .......................................593
Tires ............................................................535
Chains .................................................... 386
Checking ...............................................535
Emergency tire puncture
repair kit ..............................................633
If you have a flat tire ............... 619, 633
Inflation pressure................................ 679
Replacing ................................................ 619
Rotating tires ........................................536
Size............................................................ 679
Snow tires ..............................................387
Spare tire................................................. 619
Tire inflation pressure display
function ................................................ 537
Tire pressure warning
system .................................................. 537
Warning light .......................................593
Tools............................................... 620, 635
Top strap ..................................................... 89
Torque Vectoring Differential
(TVD) ..................................................... 382
Towing ...................................................... 582
Emergency towing ........................... 582
Towing eyelet ......................................585
Trailer towing ...................................... 246
Traction Control (TRC) ..................... 349
Trailer towing ......................................... 246
Transmission........................................... 253
Automatic transmission.................. 253
Driving mode select switch.......... 345
If the shift lever cannot be
shifted from P................................... 258
M mode.................................................. 256
Paddle shift switches............ 255, 256
TRC (Traction Control) ..................... 349
Trip meters ....................................... 118, 124
Trunk ............................................................170
Extending trunk space .................... 503
Luggage security system .................. 171
Smart entry & start system ............. 170
Trunk features ..................................... 498
Trunk grip.................................................. 171
Trunk light ............................................... 172
Trunk opener main switch ................ 171
Trunk opener switch.......................... 170
Trunk storage extension ................ 503
Wireless remote control ................. 170
