411-1. For safe use
1
For safety and security
RC200t_RC F_EE(OM24728E)
WARNING
Observe the following precautions. Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the ped-als while driving. An unexpect edly high speed may result or it may become difficult to
stop the vehicle. This could lead to an acci dent, resulting in death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely us ing the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in the correct place with all the provided retain-
ing hooks (clips). Be especially careful to per- form this check after cleaning the floor.
●With the engine stopped and the shift lever in
P, fully depress each pedal to the floor to make sure it does not interfere with the floormat.

421-1. For safe use
RC200t_RC F_EE(OM24728E)
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. ( P. 209)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
( P. 209)
RC200t: Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 217)
Wear the seat belt correctly. ( P. 44)
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. ( P. 44)
Use a child restraint system appropriat e for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( P. 66)
For safety drive
For safe driving, adjust the seat and mirror to an appropriate position before
driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4

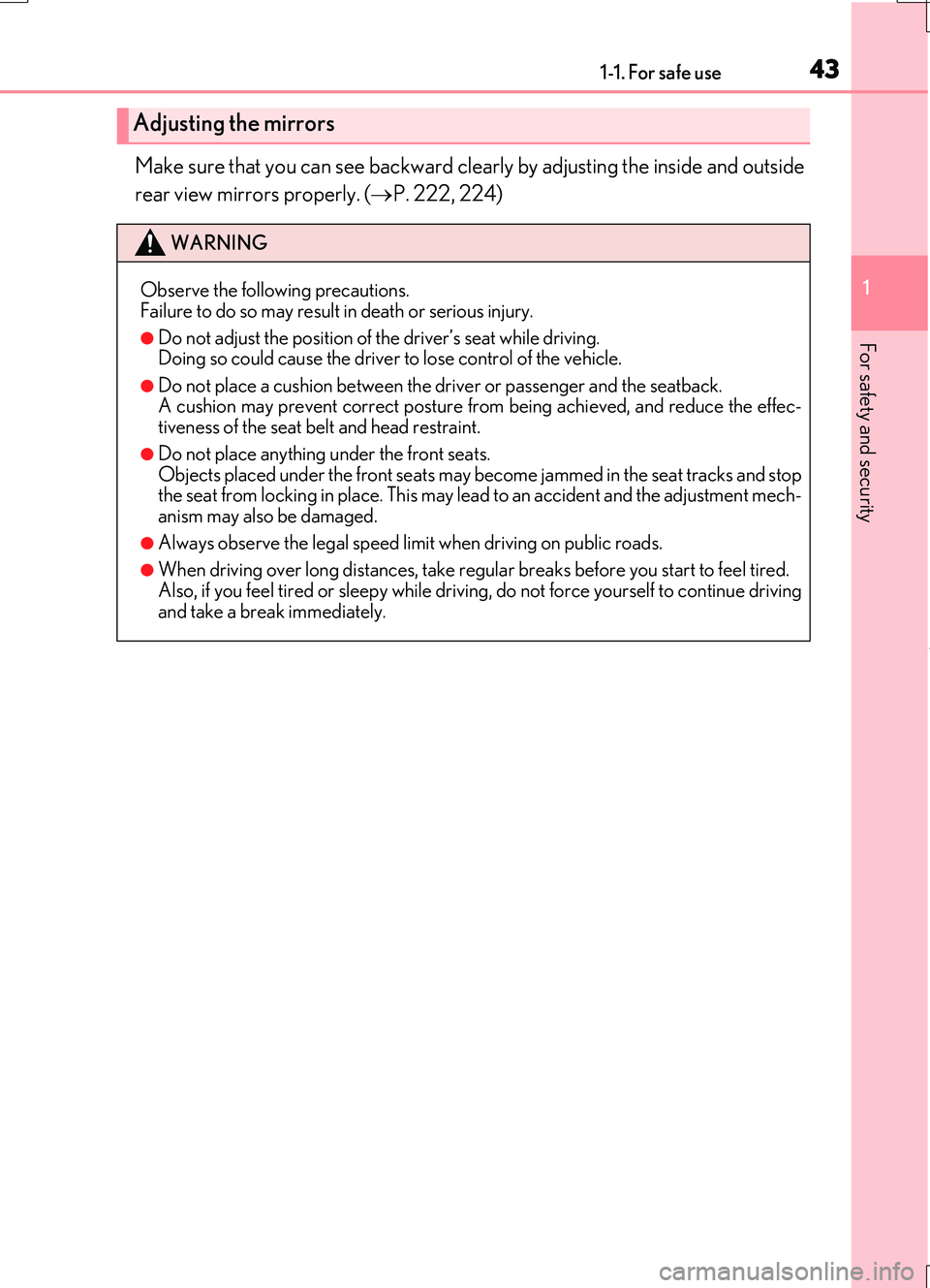

431-1. For safe use
1
For safety and security
RC200t_RC F_EE(OM24728E)
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( P. 222, 224)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving. Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.A cushion may prevent correct posture from being achieved, and reduce the effec-tiveness of the seat be lt and head restraint.
●Do not place anything under the front seats. Objects placed under the front seats may become jammed in the seat tracks and stopthe seat from locking in place. This may lead to an accident and the adjustment mech-
anism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while drivin g, do not force yourself to continue driving and take a break immediately.

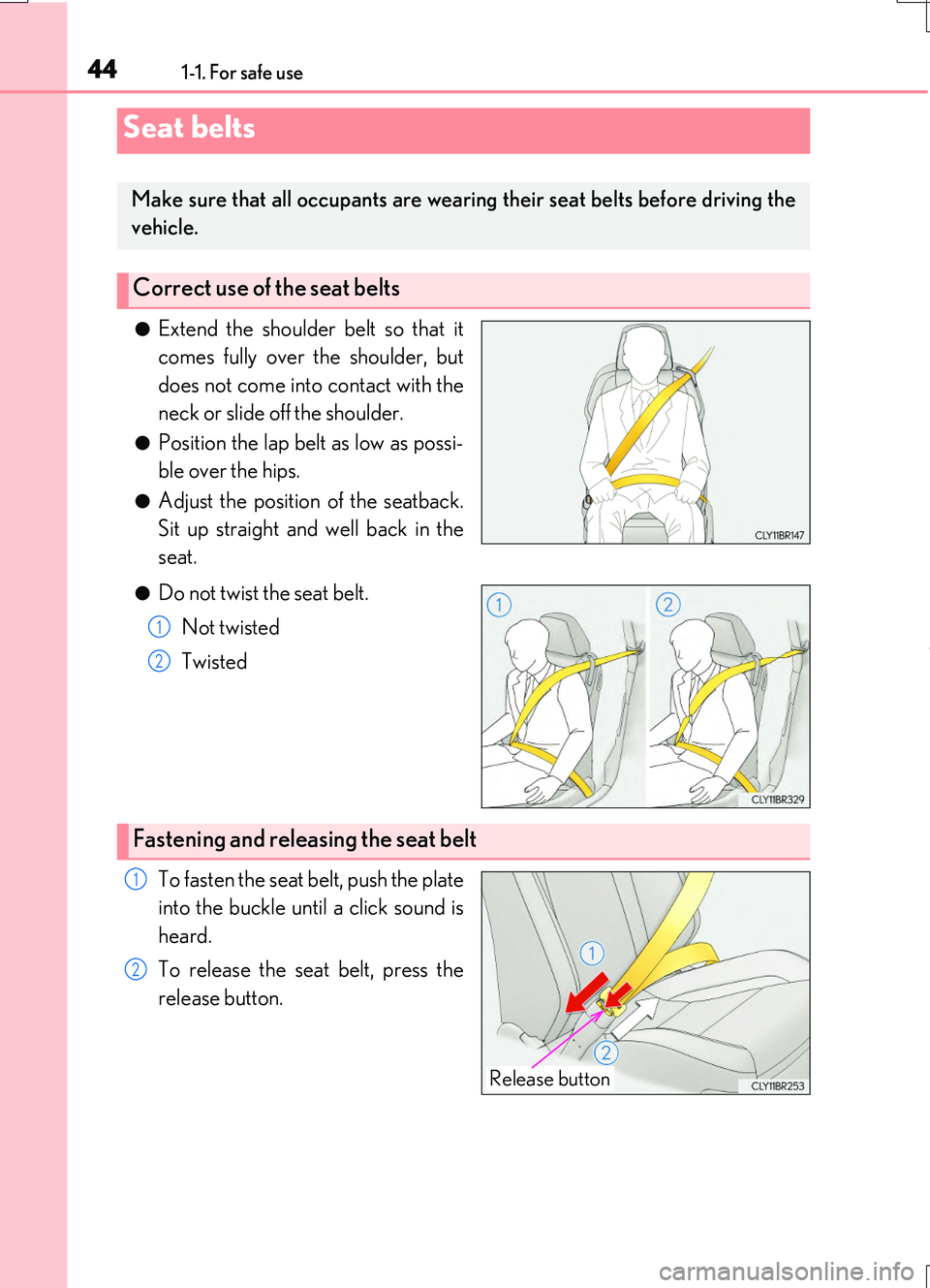

441-1. For safe use
RC200t_RC F_EE(OM24728E)
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
●Position the lap belt as low as possi-
ble over the hips.
●Adjust the position of the seatback.
Sit up straight and well back in the
seat.
●Do not twist the seat belt.
Not twisted
Twisted
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
To release the seat belt, press the
release button.
Seat belts
Make sure that all occupants are wearin g their seat belts before driving the
vehicle.
Correct use of the seat belts
1
2
Fastening and releasing the seat belt
Release button
1
2

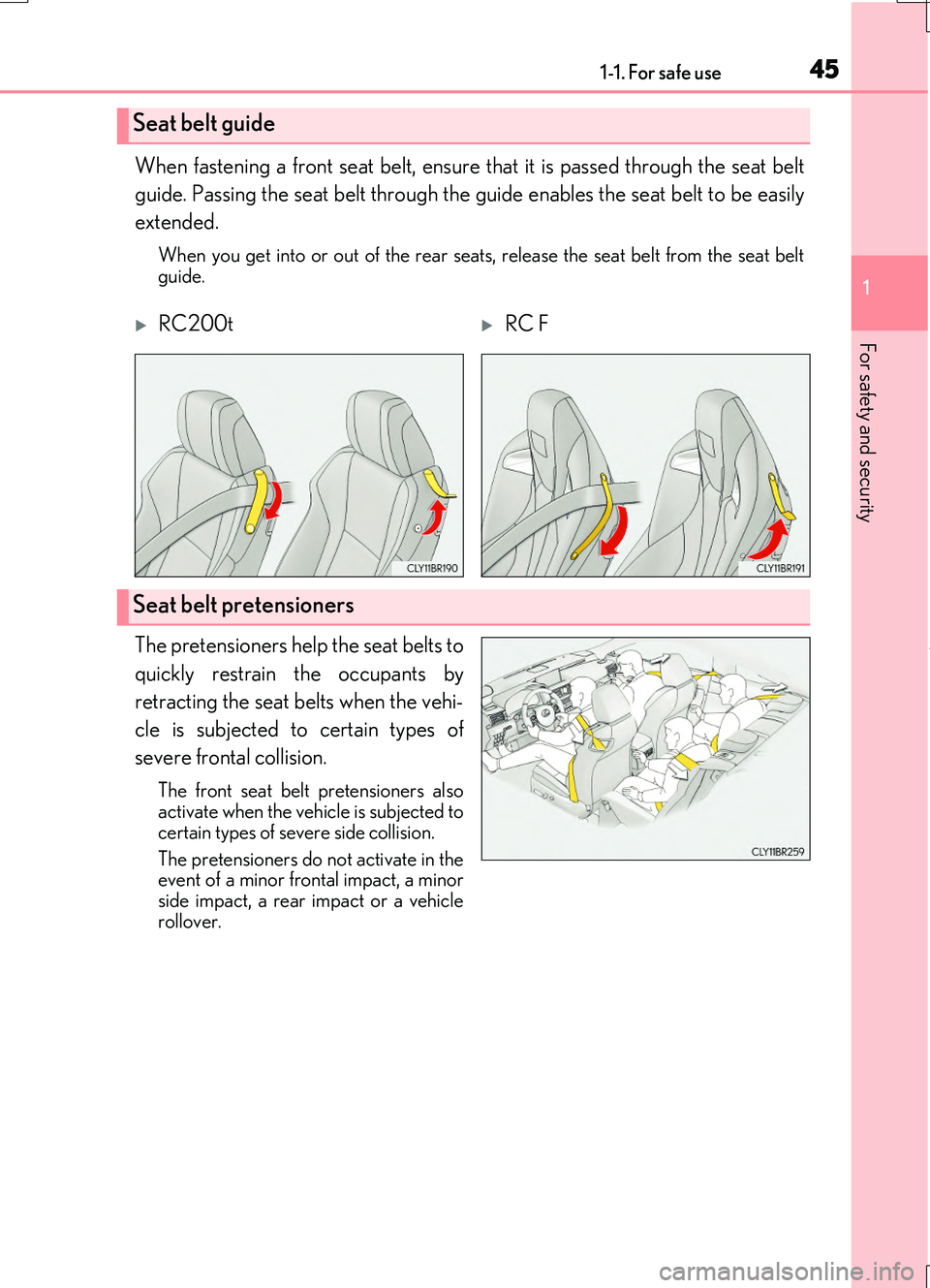

451-1. For safe use
1
For safety and security
RC200t_RC F_EE(OM24728E)
When fastening a front seat belt, ensure that it is passed through the seat belt
guide. Passing the seat belt through the guide enables the seat belt to be easily
extended.
When you get into or out of the rear seats, release the seat belt from the seat belt
guide.
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal collision.
The front seat belt pretensioners also activate when the vehicle is subjected to
certain types of severe side collision.
The pretensioners do not activate in the event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle rollover.
Seat belt guide
RC200tRC F
Seat belt pretensioners

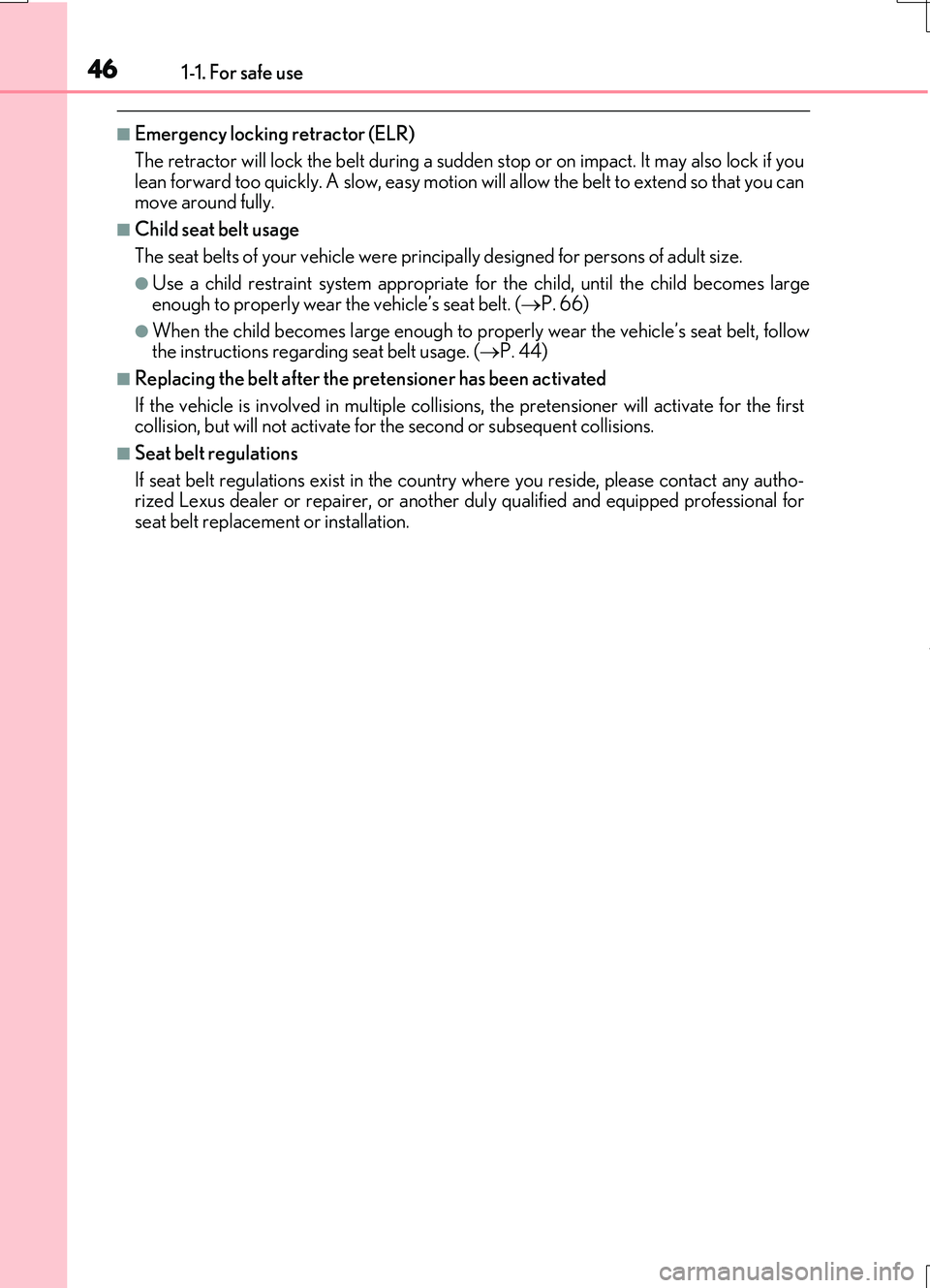

461-1. For safe use
RC200t_RC F_EE(OM24728E)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.
■Child seat belt usage
The seat belts of your vehicle were princi pally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( P. 66)
●When the child becomes large enough to properly wear the vehicle’s seat belt, follow the instructions regardin g seat belt usage. (P. 44)
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisio ns, the pretensioner will activate for the first collision, but will not activate for the second or subsequent collisions.
■Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact any autho- rized Lexus dealer or repairer, or another du ly qualified and equipped professional for
seat belt replacemen t or installation.

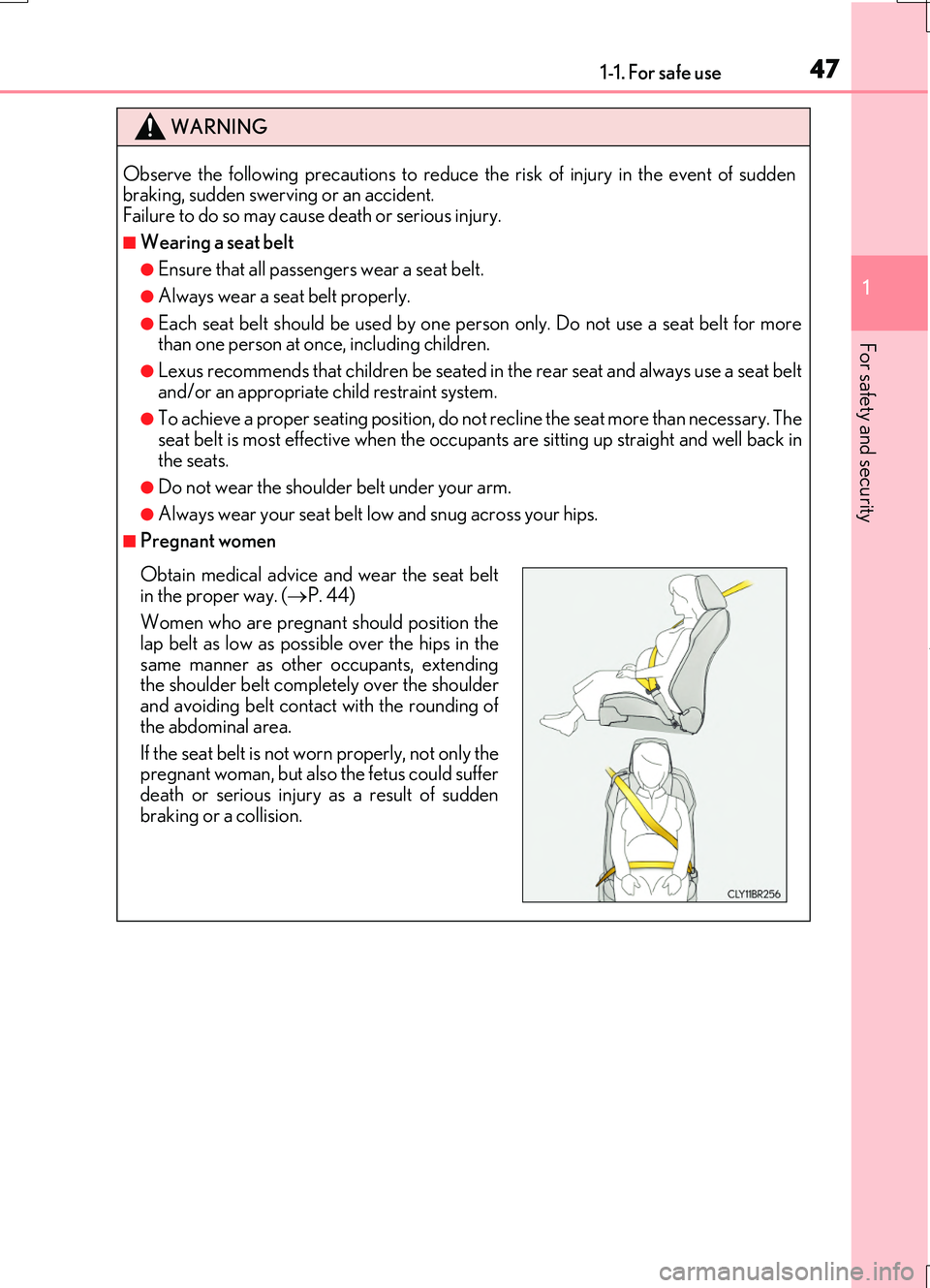

471-1. For safe use
1
For safety and security
RC200t_RC F_EE(OM24728E)
WARNING
Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident.Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one pe rson only. Do not use a seat belt for more than one person at on ce, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
●To achieve a proper seating position, do no t recline the seat more than necessary. The seat belt is most effective when the occupants are sitting up straight and well back in
the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. ( P. 44)
Women who are pregnant should position the lap belt as low as possible over the hips in the
same manner as other occupants, extending the shoulder belt completely over the shoulderand avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden braking or a collision.

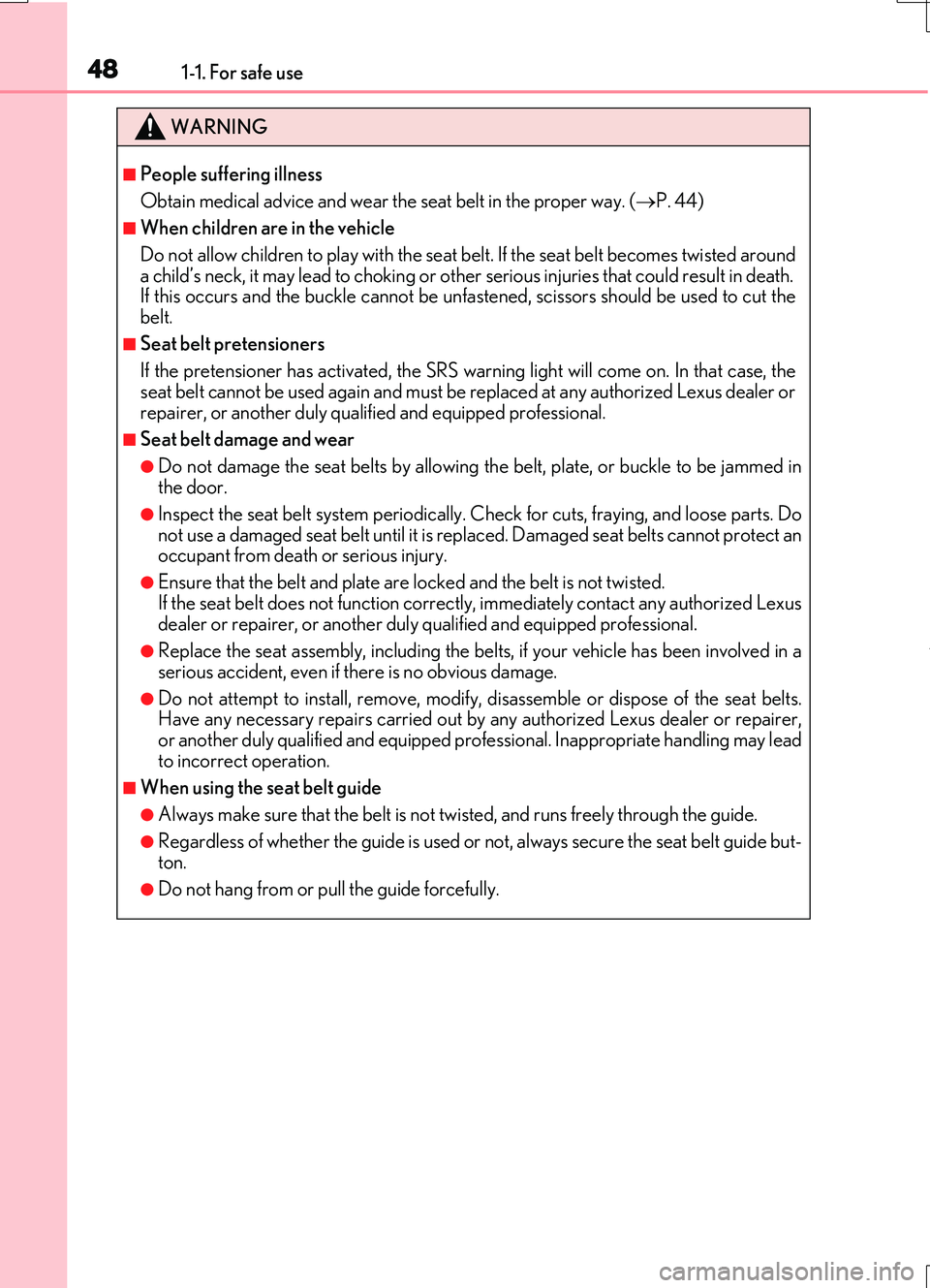

481-1. For safe use
RC200t_RC F_EE(OM24728E)
WARNING
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( P. 44)
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or othe r serious injuries that could result in death. If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■Seat belt pretensioners
If the pretensioner has activated, the SRS warn ing light will come on. In that case, the
seat belt cannot be used again and must be replaced at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is re placed. Damaged seat belts cannot protect an occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
●Replace the seat assembly, incl uding the belts, if your vehicle has been involved in a
serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts. Have any necessary repairs carried out by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional. Inappropriate handling may lead to incorrect operation.
■When using the seat belt guide
●Always make sure that the belt is not twisted, and runs freely through the guide.
●Regardless of whether the guide is used or not, always secure the seat belt guide but-ton.
●Do not hang from or pull the guide forcefully.

491-1. For safe use
1
For safety and security
RC200t_RC F_EE(OM24728E)
◆SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
◆SRS side and curtain shield airbags
SRS side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
Can help protect primarily the head of occupants
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause signific ant injury to the occupants. They work
together with the seat belts to help reduce the risk of death or serious injury.
1
2
3
4

501-1. For safe use
RC200t_RC F_EE(OM24728E)
The main SRS airbag system and Pop Up Hood components are shown above.
The SRS airbag system and Pop Up Hood are controlled by the airbag sensor
assembly. As the airbags deploy, a chemical reaction in the inflators quickly fills
the airbags with non-toxic gas to help restrain the motion of the occupants.
When the Pop Up Hood is activated, a non-toxic gas is released due to a chemi-
cal reaction in the lifters, which causes the pistons to eject quickly and raise the
rear portion of the hood. (Pop Up Hood: P. 62)
SRS airbag system components
Pop up hood lifters (RC200t)
Airbag manual on-off switch
Front passenger airbag
Curtain shield airbags
Knee airbags
“PASSENGER AIR BAG” indica-
tor lights
Seat belt pretensioners and force
limiters
Side impact sensors (front)
Front side airbags
SRS warning light
Driver airbag
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front impact sensors
Pop up hood sensors (RC200t)
Side impact sensors (door)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
