LEXUS RC200T 2017 Owners Manual

4916-1. Using the air conditioning system
6
Interior features
RC200t_RC F_EE(OM24728E)
●The heated steering wheel can be used when the engine switch is in IGNITION ON mode.
●The heated steering wheel will automatically turn off after about 30 minutes.
Each time the switch is pressed, the
intensity of the seat heater changes and
the level indicator lights (amber) light
as follows:
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
■The seat heaters can be used when
The engine switch is in IGNITION ON mode.
■Seat heater timer control
To enable seat heater timer control, press and hold the driver and front passenger seat heater switches at the same time when the vehicle is stopped until a buzzer sounds once.
If a seat heater is turned on while seat heater timer control is enabled, the intensity of the seat heater will automa tically change from HiMidLo.
The timing of the change in seat heater intensity differs depending on the temperature
inside the cabin, etc. when the seat heater is operating.
To disable seat heater timer control, press and hold the driver and front passenger seat heater switches at the same time until a buzzer sounds twice.
Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator lights (green)
light as follows:
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
■The seat ventilators can be used when
The engine switch is in IGNITION ON mode.
Seat heaters
Type A Type B
Seat ventilators

492
RC200t_RC F_EE(OM24728E)
6-2. Using the interior lights

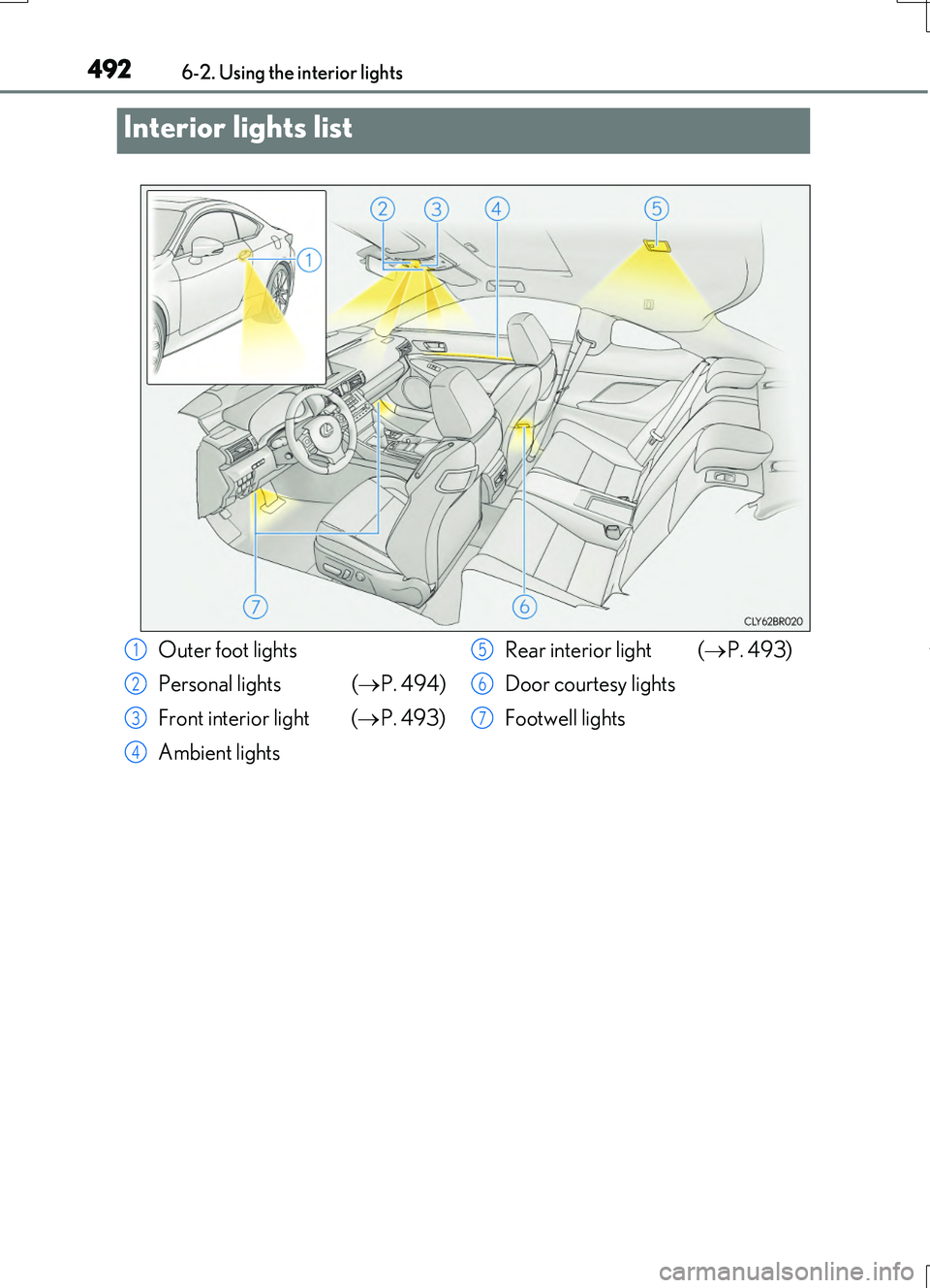

Interior lights list
Outer foot lights
Personal lights ( P. 494)
Front interior light ( P. 493)
Ambient lights
Rear interior light ( P. 493)
Door courtesy lights
Footwell lights
1
2
3
4
5
6
7

4936-2. Using the interior lights
6
Interior features
RC200t_RC F_EE(OM24728E)

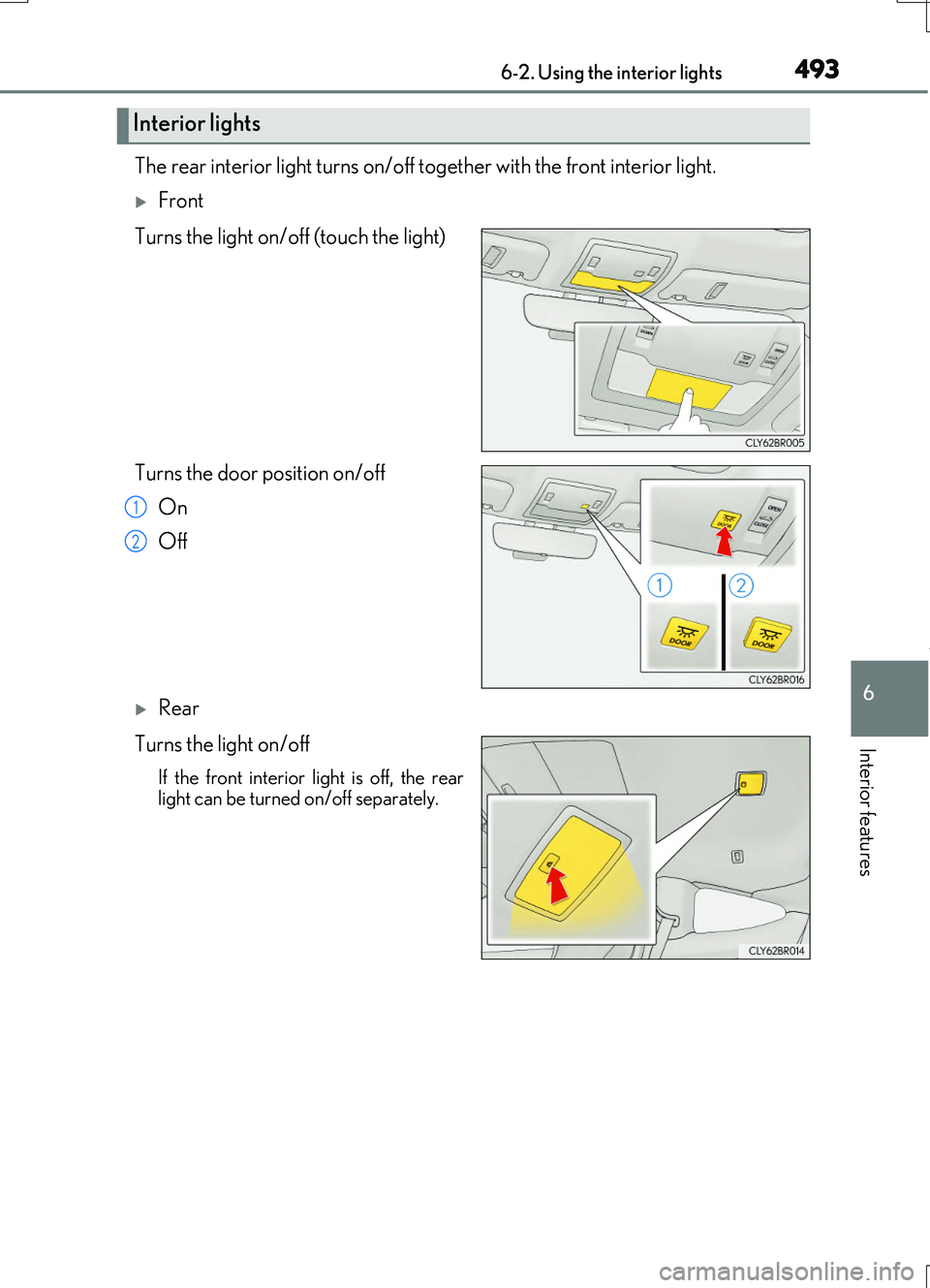

The rear interior light turns on/off together with the front interior light.
Front
Turns the light on/off (touch the light)
Turns the door position on/off
On
Off
Rear
Turns the light on/off
If the front interior light is off, the rear light can be turned on/off separately.
Interior lights
1
2

4946-2. Using the interior lights
RC200t_RC F_EE(OM24728E)
Turns the lights on/off (touch the lights)
●Illuminated entry system: The lights automatically turn on/off according to engine switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and whether the doors are opened/closed.
●If the interior lights remain on when the engine switch is turned off, the lights will go off automatically after 20 minutes.
●In the following cases, the front interior lights and personal lights may not respond as
normal.
• When water, dirt, etc., have adhered to the lens surface • When operated with a wet hand
• When wearing gloves, etc.
●Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 695)
Personal lights
NOTICE
●Never remove the lens for the front interior light and personal lights. Otherwise, the
lights will be damaged.
●To prevent battery discharge, do not leave the lights on longer than necessary when the engine is off.

495
RC200t_RC F_EE(OM24728E)
6
Interior features
6-3. Using the storage features
List of storage features
Glove box (P. 496)
Cup holders (if equipped)
( P. 497)
Console box ( P. 496)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact with other stored items.• Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire hazard.
●When driving or when the storage compartments are not in use, keep the lids closed.In the event of sudden braking or sudden swerving, an accident may occur due to anoccupant being struck by an open lid or the items stored inside.
1
2
3

4966-3. Using the storage features
RC200t_RC F_EE(OM24728E)
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the engi ne switch is in ACCESSORY or IGNITION
ON mode.
●The trunk opener main switch is located in the glove box. (P. 171)
Push the knob.
Lift by hand to fully open the console
box.
Glove box
1
2
3
●The insert inside the glove box can be
removed.
Console box

4976-3. Using the storage features
6
Interior features
RC200t_RC F_EE(OM24728E)
●The rubber mats at the bottom of the front cup holders can be removed.

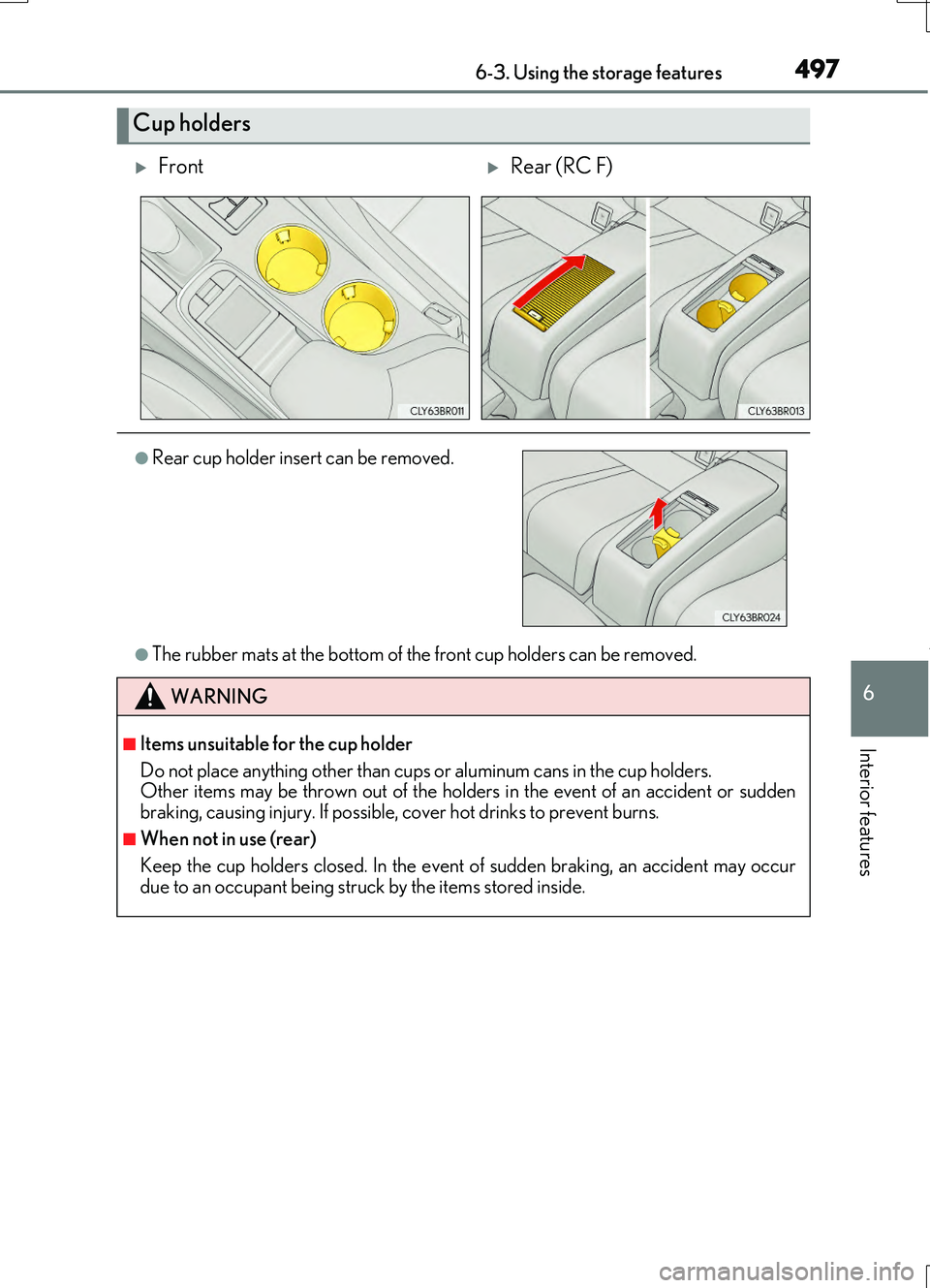

Cup holders
FrontRear (RC F)
●Rear cup holder insert can be removed.
WARNING
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders. Other items may be thrown out of the holder s in the event of an accident or sudden
braking, causing injury. If possible , cover hot drinks to prevent burns.
■When not in use (rear)
Keep the cup holders closed. In the event of sudden braking, an accident may occur
due to an occupant being struck by the items stored inside.

4986-3. Using the storage features
RC200t_RC F_EE(OM24728E)
Raise the hooks when needed.
The cargo hooks are provided for securing loose items.
Loosen the belt
Tighten the belt

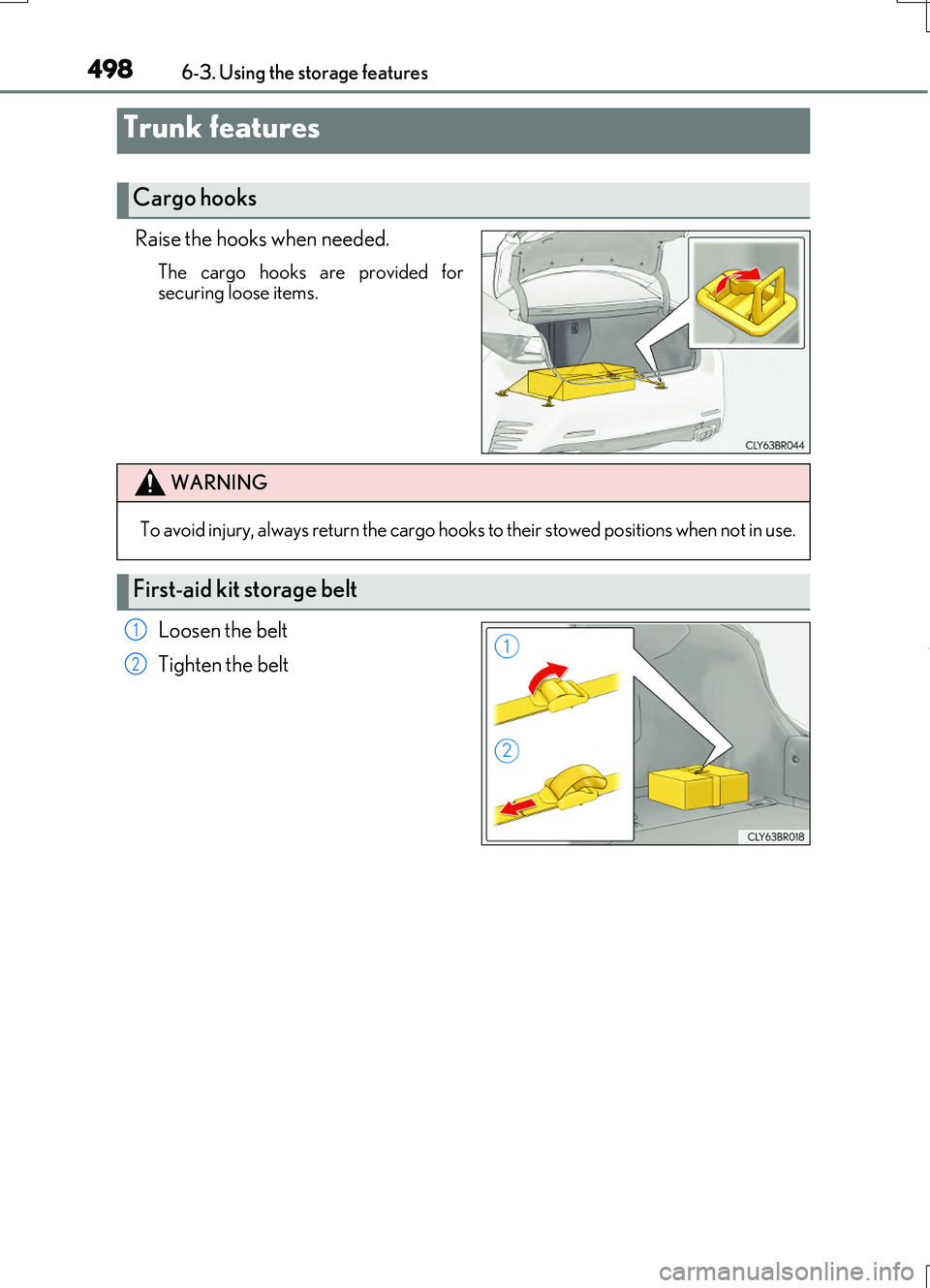

Trunk features
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
First-aid kit storage belt
1
2

4996-3. Using the storage features
6
Interior features
RC200t_RC F_EE(OM24728E)
Loosen the belt
Tighten the belt

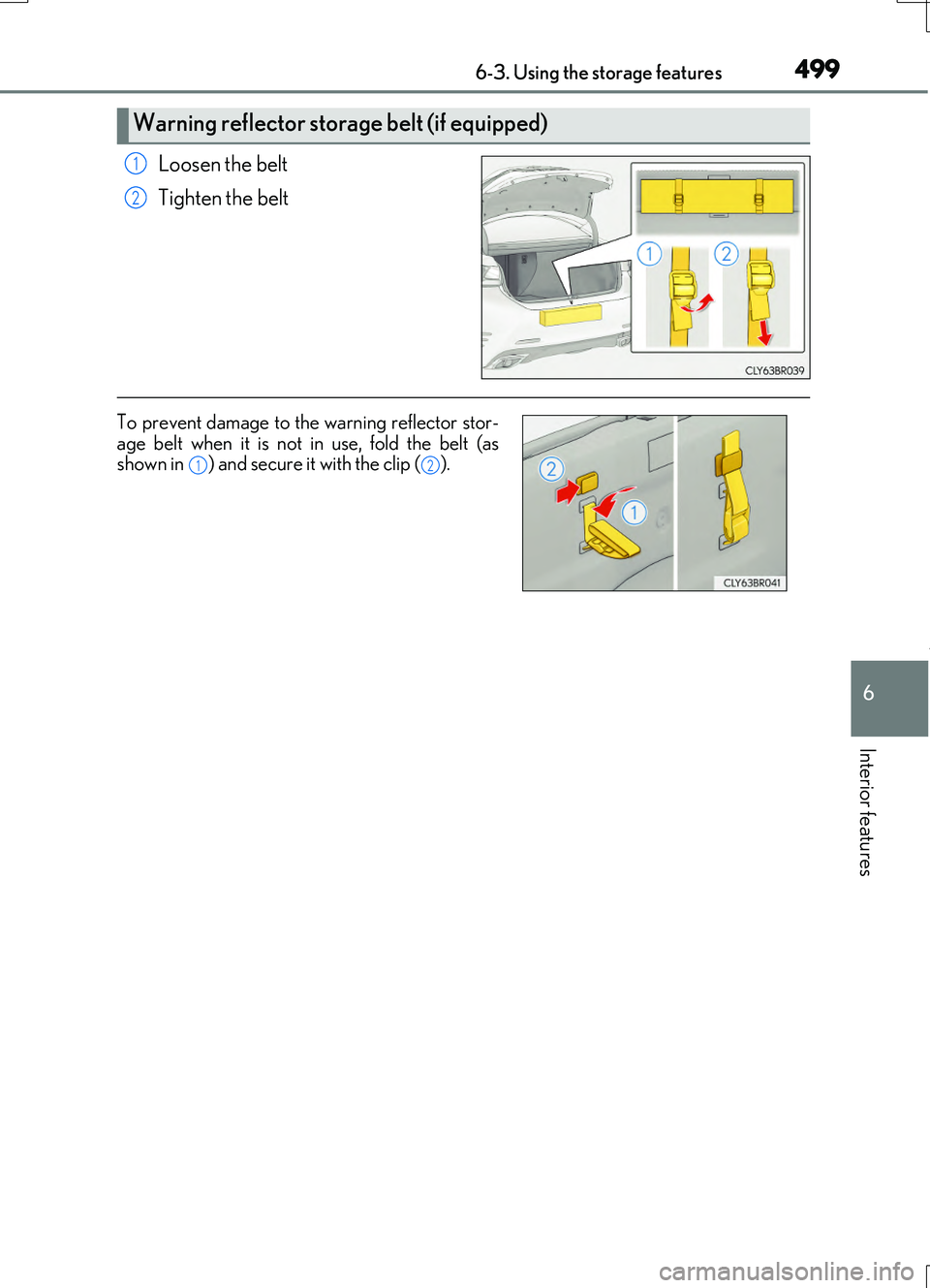

Warning reflector storage belt (if equipped)
1
2
To prevent damage to the warning reflector stor- age belt when it is not in use, fold the belt (asshown in ) and secure it with the clip ( ).12

500
RC200t_RC F_EE(OM24728E)
6-4. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
If the vanity lights remain on when the engine switch is turned off, the lights will go off
automatically after 20 minutes.
Other interior features
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave th e lights on longer than necessary when the engine is off.
