5016-4. Using the other interior features
6
Interior features
RC200t_RC F_EE(OM24728E)
The clock can be adjusted.
Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
Please use as a power supply for electronic goods that use less than 12 VDC/10
A (power consumption of 120 W).
Open the lid.
●The power outlet can be used when the engine switch is in ACCESSORY or IGNI-
TION ON mode.
●Vehicles with Stop & Start sy stem: When the engine restarts after having been stopped by the Stop & Start system, the power outlet may be temporarily unusable, but this is
not a malfunction.
Clock
1
2
Power outlet
●The shape of the console box rim allows power
cables to be passed through when the console box lid is closed.

5026-4. Using the other interior features
RC200t_RC F_EE(OM24728E)
Fold down the armrest for use.
NOTICE
●To avoid damaging the power outlet, close the power outlet lid when the power outlet is not in use. Foreign objects or liquids th at enter the power outlet may cause a short circuit.
●To prevent battery discharge, do not use the power outlet longer than necessarywhen the engine is off.
Armrest (RC F)
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.

5036-4. Using the other interior features
6
Interior features
RC200t_RC F_EE(OM24728E)

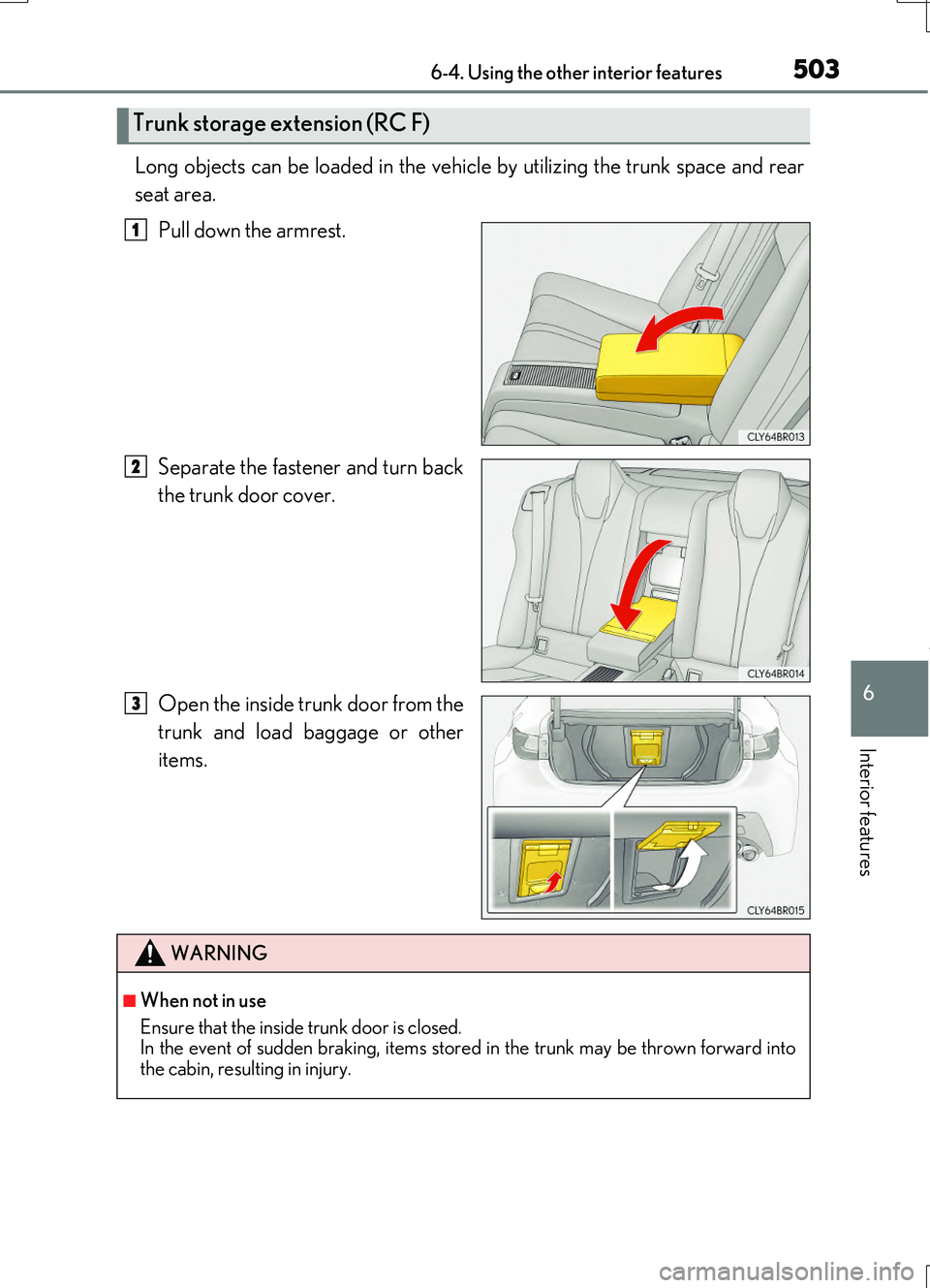

Long objects can be loaded in the vehicle by utilizing the trunk space and rear
seat area.
Pull down the armrest.
Separate the fastener and turn back
the trunk door cover.
Open the inside trunk door from the
trunk and load baggage or other
items.
Trunk storage extension (RC F)
1
2
3
WARNING
■When not in use
Ensure that the inside trunk door is closed. In the event of sudden braking, items stored in the trunk may be thrown forward into
the cabin, resulting in injury.

5046-4. Using the other interior features
RC200t_RC F_EE(OM24728E)

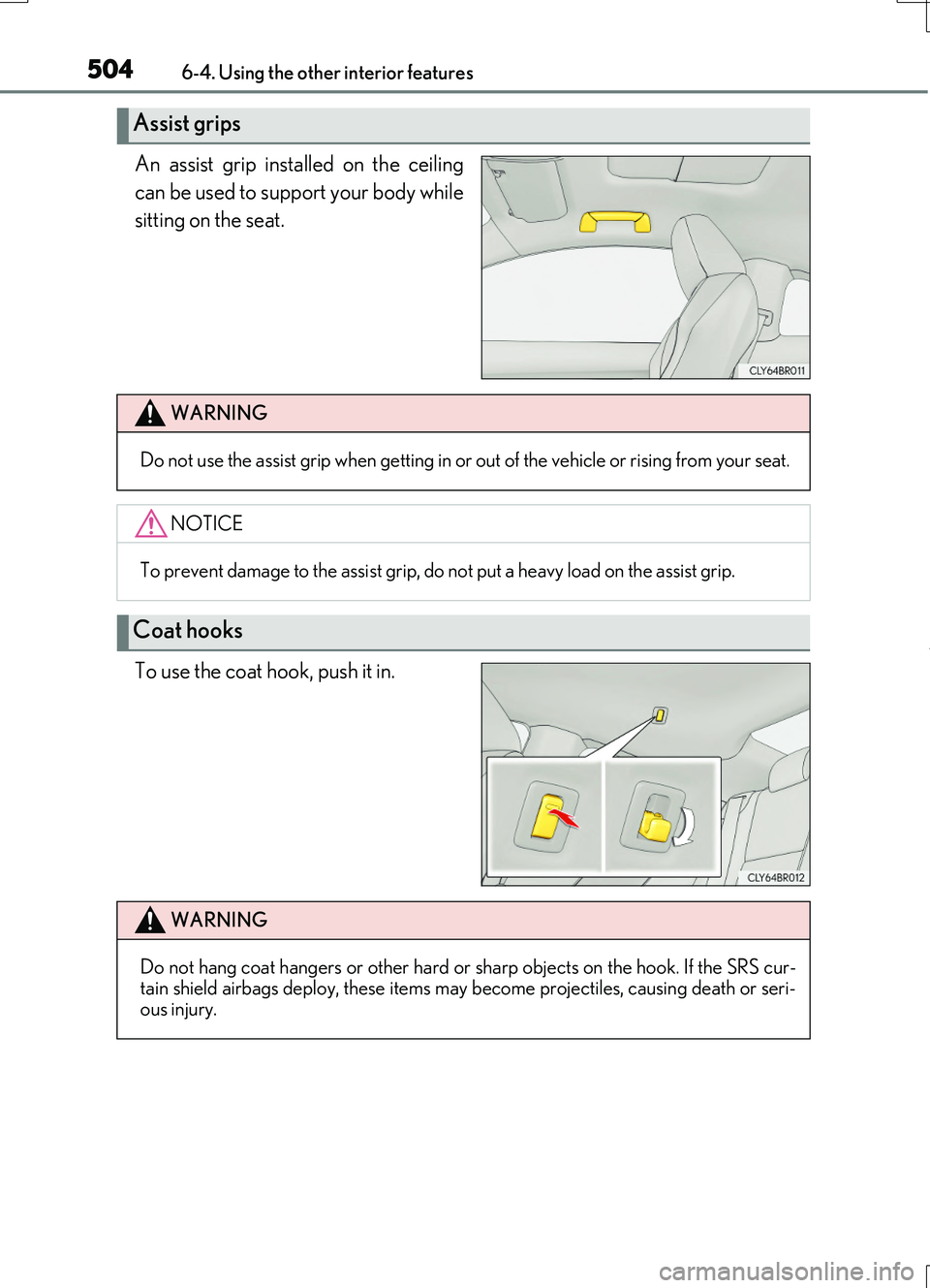

An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
To use the coat hook, push it in.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist grip.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri- ous injury.

505
7Maintenance and care
RC200t_RC F_EE(OM24728E)
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ................506
Cleaning and protecting
the vehicle interior..................... 511
7-2. Maintenance
Maintenance
requirements ............................. 514
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions................................. 516
Hood ................................................ 518
Positioning a floor jack ............. 519
Engine compartment ............... 522
Tires .................................................535
Tire inflation pressure .............. 557
Wheels ...........................................559
Air conditioning filter ................ 561
Electronic key battery.............. 563
Checking and replacing
fuses.............................................. 566
Light bulbs..................................... 570

506
RC200t_RC F_EE(OM24728E)
7-1. Maintenance and care

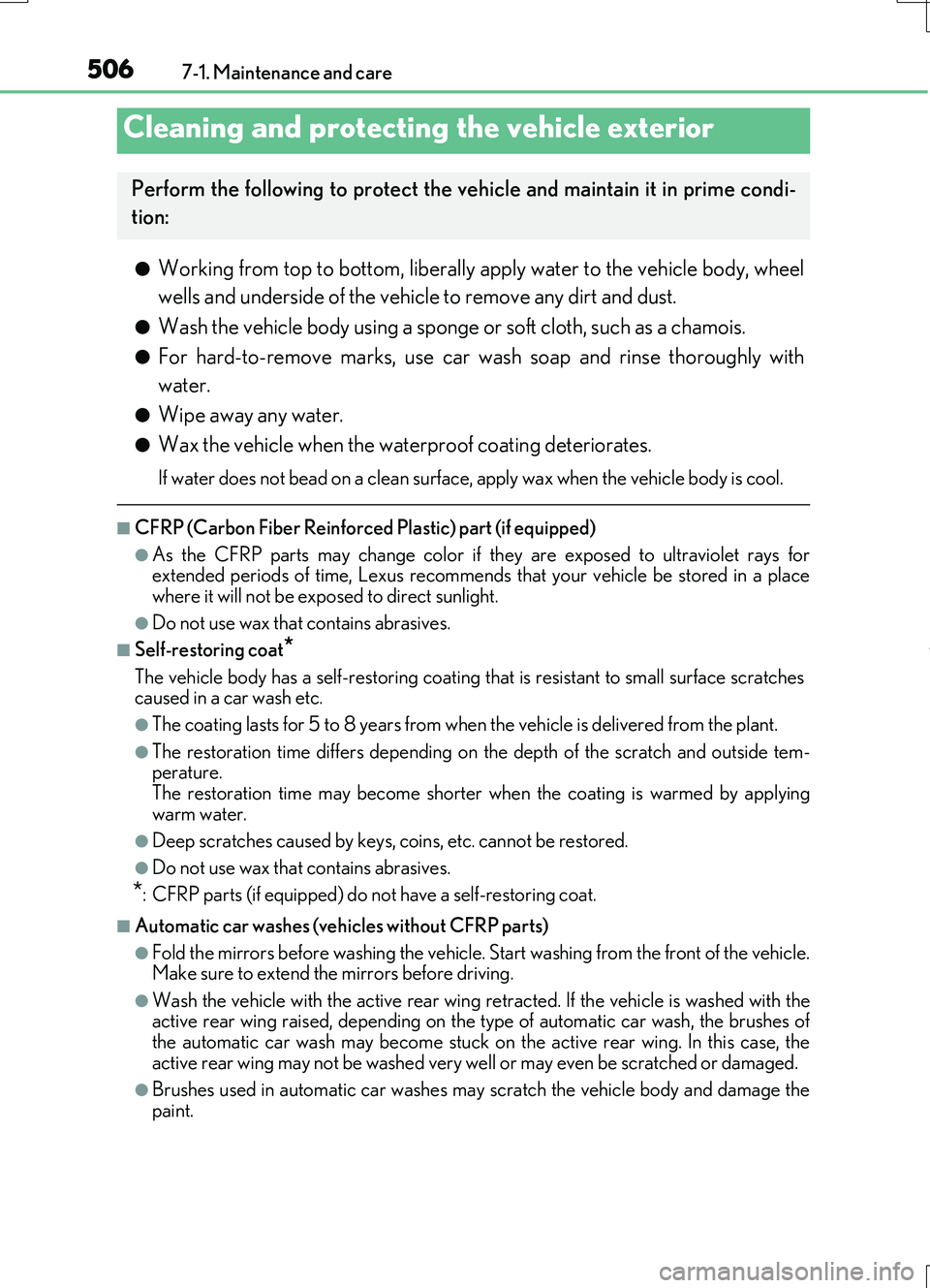

●Working from top to bottom, liberally apply water to the vehicle body, wheel
wells and underside of the vehicle to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly with
water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is cool.
■CFRP (Carbon Fiber Reinforced Plastic) part (if equipped)
●As the CFRP parts may change color if they are exposed to ultraviolet rays for extended periods of time, Le xus recommends that your vehicle be stored in a place
where it will not be exposed to direct sunlight.
●Do not use wax that contains abrasives.
■Self-restoring coat*
The vehicle body has a self-restoring coating that is resistant to small surface scratches caused in a car wash etc.
●The coating lasts for 5 to 8 years from when the vehicle is delivered from the plant.
●The restoration time differs depending on the depth of the scratch and outside tem-perature.The restoration time may become shorter when the coating is warmed by applying
warm water.
●Deep scratches caused by keys, coins, etc. cannot be restored.
●Do not use wax that contains abrasives.
*: CFRP parts (if equipped) do not have a self-restoring coat.
■Automatic car washes (vehicles without CFRP parts)
●Fold the mirrors before washing the vehicle. Start washing from the front of the vehicle. Make sure to extend th e mirrors before driving.
●Wash the vehicle with the active rear wing retracted. If the vehicle is washed with the active rear wing raised, depending on the type of automatic car wash, the brushes of
the automatic car wash may become stuck on the active rear wing. In this case, the active rear wing may not be washed very well or may even be scratched or damaged.
●Brushes used in automatic car washes may scratch the vehicle body and damage the
paint.
Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in prime condi-
tion:

5077-1. Maintenance and care
7
Maintenance and care
RC200t_RC F_EE(OM24728E)

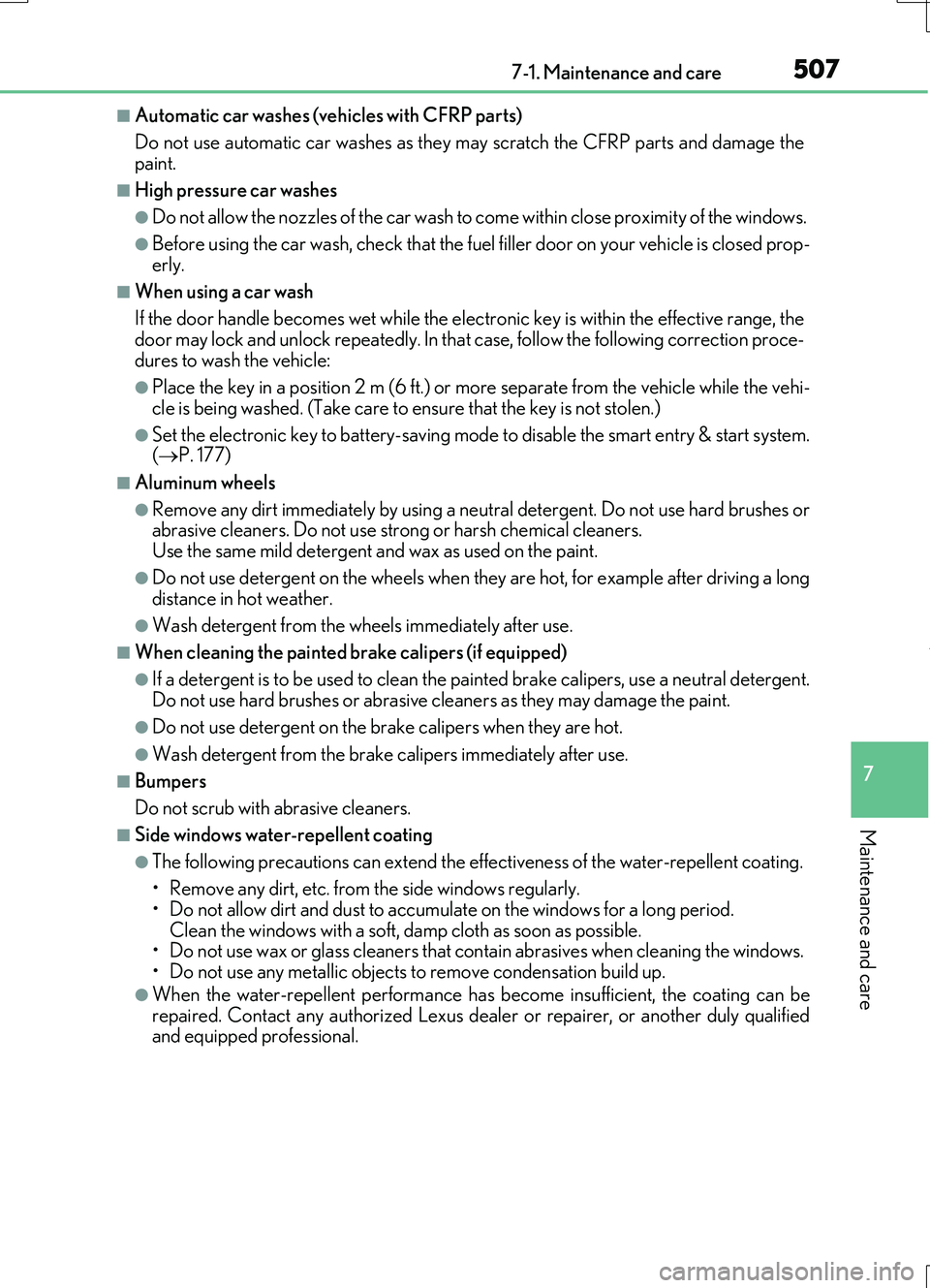

■Automatic car washes (vehicles with CFRP parts)
Do not use automatic car washes as they may scratch the CFRP parts and damage the paint.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the windows.
●Before using the car wash, check that the fuel filler door on your vehicle is closed prop-
erly.
■When using a car wash
If the door handle becomes wet while the electronic key is within the effective range, the
door may lock and unlock repeatedly. In that case, follow the following correction proce- dures to wash the vehicle:
●Place the key in a position 2 m (6 ft.) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
●Set the electronic key to battery-saving mode to disable the smart entry & start system. ( P. 177)
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving a long distance in hot weather.
●Wash detergent from the wheels immediately after use.
■When cleaning the painted brake calipers (if equipped)
●If a detergent is to be used to clean the painted brake calipers, use a neutral detergent.
Do not use hard brushes or abrasive cl eaners as they may damage the paint.
●Do not use detergent on the brake calipers when they are hot.
●Wash detergent from the brake calipers immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
■Side windows water-repellent coating
●The following precautions can extend the effectiveness of the water-repellent coating.
• Remove any dirt, etc. from the side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period. Clean the windows with a soft, damp cloth as soon as possible.• Do not use wax or glass cleaners that co ntain abrasives when cleaning the windows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating can be
repaired. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.

5087-1. Maintenance and care
RC200t_RC F_EE(OM24728E)
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the raindrop
sensor
■Precautions regarding the exhaust pipes
As exhaust gases cause the exhaust pipes to become quite hot, do not touch the
exhaust pipes while the engine is running or immediately after the engine is turned off.
When washing the vehicle, be careful not to touch the exhaust pipes until they have cooled sufficiently, as touching hot exhaust pipes can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunction. If this occurs, consult any authorized Lexus deal er or repairer, or another duly qualified
and equipped professional.
Set the wipers to the intermittent windshield
wipers. ( P. 276) If AUTO mode is selected, the wipers mayoperate unexpectedly in the following situa-
tions, and may result in hands being caught or other serious injuries and cause damage to thewiper blades.

5097-1. Maintenance and care
7
Maintenance and care
RC200t_RC F_EE(OM24728E)

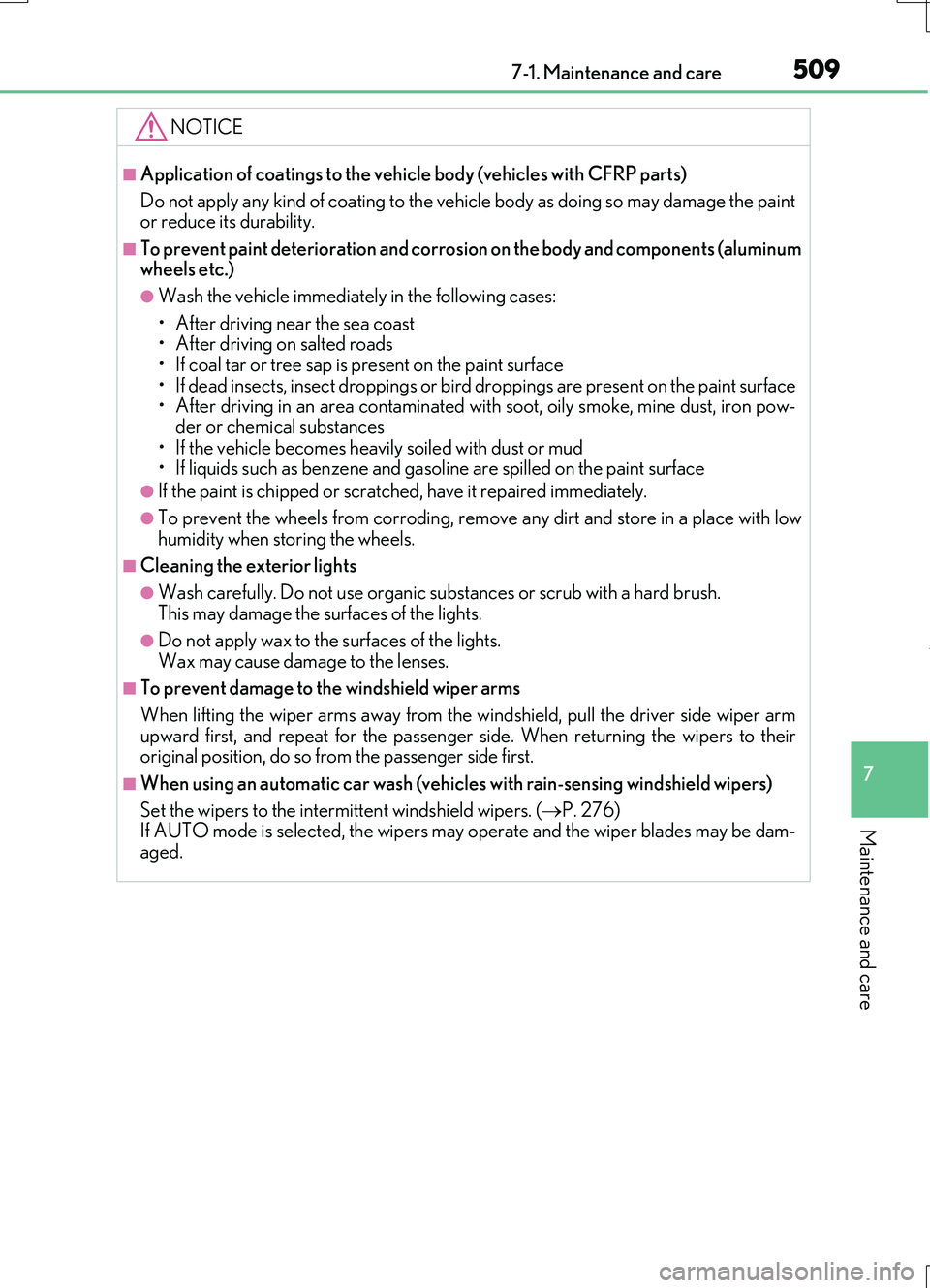

NOTICE
■Application of coatings to the vehicle body (vehicles with CFRP parts)
Do not apply any kind of coating to the vehicle body as doing so may damage the paint or reduce its durability.
■To prevent paint deterioration and corrosion on the body and components (aluminumwheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast • After driving on salted roads• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint surface • After driving in an area contaminated wi th soot, oily smoke, mine dust, iron pow- der or chemical substances
• If the vehicle becomes heavily soiled with dust or mud • If liquids such as benzene and gaso line are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with low humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic subs tances or scrub with a hard brush. This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.Wax may cause damage to the lenses.
■To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side wiper arm upward first, and repeat for the passenger side. When returning the wipers to theiroriginal position, do so from the passenger side first.
■When using an automatic car wash (vehicle s with rain-sensing windshield wipers)
Set the wipers to the intermittent windshield wipers. ( P. 276) If AUTO mode is selected, the wipers may operate and the wiper blades may be dam-
aged.

5107-1. Maintenance and care
RC200t_RC F_EE(OM24728E)
NOTICE
■When using a high pressure car wash
●When washing the vehicle, do not spray the camera or its surrounding area directly with a high pressure washer. Shock applied from high pressure water may cause the
device to not operate normally.
●Do not bring the nozzle tip close to boots (rubber or resin manufactured cover), con- nectors or the following parts. The parts may be damaged if they come into contact
with high-pressure water.
■Hood vent (RC F)
• Traction related parts
• Steering parts
•Suspension parts
• Brake parts
●RC F: Do not point the nozzle of a high pres- sure washer at the areas shown in the illustra-tion, as high pressure water may damage the
oil coolers.
When washing the vehicle, do not allow a large amount of water to enter the hood vent at once,
such as when using a bucket, etc. or point the nozzle of a high pressure washer at the hoodvent.
Water may get inside the engine compartment and affect the engine and other components.
