5617-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
Turn the engine switch off.
Open the glove box. Lift up the side
with the stay, disconnect the stay
tabs and remove the partition by
pulling horizontally.
Press the tabs and remove the filter
cover.
Press the tabs and remove the filter
case.
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
Removal method
1
2
3
4

5627-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)

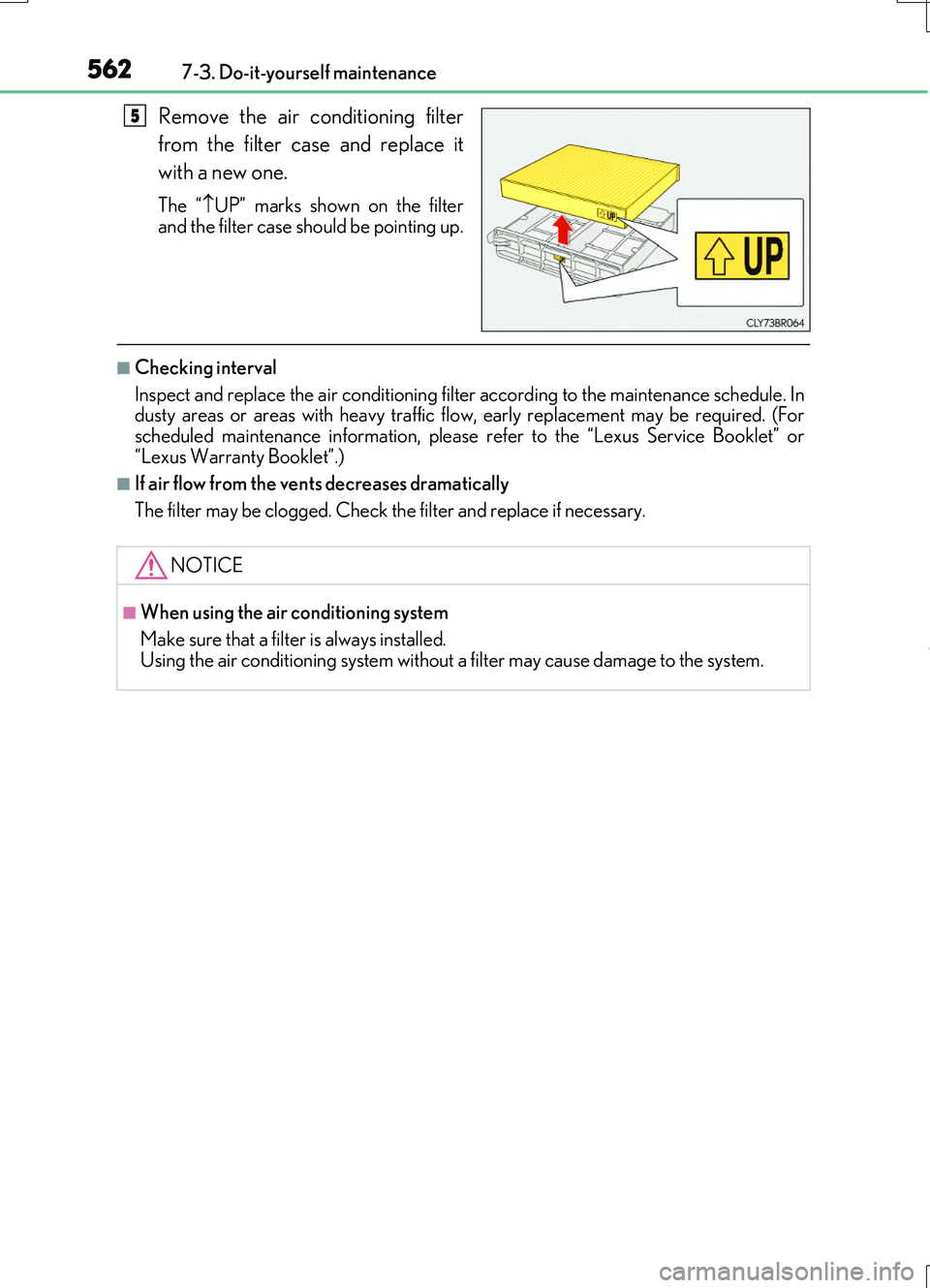

Remove the air conditioning filter
from the filter case and replace it
with a new one.
The “ UP” marks shown on the filter
and the filter case should be pointing up.
■Checking interval
Inspect and replace the air conditioning filt er according to the maintenance schedule. In dusty areas or areas with heavy traffic fl ow, early replacement may be required. (For
scheduled maintenance information, please refer to the “Lexus Service Booklet” or “Lexus Warranty Booklet”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
5
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed. Using the air conditioning system without a filter may cause damage to the system.

5637-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
●Flathead screwdriver
●Small flathead screwdriver
●Lithium battery CR2032
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, wrap the
tip of the screwdriver with tape.
Remove the battery cover.
To prevent damage to the key, wrap the
tip of the screwdriver with tape.

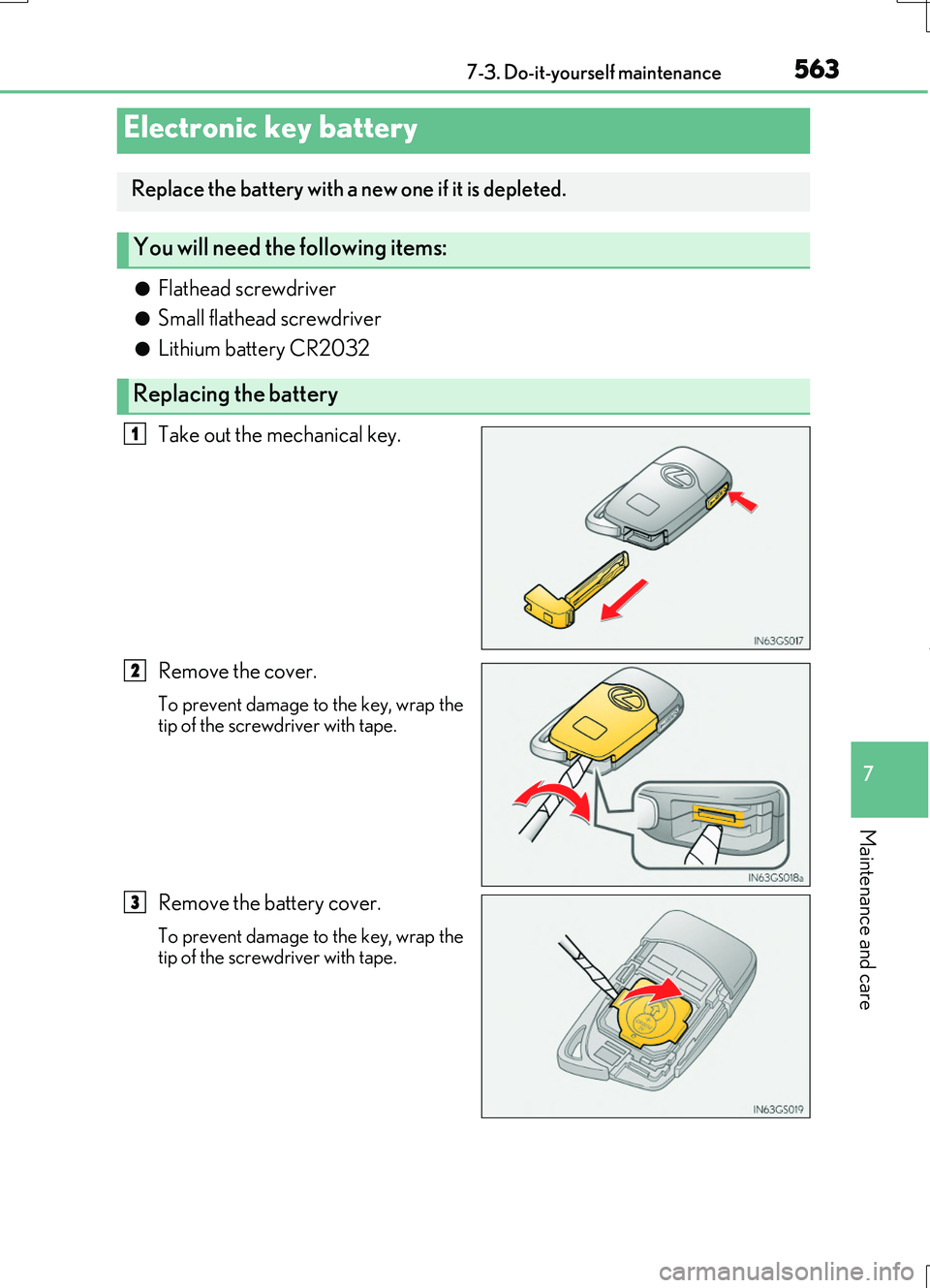

Electronic key battery
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3

5647-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
■Use a CR2032 lithium battery
●Batteries can be purchased at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional, local electrical appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not function properly.
●The operational range will be reduced.
■Certification for the key battery
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
4

5657-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away from children. Failure to do so could result in death or serious injury.
■Certification for the smart entry & start system
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

5667-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
Turn the engine switch off.
Open the fuse box cover.
Engine compartment: type A fuse box (left-hand drive vehicles)
Push the tab in and lift the lid off.
Engine compartment: type A fuse box (right-hand drive vehicles)
Push the tab in and lift the lid off.
Engine compartment: type B fuse box
Push the tab in and lift the lid off.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.
1
2

5677-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)

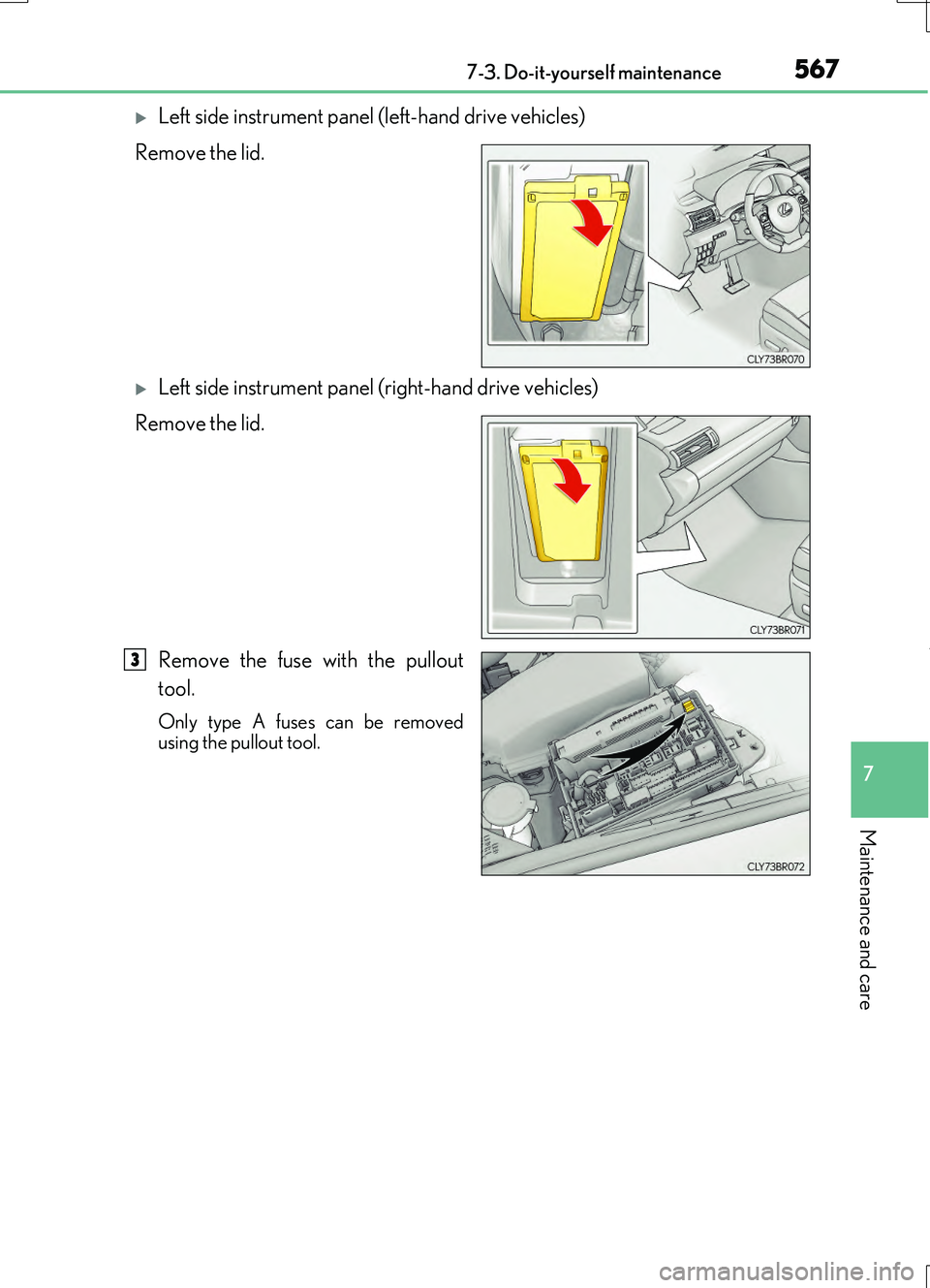

Left side instrument panel (left-hand drive vehicles)
Remove the lid.
Left side instrument panel (right-hand drive vehicles)
Remove the lid.
Remove the fuse with the pullout
tool.
Only type A fuses can be removed using the pullout tool.
3

5687-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The amperage rating can be found on the fuse box lid.
Type C and D:
Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Type AType B
Type CType D
4
1
2

5697-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement. ( P. 570)
●If the replaced fuse blows again, have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you us e genuine Lexus products designed for this vehicle. Because certain bulbs are connected to circuits designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions. Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any otherobject in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible.

5707-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
Check the wattage of the light bulb to be replaced. (P. 682)

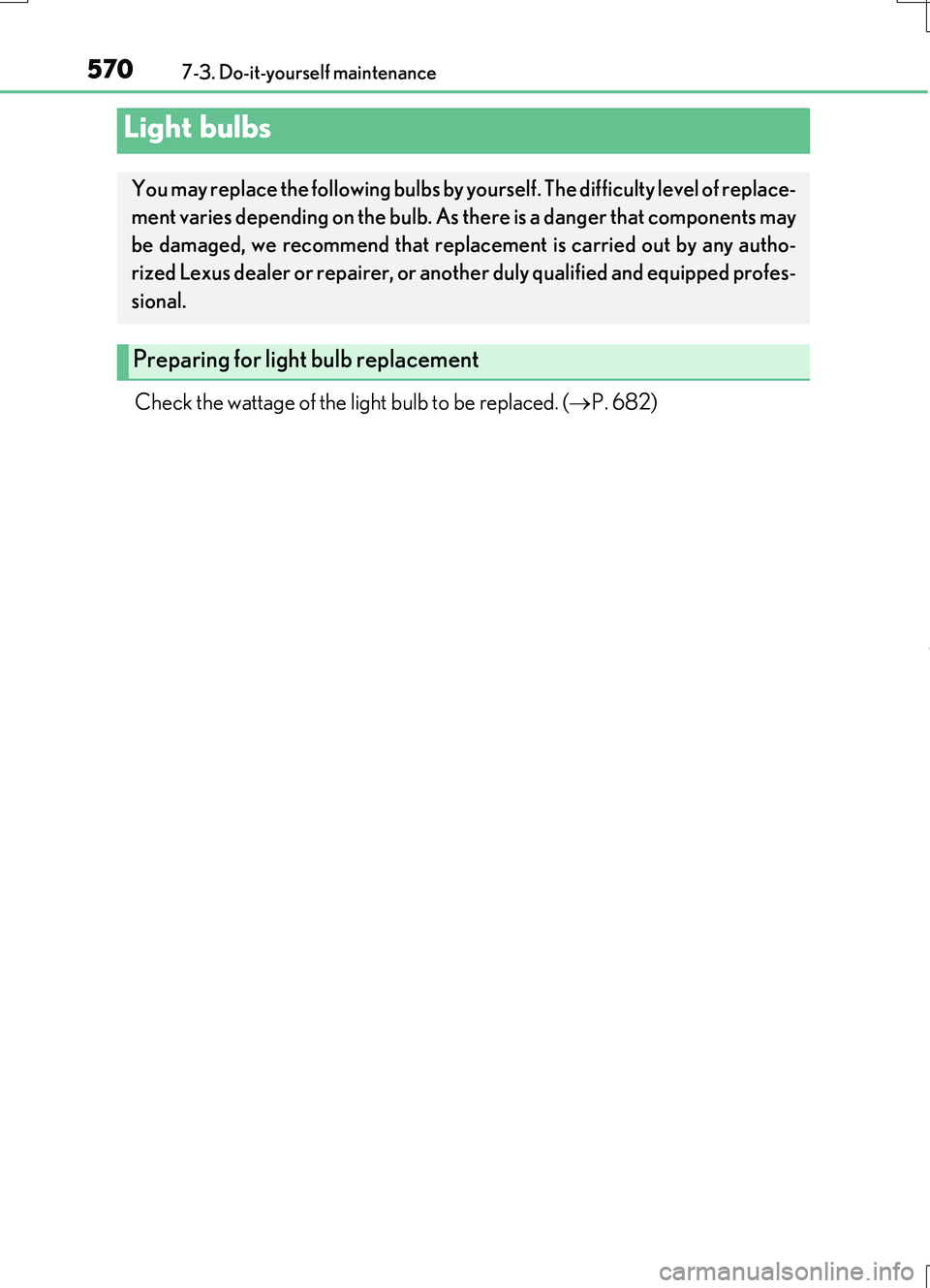

Light bulbs
You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. As there is a danger that components may
be damaged, we recommend that replacement is carried out by any autho-
rized Lexus dealer or repairer, or an other duly qualified and equipped profes-
sional.
