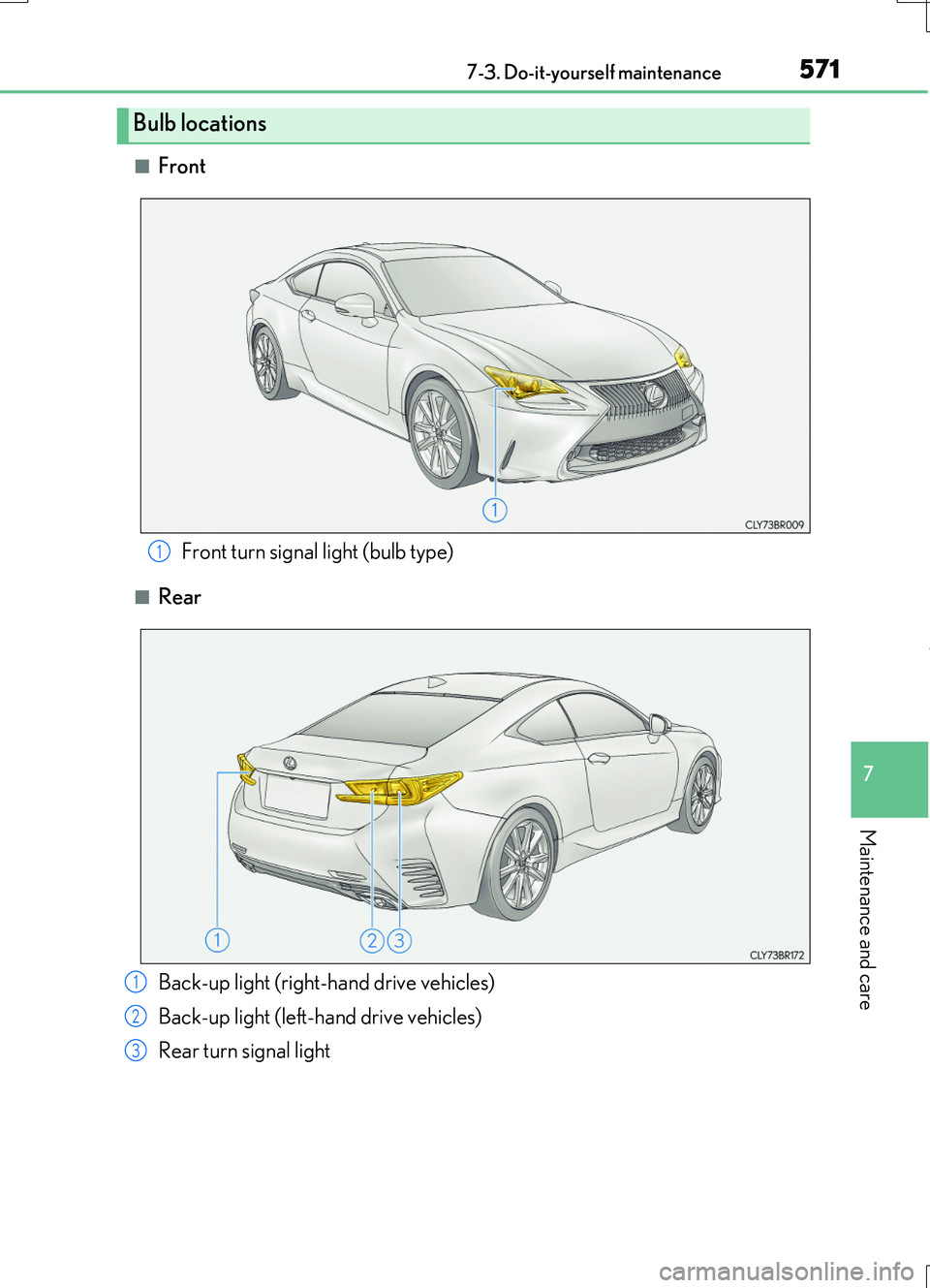

LEXUS RC200T 2017 Owners Manual

5717-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
■Front
■Rear
Bulb locations
Front turn signal light (bulb type)1
Back-up light (right-hand drive vehicles)
Back-up light (left-hand drive vehicles)
Rear turn signal light
1
2
3

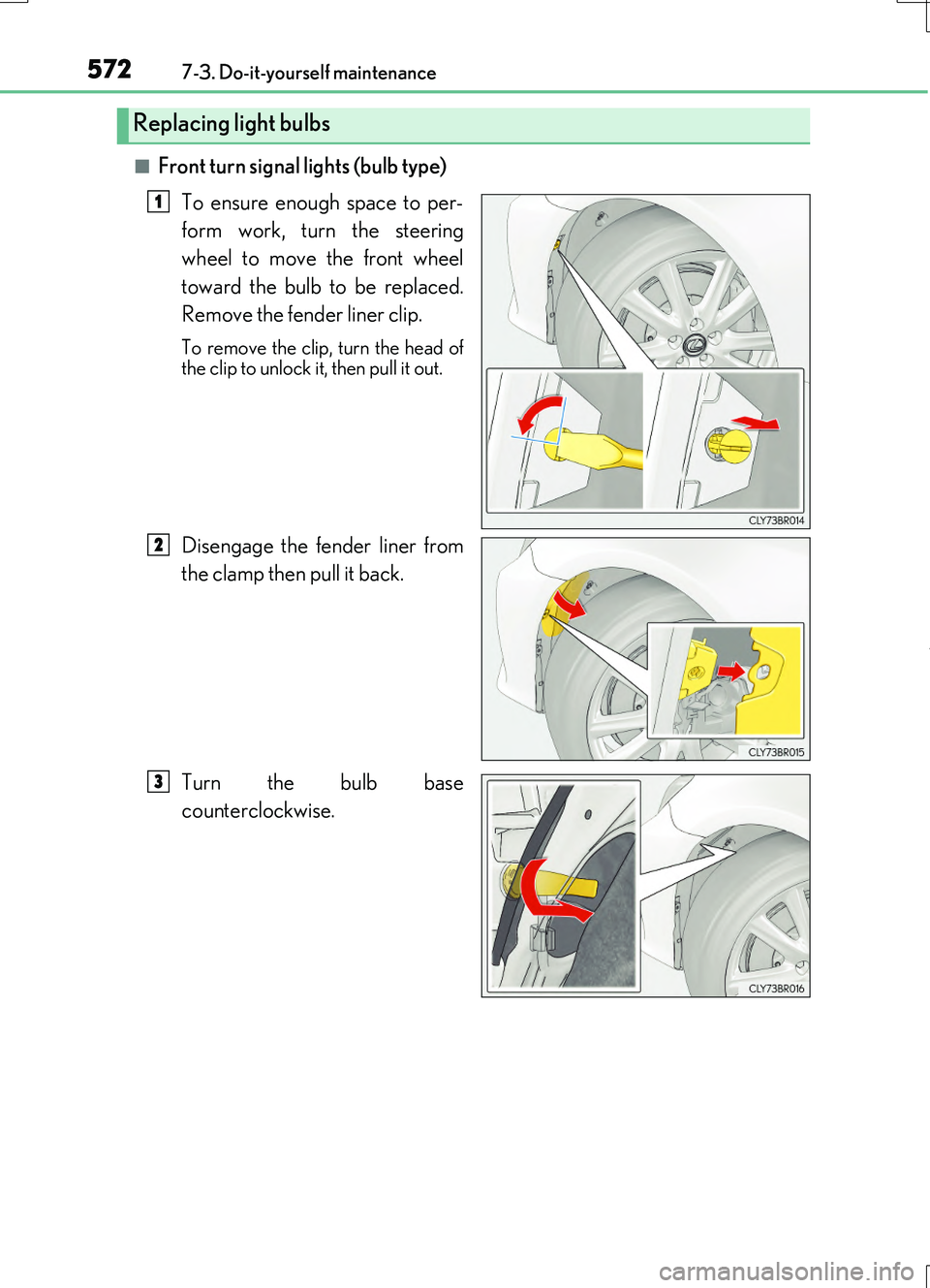

5727-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
■Front turn signal lights (bulb type)
To ensure enough space to per-
form work, turn the steering
wheel to move the front wheel
toward the bulb to be replaced.
Remove the fender liner clip.
To remove the clip, turn the head of the clip to unlock it, then pull it out.
Disengage the fender liner from
the clamp then pull it back.
Turn the bulb base
counterclockwise.
Replacing light bulbs
1
2
3

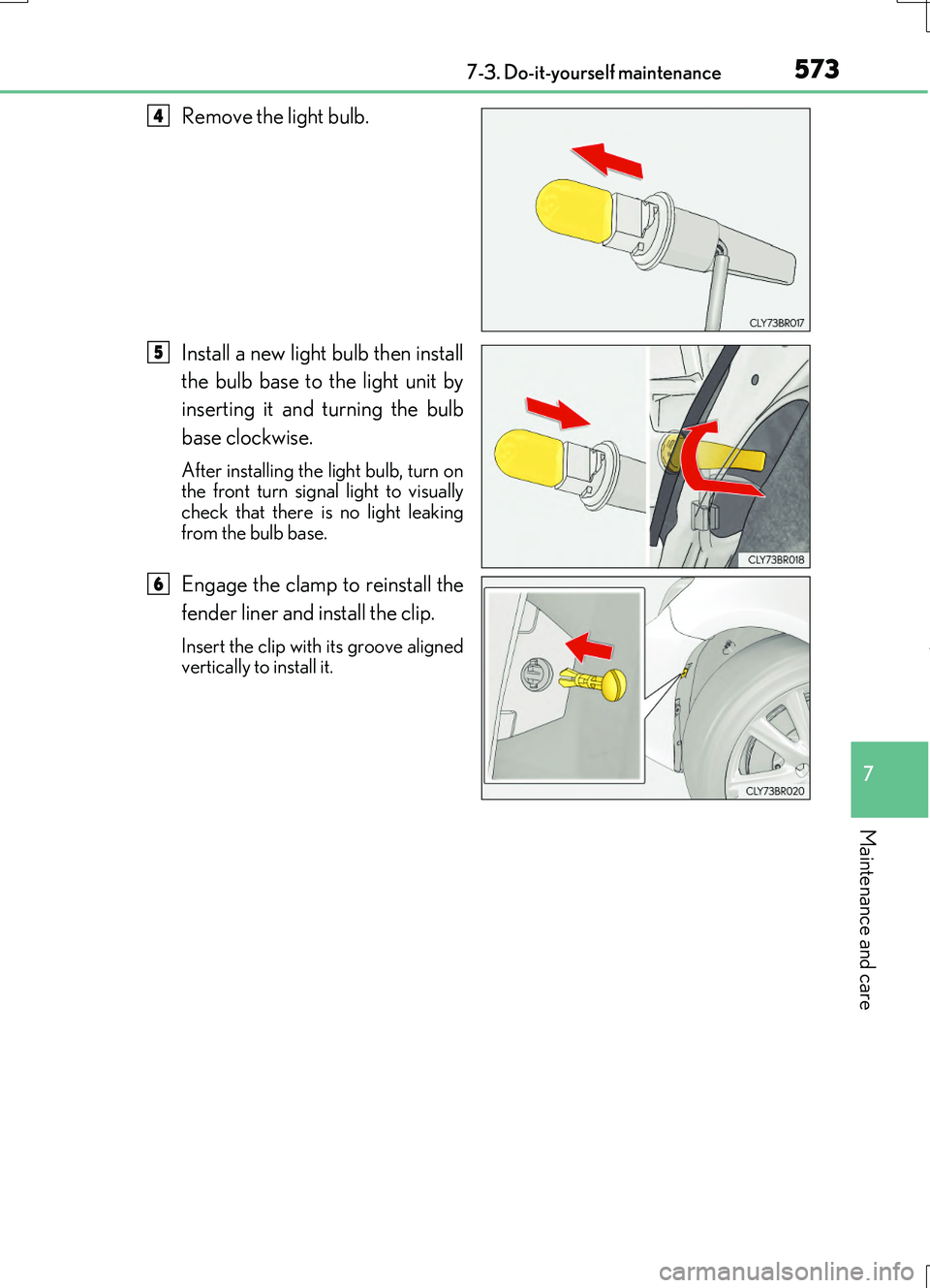

5737-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
Remove the light bulb.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on the front turn signal light to visuallycheck that there is no light leaking
from the bulb base.
Engage the clamp to reinstall the
fender liner and install the clip.
Insert the clip with its groove aligned vertically to install it.
4
5
6

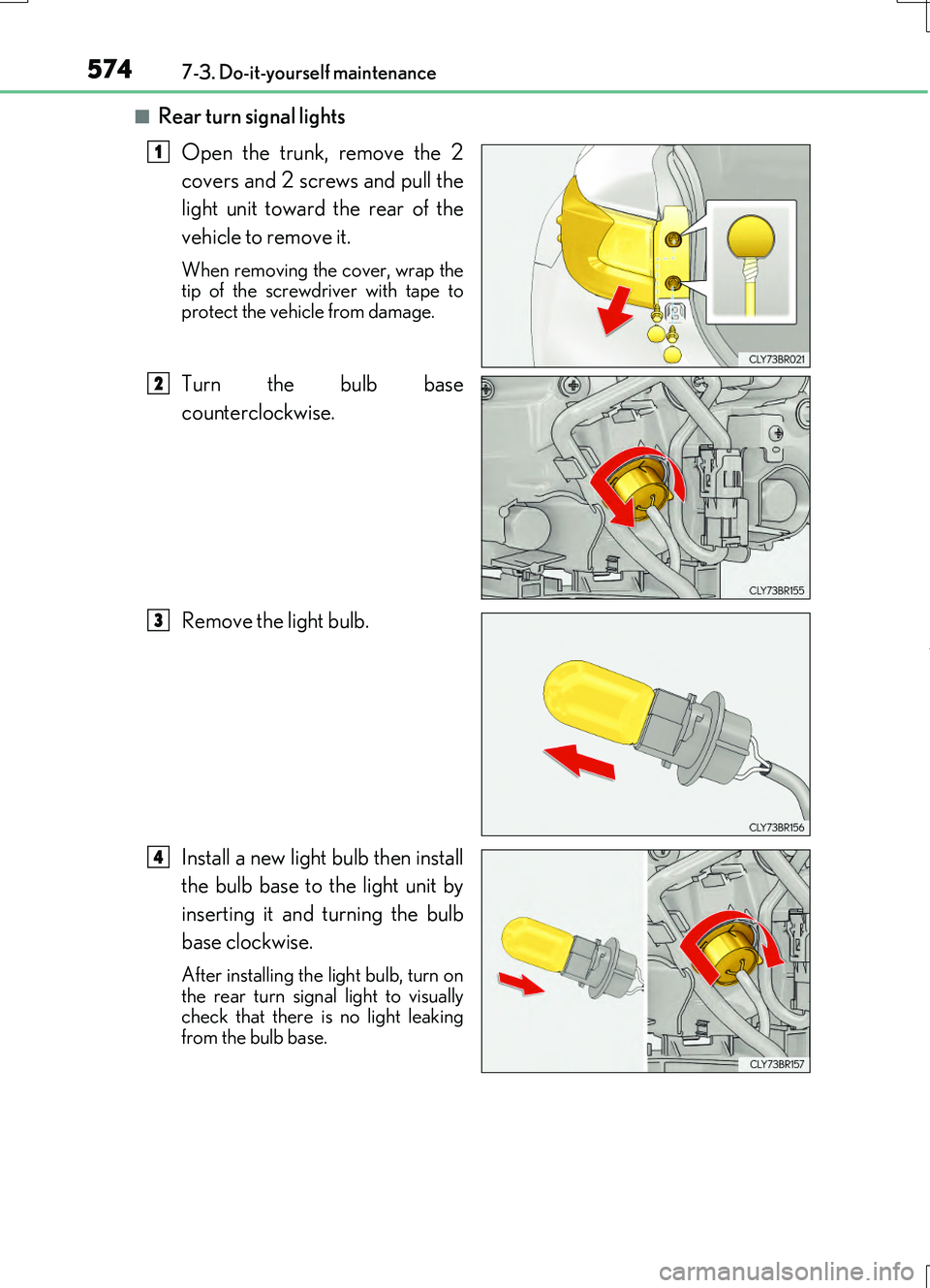

5747-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
■Rear turn signal lights
Open the trunk, remove the 2
covers and 2 screws and pull the
light unit toward the rear of the
vehicle to remove it.
When removing the cover, wrap the tip of the screwdriver with tape toprotect the vehicle from damage.
Turn the bulb base
counterclockwise.
Remove the light bulb.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on
the rear turn signal light to visually check that there is no light leakingfrom the bulb base.
1
2
3
4

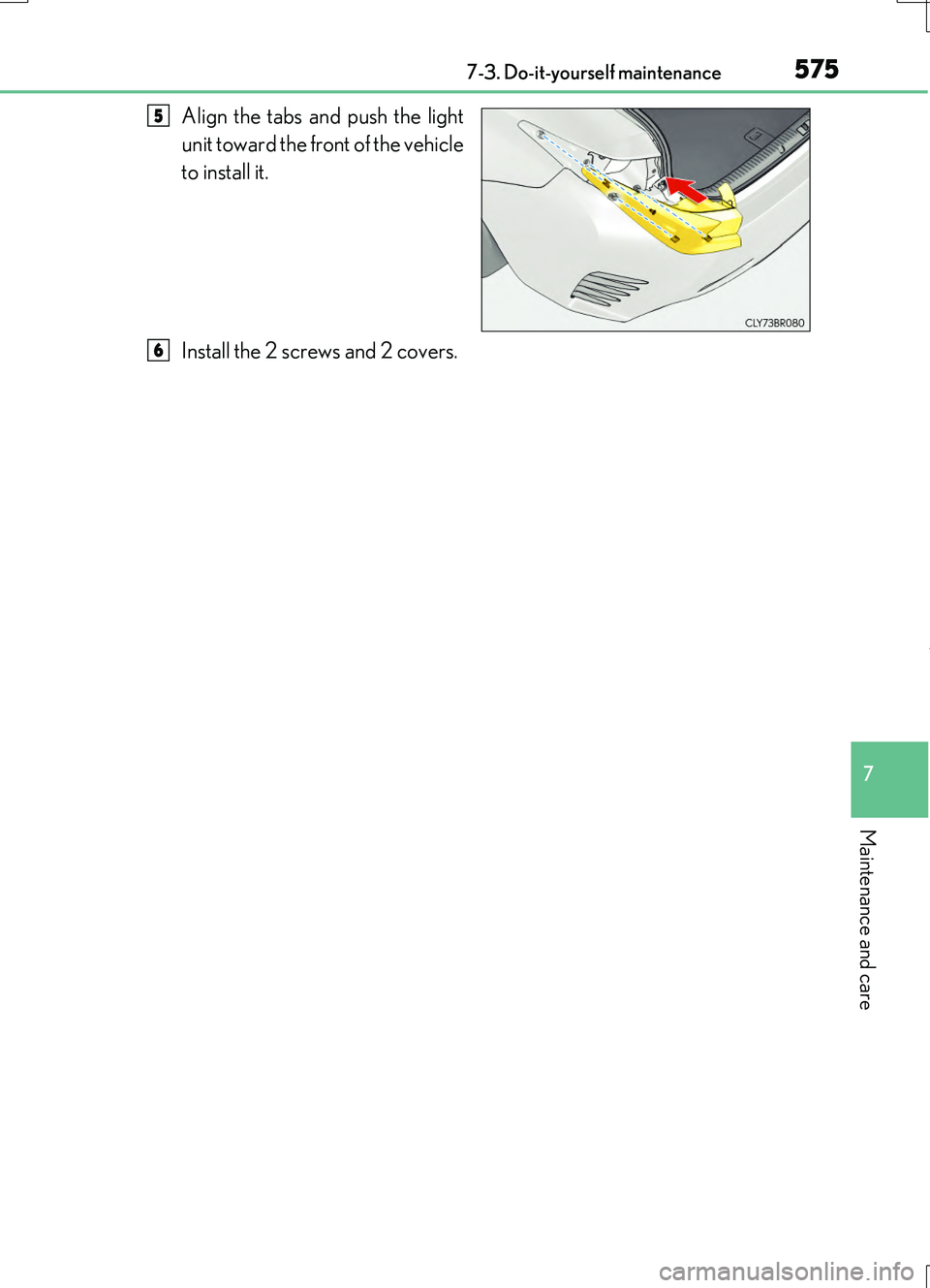

5757-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
Align the tabs and push the light
unit toward the front of the vehicle
to install it.
Install the 2 screws and 2 covers.
5
6

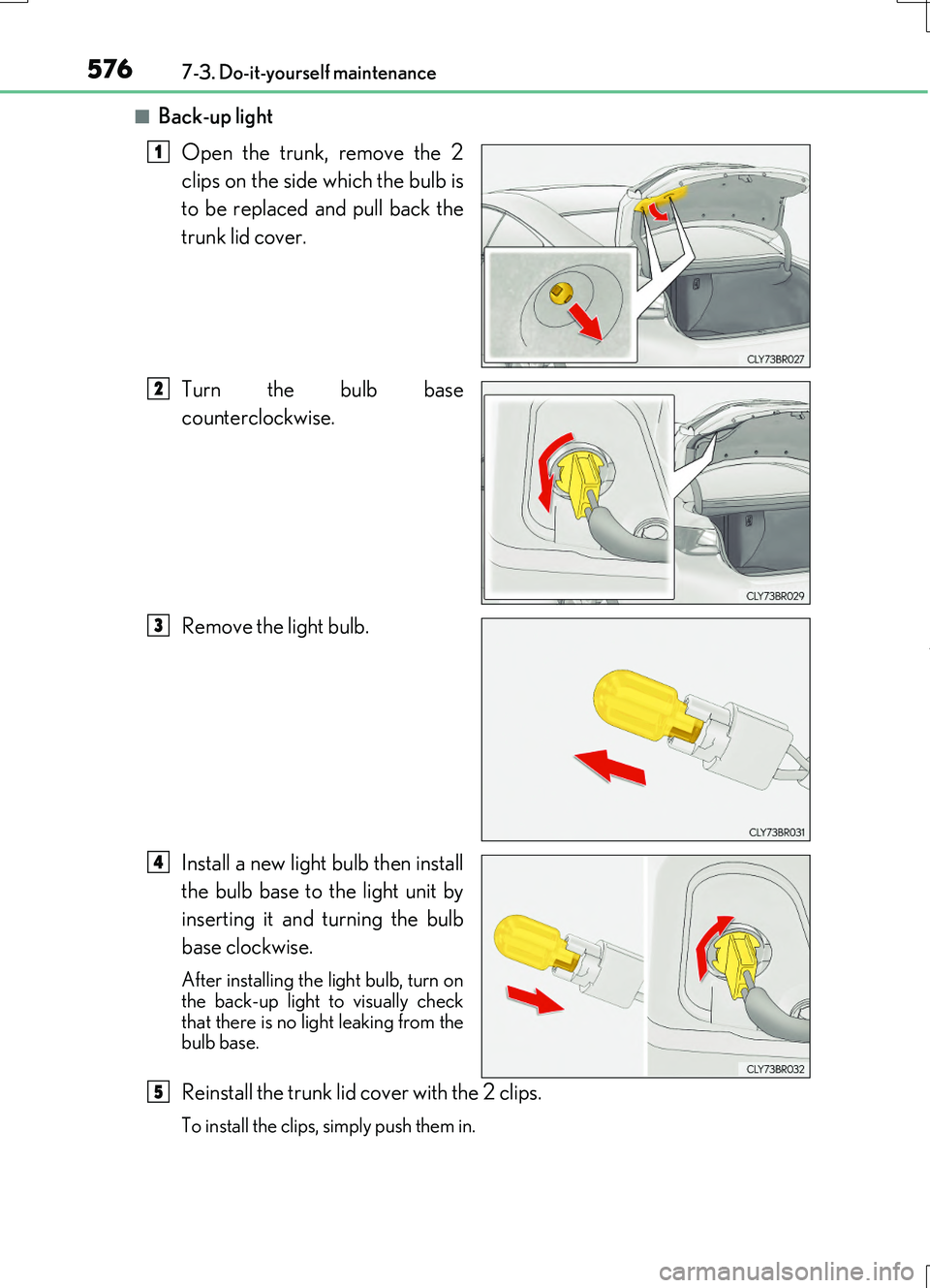

5767-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
■Back-up light
Open the trunk, remove the 2
clips on the side which the bulb is
to be replaced and pull back the
trunk lid cover.
Turn the bulb base
counterclockwise.
Remove the light bulb.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on the back-up light to visually check
that there is no light leaking from the bulb base.
Reinstall the trunk lid cover with the 2 clips.
To install the clips, simply push them in.
1
2
3
4
5

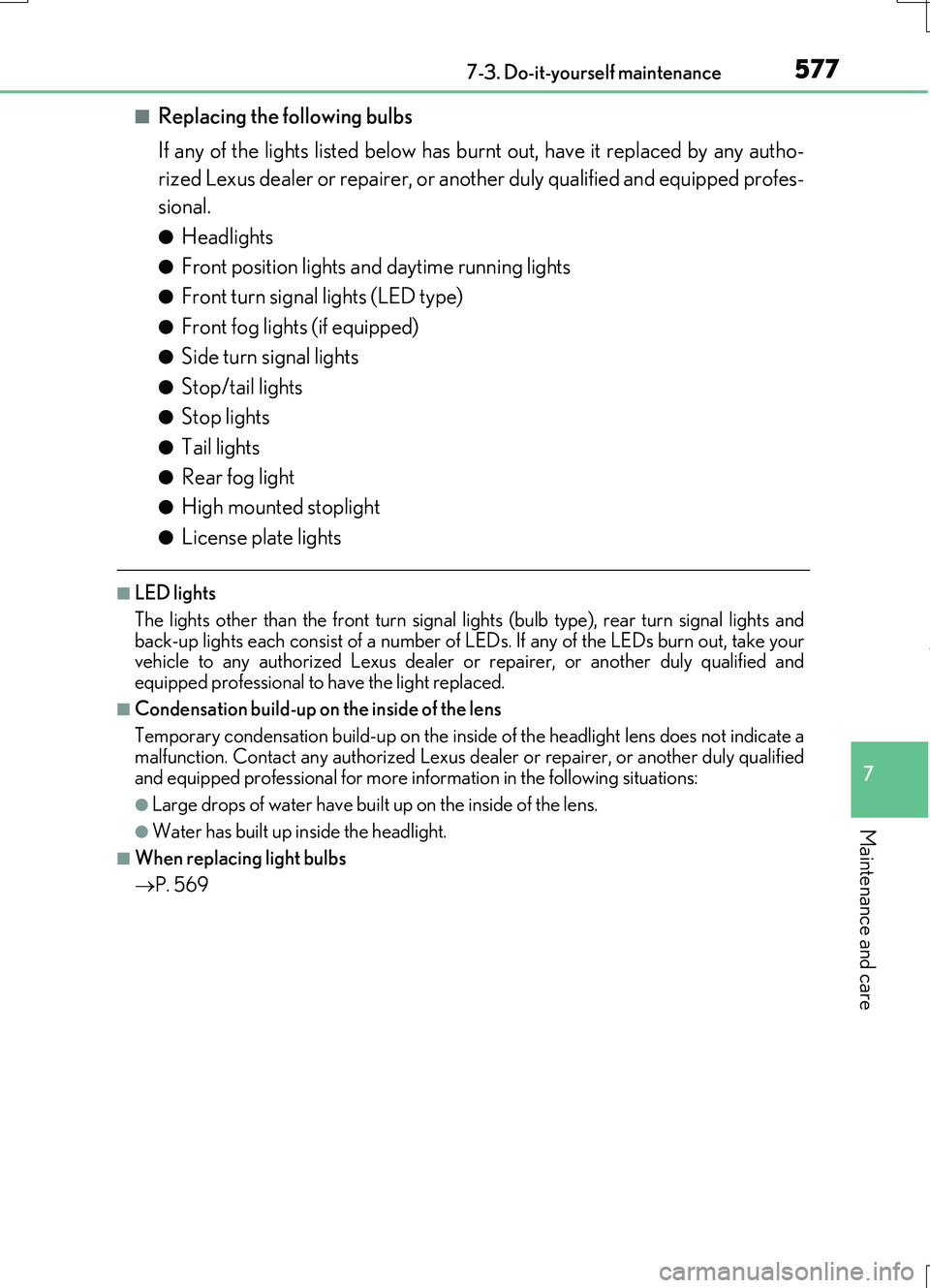

5777-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
●Headlights
●Front position lights and daytime running lights
●Front turn signal lights (LED type)
●Front fog lights (if equipped)
●Side turn signal lights
●Stop/tail lights
●Stop lights
●Tail lights
●Rear fog light
●High mounted stoplight
●License plate lights
■LED lights
The lights other than the front turn signal lights (bulb type), rear turn signal lights and back-up lights each consist of a number of LE Ds. If any of the LEDs burn out, take your vehicle to any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for more info rmation in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
 P. 569

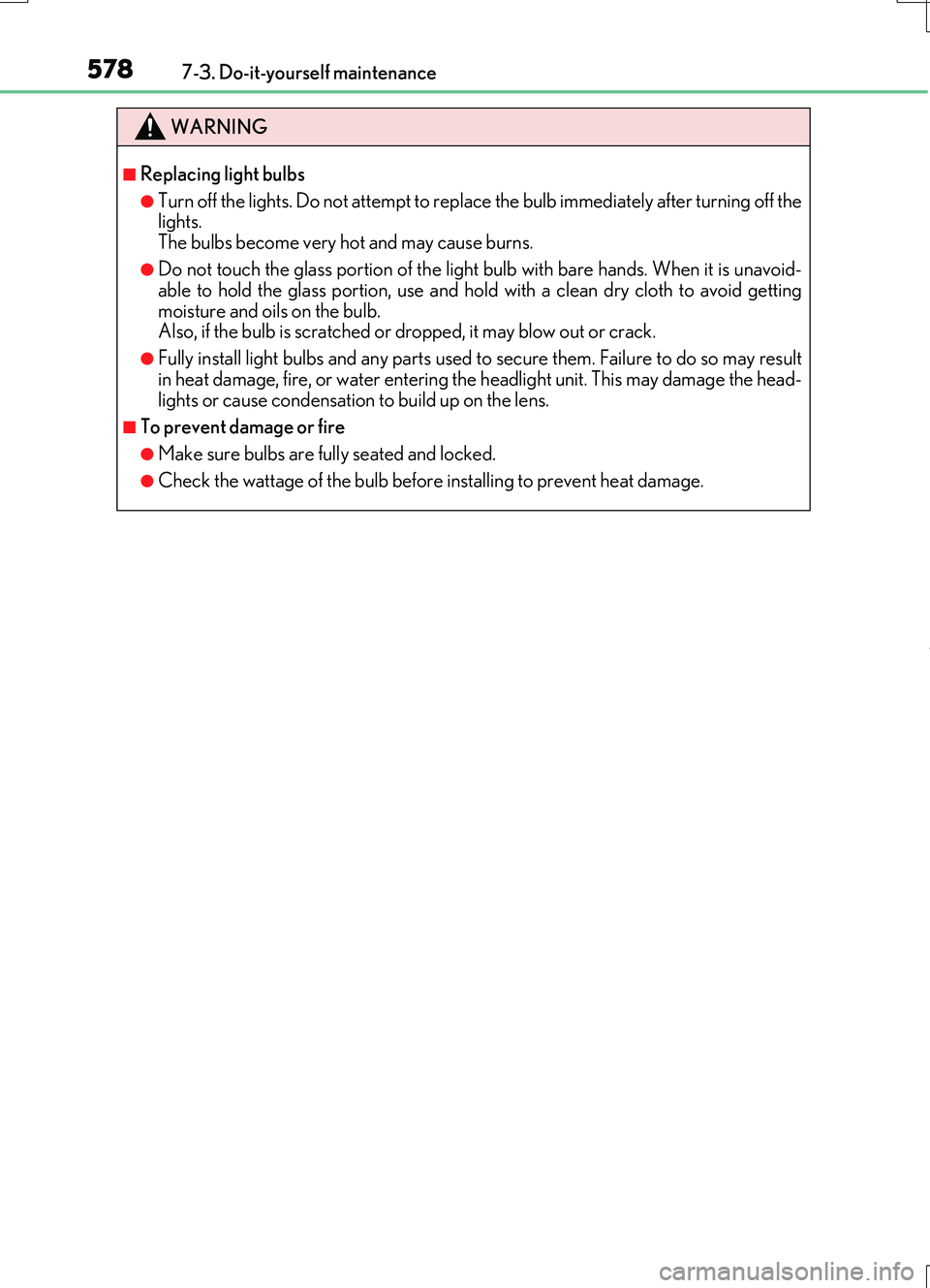

5787-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
WARNING
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoid- able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb. Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or wate r entering the headlight unit. This may damage the head- lights or cause condensation to build up on the lens.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.

579
8When trouble arises
RC200t_RC F_EE(OM24728E)
8-1. Essential information
Emergency flashers ................. 580
If your vehicle has to be
stopped in an
emergency.................................. 581
8-2. Steps to take in an
emergency
If your vehicle needs to be
towed ...........................................582
If you think something is
wrong...........................................589
Fuel pump shut off
system ..........................................590
If a warning light turns
on or a warning buzzer
sounds........................................... 591
If a warning message is
displayed .................................... 597
If you have a flat tire
(vehicles with a
spare tire) .................................... 619
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit) .................................... 633
If the engine will not start ........ 648
If the electronic key does
not operate properly .............650
If the vehicle battery is
discharged ................................. 654
If your vehicle overheats ......... 659
If the vehicle becomes
stuck ............................................. 664

580
RC200t_RC F_EE(OM24728E)
8-1. Essential information
Press the switch.
All the turn signals will flash. To turn them off, press the switch onceagain.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the
battery may discharge.
Emergency flashers
The emergency flashers are used to wa rn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.
