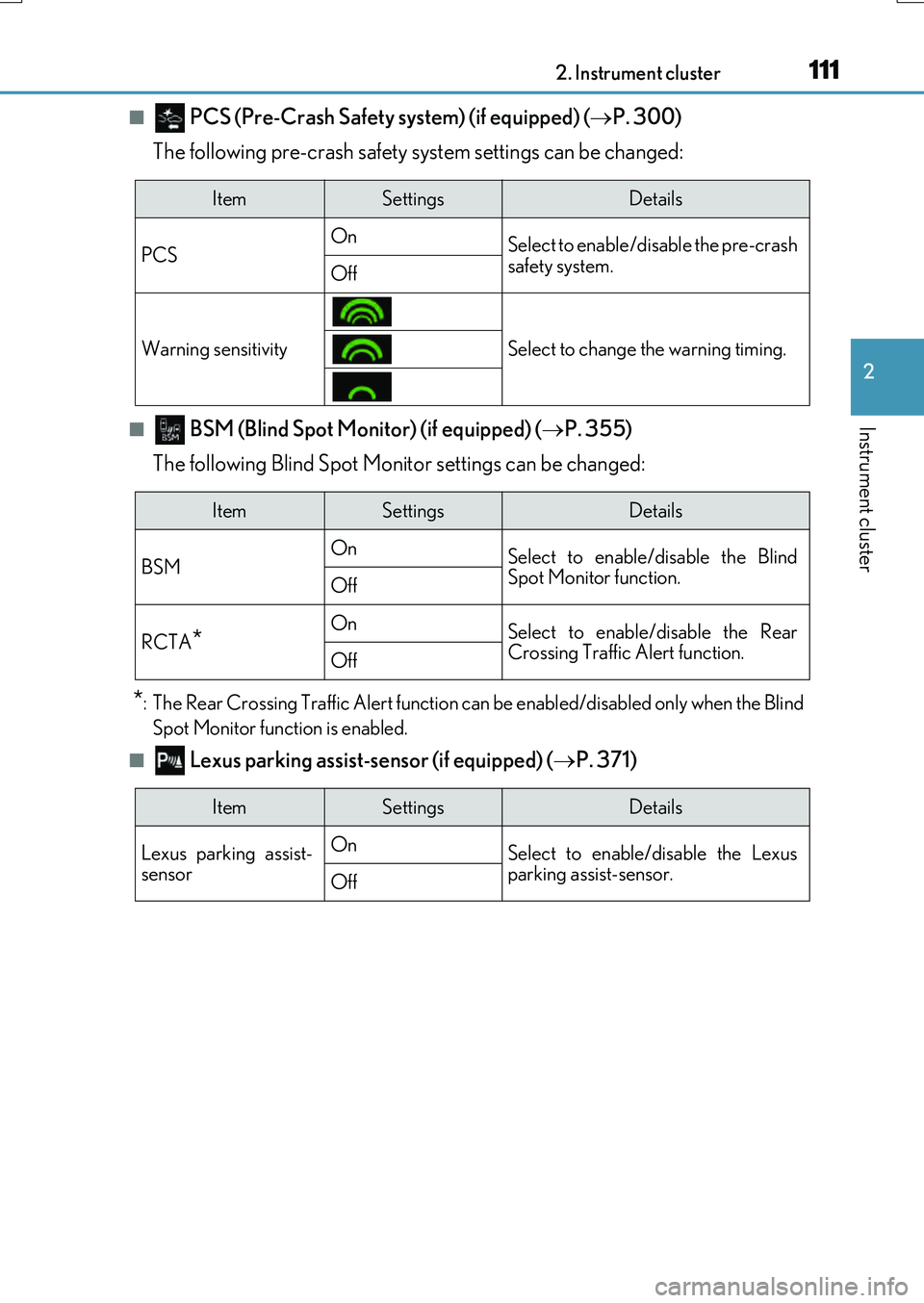

1112. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
■ PCS (Pre-Crash Safety system) (if equipped) (P. 300)
The following pre-crash safety system settings can be changed:
■ BSM (Blind Spot Monitor) (if equipped) ( P. 355)
The following Blind Spot Moni tor settings can be changed:
*: The Rear Crossing Traffic Alert function can be enabled/disabled only when the Blind
Spot Monitor function is enabled.
■ Lexus parking assist-sensor (if equipped) ( P. 371)
ItemSettingsDetails
PCS On Select to enable/disable the pre-crash
safety system.Off
Warning sensitivitySelect to change the warning timing.
ItemSettingsDetails
BSM On Select to enable/disable the Blind Spot Monitor function.Off
RCTA*OnSelect to enable/disable the RearCrossing Traffic Alert function.Off
ItemSettingsDetails
Lexus parking assist- sensor
On Select to enable/disable the Lexus parking assist-sensor. Off

1122. Instrument cluster
RX350/RX200t_EE_OM48F32E
■Speed Warning (P. 118)
The following speed warning settings can be changed:
■ RSA (Road Sign Assi st) (if equipped) (P. 324)
The following RSA settings can be changed:
*: Vehicles with a navigation system
ItemSettingsDetails
Speed warning On Select to enable/disable the speed
warning.Off
Speed setting30 to 260 km/h (20 to 160 mph)
Select to set the vehicle speed atwhich the speed warning will begin
operating.
ItemSettingsDetails
RSA On Select to enable/disable the RSA.Off
Excess speed
notification
No notificationSelect to set the notification method
used to warn the driver if the vehicle speed exceeds the speed displayedon the speed limit sign on the multi-
information display.
Display only
Display and buzzer
Excess speed notifica- tion level
10 km/h (5 mph)Select to set the speed threshold overwhich the excess speed notification
will start to operate when a speed limit sign is disp layed on the multi- information display.
5 km/h (3 mph)
2 km/h (1 mph)
Other notifications
No notificationSelect to set the notification method
used to warn the driver if the system detects the following:• The vehicle is overtaking when a no
overtaking sign is displayed on the multi-information display.• The vehicle is entering a no-entry
area when a no-entry sign is dis- played on the multi-information dis-play.*
Display only
Display and buzzer

1132. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
■ ICS (Intelligent Clearance Sonar) (if equipped) (P. 380)
■HUD (Head-up display) (if equipped) (P. 122)
The following head-up display settings can be changed:
ItemSettingsDetails
ICS On Select to enable/disable the Intelli- gent Clearance Sonar system.Off
ItemSettingsDetails
Brightness/Position
Select to adjust the brightness/posi-
tion of the head-up display.
• Press the / switch to adjust
the display brightness.
• Press the / switch to adjust
the display position.
Gauge information
No display
Select to set the content displayed on the head-up display.Eco Driving Indica-tor
Tachometer
Driving support
Navigation system
(if equipped)
Select to enable/disable head-up dis- play content.
Driving Assist (if equipped)
Compass (if equipped)
Audio system

1142. Instrument cluster
RX350/RX200t_EE_OM48F32E
■Clock (on multi-information display) (P. 96)
Vehicles with a navigation system
The following clock setting can be changed:
Vehicles with a Lexus Display Audio system
The following clock settings can be changed:
Press the / switch to select an item and then press the / switch to
change the setting or adjust the time.
ItemSettingsDetails
Display mode 12-hour display Select to set the display mode of the clock.24-hour display
ItemSettingsDetails
Display mode 12-hour display Select to set the display mode of the clock.24-hour display
Adjust timeSelect to adjust the hour/minute.

1152. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
■Vehicle settings
ItemSettingsDetails
PBD (Power back door) (if equipped) ( P. 151)
The following power back door settings can be changed:
System settings
All OnSelect to enable the power back door
system.
Touchless Sensor
Off (if equipped)Select to disable the touchless sensor.
(Other power back door functions
remain enabled.)
All OffSelect to disable the power back door
system.
Open position adjust-
mentSelect to set the open position at
which the power back door will stop
when opened automatically.
Volume
3 (Loud)Select to set the volume of the buzzer
which sounds when the power back
door is operated.
2 (Medium)
1 (Low)
Stop & Start system (if equipped) (  P. 345)
Stop & Start sys-
tem operation time
StandardSelect to set the length of time the
Stop & Start system will operate when
the “A/C” switch of the air condition-
ing system is on.
Extended

1162. Instrument cluster
RX350/RX200t_EE_OM48F32E
■Meter settings
TPMS (Tire pressure warning system) (P. 614)
Tire pressure warning system initialization
Select to initialize the Tire pressure warning system. To perform initializa-
tion, press and hold the switch.
Before performing initialization, make
sure to adjust the inflation pressure of each tire to the specified level. ( P. 616)
Oil maintenance
Engine oil maintenance data reset
Select to reset the engine oil mainte-
nance information (message indicat- ing maintenance is required anddistance until the next oil change)
after engine oil maintenance is per- formed. ( P. 604)
ItemSettingsDetails
ItemSettingsDetails
Language Select to change the language dis-
played.
UnitsSelect to change the units of measure displayed.
(Eco Driving
Indicator Light)
OnSelect to enable/disable the Eco Driv-
ing Indicator Light. ( P. 120)Off
Switch settingsSelect to display how to change the top screen.
Drive information 1Select to select up to 2 items that will
be displayed on each Drive informa- tion screen (Drive information 1screen, Drive information 2 screen,
and Drive information 3 screen) respectively. (Selectable items: P. 105)
Drive information 2
Drive information 3

1172. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
Pop-up display
Intersection guid-
ance (if equipped)
Select to enable/disable the pop-up
display.
Incoming calls
Duration (if
equipped)
Status (if
equipped)
Brightness adjust-
ment
Color (except F
SPORT models)2 available colorsSelect to set the color of the cursor on
the multi-information display.
Needle (F SPORT
models)3 available colorsSelect to set the tachometer needle
color.
Rev indicator (F
SPORT models)
OnSelect to enable/disable the Rev indi-
cator. ( P. 98)
Off
Rev setting
Select to set the desired engine speed
at which the Rev indicator will begin
to be displayed.
Selectable engine speed range:
RX350: 2000 r/min to 6500 r/min
RX200t: 2000 r/min to 6100 r/min
Rev peak (F SPORT
models)OnSelect to enable/disable the Rev peak.
(  P. 98)
Off
Default settingSelect to reset the meter display set-
tings to the default setting.
ItemSettingsDetails

1182. Instrument cluster
RX350/RX200t_EE_OM48F32E
◆Display items
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
To reset, display the desired trip meter and press and hold the “ODO/TRIP”
switch.
■ Distance until next engine oil change
Displays the distance the vehicle can be driven until an oil change is neces-
sary.
◆Pop-up display
In some situations the following will be temporarily displayed:
■ Stop & Start system operation time (current) (if equipped)
This display will be displayed when the engine is stopped due to the operation
of the Stop & Start system.
■ Distance until next engine oil change
Displays the distance until the next engine oil change. This display will be dis-
played in the following situations:
• When the engine switch is turned to IGNITION ON mode.
• When a warning message indicating that oil maintenance should be performed
soon or is required is displayed.
◆Speed warning
When set to on, the vehicle speed at which the speed warning will start oper-
ating will be displayed. If the vehicle exceeds the set speed, the speed display
will flash and a buzzer will sound.
• To display the odometer, etc. while the speed warning is set to on, press the “ODO/ TRIP” switch. (If the switch has not been operated for a certain amount of time, the
speed warning will be displayed.)
• The speed at which the speed warning w ill start operating can be changed on .
(  P. 110)
Odometer/trip meter display area

1192. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
Displays suggestions to the driver in the following situations. To select a response
to a displayed suggestion, use the meter control switches.
The suggestion function can be turned on/off. (Customizable features: P. 740)
■Suggestion to enable the po wer back door (if equipped)
If the power back door system is disabled (setting on set to off) and the
power back door switch on the instrument panel is operated, a suggestion
message will be displayed asking if you wish to enable the power back door
system. To enable the power back door system, select “Yes”.
After enabling the power back door system, press the power back door switch
again to open or close the power back door.
■Suggestion to close the power windows (linked to windshield wiper opera-
tion)
If the windshield wipers are operated with a power window open, a suggestion
message will be displayed asking if you wish to close the power windows. To
close all of the power windows, select “Yes”.
■Suggestion to close the po wer windows (linked to engine switch operation)
If the engine switch is turned off with a power window open, a suggestion
message will be displayed asking if you wish to close the power windows. To
close all of the power windows, select “Yes”.
Suggestion function

1202. Instrument cluster
RX350/RX200t_EE_OM48F32E
■Eco Driving Indicator
Eco Driving Indicator will not operate under the following conditions:
●The shift lever is in any position other than D.
●A paddle shift switch (if equipped) is operated.
●Sport mode is selected.
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
■Background color of the indicator/shift position display area (except F SPORT models)
The background color of the indicator/shift position display area is changed according to the driving mode as follows ( P. 417):
●Eco drive mode: Blue
●Sport mode: Red
■G-force display (if equipped)
●The G-force values may not be zero even when the vehicle is parked, such as when it is parked on an incline.
●Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed.
●If a battery terminal is disconnected and reconnected, the steering amount display may be disabled temporarily. After driving the ve hicle for a while, the display will be enabled.
■Suspension of the settings display
●Some settings cannot be changed while driving. When changing settings, park the vehicle in a safe place.
●If a warning message is displayed, operation of the settings display will be suspended.
Eco Driving Indicator Light During Eco-friendly acceleration (Eco driv-
ing), the Eco Driving In dicator Light will turn on. When the acceleration exceeds the Zoneof Eco driving, or when the vehicle is stopped,
the light turns off.
Eco Driving Indicator Zone Display Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco
driving, the right side of the Eco Driving Indi- cator Zone Display will illuminate.
Zone of Eco driving
1
2
3
4
