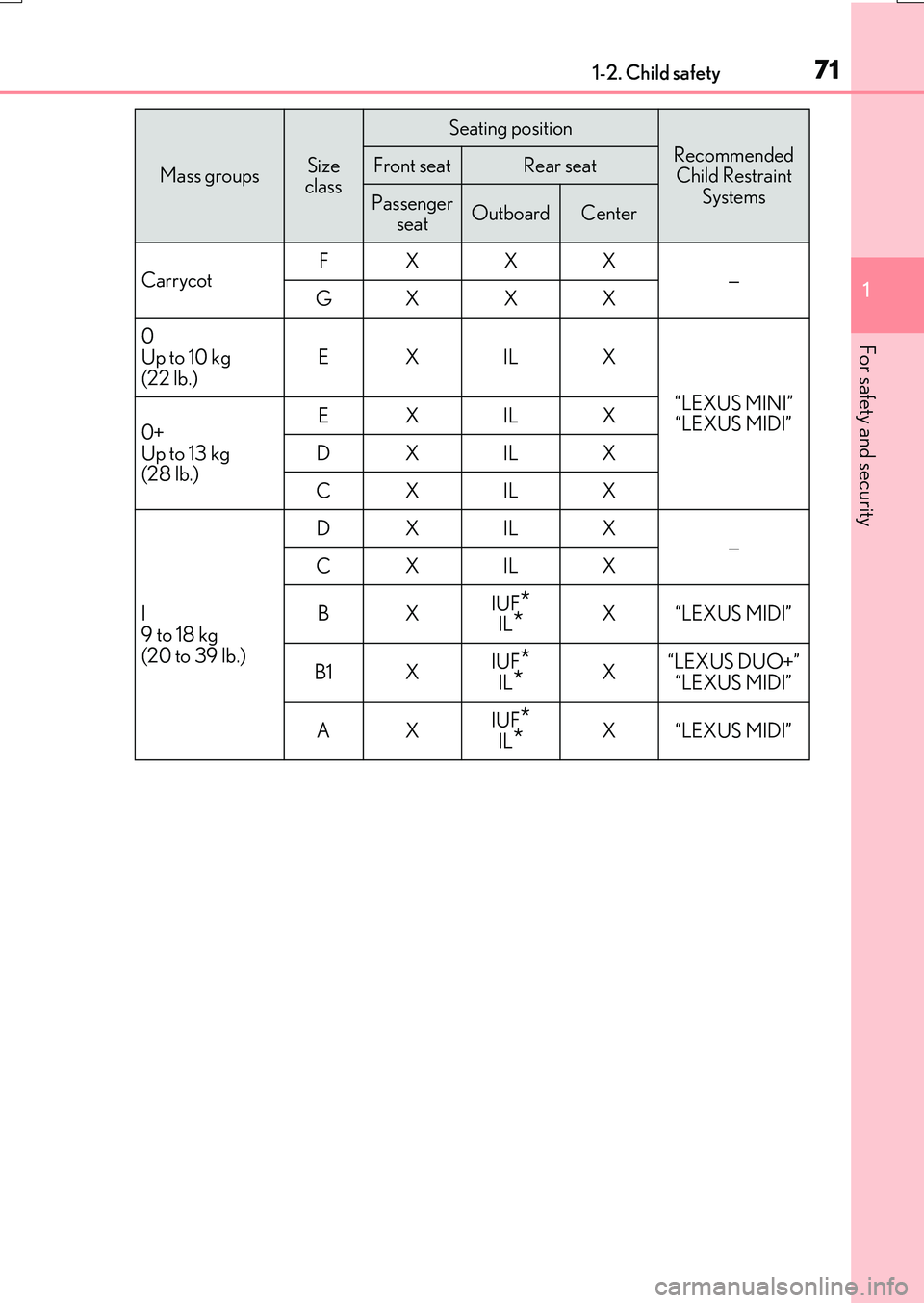

711-2. Child safety
1
For safety and security
RX350/RX200t_EE_OM48F32E
Mass groupsSize class
Seating position
Recommended Child Restraint
Systems
Front seatRear seat
Passenger seatOutboardCenter
Carrycot FXXX —GXXX
0 Up to 10 kg
(22 lb.)
EX IL X
“LEXUS MINI” “LEXUS MIDI” 0+
Up to 13 kg (28 lb.)
EX IL X
DX IL X
CX IL X
I
9 to 18 kg (20 to 39 lb.)
DX IL X —CX IL X
BX IUF*IL*X“LEXUS MIDI”
B1 X IUF*IL*X“LEXUS DUO+” “LEXUS MIDI”
AX IUF*
IL*X“LEXUS MIDI”

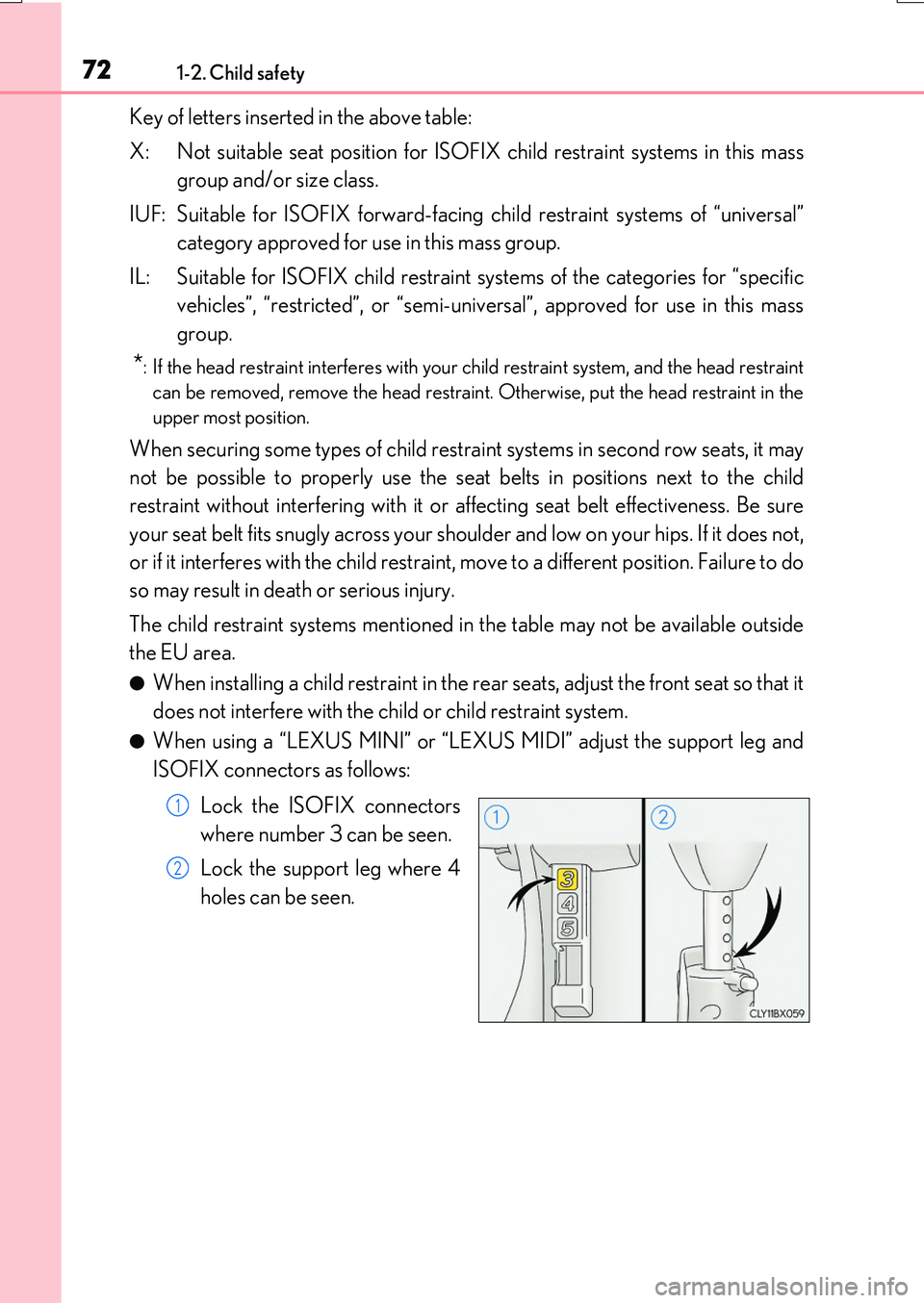

721-2. Child safety
RX350/RX200t_EE_OM48F32E
Key of letters inserted in the above table:
X: Not suitable seat position for ISOFIX child restraint systems in this mass
group and/or size class.
IUF: Suitable for ISOFIX forward-facing child restraint systems of “universal”
category approved for use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for “specific
vehicles”, “restricted”, or “semi-universal”, approved for use in this mass
group.
*: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint. Otherwise, put the head restraint in the
upper most position.
When securing some types of child restrain t systems in second row seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be sure
your seat belt fits snugly across your shoulder and low on your hips. If it does not,
or if it interferes with the child restraint, move to a different position. Failure to do
so may result in death or serious injury.
The child restraint systems mentioned in the table may not be available outside
the EU area.
●When installing a child restraint in the rear seats, adjust the front seat so that it
does not interfere with the child or child restraint system.
●When using a “LEXUS MINI” or “LEXUS MIDI” adjust the support leg and
ISOFIX connectors as follows:
Lock the ISOFIX connectors
where number 3 can be seen.
Lock the support leg where 4
holes can be seen.
1
2

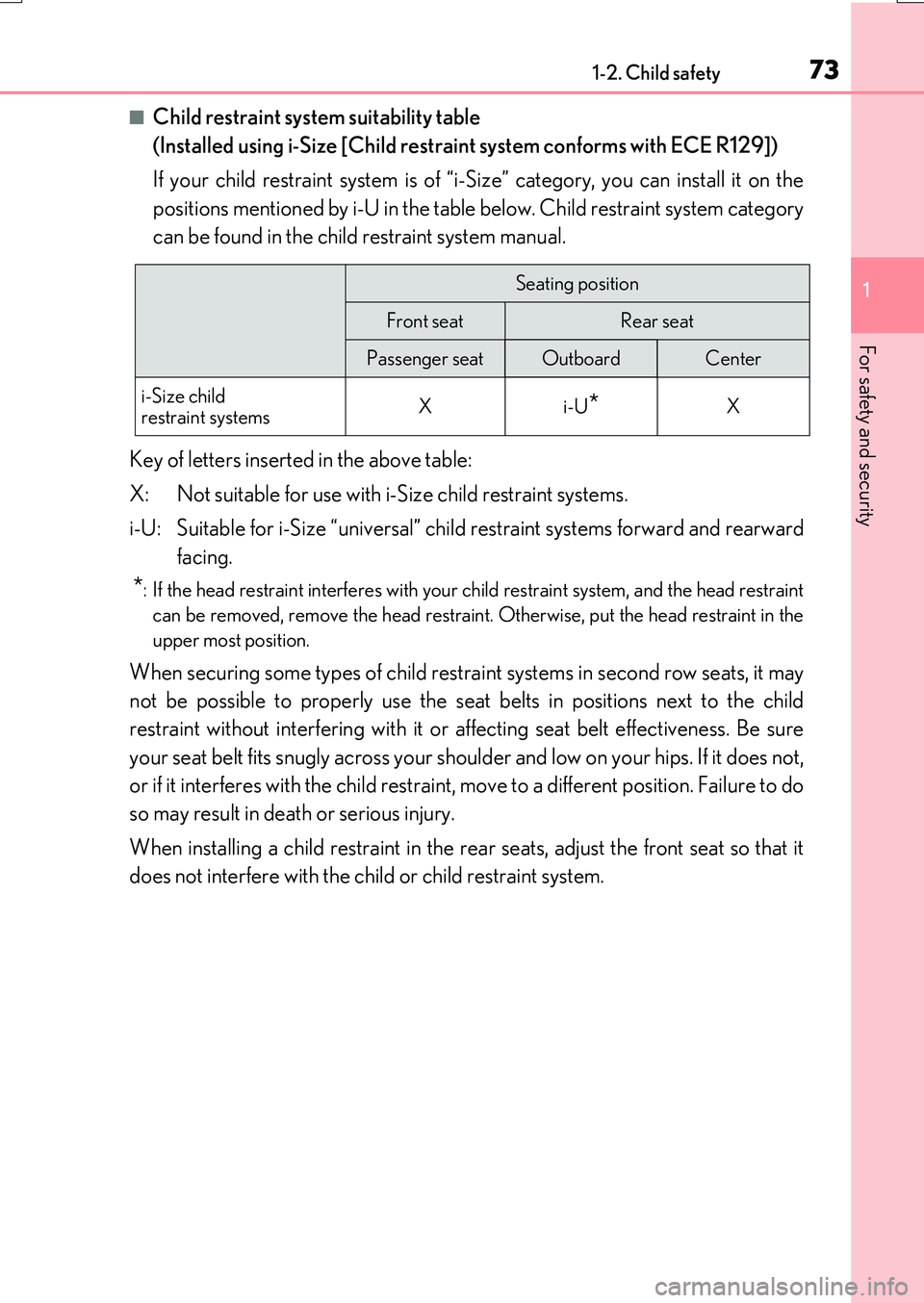

731-2. Child safety
1
For safety and security
RX350/RX200t_EE_OM48F32E
■Child restraint system suitability table
(Installed using i-Size [Child restraint system conforms with ECE R129])
If your child restraint system is of “i-Size” category, you can install it on the
positions mentioned by i-U in the table below. Child restraint system category
can be found in the child restraint system manual.
Key of letters inserted in the above table:
X: Not suitable for use with i-Size child restraint systems.
i-U: Suitable for i-Size “universal” child restraint systems forward and rearward
facing.
*: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint. Otherwise, put the head restraint in the
upper most position.
When securing some types of child restrain t systems in second row seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be sure
your seat belt fits snugly across your shoulder and low on your hips. If it does not,
or if it interferes with the child restraint, move to a different position. Failure to do
so may result in death or serious injury.
When installing a child restraint in the re ar seats, adjust the front seat so that it
does not interfere with the child or child restraint system.
Seating position
Front seatRear seat
Passenger seatOutboardCenter
i-Size child
restraint systemsXi-U*X

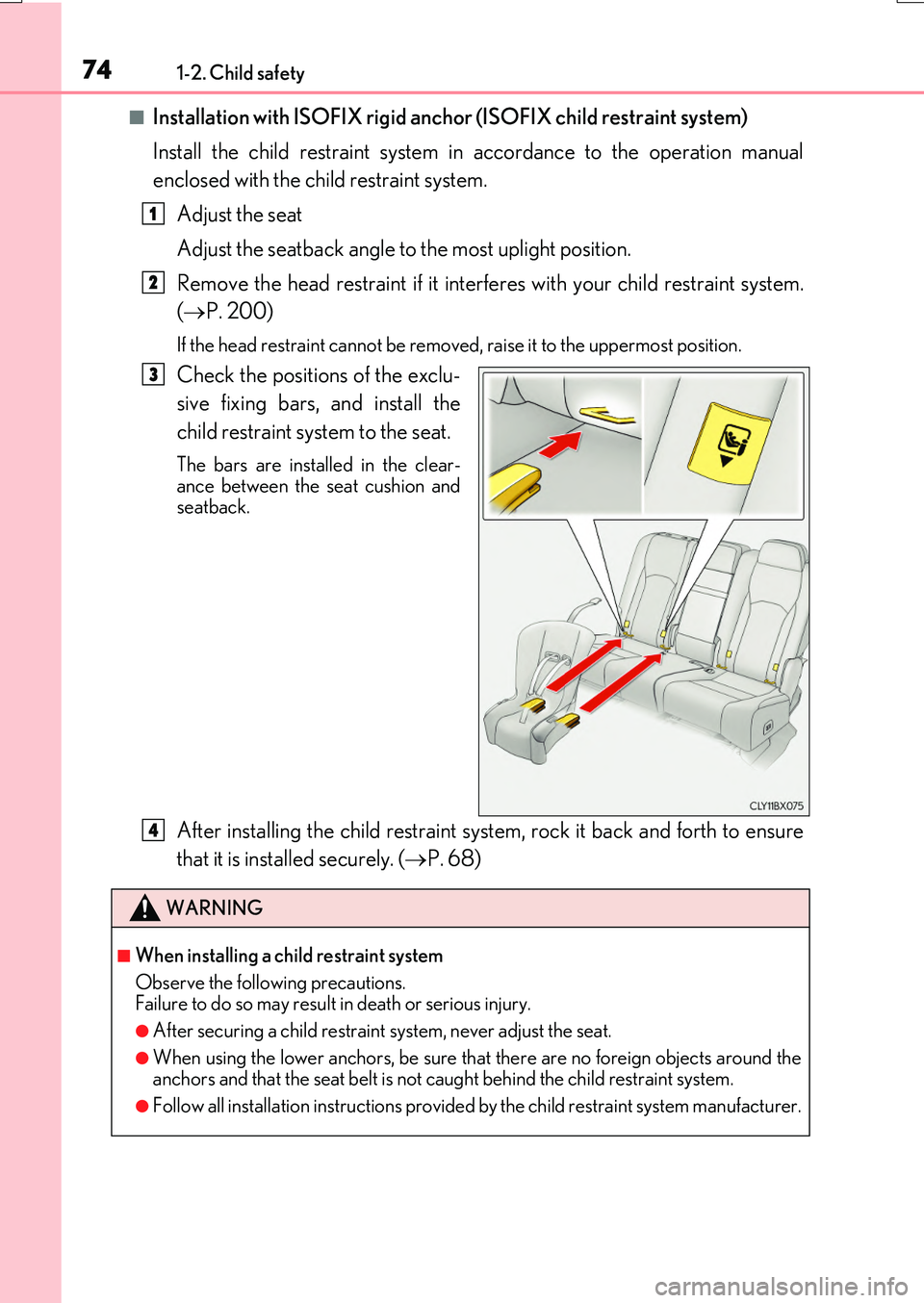

741-2. Child safety
RX350/RX200t_EE_OM48F32E
■Installation with ISOFIX rigid anchor (ISOFIX child restraint system)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Adjust the seat
Adjust the seatback angle to the most uplight position.
Remove the head restraint if it interferes with your child restraint system.
( P. 200)
If the head restraint cannot be removed, raise it to the uppermost position.
Check the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
The bars are installed in the clear-
ance between the seat cushion and seatback.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely. ( P. 68)
1
2
3
WARNING
■When installing a child restraint system
Observe the following precautions. Failure to do so may result in death or serious injury.
●After securing a child restraint system, never adjust the seat.
●When using the lower anchors, be sure that there are no foreign objects around the anchors and that the seat belt is not caught behind the child restraint system.
●Follow all installation instructions provided by the child restraint system manufacturer.
4

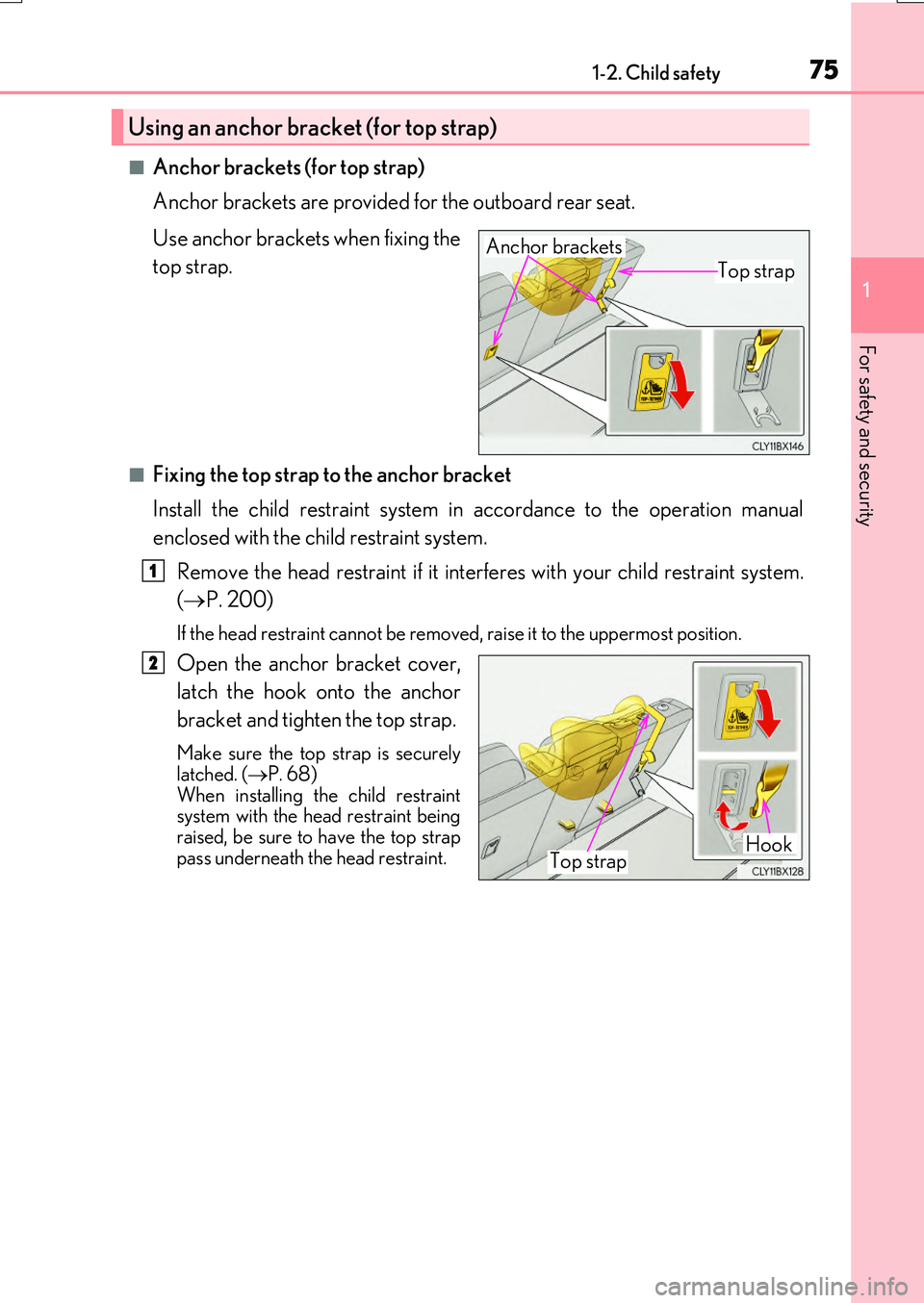

751-2. Child safety
1
For safety and security
RX350/RX200t_EE_OM48F32E
■Anchor brackets (for top strap)
Anchor brackets are provided for the outboard rear seat.
Use anchor brackets when fixing the
top strap.
■Fixing the top strap to the anchor bracket
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Remove the head restraint if it interferes with your child restraint system.
( P. 200)
If the head restraint cannot be removed, raise it to the uppermost position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched. ( P. 68) When installing th e child restraint system with the head restraint being
raised, be sure to have the top strap pass underneath the head restraint.
Using an anchor bracket (for top strap)
Top strap
Anchor brackets
1
Hook Top strap
2

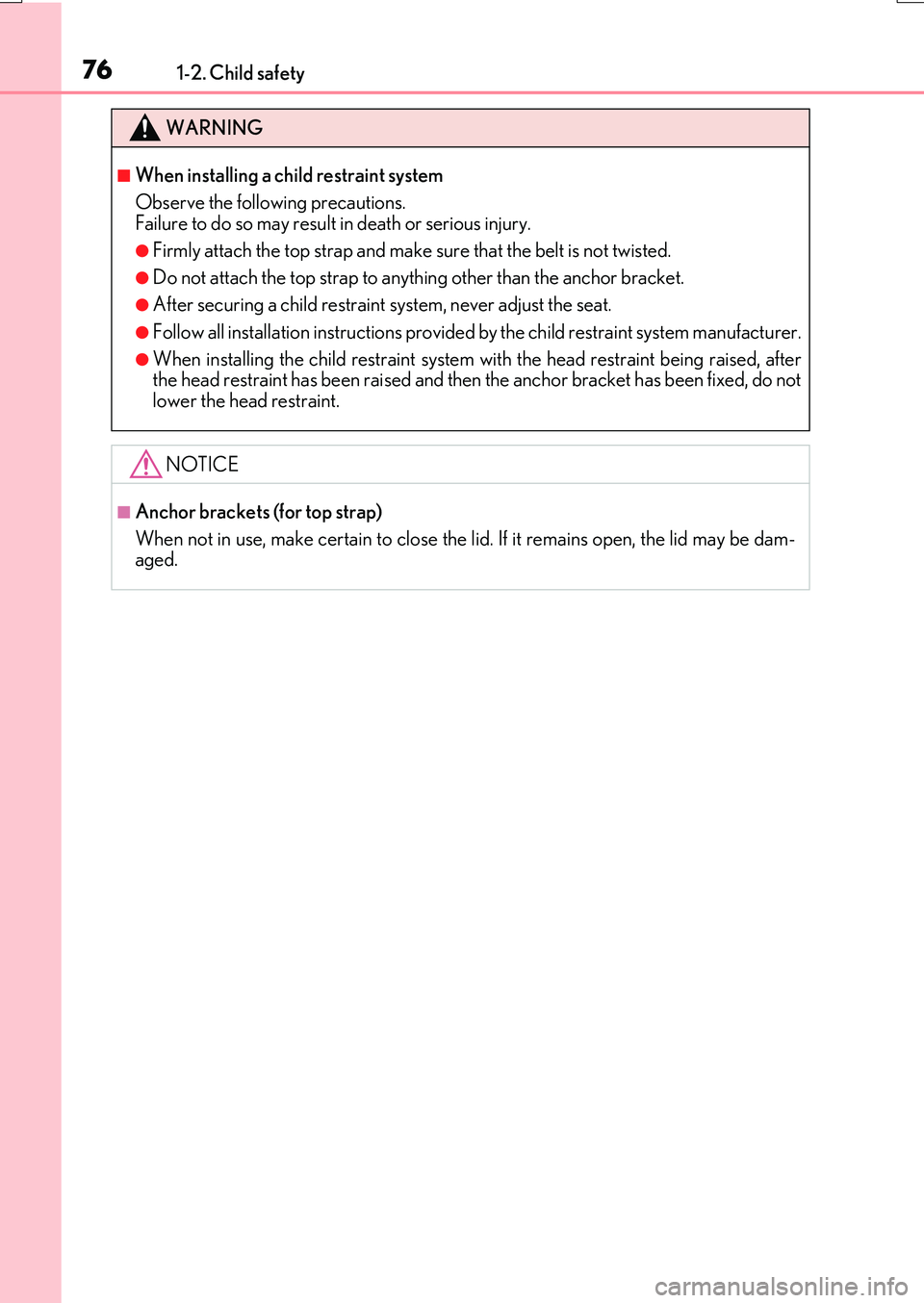

761-2. Child safety
RX350/RX200t_EE_OM48F32E
WARNING
■When installing a child restraint system
Observe the following precautions. Failure to do so may result in death or serious injury.
●Firmly attach the top strap and make sure that the belt is not twisted.
●Do not attach the top strap to anything other than the anchor bracket.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufacturer.
●When installing the child restraint system with the head restraint being raised, after the head restraint has been raised and then the anchor bracket has been fixed, do not
lower the head restraint.
NOTICE
■Anchor brackets (for top strap)
When not in use, make certain to close the lid. If it remains open, the lid may be dam- aged.

77
1
For safety and security
RX350/RX200t_EE_OM48F32E
1-3. Theft deterrent system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key registered to the security system (key with a built-in transponder chip) of another vehicle
Engine immobilizer system
The vehicle’s keys have built-in tran sponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prev ent vehicle theft but does not guarantee
absolute security agai nst all vehicle thefts.

781-3. Theft deterrent system
RX350/RX200t_EE_OM48F32E

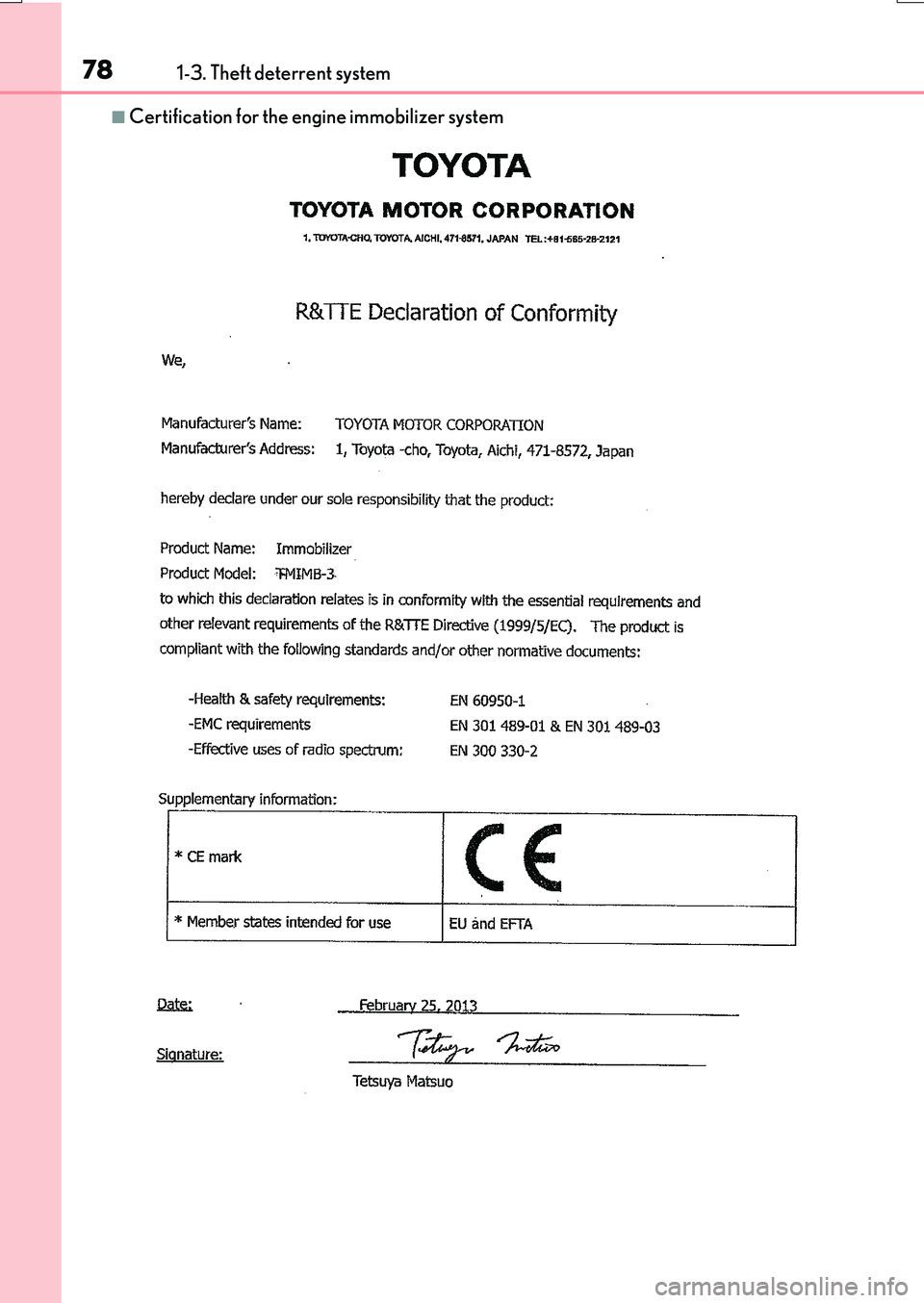

■Certification for the engine immobilizer system

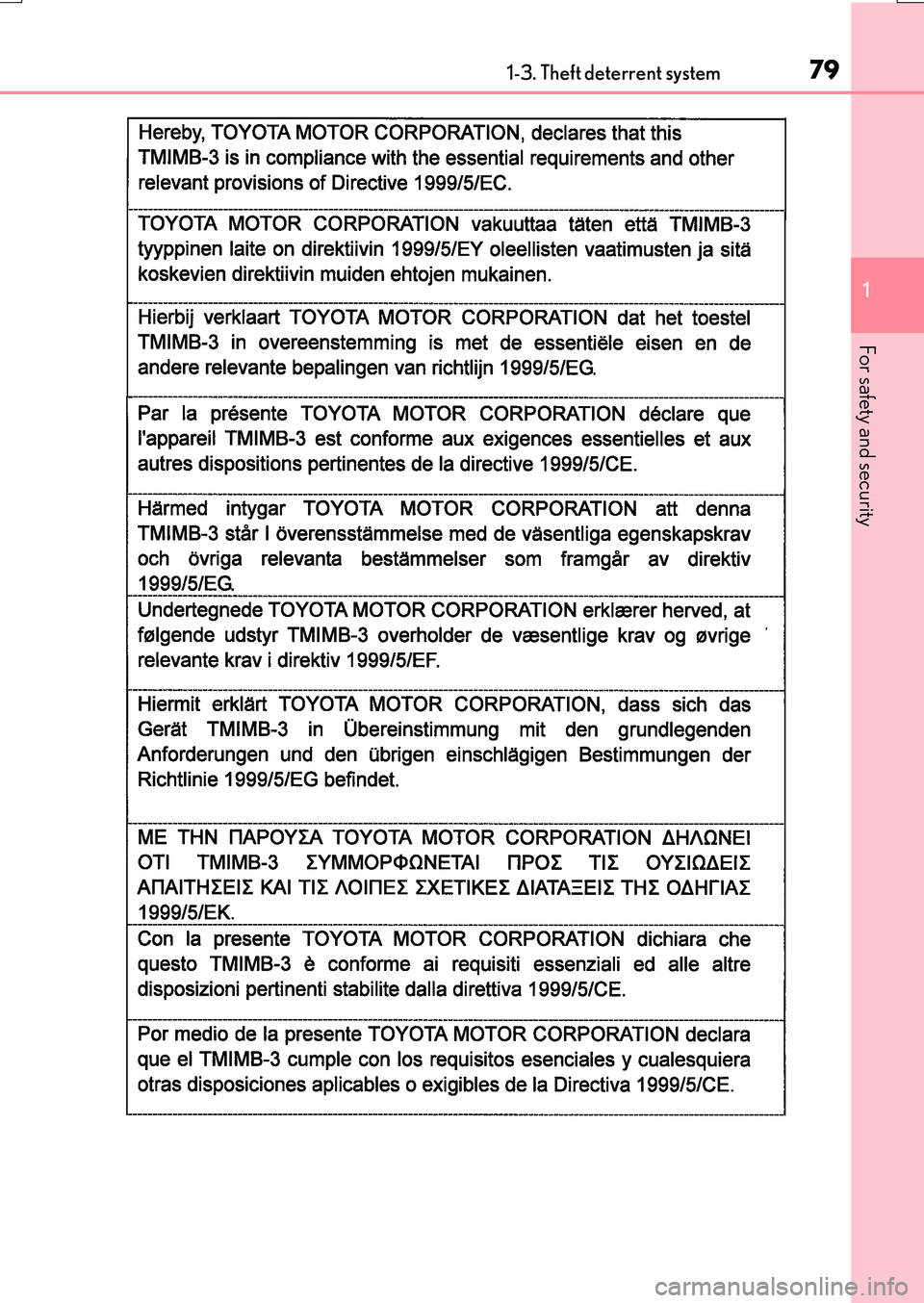

791-3. Theft deterrent system
1
For safety and security
RX350/RX200t_EE_OM48F32E

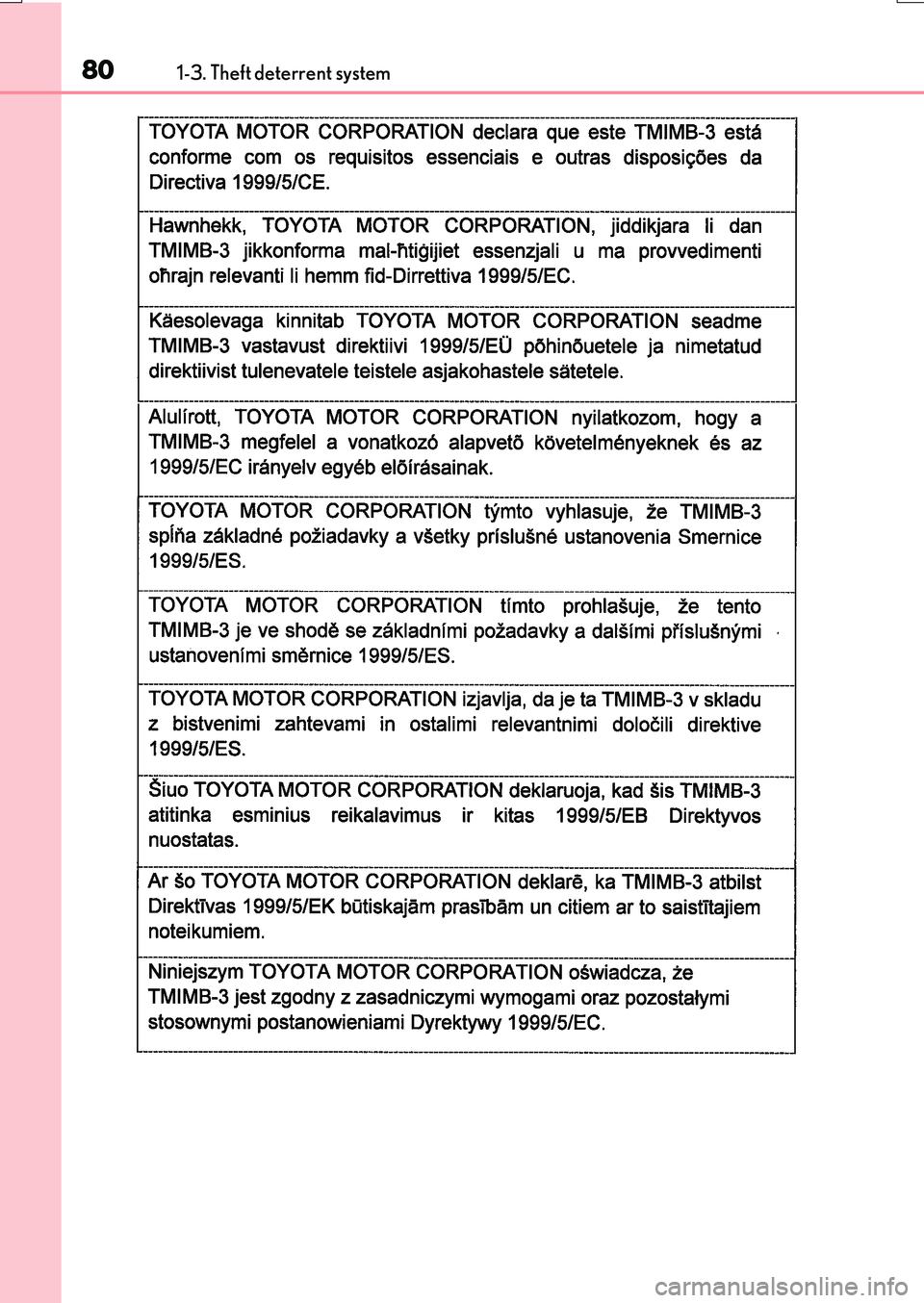

801-3. Theft deterrent system
RX350/RX200t_EE_OM48F32E
