LEXUS RX200T 2017 Owners Manual

912. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1Brake system warning light
( P. 666)
(if equipped)
LKA indicator ( P. 667)
*1
Brake system warning light
( P. 666)*1
Slip indicator ( P. 668)
*1
(if equipped)
Charging system warning
light ( P. 666)
*1, 3
(if equipped)
PCS warning light
( P. 668)
*1
Malfunction indicator lamp
( P. 666)
*1, 3
(if equipped)
ICS OFF indicator
( P. 668)
*1
SRS warning light
( P. 667)
*1, 2, 3
(if equipped)
Stop & Start cancel
indicator ( P. 669)
*1
ABS warning light
( P. 667) Low fuel level warning light
(
 P. 669)
*3
Parking brake indicator
( P. 667) Driver’s and front
passenger’s seat belt
reminder light (
P. 669)
*1, 3
Brake hold operated
indicator ( P. 667)
*4
(if equipped)
Rear passengers’ seat
belt reminder light
( P. 669)
*1Electric power steering
system warning light
( P. 667)*1Tire pressure warning light
( P. 669)
*1Electric power steering
system warning light
( P. 667)*1
Master warning light
( P. 669)

922. Instrument cluster
RX350/RX200t_EE_OM48F32E
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
*2: When the start-up display is displayed on the multi-information display, this light may
not turn on even though the engine swit ch has been turned to IGNITION ON mode.
*3: The light flashes to indicate a malfunction.
*4: This light illuminates on the center panel.
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator ( P. 258)
Cruise control “SET”
indicator ( P. 329, 341)
Tail light indicator
( P. 265)(if equipped)
LKA indicator (P. 313)
Headlight high beam indicator ( P. 265)(if equipped)
LKA indicator (P. 313)
*1
(if equipped)
Automatic High Beam
indicator ( P. 274) Adaptive High-beam System indicator ( P. 269)
*5
(if equipped)
LKA indicator (P. 313)
Front fog light indicator ( P. 278)

(if equipped)
Lexus parking
assist-sensor indicator ( P. 371)
Rear fog light indicator
( P. 278)
*1, 6
(if equipped)
ICS OFF indicator
( P. 383)
Cruise control indicator
( P. 329, 341)(if equipped)
“BSM” indicator (P. 355)
(if equipped)
Radar cruise control indicator ( P. 329) (if equipped)
“RCTA” indicator ( P. 355)

932. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
*3, 4
(if equipped)
BSM outside rear view
mirror indicators
(  P. 355)*1
Brake hold operated
indicator ( P. 263)
*1, 5
Slip indicator
(  P. 424)
(if equipped)
Gear Shift Indicator
(  P. 254)
*1, 6
VSC OFF indicator
(  P. 425)*1Eco Driving Indicator Light
(  P. 120)
*1, 6
(if equipped)
PCS warning light
(  P. 304)
*7
Security indicator
(  P. 77, 83)
*1, 2
(if equipped)
Stop & Start indicator
(  P. 345)
*1
(AWD
models only)
All-wheel drive lock
indicator ( P. 421)
*1, 2, 6
(if equipped)
Stop & Start cancel
indicator ( P. 348)
*8
Low outside temperature
indicator ( P. 96)
Parking brake indicator
(  P. 259)
*1, 7“PASSENGER AIR BAG”
indicator ( P. 51)
*1
Brake hold standby
indicator ( P. 263)

942. Instrument cluster
RX350/RX200t_EE_OM48F32E
●Drive mode indicators
Except F SPORT models
F SPORT models
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
*2: When the start-up display is displayed on the multi-information display, this light may
not turn on even though the engine swit ch has been turned to IGNITION ON mode.
*3: In order to confirm operation, the BSM outside rear view mirror indicators illuminate
in the following situations:
• When the BSM function is enabled on of the multi-information display, the
engine switch is turned to IGNITION ON mode.
• When the engine switch is in IGNITION ON mode, the BSM function is enabled
on of the multi-information display.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional. Eco drive mode indicator
(  P. 417)
(if equipped)
“SPORT” indicator
(  P. 417)
(if equipped)
“SPORT S” indicator
(  P. 417)
(if equipped)
“SPORT S+” indicator
(  P. 417)
(if equipped)
“Customize” indicator
(  P. 417)
Eco drive mode indicator
(  P. 417) “SPORT S” indicator
(  P. 417)
“SPORT S+” indicator
(  P. 417) “CUSTOMIZE” indicator
(  P. 417)

952. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E

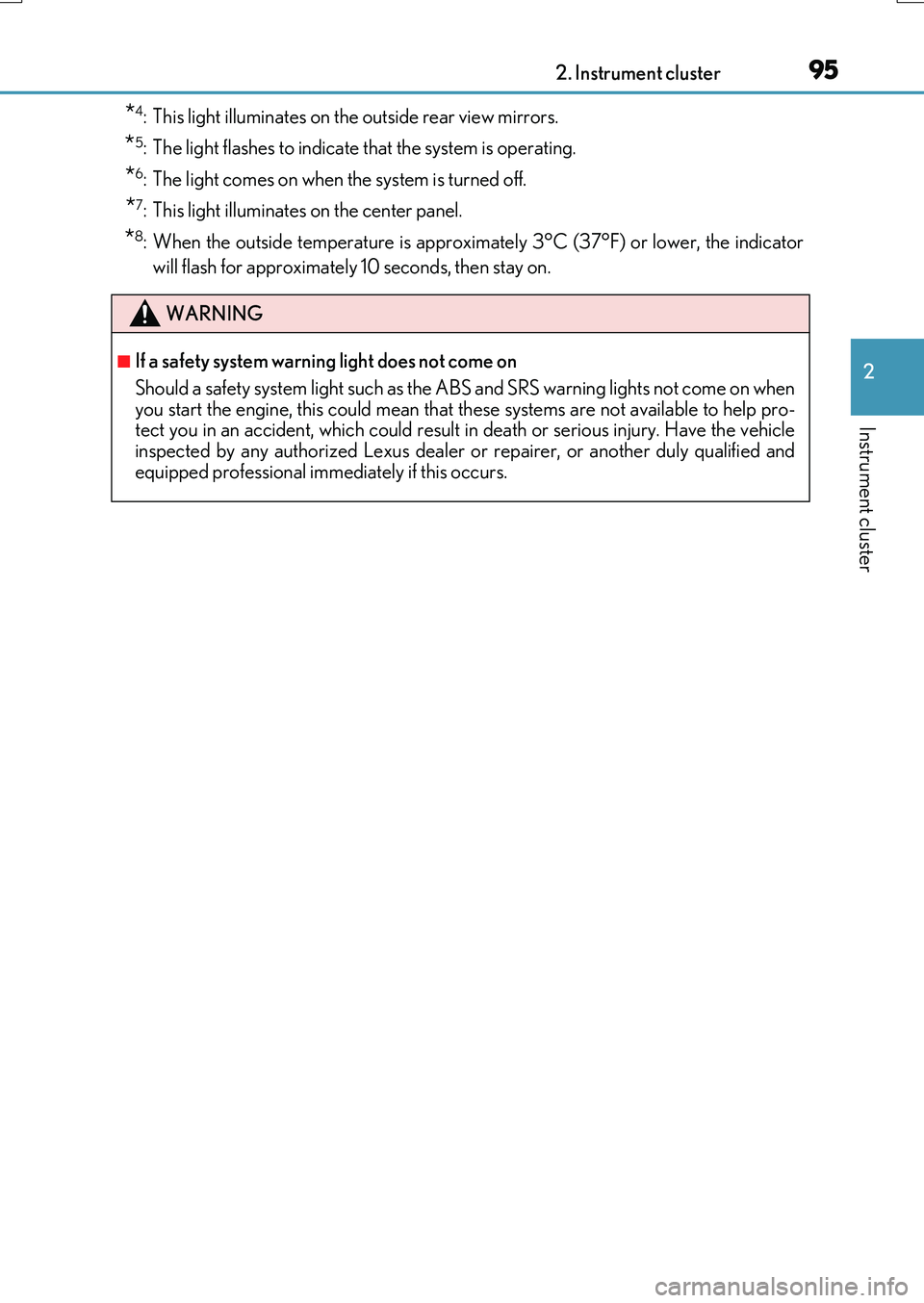

*4: This light illuminates on the outside rear view mirrors.
*5: The light flashes to indicate that the system is operating.
*6: The light comes on when the system is turned off.
*7: This light illuminates on the center panel.
*8: When the outside temperature is approximately 3°C (37°F) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not come on when you start the engine, this could mean that these systems are not available to help pro-tect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately if this occurs.

962. Instrument cluster
RX350/RX200t_EE_OM48F32E

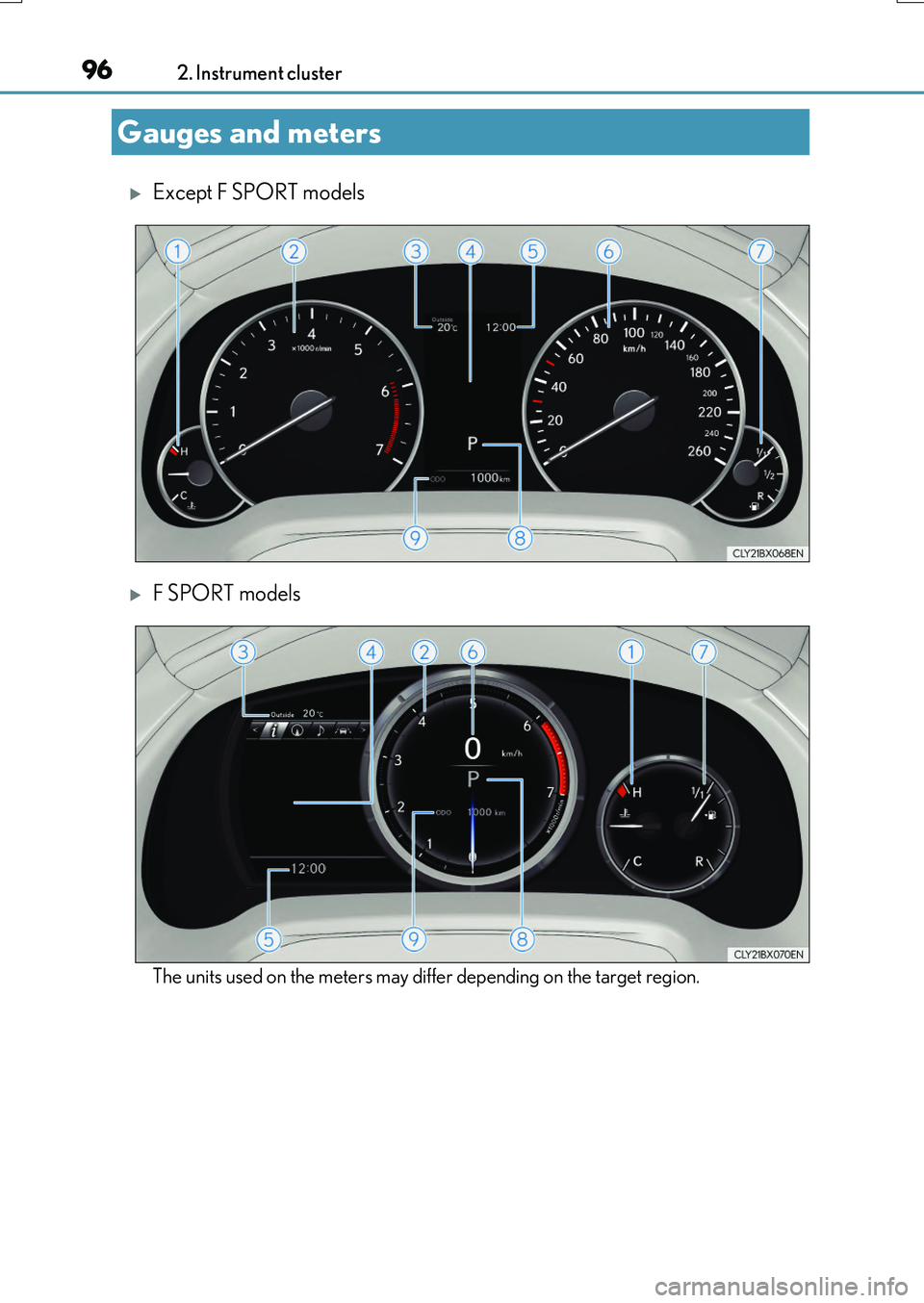

Except F SPORT models
F SPORT models
The units used on the meters may differ depending on the target region.
Gauges and meters

972. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
F SPORT models: When sport mode is selected for the driving mode, the periph-
ery of the tachometer will change color and the scale of the tachometer will be emphasized.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C(122°F). Low outside temperature indicator comes on when the ambient tempera-
ture is 3°C (37°F) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 100)
Displays warning messages in case of a malfunction ( P. 673)
Clock
Vehicles with a navigation system: Time displayed is linked to the analog clock on the instrument panel. (P. 568)
Vehicles with a Lexus Display Audio system:
Time displayed on the clock can be adju sted on of the multi-information dis-
play. ( P. 110)
Speedometer
Fuel gauge
Shift position display ( P. 251)
Odometer and trip meter (P. 118)
1
2
3
4
5
6
7
8
9

982. Instrument cluster
RX350/RX200t_EE_OM48F32E
■Rev indicator (F SPORT models)
When the engine reaches a set
speed, a ring-shaped indicator will
be displayed on the tachometer.
The desired engine speed at which the Rev indicator will begin to be dis-
played can be set on of the multi-
information display. ( P. 110)
■Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 rpm, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 second.
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
The brightness of the instrument panel lights can be adjusted individually for
day mode and night mode*.
*: Day mode and night mode: P. 99
Instrument panel light control
1
2

992. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Brightness of the meters (day mode and night mode)
The brightness of the meters is changed between day mode and night mode.
●Day mode: When the tail lights are off or wh en the tail lights are on but the surrounding area is bright
●Night mode: When the tail lights are on and the surrounding area is dark
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or thedisplay may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph]) • When the outside temperature has changed suddenly (at the entrance/exit of agarage, tunnel, etc.)
●When “ ” or “E” is displayed, the system may be malfunctioning. Take your vehicle to any authorized Lexus de aler or repairer, or another duly qualified
and equipped professional.
■Clock settings screen (vehicles with a navigation system only)
If the clock adjustment screen is displayed continuously when attempting to change the
clock settings, the system may be malfunctioning. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
■Customization
Some functions can be customized. ( P. 110)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( P. 718)

1002. Instrument cluster
RX350/RX200t_EE_OM48F32E
The multi-information display presents the driver with a variety of driving-related
data, such as the current outside temperature. The multi-information display can
also be used to change the display settings and other settings.
Except F SPORT models
Menu icon display area
Displays the following items.
When a menu icon is not selected, the outside temperature and clock are displayed. •Menu icons ( P. 104) • Outside temperature ( P. 96)
•Clock ( P. 96)
Content display area
A variety of information can be displayed by selecting a menu icon. Additionally, warning or suggestion/advice pop-up displa ys will be displayed in some situations. • Menu icon content ( P. 104)
• Suggestion function ( P. 119) • Warning message ( P. 673)
Indicator/shift position display area
Displays the following items: •Indicators ( P. 90)
• Shift position display ( P. 251) • RSA (Road Sign Assist) (if equipped) ( P. 324)
Multi-information display
Summary of functions
1
2
3
